Peugeot 308 2017 Repair Manual

59
308_en_Chap02_ouvertures_ed01-2016

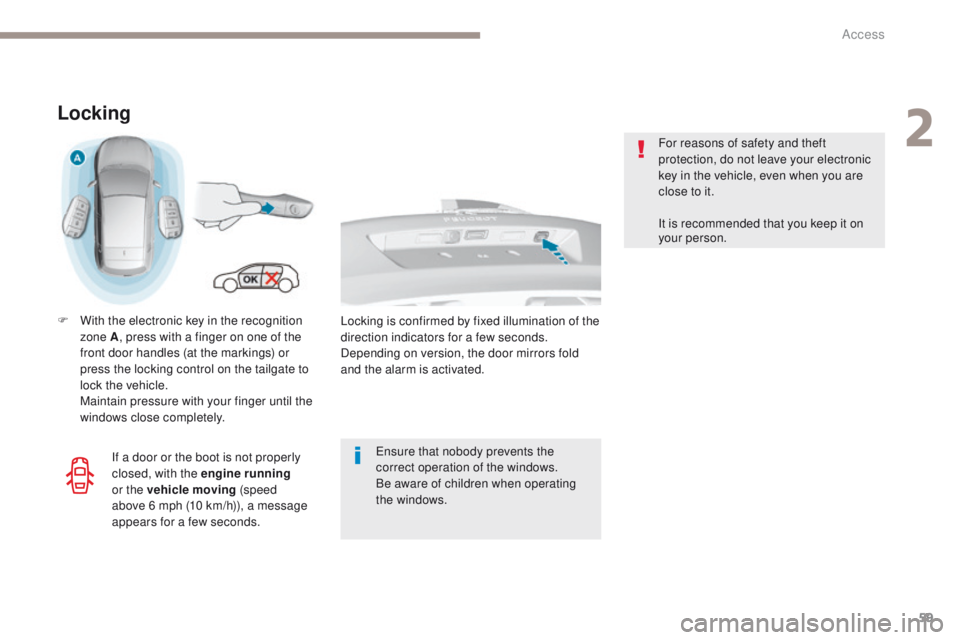

Locking
F With the electronic key in the recognition zone A , press with a finger on one of the
front door handles (at the markings) or
press the locking control on the tailgate to
lock the vehicle.
M

aintain pressure with your finger until the
windows close completely.
en

sure that nobody prevents the
correct operation of the windows.
Be aware of children when operating
the windows. For reasons of safety and theft
protection, do not leave your electronic
key in the vehicle, even when you are
close to it.
It is recommended that you keep it on
your person.
If a door or the boot is not properly
closed, with the engine running
or the vehicle moving (speed
above 6
mph (10 km/h)), a message
appears for a few seconds. Locking is confirmed by fixed illumination of the
direction indicators for a few seconds.
Depending on version, the door mirrors fold
and the alarm is activated.
2
Access

60
308_en_Chap02_ouvertures_ed01-2016

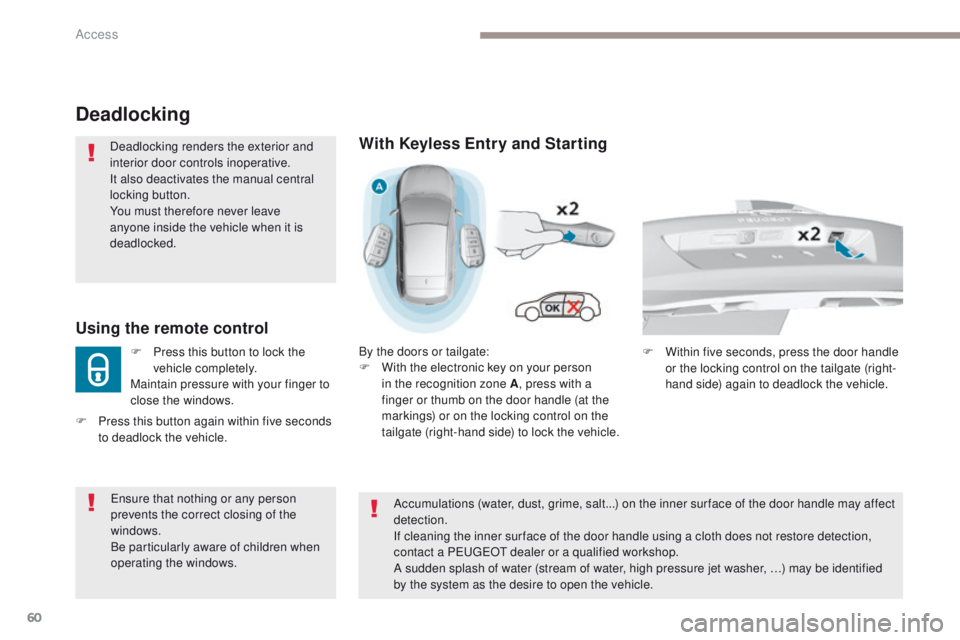

Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
You must therefore never leave
anyone inside the vehicle when it is
deadlocked.
Using the remote control
F Press this button to lock the vehicle completely.
Maintain pressure with your finger to
close the windows.
With Keyless Entry and Starting
By the doors or tailgate:
F W ith the electronic key on your person
in the recognition zone A , press with a
finger or thumb on the door handle (at the
markings) or on the locking control on the
tailgate (right-hand side) to lock the vehicle.
en

sure that nothing or any person
prevents the correct closing of the
windows.
Be particularly aware of children when
operating the windows.
F

P

ress this button again within five seconds
to deadlock the vehicle.
Accumulations (water, dust, grime, salt...) on the inner sur face of the door handle may affect
detection.
If cleaning the inner sur face of the door handle using a cloth does not restore detection,
contact a P
e

uge
Ot
dealer or a qualified workshop.
A sudden splash of water (stream of water, high pressure jet washer, …) may be identified
by the system as the desire to open the vehicle. F
W ithin five seconds, press the door handle
or the locking control on the tailgate (right-
hand side) again to deadlock the vehicle.
Access

61
308_en_Chap02_ouvertures_ed01-2016

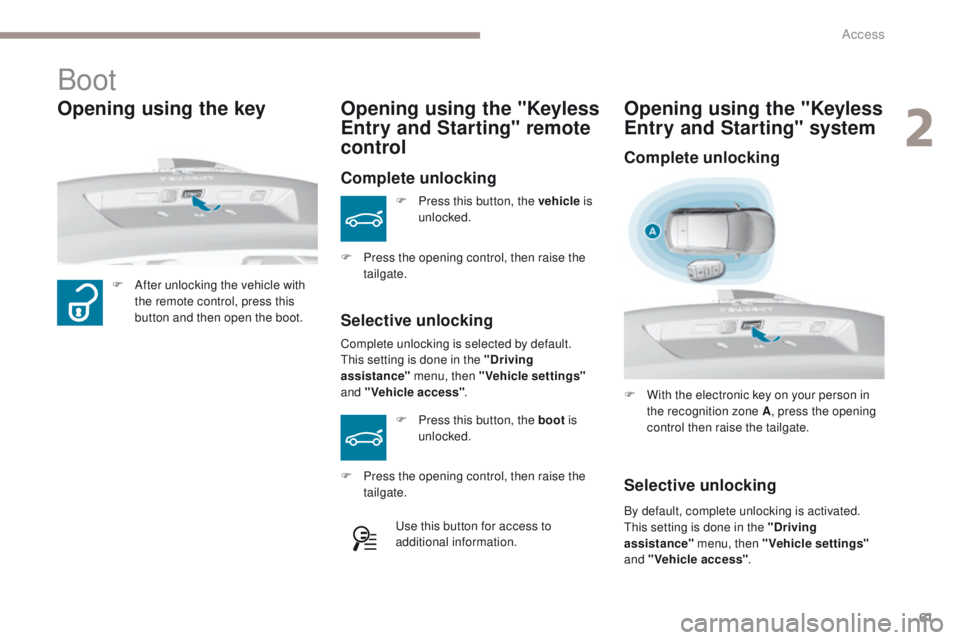

Boot
F After unlocking the vehicle with the remote control, press this
button and then open the boot.
Opening using the "Keyless
Entry and Starting" remote
control
F Press this button, the vehicle is
unlocked.
Opening using the key
Complete unlocking is selected by default.th is setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
Complete unlocking
Selective unlocking
F Press this button, the boot is
unlocked.
us

e this button for access to
additional information.
F

P

ress the opening control, then raise the
tailgate.
F

P

ress the opening control, then raise the
tailgate. F

W
ith the electronic key on your person in
the recognition zone A , press the opening
control then raise the tailgate.
Opening using the "Keyless
Entry and Starting" system
By default, complete unlocking is activated.th is setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
Selective unlocking Complete unlocking
2
Access

62
308_en_Chap02_ouvertures_ed01-2016

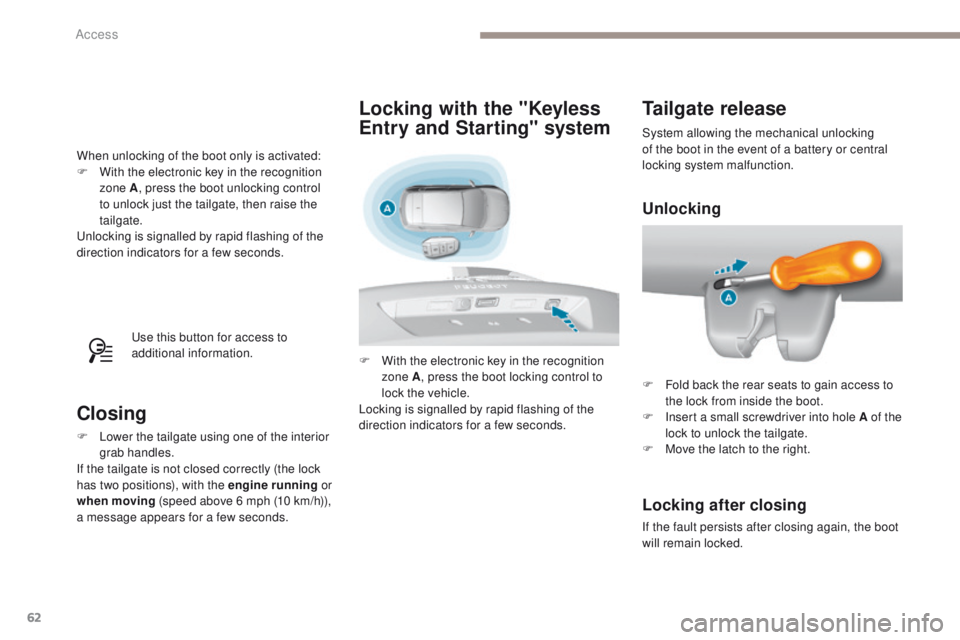

When unlocking of the boot only is activated:
F W ith the electronic key in the recognition
zone A , press the boot unlocking control
to unlock just the tailgate, then raise the
tailgate.
un

locking is signalled by rapid flashing of the
direction indicators for a few seconds.
us

e this button for access to
additional information.
Closing
F Lower the tailgate using one of the interior grab handles.
If the tailgate is not closed correctly (the lock
has two positions), with the engine running or
when moving (speed above 6 mph (10 km/h)),
a message appears for a few seconds.
Tailgate release
F Fold back the rear seats to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F

M
ove the latch to the right.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
F

W

ith the electronic key in the recognition
zone A , press the boot locking control to
lock the vehicle.
Locking is signalled by rapid flashing of the
direction indicators for a few seconds.
Locking with the "Keyless
Entry and Starting" system
Unlocking
Access

63
308_en_Chap02_ouvertures_ed01-2016
Back-up key
Unlocking / Locking using the integral key with Keyless
Entry and Starting
the integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
-
b
attery flat, vehicle battery discharged or
disconnected, ...
-

v
ehicle located in an area with strong
electromagnetic signals.
F

M
aintain a pull on button 1 , to extract the
integral key 2 . F

I
nsert the integral key in the door lock, then
turn it to the rear.
Unlocking the driver's door
F Insert the integral key in the door lock, then turn it to the front. F

O
pen the doors.
F
F
or the rear doors, check that the child lock
is not on.
F
I
nsert the integral key in the latch located
on the edge of the door and turn it an
eighth of a turn to the right for the right-
hand door, and to the left for the left-hand
d o o r.
F

C
lose the doors and check that the vehicle
has locked correctly from the outside.
If the alarm is activated, the audible
signal triggered on opening a door
with the key (integral with the remote
control) will stop when the ignition is
switched on.
Unlocking the passenger doors
F Pull the interior door opening control.
For more information on the Child lock
,
refer to the corresponding section.
Locking the driver's door Locking the passenger doors
2
Access

64
308_en_Chap02_ouvertures_ed01-2016

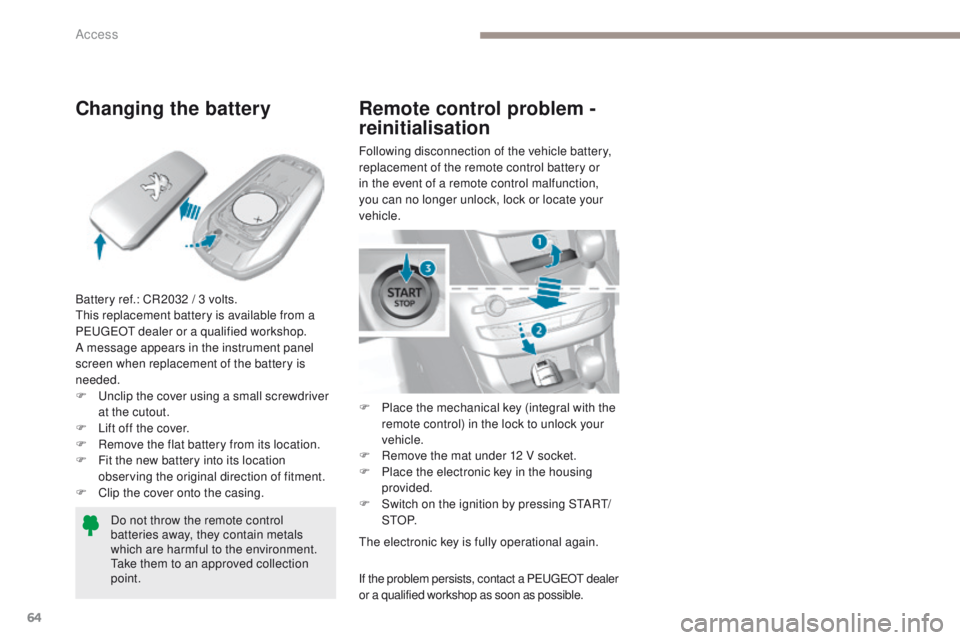

Changing the battery
Battery ref.: CR2032 / 3 volts.this replacement battery is available from a
P
e

uge
Ot
dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
F
u
n
clip the cover using a small screwdriver
at the cutout.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
ta

ke them to an approved collection
point. Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
Remote control problem -
reinitialisation
F Place the mechanical key (integral with the
remote control) in the lock to unlock your
vehicle.
F

R
emove the mat under 12 V socket.
F

P
lace the electronic key in the housing
provided.
F

S
witch on the ignition by pressing S
tA
R
t/
StO

P.
th

e electronic key is fully operational again.
If the problem persists, contact a Pe ugeOt dealer
or a qualified workshop as soon as possible.
Access

65
308_en_Chap02_ouvertures_ed01-2016
Lost keys, remote control, electronic key
Visit a PeugeOt dealer with the vehicle's registration certificate, your personal identification documents and if possible, the label bearing the
key code.
th

e P
e
uge
Ot
dealer will be able to retrieve the key code and the transponder code required to order a new key
Remote control
the high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
th

e remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a short time.
Electrical interference
the Keyless en try and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a Pe ugeOt dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
2
Access

66
308_en_Chap02_ouvertures_ed01-2016

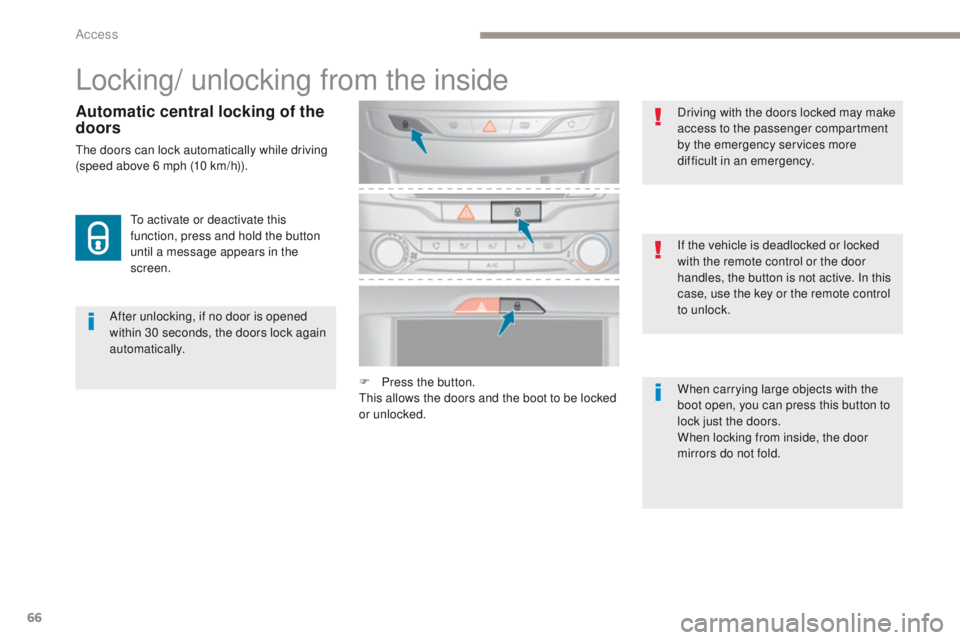

Locking/ unlocking from the inside
After unlocking, if no door is opened
within 30 seconds, the doors lock again
automatically.If the vehicle is deadlocked or locked
with the remote control or the door
handles, the button is not active. In this
case, use the key or the remote control
to unlock. Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.
F
P
ress the button.
th

is allows the doors and the boot to be locked
or unlocked. When carrying large objects with the
boot open, you can press this button to
lock just the doors.
When locking from inside, the door
mirrors do not fold.
to a
ctivate or deactivate this
function, press and hold the button
until a message appears in the
screen.
Automatic central locking of the
doors
the doors can lock automatically while driving
(speed above 6 mph (10 km/h)).
Access

67
308_en_Chap02_ouvertures_ed01-2016
F Lock the vehicle using the "Keyless en try
and Starting" system.

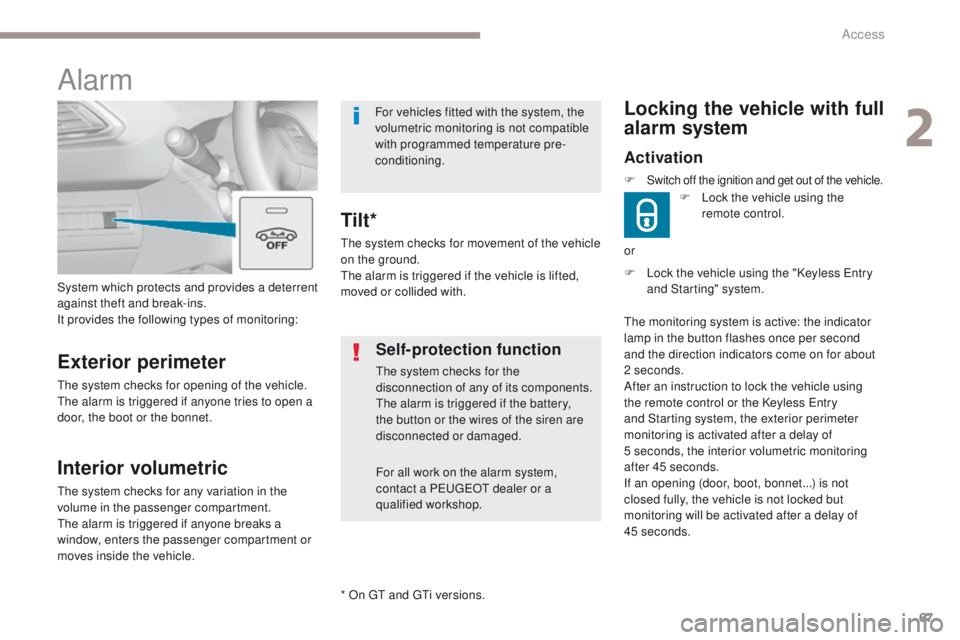

Locking the vehicle with full
alarm system
Activation
F Lock the vehicle using the remote control.
or
th

e monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
After an instruction to lock the vehicle using
the remote control or the Keyless
e
n
try
and Starting system, the exterior perimeter
monitoring is activated after a delay of
5

seconds, the interior volumetric monitoring
after 45 seconds.
If an opening (door, boot, bonnet...) is not
closed fully, the vehicle is not locked but
monitoring will be activated after a delay of
45


seconds.
F

Switch off the ignition and get out of the vehicle.
System which protects and provides a deterrent
against theft and break-ins.
It provides the following types of monitoring:
Alarm
Exterior perimeter
the system checks for opening of the vehicle.th
e alarm is triggered if anyone tries to open a
door, the boot or the bonnet.
Self-protection function
the system checks for the
disconnection of any of its components.
th

e alarm is triggered if the battery,
the button or the wires of the siren are
disconnected or damaged.
For all work on the alarm system,
contact a P
e

uge
Ot
dealer or a
qualified workshop.
Interior volumetric
the system checks for any variation in the
volume in the passenger compartment.
th

e alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
th
e system checks for movement of the vehicle
on the ground.
th
e alarm is triggered if the vehicle is lifted,
moved or collided with.
Tilt*
For vehicles fitted with the system, the
volumetric monitoring is not compatible
with programmed temperature pre-
conditioning.
* On
gt and gt
i v
ersions.
2
Access

68
308_en_Chap02_ouvertures_ed01-2016

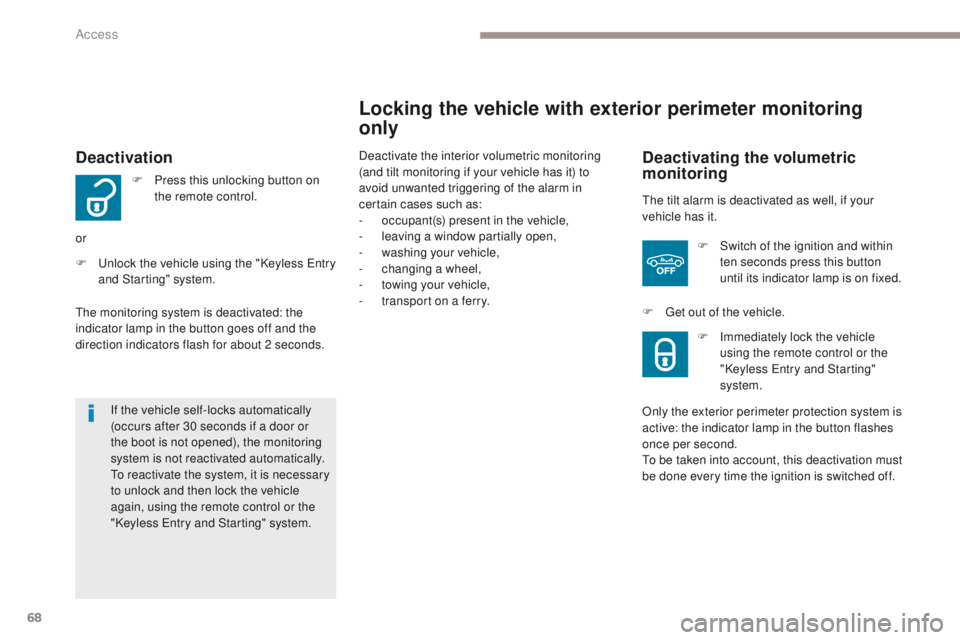

Deactivation
F Press this unlocking button on the remote control.
or
F
u
n

lock the vehicle using the "Keyless e
n
try
and Starting" system.
If the vehicle self-locks automatically
(occurs after 30 seconds if a door or
the boot is not opened), the monitoring
system is not reactivated automatically.
to r

eactivate the system, it is necessary
to unlock and then lock the vehicle
again, using the remote control or the
"Keyless
e
n
try and Starting" system.
th

e monitoring system is deactivated: the
indicator lamp in the button goes off and the
direction indicators flash for about 2 seconds.
Locking the vehicle with exterior perimeter monitoring
only
Deactivate the interior volumetric monitoring
(and tilt monitoring if your vehicle has it) to
avoid unwanted triggering of the alarm in
certain cases such as:
-

o
ccupant(s) present in the vehicle,
-

l
eaving a window partially open,
-
w

ashing your vehicle,
-
c

hanging a wheel,
-

t
owing your vehicle,
-

t
ransport on a ferry.Deactivating the volumetric
monitoring
the tilt alarm is deactivated as well, if your
vehicle has it. F

S
witch of the ignition and within
ten seconds press this button
until its indicator lamp is on fixed.
F
g
e
t out of the vehicle.F

I
mmediately lock the vehicle
using the remote control or the
"Keyless
e
n
try and Starting"
system.
Only the exterior perimeter protection system is
active: the indicator lamp in the button flashes
once per second.
to b

e taken into account, this deactivation must
be done every time the ignition is switched off.
Access
