308_en_Chap02_ouvertures_ed01-2016
Failure of the remote control
to deactivate the monitoring functions:
F un lock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops. t
h
e
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the
button indicates a fault in the system.
Automatic activation
this function is either not available, an option
or is standard.
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F
t
o a
void triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless
e
n
try and Starting
system.
Triggering of the alarm
this is indicated by sounding of the siren
and flashing of the direction indicators for
thirty


seconds.
th

e monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using
the remote control or the Keyless
en

try and Starting system, rapid
flashing of the indicator lamp in the
button informs you that the alarm was
triggered during your absence.
When the ignition is switched on, this
flashing stops immediately.
Reactivating the volumetric
monitoring
the tilt alarm is reactivated as well, if your
vehicle has it.
th

e indicator lamp in the button goes off. F

D
eactivate the exterior perimeter
monitoring by unlocking the
vehicle using the remote control
or the Keyless
e
n
try and Starting
system.
F

R
eactivate the full alarm system
by locking the vehicle using the
remote control or the "Keyless
en

try and Starting" system.
th

e indicator lamp in the button flashes once
per second again. Have it checked by a P
e

uge
Ot
dealer or a
qualified workshop.
2
Access

70
308_en_Chap02_ouvertures_ed01-2016
electric windows
1. Front left.
2. Front right
3.
R

ear right.
4.
R

ear left.
5.
D

eactivating the rear electric window
switches.
Manual operation
to open or close the window, press or pull
the switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
Safety anti-pinch
(depending on version)
Automatic one-touch operation
(depending on version)
to open or close the window, press or pull the
switch gently. th e window stops as soon as the
switch is released. When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
Maintaining the locking action (on the
key or the remote control) closes the
windows automatically.
the
electric window switches remain
operational for approximately one minute after
the key has been removed.
Once this time has elapsed, the electric
windows will not operate.
t
o r
eactivate them,
switch the ignition on again. In the event of unwanted opening of the window
when closing automatically, press the switch
until the window opens completely, then pull
the switch immediately until the window closes.
Continue to hold the switch for approximately
one second after the window has closed.
th

e safety anti-pinch function is not active
during this operation.
Access

71
308_en_Chap02_ouvertures_ed01-2016

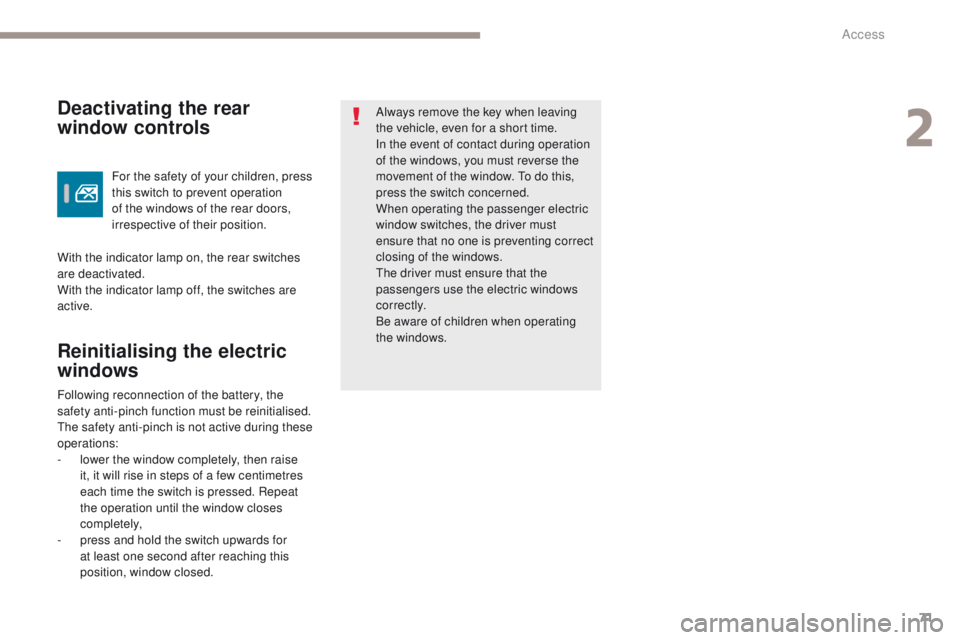

Reinitialising the electric
windows
Always remove the key when leaving
the vehicle, even for a short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. t
o d
o this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
th

e driver must ensure that the
passengers use the electric windows
c o r r e c t l y.
Be aware of children when operating
the windows.
For the safety of your children, press
this switch to prevent operation
of the windows of the rear doors,
irrespective of their position.Deactivating the rear
window controls
With the indicator lamp on, the rear switches
are deactivated.
With the indicator lamp off, the switches are
active.
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
th

e safety anti-pinch is not active during these
operations:
-
l

ower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
-

p
ress and hold the switch upwards for
at least one second after reaching this
position, window closed.
2
Access

72
308_en_Chap03_ergonomie-et-confort_ed01-2016
Steering wheel adjustment
F When stationary, lower the control lever
to release the steering wheel adjustment
mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
PeugeOt i -Cockpit
Before taking to the road and to make the most
of the special ergonomics of the Pe
ugeOt
i- Cockpit, carry out these adjustments in the
following order:
-
hea

d restraint height,
-

b
ackrest angle,
-
sea

t cushion height,
-
s

eat longitudinal position,
-
s

teering wheel reach and then height
-

t
he interior and door mirrors.
Once these adjustments have been made,
ensure that from your driving position you can
see the "head-up" instrument panel clearly,
over the reduced diameter steering wheel.
Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat, so as
to avoid the risk of jamming the seat
caused by the presence of objects
on the floor behind the seat or rear
passengers. If the seat jams, stop the
movement immediately.
ease of use and comfort

73
308_en_Chap03_ergonomie-et-confort_ed01-2016
Front seats with manual adjustments
F Raise the control and slide the seat forwards or backwards. F
P ull the control upwards to raise or push
it downwards to lower, as many times as
required, to obtain the position required. F
tu rn the knob to adjust the backrest.
Forwards-backwards
HeightBackrest angle
As a safety measure, seat adjustments should only be carried out when stationary.
F t
u
rn the knob manually to obtain the
desired level of lumbar support.
LumbarBefore moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately.
3
ease of use and comfort

74
308_en_Chap03_ergonomie-et-confort_ed01-2016
electric driver's seat
Forwards-backwardsSeat backrest angleSeat cushion height and
angle
to avoid discharging the battery, carry out
these adjustments with the engine running.
F Push the control for wards or rear wards to
slide the seat. F
ti lt the control for wards or rear wards to
adjust the angle of the seat backrest. F
ti p the rear of the control upwards or
downwards to obtain the desired height.
F
t
i
p the front of the control upwards or
downwards to obtain the desired angle.
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately.
ease of use and comfort

75
308_en_Chap03_ergonomie-et-confort_ed01-2016
System which registers the electrical settings
of the driver's seat.
tw
o positions can be stored and recalled, using
the buttons on the side of the driver's seat.
Storing driving positions
Storing a position using
buttons M / 1 / 2
F Switch on the ignition.
F
Adj ust your seat.
F

P
ress button M , then press button 1 or 2
within four seconds.
An audible signal indicates that the position has
been stored.
Storing a new position cancels the previous
position.
Recalling a stored position
F With the ignition on or the engine running, press button 1 or 2 to recall the
corresponding position.
An audible signal confirms that adjustment is
complete.
You can interrupt the current movement by
pressing button M , 1 or 2 or by using one of the
seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45
seconds after switching off the ignition.
3
ease of use and comfort

76
308_en_Chap03_ergonomie-et-confort_ed01-2016
Heated seats
0: Of f.
1 : Low.
2 : Medium.
3 : High.
F
u
s
e the adjustment thumbwheel to switch
on and select the desired level of heating:
With the engine running, the front seats can be
heated separately.
Additional adjustments
Prolonged use at the highest setting
is not recommended for those with
sensitive skin.
th

ere is a risk of burns for those that
do not have normal perception of heat
(illness, taking medicines, ...).
ther

e is a risk of overheating the
system if material with insulating
properties is used, such as cushions or
seat covers.
Do not use the system:
-

i
f wearing damp clothing,
-

i
f child seats are fitted.
to

avoid breaking the heating element
in the seat:
-

d
o not place heavy objects on the
seat,
-

d
o not kneel or stand on the seat,
-

d
o not place sharp objects on the
seat,
-

d
o not spill liquids onto the seat.
to a

void the risk of short-circuit:
-

d
o not use liquid products for
cleaning the seat,
-

n
ever use the heating function
when the seat is damp.
Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the seat and passenger
compartment are at a comfortable
temperature, you can switch off the
function; reducing electric current
consumption also reduces fuel
consumption.
ease of use and comfort

77
308_en_Chap03_ergonomie-et-confort_ed01-2016
Electric lumbar adjustment
F Press the control to obtain the desired lumbar support.
F
t
o r

aise the head restraint, pull it upwards.
F
t
o r

emove the head restraint, press the
lug

A and pull the head restraint upwards.
F
t
o p

ut the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
backrest.
F
t
o l

ower the head restraint, press the lug A
and the head restraint at the same time.
th

e head restraint is fitted with a frame
with notches which prevents it from
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Head restraint height
3
ease of use and comfort

78
308_en_Chap03_ergonomie-et-confort_ed01-2016
Activation / Deactivation
Massage function
this system provides the occupants of the front seats with a lumbar massage. It only operates
when the engine is running or in StOP mode of the Stop & Start system.
F

P
ress this button.
During this time, massage is per formed in
6
cycles of 10 minutes (6 minutes of massage
followed by 4 minutes break).
After one hour, the function is deactivated, the
indicator lamp goes off.
Deactivate the massage function by pressing
this button; its indicator lamp goes off.
Adjustment of intensity
F Press this button to adjust the intensity of the massage.
tw

o levels of massage are available.
Its indicator lamp comes on and the
massage function is activated for a
period of 1 hour.
ease of use and comfort
