technical data PEUGEOT 308 2024 User Guide

225

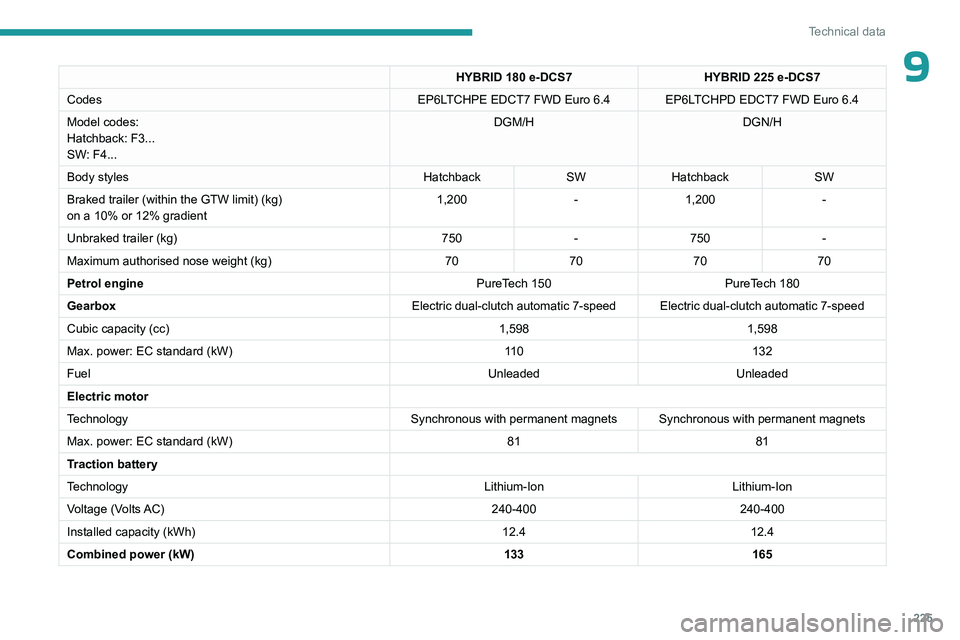

Technical data
9HYBRID 180 e-DCS7HYBRID 225 e-DCS7
Codes EP6LTCHPE EDCT7 FWD Euro
6.4 EP6LTCHPD EDCT7 FWD Euro 6.4
Model codes:
Hatchback: F3...
SW: F4... DGM/H
DGN/H
Body styles HatchbackSWHatchback SW
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,200
-1,200 -
Unbraked trailer (kg) 750-750 -
Maximum authorised nose weight (kg) 70707070
Petrol engine PureTech
150 PureTech
180
Gearbox Electric dual-clutch automatic 7-speed Electric dual-clutch automatic 7-speed
Cubic capacity (cc) 1,5981,598
Max. power: EC standard (kW) 11 0132
Fuel UnleadedUnleaded
Electric motor
Technology Synchronous with permanent magnets Synchronous with permanent magnets
Max. power: EC standard (kW) 8181
Traction battery
Technology Lithium-IonLithium-Ion
Voltage (Volts AC) 240-400240-400
Installed capacity (kWh) 12.412.4
Combined power (kW) 133165

226
Technical data

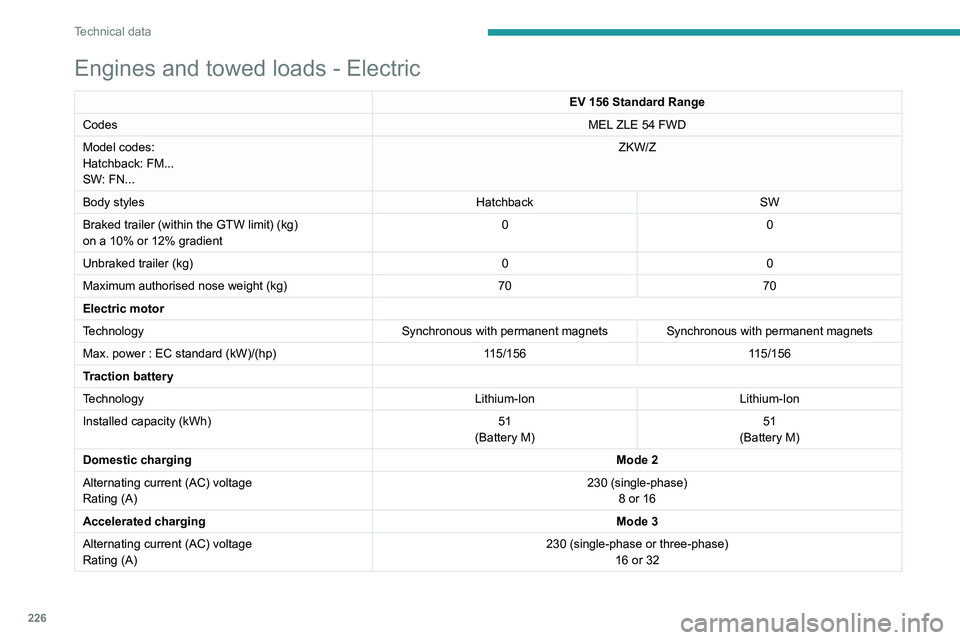

Engines and towed loads - Electric
EV 156 Standard Range
Codes MEL ZLE 54 FWD
Model codes:
Hatchback: FM...
SW: FN... ZKW/Z
Body styles HatchbackSW
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 0
0
Unbraked trailer (kg) 00
Maximum authorised nose weight (kg) 7070
Electric motor
Technology Synchronous with permanent magnets Synchronous with permanent magnets
Max. power : EC standard (kW)/(hp) 115/156115/156
Traction battery
Technology Lithium-IonLithium-Ion
Installed capacity (kWh) 51
(Battery M) 51
(Battery M)
Domestic charging Mode 2
Alternating current (AC) voltage
Rating (A) 230 (single-phase)
8 or 16
Accelerated charging Mode 3
Alternating current (AC) voltage
Rating (A) 230 (single-phase or three-phase)
16 or 32

227

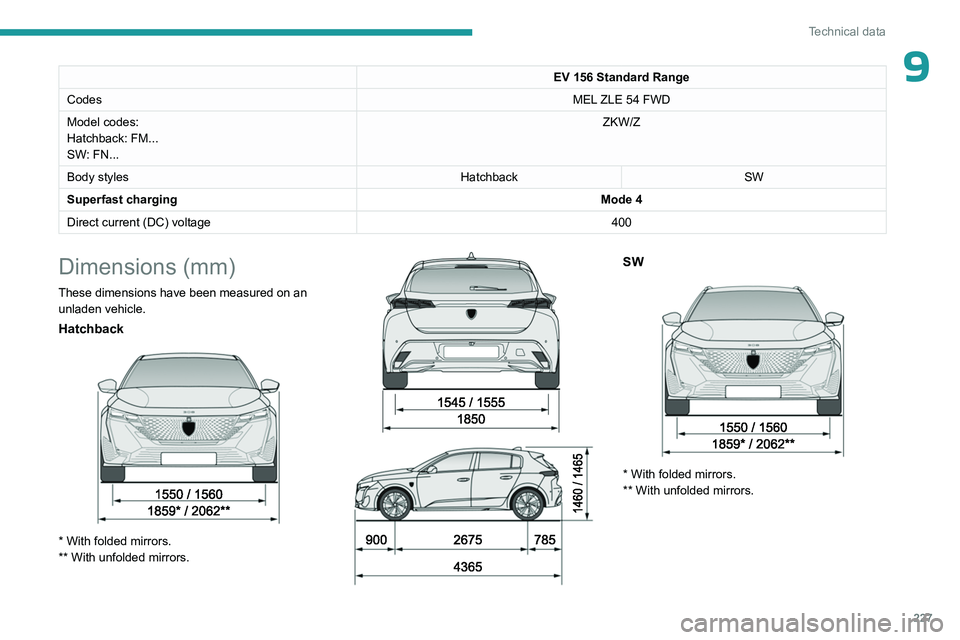

Technical data
9EV 156 Standard Range
Codes MEL ZLE 54 FWD
Model codes:
Hatchback: FM...
SW: FN... ZKW/Z
Body styles HatchbackSW
Superfast charging Mode 4
Direct current (DC) voltage 400
Dimensions (mm)
These dimensions have been measured on an
unladen vehicle.
Hatchback

* With folded mirrors.
** With unfolded mirrors.




SW

* With folded mirrors.
** With unfolded mirrors.

228
Technical data

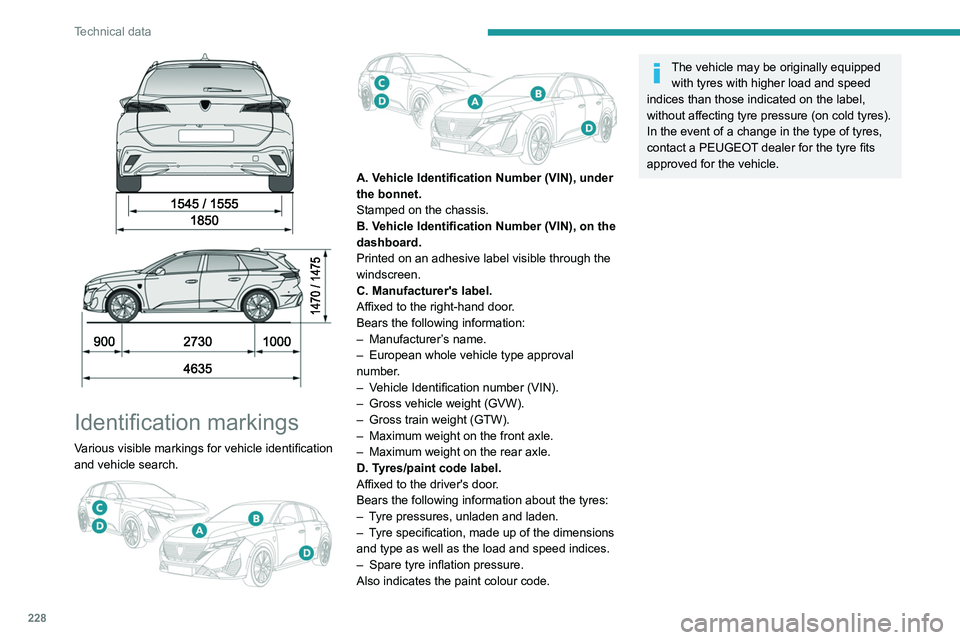

Identification markings
Various visible markings for vehicle identification
and vehicle search.


A. Vehicle Identification Number (VIN), under
the bonnet.
Stamped on the chassis.
B. Vehicle Identification Number (VIN), on the
dashboard.
Printed on an adhesive label visible through the
windscreen.
C. Manufacturer's label.
Affixed to the right-hand door.
Bears the following information:
–

Manufacturer
’s name.
–

European whole vehicle type approval
number

.
–

V
ehicle Identification number (VIN).
–

Gross vehicle weight (GVW).
–


Gross train weight (GTW).
–


Maximum weight on the front axle.
–


Maximum weight on the rear axle.
D. T

yres/paint code label.
Affixed to the driver's door.
Bears the following information about the tyres:
–

T
yre pressures, unladen and laden.
–

T
yre specification, made up of the dimensions
and type as well as the load and speed indices.
–

Spare tyre inflation pressure.
Also indicates the paint colour code.
The vehicle may be originally equipped with tyres with higher load and speed
indices than those indicated on the label,
without affecting tyre pressure (on cold tyres).
In the event of a change in the type of tyres,
contact a PEUGEOT dealer for the tyre fits
approved for the vehicle.

245
Vehicle data recording and privacy
11Vehicle data recording
and privacy
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display). –

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–
Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.

253
Alphabetical index
Resetting the trip 25–26
Reversing camera
120, 153–155
Reversing lamps

208–209
Road sign recognition

122
Roof bars

185
Roof, opening

44
Running out of fuel (Diesel)

199
S
Safety, children 89–94
Saturation of the particle filter (Diesel)
192
Screens, very cold conditions

185
Screenwash

76
Screenwash, front

76
Screenwash, rear

76
SCR (Selective Catalytic Reduction)

22, 193
Seat angle

48
Seat belts

86–87
Seat belts, rear

86
Seats, electric

48–49
Seats, front

47–49
Seats, heated

49–50
Seats, rear

53–54, 91
Selector, gear

105–108, 111, 115
Semi-automatic lane changing

138
Sensors (warnings)

120
Serial number, vehicle

228
Servicing

19, 191, 193
Settings, equipment

12, 27
Shield, snow

185
Sidelamps

70, 208–209
Silent vehicle warning sound (Electric) 99
Smartphone
29, 62
Snow chains

118, 187
Snow screen

185
Socket, 12 V

61
Socket, 12 V accessory

61, 68
Socket, diagnostic

80
Speakers

63
Speed limiter

124, 126–127
Speed limit recognition

122
Speedometer

11, 120
Sport mode

113–114
Spotlamps, side

72
Stability control (ESC)

84–85
Starting a Diesel engine

160
Starting/Stopping the vehicle

100
Starting the engine

100–101
Starting the vehicle

100, 106
Starting using another battery

102, 210, 213
State of charge, battery

28
Station, radio

240
Stay, engine bonnet

188
Steering wheel

121
Steering wheel (adjustment)

51
Stickers, customising

197
Stopping the vehicle

101, 106, 111
Stop & Start

26, 56, 59, 115–117,
160, 192, 212
Storage

60–61, 63–65
Storage box

68
Storage wells

66, 68
Storing driving positions

49
Stowing rings

66–67Sunshine sensor 55
Sun visor
61
Super-fast charging (Electric)

179–180
Suspension

193
Switching off the engine

100–101
Synchronising the remote control

36
System, event data recording

83
T
Tables of engines 221–224, 226
Tailgate
37
Tank, fuel

160–161
Technical data

221–224, 226
Telephone

237–238, 242
Temperature, coolant

21
Thermal comfort consumption indicator
(Electric)

24
Thermal comfort equipment

24
Time (setting)

243
Tool box

68
Tools

199–201
Topping-up AdBlue®

195
Top Tether (fixing)

93, 95–96
Total distance recorder

25
Touch screen

26, 28–29, 59
Towball, quickly detachable

181–184
Towbar

85, 180
Towbar with quickly detachable
towball

181–184
Towed loads

220–224, 226
Towing

217, 219
