PEUGEOT 308 CC 2008 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 308 CC, Model: PEUGEOT 308 CC 2008Pages: 221, PDF Size: 8.69 MB
Page 191 of 221
174

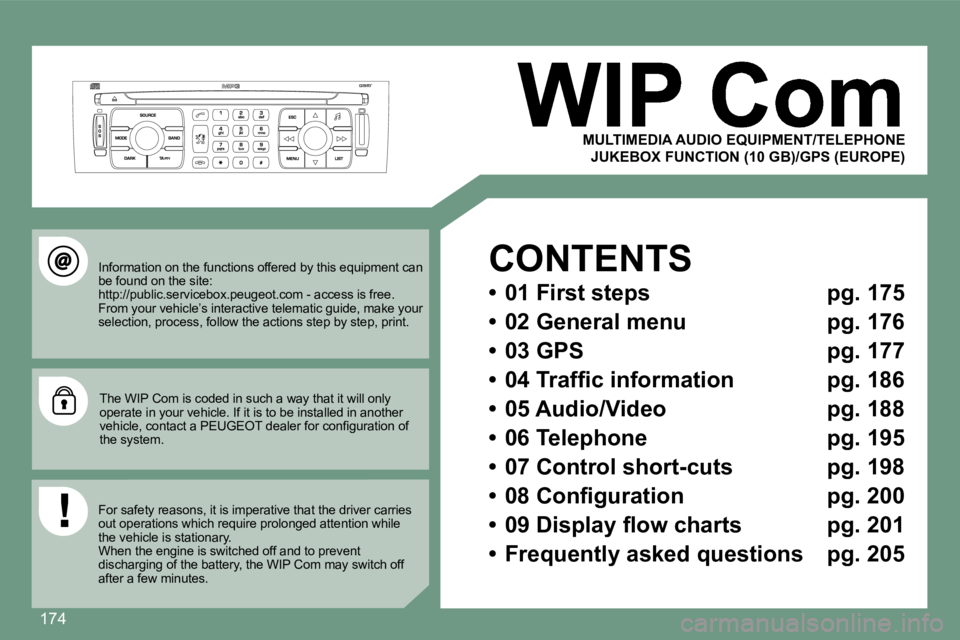

Information on the functions offered by this equipment can be found on the site: http://public.servicebox.peugeot.com - access is fr ee. From your vehicle’s interactive telematic guide, ma ke your selection, process, follow the actions step by step, print.
The WIP Com is coded in such a way that it will on ly operate in your vehicle. If it is to be installed in another v e h i c l e , c o n t a c t a P E U G E O T d e a l e r f o r c o n fi g u r a t i o n o f the system.
For safety reasons, it is imperative that the driver carries out operations which require prolonged attention wh ile the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the WIP Com may switch off after a few minutes.
CONTENTS
Page 192 of 221
175
22
11
55
3344
88
99
10101515
11111717
18181212
1616
1414
7766
1313
01

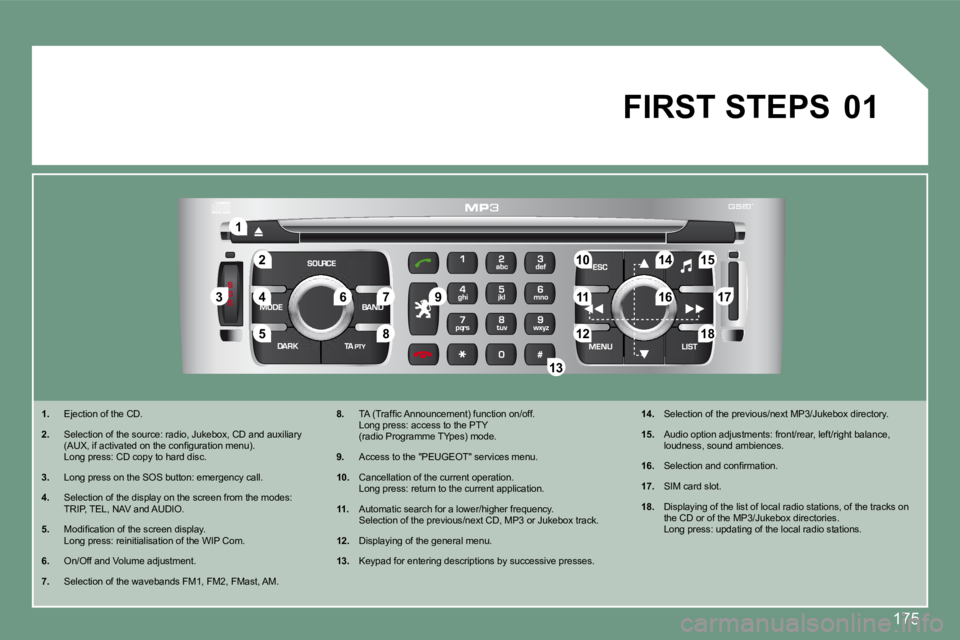

1. Ejection of the CD.
2. Selection of the source: radio, Jukebox, CD and auxiliary ( A U X , i f a c t i v a t e d o n t h e c o n fi g u r a t i o n m e n u ) . Long press: CD copy to hard disc.
3. Long press on the SOS button: emergency call.
4. Selection of the display on the screen from the modes: TRIP, TEL, NAV and AUDIO.
5. M o d i fi c a t i o n o f t h e s c r e e n d i s p l a y . Long press: reinitialisation of the WIP Com.
6. On/Off and Volume adjustment.
7. Selection of the wavebands FM1, FM2, FMast, AM.
8. T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . Long press: access to the PTY ( r a d i o P r o g r a m m e T Y p e s ) m o d e .
9. Access to the "PEUGEOT" services menu.
10. Cancellation of the current operation. Long press: return to the current application.
11. Automatic search for a lower/higher frequency. Selection of the previous/next CD, MP3 or Jukebox track.
12. Displaying of the general menu.
13. Keypad for entering descriptions by successive presses.
14. Selection of the previous/next MP3/Jukebox directo ry.
15. Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
16. S e l e c t i o n a n d c o n fi r m a t i o n .
17. SIM card slot.
18. Displaying of the list of local radio stations, of the tracks on the CD or of the MP3/Jukebox directories. Long press: updating of the local radio stations.
FIRST STEPS
Page 193 of 221
176

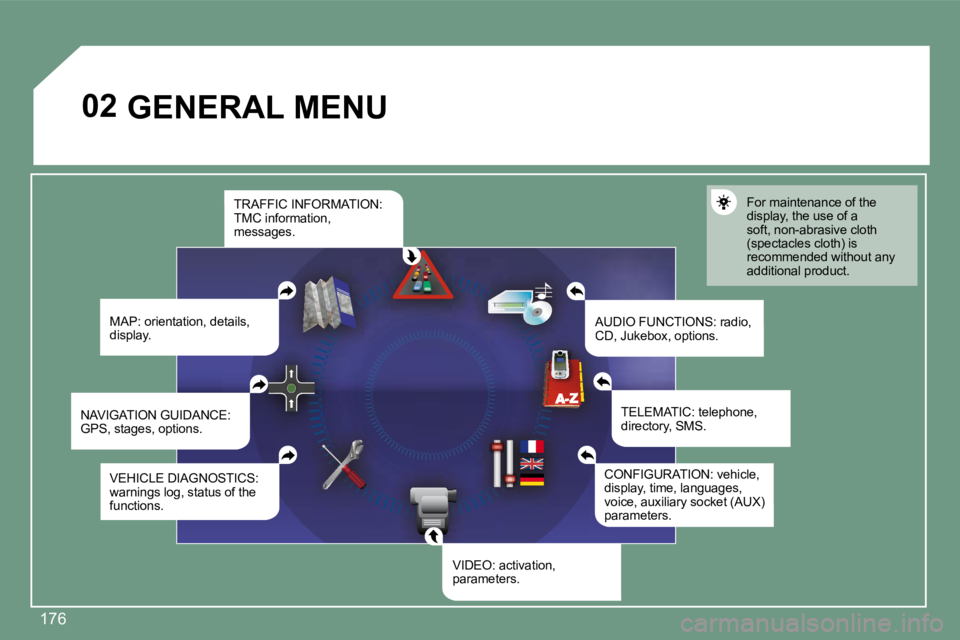

02 GENERAL MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, CD, Jukebox, options.
For maintenance of the display, the use of a soft, non-abrasive cloth ( s p e c t a c l e s c l o t h ) i s recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, v o i c e , a u x i l i a r y s o c k e t ( A U X ) parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: warnings log, status of the functions.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
Page 194 of 221
177
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03
11
22
33
44
66
88
77
55 Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the DESTINATION CHOICE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the ENTER AN ADDRESS function.
When the country has been selected, turn the dial and select the TOWN function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE
F o r a d e t a i l e d g l o b a l v i e w o f t h e m e n u s a v a i l a b l e , r e f e r t o t h e " D i s p l a y fl o w c h a r t s " s e c t i o n o f t h i s WIP Com chapter.
GPS

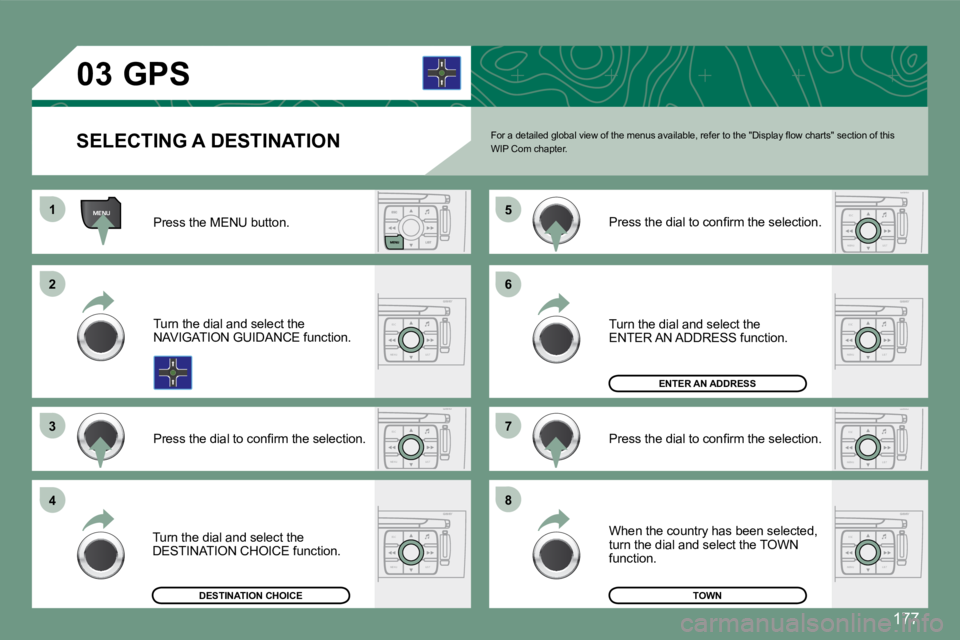

SELECTING A DESTINATION
Page 195 of 221
178
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST99
1010
1111
1313
1414

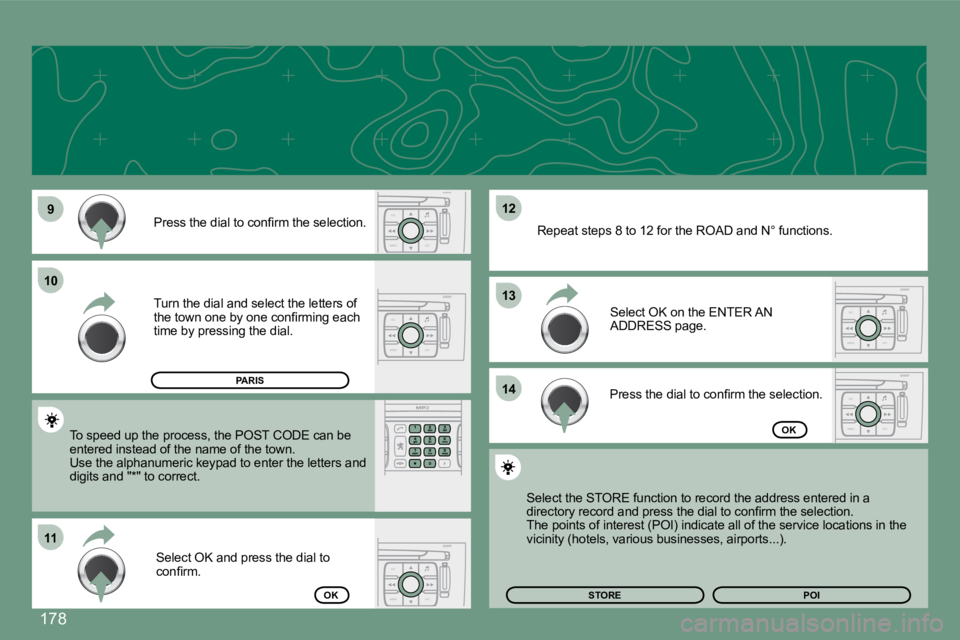

1212 P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the letters of t h e t o w n o n e b y o n e c o n fi r m i n g e a c h time by pressing the dial.
Select OK and press the dial to c o n fi r m .
To speed up the process, the POST CODE can be entered instead of the name of the town. Use the alphanumeric keypad to enter the letters a nd digits and "*" to correct.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Select OK on the ENTER AN ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions .
OK
OK
Select the STORE function to record the address entered in a d i r e c t o r y r e c o r d a n d p r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n . T h e p o i n t s o f i n t e r e s t ( P O I ) i n d i c a t e a l l o f t h e s e r v i c e l o c a t i o n s i n t h e v i c i n i t y ( h o t e l s , v a r i o u s b u s i n e s s e s , a i r p o r t s . . . ) .
STORE
PARIS
POI
Page 196 of 221
179
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03
11
22
33
44
66
88
77
55

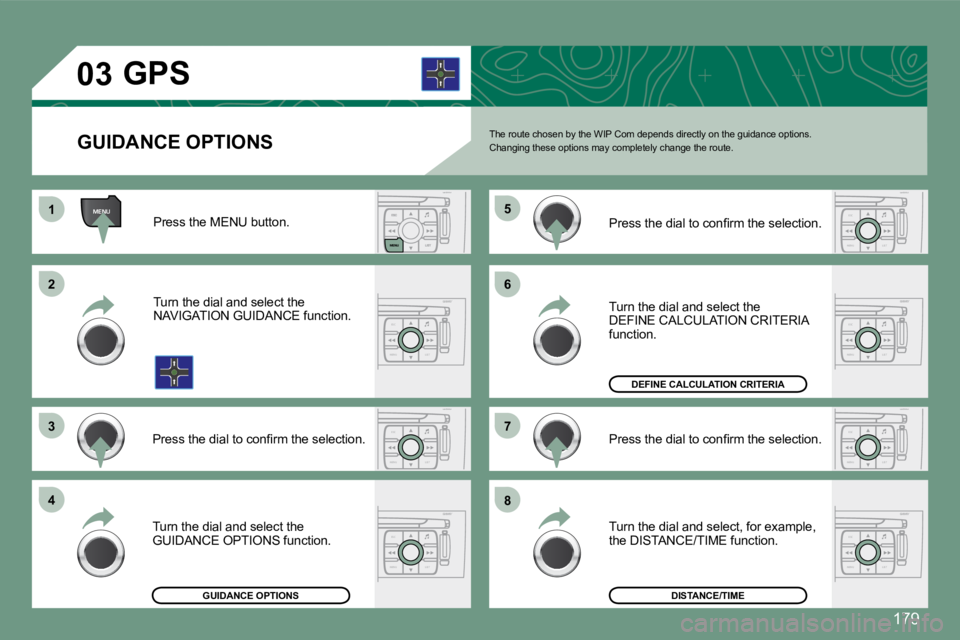

GUIDANCE OPTIONS
GPS
The route chosen by the WIP Com depends directly o n the guidance options. Changing these options may completely change the route.
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the GUIDANCE OPTIONS function.
Turn the dial and select the DEFINE CALCULATION CRITERIA function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
GUIDANCE OPTIONSDISTANCE/TIME
DEFINE CALCULATION CRITERIA
Turn the dial and select, for example, the DISTANCE/TIME function.
Page 197 of 221
180
ESC
MENU LISTESC
MENU LIST
MENU
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST99
1010
1111
1212
22
44
33
11
55
Turn the dial and select the TRAFFIC INFO function if it is not ticked.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Select OK and press the dial to c o n fi r m .
TRAFFIC INFO
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
T i c k t h i s b o x f o r o p t i m u m o p e r a t i o n o f t h e t r a f fi c i n f o r m a t i o n , diversions will be suggested.
OK
GUIDANCE SPEECH SYNTHESIS
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
GUIDANCE OPTIONS
Turn the dial and select the GUIDANCE OPTIONS function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Page 198 of 221
181
ESC
MENU LIST
ESC
MENU LIST
MENU
ESC
MENU LIST
ESC
MENU LIST
S
O S SOU R CE
MODE B AND TP T
A Y
DARK
ESC
MENU LIST
ESC
MENU LIST
03
66
77
88
22
44
33
11 Press the MENU button.
Turn the dial and select the MAP function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the MAP DETAILS function. Permits selection of the services which can be seen on the map ( h o t e l s , r e s t a u r a n t s . . . ) .

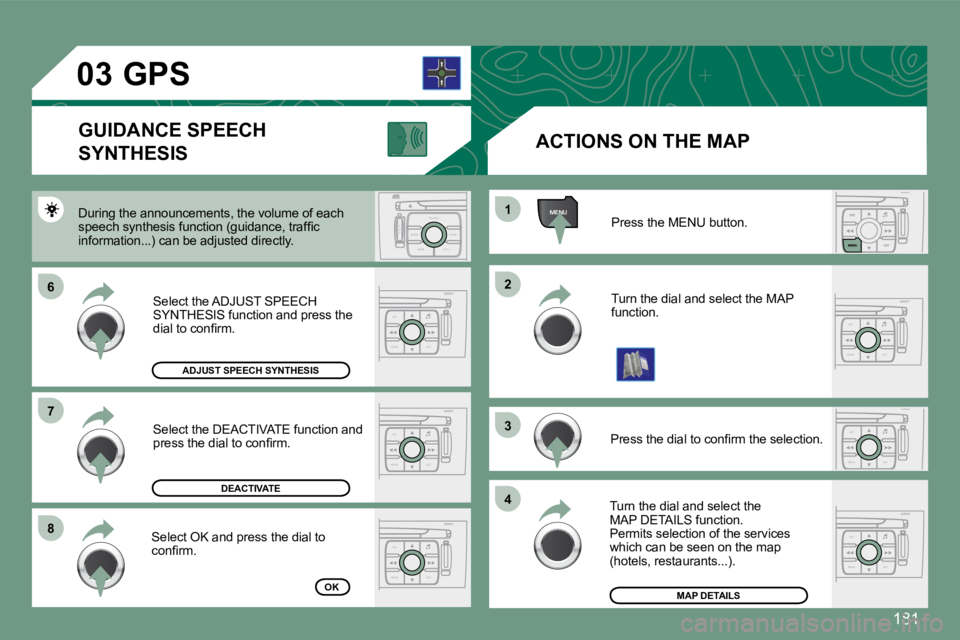

ACTIONS ON THE MAP
MAP DETAILS
During the announcements, the volume of each s p e e c h s y n t h e s i s f u n c t i o n ( g u i d a n c e , t r a f fi c i n f o r m a t i o n . . . ) c a n b e a d j u s t e d d i r e c t l y .
GUIDANCE SPEECH
SYNTHESIS
Select the ADJUST SPEECH SYNTHESIS function and press the d i a l t o c o n fi r m .
GPS
ADJUST SPEECH SYNTHESIS
DEACTIVATE
Select the DEACTIVATE function and p r e s s t h e d i a l t o c o n fi r m .
OK
Select OK and press the dial to c o n fi r m .
Page 199 of 221
182
ESC
MENU LIST
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03
11
22
33
44
66
77
55

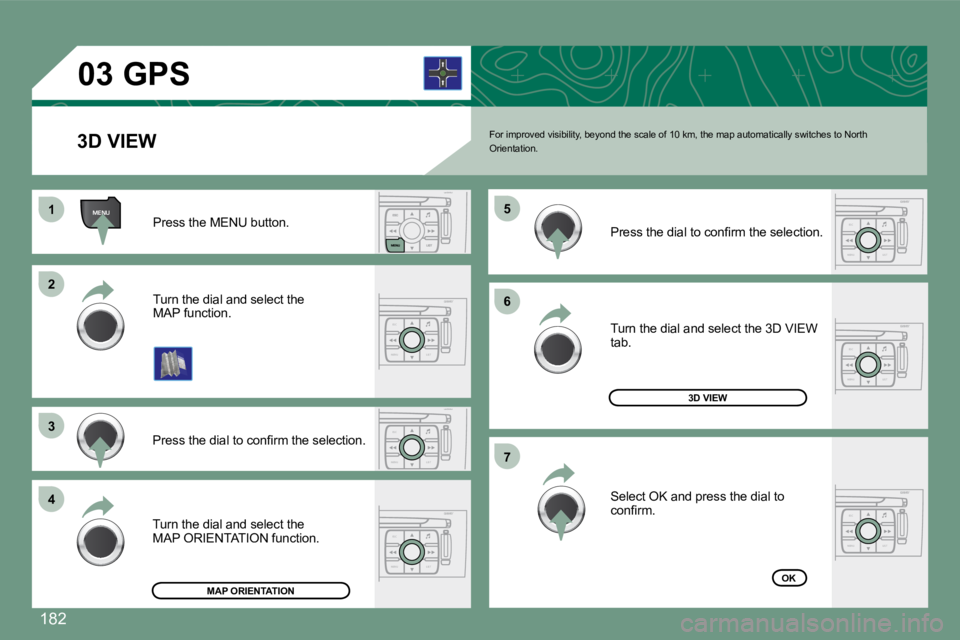

For improved visibility, beyond the scale of 10 km , the map automatically switches to North Orientation.
Turn the dial and select the MAP function.
Press the MENU button. P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the 3D VIEW tab.
Turn the dial and select the MAP ORIENTATION function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
3D VIEW
GPS
MAP ORIENTATION
3D VIEW
OK
Select OK and press the dial to c o n fi r m .
Page 200 of 221
183
ESC
MENU LIST
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03
11
22
33
44
66
77
55 Press the MENU button.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the MAP function.
Turn the dial and select the MAP IN WINDOW or FULL SCREEN MAP tab.
Select OK and press the dial to c o n fi r m .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the DISPLAY MAP function.

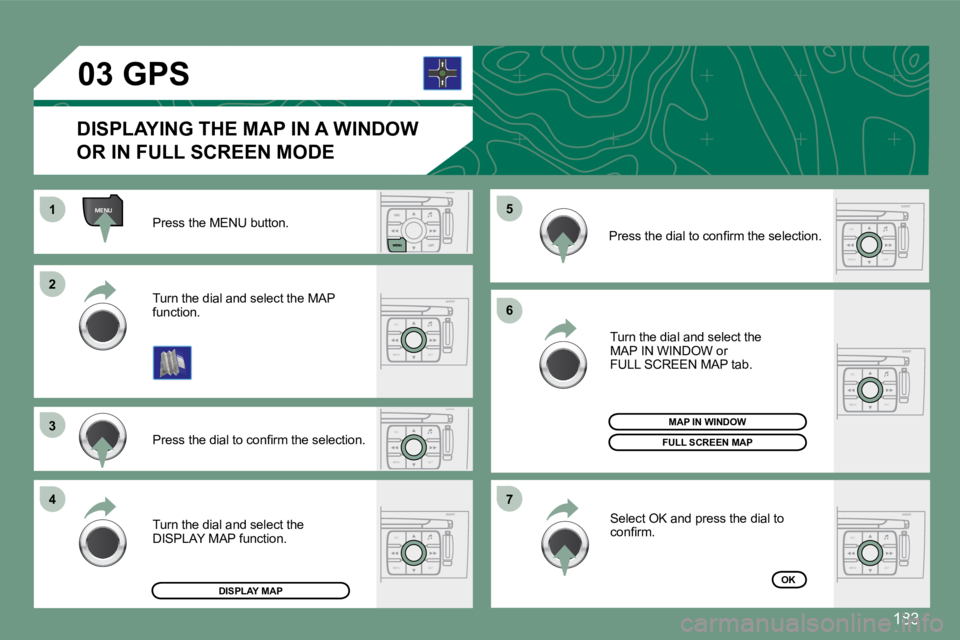

DISPLAYING THE MAP IN A WINDOW
OR IN FULL SCREEN MODE
GPS
DISPLAY MAP
FULL SCREEN MAP
OK
MAP IN WINDOW
