Page 181 of 221
167
11
2222
11
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults w h i c h a r e n o r e fl e c t i o n o n t h e q u a l i t y o f t h e o r i g i n a l player. Without pressing the EJECT button, insert a CD in the player, play begins automatically.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of tracks on the CD.
Insert an MP3 compilation in the player. The audio equipment searches for all of the music tracks, which may take anything between a few seconds and several tens of seconds, before play begins.
O n a s i n g l e d i s c , t h e C D p l a y e r c a n r e a d u p t o 2 5 5 M P 3 fi l e s s p r e a d over 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of directories of the MP3 compilation.
CD
PLAYING A CD
CD
PLAYING AN MP3 COMPILATION

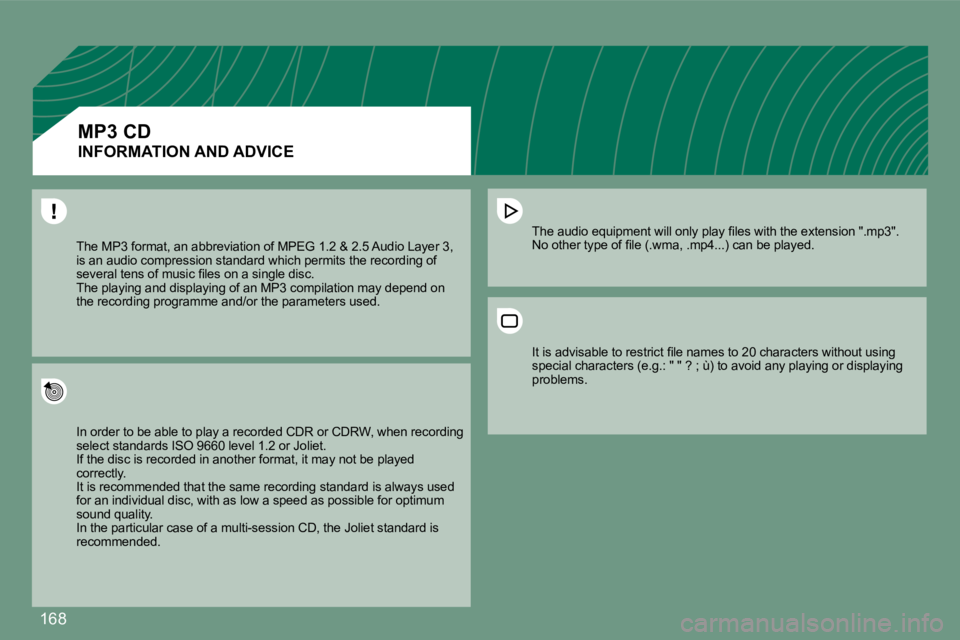

Page 182 of 221
168
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c . The playing and displaying of an MP3 compilation may depend on the recording programme and/or the parameters used.
In order to be able to play a recorded CDR or CDRW, when recording select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in another format, it may not be played correctly. It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y fi l e s w i t h t h e e x t e n s i o n " . m p 3 " . N o o t h e r t y p e o f fi l e ( . w m a , . m p 4 . . . ) c a n b e p l a y e d .
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s w i t h o u t u s i n g s p e c i a l c h a r a c t e r s ( e . g . : " " ? ; ù ) t o a v o i d a n y p l a y i n g o r d i s p l a y i n g problems.
MP3 CD
INFORMATION AND ADVICE

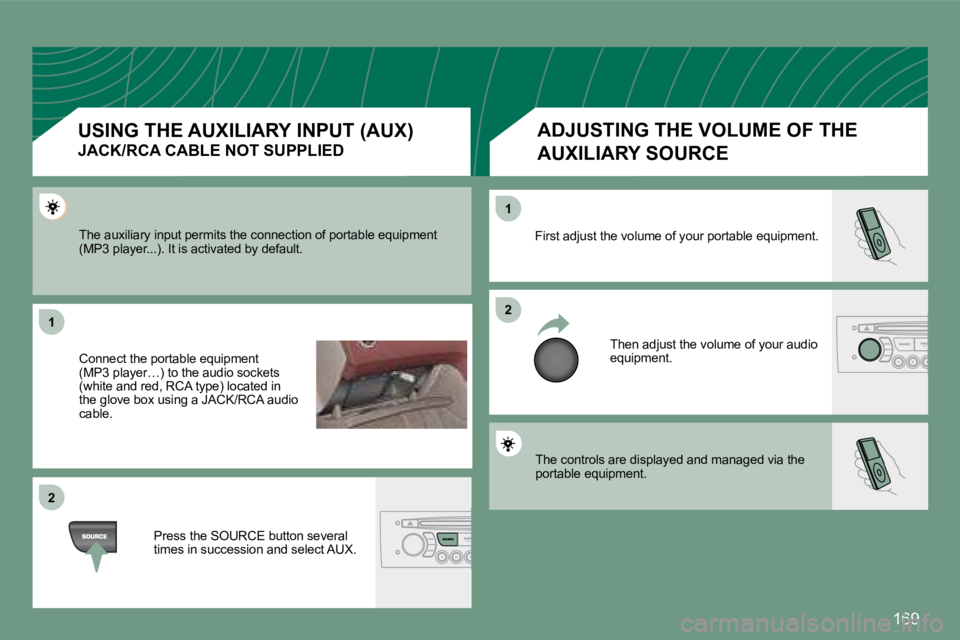

Page 183 of 221
169
11
22
22
11
The controls are displayed and managed via the portable equipment.
First adjust the volume of your portable equipment.
Then adjust the volume of your audio equipment.
The auxiliary input permits the connection of portable equipment ( M P 3 p l a y e r . . . ) . I t i s a c t i v a t e d b y d e f a u l t .
Connect the portable equipment ( M P 3 p l a y e r … ) t o t h e a u d i o s o c k e t s ( w h i t e a n d r e d , R C A t y p e ) l o c a t e d i n the glove box using a JACK/RCA audio cable.
Press the SOURCE button several times in succession and select AUX.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA CABLE NOT SUPPLIED
ADJUSTING THE VOLUME OF THE
AUXILIARY SOURCE

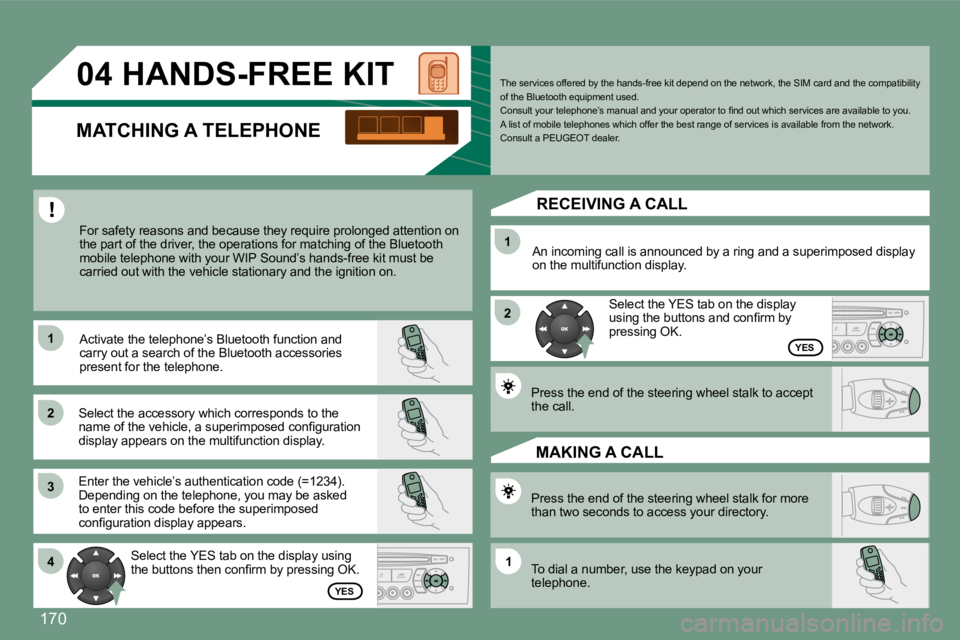

Page 184 of 221
170
11
04
11
22
33
44
22
11
HANDS-FREE KIT
For safety reasons and because they require prolonged attention on the part of the driver, the operations for matching of the Bluetooth mobile telephone with your WIP Sound’s hands-free k it must be carried out with the vehicle stationary and the ignition on.
Select the accessory which corresponds to the n a m e o f t h e v e h i c l e , a s u p e r i m p o s e d c o n fi g u r a t i o n display appears on the multifunction display.
Activate the telephone’s Bluetooth function and carry out a search of the Bluetooth accessories present for the telephone.
Select the YES tab on the display using t h e b u t t o n s t h e n c o n fi r m b y p r e s s i n g O K .
E n t e r t h e v e h i c l e ’ s a u t h e n t i c a t i o n c o d e ( = 1 2 3 4 ) . Depending on the telephone, you may be asked to enter this code before the superimposed c o n fi g u r a t i o n d i s p l a y a p p e a r s .
YES
YES
The services offered by the hands-free kit depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. C o n s u l t y o u r t e l e p h o n e ’ s m a n u a l a n d y o u r o p e r a t o r t o fi n d o u t w h i c h s e r v i c e s a r e a v a i l a b l e t o y o u . A list of mobile telephones which offer the best range of services is available from the network. Consult a PEUGEOT dealer.
RECEIVING A CALL
An incoming call is announced by a ring and a supe rimposed display on the multifunction display.
Select the YES tab on the display u s i n g t h e b u t t o n s a n d c o n fi r m b y pressing OK.
Press the end of the steering wheel stalk to accept the call.
Press the end of the steering wheel stalk for more than two seconds to access your directory.
To dial a number, use the keypad on your telephone.
MAKING A CALL
MATCHING A TELEPHONE

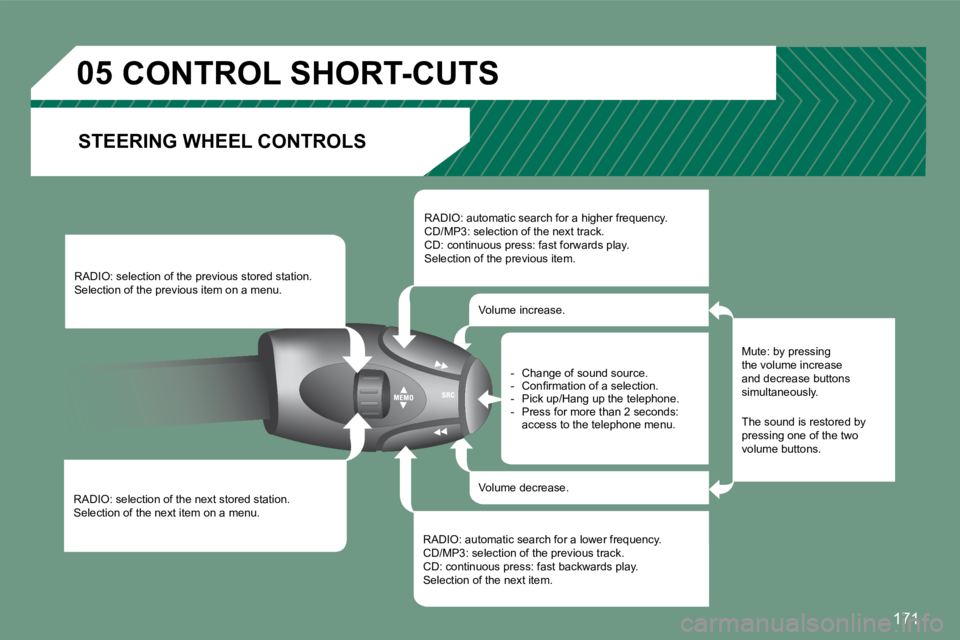

Page 185 of 221
171
05
RADIO: selection of the next stored station. Selection of the next item on a menu.
RADIO: selection of the previous stored station. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/MP3: selection of the next track. CD: continuous press: fast forwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/MP3: selection of the previous track. CD: continuous press: fast backwards play. Selection of the next item.
Volume increase.
Volume decrease.
CONTROL SHORT-CUTS
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
- Change of sound source. - C o n fi r m a t i o n o f a s e l e c t i o n . - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
STEERING WHEEL CONTROLS

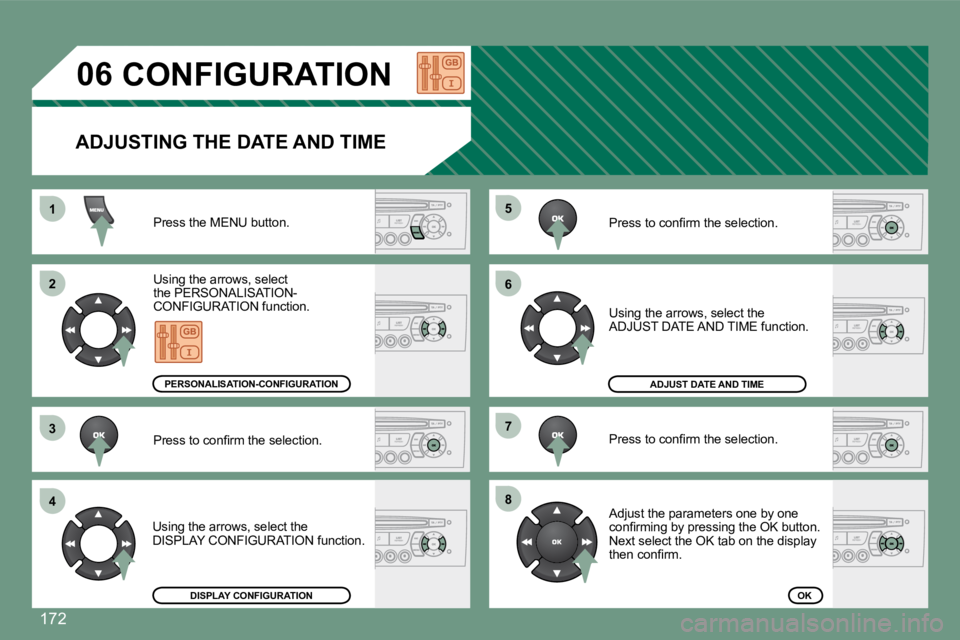

Page 186 of 221
172
06
11
22
33
44
66
88
77
55
CONFIGURATION
Press the MENU button.
Using the arrows, select the PERSONALISATION-CONFIGURATION function.
P r e s s t o c o n fi r m t h e s e l e c t i o n .
Using the arrows, select the DISPLAY CONFIGURATION function.
P r e s s t o c o n fi r m t h e s e l e c t i o n .
P r e s s t o c o n fi r m t h e s e l e c t i o n .
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the parameters one by one c o n fi r m i n g b y p r e s s i n g t h e O K b u t t o n . Next select the OK tab on the display t h e n c o n fi r m .
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION-CONFIGURATION
ADJUSTING THE DATE AND TIME

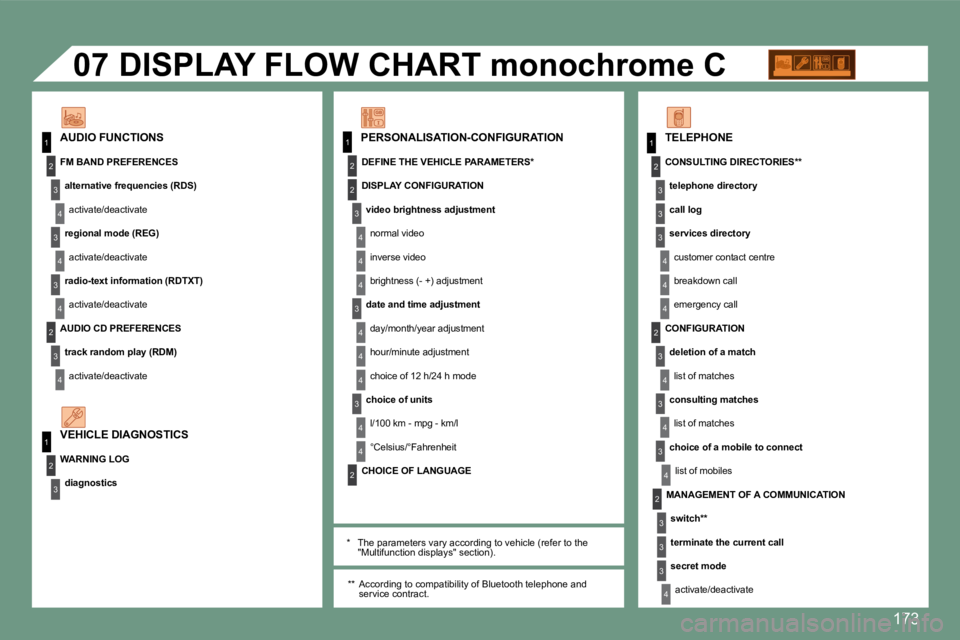

Page 187 of 221
173
11
2
3
4
3
4
3
4
2
3
4
2
3
4
2
4
4
3
4
4
4
3
4
41
2
32
1
2
3
3
3
4
4
4
2
3
4
3
4
3
4
2
3
3
3
4
07
PERSONALISATION-CONFIGURATION AUDIO FUNCTIONS
DISPLAY FLOW CHART monochrome C
* The parameters vary according to vehicle (refer to the " M u l t i f u n c t i o n d i s p l a y s " s e c t i o n ) .
** According to compatibility of Bluetooth telephone and service contract.
TELEPHONE
VEHICLE DIAGNOSTICS
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
track random play (RDM)
activate/deactivate
WARNING LOG
diagnostics
DEFINE THE VEHICLE PARAMETERS *
CHOICE OF LANGUAGE
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
b r i g h t n e s s ( - + ) a d j u s t m e n t
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CONSULTING DIRECTORIES **
telephone directory
call log
services directory
customer contact centre
breakdown call
emergency call
MANAGEMENT OF A COMMUNICATION
s w i t c h * *
terminate the current call
secret mode
activate/deactivate
CONFIGURATION
deletion of a match
list of matches
consulting matches
list of matches
choice of a mobile to connect
list of mobiles
Page 188 of 221
205
The table below groups together the answers to the most frequently asked questions concerning your WI P Com and your WIP Sound.
QUESTION SOLUTION RESPONSE
There is a difference in sound quality between the different audio s o u r c e s ( r a d i o , C D . . . ) .
Check that the audio settings (Volume, Bass, T r e b l e , A m b i e n c e , L o u d n e s s ) a r e a d a p t e d t o the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear B a l a n c e , L e f t - R i g h t B a l a n c e ) t o t h e m i d d l e position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, A m b i e n c e , L o u d n e s s ) c a n b e a d a p t e d t o t h e d i f f e r e n t s o u n d s o u r c e s , which may result in audible differences when changing source (radio, C D . . . ) .
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment’s CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
FREQUENTLY ASKED QUESTIONS
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
T h e a u d i o e q u i p m e n t s e t t i n g s ( b a s s , t r e b l e , a m b i e n c e s ) a r e u n s u i t a b l e . Set the treble or bass level to 0, without selecting an ambience.

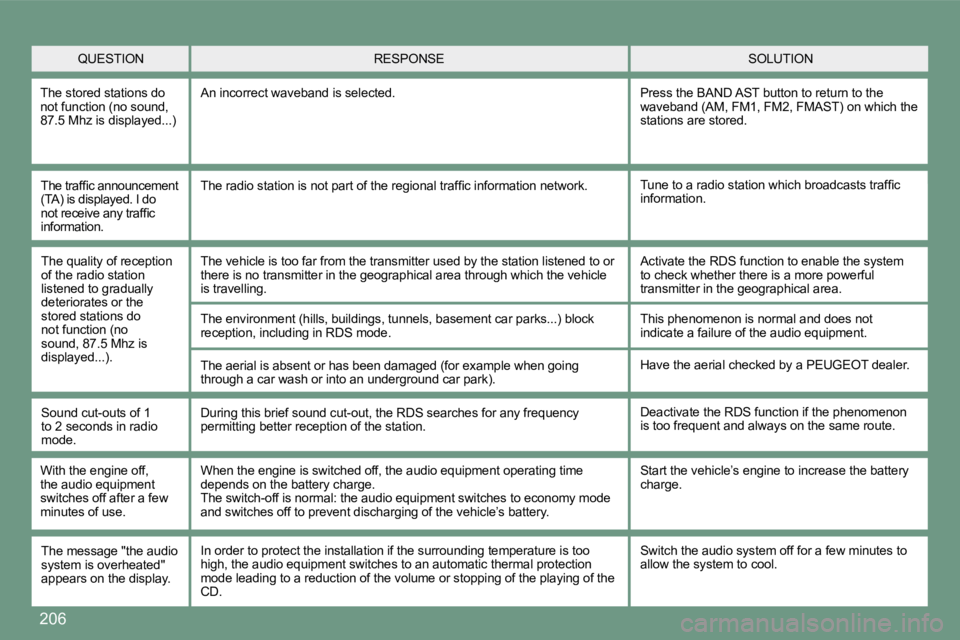

Page 189 of 221
206
QUESTION SOLUTION RESPONSE
The stored stations do not function (no sound, 8 7 . 5 M h z i s d i s p l a y e d . . . )
An incorrect waveband is selected. Press the BAND AST button to return to the w a v e b a n d ( A M , F M 1 , F M 2 , F M A S T ) o n w h i c h t h e stations are stored.
T h e t r a f fi c a n n o u n c e m e n t ( T A ) i s d i s p l a y e d . I d o n o t r e c e i v e a n y t r a f fi c information.
T u n e t o a r a d i o s t a t i o n w h i c h b r o a d c a s t s t r a f fi c information. T h e r a d i o s t a t i o n i s n o t p a r t o f t h e r e g i o n a l t r a f fi c i n f o r m a t i o n n e t w o r k .
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is d i s p l a y e d . . . ) .
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle’s battery.
Start the vehicle’s engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.

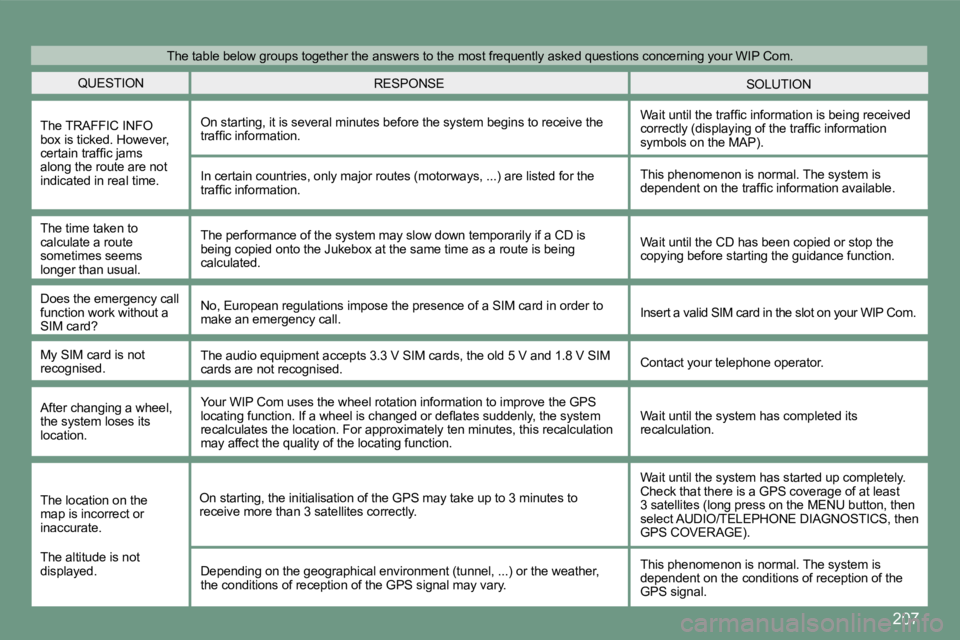

Page 190 of 221
207
QUESTION SOLUTION RESPONSE
The TRAFFIC INFO box is ticked. However, c e r t a i n t r a f fi c j a m s along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the t r a f fi c i n f o r m a t i o n .
W a i t u n t i l t h e t r a f fi c i n f o r m a t i o n i s b e i n g r e c e i v e d c o r r e c t l y ( d i s p l a y i n g o f t h e t r a f fi c i n f o r m a t i o n symbols on the MAP ) .
I n c e r t a i n c o u n t r i e s , o n l y m a j o r r o u t e s ( m o t o r w a y s , . . . ) a r e l i s t e d f o r t h e t r a f fi c i n f o r m a t i o n .
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is d e p e n d e n t o n t h e t r a f fi c i n f o r m a t i o n a v a i l a b l e .
The performance of the system may slow down tempor arily if a CD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
Does the emergency call function work without a SIM card?
No, European regulations impose the presence of a SIM card in order to make an emergency call. Insert a valid SIM card in the slot on your WIP Com.
My SIM card is not recognised. The audio equipment accepts 3.3 V SIM cards, the o ld 5 V and 1.8 V SIM cards are not recognised. Contact your telephone operator.
After changing a wheel, the system loses its location.
Your WIP Com uses the wheel rotation information to improve the GPS l o c a t i n g f u n c t i o n . I f a w h e e l i s c h a n g e d o r d e fl a t e s s u d d e n l y , t h e s y s t e m recalculates the location. For approximately ten mi nutes, this recalculation may affect the quality of the locating function.
Wait until the system has completed its recalculation.
The table below groups together the answers to the most frequently asked questions concerning your WI P Com.
The location on the map is incorrect or inaccurate.
The altitude is not displayed.
On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 3 satellites correctly.
Wait until the system has started up completely. Check that there is a GPS coverage of at least 3 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then G P S C O V E R A G E ) .
D e p e n d i n g o n t h e g e o g r a p h i c a l e n v i r o n m e n t ( t u n n e l , . . . ) o r t h e w e a t h e r , the conditions of reception of the GPS signal may vary.
This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
