FAMILIARISATION
Remote control key

A. Unfolding/Folding of the key.
Normal locking
(press once; fi xed lighting of
the direction indicators). Fuel tank

1. Opening of the fuel fi ller fl ap.

2. Opening and hooking of the fuel
tank cap.
Capacity of the tank: approximately
60 litres.
Unlocking and partial opening
of the boot
(press for more than two sec-
onds).
When the light is poor, detected by a
sensor, the remote switching on of the
dipped headlamps, side lights and lat-
eral spotlights makes your approach to
the vehicle easier.


 80
In the same way, the passenger com-
partment lighting, such as the courtesy
lights, the door sill lights and the foot-
well lights, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).


 63
 85
 76
OPEN
Complete or selective unlocking
of the vehicle
(rapid fl ashing of the direction
indicators).
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.

1
27

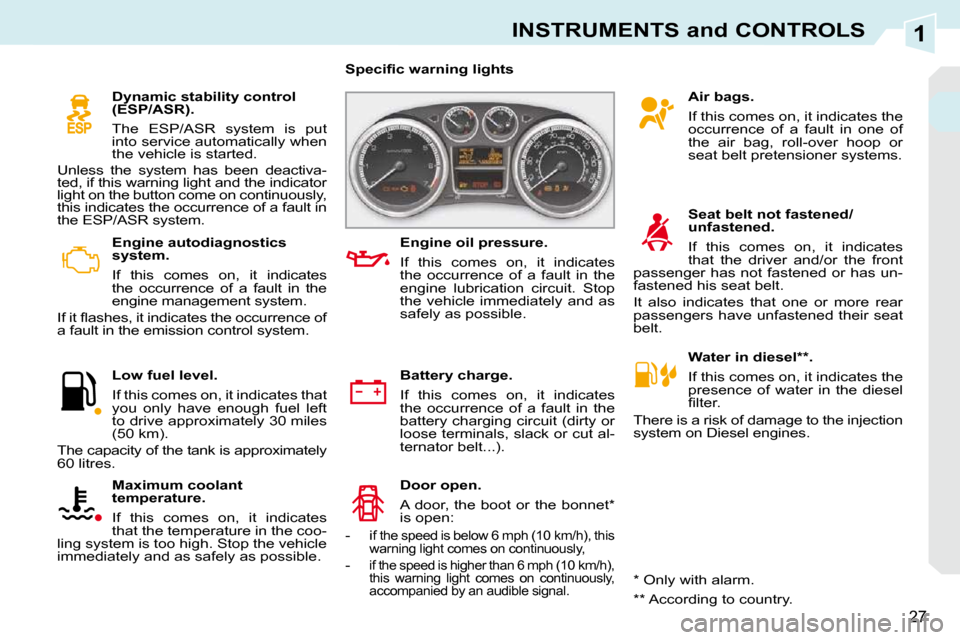

INSTRUMENTS and CONTROLS
Engine autodiagnostics
system.
If this comes on, it indicates
the occurrence of a fault in the
engine management system.
If it fl ashes, it indicates the occurrence of
a fault in the emission control system.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximately
60 litres.
Maximum coolant
temperature.
If this comes on, it indicates
that the temperature in the coo-
ling system is too high. Stop the vehicle
immediately and as safely as possible. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag, roll-over hoop or
seat belt pretensioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel ** .
If this comes on, it indicates the
presence of water in the diesel
fi lter.
There is a risk of damage to the injection
system on Diesel engines.
Door open.
A door, the boot or the bonnet *
is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut al-
ternator belt...).
Engine oil pressure.
If this comes on, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle immediately and as
safely as possible.
Specifi c warning lights
* Only with alarm.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactiva-
ted, if this warning light and the indicator
light on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system.
** According to country.
- i
f the speed is below 6 mph (10 km/h), this
warning light comes on continuously,

- if the speed is higher than 6 mph (10 km/h),
this warning light comes on continuously,
accompanied by an audible signal.

1
29
INSTRUMENTS and CONTROLS
Air bags.
If this is displayed, it indicates the
occurrence of a fault in one of the
air bag, roll-over hoop or preten-
sioning seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deacti-
vated, if this warning light and the indi-
cator light on the button come on, this
indicates the occurrence of a fault in the
ESP/ASR system.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
immediately and as safely as
possible.
Door open.
A door, the boot or the bonnet *
is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the formation
of ice on the road below a temperature
of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the
vehicle is moving, it indicates
that the handbrake has not been
released fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control battery
is fl at.
* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel
remaining to drive approxima-
tely 30 miles (50 km).
The capacity of the tank is approxima tely
60 litres. Screenwash fl uid level.
If this is displayed, following an
action on the wipers stalk, it in-
dicates an insuffi cient level of
fl uid.
Fill the screenwash/headlamp wash fl uid
reservoir when you stop. -
if the speed is below 6 mph (10 km/h), this
warning light is displayed in orange,

if the speed is higher than 6 mph (10 km/h), this warning light is displayed in red.
Coolant level.
If this is displayed, it indicates
an insuffi cient level of coolant
in the circuit. Stop the vehicle
immediately and as safely as
possible.

4
i
76
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
FUEL TANK

Capacity of the tank: approximately
60 litres.
To fi ll the tank safely:

 it is essential that the engine is
switched off,

 open the fuel fi ller fl ap,

 insert the key in the cap, then turn it
to the left,
When fi lling is complete:

 put the cap back in place,

 turn the key to the right, then remove
it from the cap,

 close the fl ap.

 remove the cap and secure it on the
hook, located on the inside of the
fl ap,

 fi ll the tank, but do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used according to your engine.
Operating fault
A fuel gauge malfunction is indicated by
the return of the fuel level indicator nee-
dle to zero.
Consult a PEUGEOT dealer. When the fuel tank minimum
level is reached, this warning
light comes on on the instru-
ment panel, accompanied by
an audible signal and a message on the
multifunction display.

You have enough fuel left to drive
approximately 30 miles (50 km).
If you run out of fuel, refer to the
"Checks - § Running out of fuel" section
also.

11
154

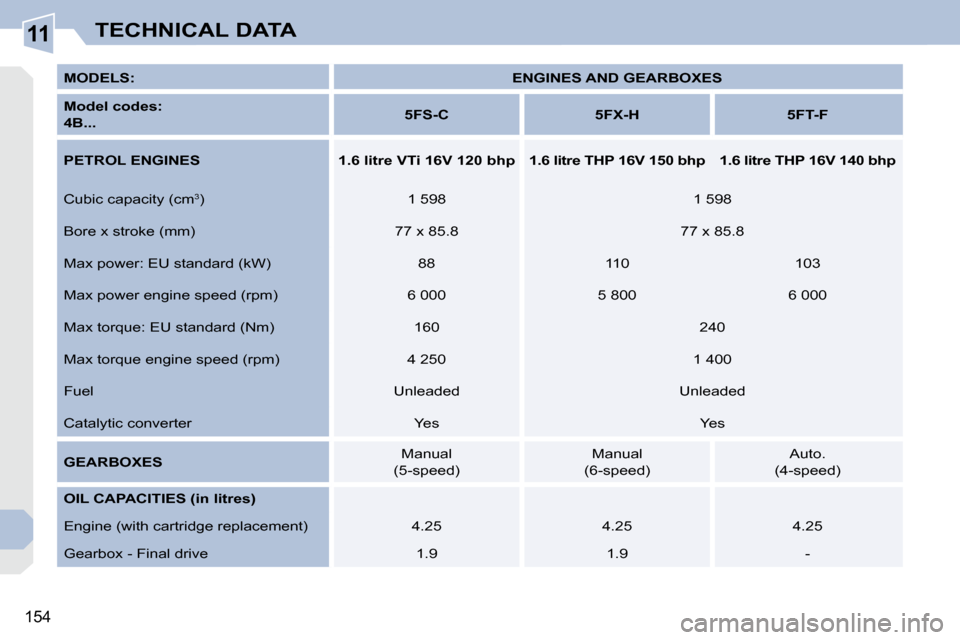

TECHNICAL DATA

MODELS:
ENGINES AND GEARBOXES

Model codes:

4B...
5FS-C 5FX-H 5FT-F

PETROL ENGINES 1.6 litre VTi 16V 120 bhp 1.6 litre THP 16V 150 bhp 1.6 litre THP 16V 140 bhp
Cubic capacity (cm 3
) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 88 110 103
Max power engine speed (rpm) 6 000 5 800 6 000
Max torque: EU standard (Nm) 160 240
Max torque engine speed (rpm) 4 250 1 400
Fuel Unleaded Unleaded
Catalytic converter Yes Yes

GEARBOXES Manual
(5-speed) Manual
(6-speed) Auto.
(4-speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement) 4.25 4.25 4.25
Gearbox - Final drive 1.9 1.9 -

11
157
TECHNICAL DATA

MODELS:
ENGINES AND GEARBOXES

Model codes:

4B...
9HR-H RHR-H RHR-J

DIESEL ENGINES
1.6 litre Turbo HDI 16V
110 bhp
2 litres Turbo HDI 16V 136 bhp
Cubic capacity (cm 3
) 1 560 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88
Max power: EU standard (kW) 82 103 100
Max power engine speed (rpm) 4 000 4 000
Max torque: EU standard (Nm) 270 320
Max torque engine speed (rpm) 1 750 2 000
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particle emission fi lter Yes Yes

GEARBOXES Manual
(6-speed) Manual
(6-speed) Auto.
(6-speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement) 3.75 5.25 5.25
Gearbox - Final drive 1.9 2.4 -
