Page 6 of 294
FAMILIARISATION
1. Steering lock and ignition.
2. Audio and telematics system
steering wheel control.
3. Wipers/wash-wipe/trip computer
controls.
4. Instrument panel.
5. Driver’s air bag.
Horn.
6. Gear lever.
7. Handbrake.
8. 12 V accessories socket.
9. Heated seat control.
10. Exterior mirror controls.
Electric window controls.
11. Passenger air bag disarming.
12. Manual headlamp height
adjustment.
13. Side adjustable and closing vent.
14. Front side window demisting vent.
15. Speaker (tweeter).
16. Windscreen demisting vent.
INSTRUMENTS AND CONTROLS
Page 8 of 294
FAMILIARISATION
Front seats
Manual adjustments
Electric adjustments
Forwards-backwards
55
56 Seat back angle
Height
Page 9 of 294
i!
FAMILIARISATION
SIT COMFORTABLY
Steering wheel adjustment
1. Unlocking of the control.
2. Adjustment of the height and depth.
3. Locking of the control.
Front seats
Other functions available...
Storing of driving positions (driver’s
electric seat).
59
"AIRWAVE" system.
Heated seats.
58
Electric access to the rear seats
Front armrest with lock
88
62 For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As a
security measure when in the "cabriolet"
c o n fi g u r a t i o n , t h i s i s l o c k e d a t t h e s a m e
time as the rest of the vehicle, using the
remote control or the key only.
As a safety precaution, it is im-
perative that these operations are
carried out when stationary.
1. Control for release of the seat back
and automatic forward movement of
the seat.
2. Control for return of the seat to the
initial position.
57

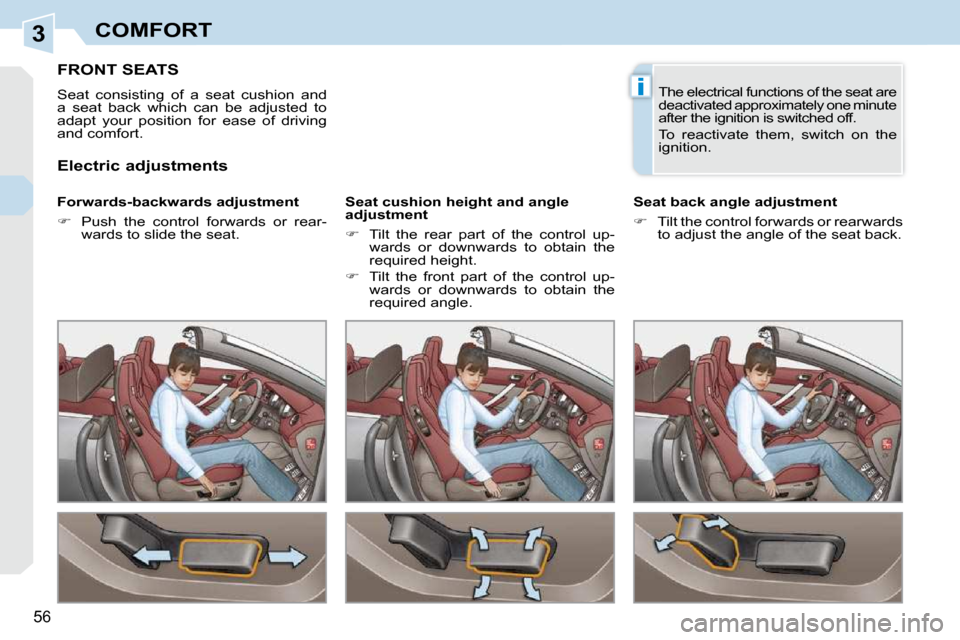

Page 54 of 294
3
i
56
COMFORT
FRONT SEATS
Seat consisting of a seat cushion and
a seat back which can be adjusted to
adapt your position for ease of driving
and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Push the control forwards or rear-
wards to slide the seat. S e a t c u s h i o n h e i g h t a n d a n g l e
a d j u s t m e n t Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
Tilt the front part of the control up-
wards or downwards to obtain the
required angle. S e a t b a c k a n g l e a d j u s t m e n t
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
E l e c t r i c a d j u s t m e n t s
The electrical functions of the seat are
deactivated approximately one minute
after the ignition is switched off.
To reactivate them, switch on the
ignition.
Page 62 of 294
3
!
i
62
COMFORT
STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the
driving position to the size of the driver.
A d j u s t m e n t
W h e n s t a t i o n a r y , pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
In order to guarantee optimum visibility when manoeuvring the vehicle, the
mirror lightens automatically when
reverse gear is engaged.
A u t o m a t i c d a y / n i g h t m o d e l
System which automatically and pro-
gressively changes between day and
night use.
In order to prevent dazzle, the interior
mirror glass darkens automatically de-
pending on the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility. S w i t c h i n g o n
Switch on the ignition and press
switch 1 .
The indicator lamp 2 comes on and the
mirror operates automatically.
S w i t c h i n g o f f
Press switch 1 .
The indicator lamp 2 switches off and
the mirror remains in its lightest state.
Page 63 of 294
3
!
i
62
COMFORT
STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the
driving position to the size of the driver.
A d j u s t m e n t
W h e n s t a t i o n a r y , pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
In order to guarantee optimum visibility when manoeuvring the vehicle, the
mirror lightens automatically when
reverse gear is engaged.
A u t o m a t i c d a y / n i g h t m o d e l
System which automatically and pro-
gressively changes between day and
night use.
In order to prevent dazzle, the interior
mirror glass darkens automatically de-
pending on the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility. S w i t c h i n g o n
Switch on the ignition and press
switch 1 .
The indicator lamp 2 comes on and the
mirror operates automatically.
S w i t c h i n g o f f
Press switch 1 .
The indicator lamp 2 switches off and
the mirror remains in its lightest state.
Page 83 of 294
5
ii
80
VISIBILITY
Exterior welcome lighting
The remote switching on of the lights
and lateral spotlights makes your ap-
proach to the vehicle easier in poor light
when in automatic switching on of the
lights mode.
Switching on
Press the open padlock on the re-
mote control.
The dipped headlamps and the side lights come on, as well as the lat-
eral spotlights, located in the exte-
rior mirrors; your vehicle is also un-
locked.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Programming The duration of maintaining
of the lighting is selected
via the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u .
The duration of the welcome light-
ing is associated with and identical
to that of the automatic follow-me-
home lighting. MANUAL ADJUSTMENT OFTHE HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0.
1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
-. Intermediate setting.
2.
4 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised loads.
Page 85 of 294
5
ii
80
VISIBILITY
Exterior welcome lighting
The remote switching on of the lights
and lateral spotlights makes your ap-
proach to the vehicle easier in poor light
when in automatic switching on of the
lights mode.
Switching on
Press the open padlock on the re-
mote control.
The dipped headlamps and the side lights come on, as well as the lat-
eral spotlights, located in the exte-
rior mirrors; your vehicle is also un-
locked.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Programming The duration of maintaining
of the lighting is selected
via the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u .
The duration of the welcome light-
ing is associated with and identical
to that of the automatic follow-me-
home lighting. MANUAL ADJUSTMENT OFTHE HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0.
1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
-. Intermediate setting.
2.
4 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised loads.
Page 86 of 294
5
ii
80
VISIBILITY
Exterior welcome lighting
The remote switching on of the lights
and lateral spotlights makes your ap-
proach to the vehicle easier in poor light
when in automatic switching on of the
lights mode.
Switching on
Press the open padlock on the re-
mote control.
The dipped headlamps and the side lights come on, as well as the lat-
eral spotlights, located in the exte-
rior mirrors; your vehicle is also un-
locked.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Programming The duration of maintaining
of the lighting is selected
via the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u .
The duration of the welcome light-
ing is associated with and identical
to that of the automatic follow-me-
home lighting. MANUAL ADJUSTMENT OFTHE HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0.
1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
-. Intermediate setting.
2.
4 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised loads.
Page 87 of 294
5
!
i
81
VISIBILITY
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
Do not touch the xenon headlamps. Consult a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamps beam
automatically and when stationary, in
relation to the load in the vehicle.
If a malfunction occurs, this
warning light and/or the service
warning light is displayed on the
instrument panel, accompanied
by an audible signal and a message on
the multifunction display.
The system then places your head-
lamps in the lowest position.
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beam to follow the direction of the
road.
The use of this function, coupled with
the xenon headlamps only, considerably
i m p r o v e s t h e q u a l i t y o f y o u r l i g h t i n g
when cornering.
with directional lighting
without directional lighting Programming
Operating fault
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
If a malfunction occurs, this
w a r n i n g l i g h t fl a s h e s o n t h e
instrument panel, accompanied
by a message on the multifunc-
tion display.
Consult a PEUGEOT dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
