Peugeot 308 CC 2011 Owner's Manual - RHD (UK, Australia)

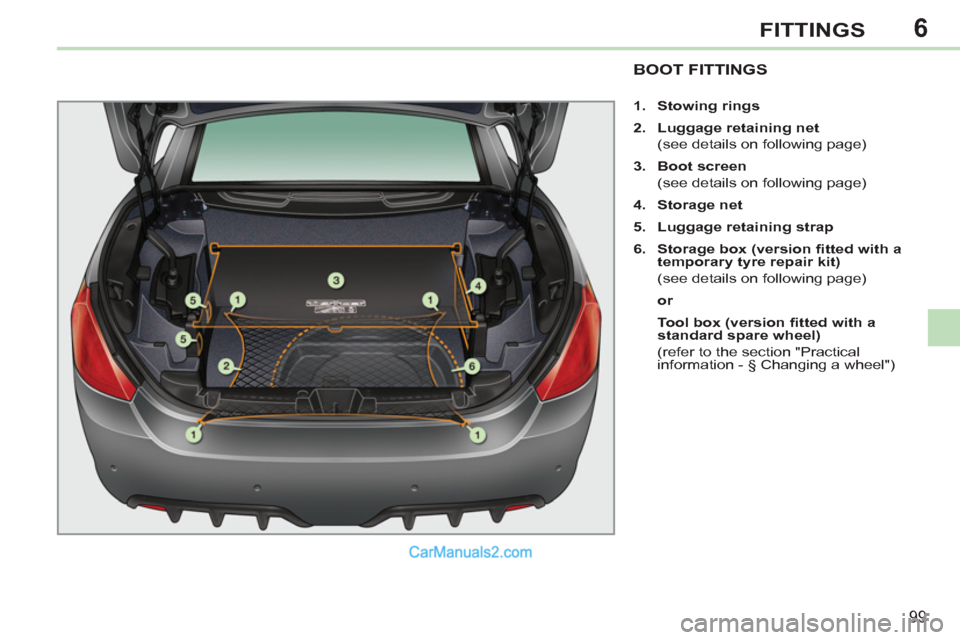

6
99
FITTINGS














BOOT FITTINGS



1.
Stowing rings


2.
Luggage retaining net


(see details on following page)

3.
Boot screen


(see details on following page)

4.
Storage net


5.
Luggage retaining strap


6.
Storage box (version fi tted with a
temporary tyre repair kit)

(see details on following page)
or

Tool box (version fi tted with a
standard spare wheel

)

(refer to the section "Practical
information - § Changing a wheel")

6
i

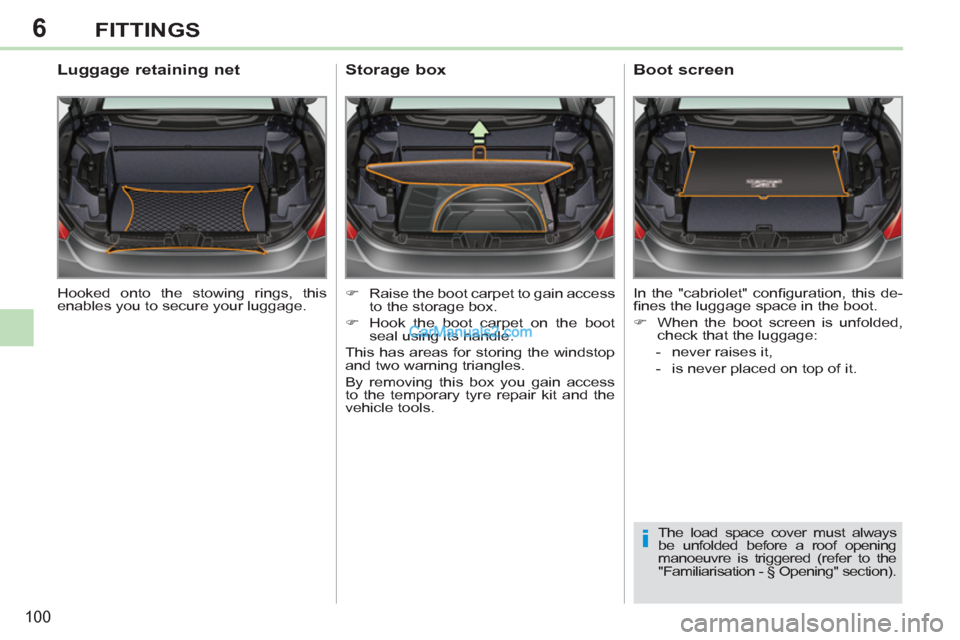

100
FITTINGS
Hooked onto the stowing rings, this
enables you to secure your luggage.







Luggage retaining net



)
Raise the boot carpet to gain access
to the storage box.

)
Hook the boot carpet on the boot
seal using its handle.
This has areas for storing the windstop
and two warning triangles.
By removing this box you gain access
to the temporary tyre repair kit and the
vehicle tools.
















Storage box











Boot screen

In the "cabriolet" confi guration, this de-
fi nes the luggage space in the boot.


)
When the boot screen is unfolded,
check that the luggage:


- never raises it,

- is never placed on top of it.
The load space cover must always
be unfolded before a roof opening
manoeuvre is triggered (refer to the
"Familiarisation - § Opening" section).

7
i

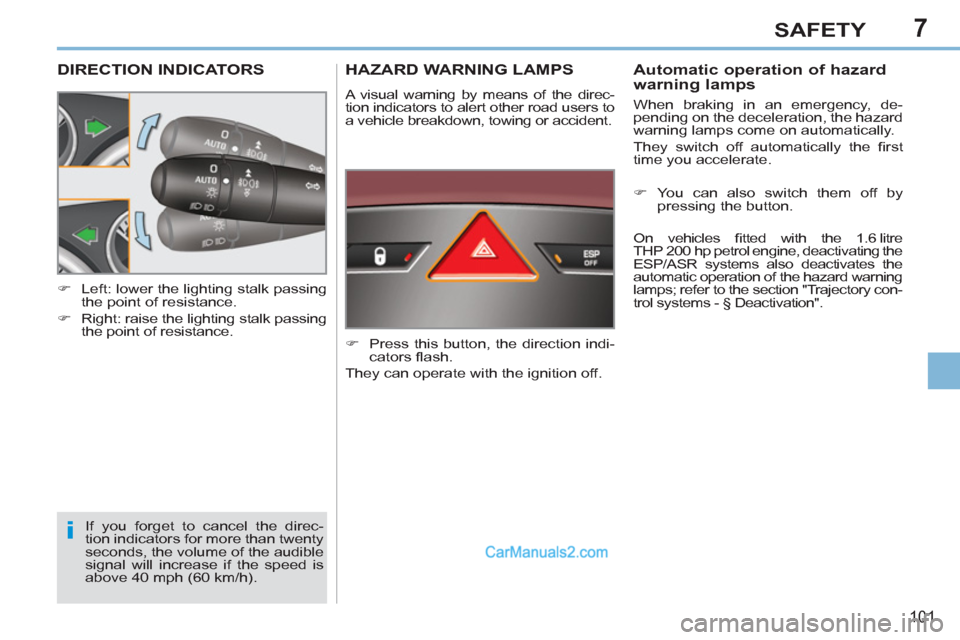

101
SAFETY











DIRECTION INDICATORS

If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).

)
Left: lower the lighting stalk passing
the point of resistance.

)
Right: raise the lighting stalk passing
the point of resistance.







HAZARD WARNING LAMPS

A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.


)
Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off.













Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.


)
You can also switch them off by
pressing the button.
On vehicles fi tted with the 1.6 litre
THP 200 hp petrol engine, deactivating the
ESP/ASR systems also deactivates the
automatic operation of the hazard warning
lamps; refer to the section "Trajectory con-
trol systems - § Deactivation".

7
i

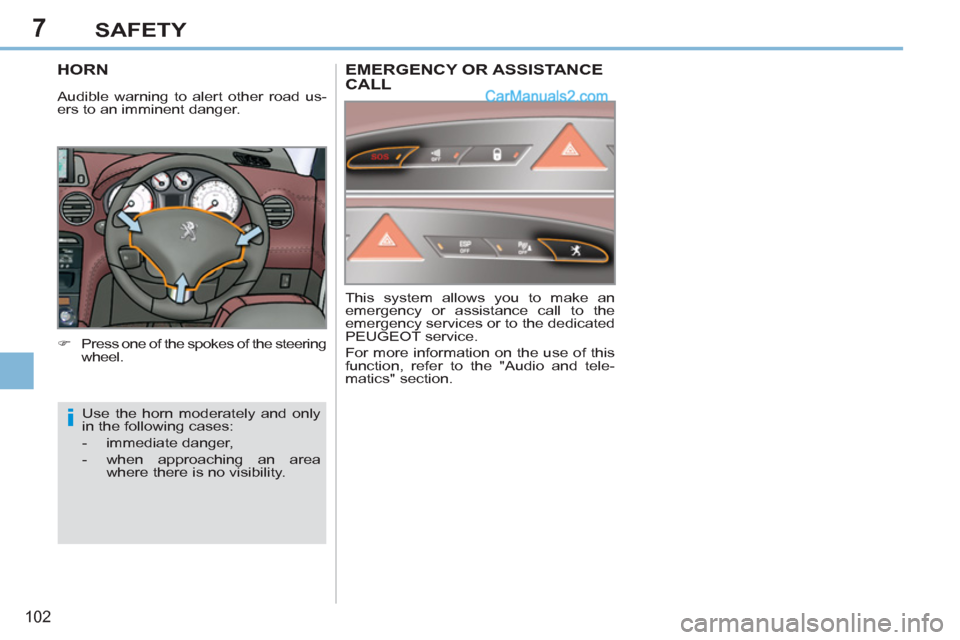

102
SAFETY








HORN



)
Press one of the spokes of the steering
wheel.
Use the horn moderately and only
in the following cases:


- immediate danger,





- when approaching an area
where there is no visibility.

Audible warning to alert other road us-
ers to an imminent danger.








EMERGENCY OR ASSISTANCE
CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio and tele-
matics" section.

7
!
i
i
i
103
SAFETY

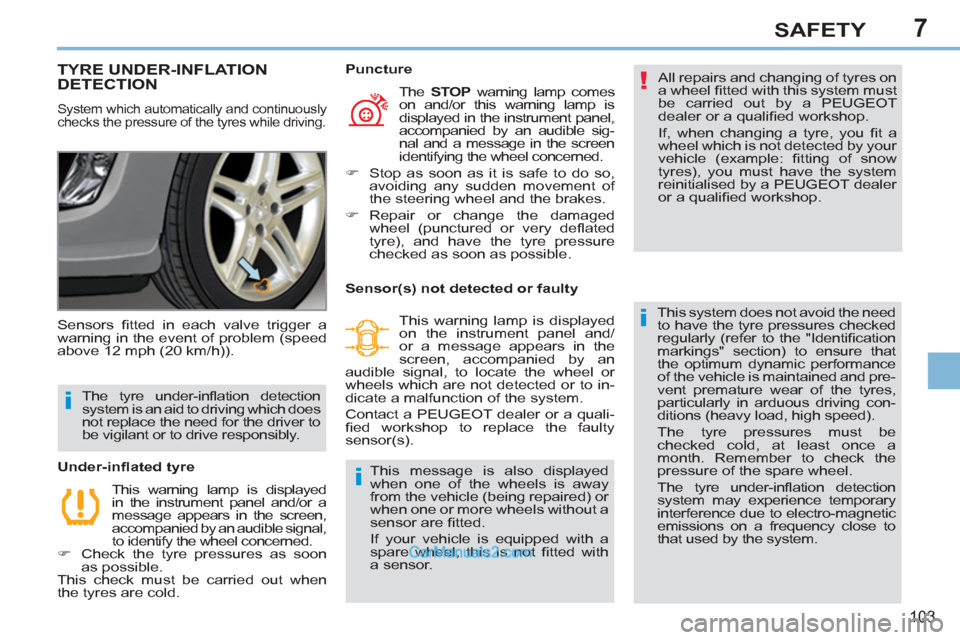

TYRE UNDER-INFLATION
DETECTION
System which automatically and continuously
checks the pressure of the tyres while driving.
All repairs and changing of tyres on
a wheel fi tted with this system must
be carried out by a PEUGEOT
dealer or a qualifi ed workshop.
If, when changing a tyre, you fi t a
wheel which is not detected by your
vehicle (example: fi tting of snow
tyres), you must have the system
reinitialised by a PEUGEOT dealer
or a qualifi ed workshop.
This system does not avoid the need
to have the tyre pressures checked
regularly (refer to the "Identifi cation
markings" section) to ensure that
the optimum dynamic performance
of the vehicle is maintained and pre-
vent premature wear of the tyres,
particularly in arduous driving con-
ditions (heavy load, high speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electro-magnetic
emissions on a frequency close to
that used by the system.
Sensors fi tted in each valve trigger a
warning in the event of problem (speed
above 12 mph (20 km/h)).

This warning lamp is displayed
in the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal,
to identify the wheel concerned.


)
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Under-infl ated tyre
The STOP
warning lamp comes
on and/or this warning lamp is
displayed in the instrument panel,
accompanied by an audible sig-
nal and a message in the screen
identifying the wheel concerned.


)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.

)
Repair or change the damaged
wheel (punctured or very defl ated
tyre), and have the tyre pressure
checked as soon as possible.

Puncture
The tyre under-infl ation detection
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly.
Sensor(s) not detected or faulty
This warning lamp is displayed
on the instrument panel and/
or a message appears in the
screen, accompanied by an
audible signal, to locate the wheel or
wheels which are not detected or to in-
dicate a malfunction of the system.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to replace the faulty
sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
If your vehicle is equipped with a
spare wheel, this is not fi tted with
a sensor.

7
!
i
!
104
SAFETY

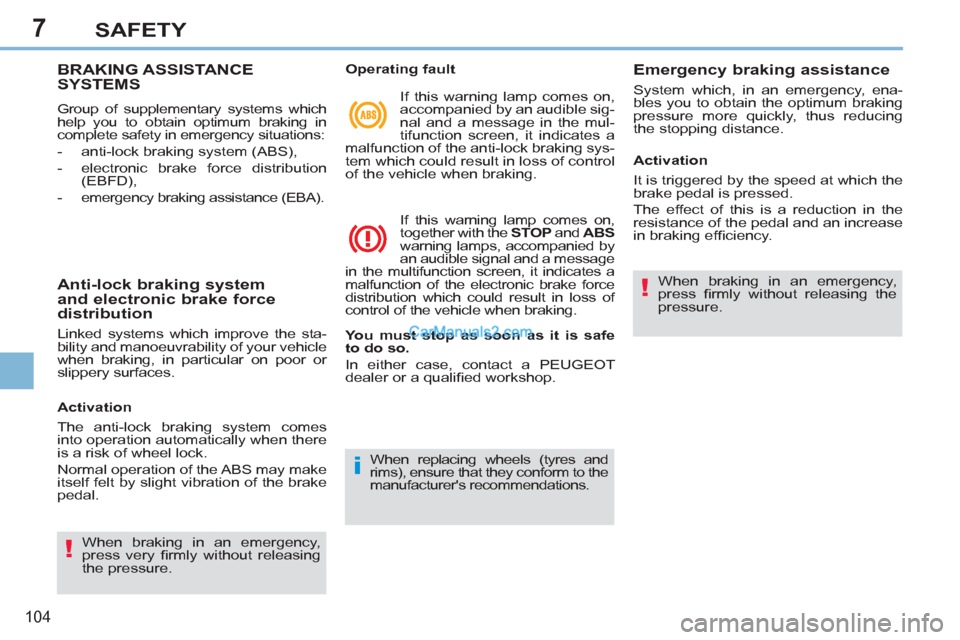

BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:


- anti-lock braking system (ABS),

- electronic brake force distribution
(EBFD),

- emergency braking assistance (EBA).


Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehicle
when braking, in particular on poor or
slippery surfaces.

When braking in an emergency,
press very fi rmly without releasing
the pressure.
When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.

Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message in the mul-
tifunction screen, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning lamp comes on,
together with the STOP
and ABS

warning lamps, accompanied by
an audible signal and a message
in the multifunction screen, it indicates a
malfunction of the electronic brake force
distribution which could result in loss of
control of the vehicle when braking.









Emergency braking assistance

System which, in an emergency, ena-
bles you to obtain the optimum braking
pressure more quickly, thus reducing
the stopping distance.

Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.
Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.
When braking in an emergency,
press fi rmly without releasing the
pressure.


You must stop as soon as it is safe
to do so.

In either case, contact a PEUGEOT
dealer or a qualifi ed workshop.

7
!

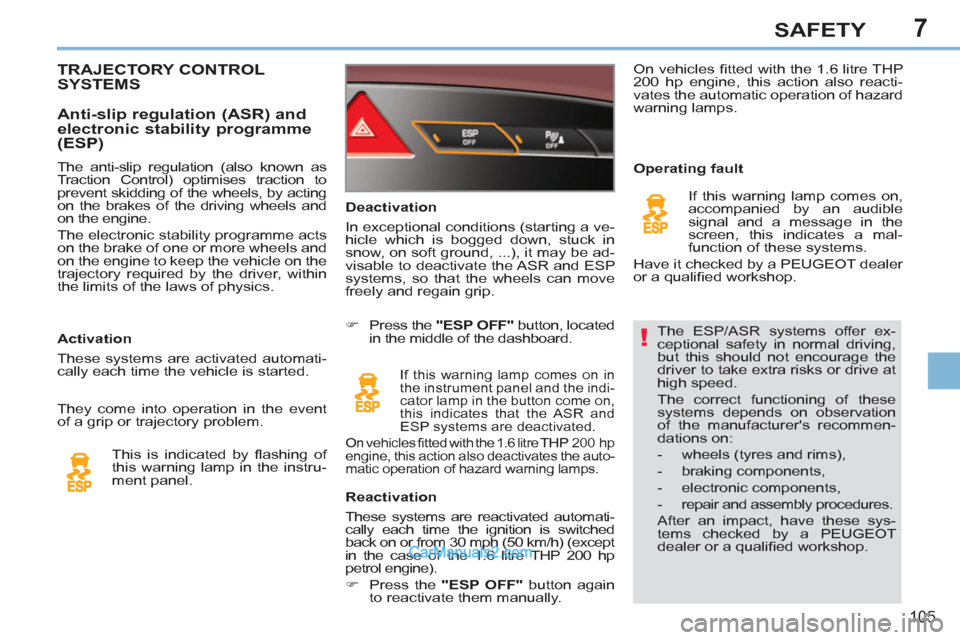

105
SAFETY
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations on:


- wheels (tyres and rims),

- braking components,

- electronic components,

- repair and assembly procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer or a qualifi ed workshop.


Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground, ...), it may be ad-
visable to deactivate the ASR and ESP
systems, so that the wheels can move
freely and regain grip.


)
Press the "ESP OFF"
button, located
in the middle of the dashboard.


If this warning lamp comes on in
the instrument panel and the indi-
cator lamp in the button come on,
this indicates that the ASR and
ESP systems are deactivated.
On vehicles fi tted with the 1.6 litre THP 200 hp
engine, this action also deactivates the auto-
matic operation of hazard warning lamps.


Reactivation
These systems are reactivated automati-
cally each time the ignition is switched
back on or from 30 mph (50 km/h) (except
in the case of the 1.6 litre THP 200 hp
petrol engine).


)
Press the "ESP OFF"
button again
to reactivate them manually.
Operating fault

If this warning lamp comes on,
accompanied by an audible
signal and a message in the
screen, this indicates a mal-
function of these systems.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.















TRAJECTORY CONTROL
SYSTEMS

Activation
These systems are activated automati-
cally each time the vehicle is started.

Anti-slip regulation (ASR) and
electronic stability programme
(ESP)
They come into operation in the event
of a grip or trajectory problem.
This is indicated by fl ashing of
this warning lamp in the instru-
ment panel.

The anti-slip regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by acting
on the brakes of the driving wheels and
on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics. On vehicles fi tted with the 1.6 litre THP
200 hp engine, this action also reacti-
vates the automatic operation of hazard
warning lamps.

7
!

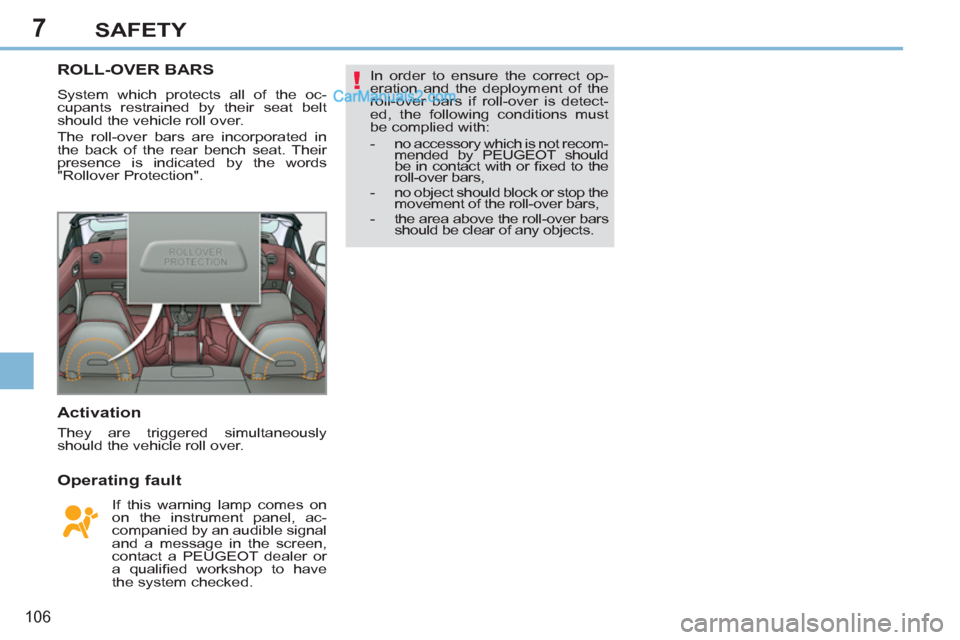

106
SAFETY








ROLL-OVER BARS

System which protects all of the oc-
cupants restrained by their seat belt
should the vehicle roll over.
The roll-over bars are incorporated in
the back of the rear bench seat. Their
presence is indicated by the words
"Rollover Protection".

Activation

They are triggered simultaneously
should the vehicle roll over.


Operating fault

If this warning lamp comes on
on the instrument panel, ac-
companied by an audible signal
and a message in the screen,
contact a PEUGEOT dealer or
a qualifi ed workshop to have
the system checked. In order to ensure the correct op-
eration and the deployment of the
roll-over bars if roll-over is detect-
ed, the following conditions must
be complied with:


- no accessory which is not recom-
mended by PEUGEOT should
be in contact with or fi xed to the
roll-over bars,

- no object should block or stop the
movement of the roll-over bars,

- the area above the roll-over bars
should be clear of any objects.

7
107
SAFETY

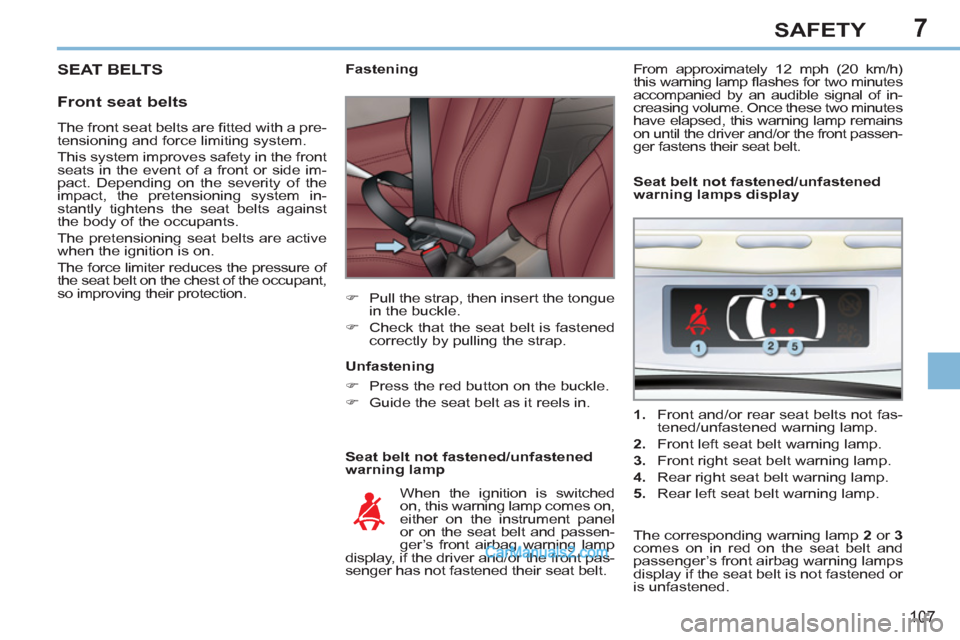

SEAT BELTS


Front seat belts


Seat belt not fastened/unfastened
warning lamp






Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.

When the ignition is switched
on, this warning lamp comes on,
either on the instrument panel
or on the seat belt and passen-
ger’s front airbag warning lamp
display, if the driver and/or the front pas-
senger has not fastened their seat belt.
Unfastening


)
Press the red button on the buckle.

)
Guide the seat belt as it reels in.



1.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

2.
Front left seat belt warning lamp.

3.
Front right seat belt warning lamp.

4.
Rear right seat belt warning lamp.

5.
Rear left seat belt warning lamp.
Seat belt not fastened/unfastened
warning lamps display
The corresponding warning lamp 2
or 3

comes on in red on the seat belt and
passenger’s front airbag warning lamps
display if the seat belt is not fastened or
is unfastened.
From approximately 12 mph (20 km/h)
this warning lamp fl ashes for two minutes
accompanied by an audible signal of in-
creasing volume. Once these two minutes
have elapsed, this warning lamp remains
on until the driver and/or the front passen-
ger fastens their seat belt.
The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side im-
pact. Depending on the severity of the
impact, the pretensioning system in-
stantly tightens the seat belts against
the body of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure of
the seat belt on the chest of the occupant,
so improving their protection.

7
i
108
SAFETY

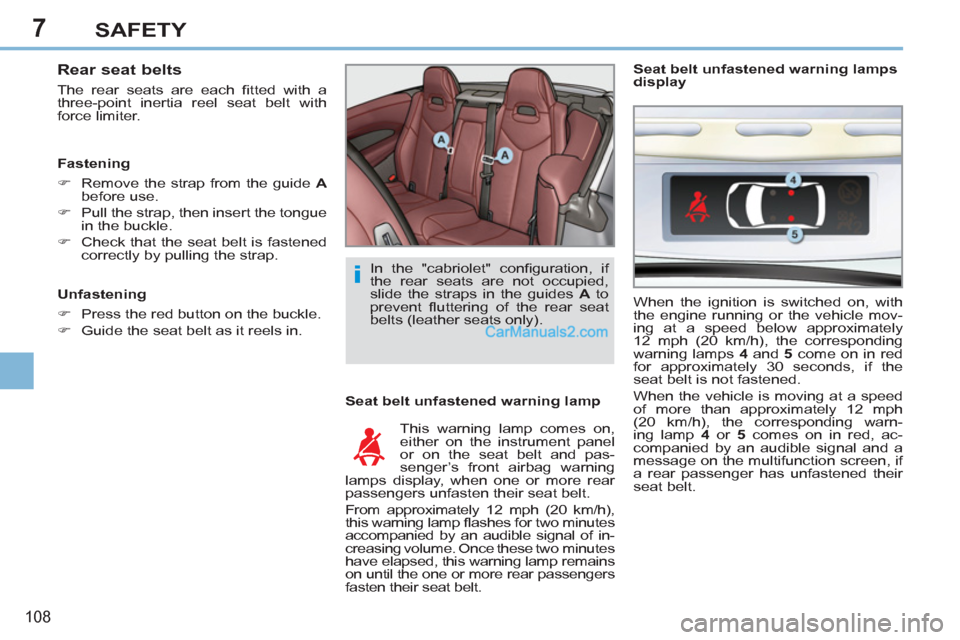

Rear seat belts

The rear seats are each fi tted with a
three-point inertia reel seat belt with
force limiter.

Seat belt unfastened warning lamp
This warning lamp comes on,
either on the instrument panel
or on the seat belt and pas-
senger’s front airbag warning
lamps display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
this warning lamp fl ashes for two minutes
accompanied by an audible signal of in-
creasing volume. Once these two minutes
have elapsed, this warning lamp remains
on until the one or more rear passengers
fasten their seat belt.
Fastening


)
Remove the strap from the guide A

before use.

)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.

Seat belt unfastened warning lamps
display
When the ignition is switched on, with
the engine running or the vehicle mov-
ing at a speed below approximately
12 mph (20 km/h), the corresponding
warning lamps 4
and 5
come on in red
for approximately 30 seconds, if the
seat belt is not fastened.
When the vehicle is moving at a speed
of more than approximately 12 mph
(20 km/h), the corresponding warn-
ing lamp 4
or 5
comes on in red, ac-
companied by an audible signal and a
message on the multifunction screen, if
a rear passenger has unfastened their
seat belt.

Unfastening


)
Press the red button on the buckle.

)
Guide the seat belt as it reels in. In the "cabriolet" confi guration, if
the rear seats are not occupied,
slide the straps in the guides A
to
prevent fl uttering of the rear seat
belts (leather seats only).
