Peugeot 308 CC 2011 Owner's Manual

Handbook

!
Please note the following point:

The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of
your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer to be
shown the recommended equipment and accessories.

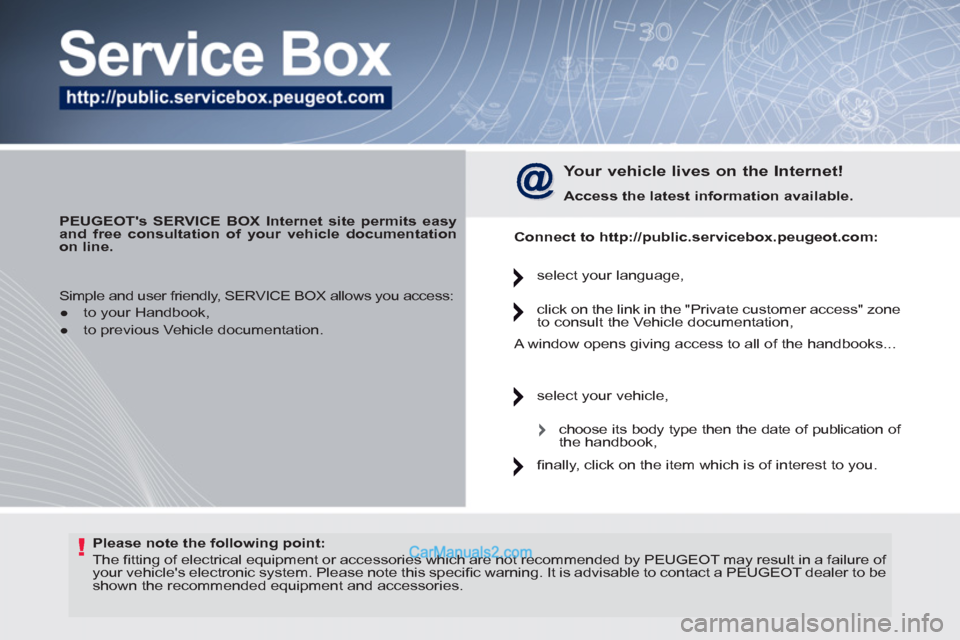

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.



Your vehicle lives on the Internet!


Access the latest information available.


Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you access:


●
to your Handbook,

●
to previous Vehicle documentation.
select your language,
click on the link in the "Private customer access" zone
to consult the Vehicle documentation,
A window opens giving access to all of the handbooks...
select your vehicle,

choose its body type then the date of publication of
the handbook,
fi nally, click on the item which is of interest to you.

!
i
1

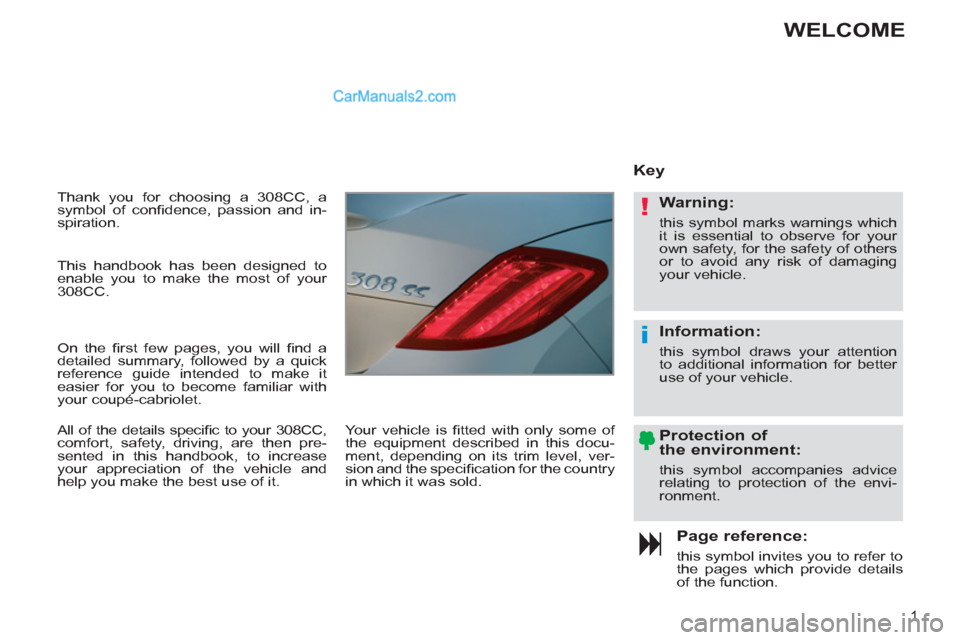

Thank you for choosing a 308CC, a
symbol of confi dence, passion and in-
spiration.

Page reference:

this symbol invites you to refer to
the pages which provide details
of the function.


Key

Protection of
the environment:
this symbol accompanies advice
relating to protection of the envi-
ronment.


Information:

this symbol draws your attention
to additional information for better
use of your vehicle.


Warning:

this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
Your vehicle is fi tted with only some of
the equipment described in this docu-
ment, depending on its trim level, ver-
sion and the specifi cation for the country
in which it was sold.
WELCOME

This handbook has been designed to
enable you to make the most of your
308CC.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your coupé-cabriolet.
All of the details specifi c to your 308CC,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle and
help you make the best use of it.

2

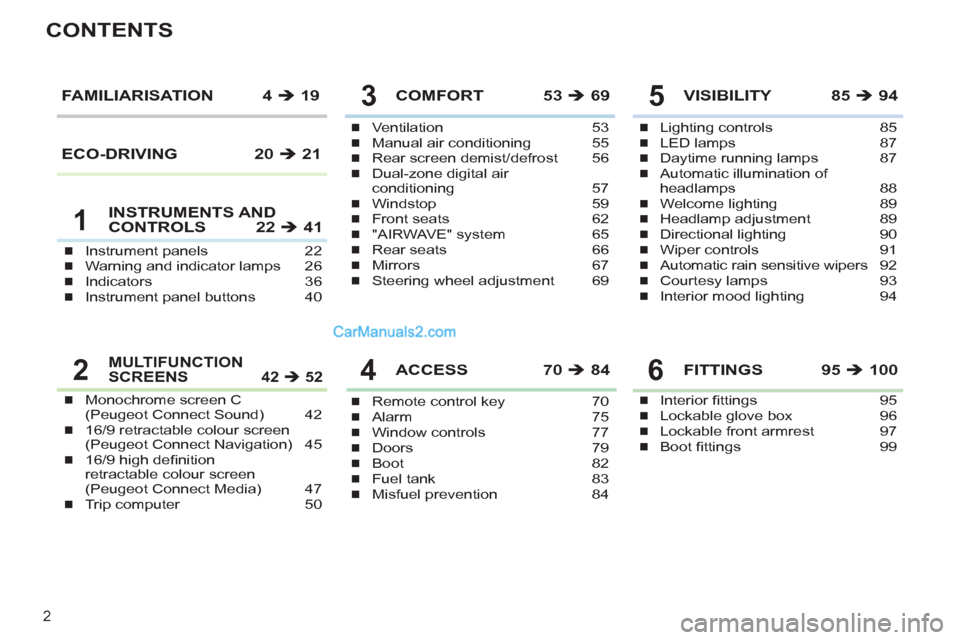

CONTENTS
Instrument panels 22
Warning and indicator lamps 26
Indicators 36
Instrument panel buttons 40„
„
„
„
Ventilation 53
Manual air conditioning 55
Rear screen demist/defrost 56
Dual-zone digital air
conditioning 57
Windstop 59
Front seats 62
"AIRWAVE" system 65
Rear seats 66
Mirrors 67
Steering wheel adjustment 69„
„
„
„
„
„
„
„
„
„
COMFORT 53 Î 69
Remote control key 70
Alarm 75
Window controls 77
Doors 79
Boot 82
Fuel tank 83
Misfuel prevention 84„
„
„
„
„
„
„
ACCESS 70 Î 84
Lighting controls 85
LED lamps 87
Daytime running lamps 87
Automatic illumination of
headlamps 88
Welcome lighting 89
Headlamp adjustment 89
Directional lighting 90
Wiper controls 91
Automatic rain sensitive wipers 92
Courtesy lamps 93
Interior mood lighting 94„
„
„
„
„
„
„
„
„
„
„
VISIBILITY 85 Î 94 FAMILIARISATION 4 Î 19
INSTRUMENTS AND
CONTROLS 22 Î 41
Monochrome screen C
(Peugeot Connect Sound) 42
16/9 retractable colour screen
(Peugeot Connect Navigation) 45
16/9 high defi nition
retractable colour screen
(Peugeot Connect Media) 47
Trip computer 50„
„
„
„
MULTIFUNCTION
SCREENS 42 Î 52
Interior fi ttings 95
Lockable glove box 96
Lockable front armrest 97
Boot fi ttings 99„
„
„
„
FITTINGS 95 Î 100
15
43
26
ECO-DRIVING 20 Î 21

3
CONTENTS
Direction indicators 101
Hazard warning lamps 101
Horn 102
Emergency or assistance call 102
Tyre under-infl ation detection 103
Braking assistance systems 104
Trajectory control systems 105
Front seat belts 107
Airbags 110
Child seats 114
ISOFIX child seats 119„
„
„
„
„
„
„
„
„
„
„
SAFETY 101 Î 121
Parking brake 122
Manual gearbox 122
Gear shift indicator 123
Hill start assist 124
Automatic gearbox 125
Stop & Start 128
Speed limiter 131
Cruise control 133
Parking sensors 135„
„
„
„
„
„
„
„
„
DRIVING 122 Î 136
Bonnet 138
Running out of fuel (Diesel) 139
Petrol engines 140
Diesel engines 141
Checking levels 142
Checks 144„
„
„
„
„
„
CHECKS 137 Î 145
Temporary puncture repair kit 146
Changing a wheel 151
Changing a bulb 155
Changing a fuse 160
Battery 166
Energy economy mode 168
Changing a wiper blade 169
Towing the vehicle 169
Towing a trailer 171
Very cold climate screen 172
Accessories 172„
„
„
„
„
„
„
„
„
„
„
PRACTICAL
INFORMATION 146 Î 173
Petrol engines 174
Weights (petrol) 175
Diesel engines 176
Weights (Diesel) 177
Dimensions 178
Identifi cation markings 179„
„
„
„
„
„
TECHNICAL
DATA 174 Î 180
AUDIO EQUIPMENT
and TELEMATICS 181 Î 278
VISUAL
SEARCH 279 Î 282
ALPHABETICAL
INDEX 283 Î 287
Emergency or assistance 181
Peugeot Connect Media 185
Peugeot Connect Navigation 229
Peugeot Connect Sound 261„
„
„
„
7
89
1011

4

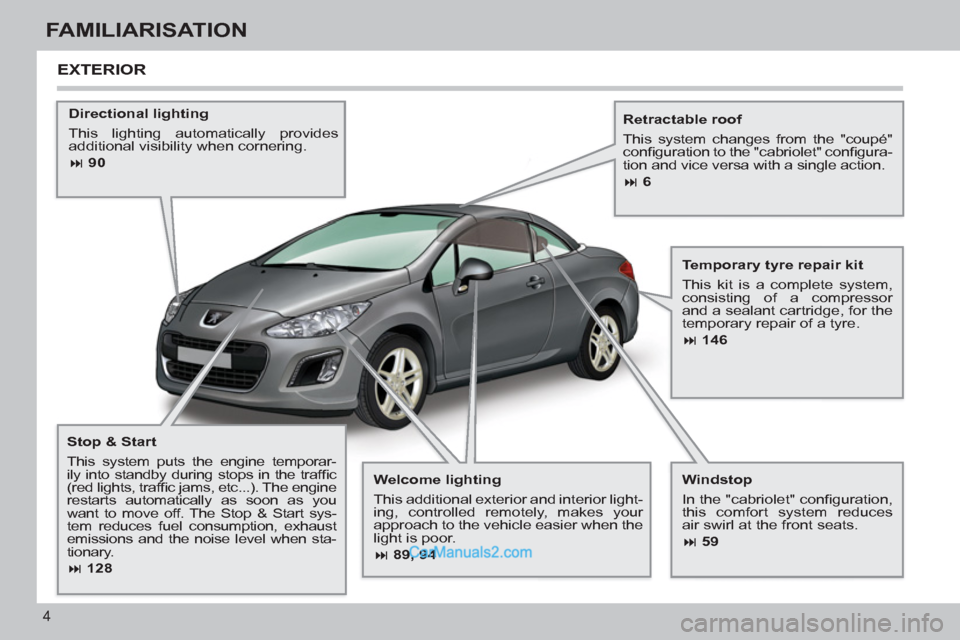

FAMILIARISATION

Welcome lighting
This additional exterior and interior light-
ing, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.



89, 94


Directional lighting
This lighting automatically provides
additional visibility when cornering.



90


Retractable roof
This system changes from the "coupé"
confi guration to the "cabriolet" confi gura-
tion and vice versa with a single action.



6



Windstop
In the "cabriolet" confi guration,
this comfort system reduces
air swirl at the front seats.



59





















EXTERIOR


Temporary tyre repair kit
This kit is a complete system,
consisting of a compressor
and a sealant cartridge, for the
temporary repair of a tyre.



146



Stop & Start
This system puts the engine temporar-
ily into standby during stops in the traffi c
(red lights, traffi c jams, etc...). The engine
restarts automatically as soon as you
want to move off. The Stop & Start sys-
tem reduces fuel consumption, exhaust
emissions and the noise level when sta-
tionary.



128

5
FAMILIARISATION

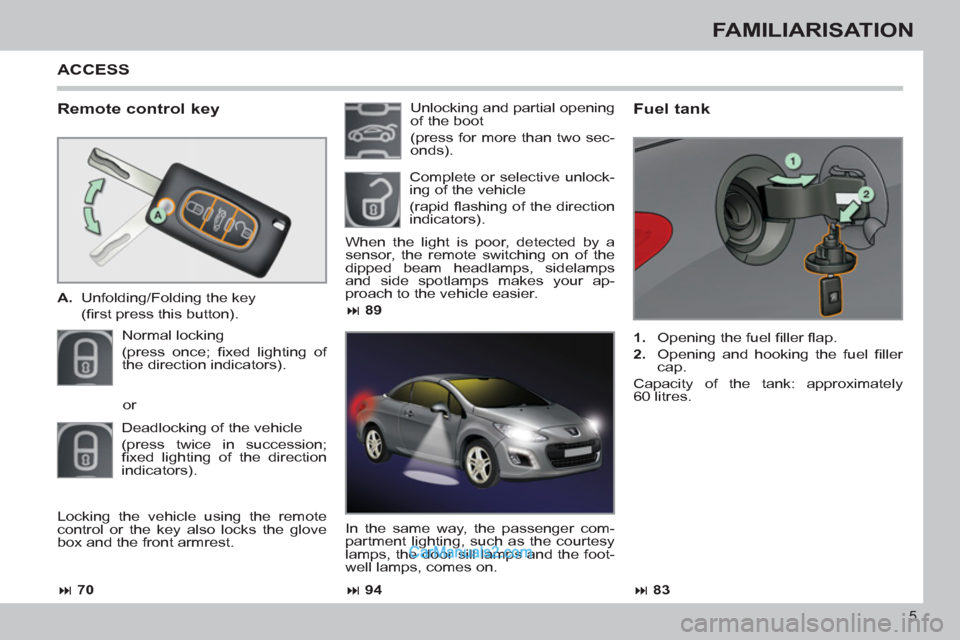

Remote control key



A.
Unfolding/Folding the key
(fi rst press this button).
Normal locking
(press once; fi xed lighting of
the direction indicators).

Fuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
60 litres. Unlocking and partial opening
of the boot
(press for more than two sec-
onds).
When the light is poor, detected by a
sensor, the remote switching on of the
dipped beam headlamps, sidelamps
and side spotlamps makes your ap-
proach to the vehicle easier.



89

In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the door sill lamps and the foot-
well lamps, comes on. or
Deadlocking of the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).



70



94




83



ACCESS

Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.

!
!
i
!
6
FAMILIARISATION
ACCESS

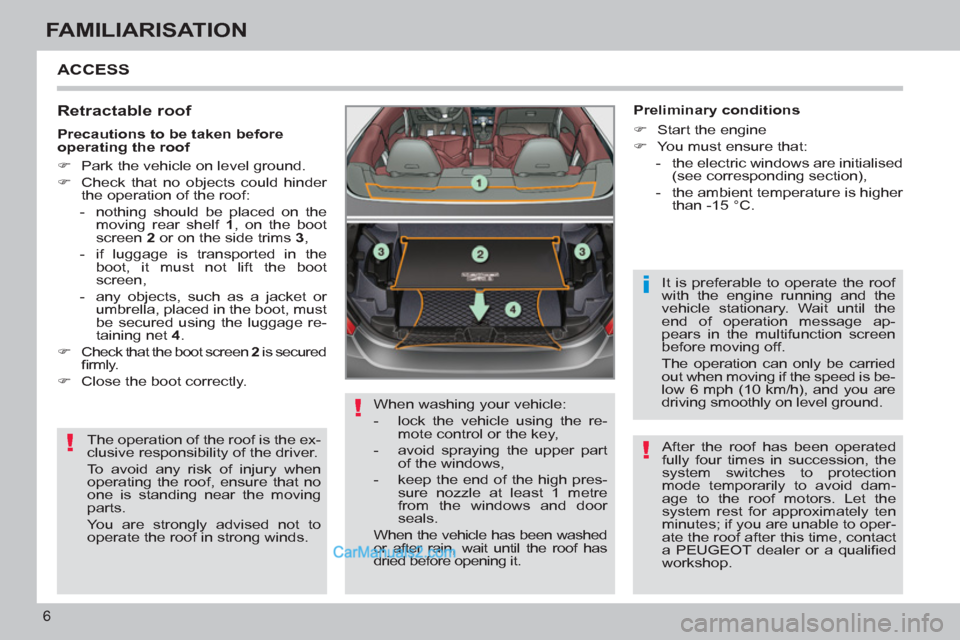

Retractable roof

The operation of the roof is the ex-
clusive responsibility of the driver.
To avoid any risk of injury when
operating the roof, ensure that no
one is standing near the moving
parts.
You are strongly advised not to
operate the roof in strong winds. When washing your vehicle:


- lock the vehicle using the re-
mote control or the key,

- avoid spraying the upper part
of the windows,

- keep the end of the high pres-
sure nozzle at least 1 metre
from the windows and door
seals.
When the vehicle has been washed
or after rain, wait until the roof has
dried before opening it. It is preferable to operate the roof
with the engine running and the
vehicle stationary. Wait until the
end of operation message ap-
pears in the multifunction screen
before moving off.
The operation can only be carried
out when moving if the speed is be-
low 6 mph (10 km/h), and you are
driving smoothly on level ground.
Preliminary conditions


)
Start the engine

)
You must ensure that:


- the electric windows are initialised
(see corresponding section),

- the ambient temperature is higher
than -15 °C.

Precautions to be taken before
operating the roof


)
Park the vehicle on level ground.

)
Check that no objects could hinder
the operation of the roof:


- nothing should be placed on the
moving rear shelf 1
, on the boot
screen 2
or on the side trims 3
,

- if luggage is transported in the
boot, it must not lift the boot
screen,

- any objects, such as a jacket or
umbrella, placed in the boot, must
be secured using the luggage re-
taining net 4
.

)
Check that the boot screen 2
is secured
fi rmly.

)
Close the boot correctly.
After the roof has been operated
fully four times in succession, the
system switches to protection
mode temporarily to avoid dam-
age to the roof motors. Let the
system rest for approximately ten
minutes; if you are unable to oper-
ate the roof after this time, contact
a PEUGEOT dealer or a qualifi ed
workshop.

!
i
!
i
!
7
FAMILIARISATION
ACCESS

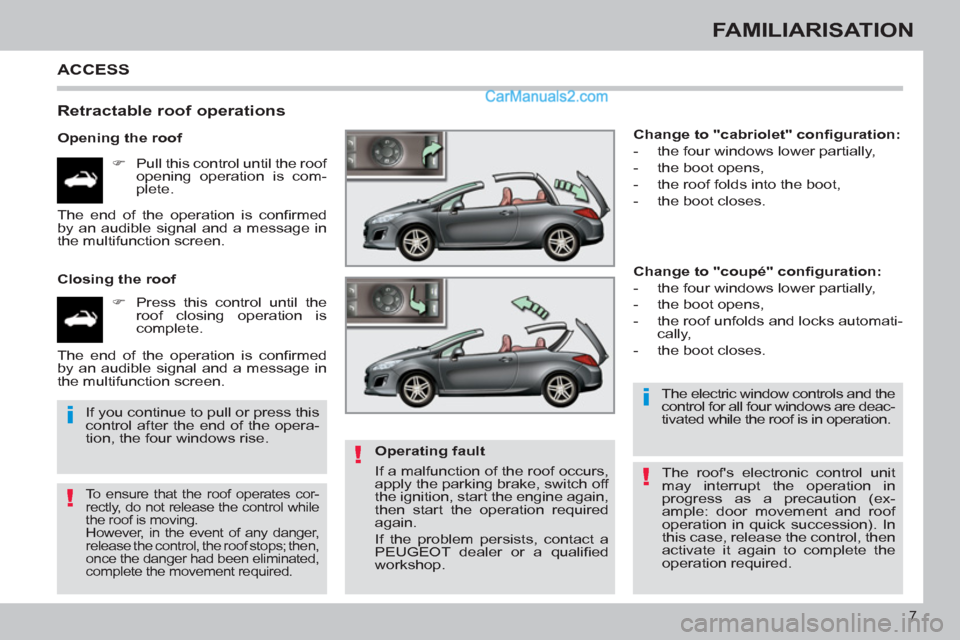

Retractable roof operations


Opening the roof


)
Pull this control until the roof
opening operation is com-
plete.

Closing the roof


)
Press this control until the
roof closing operation is
complete.
Change to "cabriolet" confi guration:



- the four windows lower partially,

- the boot opens,

- the roof folds into the boot,

- the boot closes.


Change to "coupé" confi guration:



- the four windows lower partially,

- the boot opens,

- the roof unfolds and locks automati-
cally,

- the boot closes.

To ensure that the roof operates cor-
rectly, do not release the control while
the roof is moving.
However, in the event of any danger,
release the control, the roof stops; then,
once the danger had been eliminated,
complete the movement required.

Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch off
the ignition, start the engine again,
then start the operation required
again.
If the problem persists, contact a
PEUGEOT dealer or a qualifi ed
workshop.
The electric window controls and the
control for all four windows are deac-
tivated while the roof is in operation. The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.
The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.
If you continue to pull or press this
control after the end of the opera-
tion, the four windows rise.
The roof's electronic control unit
may interrupt the operation in
progress as a precaution (ex-
ample: door movement and roof
operation in quick succession). In
this case, release the control, then
activate it again to complete the
operation required.

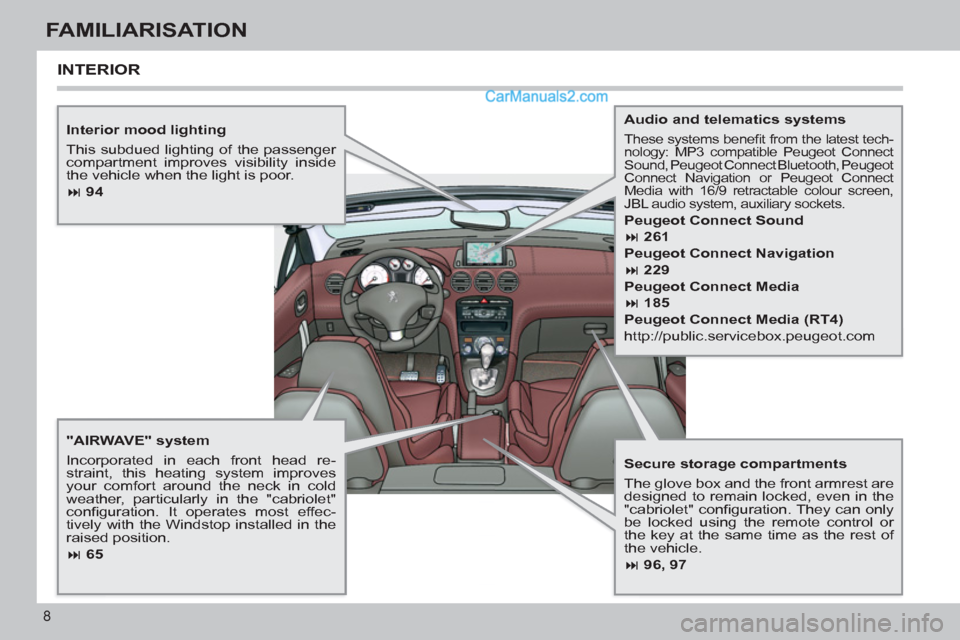

8
FAMILIARISATION

Interior mood lighting
This subdued lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.



94



"AIRWAVE" system
Incorporated in each front head re-
straint, this heating system improves
your comfort around the neck in cold
weather, particularly in the "cabriolet"
confi guration. It operates most effec-
tively with the Windstop installed in the
raised position.



65


Audio and telematics systems
These systems benefi t from the latest tech-
nology: MP3 compatible Peugeot Connect
Sound, Peugeot Connect Bluetooth, Peugeot
Connect Navigation or Peugeot Connect
Media with 16/9 retractable colour screen,
JBL audio system, auxiliary sockets.

Peugeot Connect Sound




261


Peugeot Connect Navigation




229


Peugeot Connect Media




185


Peugeot Connect Media (RT4)

http://public.servicebox.peugeot.com

Secure storage compartments
The glove box and the front armrest are
designed to remain locked, even in the
"cabriolet" confi guration. They can only
be locked using the remote control or
the key at the same time as the rest of
the vehicle.



96, 97




INTERIOR
