Peugeot 308 CC 2011 - RHD (UK, Australia) User Guide

9

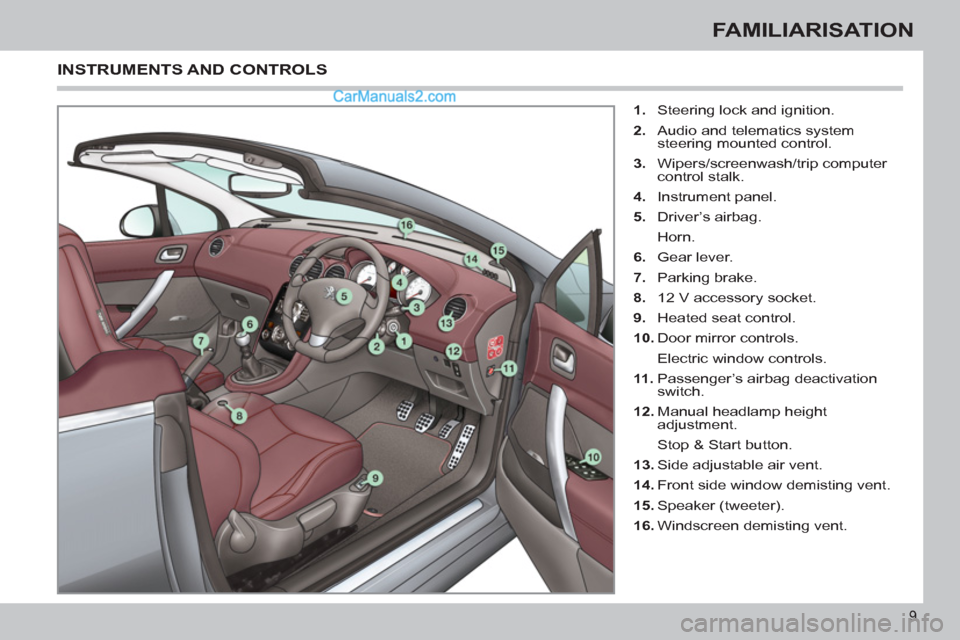

FAMILIARISATION


1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
12 V accessory socket.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Passenger’s airbag deactivation
switch.

12.
Manual headlamp height
adjustment.
Stop & Start button.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

INSTRUMENTS AND CONTROLS

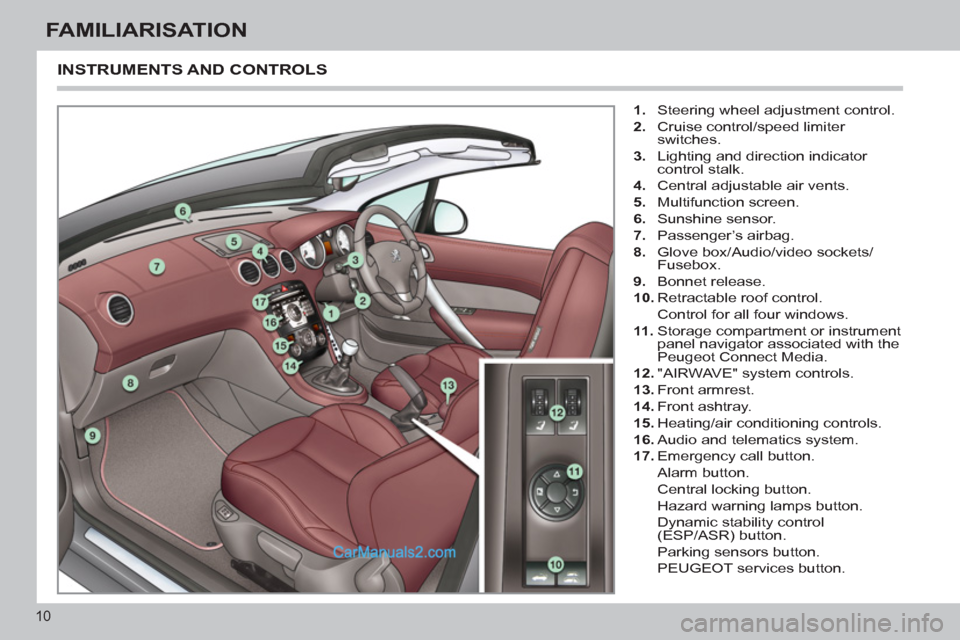

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment control.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicator
control stalk.

4.
Central adjustable air vents.

5.
Multifunction screen.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Glove box/Audio/video sockets/
Fusebox.

9.
Bonnet release.

10.
Retractable roof control.
Control for all four windows.

11 .
Storage compartment or instrument
panel navigator associated with the
Peugeot Connect Media.

12.
"AIRWAVE" system controls.

13.
Front armrest.

14.
Front ashtray.

15.
Heating/air conditioning controls.

16.
Audio and telematics system.

17.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control
(ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.

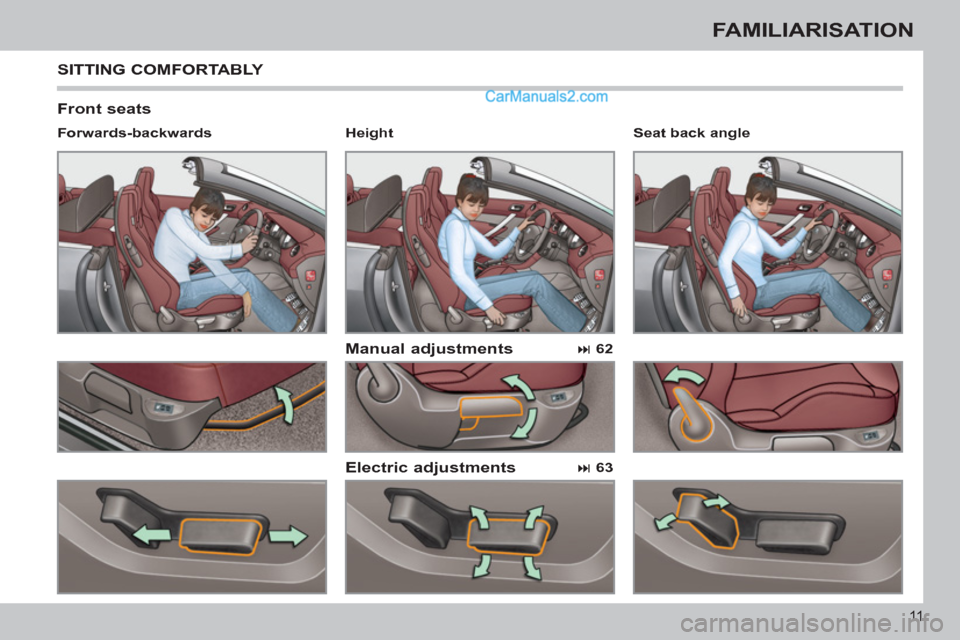

11
FAMILIARISATION

Front seats

Manual adjustments


Forwards-backwards



62


Seat back angle


Height


SITTING COMFORTABLY


Electric adjustments



63

!i

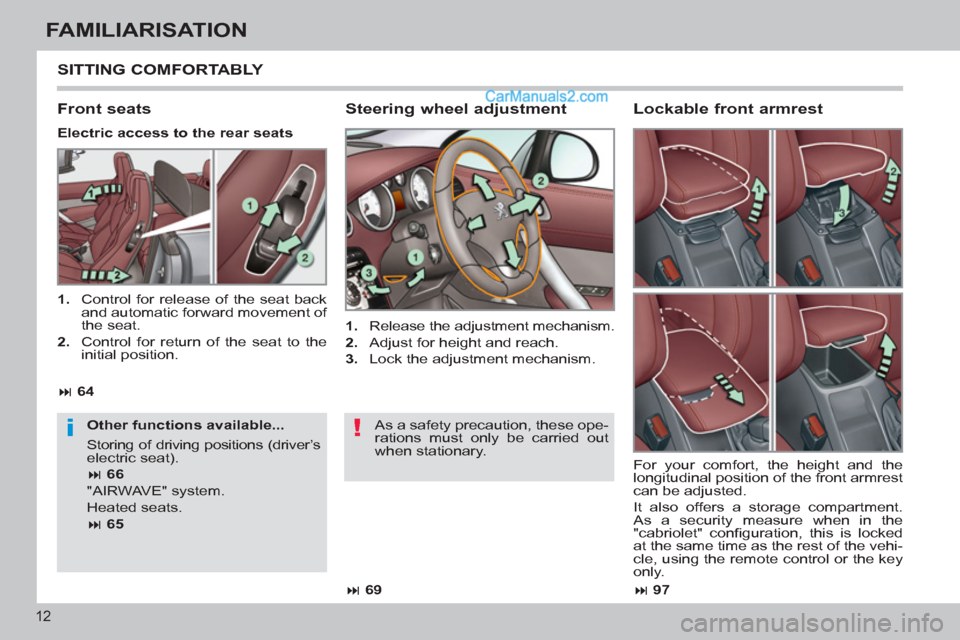

12
FAMILIARISATION
SITTING COMFORTABLY


Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.


Front seats


Other functions available...
Storing of driving positions (driver’s
electric seat).



66

"AIRWAVE" system.
Heated seats.



65



Electric access to the rear seats


Lockable front armrest




97





69

For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment.
As a security measure when in the
"cabriolet" confi guration, this is locked
at the same time as the rest of the vehi-
cle, using the remote control or the key
only. As a safety precaution, these ope-
rations must only be carried out
when stationary.

1.
Control for release of the seat back
and automatic forward movement of
the seat.

2.
Control for return of the seat to the
initial position.



64

i

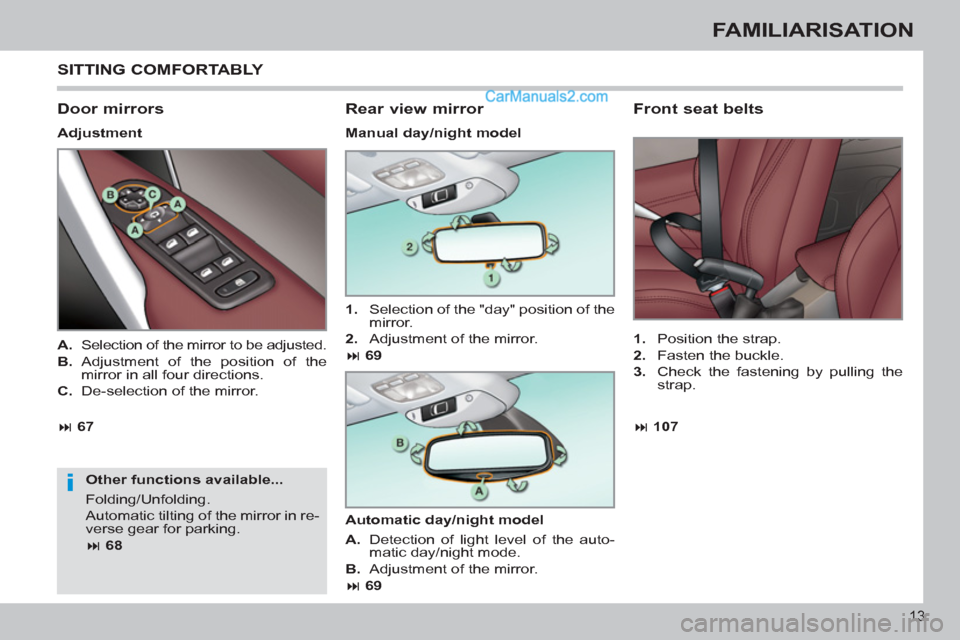

13
FAMILIARISATION
SITTING COMFORTABLY


Door mirrors


Adjustment

Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking.



68





Rear view mirror



1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.



69



Front seat belts



1.
Position the strap.

2.
Fasten the buckle.

3.
Check the fastening by pulling the
strap.
A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in all four directions.

C.
De-selection of the mirror.



107


Manual day/night model

Automatic day/night model


A.
Detection of light level of the auto-
matic day/night mode.

B.
Adjustment of the mirror.



69





67

14
FAMILIARISATION
SEEING CLEARLY


Lighting


Ring A

Ring B Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash until the stalk
is moved from this position.

Direction indicators


Switching on "AUTO"


)
Press the stalk down and release it.




85


Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Front and rear foglamps.
Stalk A: windscreen wipers



91




Wipers


Switching off "AUTO"


)
Push the stalk up and return it to po-
sition "0"
.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
The use of this function is available re-
gardless of the speed, but you will fi nd it
particularly useful when changing lane
on fast roads.



101





92

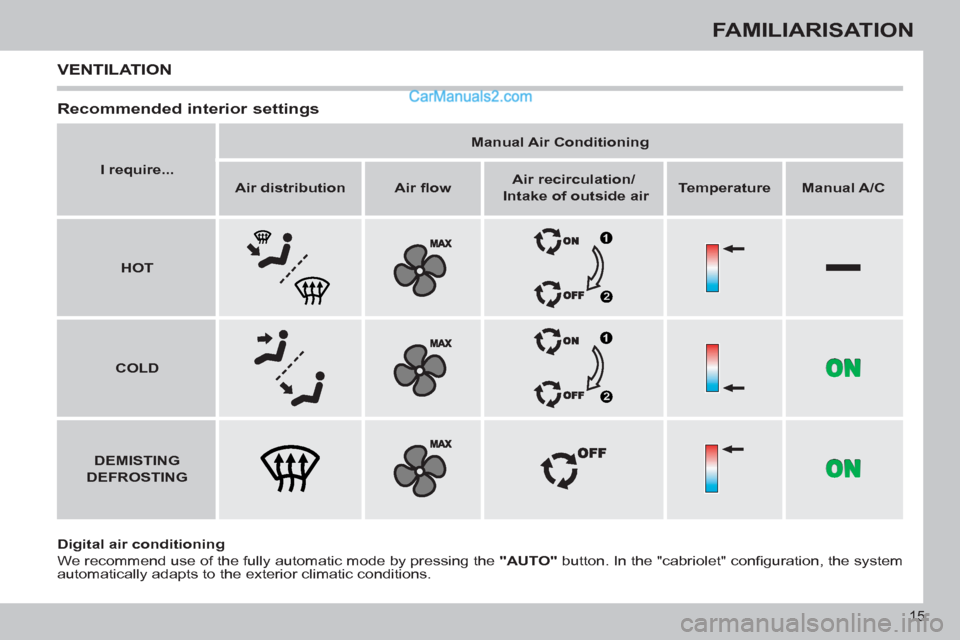

15
FAMILIARISATION
VENTILATION


Recommended interior settings


Digital air conditioning

We recommend use of the fully automatic mode by pressing the "AUTO"
button. In the "cabriolet" confi guration, the system
automatically adapts to the exterior climatic conditions.

I require...



Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT





COLD





DEMISTING

DEFROSTING

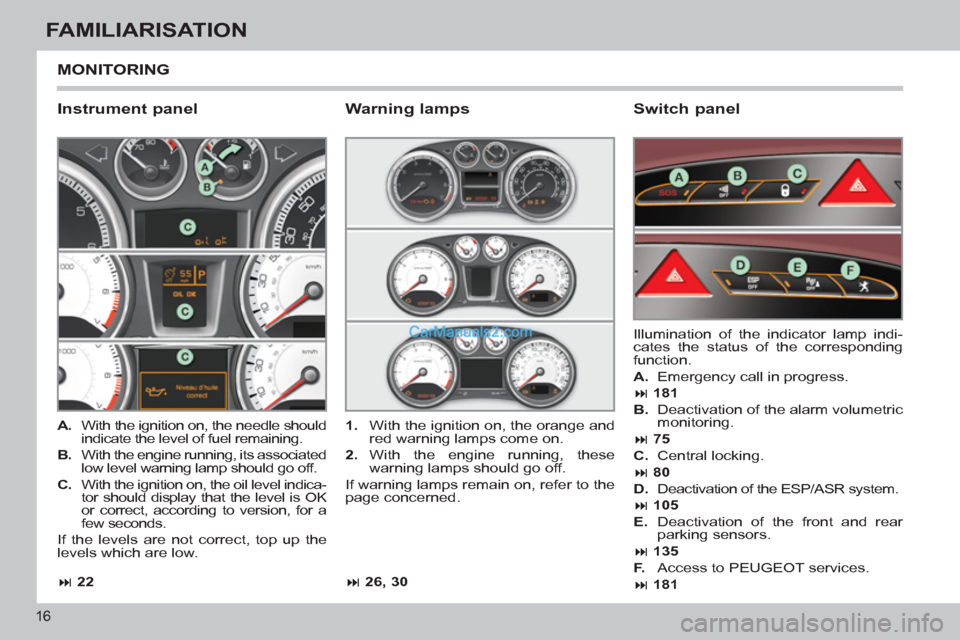

16
FAMILIARISATION
MONITORING


Instrument panel
Switch panel



A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the engine running, its associated
low level warning lamp should go off.

C.
With the ignition on, the oil level indica-
tor should display that the level is OK
or correct, according to version, for a
few seconds.
If the levels are not correct, top up the
levels which are low. Illumination of the indicator lamp indi-
cates the status of the corresponding
function.


A.
Emergency call in progress.


181


B.
Deactivation of the alarm volumetric
monitoring.


75


C.
Central locking.


80


D.
Deactivation of the ESP/ASR system.


105


E.
Deactivation of the front and rear
parking sensors.


135


F.
Access to PEUGEOT services.

181




1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




22




26, 30

i

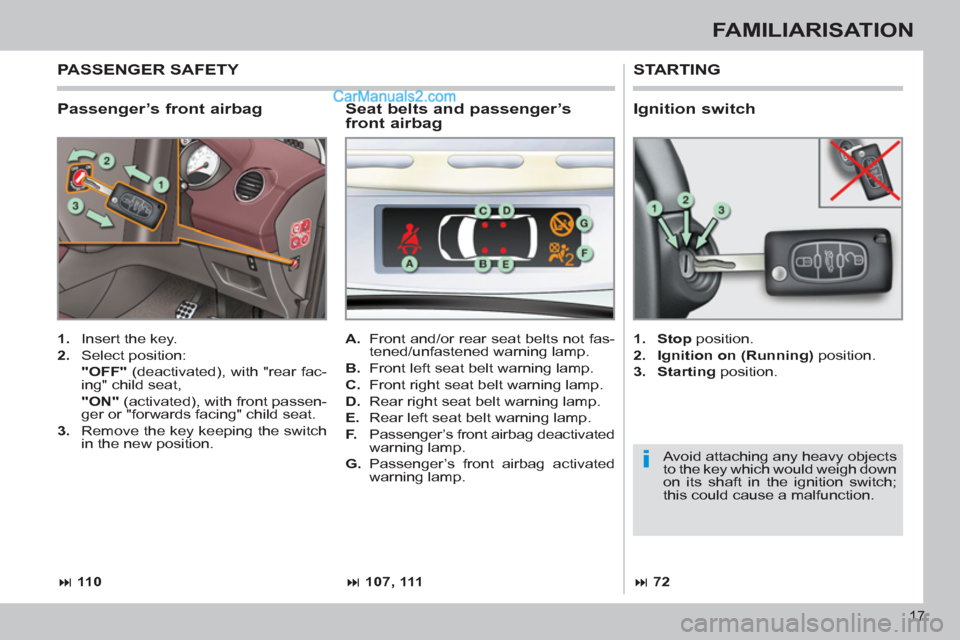

17
FAMILIARISATION

Passenger’s front airbag

STARTING



1.
Insert the key.

2.
Select position:
"OFF"
(deactivated), with "rear fac-
ing" child seat,
"ON"
(activated), with front passen-
ger or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.

1.
Stop
position.

2.
Ignition on (Running
) position.

3.
Starting
position.

A.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear left seat belt warning lamp.

F.
Passenger’s front airbag deactivated
warning lamp.

G.
Passenger’s front airbag activated
warning lamp.


Seat belts and passenger’s
front airbag
PASSENGER SAFETY




11 0




107, 111




Ignition switch




72

Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.

!
i
i

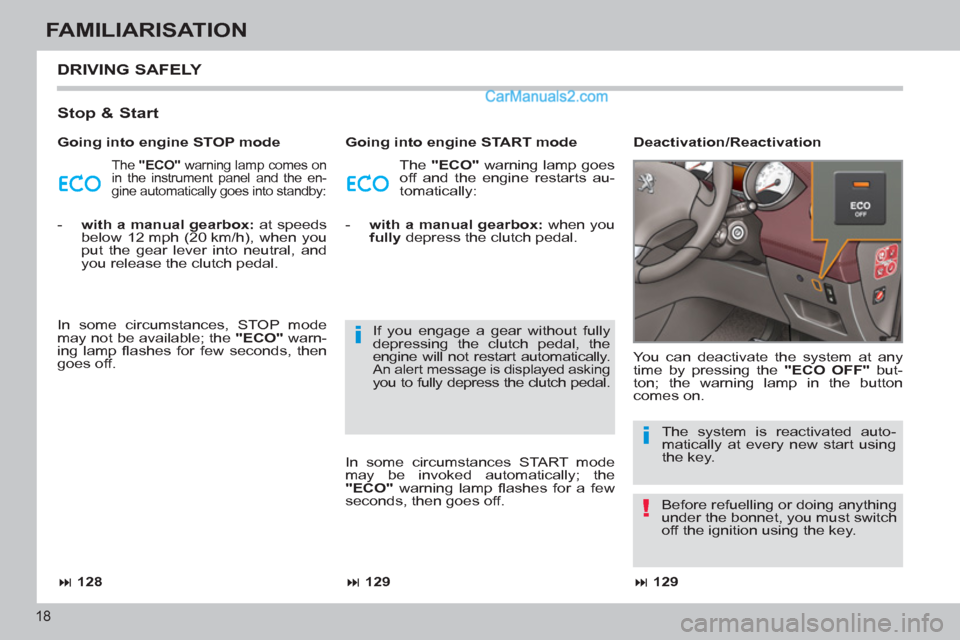

18
FAMILIARISATION
DRIVING SAFELY


Stop & Start

The "ECO"
warning lamp comes on
in the instrument panel and the en-
gine automatically goes into standby: The "ECO"
warning lamp goes
off and the engine restarts au-
tomatically:
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
Deactivation/Reactivation



129



Going into engine STOP mode
Going into engine START mode


- with a manual gearbox:
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal.
In some circumstances, STOP mode
may not be available; the "ECO"
warn-
ing lamp fl ashes for few seconds, then
goes off.



128



- with a manual gearbox:
when you
fully
depress the clutch pedal.
If you engage a gear without fully
depressing the clutch pedal, the
engine will not restart automatically.
An alert message is displayed asking
you to fully depress the clutch pedal.



129

The system is reactivated auto-
matically at every new start using
the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition using the key. In some circumstances START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.
