Peugeot 308 CC 2011 Owner's Manual - RHD (UK, Australia)

259

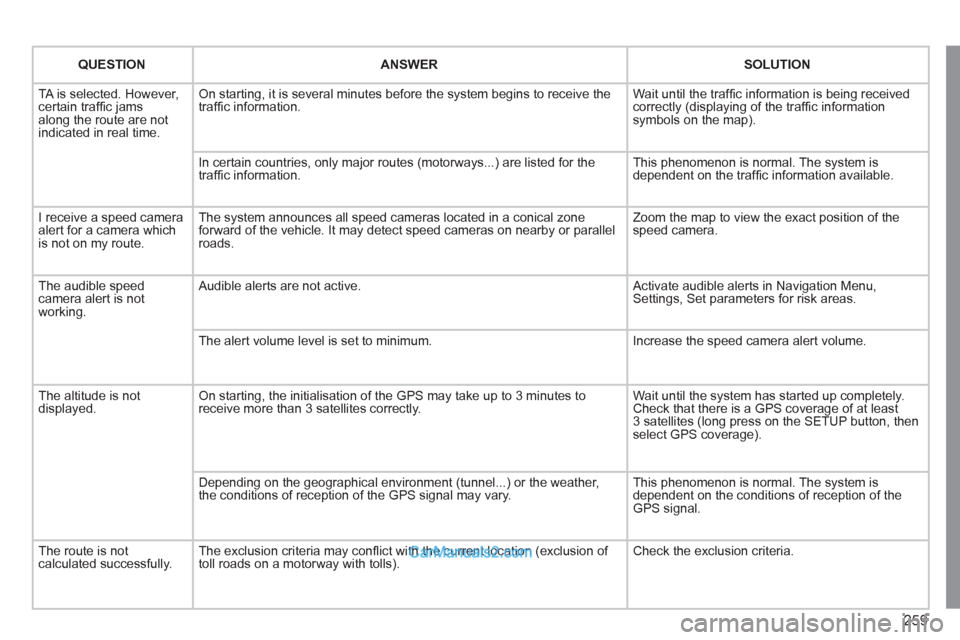

QUESTION



ANSWER



SOLUTION


TA is selected. However,
certain traffi c jams
along the route are not
indicated in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (displaying of the traffi c information
symbols on the map).
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
I receive a speed camera
alert for a camera which
is not on my route. The system announces all speed cameras located in a conical zone
forward of the vehicle. It may detect speed cameras on nearby or parallel
roads. Zoom the map to view the exact position of the
speed camera.
The audible speed
camera alert is not
working. Audible alerts are not active. Activate audible alerts in Navigation Menu,
Settings, Set parameters for risk areas.
The alert volume level is set to minimum. Increase the speed camera alert volume.
The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 3 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
3 satellites (long press on the SETUP button, then
select GPS coverage).
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.
The route is not
calculated successfully. The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a motorway with tolls). Check the exclusion criteria.

260

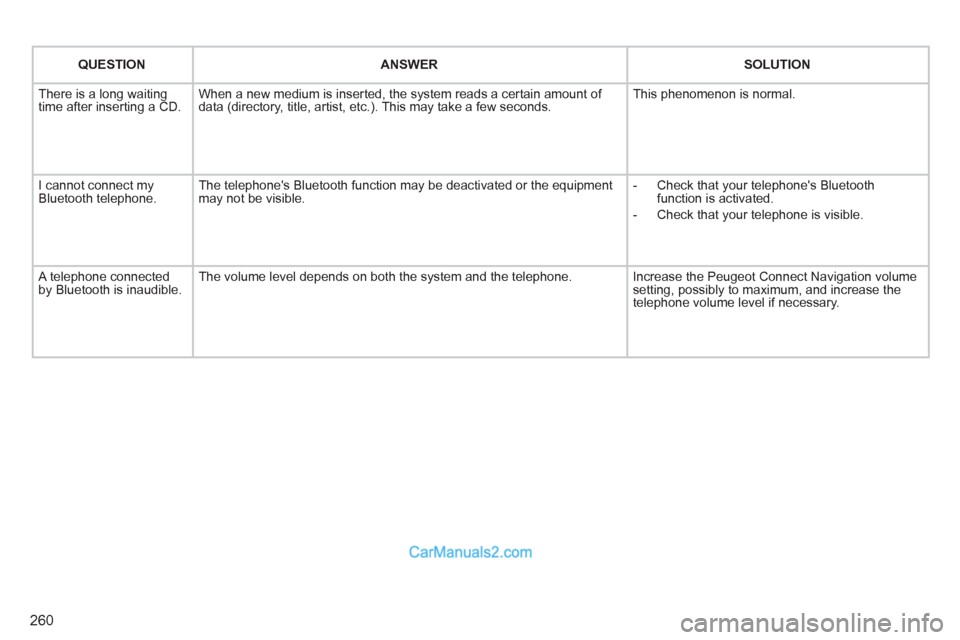

QUESTION



ANSWER



SOLUTION


There is a long waiting
time after inserting a CD. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.

- Check that your telephone's Bluetooth
function is activated.

- Check that your telephone is visible.
A telephone connected
by Bluetooth is inaudible. The volume level depends on both the system and the telephone. Increase the Peugeot Connect Navigation volume
setting, possibly to maximum, and increase the
telephone volume level if necessary.

261

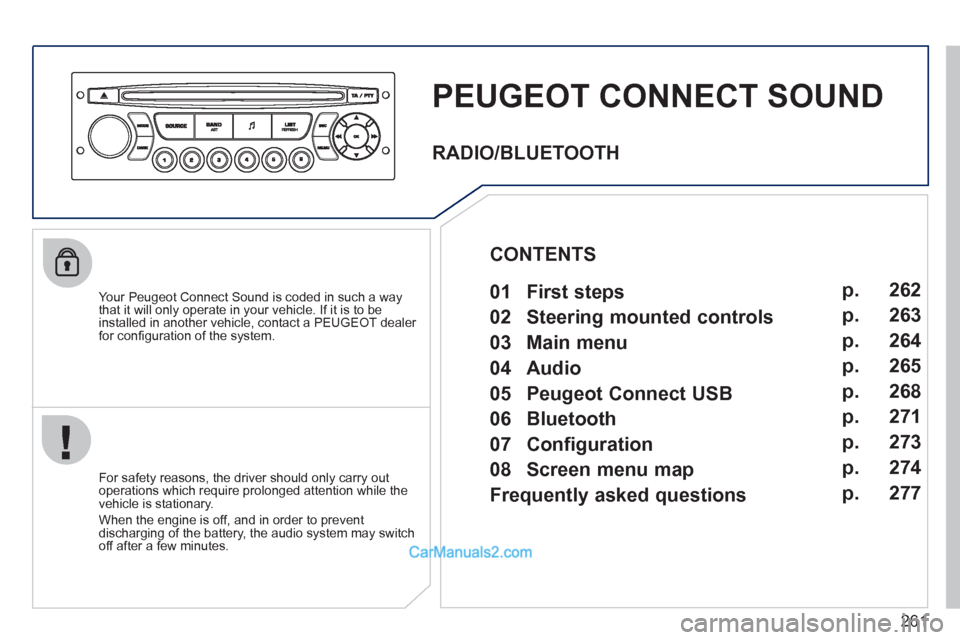

PEUGEOT CONNECT SOUND


Your Peugeot Connect Sound is coded in such a way
that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer
for confi guration of the system.

For safety reasons, the driver should only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is off, and in order to prevent
discharging of the battery, the audio system may switch
off after a few minutes.



RADIO/BLUETOOTH

01 First steps

02 Steering mounted controls

03 Main menu

04 Audio

05 Peugeot Connect USB

06 Bluetooth

07 Configuration

08 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p. 262
263
264
265
268
271
273
274
277
CONTENTS

262
01
1 2
1011
13 14 153456 789
12

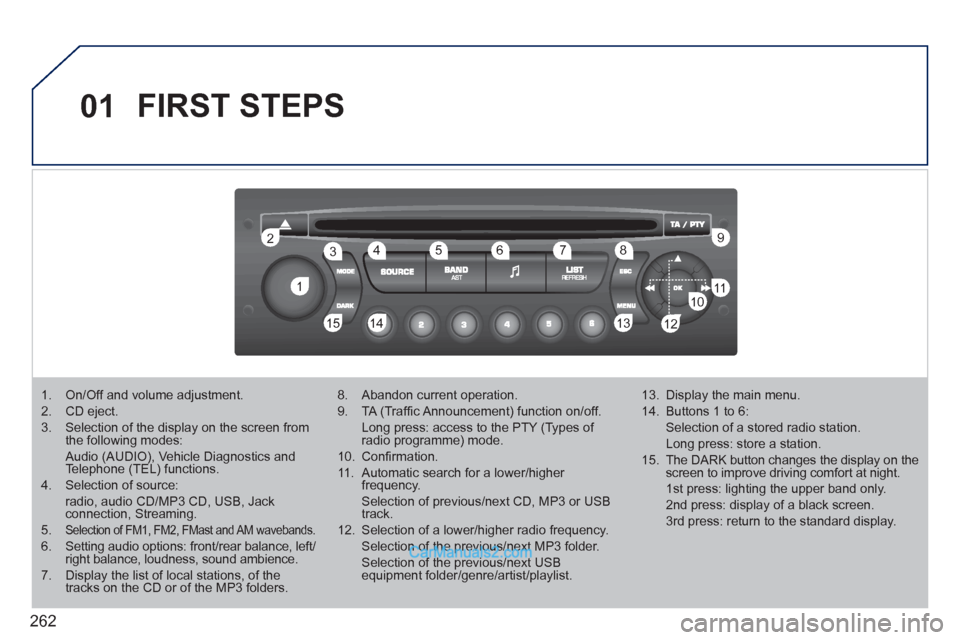

FIRST STEPS







1. On/Off and volume adjustment.

2. CD eject.

3. Selection of the display on the screen from
the following modes:
Audio (AUDIO), Vehicle Diagnostics and
Telephone (TEL) functions.

4. Selection of source:
radio, audio CD/MP3 CD, USB, Jack
connection, Streaming.

5.
Selection of FM1, FM2, FMast and AM wavebands.


6. Setting audio options: front/rear balance, left/
right balance, loudness, sound ambience.

7. Display the list of local stations, of the
tracks on the CD or of the MP3 folders.
8. Abandon current operation.

9. TA (Traffi c Announcement) function on/off.
Long press: access to the PTY (Types of
radio programme) mode.

10. Confi rmation.

11. Automatic search for a lower/higher
frequency.
Selection of previous/next CD, MP3 or USB
track.

12. Selection of a lower/higher radio frequency.
Selection of the previous/next MP3 folder.
Selection of the previous/next USB
equipment folder/genre/artist/playlist.
13. Display the main menu.

14. Buttons 1 to 6:
Selection of a stored radio station.
Long press: store a station.

15. The DARK button changes the display on the
screen to improve driving comfort at night.
1st press: lighting the upper band only.
2nd press: display of a black screen.
3rd press: return to the standard display.

263

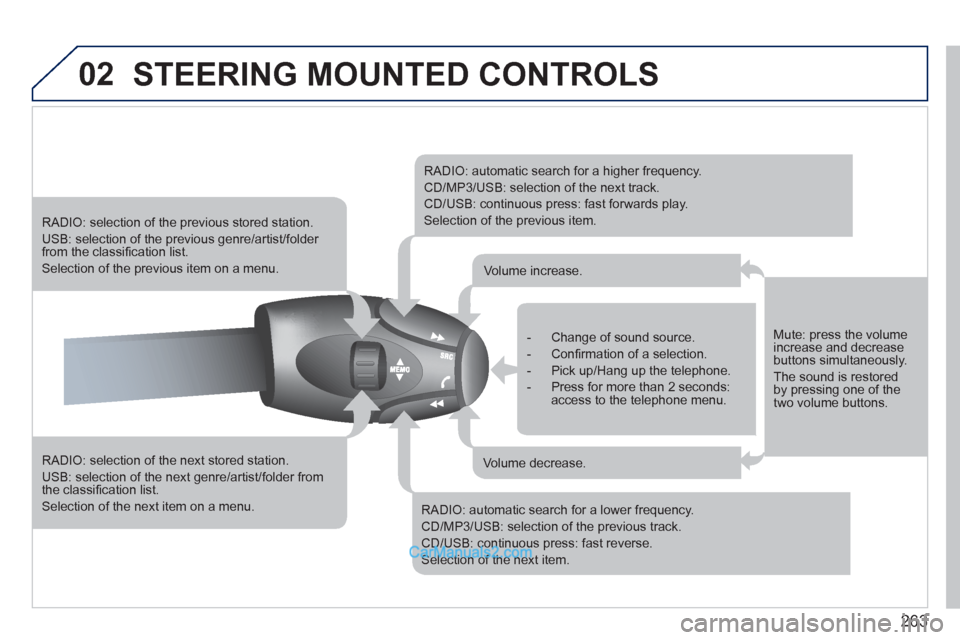

02 STEERING MOUNTED CONTROLS


RADIO: selection of the next stored station.
USB: selection of the next genre/artist/folder from
the classifi cation list.
Selection of the next item on a menu.








RADIO: selection of the previous stored station.
USB: selection of the previous genre/artist/folder
from the classifi cation list.
Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency.
CD/MP3/USB: selection of the next track.
CD/USB: continuous press: fast forwards play.
Selection of the previous item.

RADIO: automatic search for a lower frequency.
CD/MP3/USB: selection of the previous track.
CD/USB: continuous press: fast reverse.
Selection of the next item.



- Change of sound source.

- Confi rmation of a selection.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:
access to the telephone menu.

Volume increase.

Volume decrease.
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored
by pressing one of the
two volume buttons.

264

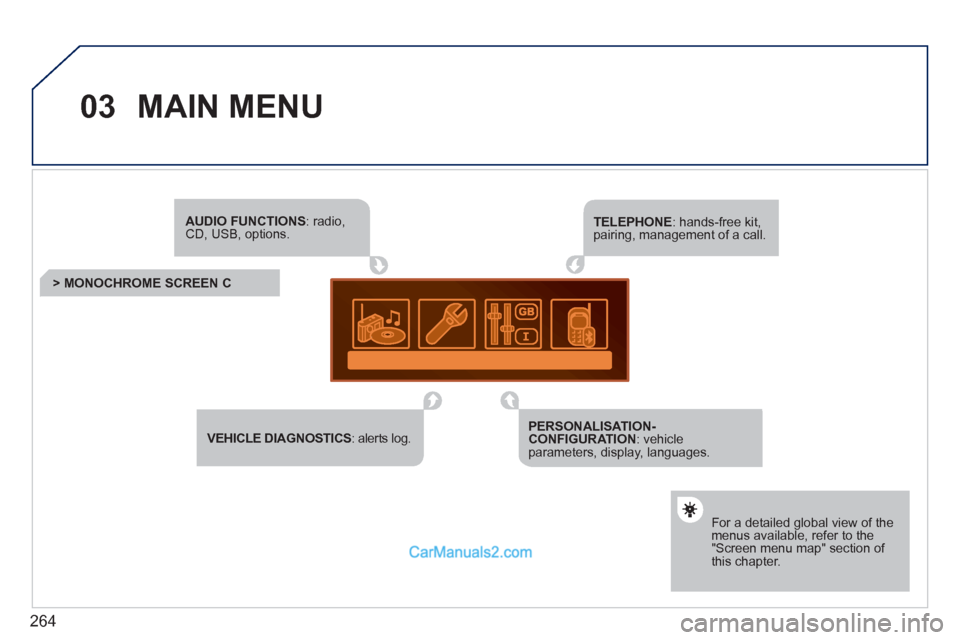

03 MAIN MENU


AUDIO FUNCTIONS
: radio,
CD, USB, options.










> MONOCHROME SCREEN C

For a detailed global view of the
menus available, refer to the
"Screen menu map" section of
this chapter.

TELEPHONE
: hands-free kit,
pairing, management of a call.

VEHICLE DIAGNOSTICS
: alerts log.
PERSONALISATION-
CONFIGURATION
: vehicle
parameters, display, languages.

265
04
1
2
3
4
1
2
3
4

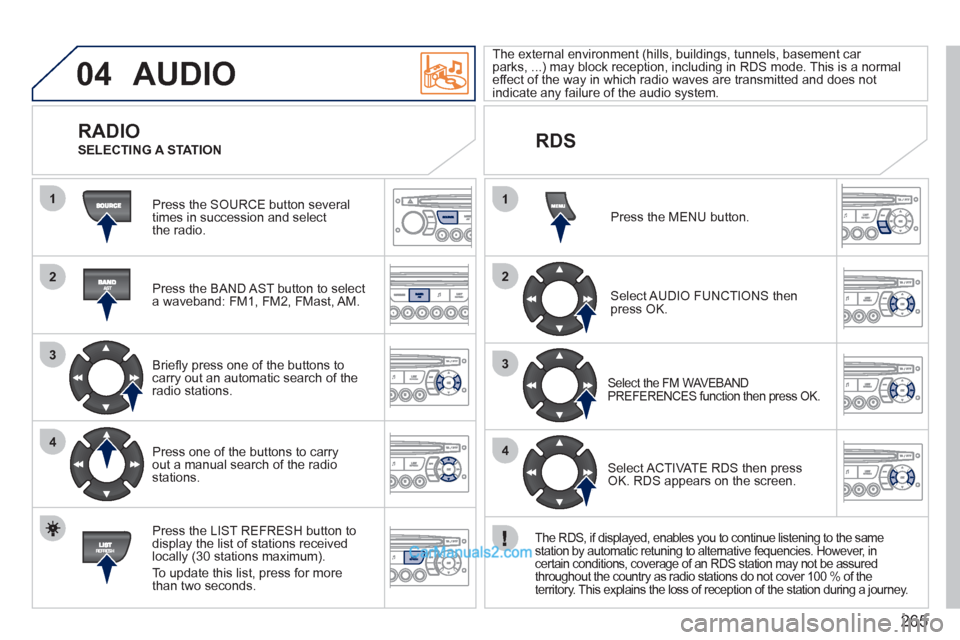

AUDIO

Press the SOURCE button several
times in succession and select
the radio.

Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.

Briefl y press one of the buttons to
carry out an automatic search of the
radio stations.

Press one of the buttons to carry
out a manual search of the radio
stations.

Press the LIST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
than two seconds.
The external environment (hills, buildings, tunnels, basement car
parks, ...) may block reception, including in RDS mode. This is a normal
effect of the way in which radio waves are transmitted and does not
indicate any failure of the audio system.

RDS





RADIO

SELECTING A STATION
Press the MENU button.
Select AUDIO FUNCTIONS then
press OK.
Select the FM WAVEBAND
PREFERENCES function then press OK.
Select ACTIVATE RDS then press
OK. RDS appears on the screen.
The RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative fequencies. However, in
certain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.

266
04
1
2
3
1
AUDIO

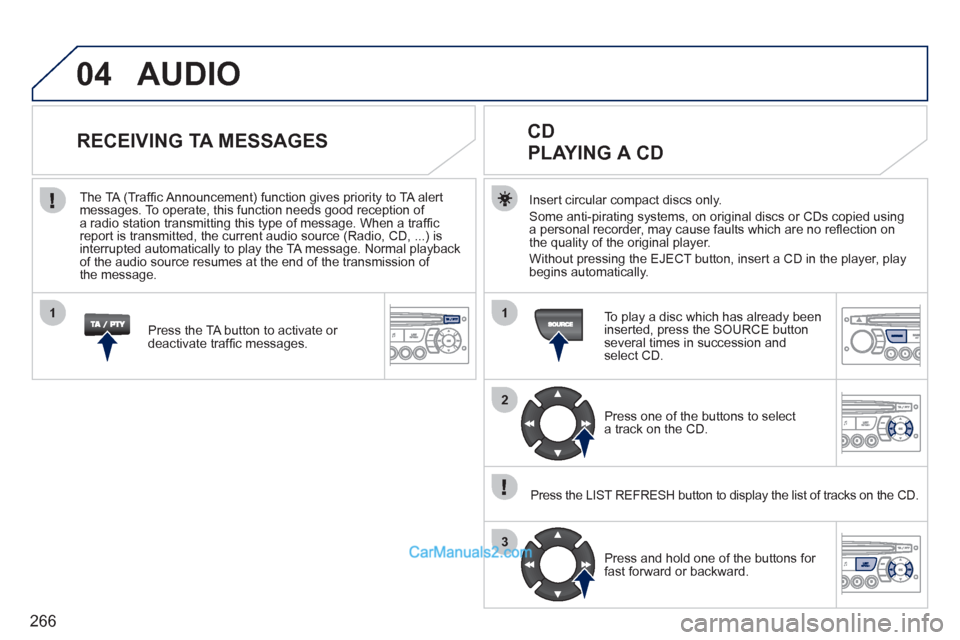

Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using
a personal recorder, may cause faults which are no refl ection on
the quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play
begins automatically.


CD
PLAYING A CD


To play a disc which has already been
inserted, press the SOURCE button
several times in succession and
select CD.

Press one of the buttons to select
a track on the CD.

Press the LIST REFRESH button to display the list of tracks on the CD.

Press and hold one of the buttons for
fast forward or backward.








RECEIVING TA MESSAGES


Press the TA button to activate or
deactivate traffi c messages.

The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of
a radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of
the message.

267
04
1
2
3

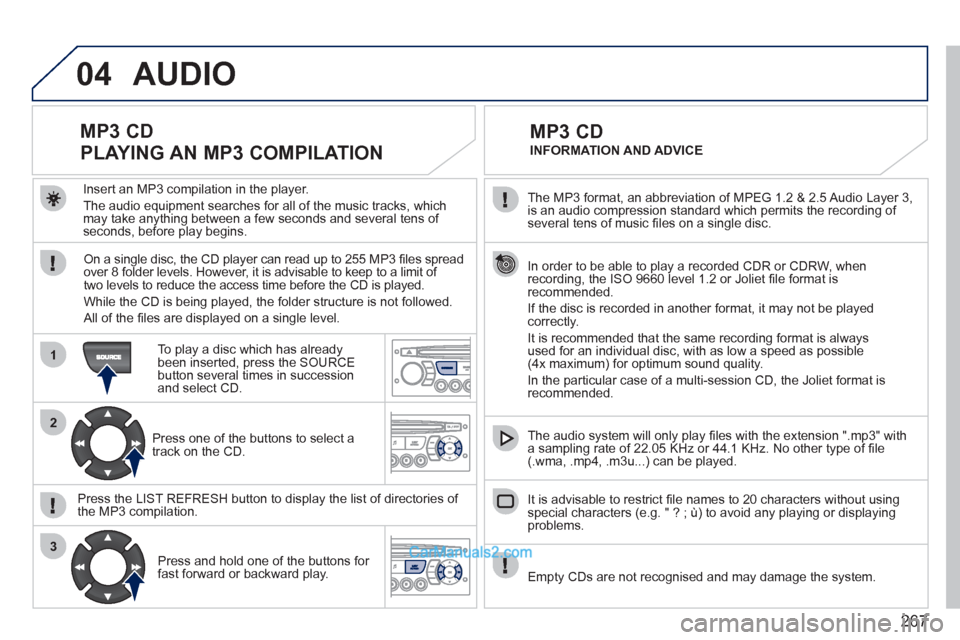

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of
several tens of music fi les on a single disc.

In order to be able to play a recorded CDR or CDRW, when
recording, the ISO 9660 level 1.2 or Joliet fi le format is
recommended.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording format is always
used for an individual disc, with as low a speed as possible
(4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet format is
recommended.

The audio system will only play fi les with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le
(.wma, .mp4, .m3u...) can be played.

It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.













MP3 CD


INFORMATION AND ADVICE

AUDIO


Empty CDs are not recognised and may damage the system.

Insert an MP3 compilation in the player.
The audio equipment searches for all of the music tracks, which
may take anything between a few seconds and several tens of
seconds, before play begins.










MP3 CD
PLAYING AN MP3 COMPILATION


On a single disc, the CD player can read up to 255 MP3 fi les spread
over 8 folder levels. However, it is advisable to keep to a limit of
two levels to reduce the access time before the CD is played.
While the CD is being played, the folder structure is not followed.
All of the fi les are displayed on a single level.

To play a disc which has already
been inserted, press the SOURCE
button several times in succession
and select CD.

Press one of the buttons to select a
track on the CD.

Press the LIST REFRESH button to display the list of directories of
the MP3 compilation.

Press and hold one of the buttons for
fast forward or backward play.

268
05
1
1
2
3
PEUGEOT CONNECT USB


The system puts together playlists (temporary memory) created
over a period which depends on the capacity of the USB device.
The other sources are available during this time.
The playlists are updated each time the ignition is switched off or
each time a USB memory stick is connected.
When connecting for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or
using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Play begins automatically after a
delay which depends on the capacity of the USB
memory stick.
The fi le formats recognised are .mp3
(mpeg1 layer 3 only), .wma (standard 9 only,
128 kbits/sec compression), .wav and .ogg.
The playlists types accepted are m3u, .pls, .wpl.
This unit consists of a USB port and an auxiliary
Jack socket * . The audio fi les are transmitted
from portable equipment such as a digital player
or a USB memory stick to your PEUGEOT
Connect Sound to be listened to via the vehicle's
speakers.

USB memory stick (1.1, 1.2 and 2.0) or iPod
®
of
generation 5 or later:


- USB memory sticks should be formatted
FAT or FAT 32 (NTFS not supported),

- the iPod
®
lead is essential,

- navigation through the fi le database is by
means of the steering mounted controls,

- the iPod
®
software should be regularly
updated for the best connection.

The list of compatible equipment and the compression rates supported
are available from PEUGEOT dealers.













USING THE PEUGEOT CONNECT USB


CONNECTING A USB MEMORY STICK

Other iPod
®
players of earlier generations and
players using the MTP protocol * :


- play via Jack-Jack lead only (not supplied),

- navigation through the fi le database is from
the portable device.


* According to vehicle.
