203
04
13
4
2
5
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAVESC TRAFFIC
SETUPADDR
BOOKNAV
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

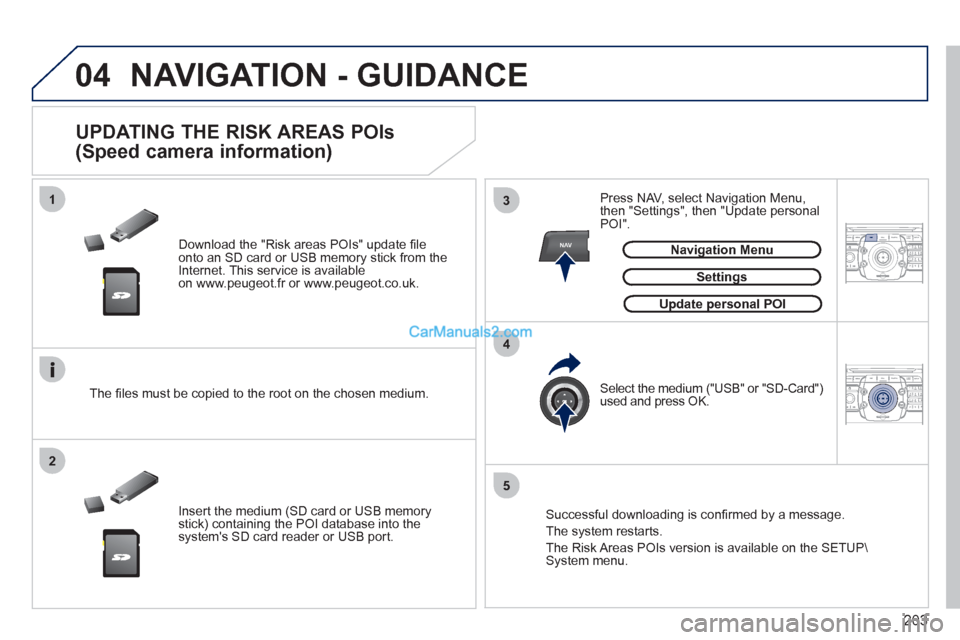

NAVIGATION - GUIDANCE


Download the "Risk areas POIs" update fi le
onto an SD card or USB memory stick from the
Internet. This service is available
on www.peugeot.fr or www.peugeot.co.uk.


UPDATING THE RISK AREAS POIs
(Speed camera information)

Settings



Navigation Menu


The fi les must be copied to the root on the chosen medium.

Insert the medium (SD card or USB memory
stick) containing the POI database into the
system's SD card reader or USB port.
Select the medium ("USB" or "SD-Card")
used and press OK.
Press NAV, select Navigation Menu,
then "Settings", then "Update personal
POI".

Successful downloading is confi rmed by a message.
The system restarts.
The Risk Areas POIs version is available on the SETUP\
System menu.



Update personal POI

228

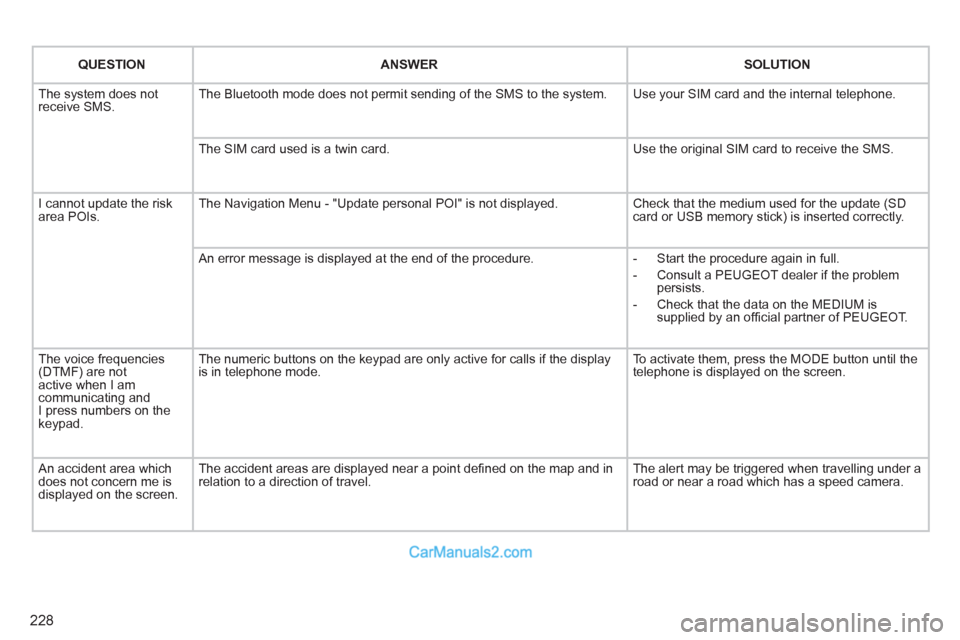

QUESTION



ANSWER



SOLUTION


The system does not
receive SMS. The Bluetooth mode does not permit sending of the SMS to the system. Use your SIM card and the internal telephone.
The SIM card used is a twin card. Use the original SIM card to receive the SMS.
I cannot update the risk
area POIs. The Navigation Menu - "Update personal POI" is not displayed. Check that the medium used for the update (SD
card or USB memory stick) is inserted correctly.
An error message is displayed at the end of the procedure.

- Start the procedure again in full.

- Consult a PEUGEOT dealer if the problem
persists.

- Check that the data on the MEDIUM is
supplied by an offi cial partner of PEUGEOT.
The voice frequencies
(DTMF) are not
active when I am
communicating and
I press numbers on the
keypad. The numeric buttons on the keypad are only active for calls if the display
is in telephone mode. To activate them, press the MODE button until the
telephone is displayed on the screen.
An accident area which
does not concern me is
displayed on the screen. The accident areas are displayed near a point defi ned on the map and in
relation to a direction of travel. The alert may be triggered when travelling under a
road or near a road which has a speed camera.

235
04
1
2
3
5
6
4

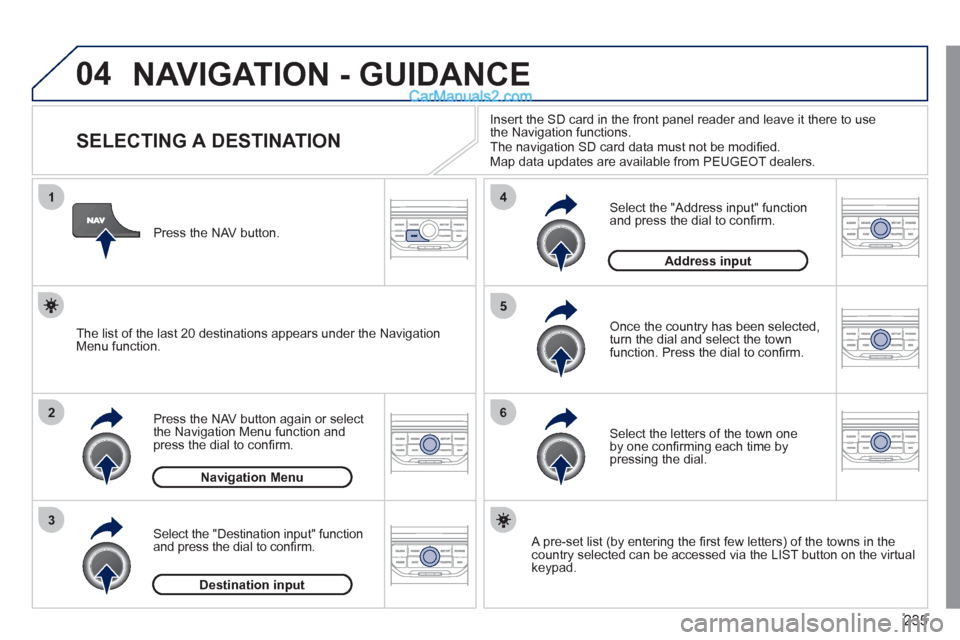

NAVIGATION - GUIDANCE
















SELECTING A DESTINATION


Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "Destination input" function
and press the dial to confi rm.
Press the NAV button.

Select the letters of the town one
by one confi rming each time by
pressing the dial.
Once the country has been selected,
turn the dial and select the town
function. Press the dial to confi rm.
Insert the SD card in the front panel reader and leave it there to use
the Navigation functions.
The navigation SD card data must not be modifi ed.
Map data updates are available from PEUGEOT dealers.

A pre-set list (by entering the fi rst few letters) of the towns in the
country selected can be accessed via the LIST button on the virtual
keypad.
Select the "Address input" function
and press the dial to confi rm.


The list of the last 20 destinations appears under the Navigation
Menu function.

Navigation Menu



Destination input


Address input

242
04
5
6
3 2 1
4

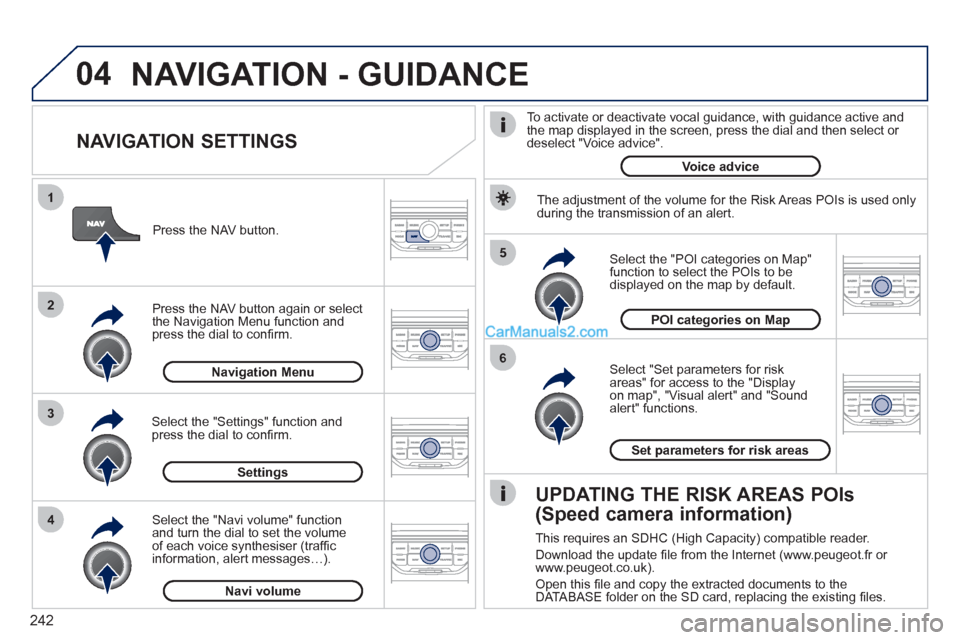

NAVIGATION SETTINGS


Select "Set parameters for risk
areas" for access to the "Display
on map", "Visual alert" and "Sound
alert" functions.
Select the "POI categories on Map"
function to select the POIs to be
displayed on the map by default.
Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "Settings" function and
press the dial to confi rm.
POI categories on Map



Settings


Set parameters for risk areas



Navigation Menu



NAVIGATION - GUIDANCE


Select the "Navi volume" function
and turn the dial to set the volume
of each voice synthesiser (traffi c
information, alert messages…).

Navi volume


The adjustment of the volume for the Risk Areas POIs is used only
during the transmission of an alert.


UPDATING THE RISK AREAS POIs
(Speed camera information)

This requires an SDHC (High Capacity) compatible reader.
Download the update fi le from the Internet (www.peugeot.fr or
www.peugeot.co.uk).
Open this fi le and copy the extracted documents to the
DATABASE folder on the SD card, replacing the existing fi les.



To activate or deactivate vocal guidance, with guidance active and
the map displayed in the screen, press the dial and then select or
deselect "Voice advice".

Voice advice

268
05
1
1
2
3

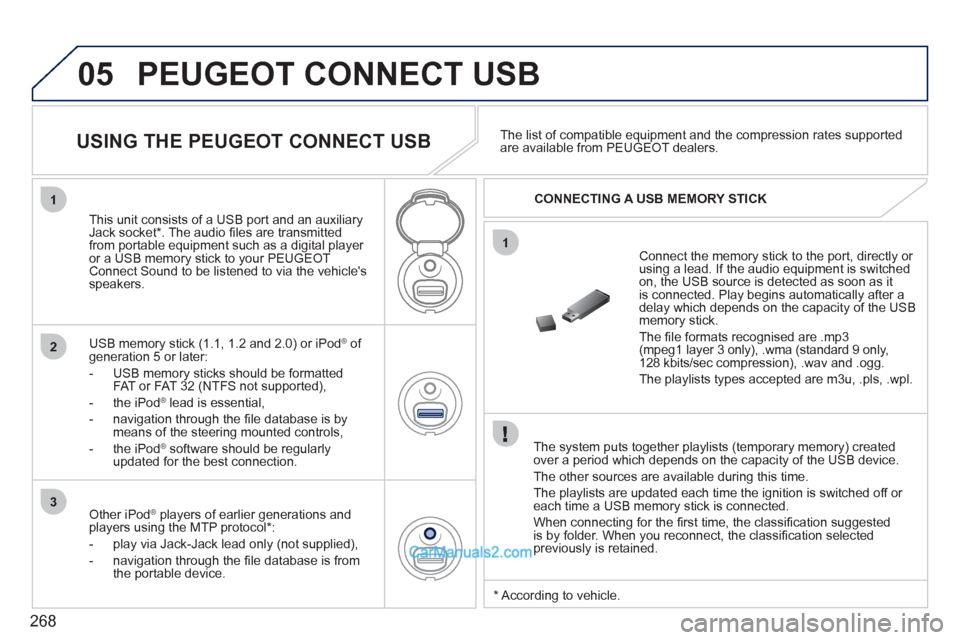

PEUGEOT CONNECT USB


The system puts together playlists (temporary memory) created
over a period which depends on the capacity of the USB device.
The other sources are available during this time.
The playlists are updated each time the ignition is switched off or
each time a USB memory stick is connected.
When connecting for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or
using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Play begins automatically after a
delay which depends on the capacity of the USB
memory stick.
The fi le formats recognised are .mp3
(mpeg1 layer 3 only), .wma (standard 9 only,
128 kbits/sec compression), .wav and .ogg.
The playlists types accepted are m3u, .pls, .wpl.
This unit consists of a USB port and an auxiliary
Jack socket * . The audio fi les are transmitted
from portable equipment such as a digital player
or a USB memory stick to your PEUGEOT
Connect Sound to be listened to via the vehicle's
speakers.

USB memory stick (1.1, 1.2 and 2.0) or iPod
®
of
generation 5 or later:


- USB memory sticks should be formatted
FAT or FAT 32 (NTFS not supported),

- the iPod
®
lead is essential,

- navigation through the fi le database is by
means of the steering mounted controls,

- the iPod
®
software should be regularly
updated for the best connection.

The list of compatible equipment and the compression rates supported
are available from PEUGEOT dealers.













USING THE PEUGEOT CONNECT USB


CONNECTING A USB MEMORY STICK

Other iPod
®
players of earlier generations and
players using the MTP protocol * :


- play via Jack-Jack lead only (not supplied),

- navigation through the fi le database is from
the portable device.


* According to vehicle.
