Peugeot 308 CC 2011 Owner's Manual

269
05
42
3
1
5

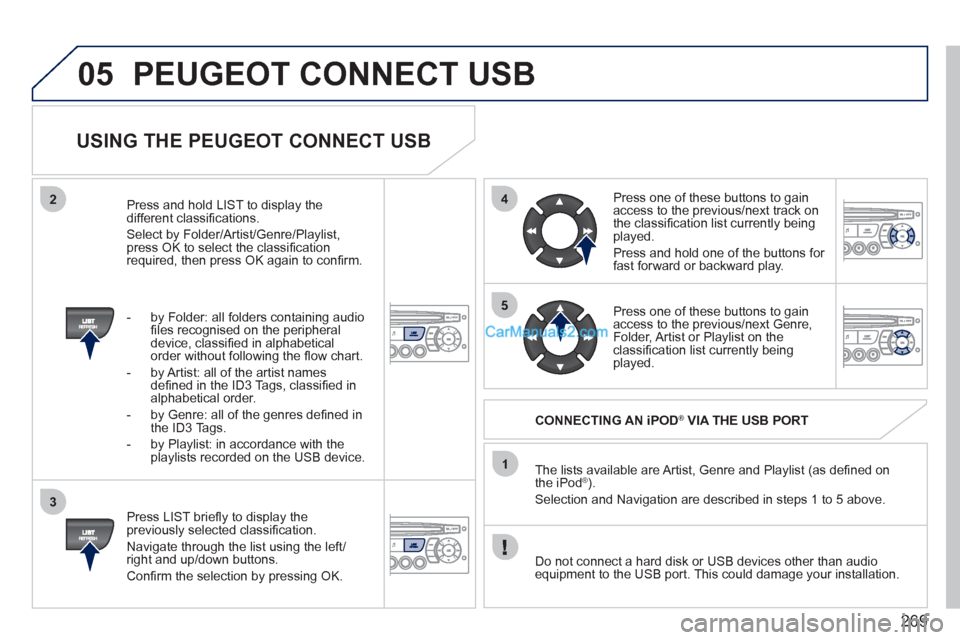

PEUGEOT CONNECT USB


USING THE PEUGEOT CONNECT USB


Press LIST briefl y to display the
previously selected classifi cation.
Navigate through the list using the left/
right and up/down buttons.
Confi rm the selection by pressing OK. The lists available are Artist, Genre and Playlist (as defi ned on
the iPod
® ).
Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or USB devices other than audio
equipment to the USB port. This could damage your installation.

CONNECTING AN iPOD
®
VIA THE USB PORT
Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.

Press one of these buttons to gain
access to the previous/next Genre,
Folder, Artist or Playlist on the
classifi cation list currently being
played.
Press and hold LIST to display the
different classifi cations.
Select by Folder/Artist/Genre/Playlist,
press OK to select the classifi cation
required, then press OK again to confi rm.


- by Folder: all folders containing audio
fi les recognised on the peripheral
device, classifi ed in alphabetical
order without following the fl ow chart.

- by Artist: all of the artist names
defi ned in the ID3 Tags, classifi ed in
alphabetical order.

- by Genre: all of the genres defi ned in
the ID3 Tags.

- by Playlist: in accordance with the
playlists recorded on the USB device.

270
05
1
2
1
2
The display and control is via the portable device. First adjust the volume of your portable device.
Then adjust the volume of your
audio system.

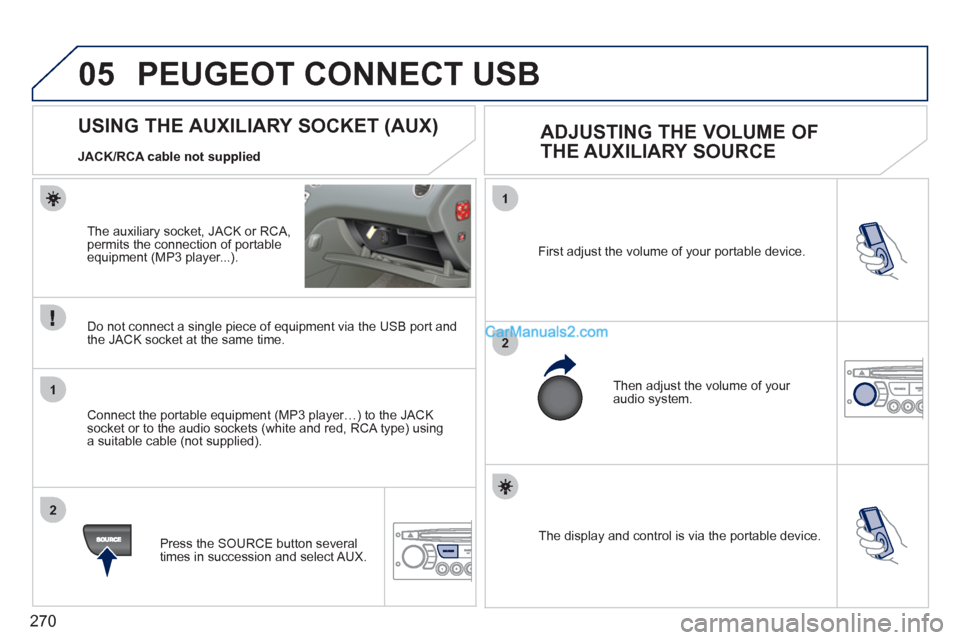

USING THE AUXILIARY SOCKET (AUX)

ADJUSTING THE VOLUME OF
THE AUXILIARY SOURCE
PEUGEOT CONNECT USB


The auxiliary socket, JACK or RCA,
permits the connection of portable
equipment (MP3 player...).

Do not connect a single piece of equipment via the USB port and
the JACK socket at the same time.

Connect the portable equipment (MP3 player…) to the JACK
socket or to the audio sockets (white and red, RCA type) using
a suitable cable (not supplied).

Press the SOURCE button several
times in succession and select AUX.



JACK/RCA cable not supplied

271
06
1
2
3
4
5
6
7
8
9
10

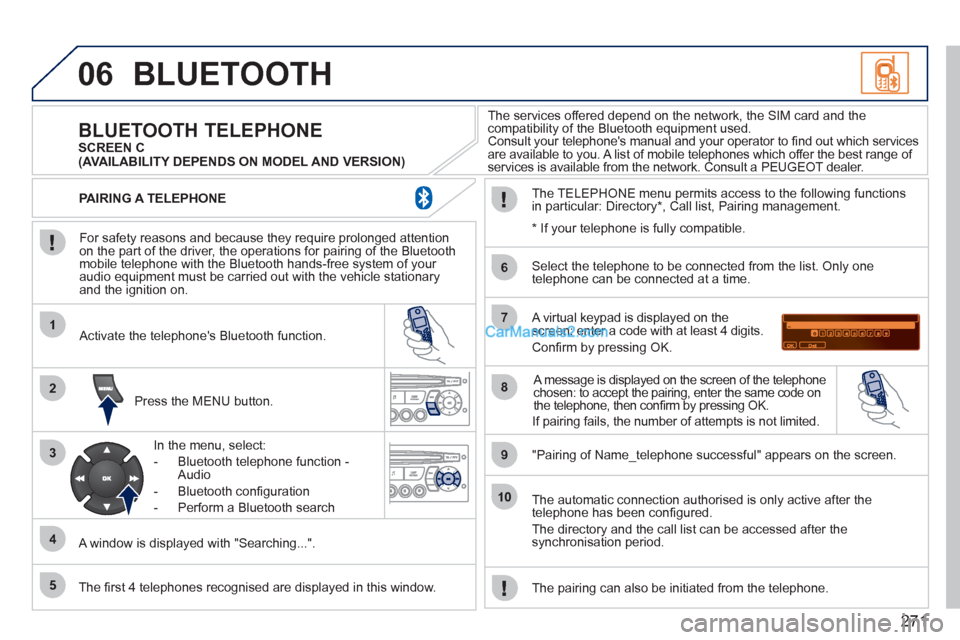

BLUETOOTH


For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.

Press the MENU button.

A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.

In the menu, select:


- Bluetooth telephone function -
Audio

- Bluetooth confi guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which services
are available to you. A list of mobile telephones which offer the best range of
services is available from the network. Consult a PEUGEOT dealer.










BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.

The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the
screen: enter a code with at least 4 digits.
Confi rm by pressing OK.

"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A message is displayed on the screen of the telephone
chosen: to accept the pairing, enter the same code on
the telephone, then confi rm by pressing OK.
The automatic connection authorised is only active after the
telephone has been confi gured.
The directory and the call list can be accessed after the
synchronisation period.
PAIRING A TELEPHONE

The pairing can also be initiated from the telephone.
(AVAILABILITY DEPENDS ON MODEL AND VERSION)

* If your telephone is fully compatible.

If pairing fails, the number of attempts is not limited.

272
06
1
2
1
2
1
2
3

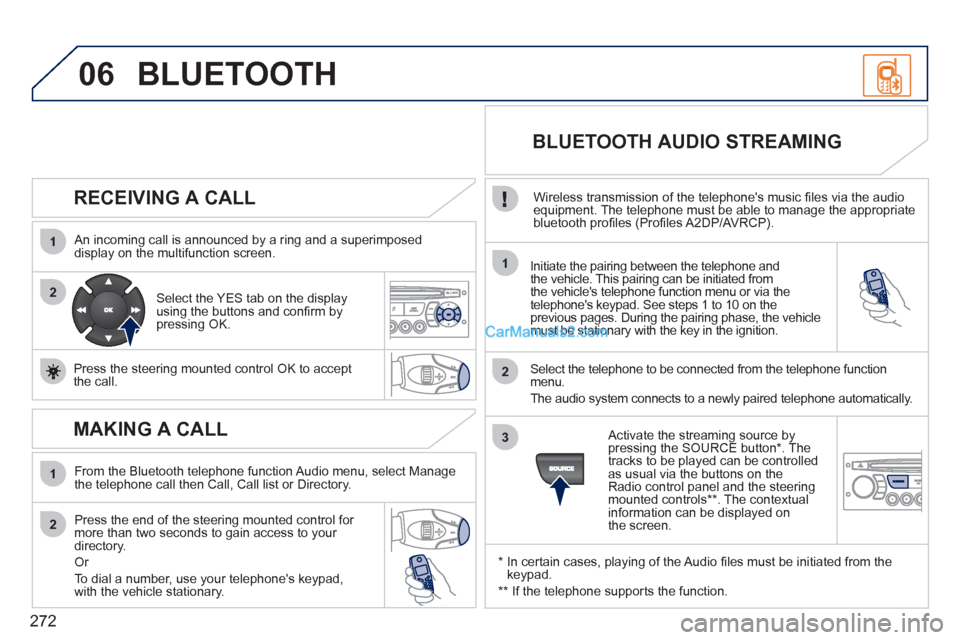

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function
menu.
The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display
using the buttons and confi rm by
pressing OK.

Press the steering mounted control OK to accept
the call.








BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio
equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).

*
In certain cases, playing of the Audio fi les must be initiated from the
keypad.

** If the telephone supports the function.
Activate the streaming source by
pressing the SOURCE button * . The
tracks to be played can be controlled
as usual via the buttons on the
Radio control panel and the steering
mounted controls ** . The contextual
information can be displayed on
the screen.


BLUETOOTH


MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end of the steering mounted control for
more than two seconds to gain access to your
directory.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.

273
07
1
2
3
4
5
6
7
8

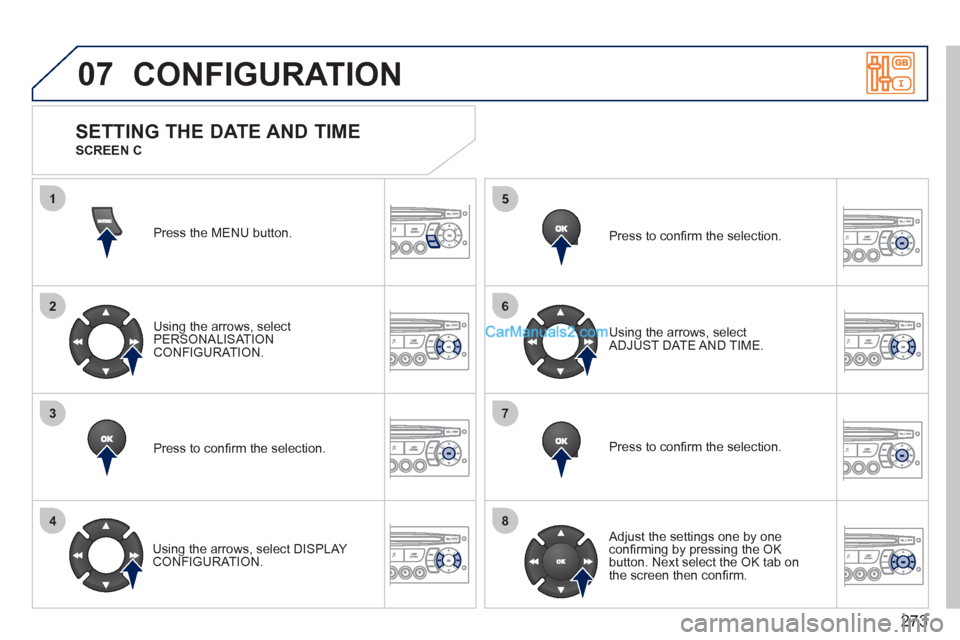

CONFIGURATION

Press the MENU button.

Using the arrows, select
PERSONALISATION
CONFIGURATION.

Press to confi rm the selection.

Using the arrows, select DISPLAY
CONFIGURATION.
Press to confi rm the selection.

Press to confi rm the selection.
Using the arrows, select
ADJUST DATE AND TIME.

Adjust the settings one by one
confi rming by pressing the OK
button. Next select the OK tab on
the screen then confi rm.











SETTING THE DATE AND TIME


SCREEN C

274

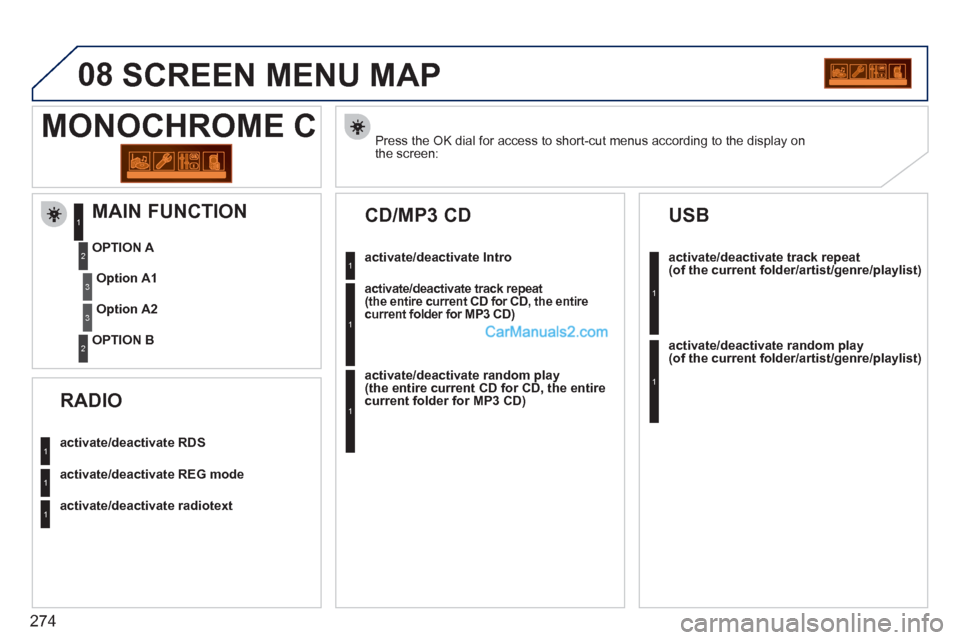

08 SCREEN MENU MAP

Press the OK dial for access to short-cut menus according to the display on
the screen:










MONOCHROME C


activate/deactivate RDS


activate/deactivate REG mode


activate/deactivate radiotext




RADIO


activate/deactivate Intro



CD/MP3 CD


activate/deactivate track repeat
(the entire current CD for CD, the entire
current folder for MP3 CD)


activate/deactivate random play
(the entire current CD for CD, the entire
current folder for MP3 CD)


activate/deactivate track repeat
(of the current folder/artist/genre/playlist)



USB


activate/deactivate random play



(of the current folder/artist/genre/playlist)


1
1
1
1
1
1
1
1










MAIN FUNCTION


OPTION A

OPTION B

Option A1



Option A2


1
2
3
2
3

275
08

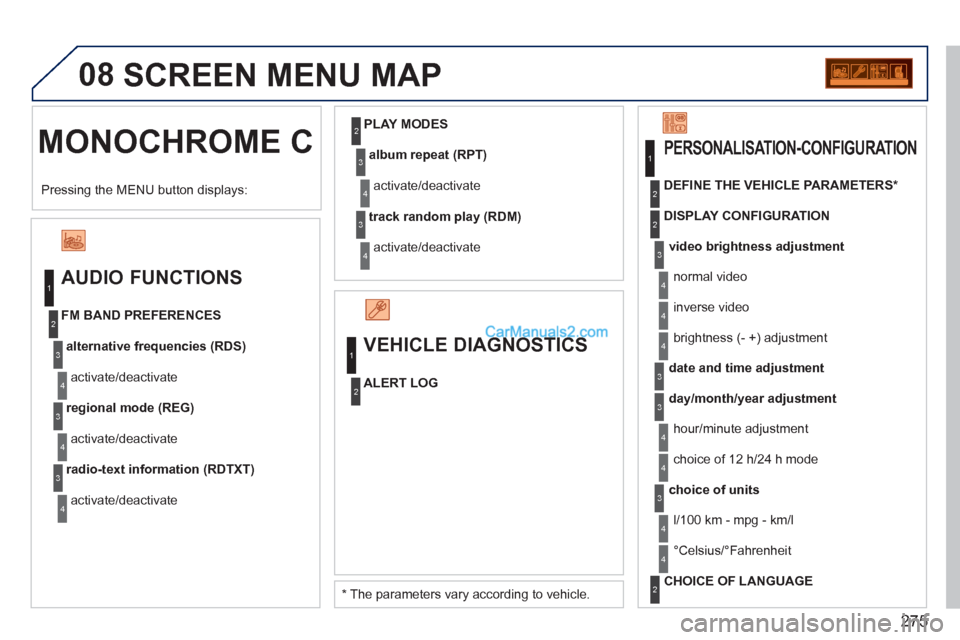

MONOCHROME C SCREEN MENU MAP


AUDIO FUNCTIONS


alternative frequencies (RDS)

activate/deactivate
FM BAND PREFERENCES

regional mode (REG)

activate/deactivate

radio-text information (RDTXT)


activate/deactivate
1
2
3
4
3
4
3
4


PLAY MODES

album repeat (RPT)

activate/deactivate

track random play (RDM)

activate/deactivate
2
3
4
3
4


VEHICLE DIAGNOSTICS


ALERT LOG

1
2
1
2
4
3
2
4
4
3
3
4
4
2
3
4
4

Pressing the MENU button displays:

* The parameters vary according to vehicle.
video brightness adjustment

DISPLAY CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *



PERSONALISATION-CONFIGURATION

normal video
inverse video
brightness (- +) adjustment

date and time adjustment

day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode

choice of units

l/100 km - mpg - km/l
°Celsius/°Fahrenheit

CHOICE OF LANGUAGE

276

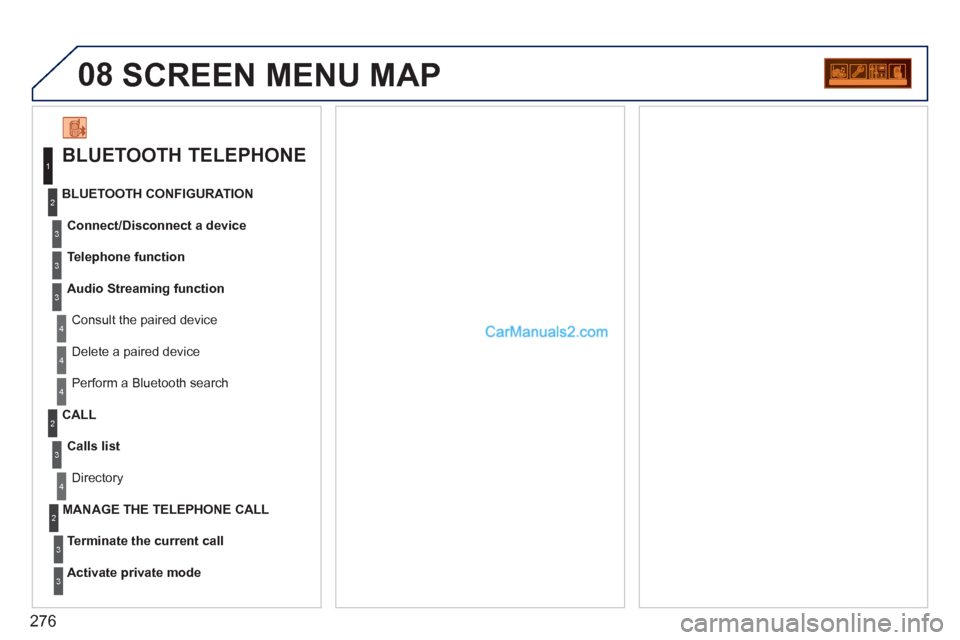

08 SCREEN MENU MAP


BLUETOOTH TELEPHONE


Connect/Disconnect a device

Consult the paired device
BLUETOOTH CONFIGURATION

Telephone function


Audio Streaming function

Delete a paired device
Perform a Bluetooth search

Calls list

CALL
Directory

Terminate the current call

MANAGE THE TELEPHONE CALL


Activate private mode



1
2
3
3
3
4
4
4
2
3
4
2
3
3

277

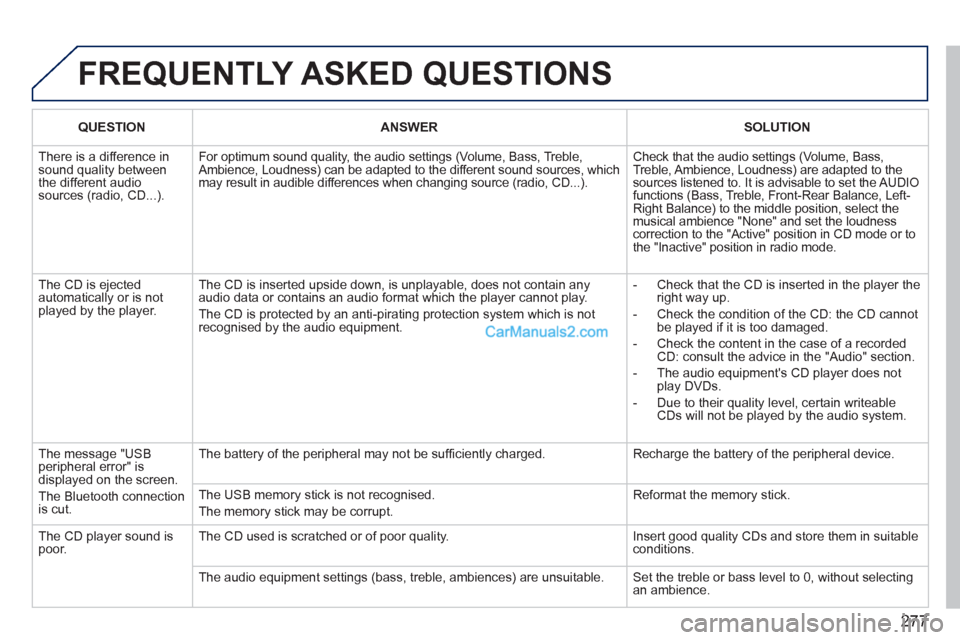

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources, which
may result in audible differences when changing source (radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to the
sources listened to. It is advisable to set the AUDIO
functions (Bass, Treble, Front-Rear Balance, Left-
Right Balance) to the middle position, select the
musical ambience "None" and set the loudness
correction to the "Active" position in CD mode or to
the "Inactive" position in radio mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

278

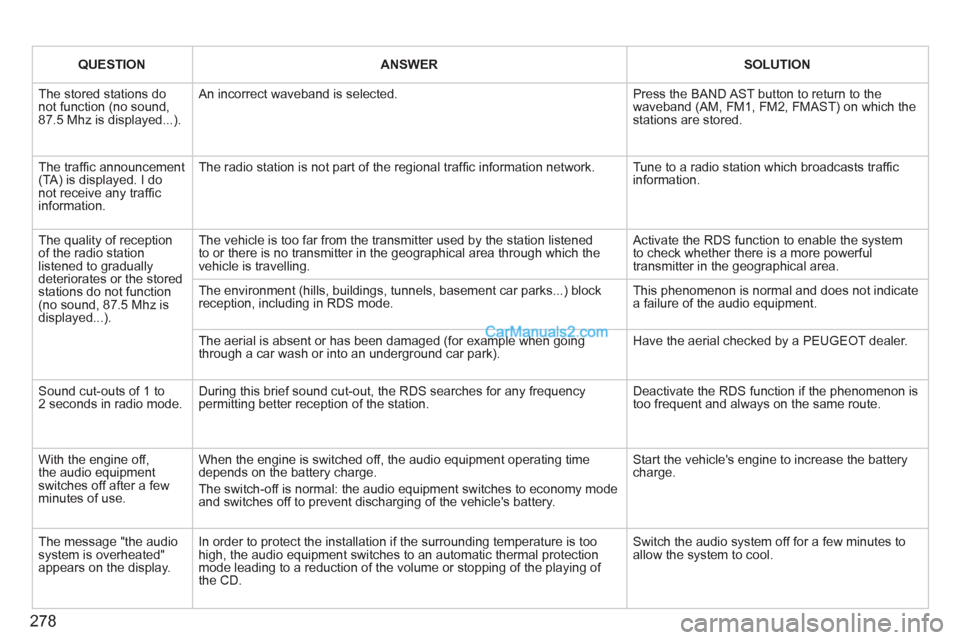

QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information. The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c
information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of
the CD. Switch the audio system off for a few minutes to
allow the system to cool.
