Windstop folded

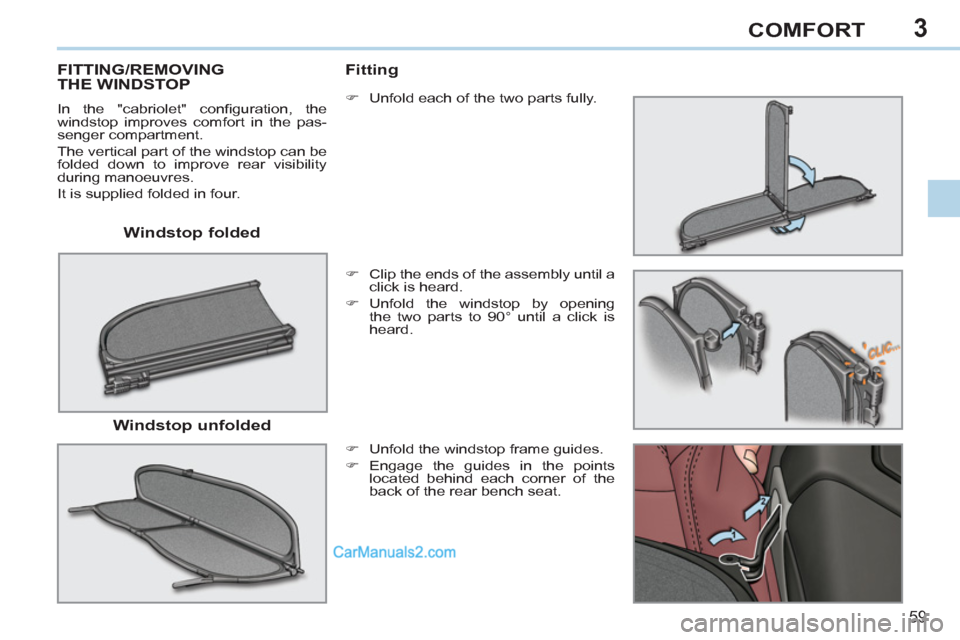

FITTING/REMOVING
THE WINDSTOP
In the "cabriolet" confi guration, the
windstop improves comfort in the pas-
senger compartment.
The vertical part of the windstop can be
folded down to improve rear visibility
during manoeuvres.
It is supplied folded in four.
Windstop unfolded
Fitting
)
Clip the ends of the assembly until a
click is heard.
)
Unfold the windstop by opening
the two parts to 90° until a click is
heard.
)
Unfold the windstop frame guides.
)
Engage the guides in the points
located behind each corner of the
back of the rear bench seat.
)
Unfold each of the two parts fully.
Page 62 of 292
3
i
60
COMFORT
)
Engage the shafts of the windstop
frame in the openings in the rear
side trim so that the red indicators
are concealed.
When installing the windstop for the fi rst
time:
)
position a size 10 open-ended span-
ner on the hexagonal part of the shaft,
)
tighten or slacken without forcing on
each side to adjust the depth setting.
)
Lastly, always check that the wind-
stop is retained securely before use
in the "cabriolet" confi guration.

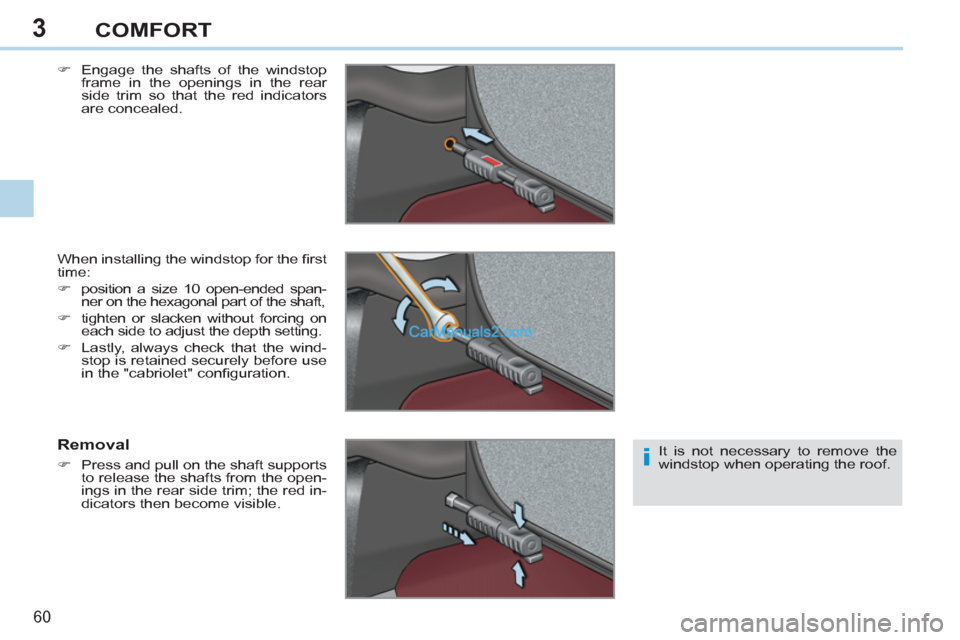

Removal
)
Press and pull on the shaft supports
to release the shafts from the open-
ings in the rear side trim; the red in-
dicators then become visible. It is not necessary to remove the
windstop when operating the roof.
Page 63 of 292
3
61
COMFORT
)
Pull the windstop forwards to re-
lease the guides from the points,
located behind each corner of the
back of the rear bench seat.
)
Fold the windstop frame guides.

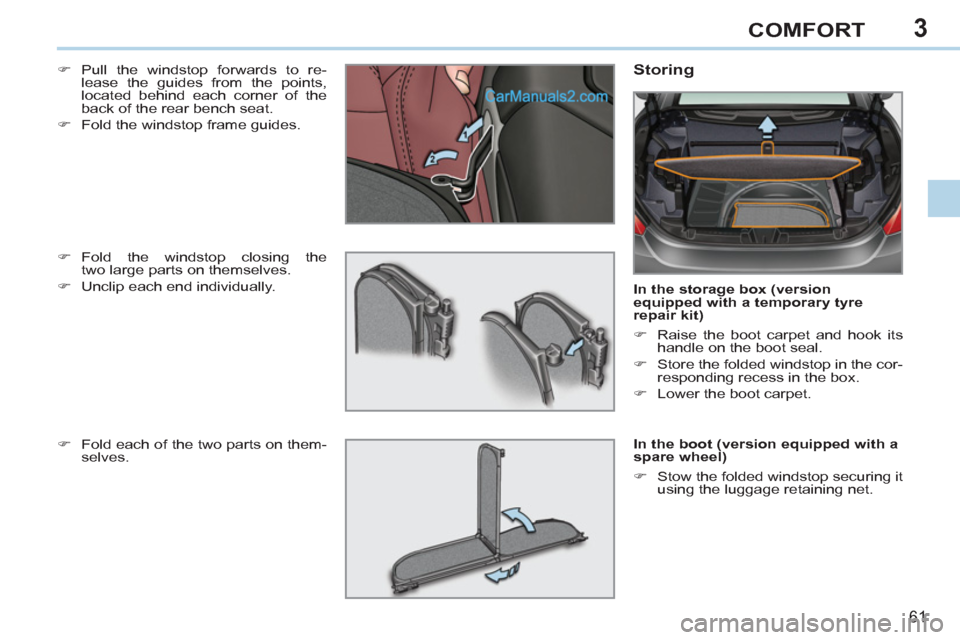

Storing
In the storage box (version
equipped with a temporary tyre
repair kit)
)
Raise the boot carpet and hook its
handle on the boot seal.
)
Store the folded windstop in the cor-
responding recess in the box.
)
Lower the boot carpet.
In the boot (version equipped with a
spare wheel)
)
Stow the folded windstop securing it
using the luggage retaining net.
)
Fold the windstop closing the
two large parts on themselves.
)
Unclip each end individually.
)
Fold each of the two parts on them-
selves.
Page 64 of 292
3
62
COMFORT
FRONT SEATS
Seat with integral head restraint, consisting
of a seat cushion and a seat back which
can be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
)
Raise the control and slide the seat
forwards or backwards.
Driver's or passenger's seat height
adjustment
)
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.
Seat back angle adjustment
)
Push the control rearwards.

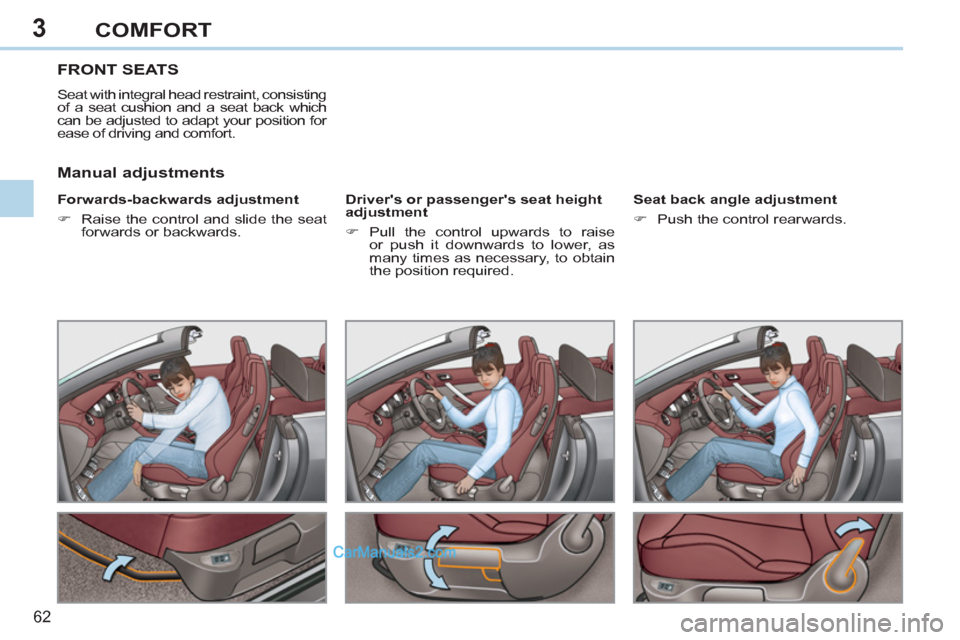

Manual adjustments
Page 65 of 292
3
i
63
COMFORT
FRONT SEATS
Seat with integral head restraint, consist-
ing of a seat cushion and a seat back
which can be adjusted to adapt your po-
sition for ease of driving and comfort.
Forwards-backwards adjustment
)
Push the control forwards or rear-
wards to slide the seat.
Seat cushion height and angle
adjustment
)
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
)
Tilt the front part of the control up-
wards or downwards to obtain the
required angle.
Seat back angle adjustment
)
Tilt the control forwards or rearwards
to adjust the angle of the seat back.

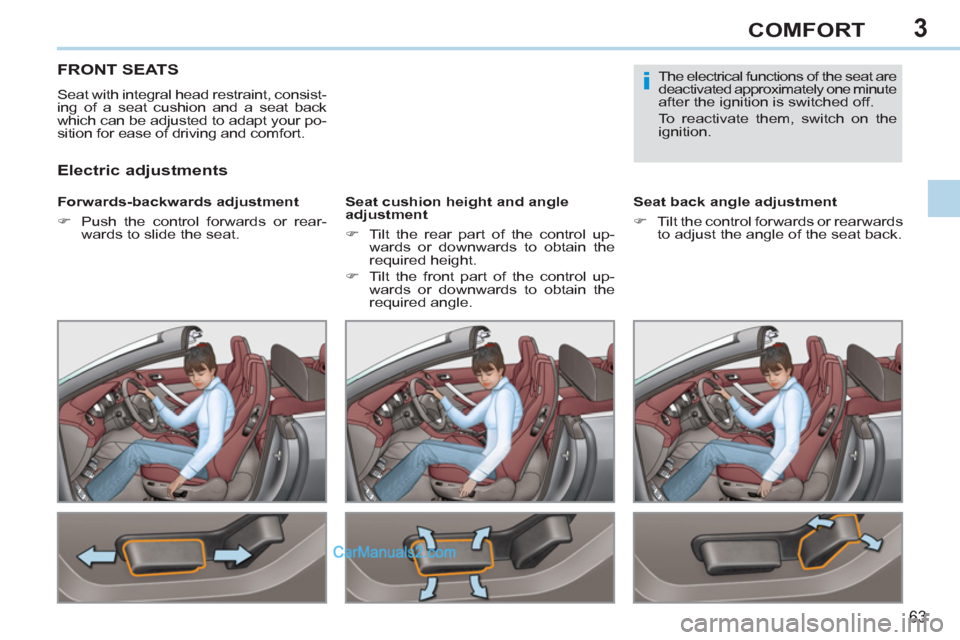

Electric adjustments
The electrical functions of the seat are
deactivated approximately one minute
after the ignition is switched off.
To reactivate them, switch on the
ignition.
Page 66 of 292
3
!
i
64
COMFORT

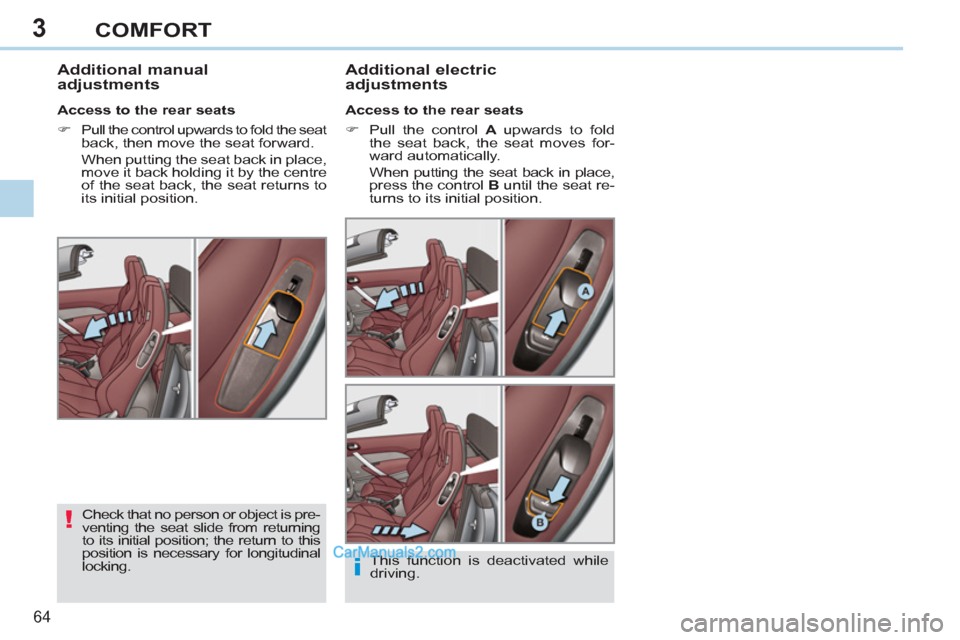

Additional manual
adjustments
Additional electric
adjustments
Access to the rear seats
)
Pull the control A
upwards to fold
the seat back, the seat moves for-
ward automatically.
When putting the seat back in place,
press the control B
until the seat re-
turns to its initial position.
Access to the rear seats
)
Pull the control upwards to fold the seat
back, then move the seat forward.
When putting the seat back in place,
move it back holding it by the centre
of the seat back, the seat returns to
its initial position.
Check that no person or object is pre-
venting the seat slide from returning
to its initial position; the return to this
position is necessary for longitudinal
locking.
This function is deactivated while
driving.
Page 67 of 292
3
i!
i
65
COMFORT

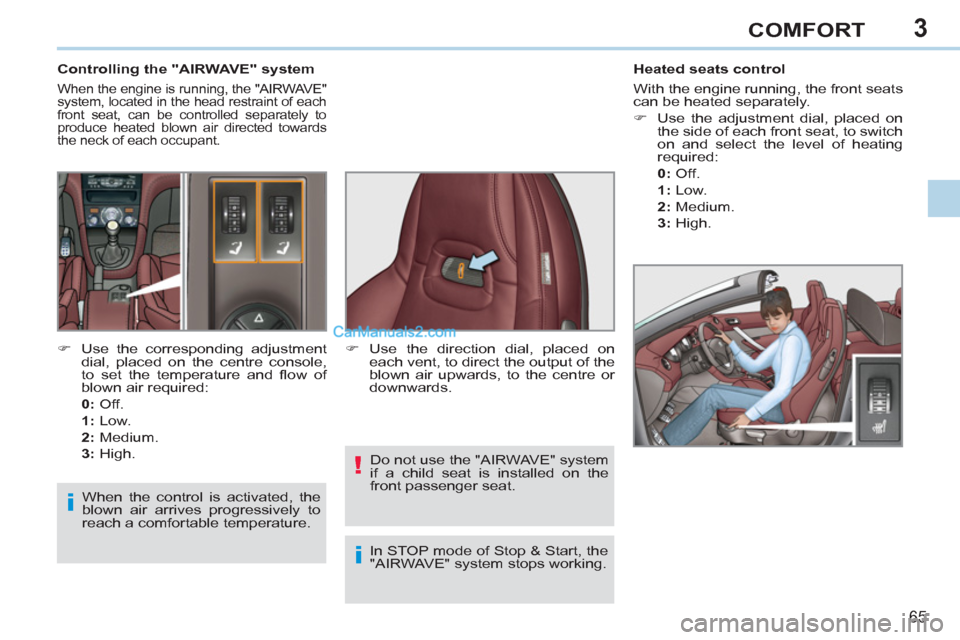

Controlling the "AIRWAVE" system
When the engine is running, the "AIRWAVE"
system, located in the head restraint of each
front seat, can be controlled separately to
produce heated blown air directed towards
the neck of each occupant.
Heated seats control
With the engine running, the front seats
can be heated separately.
)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0:
Off.
1:
Low.
2:
Medium.
3:
High.
)
Use the corresponding adjustment
dial, placed on the centre console,
to set the temperature and fl ow of
blown air required:
0:
Off.
1:
Low.
2:
Medium.
3:
High.
)
Use the direction dial, placed on
each vent, to direct the output of the
blown air upwards, to the centre or
downwards.
When the control is activated, the
blown air arrives progressively to
reach a comfortable temperature. Do not use the "AIRWAVE" system
if a child seat is installed on the
front passenger seat.
In STOP mode of Stop & Start, the
"AIRWAVE" system stops working.
Page 68 of 292
3
!
!
66
COMFORT

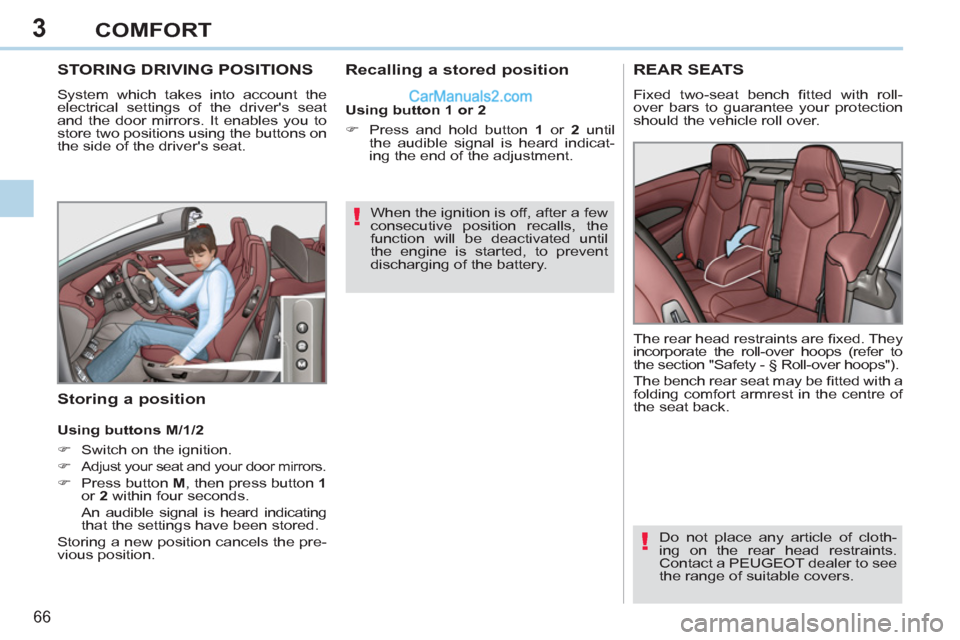

STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat.
Recalling a stored position
Storing a position
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using buttons M/1/2
)
Switch on the ignition.
)
Adjust your seat and your door mirrors.
)
Press button M
, then press button 1
or 2
within four seconds.
An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any article of cloth-
ing on the rear head restraints.
Contact a PEUGEOT dealer to see
the range of suitable covers. The rear head restraints are fi xed. They
incorporate the roll-over hoops (refer to
the section "Safety - § Roll-over hoops").
The bench rear seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2
)
Press and hold button 1
or 2
until
the audible signal is heard indicat-
ing the end of the adjustment.
Page 69 of 292
3
!
i
i
!
67
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

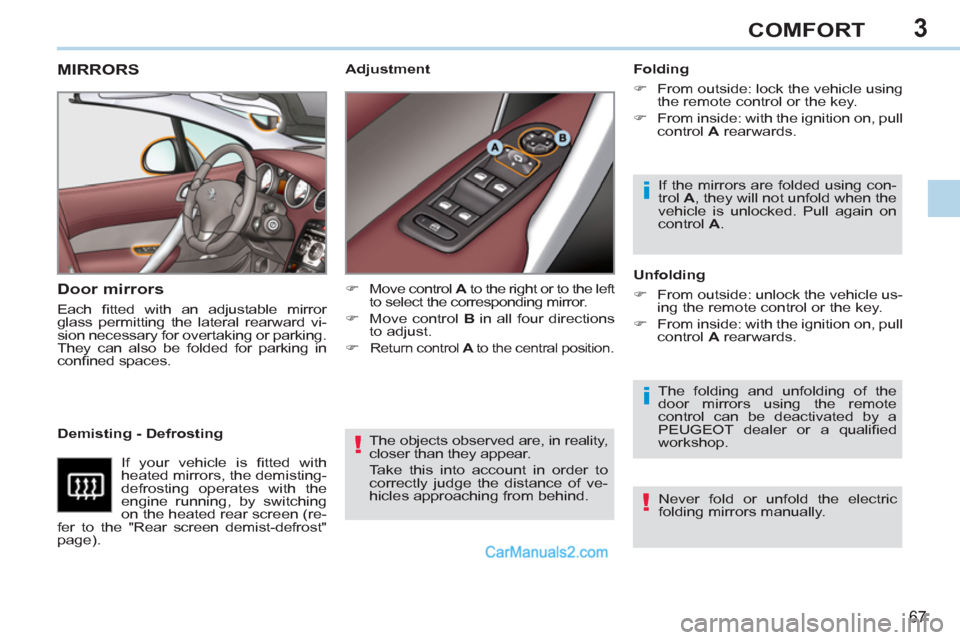

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces.
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
Demisting - Defrosting
Unfolding
)
From outside: unlock the vehicle us-
ing the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards. If the mirrors are folded using con-
trol A
, they will not unfold when the
vehicle is unlocked. Pull again on
control A
.
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (re-
fer to the "Rear screen demist-defrost"
page).
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central position.
Never fold or unfold the electric
folding mirrors manually.
Adjustment
Page 70 of 292
3
68
COMFORT

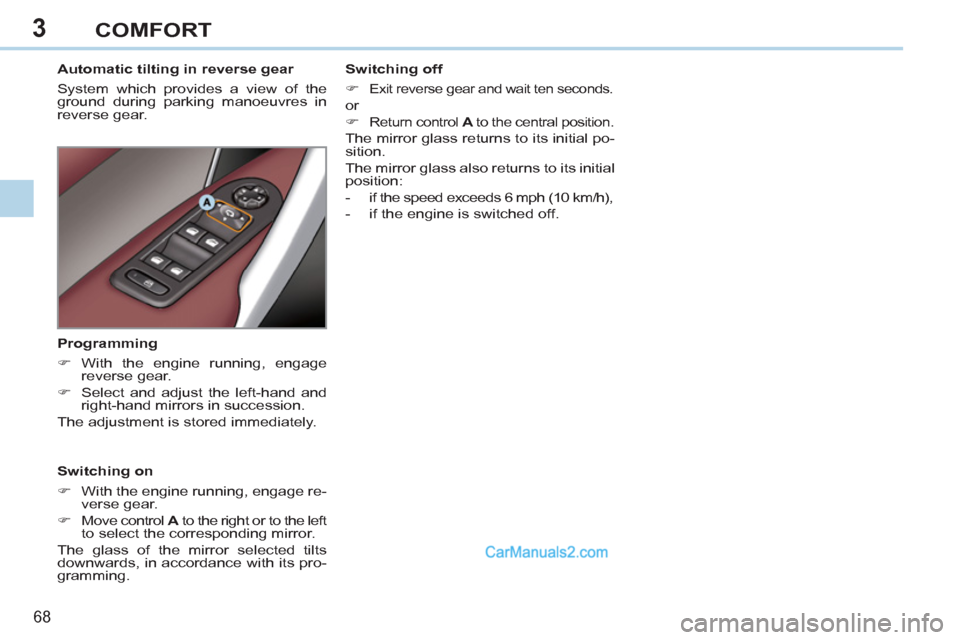

Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on
)
With the engine running, engage re-
verse gear.
)
Move control A
to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
)
With the engine running, engage
reverse gear.
)
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately.
Switching off
)
Exit reverse gear and wait ten seconds.
or
)
Return control A
to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
