Peugeot 308 CC 2014 Owner's Manual

HANDBOOK

This personal space offers advice and other useful information for the care and maintenance of your vehicle.

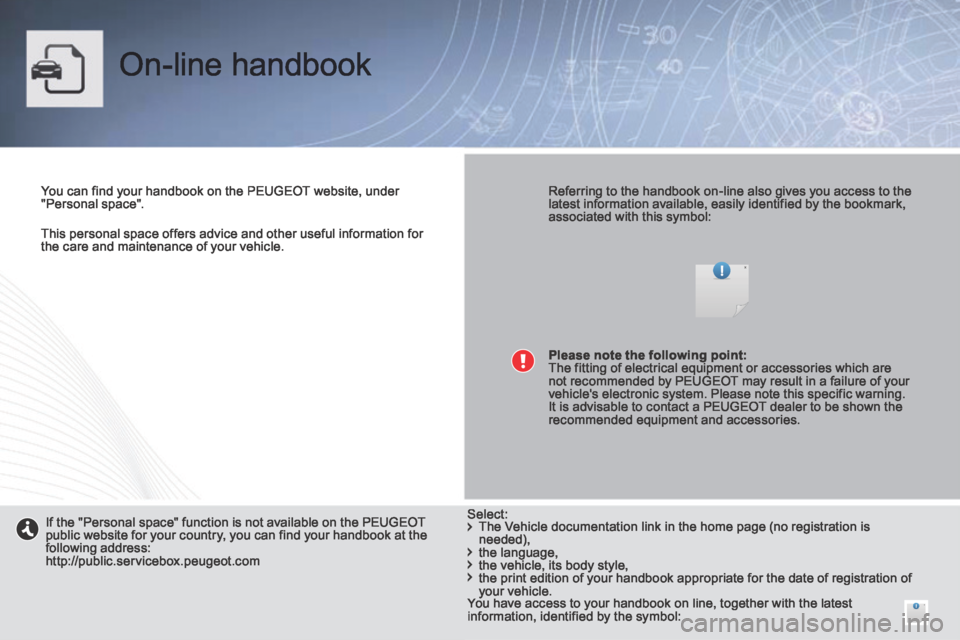

On-line handbook
You can find your handbook on the PEUGEOT website, under "Personal space". Referring to the handbook on-line also gives you access to the latest information available, easily identified by the bookmark, associated with this symbol:
If the "Personal space" function is not available on the PEUGEOTpublic website for your country, you can find your handbook at the following address: http://public.servicebox.peugeot.com
The Vehicle documentation link in the home page (no registration is needed), the language, the vehicle, its body style, the print edition of your handbook appropriate for the date of registration of your vehicle.
Please note the following point: The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system. Please note this specific warning. It is advisable to contact a PEUGEOT dealer to be shown the recommended equipment and accessories.
Select:
You have access to your handbook on line, together with the latest information, identified by the symbol:

!
i
1
Thank you for choosing a 308 CC, a
symbol of confi dence, passion and in-
spiration.
Page reference:
this symbol invites you to refer to
the pages which provide details
of the function.
Key Protection of
the environment:
this symbol accompanies advice
relating to protection of the envi-
ronment.
Information:
this symbol draws your attention
to additional information for better
use of your vehicle.
Warning:
this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
Your vehicle is fi tted with only some of the
equipment described in this document,
depending on its trim level, version and
the specifi cation for the country in which
it was sold.

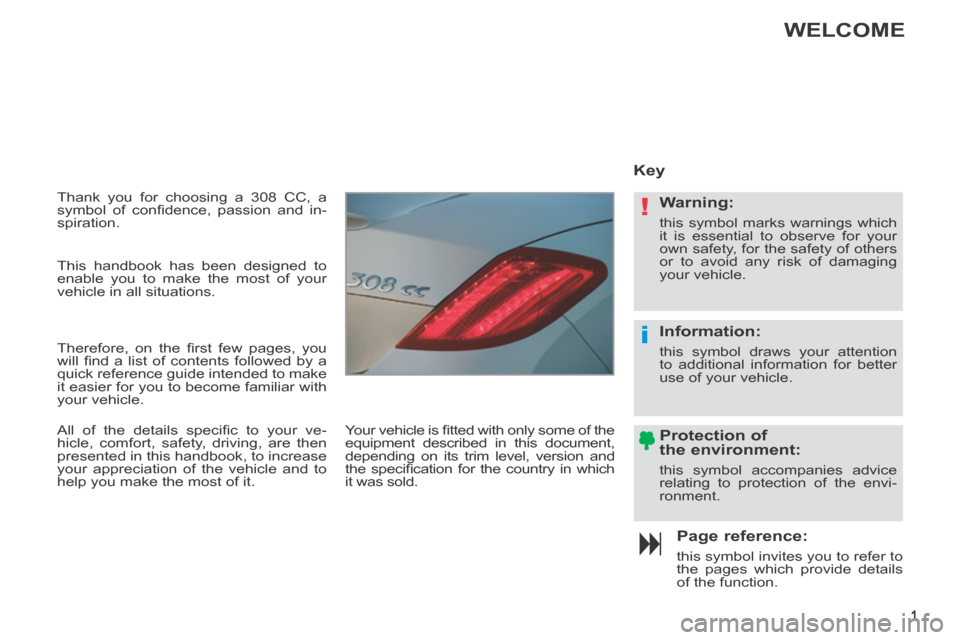

WELCOME
This handbook has been designed to
enable you to make the most of your
vehicle in all situations.
Therefore, on the fi rst few pages, you
will fi nd a list of contents followed by a
quick reference guide intended to make
it easier for you to become familiar with
your vehicle.
All of the details specifi c to your ve-
hicle, comfort, safety, driving, are then
presented in this handbook, to increase
your appreciation of the vehicle and to
help you make the most of it.

2

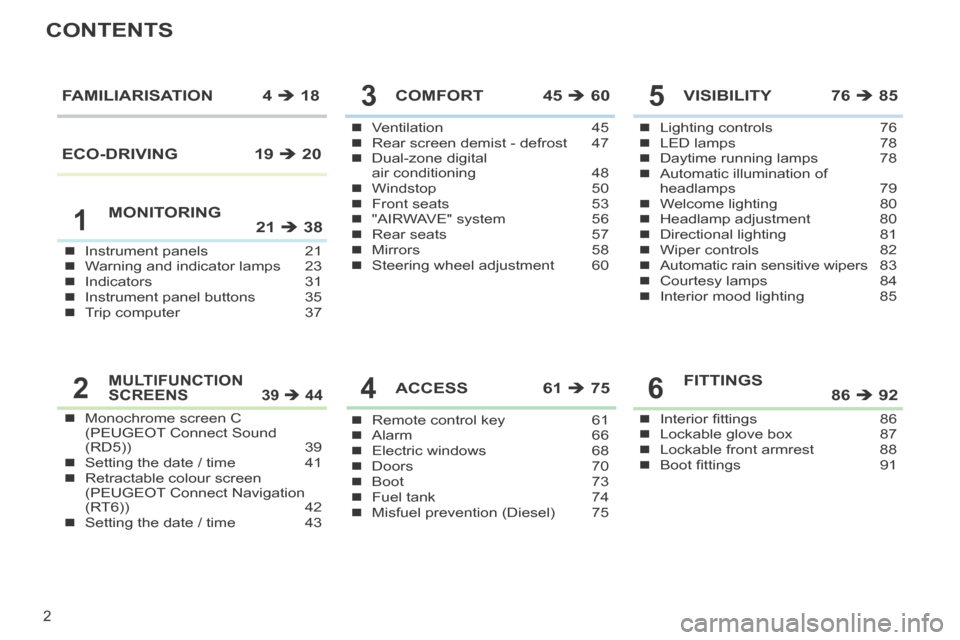

CONTENTS
Instrument panels 21Warning and indicator lamps 23Indicators 31Instrument panel buttons 35Trip computer 37
Ventilation 45Rear screen demist - defrost 47Dual-zone digital air conditioning 48Windstop 50Front seats 53"AIRWAVE" system 56Rear seats 57Mirrors 58Steering wheel adjustment 60
COMFORT 45  60
Remote control key 61Alarm 66Electric windows 68Doors 70Boot 73Fuel tank 74Misfuel prevention (Diesel) 75
ACCESS 61  75
Lighting controls 76LED lamps 78Daytime running lamps 78Automatic illumination of headlamps 79Welcome lighting 80Headlamp adjustment 80Directional lighting 81Wiper controls 82Automatic rain sensitive wipers 83Courtesy lamps 84Interior mood lighting 85
VISIBILITY 76  85FAMILIARISATION 4  18
MONITORING 21  38
Monochrome screen C (PEUGEOT Connect Sound (RD5)) 39Setting the date / time 41Retractable colour screen (PEUGEOT Connect Navigation (RT6)) 42Setting the date / time 43
MULTIFUNCTION SCREENS 39  44
Interior fi ttings 86Lockable glove box 87Lockable front armrest 88Boot fi ttings 91
FITTINGS 86  92
1
5
4
3
26
ECO-DRIVING 19  20

3
CONTENTS
Direction indicators 93Hazard warning lamps 93Horn 93Emergency or assistance call 94Braking assistance systems 94Trajectory control systems 95Front seat belts 97Airbags 100Child seats 104Deactivating the passenger's front airbag 105ISOFIX child seats 110
SAFETY 93  11 3
Parking brake 114Manual gearbox 114Gear shift indicator 115Automatic gearbox 116Stop & Start 119Tyre under-infl ation detection 122Speed limiter 124Cruise control 126Parking sensors 128
DRIVING 114  129
Bonnet 131Running out of fuel (Diesel) 132Petrol engines 133Diesel engines 134Checking levels 135Checks 138
CHECKS 130  139
Temporary puncture repair kit 140Changing a wheel 145Snow chains 149Changing a bulb 150Changing a fuse 15512 V battery 161Energy economy mode 164Changing a wiper blade 165Towing the vehicle 165Towing a trailer 167Very cold climate screen 168Accessories 168
PRACTICAL INFORMATION 140  169
Petrol engines 170Weights (petrol) 171Diesel engines 172Weights (Diesel) 173Dimensions 174Identifi cation markings 175
TECHNICAL D ATA 170 D ATA 170 D ATA 176
AUDIO EQUIPMENT and TELEMATICS 177  251
VISUAL SEARCH 252  255
ALPHABETICAL INDEX 256  260
Emergency or assistance 177PEUGEOT Connect Navigation (RT6)PEUGEOT Connect Navigation (RT6)PEUGEOT 179PEUGEOT Connect Sound (RD5)PEUGEOT Connect Sound (RD5)PEUGEOT 233
7
8
9
10
11

 81 140
 50
 11 9
 6
4
FAMILIARISATION
Directional lighting
This lighting automatically provides
additional visibility when cornering. Retractable roof
This system changes from the "coupé"
confi guration to the "cabriolet" confi gura-
tion and vice versa with a single action.
Windstop
In the "cabriolet" confi guration,
this comfort system reduces
air swirl at the front seats.
EXTERIOR
Temporary puncture repair
kit
This kit is a complete system,
consisting of a compressor
and a sealant cartridge, for the
temporary repair of a tyre.
Stop & Start
This system puts the engine temporar-
ily into standby during stops in the traf-
fi c (red lights, traffi c jams, etc....). The
engine restarts automatically as soon
as you want to move off. The Stop &
Start system reduces fuel consumption,
exhaust emissions and the noise level
when stationary.

 61 85 74
 80
5
FAMILIARISATION

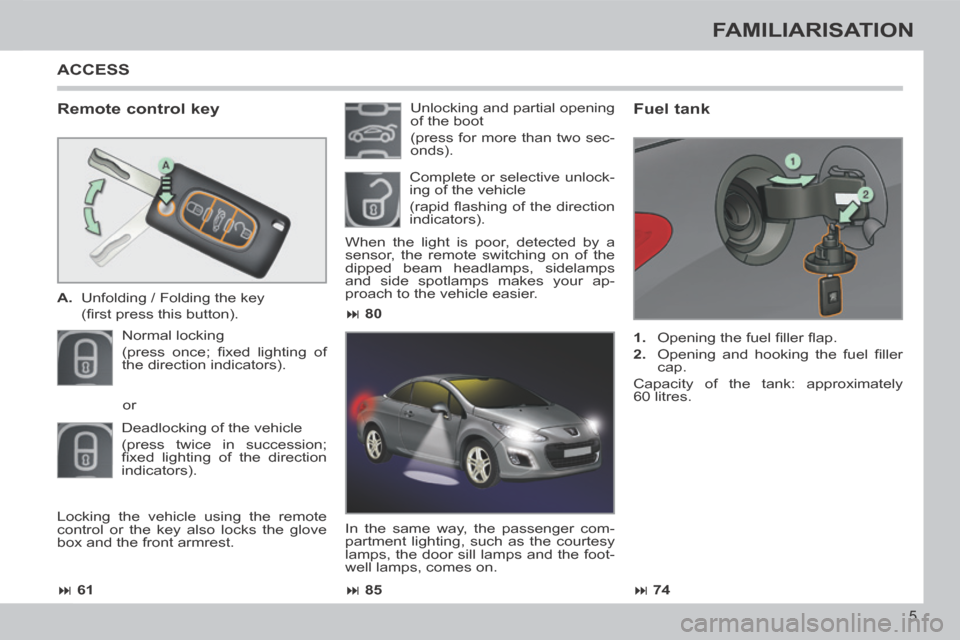

Remote control key
A. Unfolding / Folding the key
(fi rst press this button).
Normal locking
(press once; fi xed lighting of
the direction indicators).
Fuel tank
1. Opening the fuel fi ller fl ap.
2. Opening and hooking the fuel fi ller cap.
Capacity of the tank: approximately
60 litres.
Unlocking and partial opening
of the boot
(press for more than two sec-
onds).
When the light is poor, detected by a
sensor, the remote switching on of the
dipped beam headlamps, sidelamps
and side spotlamps makes your ap-
proach to the vehicle easier.
In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the door sill lamps and the foot-
well lamps, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
ACCESS
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.

!
!
i
!
6
FAMILIARISATION
ACCESS
Retractable roof
The operation of the roof is the ex-
clusive responsibility of the driver.
To avoid any risk of injury when
operating the roof, ensure that no
one is standing near the moving
parts.
You are strongly advised not to op-
erate the roof in strong winds. When washing your vehicle:
- lock the vehicle using the re-
mote control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pres- sure nozzle at least 1 metre
from the windows and door
seals.
When the vehicle has been washed
or after rain, wait until the roof has
dried before opening it. It is preferable to operate the roof
with the engine running and the ve-
hicle stationary. Wait until the end of
operation message appears in the
multifunction screen before moving
off.
The operation can only be carried
out when moving if the speed is be-
low 6 mph (10 km/h), and you are
driving smoothly on level ground.
Preliminary conditions
 Start the engine
 You must ensure that:
- the electric windows are initialised (see the corresponding section),
- the ambient temperature is higher than -15 °C.
Precautions to be taken before
operating the roof
 Park the vehicle on level ground.
 Check that no objects could hinder
the operation of the roof:
- nothing should be placed on the moving rear shelf 1 , on the boot
screen 2 or on the side trims 3 ,
- if luggage is transported in the boot, it must not lift the boot
screen,
- any objects, such as a jacket or umbrella, placed in the boot, must
be secured using the luggage re-
taining net 4 .
 Check that the boot screen 2 is se-
cured fi rmly.
 Close the boot correctly.
After the roof has been operated
fully four times in succession, the
system switches to protection
mode temporarily to avoid dam-
age to the roof motors. Let the
system rest for approximately ten
minutes; if you are unable to oper-
ate the roof after this time, contact
a PEUGEOT dealer or a qualifi ed
workshop.

!
i
!
i
!
7
FAMILIARISATION
ACCESS
Retractable roof operations
Opening the roof  Pull this control until the roof opening operation is com-
plete.
Closing the roof  Press this control until the roof closing operation is
complete. Change to "cabriolet" confi guration:
- the four windows lower partially,
- the boot opens,
- the roof folds into the boot,
- the boot closes.
Change to "coupé" confi guration:
- the four windows lower partially,
- the boot opens,
- the roof unfolds and locks automati-
cally,
- the boot closes.
To ensure that the roof operates cor-
rectly, do not release the control while
the roof is moving.
However, in the event of any danger,
release the control, the roof stops; then,
once the danger had been eliminated,
complete the movement required.
Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch off
the ignition, start the engine again,
then start the operation required
again.
If the problem persists, contact a
PEUGEOT dealer or a qualifi ed
workshop. The electric window controls and
the control for all four windows are
deactivated while the roof is in op-
eration.
The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.
The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.
If you continue to pull or press this
control after the end of the opera-
tion, the four windows rise.
The roof's electronic control unit
may interrupt the operation in
progress as a precaution (ex-
ample: door movement and roof
operation in quick succession). In
this case, release the control, then
activate it again to complete the
operation required.

 87, 88
 85
 56
 233
 179
8
FAMILIARISATION

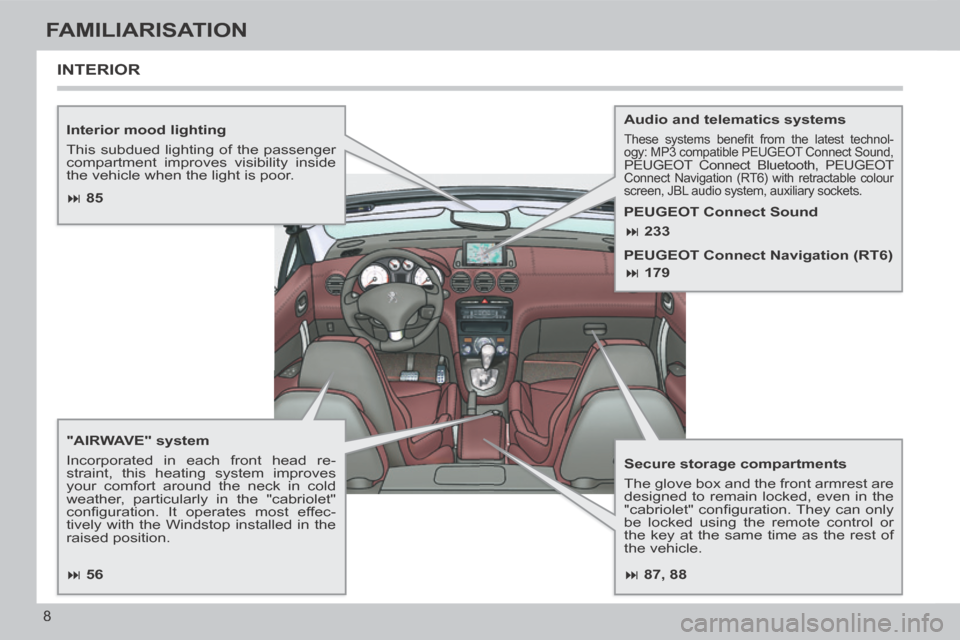

Interior mood lighting
This subdued lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
"AIRWAVE" system
Incorporated in each front head re-
straint, this heating system improves
your comfort around the neck in cold
weather, particularly in the "cabriolet"
confi guration. It operates most effec-
tively with the Windstop installed in the
raised position. Audio and telematics systems These systems benefi t from the latest technol-
ogy: MP3 compatible PEUGEOT Connect Sound,
PEUGEOT Connect Bluetooth, PEUGEOT Connect Navigation (RT6) with retractable colour
screen, JBL audio system, auxiliary sockets.
Secure storage compartments
The glove box and the front armrest are
designed to remain locked, even in the
"cabriolet" confi guration. They can only
be locked using the remote control or
the key at the same time as the rest of
the vehicle.
INTERIOR
PEUGEOT Connect Sound
PEUGEOT Connect Navigation (RT6)
