Peugeot 308 CC 2014 User Guide

9
FAMILIARISATION
1. Cruise control / speed limiter switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator control stalk.
4. Instrument panel.
5. Driver's front airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. 12 V accessory socket.
9. Heated seat control.
10. Door mirror controls.
Electric window controls.
11 . Bonnet release.
12. Fusebox.
13. Manual headlamp height adjustment.
Stop & Start button.
14. Side adjustable air vent.
15. Front side window demisting vent.
16. Speaker (tweeter).
17. Windscreen demisting vent.
INSTRUMENTS AND CONTROLS

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio and telematics system steering mounted control stalk.
3. Wipers / screenwash / trip computer control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's front airbag.
8. Passenger's front airbag deactivation switch.
9. Glove box / Audio/video sockets.
10. Retractable roof control.
Control for all four windows.
11 . Storage compartment.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating / air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
DSC/ASR systems button.
Parking sensors button.
PEUGEOT services button.

 53
 54
11
FAMILIARISATION
Front seats Manual adjustments
Forwards-backwards Seat back angle
Height
SITTING COMFORTABLY
Electric adjustments

!i
 88
 60
 55
 57
 56
12
FAMILIARISATION
SITTING COMFORTABLY
Steering wheel adjustment
1. Release the adjustment mechanism.
2. Adjust for height and reach.
3. Lock the adjustment mechanism.
Front seats
Other functions available...
Storing driving positions (driver's
electric seat).
Electric access to the rear seats
Lockable front armrest
For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
let" confi guration, this is locked at the
same time as the rest of the vehicle,
only when using the remote control or
the key.
As a safety precaution, these op-
erations must only be carried out
when stationary.
1. Control for release of the seat back
and automatic forward movement of
the seat.
2. Control for returning the seat to the initial position.
"AIRWAVE" system.
Heated seats.

i
 97
 58  60
 59

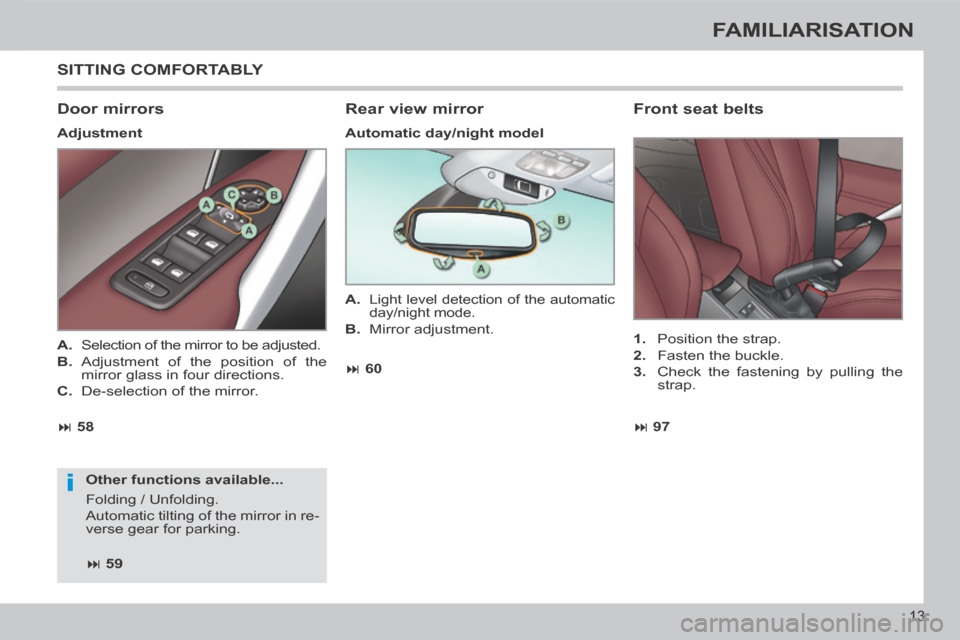

13
FAMILIARISATION
SITTING COMFORTABLY
Door mirrors
Adjustment
Other functions available...
Folding / Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking.
Rear view mirror Front seat belts
1. Position the strap.
2. Fasten the buckle.
3. Check the fastening by pulling the
strap.
A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the
mirror glass in four directions.
C. De-selection of the mirror. Automatic day/night model
A.
Light level detection of the automatic
day/night mode.
B. Mirror adjustment.

 76 93 83  82

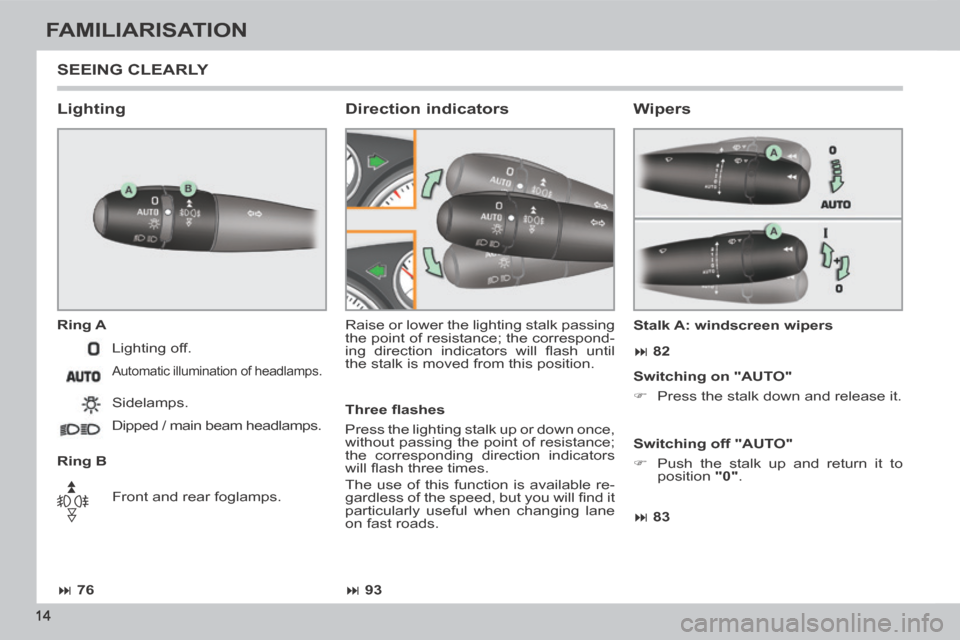

14
FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Ring B Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash until
the stalk is moved from this position.
Direction indicators
Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.
Front and rear foglamps. Stalk A: windscreen wipers
Wipers
Three fl ashes
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
The use of this function is available re-
gardless of the speed, but you will fi nd it
particularly useful when changing lane
on fast roads.
Switching on "AUTO"
 Press the stalk down and release it.
Switching off "AUTO"
 Push the stalk up and return it to
p osition "0" .

 21 23
 177  177
 67
 71
 95
 129
15
FAMILIARISATION
* Depending on version.
MONITORING
Instrument panel Switch panel
A. With the ignition on, the needle should
indicate the level of fuel remaining.
B. With the engine running, its associ- ated low level warning lamp should
go off.
C. With the ignition on, the oil level indi- cator * should display for a few sec-
onds that this level is correct.
If the levels are not correct, top up the
l evels which are low. Illumination of the indicator lamp indicates
the status of the corresponding function.
A. Emergency call in progress.
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these warning lamps should go off.
If warning lamps remain on, refer to the
table concerned.
Warning lamps
B. Deactivation of the alarm interior volumetric monitoring.
C. Central locking.
D.
Deactivation of the DSC/ASR systems.
E. Deactivation of the front and rear parking sensors.
F. Access to PEUGEOT services.

i
 101 97, 101 63

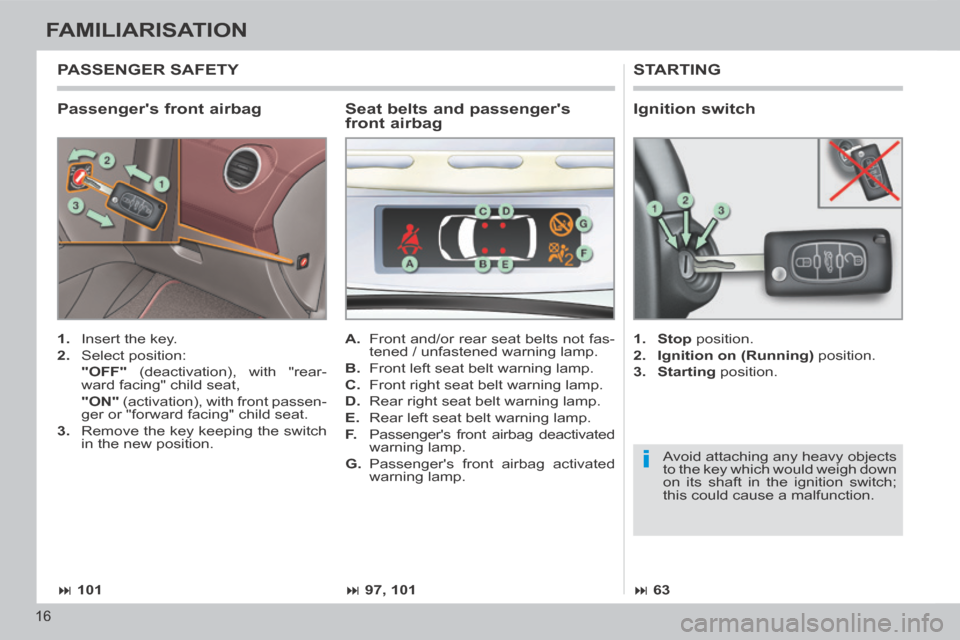

16
FAMILIARISATION
Passenger's front airbag
STARTING
1. Insert the key.
2. Select position:
"OFF" (deactivation), with "rear-
ward facing" child seat,
"ON" (activation), with front passen-
ger or "forward facing" child seat.
3. Remove the key keeping the switch in the new position. 1. Stop position.
2. Ignition on (Running) position.
3. Starting position.
A. Front and/or rear seat belts not fas-
tened / unfastened warning lamp.
B. Front left seat belt warning lamp.
C. Front right seat belt warning lamp.
D. Rear right seat belt warning lamp.
E. Rear left seat belt warning lamp.
F. Passenger's front airbag deactivated
warning lamp.
G. Passenger's front airbag activated warning lamp.
Seat belts and passenger's
front airbag
PASSENGER SAFETY
Ignition switch
Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.

!
i
i
 11 9 120
17
FAMILIARISATION
DRIVING SAFELY
Stop & Start
The "ECO" warning lamp comes on
in the instrument panel and the en-
gine is put automatically into standby: The "ECO" warning lamp goes
off and the engine restarts au-
tomatically:
You can deactivate the system at
any time by pressing the "ECO OFF"
switch; the warning lamp in the button
comes on. Activation / Reactivation
Going into engine STOP mode Going into engine START mode
- with a manual gearbox; at speeds below 12 mph (20 km/h), when you
place the gear lever into neutral and
release the clutch pedal.
In certain circumstances, STOP mode
may not be available; the "ECO" warn-
ing lamp fl ashes for a few seconds,
then goes off. - with a manual gearbox; when you
fully depress the clutch pedal.
If you engage a gear without fully
depressing the clutch pedal, the
engine will not restart automatical-
ly. An alert message is displayed
asking you fully depress the clutch
pedal. The system is reactivated auto-
matically every time the engine is
started with the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition with the key.
In certain circumstances, START mode
may be invoked automatically; the
"ECO" warning lamp fl ashes for a few
seconds, then goes off.

 126
 124
18
FAMILIARISATION
DRIVING SAFELY
Speed limiter "LIMIT"
1. Limiter mode Selection / Off.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter On / Off. 1. Cruise control mode Selection / Off.
2. Programme a speed / Decrease the
programmed value.
3. Programme a speed / Increase the programmed value.
4. Cruise control Off / Resume.
Cruise control "CRUISE"
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the automatic gearbox).
The values must be set with the engine
running.
Display in the instrument panel
The cruise control or speed limiter
mode appears in the instrument panel
when it is selected.
Cruise control
Speed limiter
