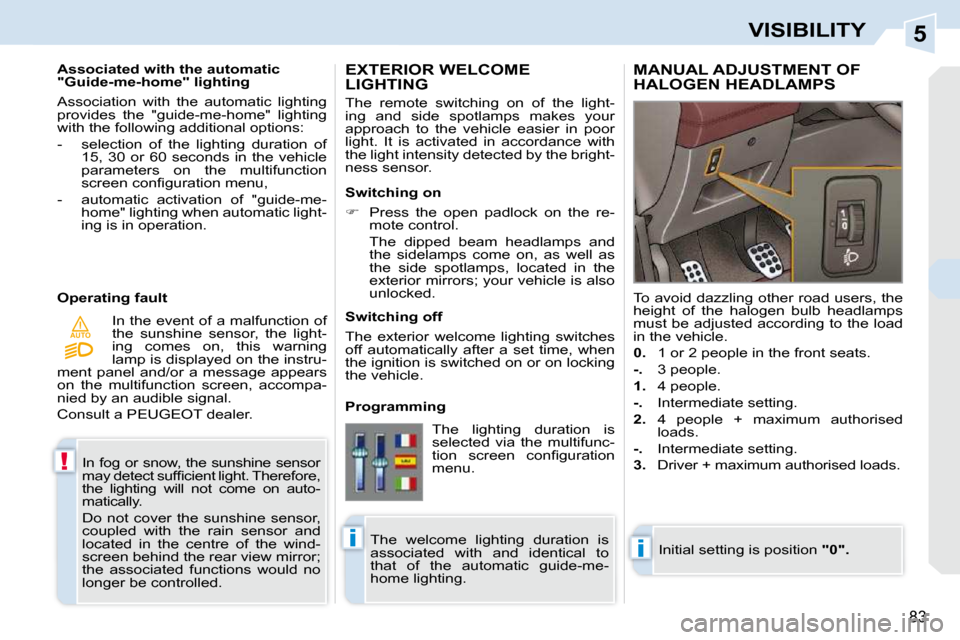

VISIBILITY
In fog or snow, the sunshine sensor
m a y d e t e c t s u f fi c i e n t l i g h t . T h e r e f o r e ,
the lighting will not come on auto-
matically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Operating fault In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing and side spotlamps makes your
approach to the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on
Press the open padlock on the re-
mote control.
The dipped beam headlamps and the sidelamps come on, as well as
the side spotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
Programming The lighting duration is
selected via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
4 people.
-.
Intermediate setting.
2.
4 people + maximum authorised
loads.
-.
Intermediate setting.
3.
Driver + maximum authorised loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 92 of 280
5
!
i
84
VISIBILITY

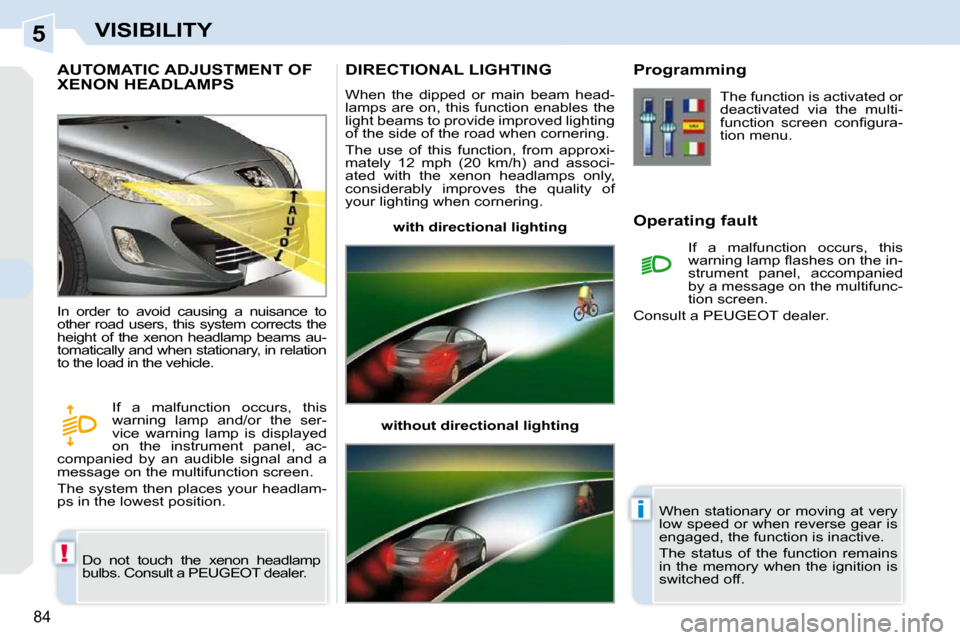

AUTOMATIC ADJUSTMENT OF XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs. Consult a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects the
height of the xenon headlamp beams au-
tomatically and when stationary, in relation
to the load in the vehicle.
If a malfunction occurs, this
warning lamp and/or the ser-
vice warning lamp is displayed
on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your headlam-
ps in the lowest position.
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
m a t e l y 1 2 m p h ( 2 0 k m / h ) a n d a s s o c i -
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
Operating fault
The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e i n -
strument panel, accompanied
by a message on the multifunc-
tion screen.
Consult a PEUGEOT dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Page 93 of 280
5
!
i
84
VISIBILITY
AUTOMATIC ADJUSTMENT OF XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs. Consult a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects the
height of the xenon headlamp beams au-
tomatically and when stationary, in relation
to the load in the vehicle.
If a malfunction occurs, this
warning lamp and/or the ser-
vice warning lamp is displayed
on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your headlam-
ps in the lowest position.
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
m a t e l y 1 2 m p h ( 2 0 k m / h ) a n d a s s o c i -
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
Operating fault
The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e i n -
strument panel, accompanied
by a message on the multifunc-
tion screen.
Consult a PEUGEOT dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Page 94 of 280
5
85
VISIBILITY

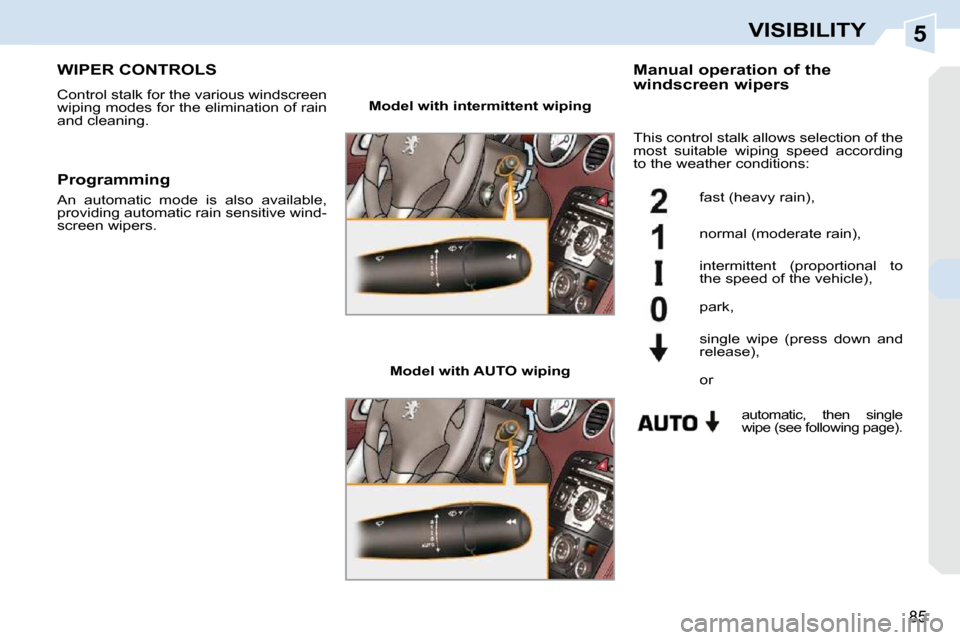

WIPER CONTROLS
Control stalk for the various windscreen
wiping modes for the elimination of rain
and cleaning. Manual operation of the
windscreen wipers
Model with intermittent wiping
Model with AUTO wiping f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to
t h e s p e e d o f t h e v e h i c l e ) ,
automatic, then single
w i p e ( s e e f o l l o w i n g p a g e ) .
park,
single wipe (press down and
r e l e a s e ) ,
Programming
An automatic mode is also available,
providing automatic rain sensitive wind-
screen wipers.
This control stalk allows selection of the
most suitable wiping speed according
to the weather conditions:
or
Page 95 of 280
5
!
i
86
VISIBILITY
Windscreen and headlamp
wash
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp washers only operate
when the dipped beam headlamps
are on .
Screenwash/headlamp wash low
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/or
the service warning lamp is displayed on
the instrument panel, accompanied by an
audible signal and a message on the multi-
function screen.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n w a s h /
headlamp wash reservoir.
The warning lamp is displayed when the ig-
nition is switched on, or every time the stalk
i s o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind the
r e a r v i e w m i r r o r ) , a d a p t i n g t h e i r s p e e d t o
the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO" position.
It is accompanied by a message on the
multifunction screen.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers. The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0" .
It is accompanied by a message on the
multifunction screen. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
Page 96 of 280
5
i
i
87
VISIBILITY
Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching off of
the ignition, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s o f wear. COURTESY LAMPS
1. Front courtesy lamp
2. Map reading lamp
3. Rear courtesy lamp
Front and rear courtesy lamps In this position, the courtesy
lamp comes on gradually: In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.
Map reading lamps
With the ignition on, press the cor-
responding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Page 97 of 280
5
!
i
86
VISIBILITY
Windscreen and headlamp
wash
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp washers only operate
when the dipped beam headlamps
are on .
Screenwash/headlamp wash low
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/or
the service warning lamp is displayed on
the instrument panel, accompanied by an
audible signal and a message on the multi-
function screen.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n w a s h /
headlamp wash reservoir.
The warning lamp is displayed when the ig-
nition is switched on, or every time the stalk
i s o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .

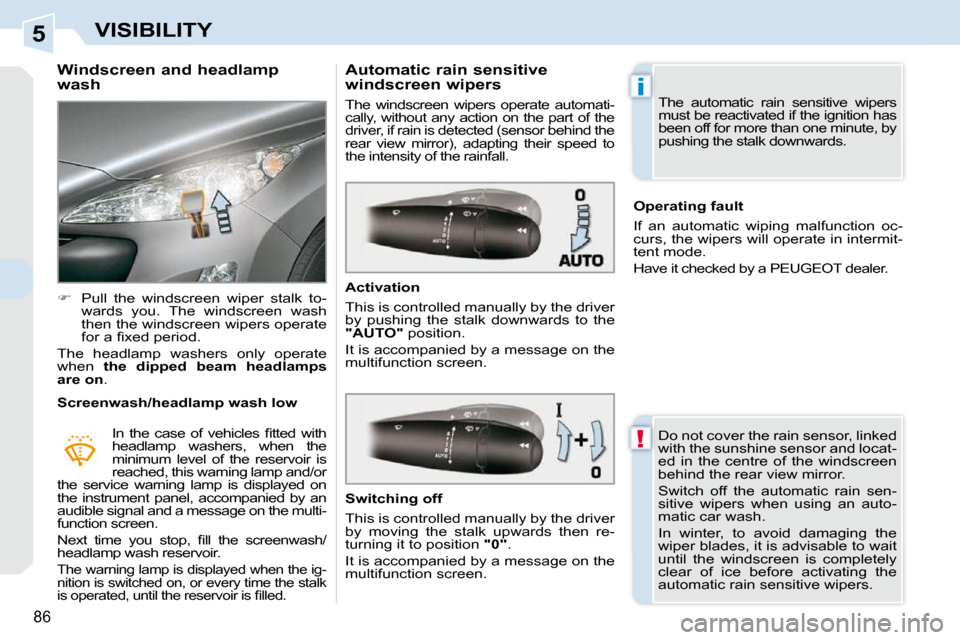

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind the
r e a r v i e w m i r r o r ) , a d a p t i n g t h e i r s p e e d t o
the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO" position.
It is accompanied by a message on the
multifunction screen.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers. The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0" .
It is accompanied by a message on the
multifunction screen. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
Page 98 of 280
5
i
i
87
VISIBILITY

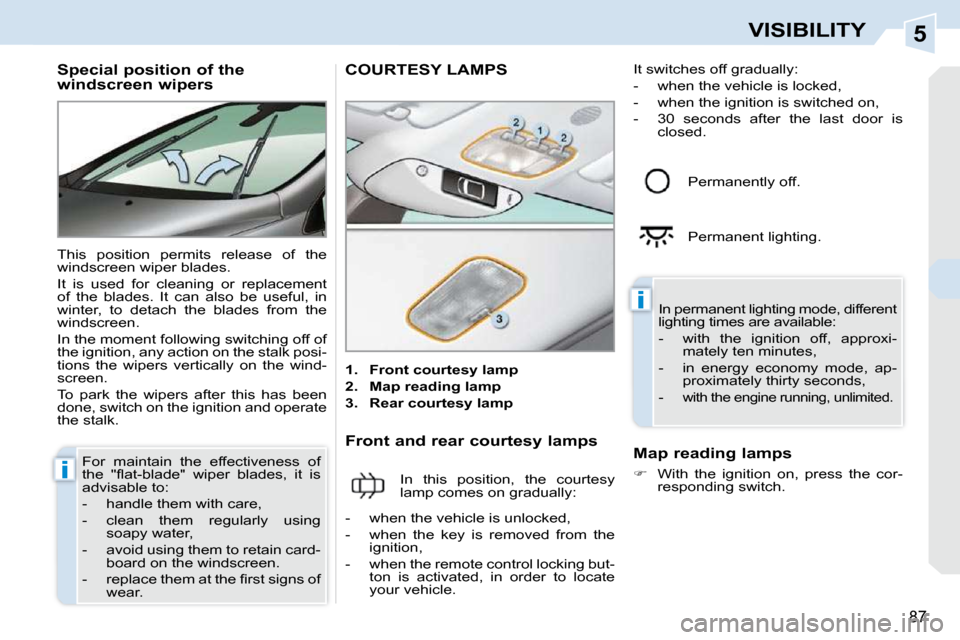

Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching off of
the ignition, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s o f wear. COURTESY LAMPS
1. Front courtesy lamp
2. Map reading lamp
3. Rear courtesy lamp
Front and rear courtesy lamps In this position, the courtesy
lamp comes on gradually: In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.
Map reading lamps
With the ignition on, press the cor-
responding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Page 99 of 280
5
i
i
88
VISIBILITY

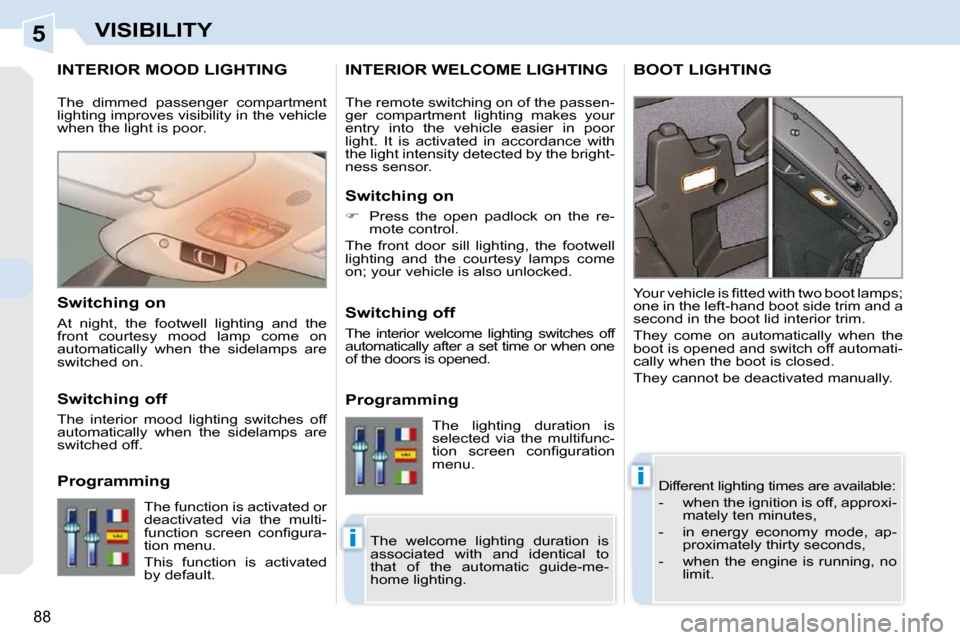

INTERIOR MOOD LIGHTING
Different lighting times are available:
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
Y o u r v e h i c l e i s fi t t e d w i t h t w o b o o t l a m p s ;
one in the left-hand boot side trim and a
second in the boot lid interior trim.
They come on automatically when the
boot is opened and switch off automati-
cally when the boot is closed.
They cannot be deactivated manually.
INTERIOR WELCOME LIGHTING BOOT LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on
Press the open padlock on the re-
mote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switches off
automatically after a set time or when one
of the doors is opened.
Programming
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the footwell lighting and the
front courtesy mood lamp come on
automatically when the sidelamps are
switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
Programming
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
This function is activated
by default. The lighting duration is
selected via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
Page 100 of 280
6
89
FITTINGS

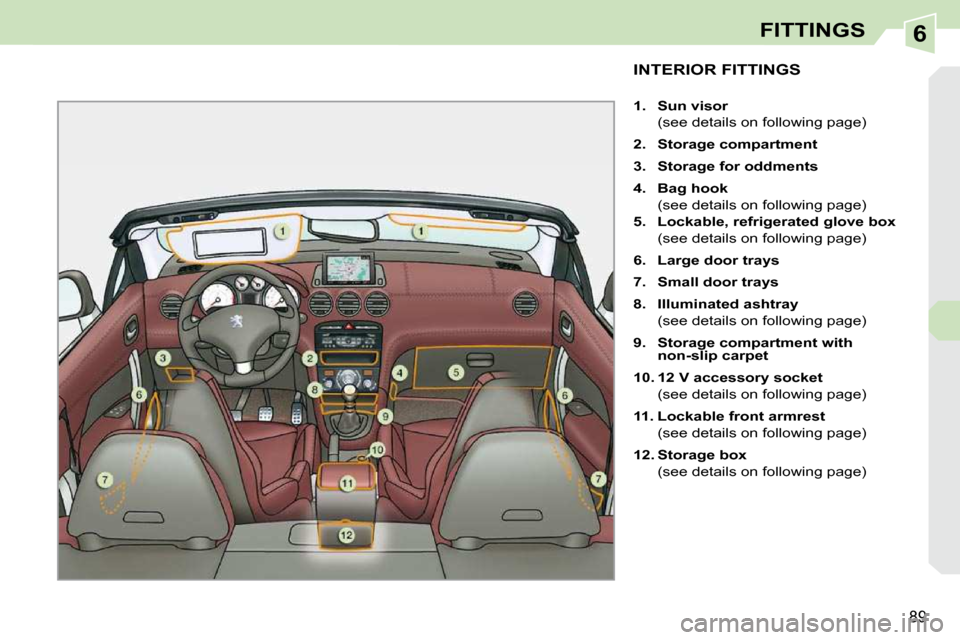

INTERIOR FITTINGS
1. Sun visor
(see details on following page)
2. Storage compartment
3. Storage
for oddments
4. Bag hook
(see details on following page)
5. Lockable, refrigerated glove box
(see details on following page)
6. Large door trays
7. Small door trays
8. Illuminated ashtray
(see details on following page)
9. Storage compartment with
non-slip carpet
10. 12 V
accessory
socket
(see details on following page)
11. Lockable front armrest
(see details on following page)
12. Storage box
(see details on following page)
