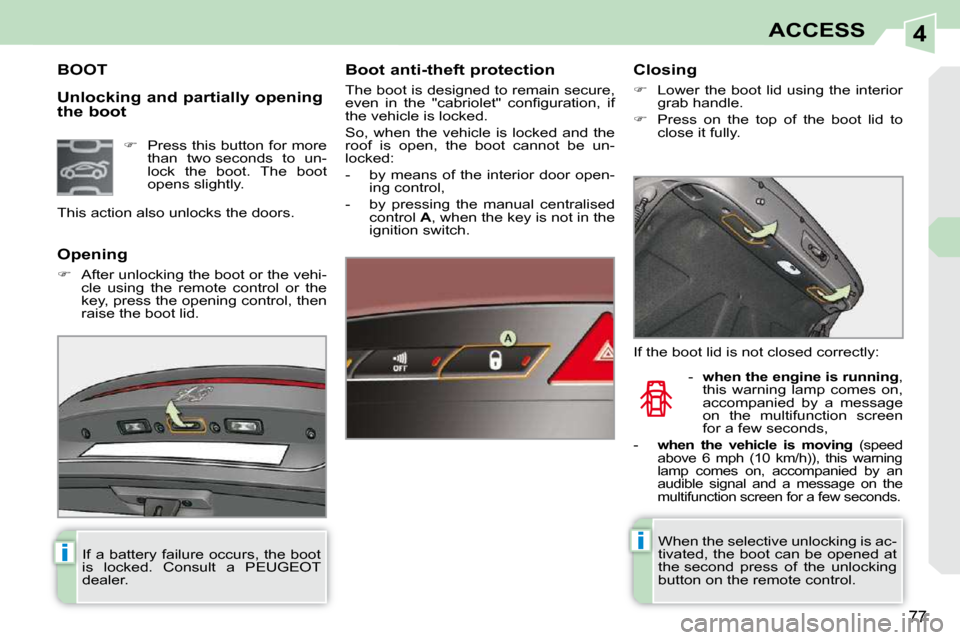

ACCESS
Unlocking and partially opening
the boot
BOOT Boot anti-theft protection
The boot is designed to remain secure,
e v e n i n t h e " c a b r i o l e t " c o n fi g u r a t i o n , i f
the vehicle is locked.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
- by means of the interior door open- ing control,
- by pressing the manual centralised control A , when the key is not in the
ignition switch.
Opening
After unlocking the boot or the vehi-
cle using the remote control or the
key, press the opening control, then
raise the boot lid.
When the selective unlocking is ac-
tivated, the boot can be opened at
the second press of the unlocking
button on the remote control.
Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action also unlocks the doors.
If a battery failure occurs, the boot
is locked. Consult a PEUGEOT
dealer. Closing
Lower the boot lid using the interior
grab handle.
Press on the top of the boot lid to
close it fully.
If the boot lid is not closed correctly: -
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
Page 82 of 280
4
i
78
ACCESS

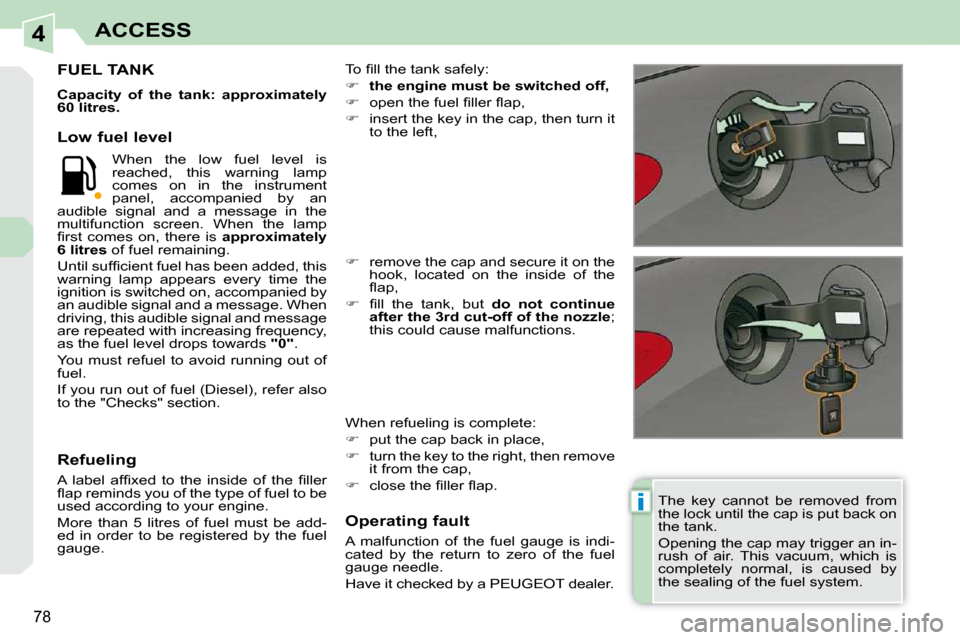

The key cannot be removed from
the lock until the cap is put back on
the tank.
Opening the cap may trigger an in-
rush of air. This vacuum, which is
completely normal, is caused by
the sealing of the fuel system.
FUEL TANK
Capacity of the tank: approximately
60 litres. T o fi l l t h e t a n k s a f e l y :
the engine must be switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
When refueling is complete:
put the cap back in place,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fi l l e r fl a p .
remove the cap and secure it on the
hook, located on the inside of the
fl a p ,
fi l l t h e t a n k , b u t do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Refueling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fi l l e r
fl a p r e m i n d s y o u o f t h e t y p e o f f u e l t o b e
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge. When the low fuel level is
reached, this warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a message in the
multifunction screen. When the lamp
fi r s t c o m e s o n , t h e r e i s approximately
6 litres of fuel remaining.
U n t i l s u f fi c i e n t f u e l h a s b e e n a d d e d , t h i s
warning lamp appears every time the
ignition is switched on, accompanied by
an audible signal and a message. When
driving, this audible signal and message
are repeated with increasing frequency,
as the fuel level drops towards "0" .
You must refuel to avoid running out of
fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
Operating fault
A malfunction of the fuel gauge is indi-
cated by the return to zero of the fuel
gauge needle.
Have it checked by a PEUGEOT dealer.
Page 83 of 280
4
79
ACCESS
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
Page 84 of 280
5
80
VISIBILITY

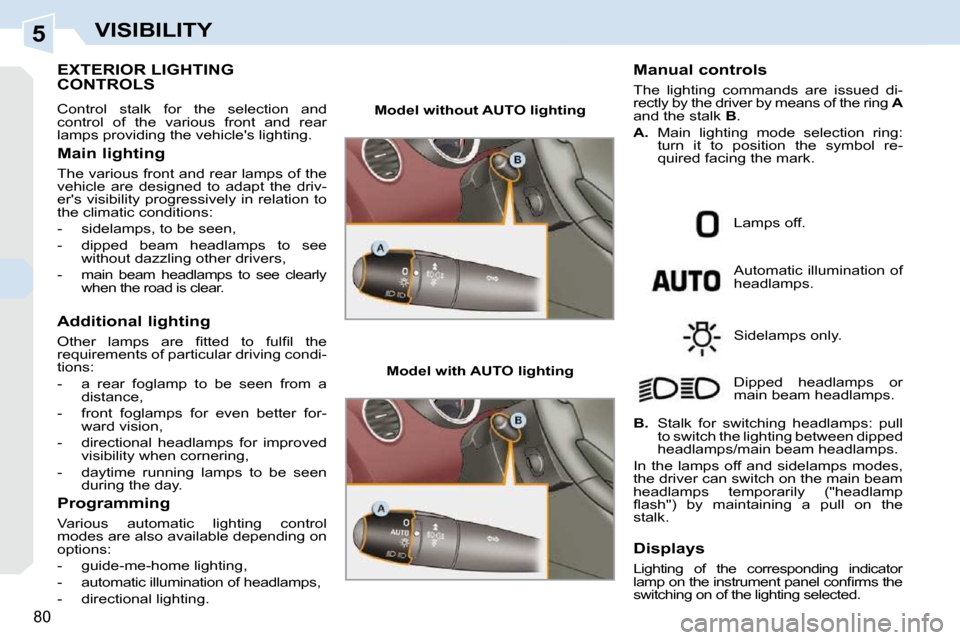

EXTERIOR LIGHTING CONTROLS
Control stalk for the selection and
control of the various front and rear
lamps providing the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e fi t t e d t o f u l fi l t h e
requirements of particular driving condi-
tions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better for- ward vision,
- directional headlamps for improved visibility when cornering,
- daytime running lamps to be seen during the day.
Programming
Various automatic lighting control
modes are also available depending on
options:
- guide-me-home lighting,
- automatic illumination of headlamps,
- directional lighting. Model without AUTO lighting
Model with AUTO lighting Automatic illumination of
headlamps.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the ring
A
and the stalk B .
A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Lamps off.
Sidelamps only.
B.
Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e
stalk. Dipped headlamps or
main beam headlamps.
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s t h e
switching on of the lighting selected.
Page 85 of 280
5
!i
i
81
VISIBILITY

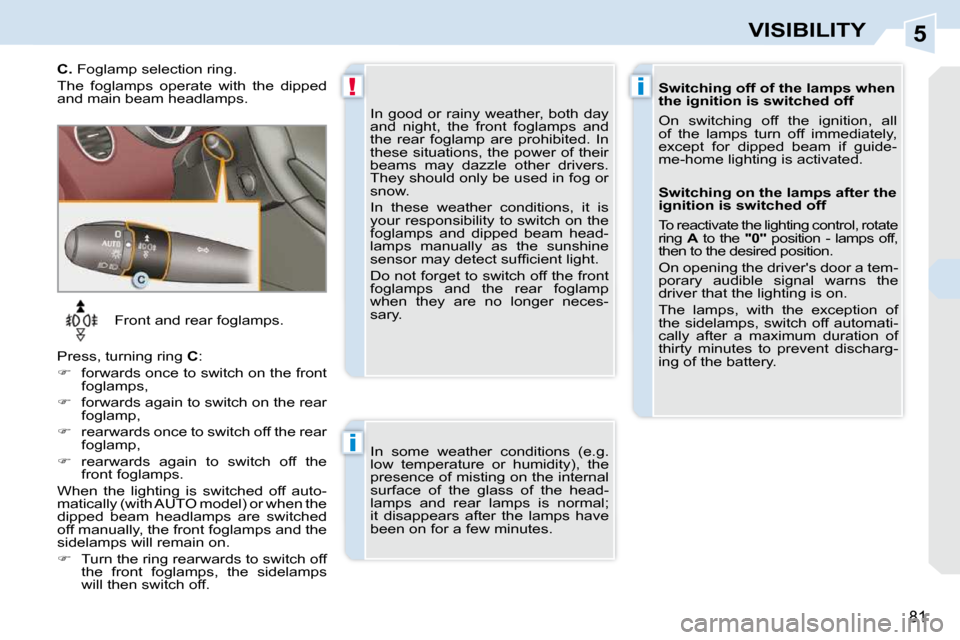

Front and rear foglamps.
Press, turning ring C :
forwards once to switch on the front
foglamps,
forwards again to switch on the rear
foglamp,
rearwards once to switch off the rear
foglamp,
rearwards again to switch off the
front foglamps.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n t h e
dipped beam headlamps are switched
off manually, the front foglamps and the
sidelamps will remain on.
Turn the ring rearwards to switch off
the front foglamps, the sidelamps
will then switch off. In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the sunshine
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
foglamps and the rear foglamp
when they are no longer neces-
sary.
Switching off of the lamps when
the ignition is switched off
On switching off the ignition, all
of the lamps turn off immediately,
except for dipped beam if guide-
me-home lighting is activated.
C. Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
In some weather conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) , t h e
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes. Switching on the lamps after the
ignition is switched off
To reactivate the lighting control, rotate
ring
A to the "0" position - lamps off,
then to the desired position.
On opening the driver's door a tem-
porary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after a maximum duration of
thirty minutes to prevent discharg-
ing of the battery.
Page 86 of 280
5
82
VISIBILITY
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn the ring to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen.
Deactivation
Turn the ring to another position.
Deactivation is accompanied by
a message on the multifunction
screen.
Daytime running lamps
Daytime lighting, compulsory in certain
countries, which comes on automati-
cally when the engine is started making
the vehicle more visible to other users.
This function is assured:
- in countries where it is imposed by
regulations,
by illumination of the dipped beam headlamps with the sidelamps and
number plate lamps.
- for other countries where it is provid- ed, by the use of dedicated lamps.
The instruments and controls (instru-
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
illuminated, except in night mode with
manual or automatic illumination of
headlamps. This function can be ac-
tivated or deactivated via
t h e v e h i c l e c o n fi g u r a t i o n
menu.
Page 87 of 280
5
!
AUTO
ii
83
VISIBILITY
In fog or snow, the sunshine sensor
m a y d e t e c t s u f fi c i e n t l i g h t . T h e r e f o r e ,
the lighting will not come on auto-
matically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Operating fault In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.

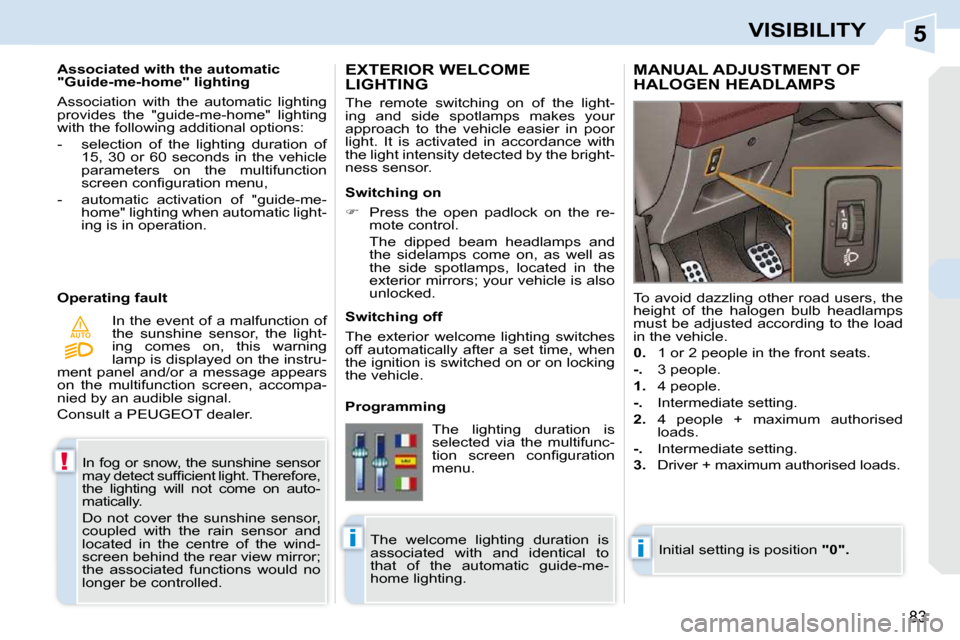

EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing and side spotlamps makes your
approach to the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on
Press the open padlock on the re-
mote control.
The dipped beam headlamps and the sidelamps come on, as well as
the side spotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
Programming The lighting duration is
selected via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
4 people.
-.
Intermediate setting.
2.
4 people + maximum authorised
loads.
-.
Intermediate setting.
3.
Driver + maximum authorised loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 88 of 280
5
82
VISIBILITY

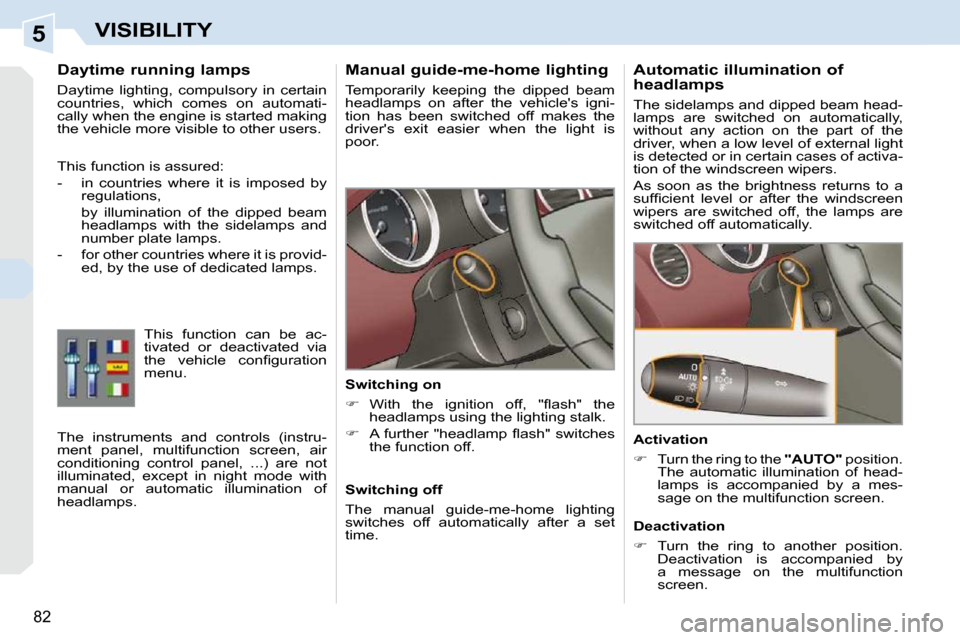

Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn the ring to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen.
Deactivation
Turn the ring to another position.
Deactivation is accompanied by
a message on the multifunction
screen.
Daytime running lamps
Daytime lighting, compulsory in certain
countries, which comes on automati-
cally when the engine is started making
the vehicle more visible to other users.
This function is assured:
- in countries where it is imposed by
regulations,
by illumination of the dipped beam headlamps with the sidelamps and
number plate lamps.
- for other countries where it is provid- ed, by the use of dedicated lamps.
The instruments and controls (instru-
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
illuminated, except in night mode with
manual or automatic illumination of
headlamps. This function can be ac-
tivated or deactivated via
t h e v e h i c l e c o n fi g u r a t i o n
menu.
Page 89 of 280
5
!
AUTO
ii
83
VISIBILITY
In fog or snow, the sunshine sensor
m a y d e t e c t s u f fi c i e n t l i g h t . T h e r e f o r e ,
the lighting will not come on auto-
matically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Operating fault In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing and side spotlamps makes your
approach to the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on
Press the open padlock on the re-
mote control.
The dipped beam headlamps and the sidelamps come on, as well as
the side spotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
Programming The lighting duration is
selected via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
4 people.
-.
Intermediate setting.
2.
4 people + maximum authorised
loads.
-.
Intermediate setting.
3.
Driver + maximum authorised loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 90 of 280
5
!
AUTO
ii
83
VISIBILITY
In fog or snow, the sunshine sensor
m a y d e t e c t s u f fi c i e n t l i g h t . T h e r e f o r e ,
the lighting will not come on auto-
matically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Operating fault In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing and side spotlamps makes your
approach to the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on
Press the open padlock on the re-
mote control.
The dipped beam headlamps and the sidelamps come on, as well as
the side spotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
Programming The lighting duration is
selected via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
4 people.
-.
Intermediate setting.
2.
4 people + maximum authorised
loads.
-.
Intermediate setting.
3.
Driver + maximum authorised loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
