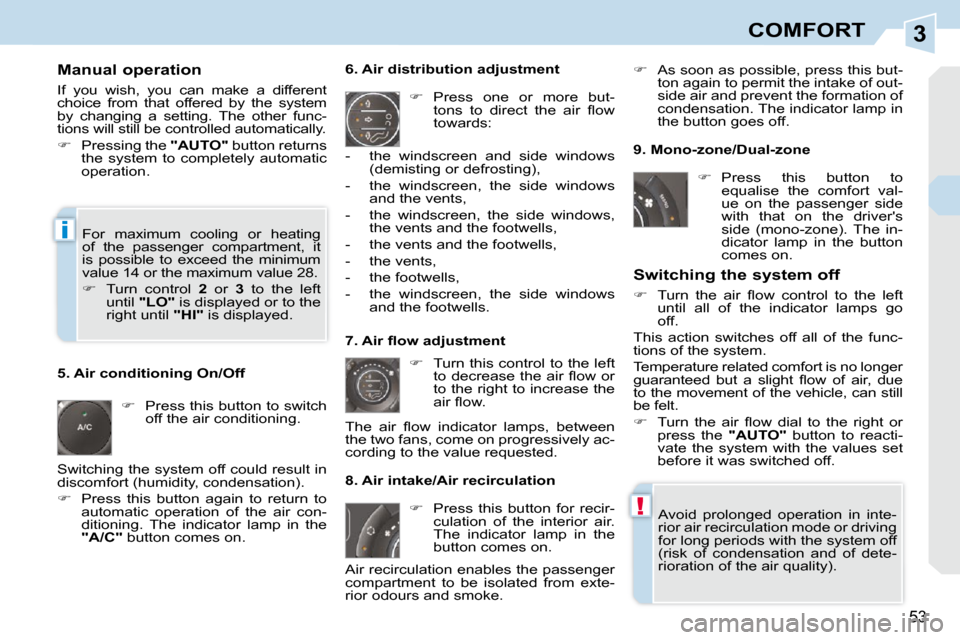

Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automatically.
Pressing the "AUTO"
button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press one or more but-
t o n s t o d i r e c t t h e a i r fl o w
towards:
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
8. Air intake/Air recirculation S w i t c h i n g t h e s y s t e m o f f
T u r n t h e a i r fl o w c o n t r o l t o t h e l e f t
until all of the indicator lamps go
off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no longer
g u a r a n t e e d b u t a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can still
be felt.
T u r n t h e a i r fl o w d i a l t o t h e r i g h t o r
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
Press this button for recir-
culation of the interior air.
The indicator lamp in the
button comes on.
5 . A i r c o n d i t i o n i n g O n / O f f
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and of dete-
rioration of the air quality).
- the windscreen and side windows
(demisting or defrosting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l a m p s , b e t w e e n
the two fans, come on progressively ac-
cording to the value requested.
As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent the formation of
condensation. The indicator lamp in
the button goes off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.
Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9. Mono-zone/Dual-zone
Press this button to
equalise the comfort val-
ue on the passenger side
with that on the driver's
side (mono-zone). The in-
dicator lamp in the button
comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp in the
"A/C" button comes on.
Page 52 of 280
3
54
COMFORT
W i n d s t o p f o l d e d

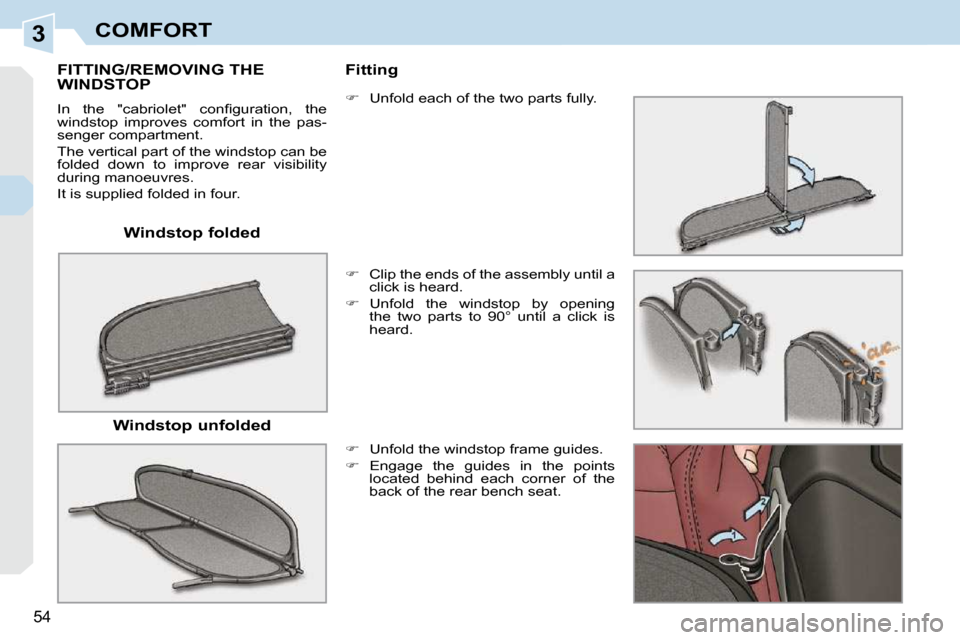

FITTING/REMOVING THE WINDSTOP
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h e
windstop improves comfort in the pas-
senger compartment.
The vertical part of the windstop can be
folded down to improve rear visibility
during manoeuvres.
It is supplied folded in four. W i n d s t o p u n f o l d e d F i t t i n g
Clip the ends of the assembly until a
click is heard.
Unfold the windstop by opening
the two parts to 90° until a click is
heard.
Unfold the windstop frame guides.
Engage the guides in the points
located behind each corner of the
back of the rear bench seat.
Unfold each of the two parts fully.
Page 53 of 280
3
i
55
COMFORT

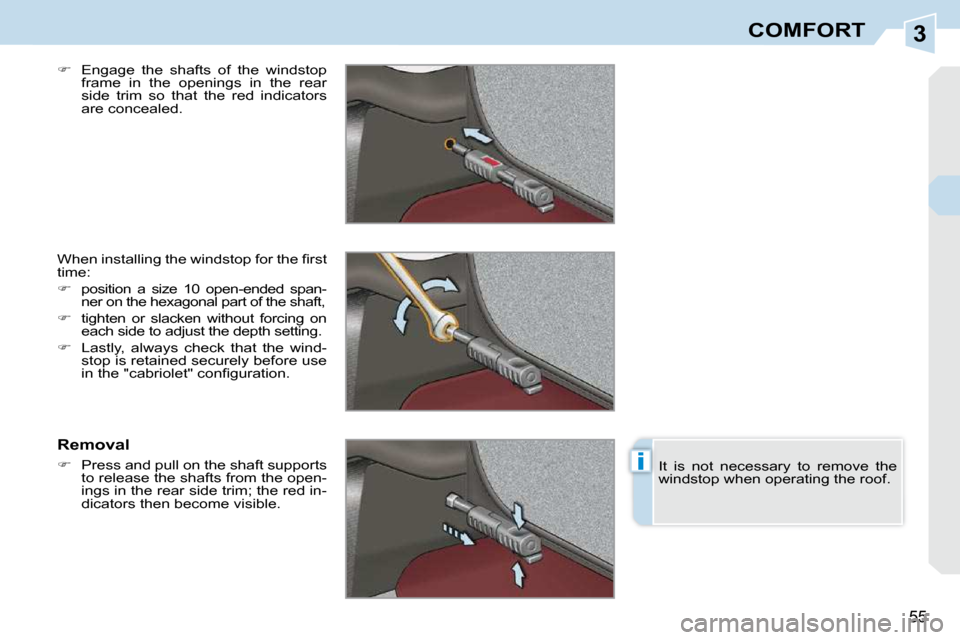

Engage the shafts of the windstop
frame in the openings in the rear
side trim so that the red indicators
are concealed.
W h e n i n s t a l l i n g t h e w i n d s t o p f o r t h e fi r s t
time:
position a size 10 open-ended span-
ner on the hexagonal part of the shaft,
tighten or slacken without forcing on
each side to adjust the depth setting.
Lastly, always check that the wind-
stop is retained securely before use
i n t h e " c a b r i o l e t " c o n fi g u r a t i o n .
Removal
Press and pull on the shaft supports
to release the shafts from the open-
ings in the rear side trim; the red in-
dicators then become visible. It is not necessary to remove the
windstop when operating the roof.
Page 54 of 280
3COMFORT
Pull the windstop forwards to re-
lease the guides from the points,
located behind each corner of the
back of the rear bench seat.

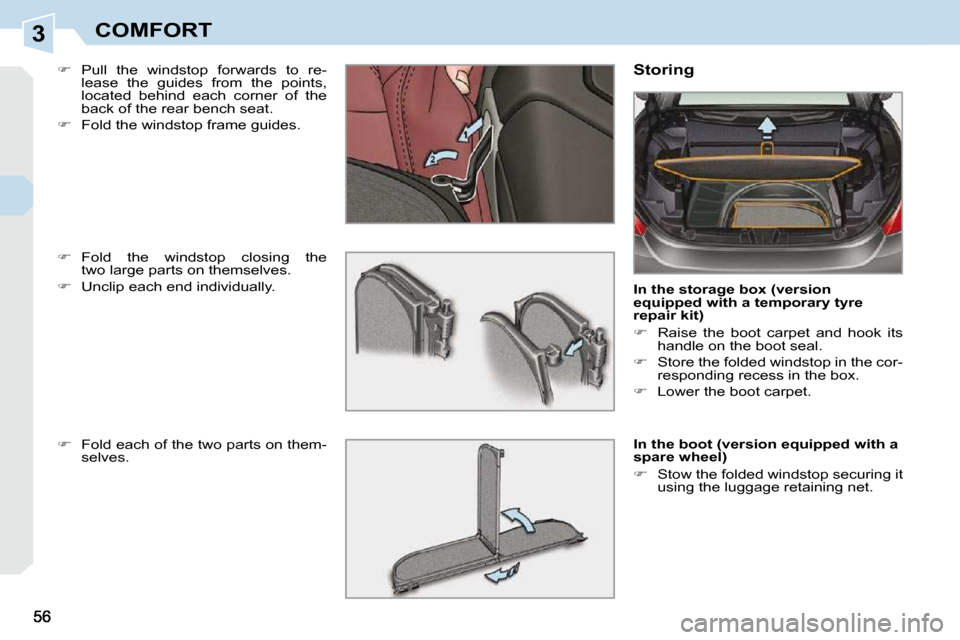

Fold the windstop frame guides. S t o r i n g
I n t h e s t o r a g e b o x ( v e r s i o n
e q u i p p e d w i t h a t e m p o r a r y t y r e
repair kit)
R a i s e t h e b o o t c a r p e t a n d h o o k i t s
handle on the boot seal.
Store the folded windstop in the cor-
responding recess in the box.
Lower the boot carpet.
I n t h e b o o t ( v e r s i o n e q u i p p e d w i t h a
s p a r e w h e e l )
Stow the folded windstop securing it
using the luggage retaining net.
Fold the windstop closing the
two large parts on themselves.
Unclip each end individually.
Fold each of the two parts on them-
selves.
Page 55 of 280
3
57
COMFORT

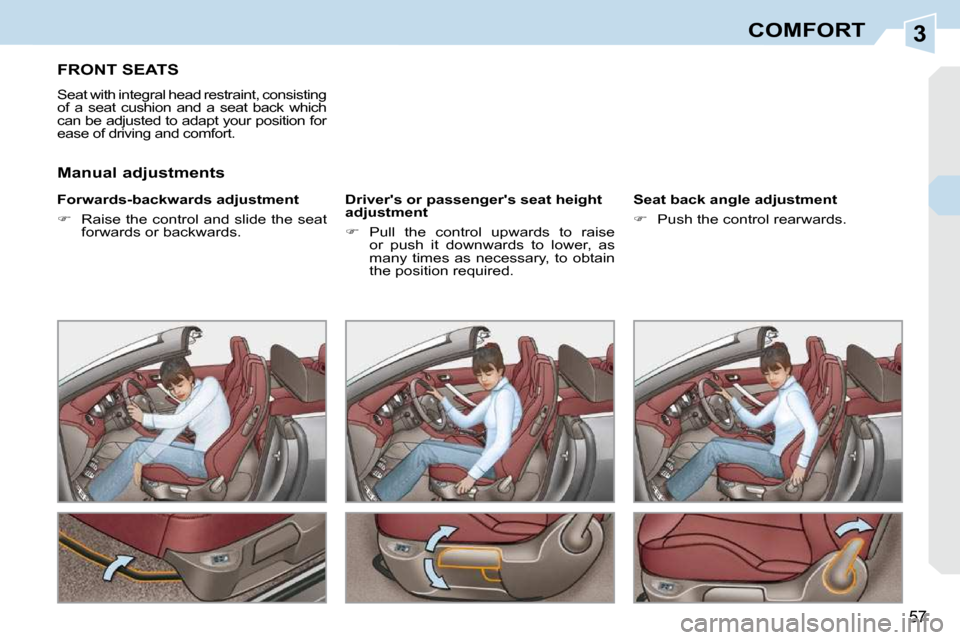

FRONT SEATS
Seat with integral head restraint, consisting
of a seat cushion and a seat back which
can be adjusted to adapt your position for
ease of driving and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
R a i s e t h e c o n t r o l a n d s l i d e t h e s e a t
forwards or backwards. D r i v e r ' s o r p a s s e n g e r ' s s e a t h e i g h t
a d j u s t m e n t
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. S e a t b a c k a n g l e a d j u s t m e n t
Push the control rearwards.
M a n u a l a d j u s t m e n t s
Page 56 of 280
3
i
58
COMFORT

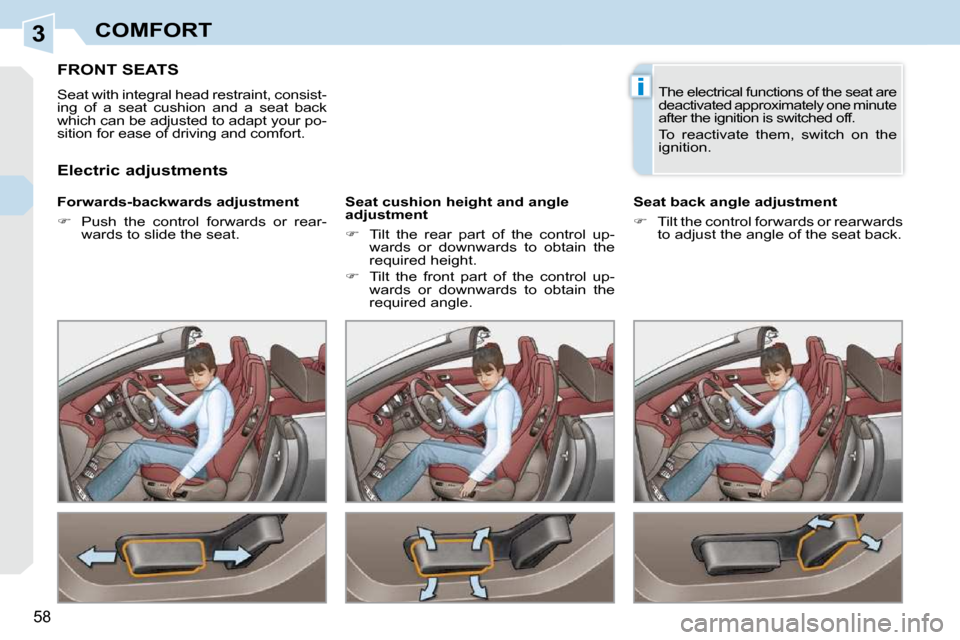

FRONT SEATS
Seat with integral head restraint, consist-
ing of a seat cushion and a seat back
which can be adjusted to adapt your po-
sition for ease of driving and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Push the control forwards or rear-
wards to slide the seat. S e a t c u s h i o n h e i g h t a n d a n g l e
a d j u s t m e n t
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
Tilt the front part of the control up-
wards or downwards to obtain the
required angle. S e a t b a c k a n g l e a d j u s t m e n t
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
E l e c t r i c a d j u s t m e n t s The electrical functions of the seat are
deactivated approximately one minute
after the ignition is switched off.
To reactivate them, switch on the
ignition.
Page 57 of 280
3
!
i
59
COMFORT

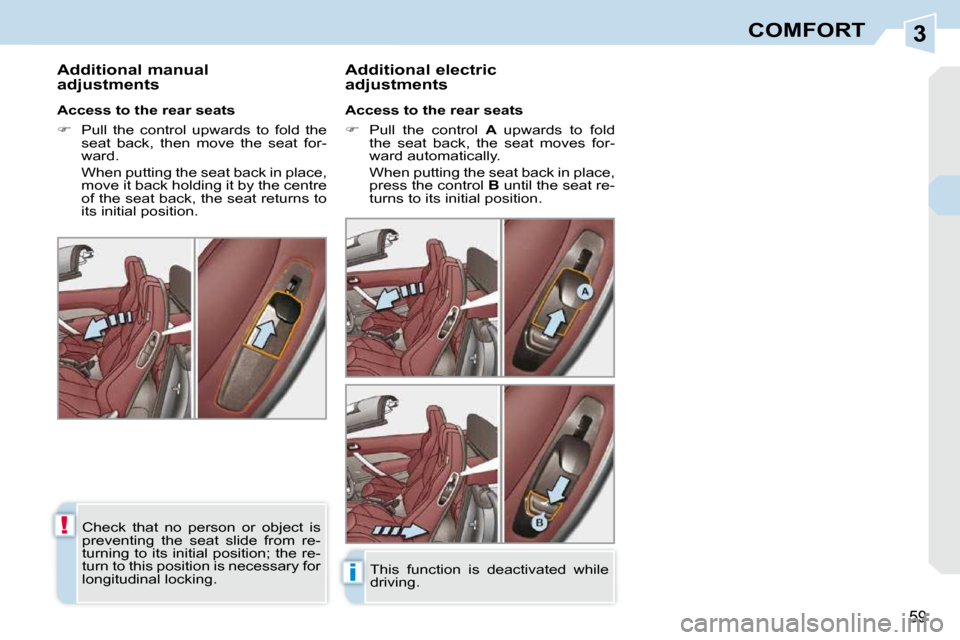

Additional manual
a d j u s t m e n t s Additional electric
a d j u s t m e n t s
A c c e s s t o t h e r e a r s e a t s
Pull the control A upwards to fold
the seat back, the seat moves for-
ward automatically.
When putting the seat back in place, press the control B until the seat re-
turns to its initial position.
A c c e s s t o t h e r e a r s e a t s
Pull the control upwards to fold the
seat back, then move the seat for-
ward.
When putting the seat back in place, move it back holding it by the centre
of the seat back, the seat returns to
its initial position.
Check that no person or object is
preventing the seat slide from re-
turning to its initial position; the re-
turn to this position is necessary for
longitudinal locking. This function is deactivated while
driving.
Page 58 of 280
3
i!
60
COMFORT

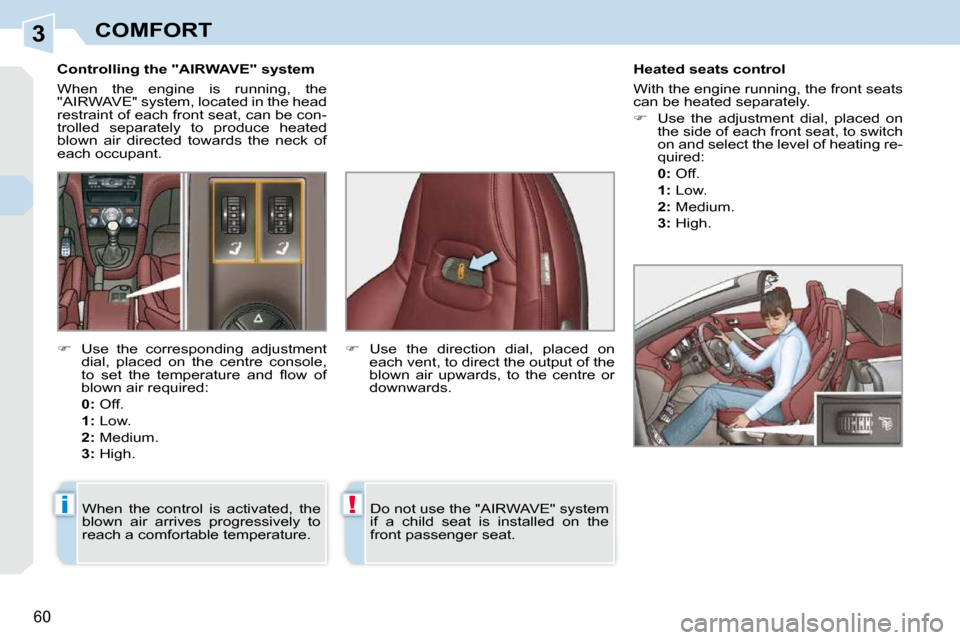

C o n t r o l l i n g t h e " A I R W A V E " s y s t e m
When the engine is running, the
" A I R W A V E " s y s t e m , l o c a t e d i n t h e h e a d
restraint of each front seat, can be con-
trolled separately to produce heated
blown air directed towards the neck of
each occupant. Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0: Off.
1: Low.
2: Medium.
3: High.
Use the corresponding adjustment
dial, placed on the centre console,
t o s e t t h e t e m p e r a t u r e a n d fl o w o f
blown air required:
0: Off.
1: Low.
2: Medium.
3: High.
Use the direction dial, placed on
each vent, to direct the output of the
blown air upwards, to the centre or
downwards.
When the control is activated, the
blown air arrives progressively to
reach a comfortable temperature. D o n o t u s e t h e " A I R W A V E " s y s t e m
if a child seat is installed on the
front passenger seat.
Page 59 of 280
3
!
!
61
COMFORT

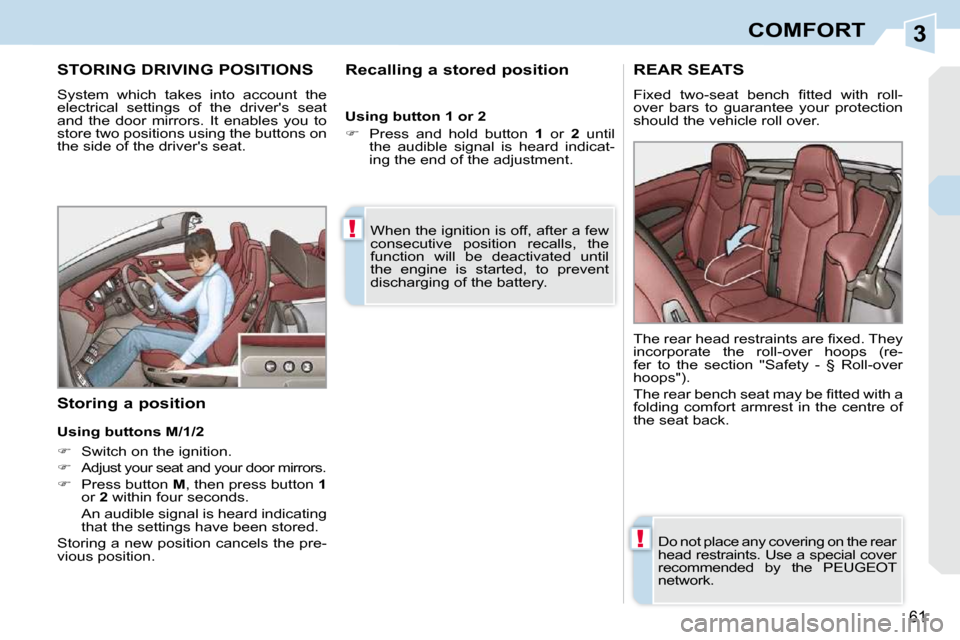

STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat. R e c a l l i n g a s t o r e d p o s i t i o n
S t o r i n g a p o s i t i o n When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g b u t t o n s M / 1 / 2
Switch on the ignition.
Adjust your seat and your door mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the rear
head restraints. Use a special cover
recommended by the PEUGEOT
network.
T h e r e a r h e a d r e s t r a i n t s a r e fi x e d . T h e y
incorporate the roll-over hoops (re-
f e r t o t h e s e c t i o n " S a f e t y - § R o l l - o v e r
h o o p s " ) .
T h e r e a r b e n c h s e a t m a y b e fi t t e d w i t h a
folding comfort armrest in the centre of
the seat back.
U s i n g b u t t o n 1 o r 2
Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
Page 60 of 280
3
!
!
61
COMFORT
STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat. R e c a l l i n g a s t o r e d p o s i t i o n
S t o r i n g a p o s i t i o n When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g b u t t o n s M / 1 / 2
Switch on the ignition.
Adjust your seat and your door mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the rear
head restraints. Use a special cover
recommended by the PEUGEOT
network.
T h e r e a r h e a d r e s t r a i n t s a r e fi x e d . T h e y
incorporate the roll-over hoops (re-
f e r t o t h e s e c t i o n " S a f e t y - § R o l l - o v e r
h o o p s " ) .
T h e r e a r b e n c h s e a t m a y b e fi t t e d w i t h a
folding comfort armrest in the centre of
the seat back.
U s i n g b u t t o n 1 o r 2
Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
