Peugeot 308 CC Dag 2010.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 308 CC Dag, Model: Peugeot 308 CC Dag 2010.5Pages: 280, PDF Size: 19.14 MB
Page 181 of 280
11
165

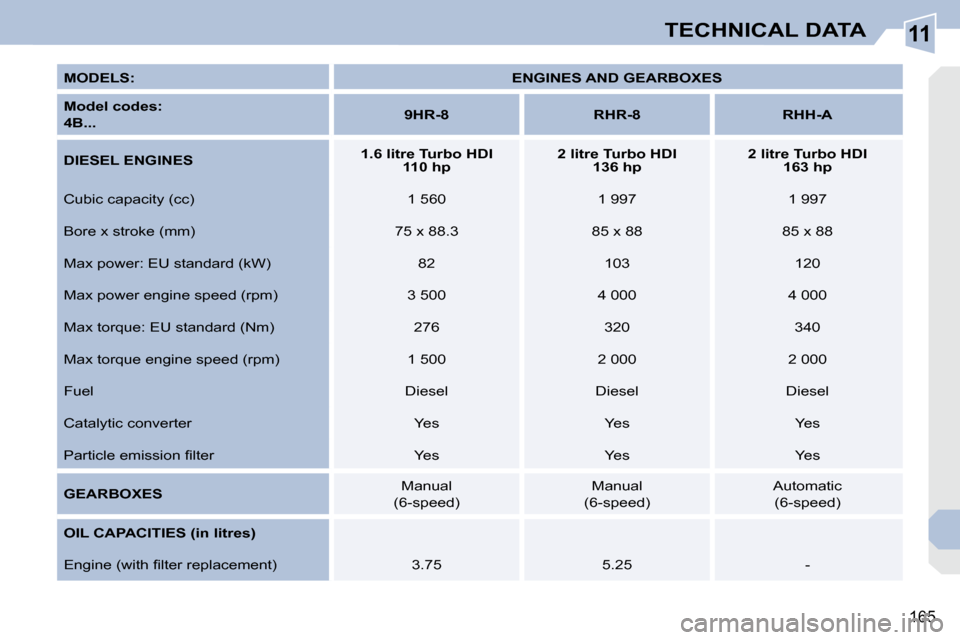

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4B...
9HR-8 RHR-8 RHH-A
DIESEL ENGINES
1.6 litre Turbo HDI
110 hp
2 litre Turbo HDI
136 hp
2 litre Turbo HDI
163 hp
Cubic capacity (cc) 1 560 1 997 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88 85 x 88
Max power: EU standard (kW) 82 103 120
Max power engine speed (rpm) 3 500 4 000 4 000
Max torque: EU standard (Nm) 276 320 340
Max torque engine speed (rpm) 1 500 2 000 2 000
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
P a r t i c l e e m i s s i o n fi l t e r Yes Yes Yes
GEARBOXES Manual
(6-speed) Manual
(6-speed) Automatic
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 5.25 -
Page 182 of 280
11
163
TECHNICAL DATA

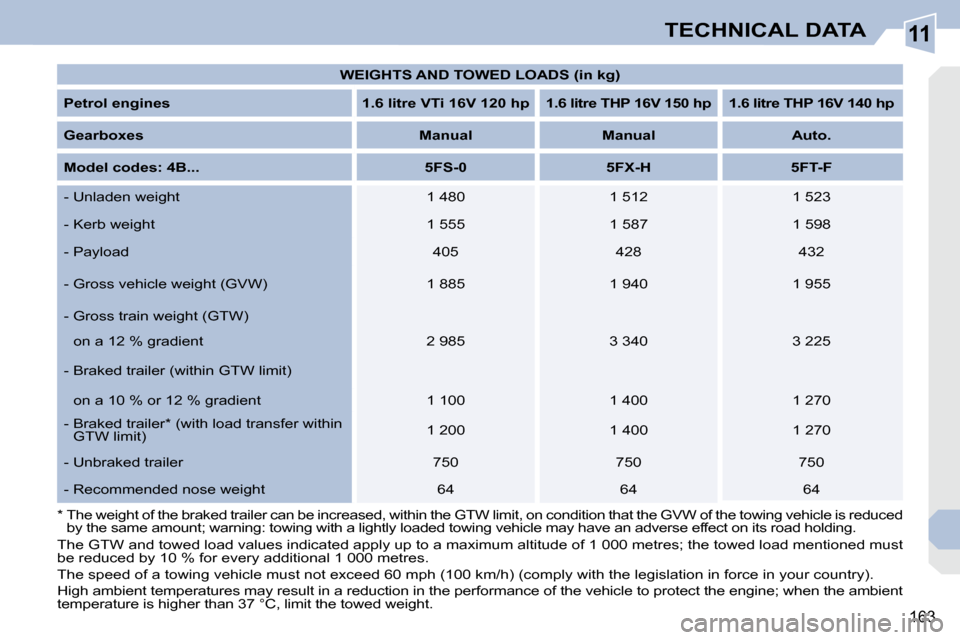

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines 1.6 litre VTi 16V 120 hp 1.6 litre THP 16V 150 hp 1.6 litre THP 16V 140 hp
Gearboxes
Manual Manual Auto.
Model codes: 4B... 5FS-0 5FX-H 5FT-F
- Unladen weight 1 480 1 512 1 523
- Kerb weight 1 555 1 587 1 598
- Payload 405 428 432
- Gross vehicle weight (GVW) 1 885 1 940 1 955
- Gross train weight (GTW)
on a 12 % gradient 2 985 3 340 3 225
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 400 1 270
- Braked trailer * (with load transfer within GTW limit) 1 200 1 400 1 270
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reductio n in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed w eight.
* The weight of the braked trailer can be incr
eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 183 of 280
11
164
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GV W of the towing vehicle is reduced by
the same amount; warning: towing with a lightly loa ded towing vehicle may have an adverse effect on it s road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reductio n in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed w eight.

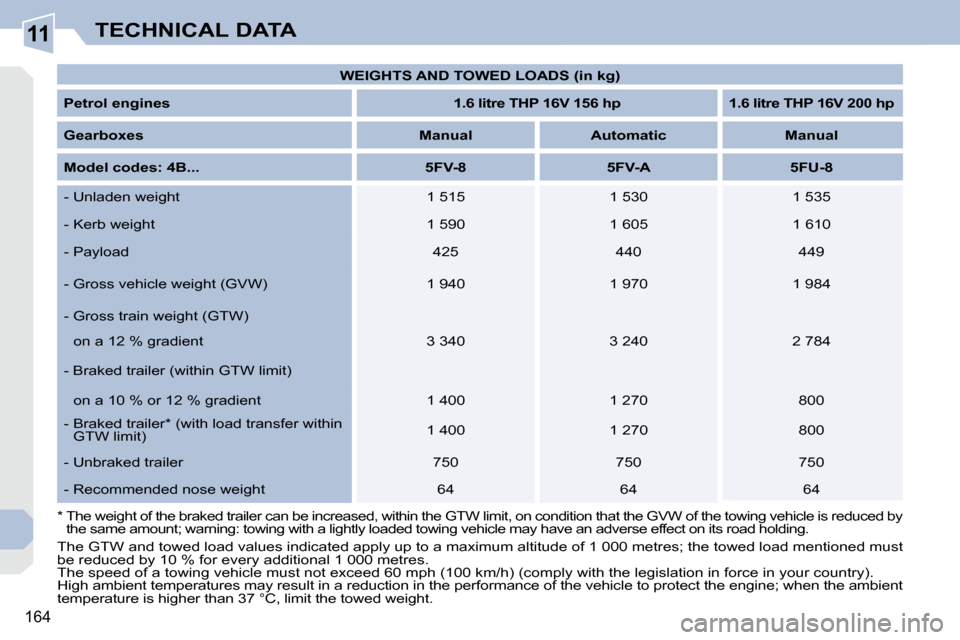

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP 16V 156 hp 1.6 litre THP 16V 200 hp
Gearboxes
Manual Automatic Manual
Model codes: 4B... 5FV-8 5FV-A 5FU-8
- Unladen weight 1 515 1 530 1 535
- Kerb weight 1 590 1 605 1 610
- Payload 425 440 449
- Gross vehicle weight (GVW) 1 940 1 970 1 984
- Gross train weight (GTW)
on a 12 % gradient 3 340 3 240 2 784
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 270 800
- Braked trailer * (with load transfer within GTW limit) 1 400 1 270 800
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
Page 184 of 280
11
166
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 110 hp
2 litre Turbo HDI 136 hp 2 litre Turbo HDI 163 hp
Gearboxes
Manual Manual Auto.
Model codes: 4B... 9HR-8 RHR-8 RHH-A
- Unladen weight 1 525 1 599 1 625
- Kerb weight 1 600 1 674 1 700
- Payload 400 421 425
- Gross vehicle weight (GVW) 1 925 2 020 2 050
- Gross train weight (GTW)
on a 12 % gradient 3 025 3 420 3 550
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 400 1 500
- Braked trailer * (with load transfer within GTW limit) 1 200 1 400 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reductio n in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed w eight.
Page 185 of 280
11
167
TECHNICAL DATA

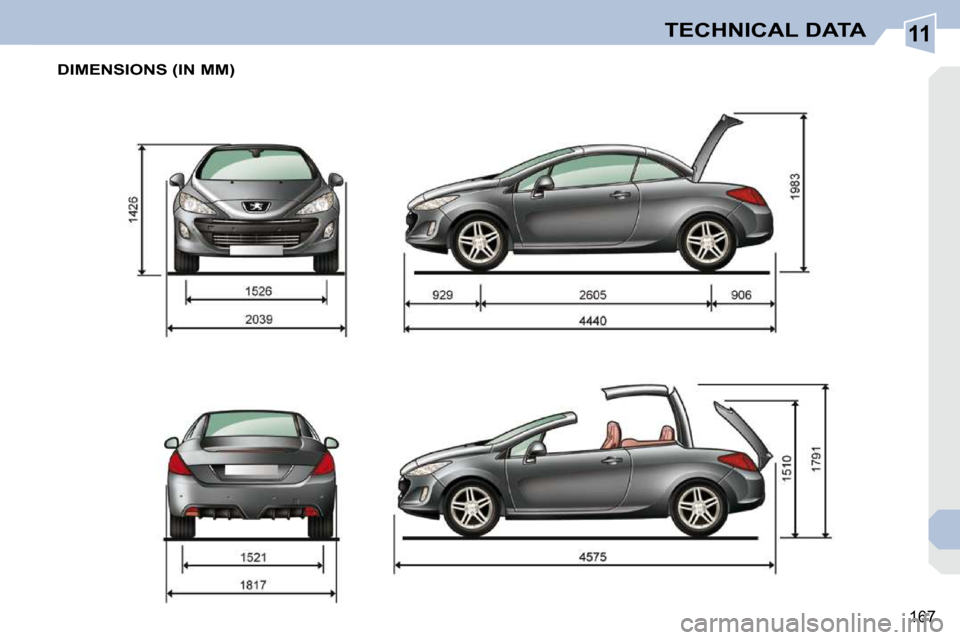

DIMENSIONS (IN MM)
Page 186 of 280
11
!
i
168
TECHNICAL DATA

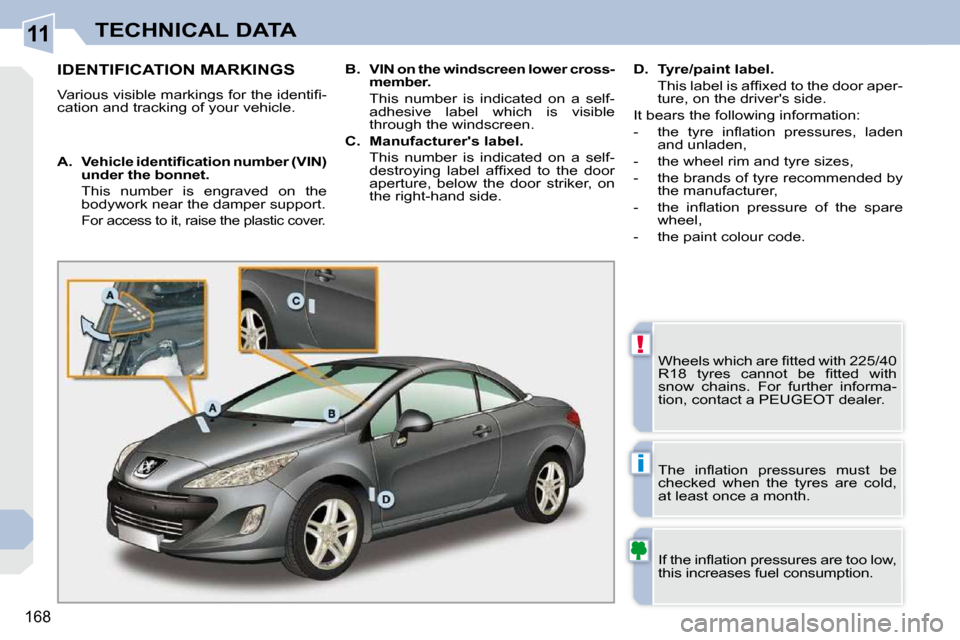

IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r t h e i d e n t i fi -
cation and tracking of your vehicle. W h e e l s w h i c h a r e fi t t e d w i t h 2 2 5 / 4 0
R 1 8 t y r e s c a n n o t b e fi t t e d w i t h
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
I f t h e i n fl a t i o n p r e s s u r e s a r e t o o l o w ,
this increases fuel consumption.
T h e i n fl a t i o n p r e s s u r e s m u s t b e
checked when the tyres are cold,
at least once a month.
A. V e h i c l e i d e n t i fi c a t i o n n u m b e r ( V I N )
under the bonnet.
This number is engraved on the bodywork near the damper support.
For access to it, raise the plastic cover.
B. VIN on the windscreen lower cross-
member.
This number is indicated on a self- adhesive label which is visible
through the windscreen.
C. Manufacturer's label.
This number is indicated on a self- d e s t r o y i n g l a b e l a f fi x e d t o t h e d o o r
aperture, below the door striker, on
the right-hand side.
D. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e d o o r a p e r - ture, on the driver's side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s , l a d e n and unladen,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour code.
Page 187 of 280
170
EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green indicator lamp and a v o i c e m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green indicator lamp goes off.
ASSISTANCE CALL
If you purchased your vehicle outside the PEUGEOT dealer netwo rk, w e i n v i t e y o u t o h a v e a d e a l e r c h e c k t h e c o n fi g u r a t i o n o f t h e s e s e r v i c e s a n d , i f d e s i r e d , m o d i fi e d t o s u i t y o u r w i s h e s . I n a m u l t i - l i n g u a l c o u n t r y , c o n fi g u r a t i o n i s p o s s i b l e i n t h e o f fi c i a l n a t i o n a l l a n g u a g e o f y o u r c h o i c e .
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
T h e c a n c e l l a t i o n i s c o n fi r m e d b y a v o i c e m e s s a g e .
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A v o i c e m e s s a g e c o n fi r m s t h a t t h e c a l l h a s b e e n m a d e * .
OPERATION OF THE SYSTEM T h e g r e e n i n d i c a t o r l a m p r e m a i n s o n ( w i t h o u t fl a s h i n g ) w h e n communication is established. It goes off at the end of commun ication.
This call is dealt with by the PEUGEOT Emergency team which recei ves locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is no t operational, or when the locating service has been expressly declined, t h e c a l l i s d e a l t w i t h d i r e c t l y b y t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) w i t h o u t t h e vehicle location.
If an impact is detected by the airbag ECU, and independently of the deployment of any airbags, an emergency call is made automatically.
* This service is subject to conditions and availability.
Consult a PEUGEOT dealer.
I f t h e o r a n g e i n d i c a t o r l a m p fl a s h e s : t h e r e i s a system malfunction.
If the orange indicator lamp is on c o n t i n u o u s l y : t h e b a c k u p b a t t e r y m u s t b e replaced.
In both cases, consult a PEUGEOT dealer.
Page 188 of 280
171
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO8
TUV
7
PQRS 9
WXYZ0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR
BOOK
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO8
TUV
7
PQRS 9
WXYZ0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR
BOOK
EMERGENCY OR ASSISTANCE CALL USING PEUGEOT
CONNECT MEDIA
EMERGENCY CALL
In an emergency, press the SOS button until an audible s i g n a l i s h e a r d a n d a " C o n fi r m a t i o n / C a n c e l l a t i o n " s c r e e n i s d i s p l a y e d ( i f v a l i d S I M c a r d i n s e r t e d ) .
A call is made to the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or when the locating service has been expressly declined, t h e c a l l i s s e n t t o t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) .
W a r n i n g - t h e e m e r g e n c y c a l l a n d t h e s e r v i c e s a r e o n l y a c t i v e if the internal telephone is used with a valid SIM card. Wi
th a Bluetooth telephone and without a SIM card, these services are not operational. Press this button for access to PEUGEOT services.
Customer call
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
The message "Deteriorated emergency call" associated with fl a s h i n g o f t h e o r a n g e i n d i c a t o r l a m p i n d i c a t e s a m a l f u n c t i o n . Consult a PEUGEOT dealer.
ASSISTANCE CALL
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a PEUGEOT dealer. If you have purchased your vehicle outside the PEUGEOT dealer network, we invite you to have a dealer check the c o n fi g u r a t i o n o f t h e s e s e r v i c e s a n d , i f d e s i r e d , m o d i fi e d t o s u i t y o u r wishes.
Page 189 of 280
173
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
The Peugeot Connect Media is protected in such a way that it will only operate in your vehicle. If it is to
be installed in another vehicle, contact a PEUGEOT dealer f o r c o n fi g u r a t i o n o f t h e s y s t e m .
Certain functions described in this handbook will b e c o m e a v a i l a b l e d u r i n g t h e c o u r s e o f t h e y e a r .
PEUGEOT CONNECT MEDIA
F o r s a f e t y r e a s o n s , i t i s i m p e r a t i v e t h a t t h e d r i v e r carries out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the Peugeot Connect Media switches off following the activation of the Energy E c o n o m y m o d e .
01 First steps
02 Voice commands and steering
mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Radio
07 Music media players
08 Using the telephone
09 Configuration
10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 174
176
179
184
193
195
196
201
205
206
CONTENTS
Frequently asked questions p. 211
MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
GPS EUROPE
Page 190 of 280
174
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
10
2
3
4
612
9
7
8
115
TU
PQRS
0
*

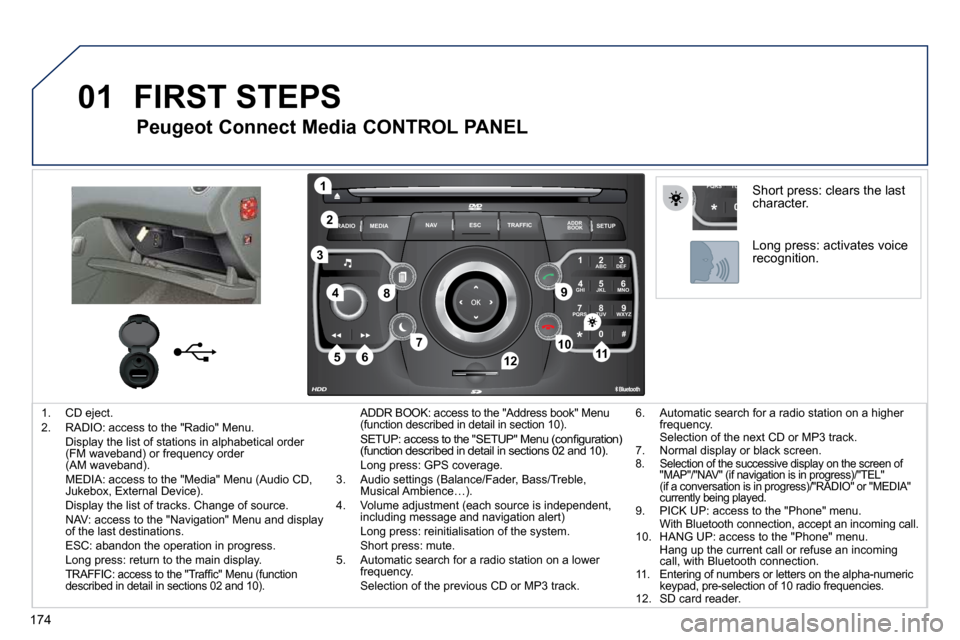

1. CD eject. 2. RADIO: access to the "Radio" Menu. Display the list of stations in alphabetical order (FM waveband) or frequency order (AM waveband). MEDIA: access to the "Media" Menu (Audio CD, Jukebox, External Device). Display the list of tracks. Change of source. NAV: access to the "Navigation" Menu and display of the last destinations. ESC: abandon the operation in progress. L o n g p r e s s : r e t u r n t o t h e m a i n d i s p l a y . T R A F F I C : a c c e s s t o t h e " T r a f fi c " M e n u ( f u n c t i o n described in detail in sections 02 and 10).
ADDR BOOK: access to the "Address book" Menu (function described in detail in section 10). S E T U P : a c c e s s t o t h e " S E T U P " M e n u ( c o n fi g u r a t i o n ) (function described in detail in sections 02 and 10 ). Long press: GPS coverage. 3. Audio settings (Balance/Fader, Bass/Treble, M u s i c a l A m b i e n c e … ) . 4 . V o l u m e a d j u s t m e n t ( e a c h s o u r c e i s i n d e p e n d e n t , i n c l u d i n g m e s s a g e a n d n a v i g a t i o n a l e r t ) L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m . S h o r t p r e s s : m u t e . 5 . A u t o m a t i c s e a r c h f o r a r a d i o s t a t i o n o n a l o w e r frequency. Selection of the previous CD or MP3 track.
FIRST STEPS
Peugeot Connect Media CONTROL PANEL
6. A u t o m a t i c s e a r c h f o r a r a d i o s t a t i o n o n a h i g h e r frequency. Selection of the next CD or MP3 track. 7 . N o r m a l d i s p l a y o r b l a c k s c r e e n . 8. Selection of the successive display on the sc reen of "MAP"/"NAV" (if navigation is in progress)/"TEL" (if a conversation is in progress)/"RADIO" or "MEDI A" currently being played. 9 . P I C K U P : a c c e s s t o t h e " P h o n e " m e n u . W i t h B l u e t o o t h c o n n e c t i o n , a c c e p t a n i n c o m i n g c a l l . 1 0 . H A N G U P : a c c e s s t o t h e " P h o n e " m e n u . H a n g u p t h e c u r r e n t c a l l o r r e f u s e a n i n c o m i n g call, with Bluetooth connection. 1 1 . E n t e r i n g o f n u m b e r s o r l e t t e r s o n t h e a l p h a - n u m e r i c k e y p a d , p r e - s e l e c t i o n o f 1 0 r a d i o f r e q u e n c i e s . 12. SD card reader.
Short press: clears the last character.
Long press: activates voice recognition.
