Page 11 of 280
FAMILIARISATION

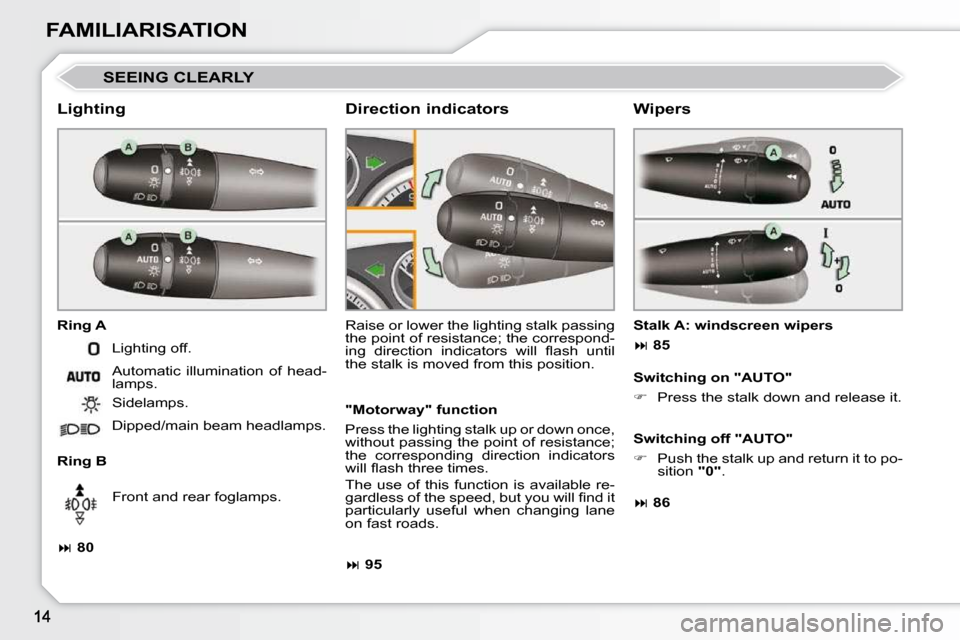

SEEING CLEARLY
Lighting
Ring A
Ring B Raise or lower the lighting stalk passing
the point of resistance; the correspond-
i n g d i r e c t i o n i n d i c a t o r s w i l l fl a s h u n t i l
the stalk is moved from this position.
Direction indicators
Switching on "AUTO"
Press the stalk down and release it.
80 Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Front and rear foglamps.
S t a l k A : w i n d s c r e e n w i p e r s
85
Wipers
Switching off "AUTO"
Push the stalk up and return it to po-
sition "0" .
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
w i l l fl a s h t h r e e t i m e s .
The use of this function is available re-
g a r d l e s s o f t h e s p e e d , b u t y o u w i l l fi n d i t
particularly useful when changing lane
on fast roads.
95
86
Page 12 of 280
FAMILIARISATION

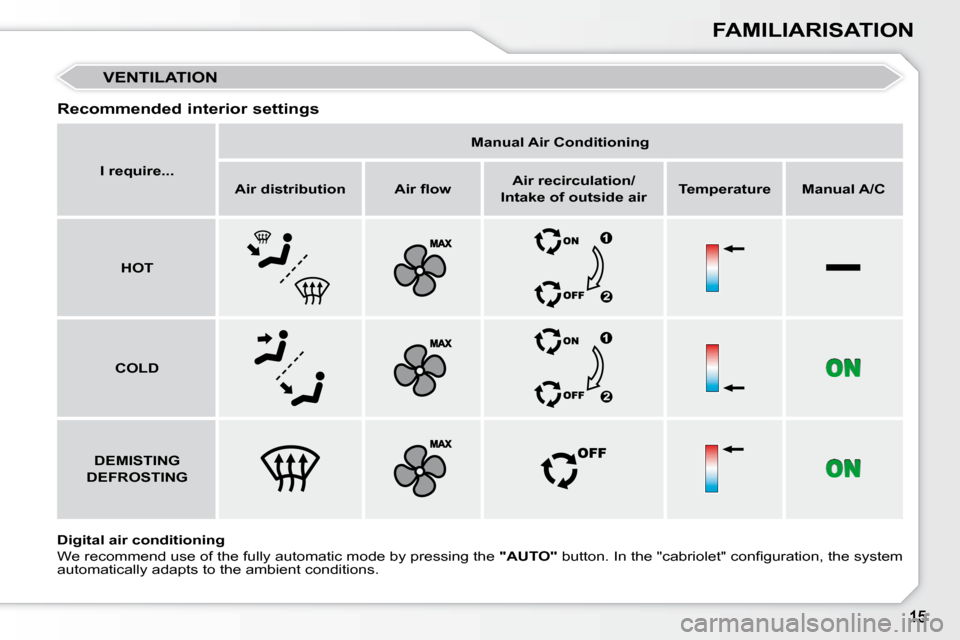

VENTILATION
Recommended interior settings
Digital air conditioning
We recommend use of the fully automatic mode by pressing the "AUTO" b u t t o n . I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h e s y s t e m
automatically adapts to the ambient conditions.
I require...
Manual Air Conditioning
Air distribution A i r fl o w
Air recirculation/
Intake of outside air
Temperature Manual A/C
HOT
COLD
DEMISTING
DEFROSTING
Page 13 of 280
FAMILIARISATION
MONITORING
Instrument panel Switch panel
A. With the ignition on, the needle should
indicate the level of fuel remaining.
B. With the engine running, its associ-
ated low level warning lamp should
switch off.
C.
With the ignition on, the oil level indicator
should display that the level is OK or correct,
according to version, for a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates
the status of the corresponding function.
A. Emergency call in progress.
169
B. Deactivation of the alarm interior
volumetric monitoring.
70
C. Central locking.
75
D. Deactivation of the ESP/ASR system.
99
E. Deactivation of the front and rear
parking sensors.
124
F. Access to PEUGEOT services.
169
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
Warning lamps
19
23
Page 14 of 280
i
FAMILIARISATION

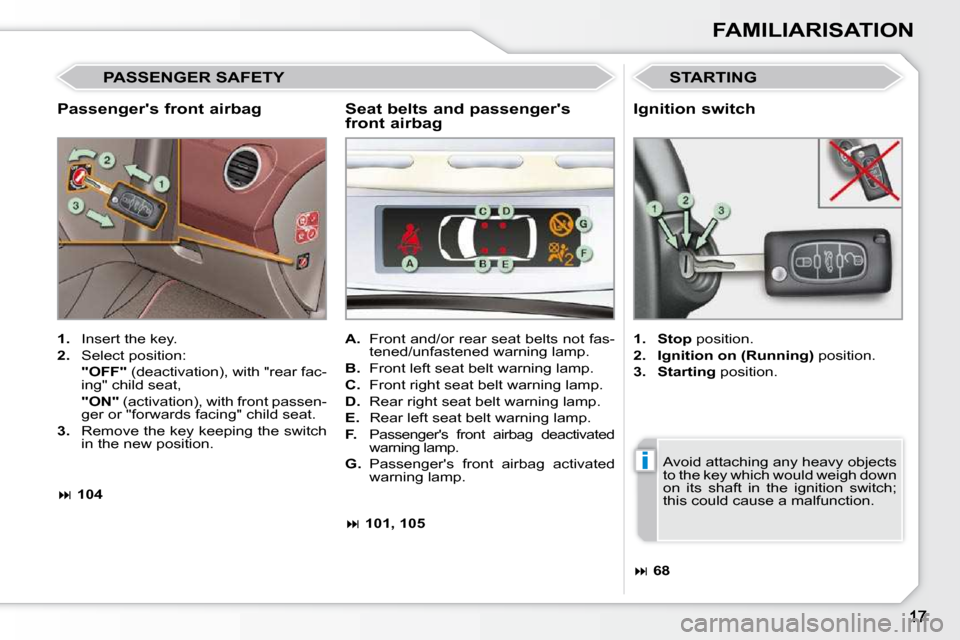

Passenger's front airbag
STARTING
1. Insert the key.
2. Select position:
"OFF" ( d e a c t i v a t i o n ) , w i t h " r e a r f a c -
ing" child seat,
"ON" ( a c t i v a t i o n ) , w i t h f r o n t p a s s e n -
ger or "forwards facing" child seat.
3. Remove the key keeping the switch
in the new position.
1. Stop position.
2. Ignition on (
Running
) position.
3. Starting position.
A. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.
B. Front left seat belt warning lamp.
C. Front right seat belt warning lamp.
D. Rear right seat belt warning lamp.
E. Rear left seat belt warning lamp.
F. Passenger's front airbag deactivated
warning lamp.
G. Passenger's front airbag activated
warning lamp.
Seat belts and passenger's
front airbag
PASSENGER SAFETY
104
101, 105 Ignition switch
68
Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.
Page 15 of 280
FAMILIARISATION

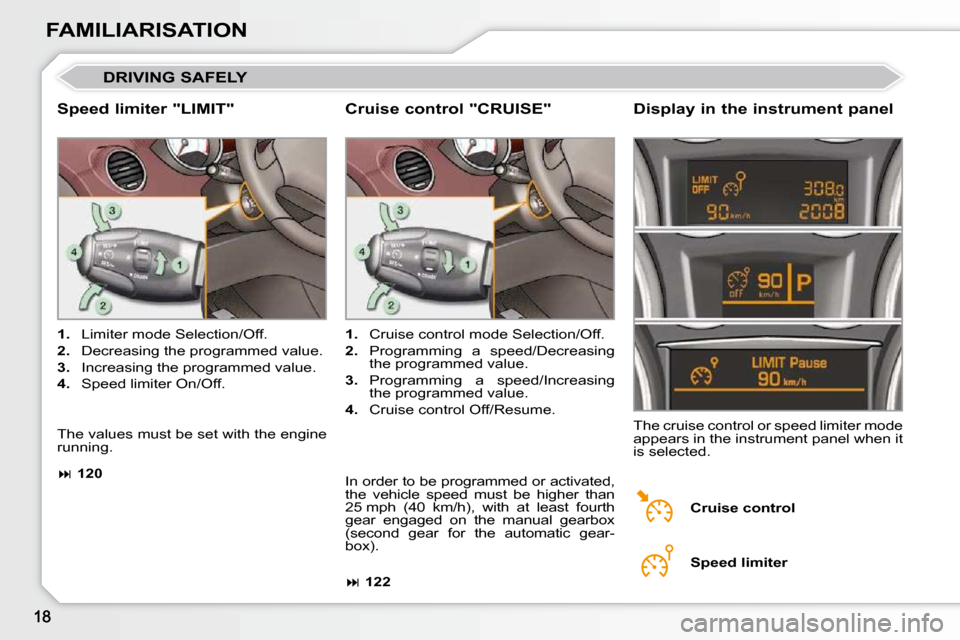

DRIVING SAFELY
Speed limiter "LIMIT" Display in the instrument panel
1. Limiter mode Selection/Off.
2. Decreasing the programmed value.
3. Increasing the programmed value.
4. Speed limiter On/Off.
The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.
1. Cruise control mode Selection/Off.
2. Programming a speed/Decreasing
the programmed value.
3. Programming a speed/Increasing
the programmed value.
4. Cruise control Off/Resume.
Cruise control "CRUISE"
Cruise control
Speed limiter
122
120
In order to be programmed or activated,
the vehicle speed must be higher than
2 5 m p h ( 4 0 k m / h ) , w i t h a t l e a s t f o u r t h
gear engaged on the manual gearbox
(second gear for the automatic gear-
b o x ) .
The values must be set with the engine
running.

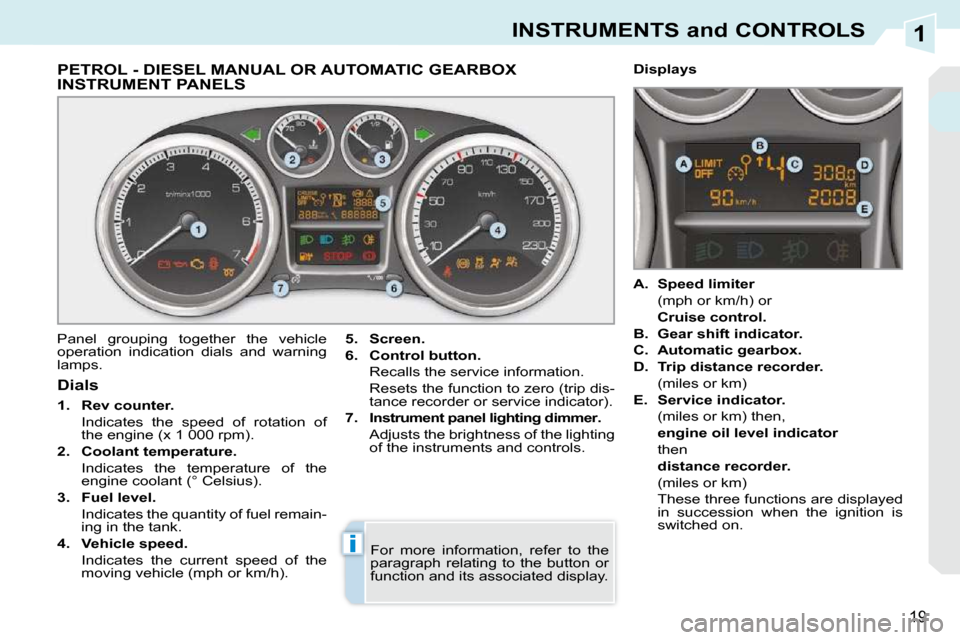

Page 16 of 280
1
i
19
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Screen.
6. Control button.
Recalls the service information.
Resets the function to zero (trip dis- tance recorder or service indicator).
7. Instrument panel lighting
dimmer
.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Speed limiter
(mph or km/h) or
Cruise control.
B. Gear shift indicator.
C. Automatic gearbox.
D. Trip distance recorder.
(miles or km)
E. Service indicator.
(miles or km) then,
engine oil level indicator
then
distance recorder.
(miles or km)
These three functions are displayed in succession when the ignition is
switched on.
Displays
For more information, refer to the
paragraph relating to the button or
function and its associated display.

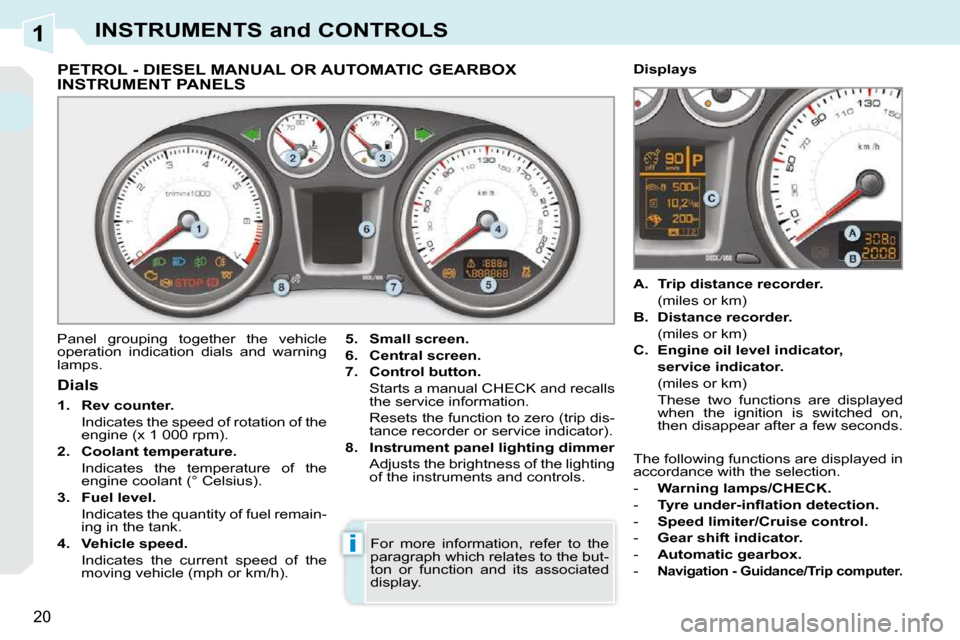

Page 17 of 280
1
i
20
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Small screen.
6. Central screen.
7. Control button.
Starts a manual CHECK and recalls the service information.
Resets the function to zero (trip dis- tance recorder or service indicator).
8. Instrument panel lighting
dimmer
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km)
C. Engine oil level indicator,
service indicator.
(miles or km)
These two functions are displayed when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lamps/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- Gear shift indicator.
- Automatic gearbox.
-
Navigation - Guidance/Trip computer.

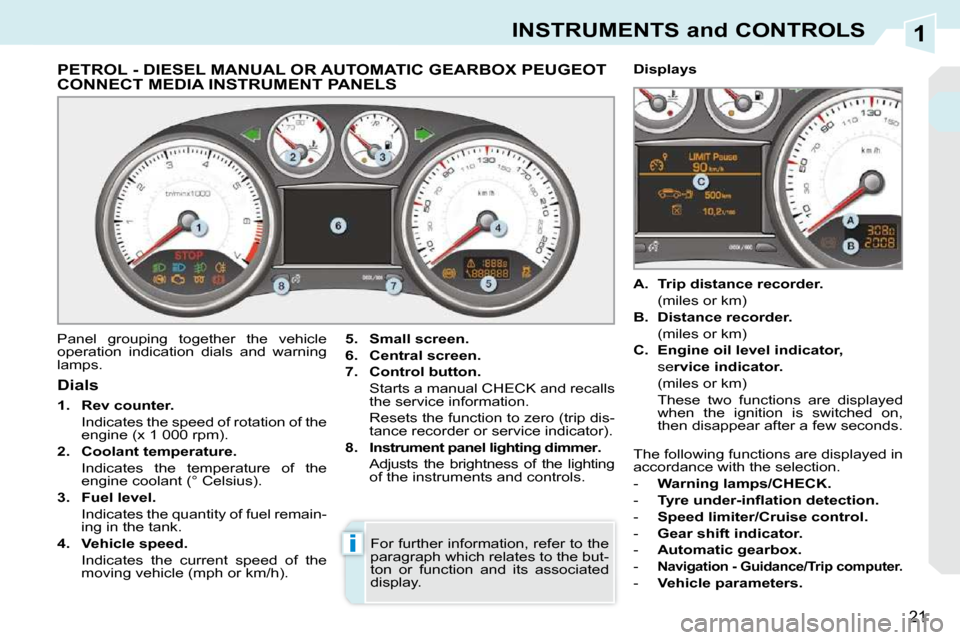

Page 18 of 280
1
i
21
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX PEUGEOT CONNECT MEDIA INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Small screen.
6. Central screen.
7. Control button.
Starts a manual CHECK and recalls the service information.
Resets the function to zero (trip dis- tance recorder or service indicator).
8. Instrument panel lighting
dimmer
.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km)
C. Engine oil level indicator,
se rvice indicator.
(miles or km)
These two functions are displayed when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lamps/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- Gear shift indicator.
- Automatic gearbox.
-
Navigation - Guidance/Trip computer.
- Vehicle parameters.
Page 19 of 280
1
i
22
INSTRUMENTS and CONTROLS
* According to country.
Instrument panel navigator associated
with the Peugeot Connect Media
Main menu
Press button 1 to open the main
menu and select one of the following
functions:
- "Vehicle parameters",
- "Choice of language",
- "Choice of units".
Press button 2 or 3 to move on the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection. Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
Choice of language
This menu allows you to select the lan-
guage used by the screen: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (mpg, km/l or
l/100 km).
This group of buttons permits:
-
when stationary , c o n fi g u r a t i o n o f
the vehicle's equipment and the
central screen settings (language,
units...),
- while driving , scrolling through the
active functions (trip computer, navi-
gation...).
Controls
There are four buttons to control the in-
strument panel large screen:
1. a c c e s s t h e m a i n m e n u , c o n fi r m t h e
selection,
2. move up through the menu,
3. move down through the menu,
4. return to the previous screen, exit
from the menu. The main menu and its associated
functions can only be accessed
when stationary, via buttons
1 to 4 .
A message appears in the cen-
tral screen, above a certain speed
threshold, indicating that the main
menu cannot be displayed.
Trip computer information can only
be displayed while driving, using
buttons 2 and 3 (refer to the "Trip
computer" section).
Page 20 of 280
1
!
23
INSTRUMENTS and CONTROLS

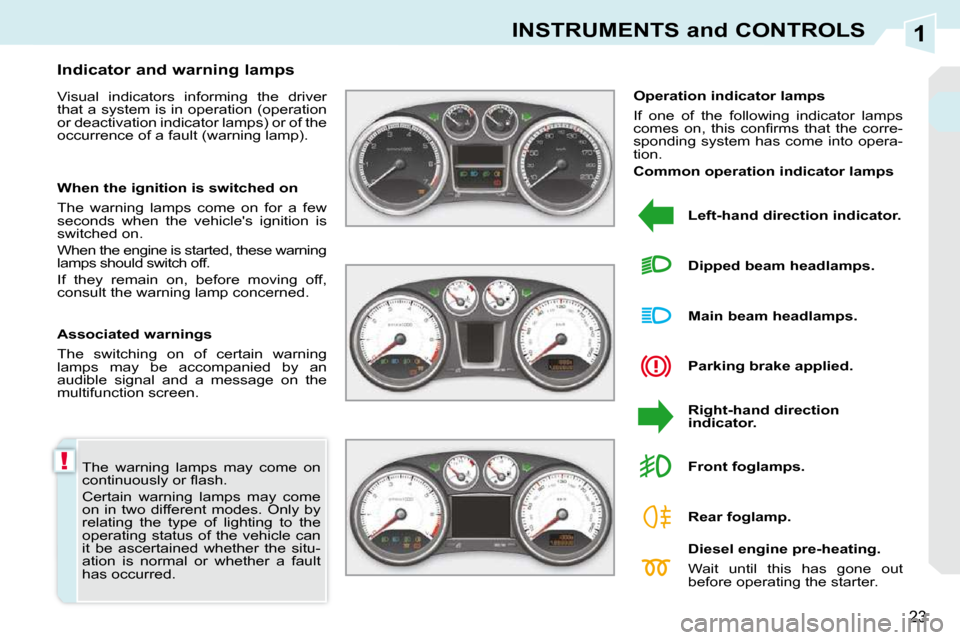

The warning lamps may come on
c o n t i n u o u s l y o r fl a s h .
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
Associated warnings
The switching on of certain warning
lamps may be accompanied by an
audible signal and a message on the
multifunction screen.
Operation indicator lamps
If one of the following indicator lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -
sponding system has come into opera-
tion.
Left-hand direction indicator.
Parking brake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped beam headlamps.
Diesel engine pre-heating.
Wait until this has gone out
before operating the starter.
Front foglamps.
Rear foglamp.
When the ignition is switched on
The warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warning
lamps should switch off.
If they remain on, before moving off,
consult the warning lamp concerned.
Common operation indicator lamps
