Page 158 of 260
11
i
i
162
PRACTICAL INFORMATION
Fixing the steel or "space-
saving" type spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l l o y
wheels, it is normal to notice, when
t i g h t e n i n g t h e b o l t s o n fi t t i n g , t h a t t h e
washers do not come into contact
with the steel or "space-saving" type
spare wheel. The wheel is secured
by the conical contact of each bolt.
Access to the spare wheel
The spare wheel is installed in the boot
u n d e r t h e fl o o r .
According to country, the spare wheel may
be steel, alloy or of the "space saving"
type.
To gain access to it, refer to the paragraph
"Access to the tools" on the previous
page.
Taking out the wheel
Unscrew the yellow central bolt.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Putting the wheel back in place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
P u t t h e b o x b a c k i n p l a c e i n t h e
centre of the wheel and clip it.
P u t t h e p o l y s t y r e n e s t o r a g e b o x
back in place.
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.
Page 160 of 260
11
ii
165
PRACTICAL INFORMATION
Putting the wheel back in place
Store the corresponding tools in the
b o x a n d c l o s e t h e c o v e r .
P o s i t i o n t h e b o x o n t h e g r o u n d a n d
centre the spare wheel on it.
Position the black plastic centring
cone (on the steel or "space-saving"
type wheel only).
P a s s t h e h o o k i n t o t h e b o x c o v e r .
R a i s e t h e w h e e l / b o x a s s e m b l y
underneath the vehicle by tightening
the winch control nut using the
wheelbrace 1 .
Tighten fully and check that the
w h e e l i s h o r i z o n t a l l y fl u s h a g a i n s t
t h e fl o o r .
C l o s e t h e fl a p w i t h t h e e y e t o l o c k
the winch.
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer. If you purchase a wheel of uniform
size to replace the "space-saving"
type spare wheel, the shim, locat-
ed underneath the vehicle, must
be removed. Consult a PEUGEOT
dealer.
Page 172 of 260
11
177
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, CD changer,
m u l t i f u n c t i o n d i s p l a y , t y r e u n d e r - i n fl a t i o n d e t e c t i o n .
F9 30 A Front 12 V socket, lighter.
F10 15 A Steering wheel controls, alarm siren, alarm control
unit.
F11 15 A Low current ignition switch.
F12 15 A Instrument panel, seat belt and passenger's front
air bag warning lights display, air conditioning,
driver's seat memory unit, 2nd row rear seat
switches, driving school module.
F13 5 A E n g i n e f u s e b o x , a i r b a g s , p i l o t e d m a n u a l g e a r b o x
gear lever.
F14 15 A M u l t i f u n c t i o n d i s p l a y , a m p l i fi e r , h a n d s - f r e e k i t , r a i n /
brightness sensor, parking assistance control unit,
t r a i l e r f u s e b o x , l a n e d e p a r t u r e w a r n i n g s y s t e m .
F15 30 A Locking and deadlocking.
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e - i c i n g .
SH - PARC shunt.

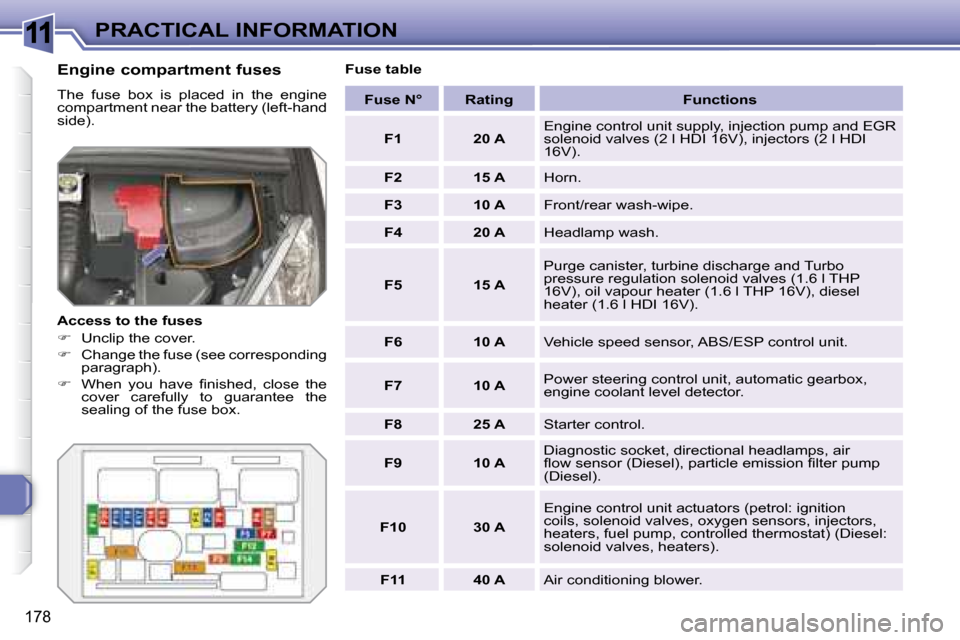

Page 173 of 260
11
178
PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
side).
Access to the fuses
Unclip the cover.
Change the fuse (see corresponding
paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to guarantee the
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, injection pump and EGR
solenoid valves (2 l HDI 16V), injectors (2 l HDI
16V).
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Purge canister, turbine discharge and Turbo
pressure regulation solenoid valves (1.6 l THP
16V), oil vapour heater (1.6 l THP 16V), diesel
heater (1.6 l HDI 16V).
F6 10 A Vehicle speed sensor, ABS/ESP control unit.
F7 10 A P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
engine coolant level detector.
F8 25 A Starter control.
F9 10 A Diagnostic socket, directional headlamps, air
fl o w s e n s o r ( D i e s e l ) , p a r t i c l e e m i s s i o n fi l t e r p u m p
(Diesel).
F10 30 A Engine control unit actuators (petrol: ignition
c o i l s , s o l e n o i d v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s ,
heaters, fuel pump, controlled thermostat) (Diesel:
solenoid valves, heaters).
F11 40 A Air conditioning blower.
