INSTRUMENTS and CONTROLS Water in diesel.
If this is displayed, it indicates
the presence of water in the
d i e s e l fi l t e r .
There is a risk of damage to the injection
system on Diesel engines.
Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.
P a r t i c l e e m i s s i o n fi l t e r
(Diesel).
If this is displayed, linked with
the service warning light, it indi-
cates the start of saturation of the par-
t i c l e e m i s s i o n fi l t e r o r a l o w d i e s e l a d d i -
tive reservoir level.
A s s o o n a s t r a f fi c c o n d i t i o n s p e r m i t , r e -
g e n e r a t e t h e fi l t e r b y d r i v i n g a t a s p e e d
of at least 40 mph (60 km/h) until the
service warning light is switched off.
If the service warning light is still displayed,
the additive level is low. Have it topped up
by a PEUGEOT dealer without delay.
D e fl a t e d w h e e l .
If this is displayed, it indicates
a n i n s u f fi c i e n t p r e s s u r e i n o n e
or more wheels.
Check the pressure of the tyres as soon
as possible. Punctured wheel.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle
immediately and as safely as
possible.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
T y r e u n d e r - i n fl a t i o n
detection.
If this is displayed, it indicates
the occurrence of a fault on one
o f t h e s e n s o r s o r i n t h e t y r e u n d e r - i n fl a -
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
d o e s n o t h a v e a s e n s o r , i s fi t t e d i n p l a c e
of a punctured wheel.
Automatic switching on of
the lights.
If this comes on, it indicates
the occurrence of a fault in the
automatic switching on of the
lights.
Use the other positions of the lights
stalk.
Visual and/or audible
parking assistance.
If this comes on, in forward and/
or reverse gear, it indicates a
fault in the parking assistance
system.
6-speed piloted manual
gearbox or automatic
gearbox.
If this is displayed, it indicates
the occurrence of a fault in the 6-speed
p i l o t e d m a n u a l g e a r b o x o r a u t o m a t i c
g e a r b o x . T h e g e a r b o x w i l l t h e n o p e r a t e i n
down-grade mode, locked on 3rd gear.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the 6-speed pi-
l o t e d m a n u a l g e a r b o x o r a u t o -
m a t i c g e a r b o x .
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in or-
der to start the engine.
Page 33 of 260
i
53
COMFORT

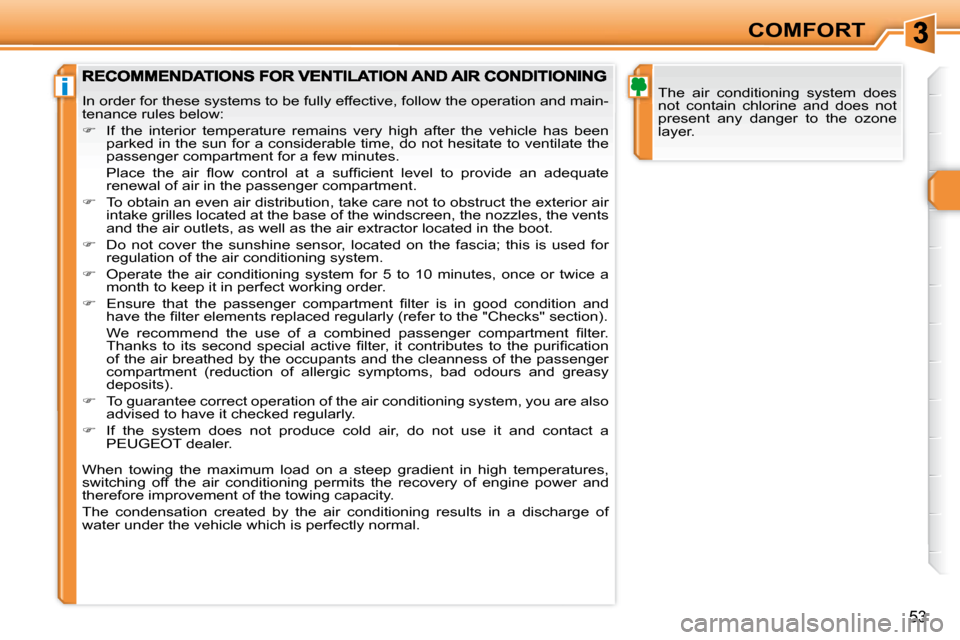

The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.
In order for these systems to be fully effective, follow the o peration and main-
tenance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e
renewal of air in the passenger compartment.
T o o b t a i n a n e v e n a i r d i s t r i b u t i o n , t a k e c a r e n o t t o o b s t r u c t t h e e x t e r i o r a i r
intake grilles located at the base of the windscreen, the n ozzles, the vents
a n d t h e a i r o u t l e t s , a s w e l l a s t h e a i r e x t r a c t o r l o c a t e d i n t h e b o o t .
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it a nd contact a
PEUGEOT dealer.
W h e n t o w i n g t h e m a x i m u m l o a d o n a s t e e p g r a d i e n t i n h i g h t e m p e r a t u r e s ,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 81 of 260
!
i
93
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of
maintaining of the lighting for 15,
30 or 60 seconds in the vehicle
parameters on the multifunction
d i s p l a y c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic
lighting is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
w h e n a l o w l e v e l o f e x t e r n a l l i g h t i s d e -
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
Activation
Turn ring A to the "AUTO"
position. The automatic lighting is
accompanied by a message on the
multifunction display.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on the
multifunction display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on, this warning light is
displayed on the instrument
panel and/or a message appears on
the multifunction display, accompanied
by an audible signal.
Consult a PEUGEOT dealer.
MANUAL HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d l o a d .
3. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
