Peugeot 308 SW BL 2008 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 308 SW BL, Model: Peugeot 308 SW BL 2008Pages: 260, PDF Size: 12.06 MB

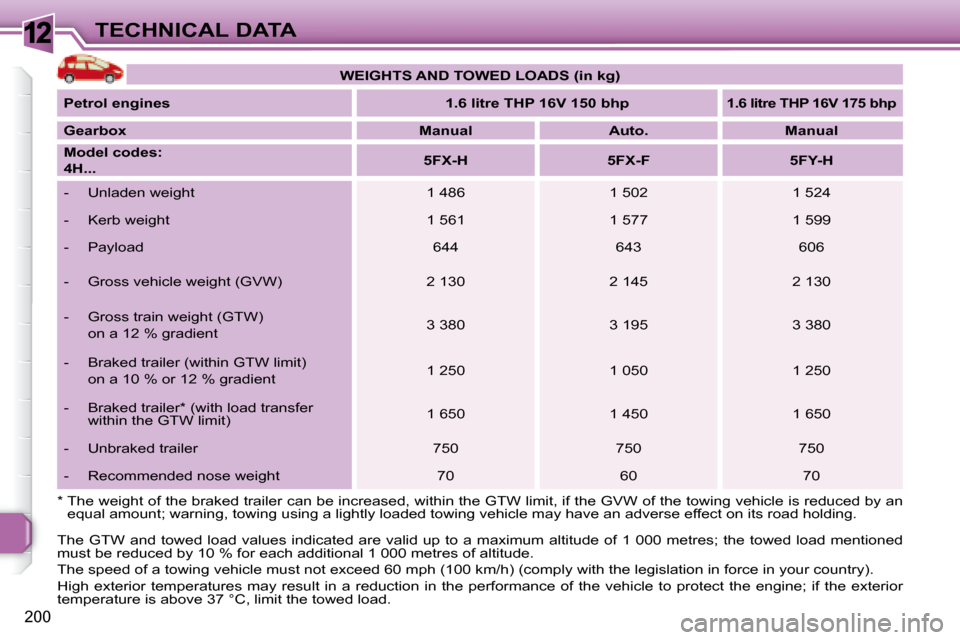

Page 201 of 260
12
200
TECHNICAL DATA
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP 16V 150 bhp
1.6 litre THP 16V 175 bhp
Gearbox
Manual Auto. Manual
Model codes:
4H...
5FX-H 5FX-F 5FY-H
- Unladen weight 1 486 1 502 1 524
- Kerb weight 1 561 1 577 1 599
- Payload 644 643 606
- Gross vehicle weight (GVW) 2 130 2 145 2 130
- Gross train weight (GTW)
on a 12 % gradient 3 380 3 195 3 380
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 250 1 050 1 250
- Braked trailer * (with load transfer within the GTW limit) 1 650 1 450 1 650
- Unbraked trailer 750 750 750
- Recommended nose weight 70 60 70

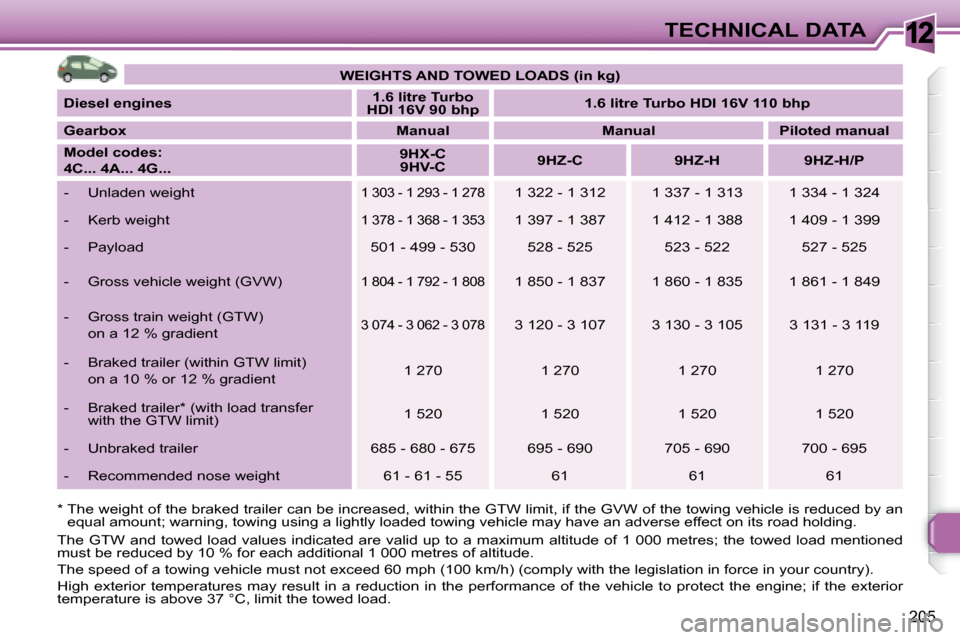

Page 202 of 260
12
205
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo
HDI 16V 90 bhp
1.6 litre Turbo HDI 16V 110 bhp
Gearbox
Manual Manual Piloted manual
Model codes:
4C... 4A... 4G...
9HX-C
9HV-C
9HZ-C 9HZ-H 9HZ-H/P
- Unladen weight
1 303 - 1 293 - 1 278 1 322 - 1 312 1 337 - 1 313 1 334 - 1 324
- Kerb weight
1 378 - 1 368 - 1 353 1 397 - 1 387 1 412 - 1 388 1 409 - 1 399
- Payload 501 - 499 - 530 528 - 525 523 - 522 527 - 525
- Gross vehicle weight (GVW)
1 804 - 1 792 - 1 808 1 850 - 1 837 1 860 - 1 835 1 861 - 1 849
- Gross train weight (GTW)
on a 12 % gradient
3 074 - 3 062 - 3 078 3 120 - 3 107 3 130 - 3 105 3 131 - 3 119
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 270 1 270 1 270 1 270
- Braked trailer * (with load transfer with the GTW limit) 1 520 1 520 1 520 1 520
- Unbraked trailer 685 - 680 - 675 695 - 690 7 05 - 690 700 - 695
- Recommended nose weight 61 - 61 - 55 61 61 61
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

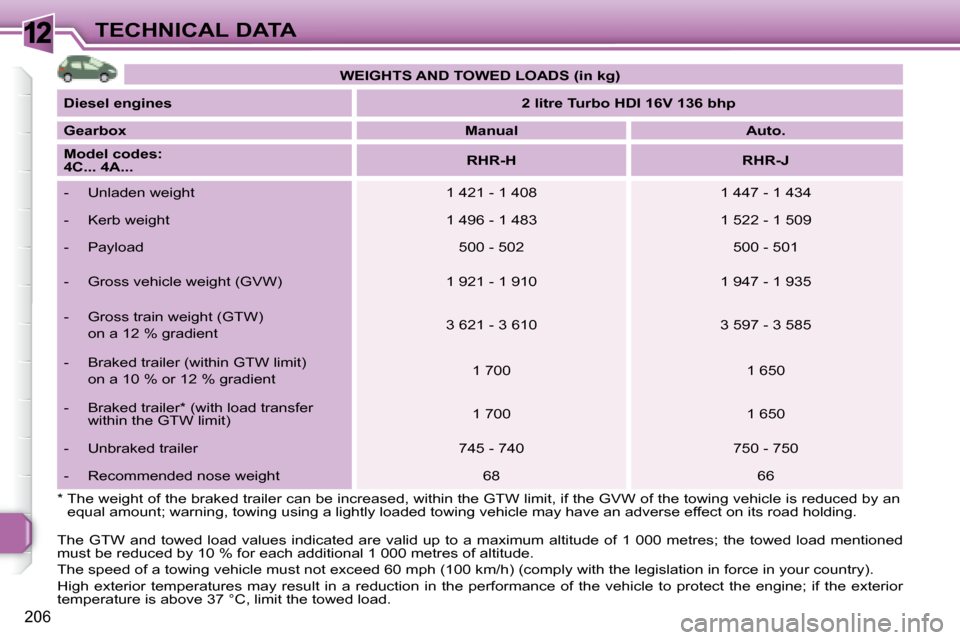

Page 203 of 260
12
206
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
2 litre Turbo HDI 16V 136 bhp
Gearbox
Manual Auto.
Model codes:
4C... 4A...
RHR-H RHR-J
- Unladen weight 1 421 - 1 408 1 447 - 1 434
- Kerb weight 1 496 - 1 483 1 522 - 1 509
- Payload 500 - 502 500 - 501
- Gross vehicle weight (GVW) 1 921 - 1 910 1 947 - 1 935
- Gross train weight (GTW)
on a 12 % gradient 3 621 - 3 610 3 597 - 3 585
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 700 1 650
- Braked trailer * (with load transfer within the GTW limit) 1 700 1 650
- Unbraked trailer 745 - 740 750 - 750
- Recommended nose weight 68 66
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

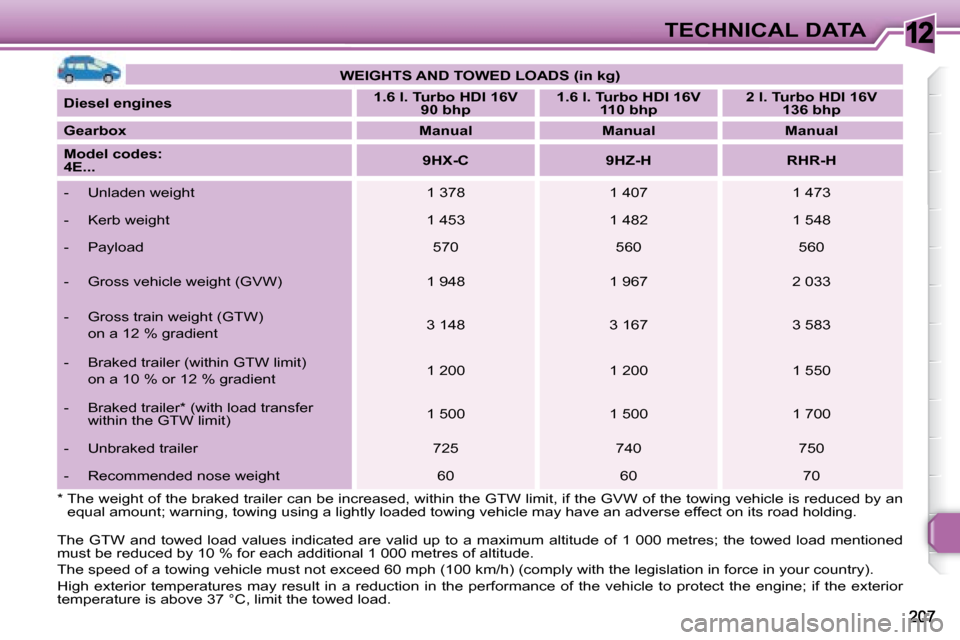

Page 204 of 260
12TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 l. Turbo HDI 16V
90 bhp
1.6 l. Turbo HDI 16V
110 bhp
2 l. Turbo HDI 16V
136 bhp
Gearbox
Manual Manual Manual
Model codes:
4E...
9HX-C 9HZ-H RHR-H
- Unladen weight 1 378 1 407 1 473
- Kerb weight 1 453 1 482 1 548
- Payload 570 560 560
- Gross vehicle weight (GVW) 1 948 1 967 2 033
- Gross train weight (GTW)
on a 12 % gradient 3 148 3 167 3 583
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 200 1 550
- Braked trailer * (with load transfer within the GTW limit) 1 500 1 500 1 700
- Unbraked trailer 725 740 750
- Recommended nose weight 60 60 70
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

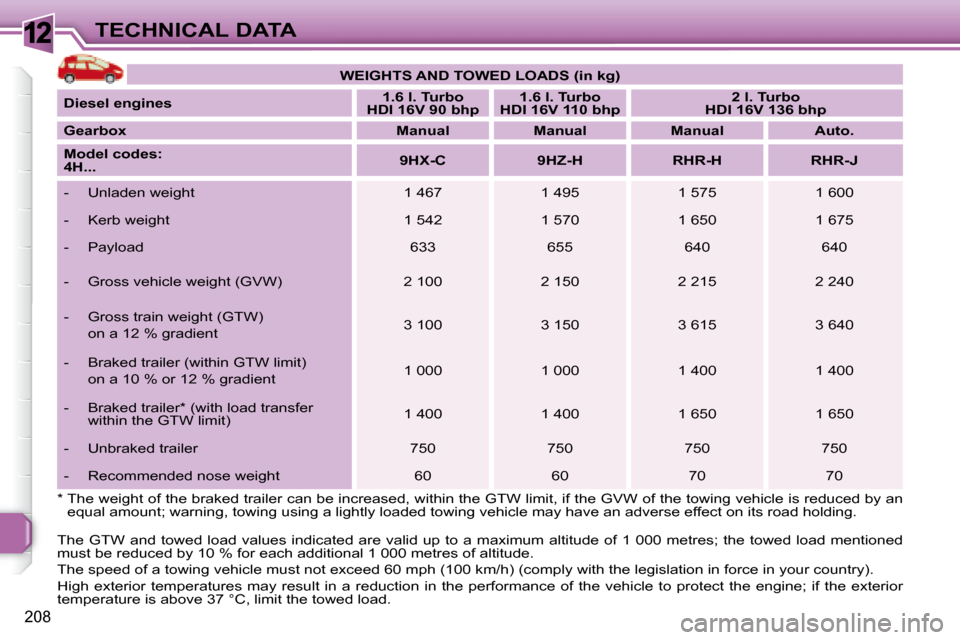

Page 205 of 260
12
208
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 l. Turbo
HDI 16V 90 bhp
1.6 l. Turbo
HDI 16V 110 bhp
2 l. Turbo
HDI 16V 136 bhp
Gearbox
Manual Manual Manual Auto.
Model codes:
4H...
9HX-C 9HZ-H RHR-H RHR-J
- Unladen weight 1 467 1 495 1 575 1 600
- Kerb weight 1 542 1 570 1 650 1 675
- Payload 633 655 640 640
- Gross vehicle weight (GVW) 2 100 2 150 2 215 2 240
- Gross train weight (GTW)
on a 12 % gradient 3 100 3 150 3 615 3 640
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 000 1 000 1 400 1 400
- Braked trailer * (with load transfer within the GTW limit) 1 400 1 400 1 650 1 650
- Unbraked trailer 750 750 750 750
- Recommended nose weight 60 60 70 70
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
Page 206 of 260
12
209
TECHNICAL DATA

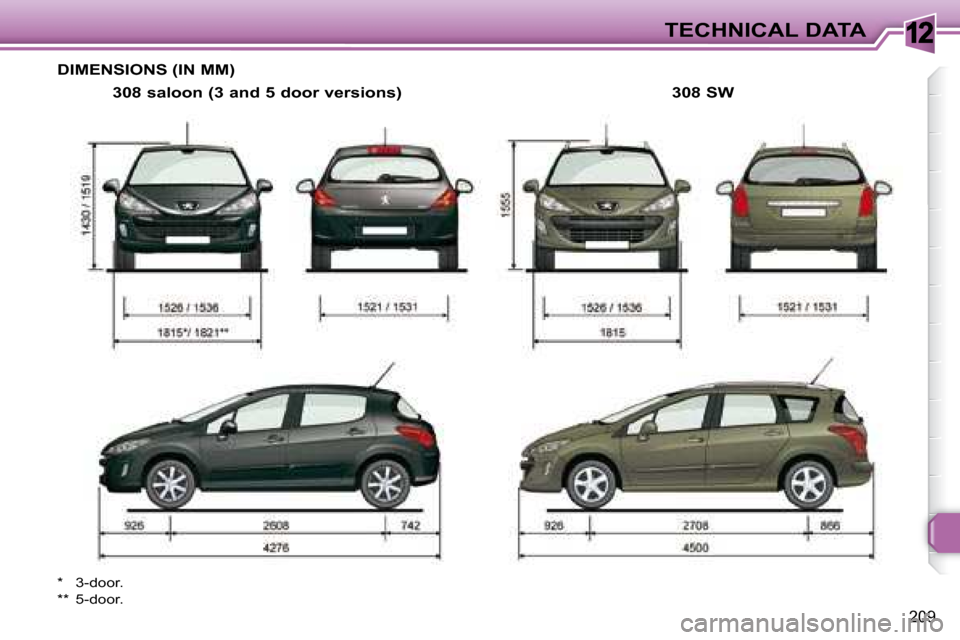

DIMENSIONS (IN MM)
308 saloon (3 and 5 door versions)
* 3-door.
** 5-door. 308 SW
Page 207 of 260
12
!
i
210
TECHNICAL DATA

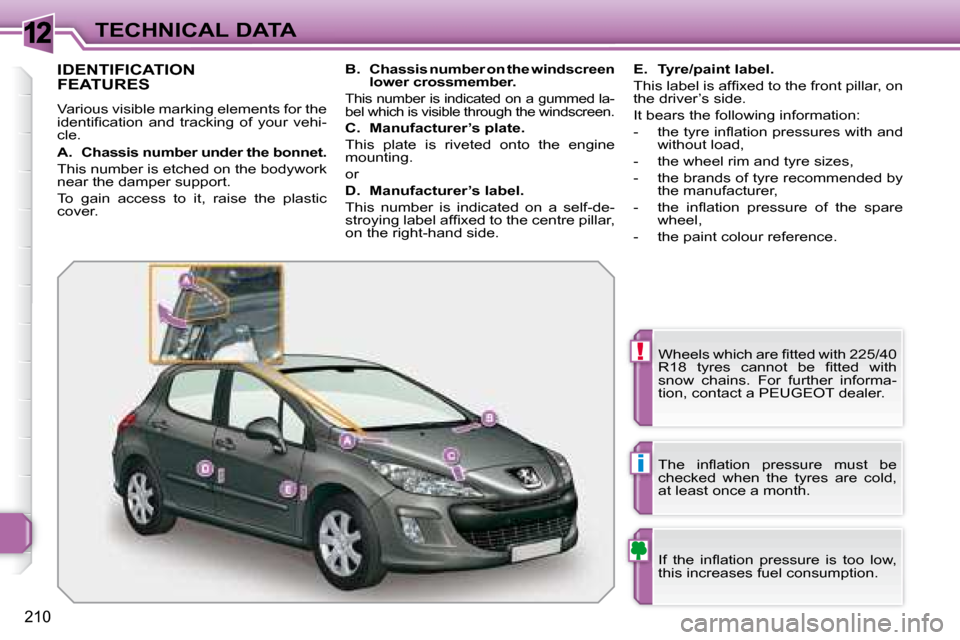

IDENTIFICATION FEATURES
Various visible marking elements for the
i d e n t i fi c a t i o n a n d t r a c k i n g o f y o u r v e h i -
cle. W h e e l s w h i c h a r e fi t t e d w i t h 2 2 5 / 4 0
R 1 8 t y r e s c a n n o t b e fi t t e d w i t h
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
I f t h e i n fl a t i o n p r e s s u r e i s t o o l o w ,
this increases fuel consumption.
T h e i n fl a t i o n p r e s s u r e m u s t b e
checked when the tyres are cold,
at least once a month.
A. Chassis number under the bonnet.
This number is etched on the bodywork
near the damper support.
To gain access to it, raise the plastic
cover.
B. Chassis number on the windscreen
lower crossmember. This number is indicated on a gummed la-
bel which is visible through the windscreen.
C. Manufacturer’s plate.
This plate is riveted onto the engine
mounting.
or
D. Manufacturer’s label.
This number is indicated on a self-de-
s t r o y i n g l a b e l a f fi x e d t o t h e c e n t r e p i l l a r ,
on the right-hand side.
E. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e f r o n t p i l l a r , o n
the driver’s side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s w i t h a n d without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour reference.
Page 208 of 260
211

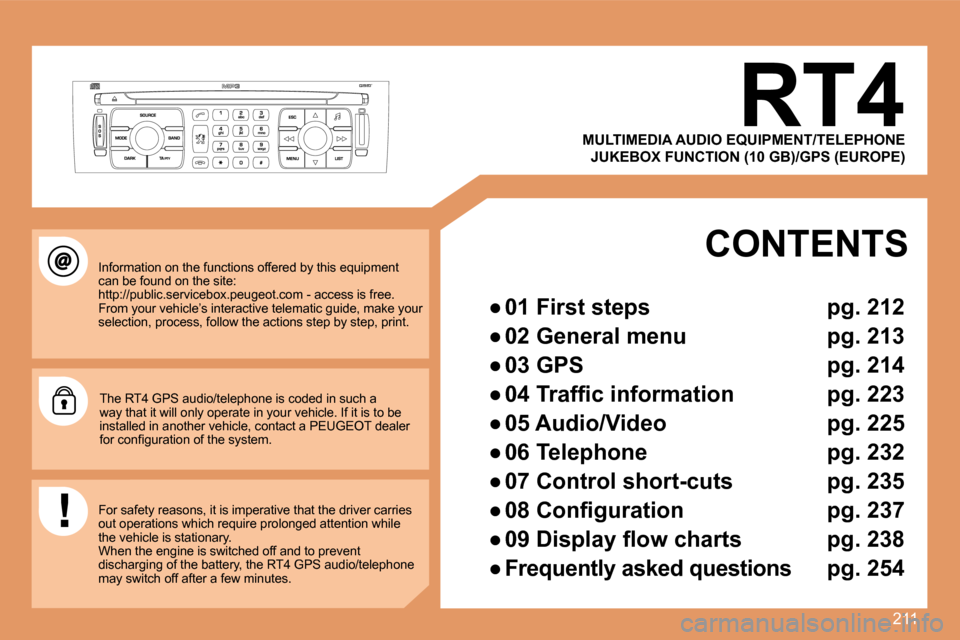

RT4
Information on the functions offered by this equipment can be found on the site: h t t p : / / p u b l i c . s e r v i c e b o x . p e u g e o t . c o m - a c c e s s i s f r e e . From your vehicle’s interactive telematic guide, ma ke your selection, process, follow the actions step by step, print.
The RT4 GPS audio/telephone is coded in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT d ealer f o r c o n fi g u r a t i o n o f t h e s y s t e m .
For safety reasons, it is imperative that the driver carries out operations which require prolonged attention wh ile the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the RT4 GPS audio/telephone may switch off after a few minutes.
CONTENTS
Page 209 of 260
212
22
11
55
3344
88
99
10101515
11111717
18181212
1616
1414
7766
1313
01

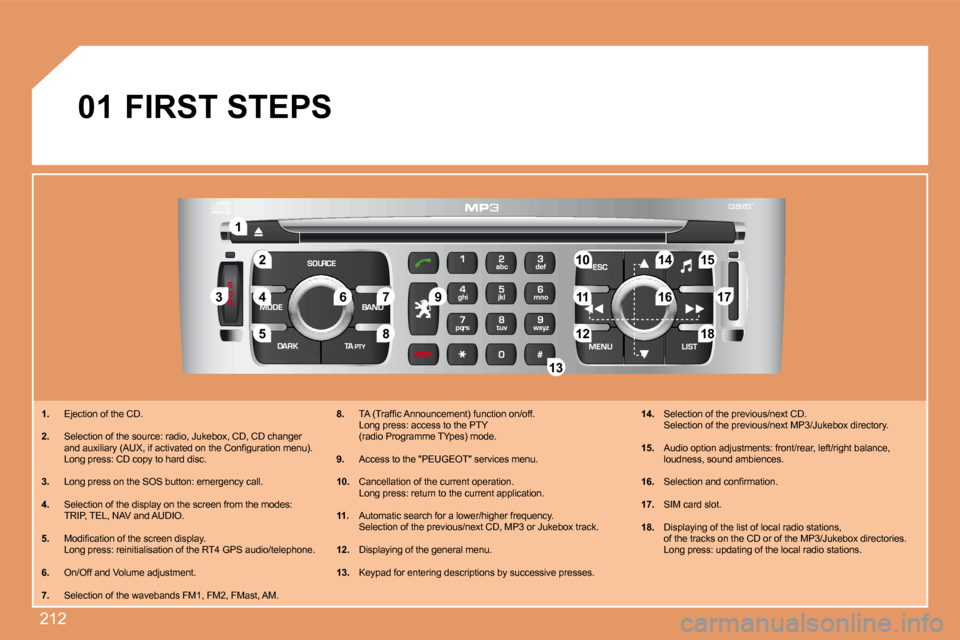

1. Ejection of the CD.
2. S e l e c t i o n o f t h e s o u r c e : r a d i o , J u k e b o x , C D , C D c h a n g e r a n d a u x i l i a r y ( A U X , i f a c t i v a t e d o n t h e C o n fi g u r a t i o n m e n u ) . Long press: CD copy to hard disc.
3. Long press on the SOS button: emergency call.
4. Selection of the display on the screen from the mo des: TRIP, TEL, NAV and AUDIO.
5. M o d i fi c a t i o n o f t h e s c r e e n d i s p l a y . Long press: reinitialisation of the RT4 GPS audio/ telephone.
6. On/Off and Volume adjustment.
7. Selection of the wavebands FM1, FM2, FMast, AM.
8. T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . Long press: access to the PTY (radio Programme TYpes) mode.
9. Access to the " PEUGEOT " services menu.
10. Cancellation of the current operation. Long press: return to the current application.
11. Automatic search for a lower/higher frequency. S e l e c t i o n o f t h e p r e v i o u s / n e x t C D , M P 3 o r J u k e b o x t r a c k .
12. Displaying of the general menu.
13. Keypad for entering descriptions by successive presses.
14. S e l e c t i o n o f t h e p r e v i o u s / n e x t C D . S e l e c t i o n o f t h e p r e v i o u s / n e x t M P 3 / J u k e b o x d i r e c t o r y .
15. Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
16. S e l e c t i o n a n d c o n fi r m a t i o n .
17. SIM card slot.
18. Displaying of the list of local radio stations, o f t h e t r a c k s o n t h e C D o r o f t h e M P 3 / J u k e b o x d i r e c t o r i e s . Long press: updating of the local radio stations.
FIRST STEPS
Page 210 of 260
213
02 GENERAL MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, C D , J u k e b o x , o p t i o n s .
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, v o i c e , a u x i l i a r y s o c k e t ( A U X ) parameters. parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: warnings log, status of the functions.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
