Peugeot 308 SW BL 2008 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 308 SW BL, Model: Peugeot 308 SW BL 2008Pages: 260, PDF Size: 12.06 MB
Page 191 of 260
12
193
TECHNICAL DATA

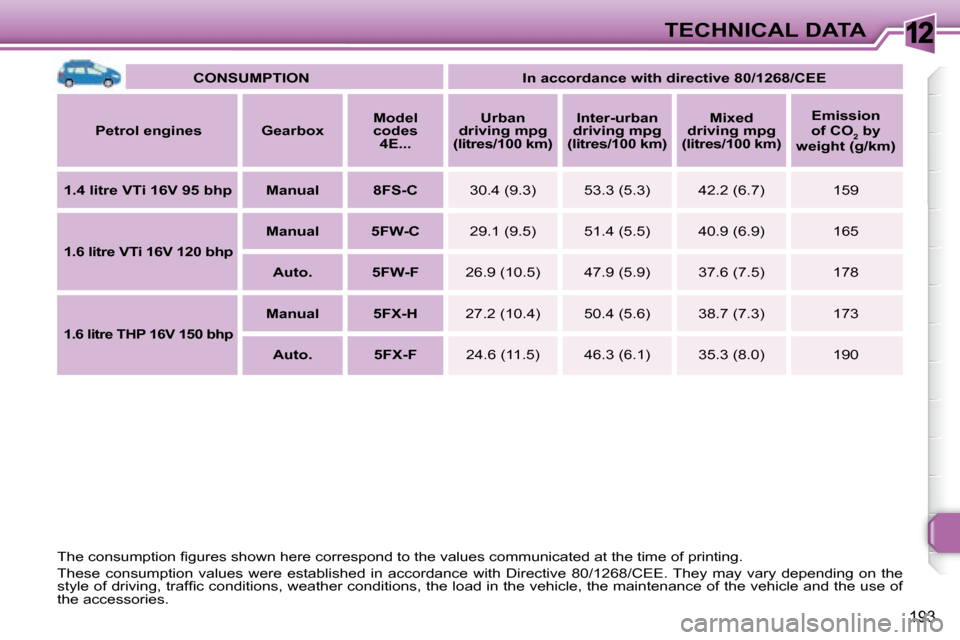

CONSUMPTION In accordance with directive 80/1268/CEE
Petrol engines Gearbox
Model
codes 4E...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission
of CO 2 by
weight (g/km)
1.4 litre VTi 16V 95 bhp Manual 8FS-C 30.4 (9.3) 53.3 (5.3) 42.2 (6.7) 159
1.6 litre VTi 16V 120 bhp
Manual 5FW-C 29.1 (9.5) 51.4 (5.5) 40.9 (6.9) 165
Auto. 5FW-F 26.9 (10.5) 47.9 (5.9) 37.6 (7.5) 178
1.6 litre THP 16V 150 bhp
Manual 5FX-H 27.2 (10.4) 50.4 (5.6) 38.7 (7.3) 173
Auto. 5FX-F 24.6 (11.5) 46.3 (6.1) 35.3 (8.0) 190
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with Di rective 80/1268/CEE. They may vary depending on the
s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f
the accessories.
Page 192 of 260
12
194
TECHNICAL DATA

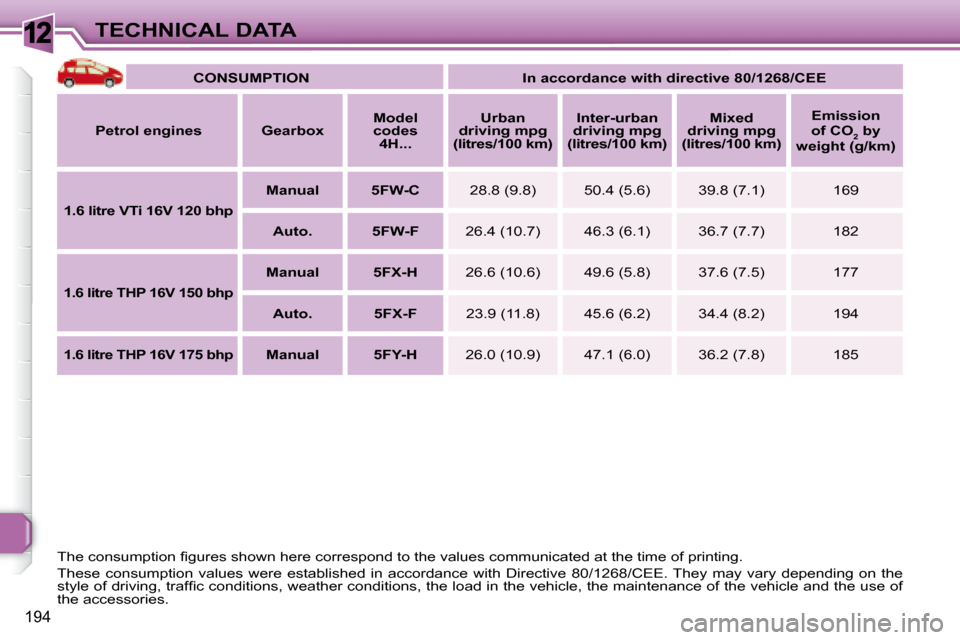

CONSUMPTION In accordance with directive 80/1268/CEE
Petrol engines Gearbox
Model
codes 4H...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission
of CO 2 by
weight (g/km)
1.6 litre VTi 16V 120 bhp
Manual 5FW-C 28.8 (9.8) 50.4 (5.6) 39.8 (7.1) 169
Auto. 5FW-F 26.4 (10.7) 46.3 (6.1) 36.7 (7.7) 182
1.6 litre THP 16V 150 bhp
Manual 5FX-H 26.6 (10.6) 49.6 (5.8) 37.6 (7.5) 177
Auto. 5FX-F 23.9 (11.8) 45.6 (6.2) 34.4 (8.2) 194
1.6 litre THP 16V 175 bhp
Manual 5FY-H 26.0 (10.9) 47.1 (6.0) 36.2 (7.8) 185
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with Di rective 80/1268/CEE. They may vary depending on the
s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f
the accessories.
Page 193 of 260
12
202
TECHNICAL DATA

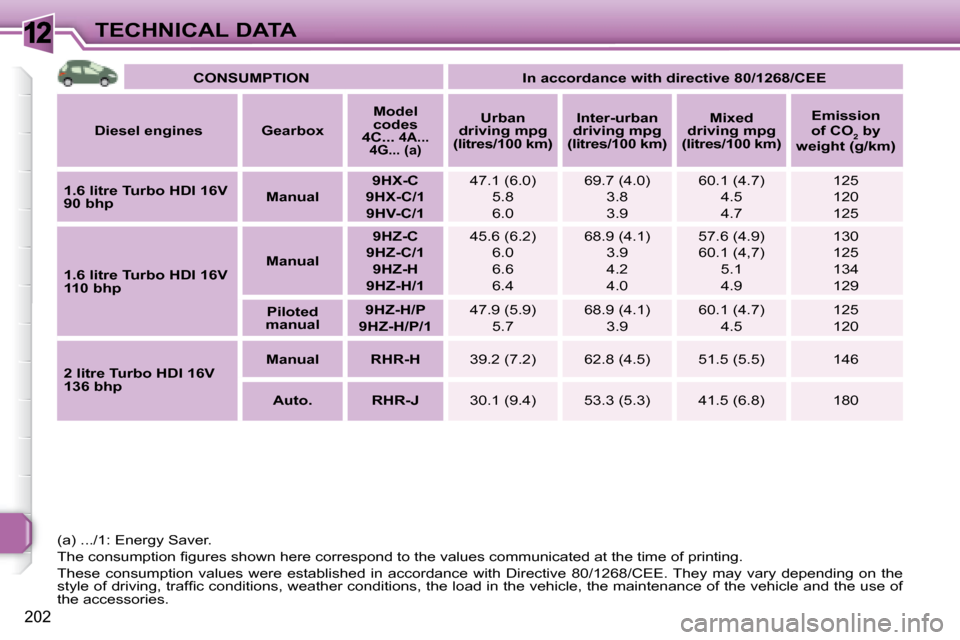

CONSUMPTION In accordance with directive 80/1268/CEE
Diesel engines Gearbox
Model
codes
4C...
4A...
4G... (a)
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission
of CO 2 by
weight (g/km)
1.6 litre Turbo HDI 16V
90 bhp
Manual
9HX-C
9HX-C/1
9HV-C/1 47.1 ( 6.0)
5.8
6.0 69.7 ( 4.0)
3.8
3.9 60.1 ( 4.7)
4.5
4.7 125
120
125
1.6 litre Turbo HDI 16V
110 bhp
Manual
9HZ-C
9HZ-C/1
9HZ-H
9HZ-H/1 45.6 ( 6.2)
6.0
6.6
6.4 68.9 ( 4.1)
3.9
4.2
4.0 57.6 ( 4.9)
60.1 (4,7)
5.1
4.9 130
125
134
129
Piloted
manual
9HZ-H/P
9HZ-H/P/1 47.9 ( 5.9)
5.7 68.9 (4.1)
3.9 60.1 (4.7)
4.5 125
120
2 litre Turbo HDI 16V
136 bhp
Manual RHR-H 39.2 (7.2) 62.8 (4.5) 51.5 (5.5) 146
Auto. RHR-J 30.1 (9.4) 53.3 (5.3) 41.5 (6.8) 180
(a) .../1: Energy Saver.
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with Di rective 80/1268/CEE. They may vary depending on the
s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f
the accessories.
Page 194 of 260
12
203
TECHNICAL DATA

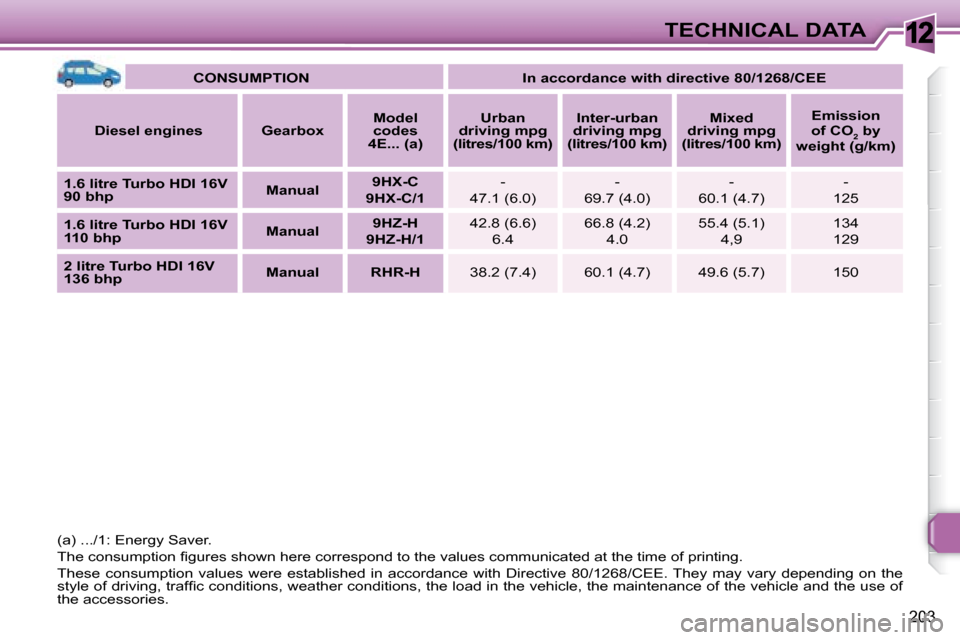

CONSUMPTION In accordance with directive 80/1268/CEE
Diesel engines Gearbox
Model
codes
4E... (a)
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission
of CO 2 by
weight (g/km)
1.6 litre Turbo HDI 16V
90 bhp
Manual
9HX-C
9HX-C/1 -
47.1 (6.0) -
69.7 (4.0) -
60.1 (4.7) -
125
1.6 litre Turbo HDI 16V
110 bhp
Manual
9HZ-H
9HZ-H/1 42.8 ( 6.6)
6.4 66.8 (4.2)
4.0 55.4 ( 5.1)
4,9 134
129
2 litre Turbo HDI 16V
136 bhp
Manual RHR-H 38.2 (7.4) 60.1 (4.7) 49.6 (5.7) 150
(a) .../1: Energy Saver.
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with Di rective 80/1268/CEE. They may vary depending on the
s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f
the accessories.
Page 195 of 260
12TECHNICAL DATA

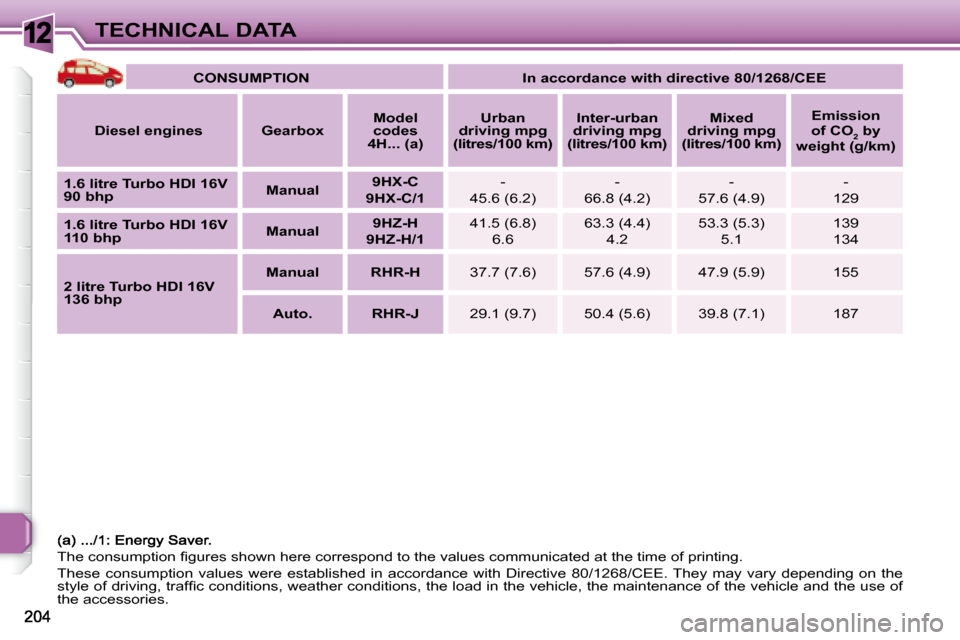

CONSUMPTION In accordance with directive 80/1268/CEE
Diesel engines Gearbox
Model
codes
4H... (a)
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission
of CO 2 by
weight (g/km)
1.6 litre Turbo HDI 16V
90 bhp
Manual
9HX-C
9HX-C/1 -
45.6 (6.2) -
66.8 (4.2) -
57.6 (4.9) -
129
1.6 litre Turbo HDI 16V
110 bhp
Manual
9HZ-H
9HZ-H/1 41.5 ( 6.8)
6.6 63.3 ( 4.4)
4.2 53.3 ( 5.3)
5.1 139
134
2 litre Turbo HDI 16V
136 bhp
Manual RHR-H 37.7 (7.6) 57.6 (4.9) 47.9 (5.9) 155
Auto. RHR-J 29.1 (9.7) 50.4 (5.6) 39.8 (7.1) 187
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with Di rective 80/1268/CEE. They may vary depending on the
s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f
the accessories.
Page 196 of 260
12TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines 1.4 litre VTi 16V 95 bhp 1.6 litre VTi 16V 120 bhp
Gearbox
Manual Manual Auto.
Model codes:
4C... 4A... 4G...
8FS-C 5FW-C 5FW-F
- Unladen weight 1 271 - 1 262 - 1 246 1 287 - 1 277 1 312 - 1 302
- Kerb weight 1 346 - 1 337 - 1 321 1 362 - 1 3 52 1 387 - 1 377
- Payload 489 - 487 - 536 528 - 525 512 - 510
- Gross vehicle weight (GVW) 1 760 - 1 749 - 1 782 1 815 - 1 802 1 824 - 1 812
- Gross train weight (GTW)
on a 12 % gradient 2 960 - 2 949 - 2 982 3 215 - 3 202 3 094 - 3 0
82
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 400 1 270
- Braked trailer * (with load transfer within the GTW limit) 1 450 1 650 1 520
- Unbraked trailer 670 - 665 - 660 680 - 675 6 90 - 685
- Recommended nose weight 58 - 58 - 50 76 61
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
Page 197 of 260
12TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

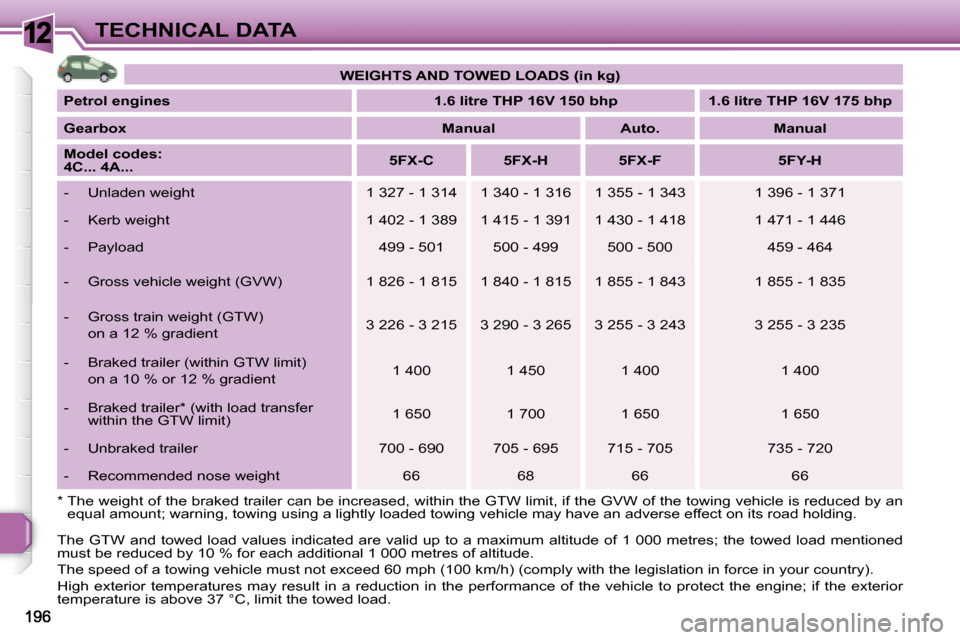

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP 16V 150 bhp 1.6 litre THP 16V 175 bhp
Gearbox
Manual Auto. Manual
Model codes:
4C... 4A...
5FX-C 5FX-H 5FX-F 5FY-H
- Unladen weight 1 327 - 1 314 1 340 - 1 316 1 355 - 1 343 1 396 - 1 371
- Kerb weight 1 402 - 1 389 1 415 - 1 391 1 430 - 1 418 1 471 - 1 446
- Payload 499 - 501 500 - 499 500 - 500 4 59 - 464
- Gross vehicle weight (GVW) 1 826 - 1 815 1 840 - 1 815 1 855 - 1 843 1 855 - 1 835
- Gross train weight (GTW)
on a 12 % gradient 3 226 - 3 215 3 290 - 3 265 3 255 - 3 243 3
255 - 3 235
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 450 1 400 1 400
- Braked trailer * (with load transfer within the GTW limit) 1 650 1 700 1 650 1 650
- Unbraked trailer 700 - 690 705 - 695 715 - 7 05 735 - 720
- Recommended nose weight 66 68 66 66
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
Page 198 of 260
12TECHNICAL DATA
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

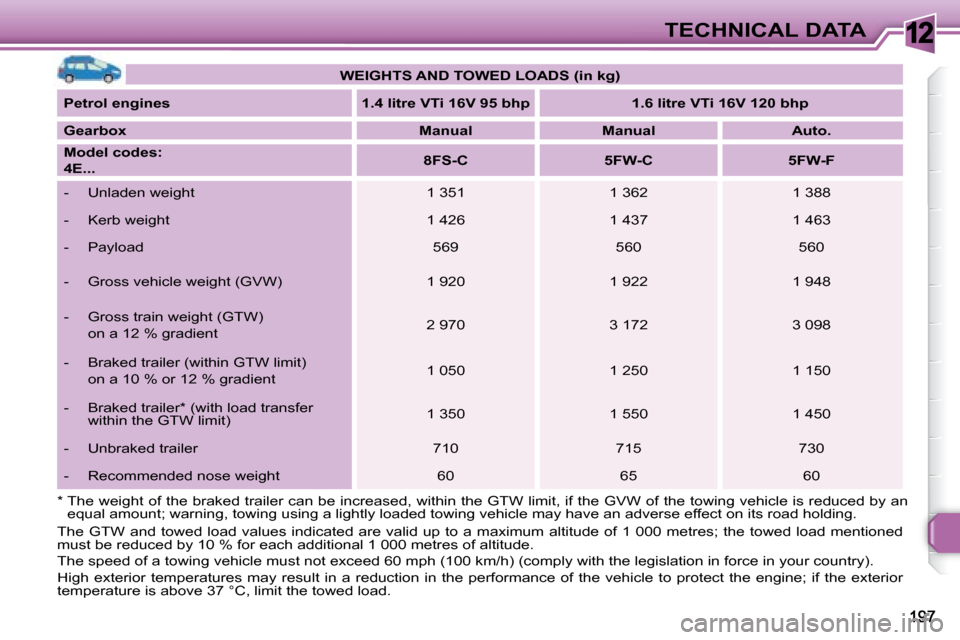

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines 1.4 litre VTi 16V 95 bhp 1.6 litre VTi 16V 120 bhp
Gearbox
Manual Manual Auto.
Model codes:
4E...
8FS-C 5FW-C 5FW-F
- Unladen weight 1 351 1 362 1 388
- Kerb weight 1 426 1 437 1 463
- Payload 569 560 560
- Gross vehicle weight (GVW) 1 920 1 922 1 948
- Gross train weight (GTW)
on a 12 % gradient 2 970 3 172 3 098
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 050 1 250 1 150
- Braked trailer * (with load transfer within the GTW limit) 1 350 1 550 1 450
- Unbraked trailer 710 715 730
- Recommended nose weight 60 65 60
Page 199 of 260
12
198
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP 16V 150 bhp
Gearbox
Manual Auto.
Model codes:
4E...
5FX-H 5FX-F
- Unladen weight 1 384 1 400
- Kerb weight 1 459 1 475
- Payload 560 560
- Gross vehicle weight (GVW) 1 944 1 960
- Gross train weight (GTW)
on a 12 % gradient 3 394 3 160
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 450 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 700 1 500
- Unbraked trailer 725 735
- Recommended nose weight 70 60
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
Page 200 of 260
12
199
TECHNICAL DATA
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

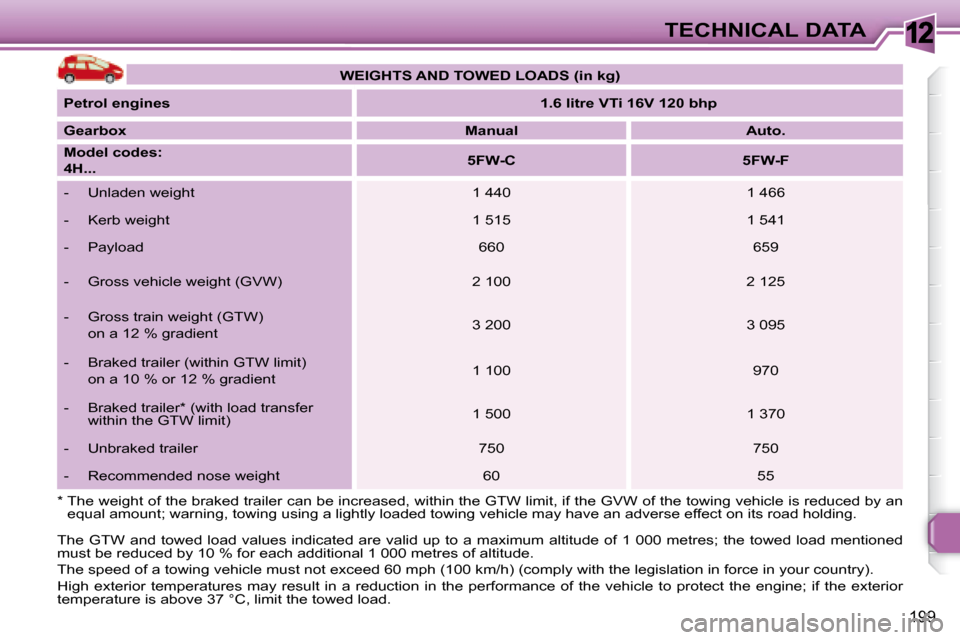

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre VTi 16V 120 bhp
Gearbox
Manual Auto.
Model codes:
4H...
5FW-C 5FW-F
- Unladen weight 1 440 1 466
- Kerb weight 1 515 1 541
- Payload 660 659
- Gross vehicle weight (GVW) 2 100 2 125
- Gross train weight (GTW)
on a 12 % gradient 3 200 3 095
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 970
- Braked trailer * (with load transfer within the GTW limit) 1 500 1 370
- Unbraked trailer 750 750
- Recommended nose weight 60 55
