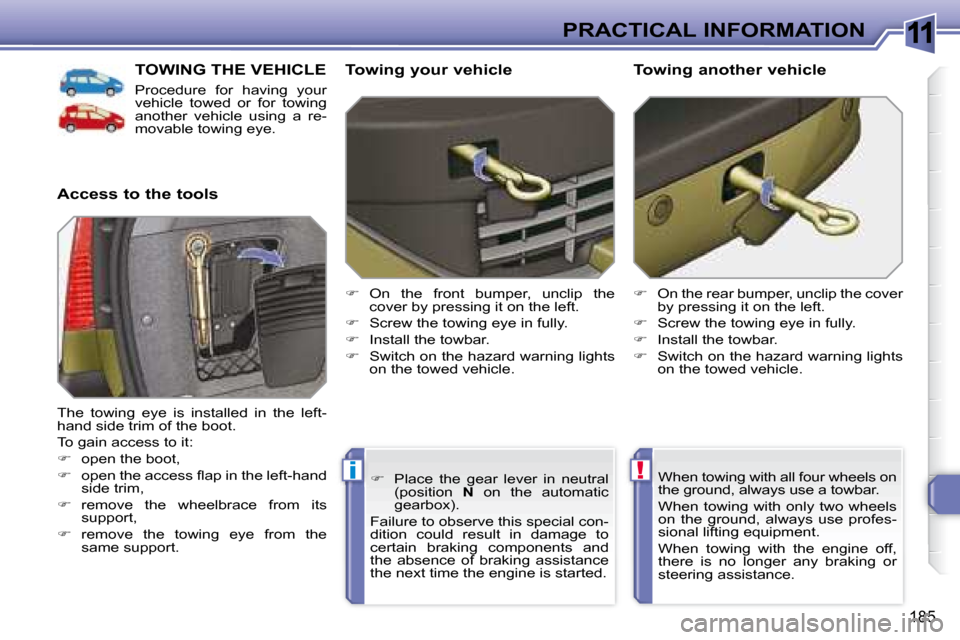

TOWING THE VEHICLE
Procedure for having your
vehicle towed or for towing
another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the
cover by pressing it on the left.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing it on the left.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the left-
hand side trim of the boot.
To gain access to it:
open the boot,
o p e n t h e a c c e s s fl a p i n t h e l e f t - h a n d
side trim,
remove the wheelbrace from its
support,
remove the towing eye from the
same support. When towing with all four wheels on
the ground, always use a towbar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the automatic
g e a r b o x ) .
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d .
Page 182 of 260
11
i
i
186
PRACTICAL INFORMATION

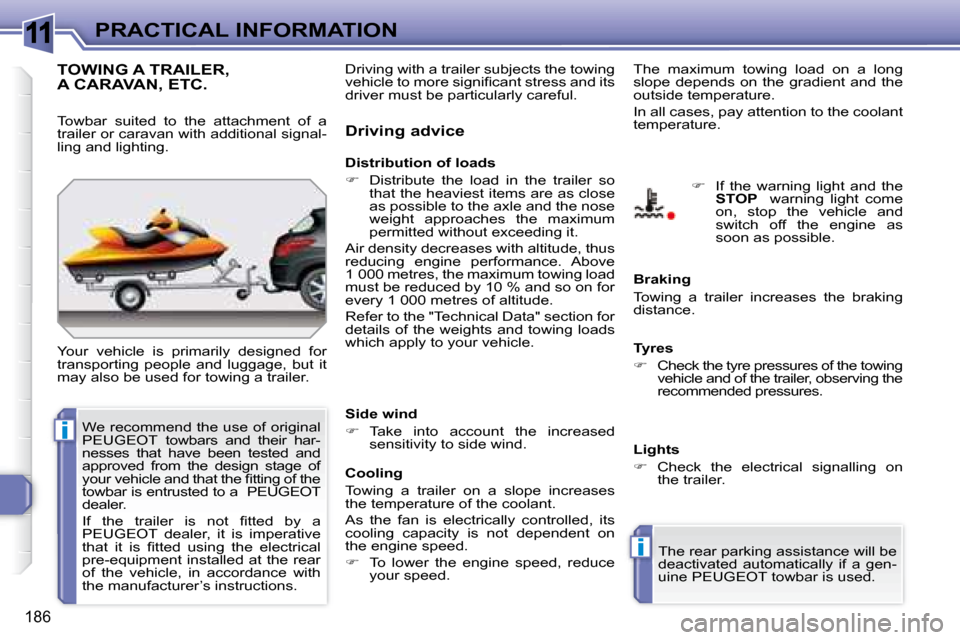

TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lights
Check the electrical signalling on
the trailer.
The rear parking assistance will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.
If the warning light and the
STOP warning light come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suited to the attachment of a
trailer or caravan with additional signal-
ling and lighting.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g l o a d
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
We recommend the use of original
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage of
y o u r v e h i c l e a n d t h a t t h e fi t t i n g o f t h e
towbar is entrusted to a PEUGEOT
dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i c a l
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer’s instructions.
Page 183 of 260
11
ii
PRACTICAL INFORMATION

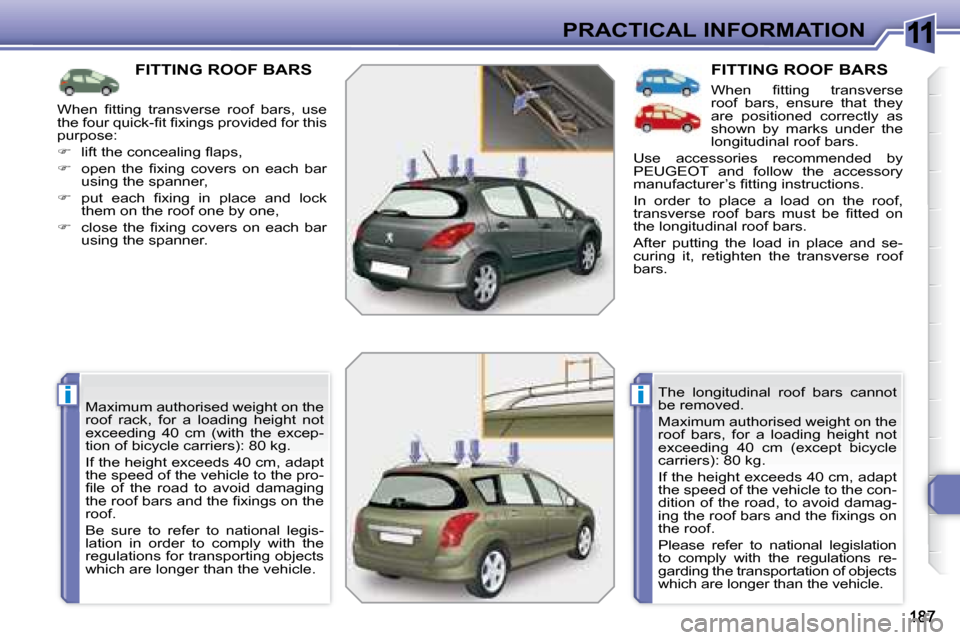

FITTING ROOF BARS
M a x i m u m a u t h o r i s e d w e i g h t o n t h e
roof rack, for a loading height not
e x c e e d i n g 4 0 c m ( w i t h t h e e x c e p -
tion of bicycle carriers): 80 kg.
I f t h e h e i g h t e x c e e d s 4 0 c m , a d a p t
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g
t h e r o o f b a r s a n d t h e fi x i n g s o n t h e
roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
FITTING ROOF BARS
W h e n fi t t i n g t r a n s v e r s e
roof bars, ensure that they
are positioned correctly as
shown by marks under the
longitudinal roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
m a n u f a c t u r e r ’ s fi t t i n g i n s t r u c t i o n s .
In order to place a load on the roof,
t r a n s v e r s e r o o f b a r s m u s t b e fi t t e d o n
the longitudinal roof bars.
After putting the load in place and se-
curing it, retighten the transverse roof
bars.
The longitudinal roof bars cannot
be removed.
M a x i m u m a u t h o r i s e d w e i g h t o n t h e
roof bars, for a loading height not
e x c e e d i n g 4 0 c m ( e x c e p t b i c y c l e
carriers): 80 kg.
I f t h e h e i g h t e x c e e d s 4 0 c m , a d a p t
the speed of the vehicle to the con-
dition of the road, to avoid damag-
i n g t h e r o o f b a r s a n d t h e fi x i n g s o n
the roof.
Please refer to national legislation
to comply with the regulations re-
garding the transportation of objects
which are longer than the vehicle.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s
purpose:
l i f t t h e c o n c e a l i n g fl a p s ,
o p e n t h e fi x i n g c o v e r s o n e a c h b a r
using the spanner,
p u t e a c h fi x i n g i n p l a c e a n d l o c k
them on the roof one by one,
c l o s e t h e fi x i n g c o v e r s o n e a c h b a r
using the spanner.
Page 184 of 260
11
i
188
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ’ s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 cat-
egories: PROTECTION - TOURING -
IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.
"Protection": "Touring":
mats ** , boot tray, luggage net,
fi x e d c o a t h o o k o n h e a d r e -
straint, aluminium or PVC door
sills, fragrance cartridges.
anti-theft alarm, window en-
g r a v i n g , w h e e l l o c k s , fi r s t a i d
kit, warning triangle, safety
jacket, stolen vehicle track-
ing system, dog guard, snow
chains. For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
** To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned
and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .

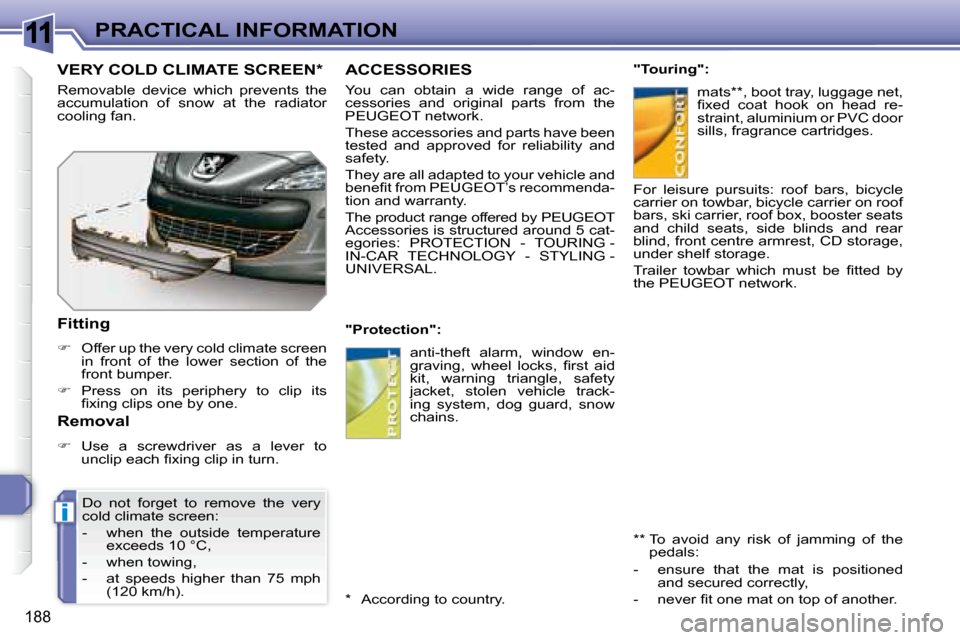

VERY COLD CLIMATE SCREEN *
Removable device which prevents the
accumulation of snow at the radiator
cooling fan.
Fitting
Offer up the very cold climate screen
in front of the lower section of the
front bumper.
Press on its periphery to clip its
fi x i n g c l i p s o n e b y o n e .
Do not forget to remove the very
cold climate screen:
- when the outside temperature e x c e e d s 1 0 ° C ,
- when towing,
- at speeds higher than 75 mph (120 km/h).
Removal
Use a screwdriver as a lever to
u n c l i p e a c h fi x i n g c l i p i n t u r n .
* According to country.
Page 185 of 260
11
i
188
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ’ s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 cat-
egories: PROTECTION - TOURING -
IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.
"Protection": "Touring":
mats ** , boot tray, luggage net,
fi x e d c o a t h o o k o n h e a d r e -
straint, aluminium or PVC door
sills, fragrance cartridges.
anti-theft alarm, window en-
g r a v i n g , w h e e l l o c k s , fi r s t a i d
kit, warning triangle, safety
jacket, stolen vehicle track-
ing system, dog guard, snow
chains. For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
** To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned
and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
VERY COLD CLIMATE SCREEN *
Removable device which prevents the
accumulation of snow at the radiator
cooling fan.
Fitting
Offer up the very cold climate screen
in front of the lower section of the
front bumper.
Press on its periphery to clip its
fi x i n g c l i p s o n e b y o n e .
Do not forget to remove the very
cold climate screen:
- when the outside temperature e x c e e d s 1 0 ° C ,
- when towing,
- at speeds higher than 75 mph (120 km/h).
Removal
Use a screwdriver as a lever to
u n c l i p e a c h fi x i n g c l i p i n t u r n .
* According to country.
Page 186 of 260
11
!
i
i
189
PRACTICAL INFORMATION T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a rep-
resentative of the Marque to be
shown the range of recommended
equipment and accessories.
Depending on the country in which
the vehicle is sold, it is compulsory
to have a safety jacket, warning tri-
angle and spare bulbs available in
the vehicle.
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van. seat covers compatible with
side air bags, aluminium gear
lever knob, fog lamps, sun-
r o o f * * * , d o o r d e fl e c t o r s , s p o i l -
er, styling strips, alloy wheels,
t r i m s , s p o r t e x h a u s t , b o d y -
work kit.
s c r e e n w a s h , i n t e r i o r a n d e x t e -

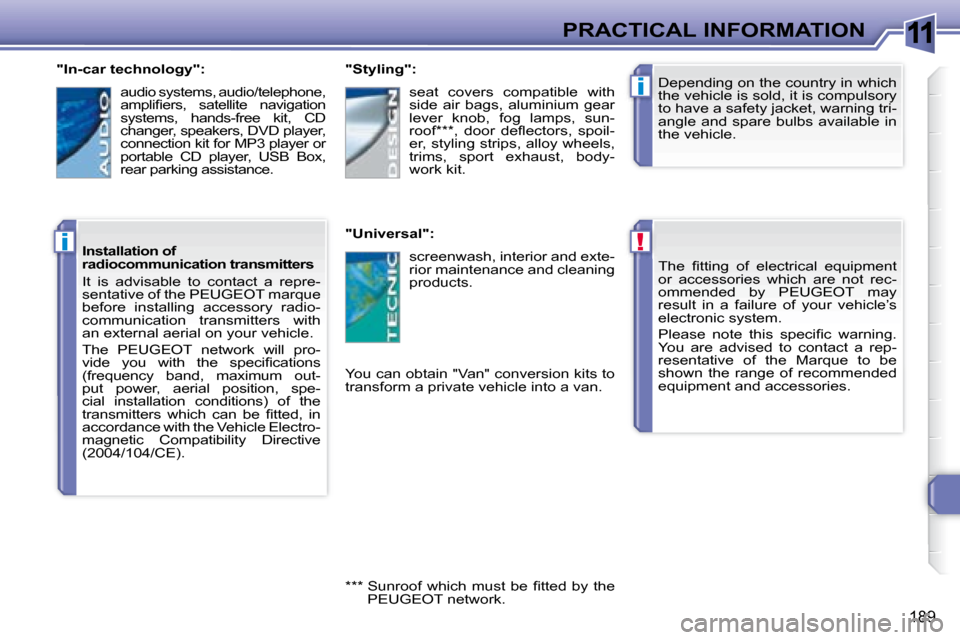

rior maintenance and cleaning
products.
* * * S u n r o o f w h i c h m u s t b e fi t t e d b y t h e PEUGEOT network.
"In-car technology":
audio systems, audio/telephone,
a m p l i fi e r s , s a t e l l i t e n a v i g a t i o n
systems, hands-free kit, CD
changer, speakers, DVD player,
connection kit for MP3 player or
p o r t a b l e C D p l a y e r , U S B B o x ,
rear parking assistance.
Installation of
radiocommunication transmitters
It is advisable to contact a repre-
sentative of the PEUGEOT marque
before installing accessory radio-
communication transmitters with
a n e x t e r n a l a e r i a l o n y o u r v e h i c l e .
The PEUGEOT network will pro-
v i d e y o u w i t h t h e s p e c i fi c a t i o n s
( f r e q u e n c y b a n d , m a x i m u m o u t -
put power, aerial position, spe-
cial installation conditions) of the
t r a n s m i t t e r s w h i c h c a n b e fi t t e d , i n
accordance with the Vehicle Electro-
magnetic Compatibility Directive
(2004/104/CE).

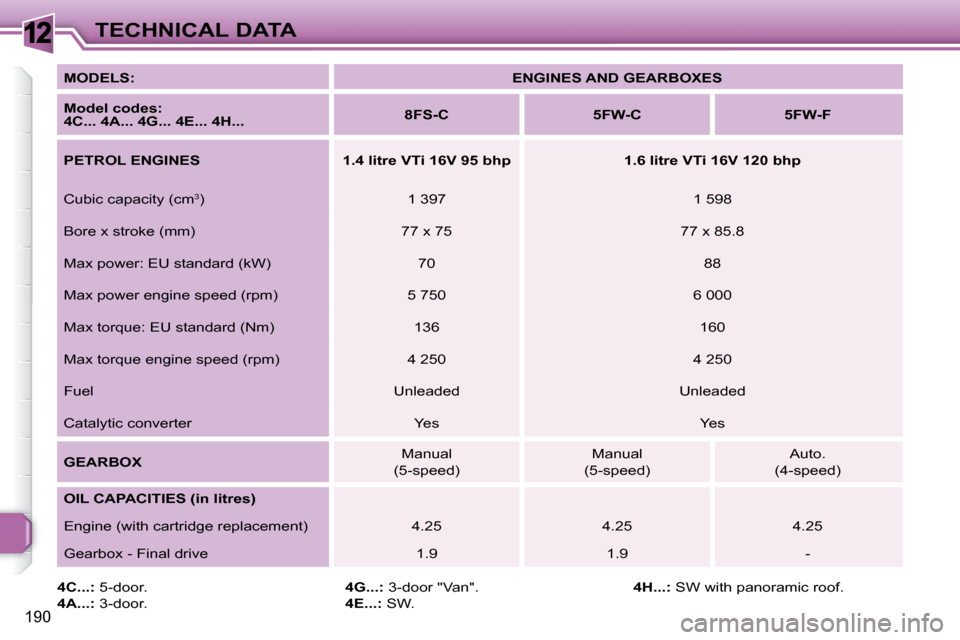

Page 187 of 260
12
190
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4A... 4G... 4E... 4H...
8FS-C 5FW-C 5FW-F
PETROL ENGINES 1.4 litre VTi 16V 95 bhp 1.6 litre VTi 16V 120 bhp
Cubic capacity (cm 3
) 1 397 1 598
B o r e x s t r o k e ( m m ) 7 7 x 7 5 7 7 x 8 5 . 8
M a x p o w e r : E U s t a n d a r d ( k W ) 70 88
M a x p o w e r e n g i n e s p e e d ( r p m ) 5 750 6 000
M a x t o r q u e : E U s t a n d a r d ( N m ) 136 160
M a x t o r q u e e n g i n e s p e e d ( r p m ) 4 250 4 250
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Auto.
(4-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 4.25 4.25 4.25
G e a r b o x - F i n a l d r i v e 1.9 1.9 -
4C...: 5-door.
4A...: 3-door.
4G...: 3-door "Van".
4E...: SW.
4H...: SW with panoramic roof.

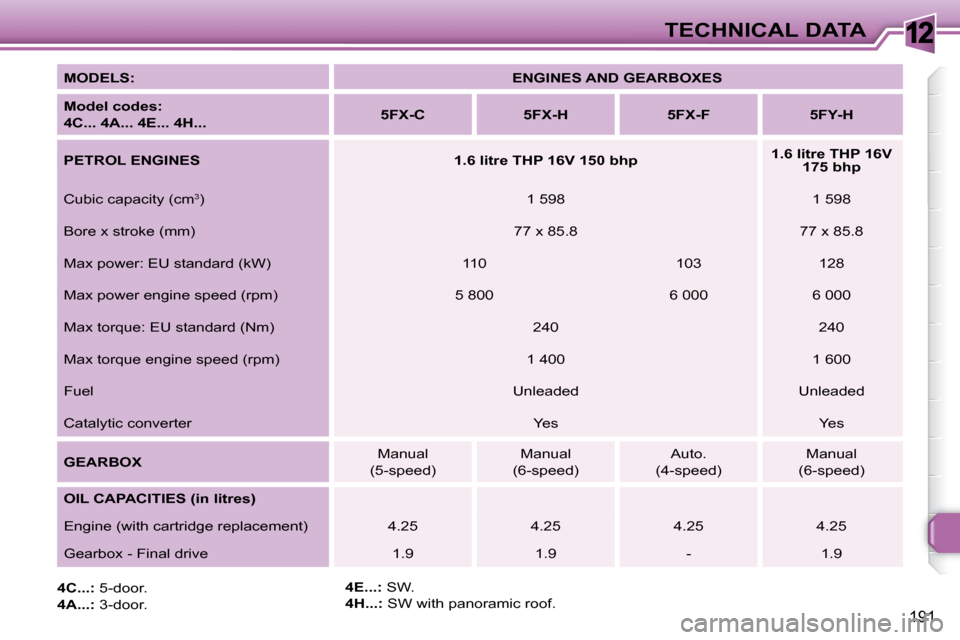

Page 188 of 260
12
191
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4A... 4E... 4H...
5FX-C 5FX-H 5FX-F 5FY-H
PETROL ENGINES 1.6 litre THP 16V 150 bhp
1.6 litre THP 16V
175 bhp
Cubic capacity (cm 3
) 1 598 1 598
B o r e x s t r o k e ( m m ) 7 7 x 8 5 . 8 7 7 x 8 5 . 8
M a x p o w e r : E U s t a n d a r d ( k W ) 110 103 128
M a x p o w e r e n g i n e s p e e d ( r p m ) 5 800 6 000 6 000
M a x t o r q u e : E U s t a n d a r d ( N m ) 240 240
M a x t o r q u e e n g i n e s p e e d ( r p m ) 1 400 1 600
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
GEARBOX Manual
(5-speed) Manual
(6-speed) Auto.
(4-speed) Manual
(6-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 4.25 4.25 4.25 4.25
G e a r b o x - F i n a l d r i v e 1.9 1.9 - 1.9
4C...: 5-door.
4A...: 3-door.
4E...: SW.
4H...: SW with panoramic roof.

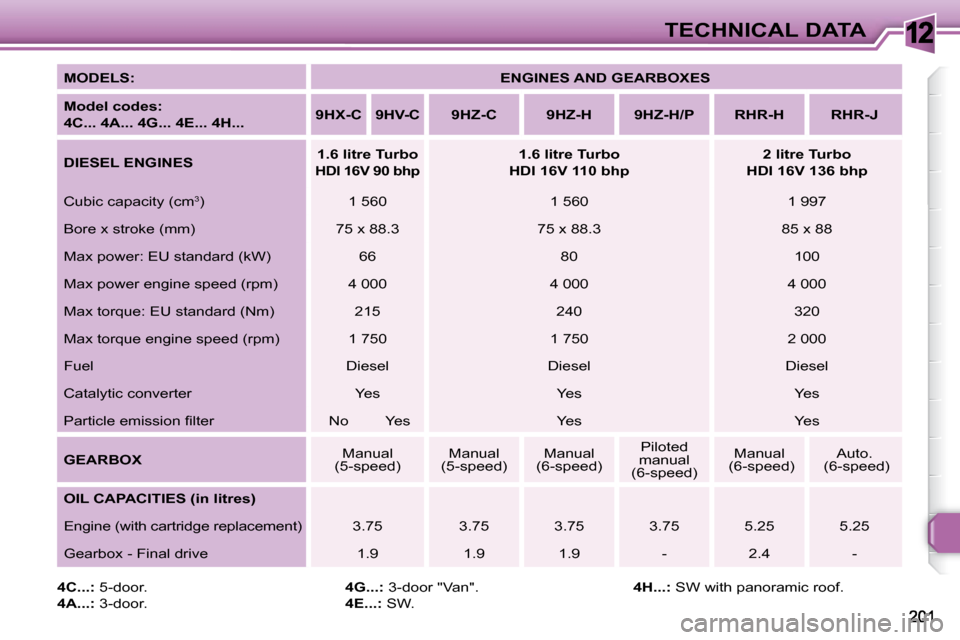

Page 189 of 260
12TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4A... 4G... 4E... 4H...
9HX-C 9HV-C 9HZ-C 9HZ-H 9HZ-H/P RHR-H RHR-J
DIESEL ENGINES
1.6 litre Turbo
HDI 16V 90 bhp
1.6 litre Turbo
HDI 16V 110 bhp
2 litre Turbo
HDI 16V 136 bhp
Cubic capacity (cm 3
) 1 560 1 560 1 997
B o r e x s t r o k e ( m m ) 7 5 x 8 8 . 3 7 5 x 8 8 . 3 8 5 x 8 8
M a x p o w e r : E U s t a n d a r d ( k W ) 66 80 100
M a x p o w e r e n g i n e s p e e d ( r p m ) 4 000 4 000 4 000
M a x t o r q u e : E U s t a n d a r d ( N m ) 215 240 320
M a x t o r q u e e n g i n e s p e e d ( r p m ) 1 750 1 750 2 000
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
P a r t i c l e e m i s s i o n fi l t e r No Yes Yes Yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(6-speed) Piloted
manual
(6-speed) Manual
(6-speed) Auto.
(6-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 3.75 3.75 3.75 3.75 5.25 5.25
G e a r b o x - F i n a l d r i v e 1.9 1.9 1.9 - 2.4 -
4C...: 5-door.
4A...: 3-door.
4G...: 3-door "Van".
4E...: SW.
4H...: SW with panoramic roof.

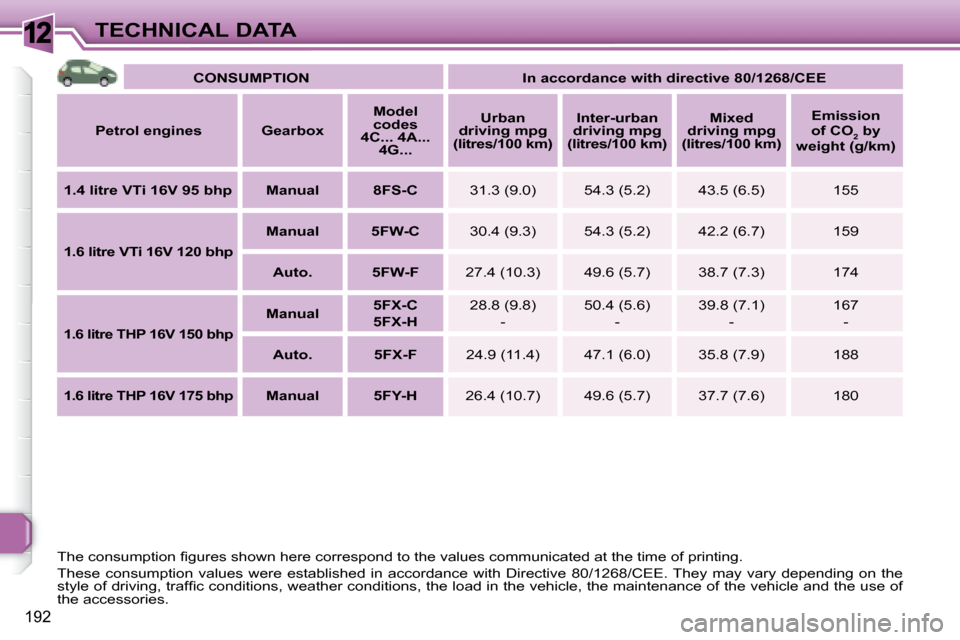

Page 190 of 260
12
192
TECHNICAL DATA
CONSUMPTION In accordance with directive 80/1268/CEE
Petrol engines Gearbox
Model
codes
4C... 4A... 4G...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission
of CO 2 by
weight (g/km)
1.4 litre VTi 16V 95 bhp Manual 8FS-C 31.3 (9.0) 54.3 (5.2) 43.5 (6.5) 155
1.6 litre VTi 16V 120 bhp
Manual 5FW-C 30.4 (9.3) 54.3 (5.2) 42.2 (6.7) 159
Auto. 5FW-F 27.4 (10.3) 49.6 (5.7) 38.7 (7.3) 174
1.6 litre THP 16V 150 bhp
Manual
5FX-C
5FX-H 28.8 (9.8)
- 50.4 (5.6)
- 39.8 (7.1)
- 167
-
Auto. 5FX-F 24.9 (11.4) 47.1 (6.0) 35.8 (7.9) 188
1.6 litre THP 16V 175 bhp
Manual 5FY-H 26.4 (10.7) 49.6 (5.7) 37.7 (7.6) 180
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with Di rective 80/1268/CEE. They may vary depending on the
s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f
the accessories.
