i
!

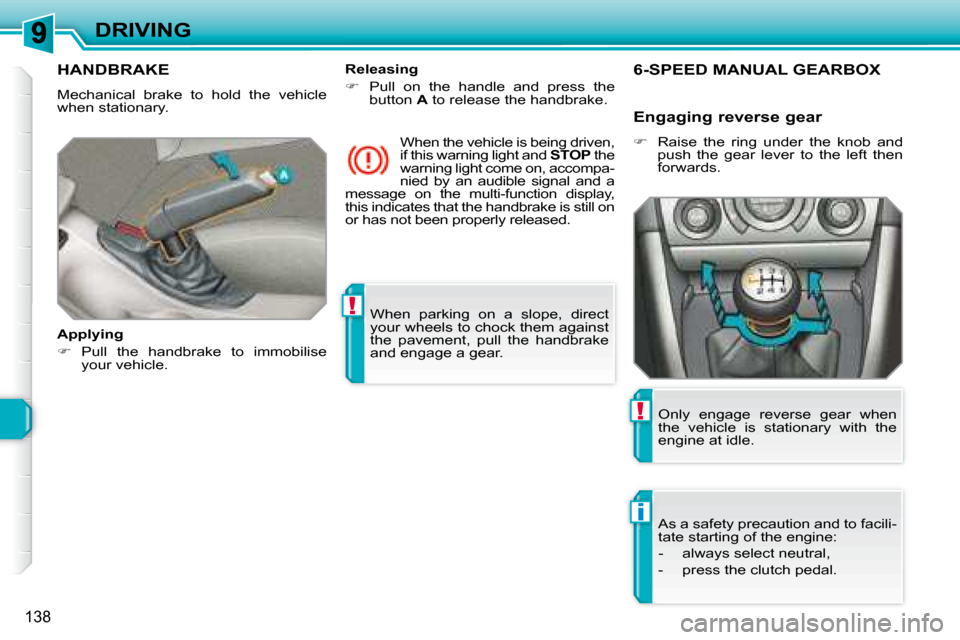

138
DRIVING When parking on a slope, direct
your wheels to chock them against
the pavement, pull the handbrake
and engage a gear.
HANDBRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying

 Pull the handbrake to immobilise
your vehicle. When the vehicle is being driven,
if this warning light and
STOP the
warning light come on, accompa-
nied by an audible signal and a
message on the multi-function display,
this indicates that the handbrake is still on
or has not been properly released.
Releasing

 Pull on the handle and press the
button A to release the handbrake.
6-SPEED MANUAL GEARBOX
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear

 Raise the ring under the knob and
push the gear lever to the left then
forwards.

!!
i

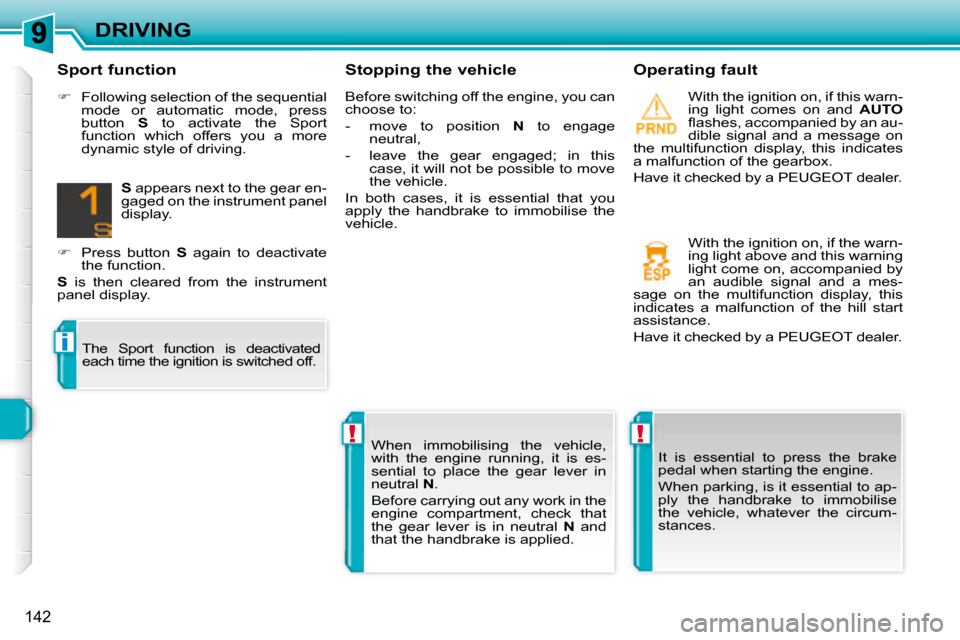

142
DRIVING Stopping the vehicle Operating fault With the ignition on, if this warn-
ing light comes on and AUTO
fl ashes, accompanied by an au-
dible signal and a message on
the multifunction display, this indicates
a malfunction of the gearbox.
Have it checked by a PEUGEOT dealer.
It is essential to press the brake
pedal when starting the engine.
When parking, is it essential to ap-
ply the handbrake to immobilise
the vehicle, whatever the circum-
stances.
When immobilising the vehicle,
with the engine running, it is es-
sential to place the gear lever in
neutral
N .
Before carrying out any work in the
engine compartment, check that
the gear lever is in neutral N and
that the handbrake is applied. With the ignition on, if the warn-
ing light above and this warning
light come on, accompanied by
an audible signal and a mes-
sage on the multifunction display, this
indicates a malfunction of the hill start
assistance.
Have it checked by a PEUGEOT dealer.
Sport function

 Following selection of the sequential
mode or automatic mode, press
button S to activate the Sport
function which offers you a more
dynamic style of driving.

S appears next to the gear en-
gaged on the instrument panel
display.

 Press button S again to deactivate
the function.

S is then cleared from the instrument
panel display.
The Sport function is deactivated
each time the ignition is switched off. Before switching off the engine, you can
choose to:
- move to position
N to engage
neutral,
- leave the gear engaged; in this case, it will not be possible to move
the vehicle.
In both cases, it is essential that you
apply the handbrake to immobilise the
vehicle.

11
i

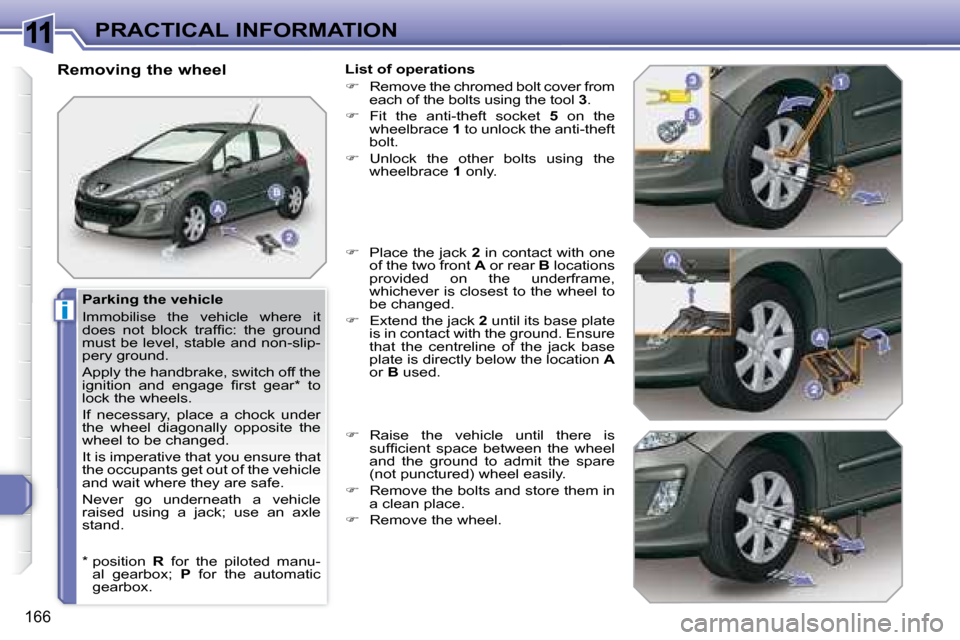

166
PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-slip-
pery ground.
Apply the handbrake, switch off the
ignition and engage fi rst gear * to
lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait where they are safe.
Never go underneath a vehicle
raised using a jack; use an axle
stand.
Removing the wheel
List of operations

 Remove the chromed bolt cover from
each of the bolts using the tool 3 .

 Fit the anti-theft socket 5 on the
wheelbrace 1 to unlock the anti-theft
bolt.

 Unlock the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe,
whichever is closest to the wheel to
be changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is
suffi cient space between the wheel
and the ground to admit the spare
(not punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.
* position R for the piloted manu-
al gearbox; P for the automatic
gearbox.
