12TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

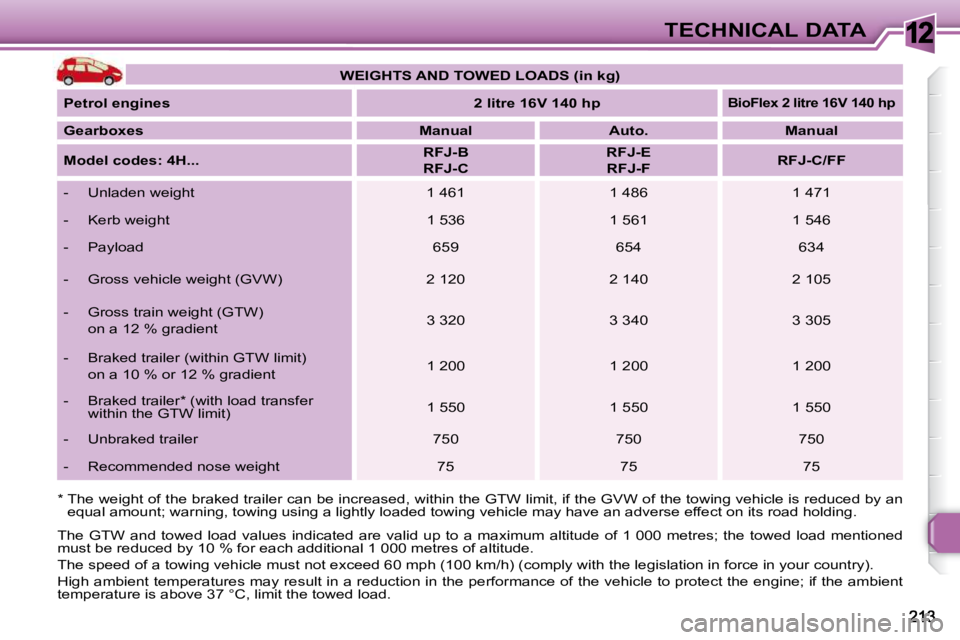

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
2
litre
16V 140
hp

BioFlex 2
litre
16V 140
hp

Gearboxes
Manual Auto. Manual

Model codes: 4H...
RFJ-B
RFJ-C
RFJ-E
RFJ-F
RFJ-C/FF
- Unladen weight 1 461 1 486 1 471
- Kerb weight 1 536 1 561 1 546
- Payload 659 654 634
- Gross vehicle weight (GVW) 2 120 2 140 2 105
- Gross train weight (GTW)
on a 12 % gradient 3 320 3 340 3 305
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 200 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 550 1 550 1 550
- Unbraked trailer 750 750 750
- Recommended nose weight 75 75 75

12
217
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

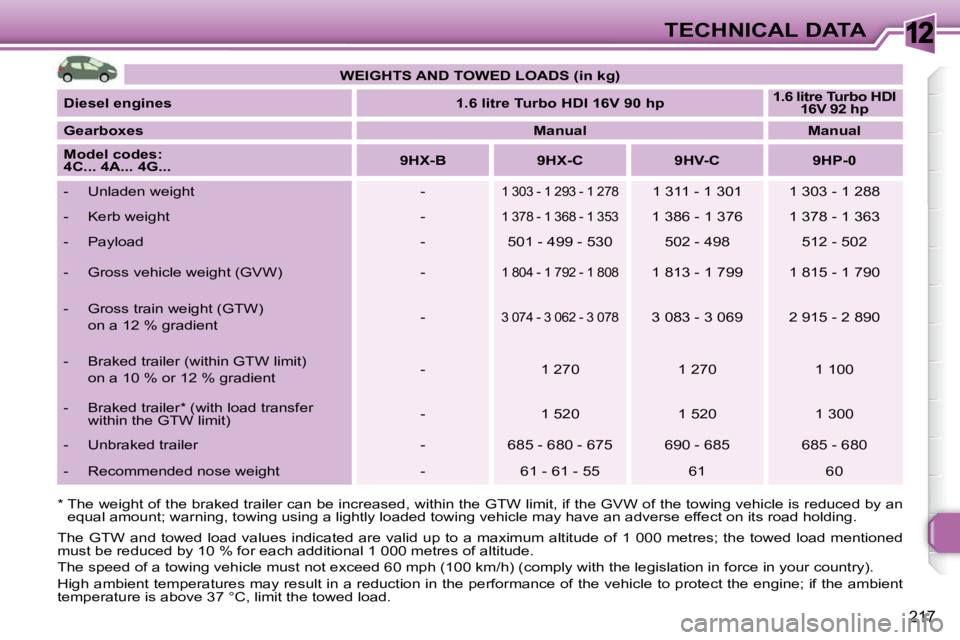

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6
litre
Turbo HDI 16V 90
hp
1.6
litre
Turbo HDI
16V 92
hp

Gearboxes
Manual Manual

Model codes:
4C... 4A... 4G...
9HX-B 9HX-C 9HV-C 9HP-0
- Unladen weight -
1 303 - 1 293 - 1 278 1 311 - 1 301 1 303 - 1 288
- Kerb weight -
1 378 - 1 368 - 1 353 1 386 - 1 376 1 378 - 1 363
- Payload - 501 - 499 - 530 502 - 498 512 - 502
- Gross vehicle weight (GVW) -
1 804 - 1 792 - 1 808 1 813 - 1 799 1 815 - 1 790
- Gross train weight (GTW)
on a 12 % gradient -
3 074 - 3 062 - 3 078 3 083 - 3 069 2 915 - 2 890
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient - 1 270 1 270 1 100
- Braked trailer * (with load transfer within the GTW limit) - 1 520 1 520 1 300
- Unbraked trailer - 685 - 680 - 675 690 - 685 685 - 680
- Recommended nose weight - 61 - 61 - 55 61 60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
218
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal .amount; warning, towing using a lightly loaded t owing vehicle may have an adverse effect on its road holding.

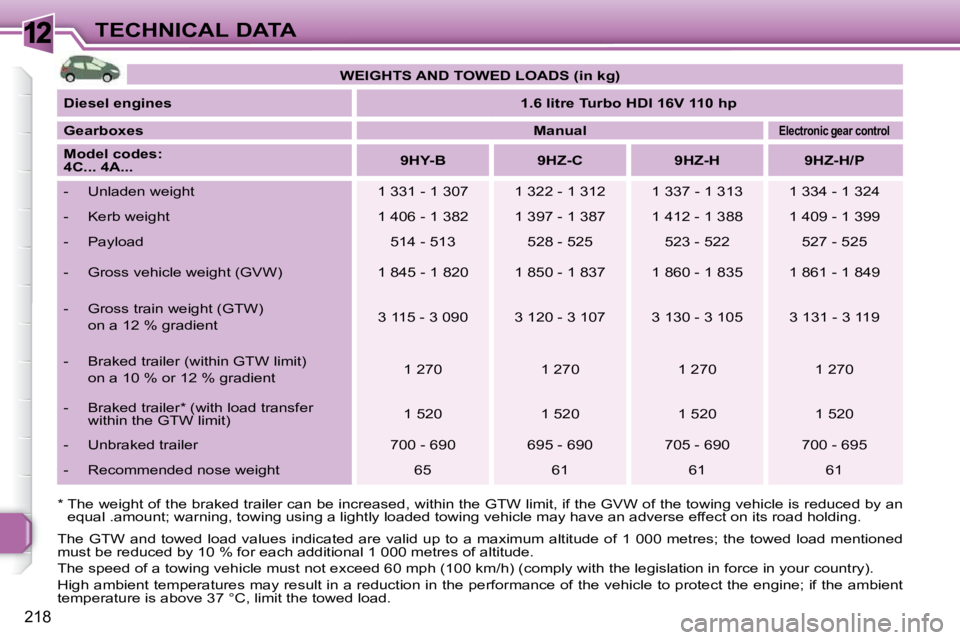

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6
litre
Turbo
HDI 16V 110
hp

Gearboxes
Manual

Electronic gear control

Model codes:
4C... 4A...
9HY-B 9HZ-C 9HZ-H 9HZ-H/P
- Unladen weight 1 331 - 1 307 1 322 - 1 312 1 337 - 1 313 1 334 - 1 324
- Kerb weight 1 406 - 1 382 1 397 - 1 387 1 412 - 1 388 1 409 - 1 399
- Payload 514 - 513 528 - 525 523 - 522 5 27 - 525
- Gross vehicle weight (GVW) 1 845 - 1 820 1 850 - 1 837 1 860 - 1 835 1 861 - 1 849
- Gross train weight (GTW)
on a 12 % gradient 3 115 - 3 090 3 120 - 3 107 3 130 - 3 105 3
131 - 3 119
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 270 1 270 1 270 1 270
- Braked trailer * (with load transfer within the GTW limit) 1 520 1 520 1 520 1 520
- Unbraked trailer 700 - 690 695 - 690 705 - 6 90 700 - 695
- Recommended nose weight 65 61 61 61
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

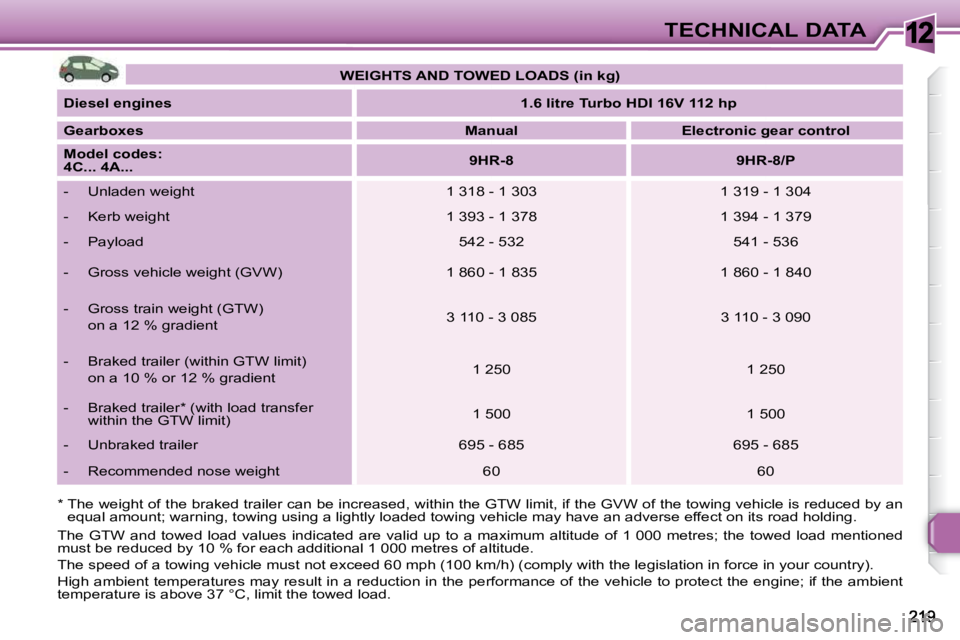

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6
litre
Turbo HDI 16V 112
hp

Gearboxes
Manual Electronic gear control

Model codes:
4C... 4A...
9HR-8 9HR-8/P
- Unladen weight 1 318 - 1 303 1 319 - 1 304
- Kerb weight 1 393 - 1 378 1 394 - 1 379
- Payload 542 - 532 541 - 536
- Gross vehicle weight (GVW) 1 860 - 1 835 1 860 - 1 840
- Gross train weight (GTW)
on a 12 % gradient 3 110 - 3 085 3 110 - 3 090
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 250 1 250
- Braked trailer * (with load transfer within the GTW limit) 1 500 1 500
- Unbraked trailer 695 - 685 695 - 685
- Recommended nose weight 60 60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
220
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

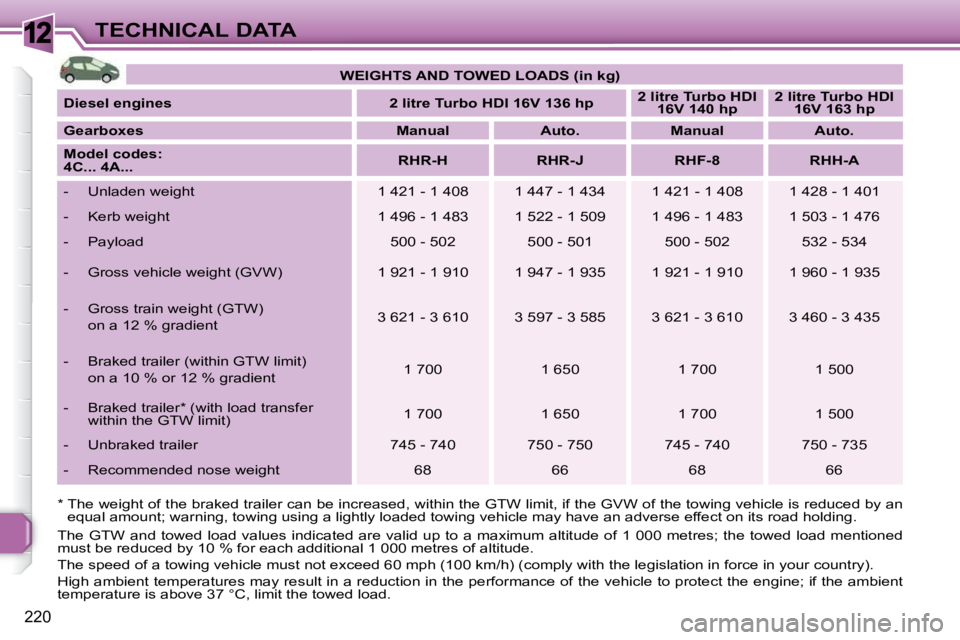

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines 2
litre
Turbo HDI 16V 136
hp
2
litre
Turbo HDI
16V 140
hp
2
litre
Turbo HDI
16V 163
hp

Gearboxes Manual Auto. Manual Auto.

Model codes:

4C... 4A...
RHR-H RHR-J RHF-8 RHH-A
- Unladen weight 1 421 - 1 408 1 447 - 1 434 1 421 - 1 408 1 428 - 1 401
- Kerb weight 1 496 - 1 483 1 522 - 1 509 1 496 - 1 483 1 503 - 1 476
- Payload 500 - 502 500 - 501 500 - 502 5 32 - 534
- Gross vehicle weight (GVW) 1 921 - 1 910 1 947 - 1 935 1 921 - 1 910 1 960 - 1 935
- Gross train weight (GTW)
on a 12 % gradient 3 621 - 3 610 3 597 - 3 585 3 621 - 3 610 3
460 - 3 435
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 700 1 650 1 700 1 500
- Braked trailer * (with load transfer within the GTW limit) 1 700 1 650 1 700 1 500
- Unbraked trailer 745 - 740 750 - 750 745 - 7 40 750 - 735
- Recommended nose weight 68 66 68 66
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
221
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

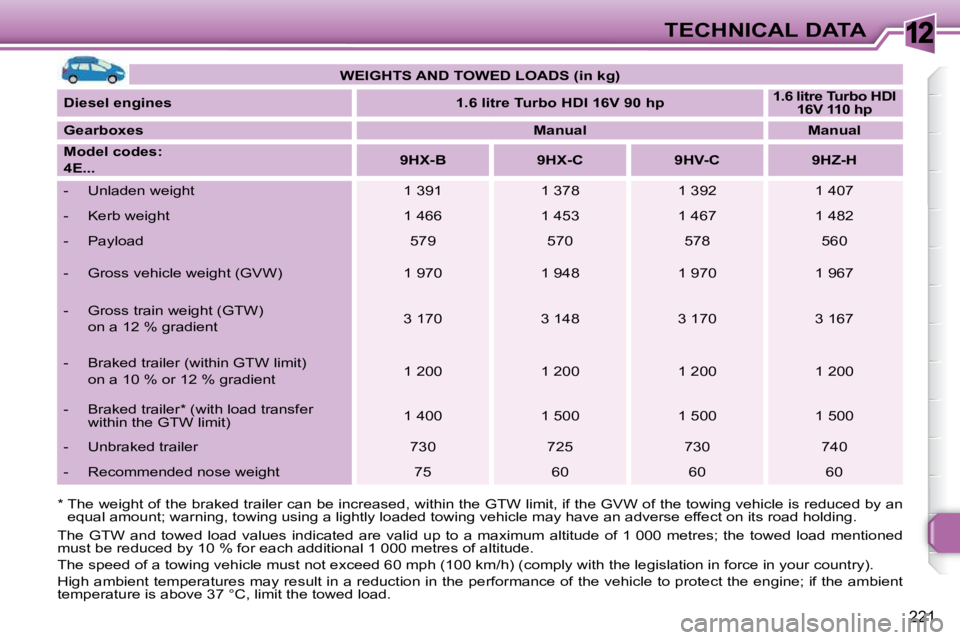

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6
litre
Turbo HDI 16V 90
hp
1.6
litre
Turbo HDI
16V 110
hp

Gearboxes
Manual Manual

Model codes:
4E...
9HX-B 9HX-C 9HV-C 9HZ-H
- Unladen weight 1 391 1 378 1 392 1 407
- Kerb weight 1 466 1 453 1 467 1 482
- Payload 579 570 578 560
- Gross vehicle weight (GVW) 1 970 1 948 1 970 1 967
- Gross train weight (GTW)
on a 12 % gradient 3 170 3 148 3 170 3 167
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 200 1 200 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 400 1 500 1 500 1 500
- Unbraked trailer 730 725 730 740
- Recommended nose weight 75 60 60 60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
222
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

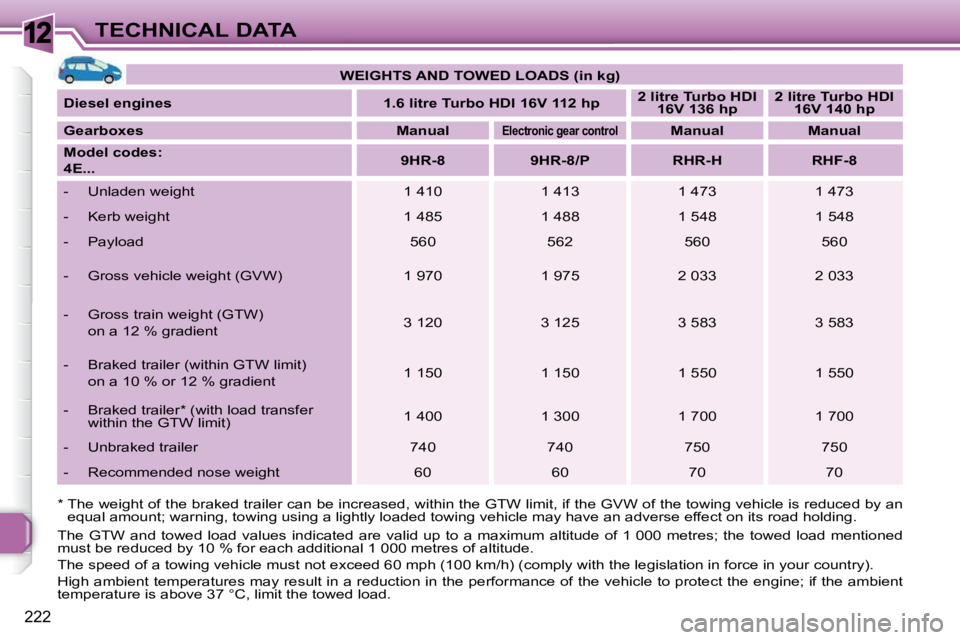

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines 1.6
litre
Turbo HDI 16V 112
hp
2
litre
Turbo HDI
16V 136
hp
2
litre
Turbo HDI
16V 140
hp

Gearboxes Manual

Electronic gear control
Manual Manual

Model codes:
4E...
9HR-8 9HR-8/P RHR-H RHF-8
- Unladen weight 1 410 1 413 1 473 1 473
- Kerb weight 1 485 1 488 1 548 1 548
- Payload 560 562 560 560
- Gross vehicle weight (GVW) 1 970 1 975 2 033 2 033
- Gross train weight (GTW)
on a 12 % gradient 3 120 3 125 3 583 3 583
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 150 1 150 1 550 1 550
- Braked trailer * (with load transfer within the GTW limit) 1 400 1 300 1 700 1 700
- Unbraked trailer 740 740 750 750
- Recommended nose weight 60 60 70 70

12
223
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6
litre
Turbo HDI
16V 90
hp
1.6
litre
Turbo HDI
16V 110
hp

Gearboxes
Manual Manual

Model codes:
4H...
9HX-B 9HX-C 9HZ-C 9HZ-H
- Unladen weight 1 480 1 467 1 486 1 495
- Kerb weight 1 555 1 542 1 561 1 570
- Payload 640 633 654 655
- Gross vehicle weight (GVW) 2 120 2 100 2 140 2 150
- Gross train weight (GTW)
on a 12 % gradient 3 120 3 100 3 140 3 150
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 000 1 000 1 000 1 000
- Braked trailer * (with load transfer within the GTW limit) 1 350 1 400 1 400 1 400
- Unbraked trailer 750 750 740 750
- Recommended nose weight 75 60 75 60

12
224
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

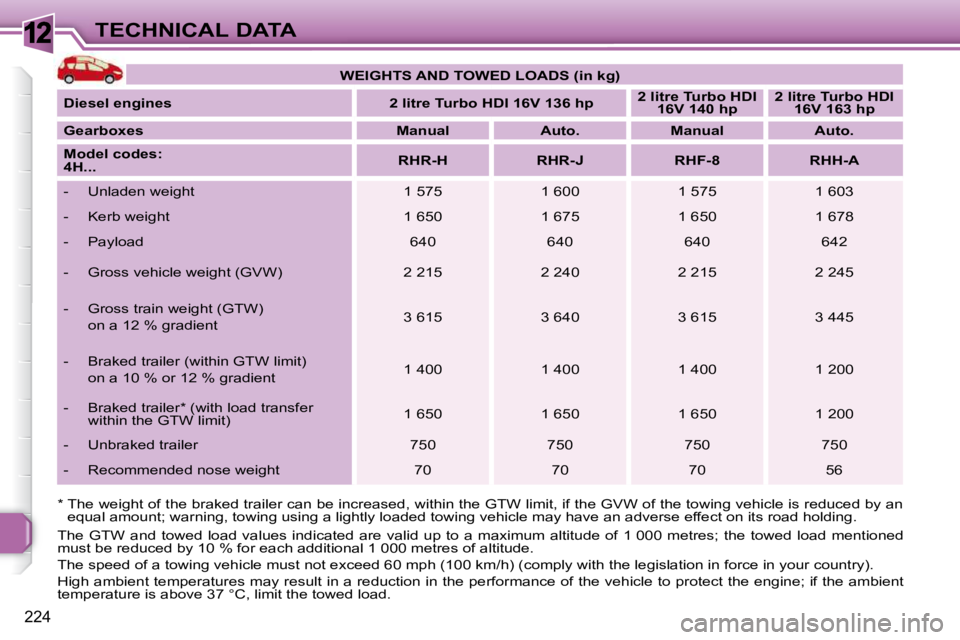

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines 2
litre
Turbo HDI 16V 136
hp
2
litre
Turbo HDI
16V 140
hp
2
litre
Turbo HDI
16V 163
hp

Gearboxes Manual Auto. Manual Auto.

Model codes:
4H...
RHR-H RHR-J RHF-8 RHH-A
- Unladen weight 1 575 1 600 1 575 1 603
- Kerb weight 1 650 1 675 1 650 1 678
- Payload 640 640 640 642
- Gross vehicle weight (GVW) 2 215 2 240 2 215 2 245
- Gross train weight (GTW)
on a 12 % gradient 3 615 3 640 3 615 3 445
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 400 1 400 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 650 1 650 1 650 1 200
- Unbraked trailer 750 750 750 750
- Recommended nose weight 70 70 70 56

12
225
TECHNICAL DATA

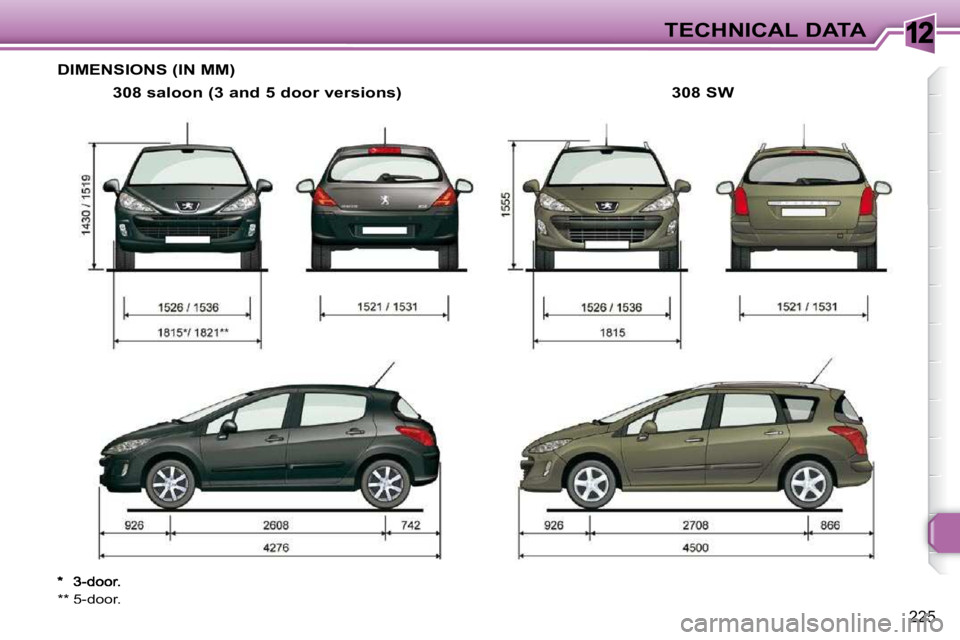

DIMENSIONS (IN MM)
308 saloon (3 and 5 door versions)
*
** 5-door.
308 SW
