PEUGEOT 308 SW BL 2009 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 308 SW BL, Model: PEUGEOT 308 SW BL 2009Pages: 329, PDF Size: 25.38 MB
Page 201 of 329
11PRACTICAL INFORMATION

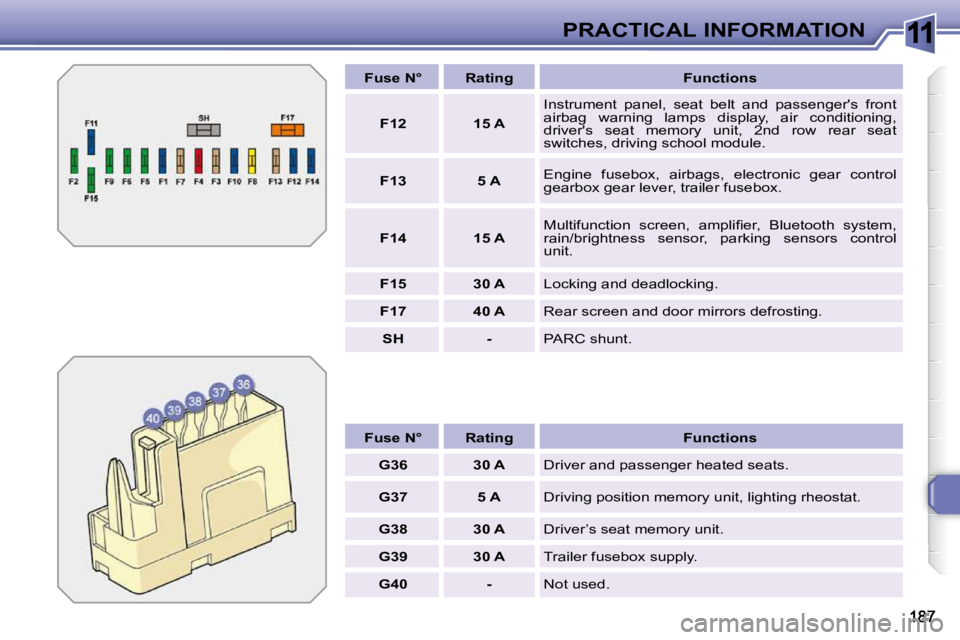

Fuse N° Rating Functions
G36 30 A Driver and passenger heated seats.
G37 5 A Driving position memory unit, lighting rheostat.
G38 30 A Driver’s seat memory unit.
G39 30 A T r a i l e r f u s e b o x s u p p l y .
G40 - Not used.
Fuse N° Rating Functions
F12 15 A Instrument panel, seat belt and passenger's front
airbag warning lamps display, air conditioning,
driver's seat memory unit, 2nd row rear seat
switches, driving school module.
F13 5 A E n g i n e f u s e b o x , a i r b a g s , e l e c t r o n i c g e a r c o n t r o l
g e a r b o x g e a r l e v e r , t r a i l e r f u s e b o x .
F14 15 A M u l t i f u n c t i o n s c r e e n , a m p l i fi e r , B l u e t o o t h s y s t e m ,
rain/brightness sensor, parking sensors control
unit.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and door mirrors defrosting.
SH - PARC shunt.
Page 202 of 329
11
188
PRACTICAL INFORMATION

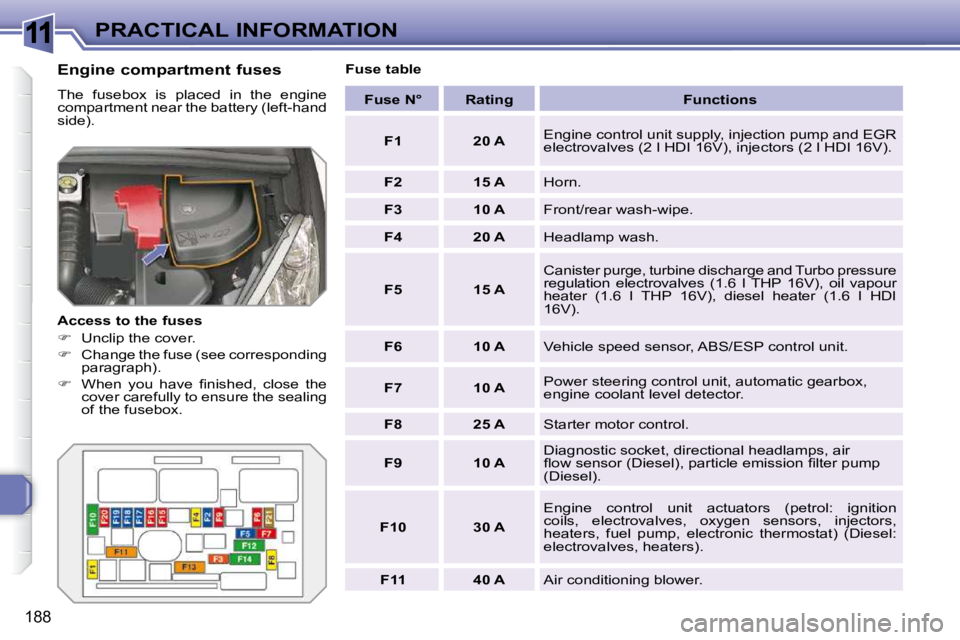

Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see corresponding
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, injection pump and EGR
e l e c t r o v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I 1 6 V ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Canister purge, turbine discharge and Turbo pressu
re
r e g u l a t i o n e l e c t r o v a l v e s ( 1 . 6 l T H P 1 6 V ) , o i l v a p o u r
h e a t e r ( 1 . 6 l T H P 1 6 V ) , d i e s e l h e a t e r ( 1 . 6 l H D I
1 6 V ) .
F6 10 A V e h i c l e s p e e d s e n s o r , A B S / E S P c o n t r o l u n i t .
F7 10 A P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
engine coolant level detector.
F8 25 A Starter motor control.
F9 10 A Diagnostic socket, directional headlamps, air
fl o w s e n s o r ( D i e s e l ) , p a r t i c l e e m i s s i o n fi l t e r p u m p
( D i e s e l ) .
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n
c o i l s , e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s ,
h e a t e r s , f u e l p u m p , e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l :
e l e c t r o v a l v e s , h e a t e r s ) .
F11 40 A Air conditioning blower.
Page 203 of 329
11
189
PRACTICAL INFORMATION

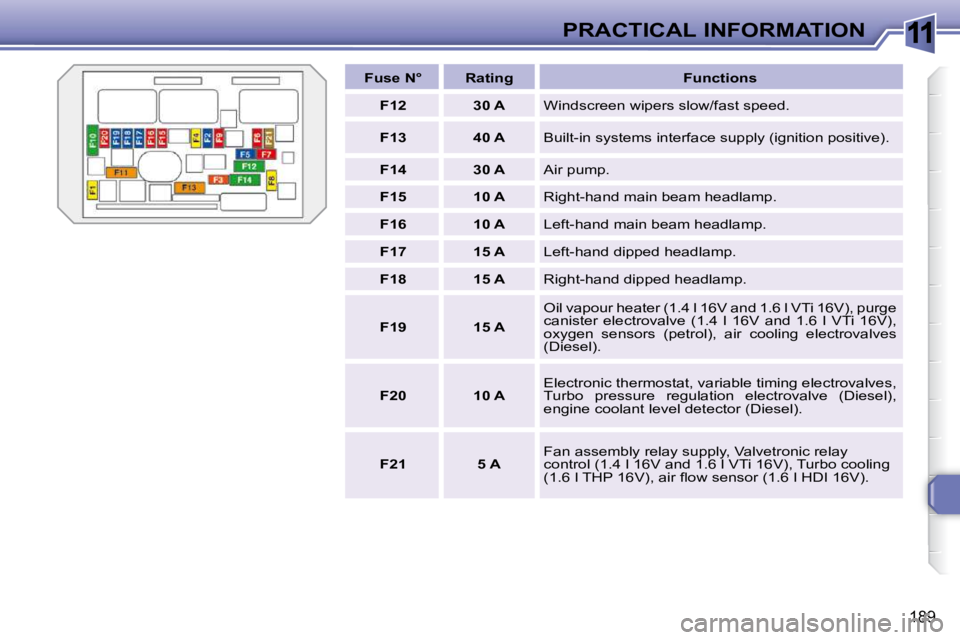

Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A Air pump.
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped headlamp.
F18 15 A Right-hand dipped headlamp.
F19 15 A O i l v a p o u r h e a t e r ( 1 . 4 l 1 6 V a n d 1 . 6 l V T i 1 6 V ) , p u r g e
c a n i s t e r e l e c t r o v a l v e ( 1 . 4 l 1 6 V a n d 1 . 6 l V T i 1 6 V ) ,
o x y g e n s e n s o r s ( p e t r o l ) , a i r c o o l i n g e l e c t r o v a l v e s
( D i e s e l ) .
F20 10 A Electronic thermostat, variable timing electrovalves,
T u r b o p r e s s u r e r e g u l a t i o n e l e c t r o v a l v e ( D i e s e l ) ,
e n g i n e c o o l a n t l e v e l d e t e c t o r ( D i e s e l ) .
F21 5 A Fan assembly relay supply, Valvetronic relay
c o n t r o l ( 1 . 4 l 1 6 V a n d 1 . 6 l V T i 1 6 V ) , T u r b o c o o l i n g
( 1 . 6 l T H P 1 6 V ) , a i r fl o w s e n s o r ( 1 . 6 l H D I 1 6 V ) .
Page 204 of 329
11
190

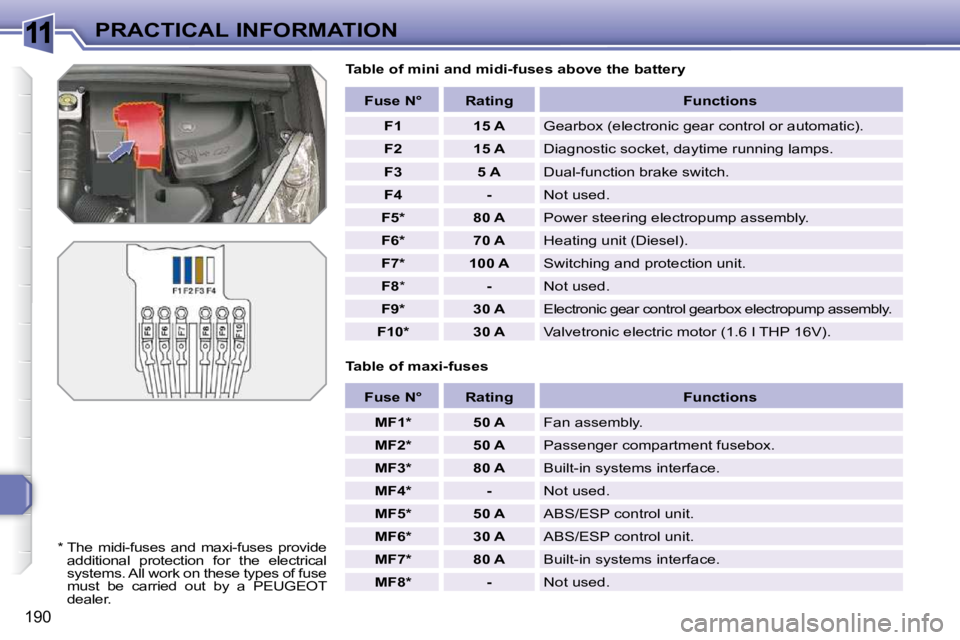

PRACTICAL INFORMATION Table of mini and midi-fuses above the battery
Table of maxi-fuses
Fuse N° Rating Functions
F1 15 A G e a r b o x ( e l e c t r o n i c g e a r c o n t r o l o r a u t o m a t i c ) .
F2 15 A Diagnostic socket, daytime running lamps.
F3 5 A Dual-function brake switch.
F4 - Not used.
F5 * 80 A Power steering electropump assembly.
F6 * 70 A H e a t i n g u n i t ( D i e s e l ) .
F7 * 100 A Switching and protection unit.
F8 * - Not used.
F9 * 30 A E l e c t r o n i c g e a r c o n t r o l g e a r b o x e l e c t r o p u m p a s s e m b l y .
F10 * 30 A V a l v e t r o n i c e l e c t r i c m o t o r ( 1 . 6 l T H P 1 6 V ) .
Fuse N° Rating Functions
MF1 * 50 A Fan assembly.
MF2 * 50 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF3 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF4 * - Not used.
MF5 * 50 A A B S / E S P c o n t r o l u n i t .
MF6 * 30 A A B S / E S P c o n t r o l u n i t .
MF7 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF8 * - Not used.
* T h e m i d i - f u s e s a n d m a x i - f u s e s p r o v i d e
additional protection for the electrical
systems. All work on these types of fuse
must be carried out by a PEUGEOT
dealer.
Page 205 of 329
11
191
PRACTICAL INFORMATION

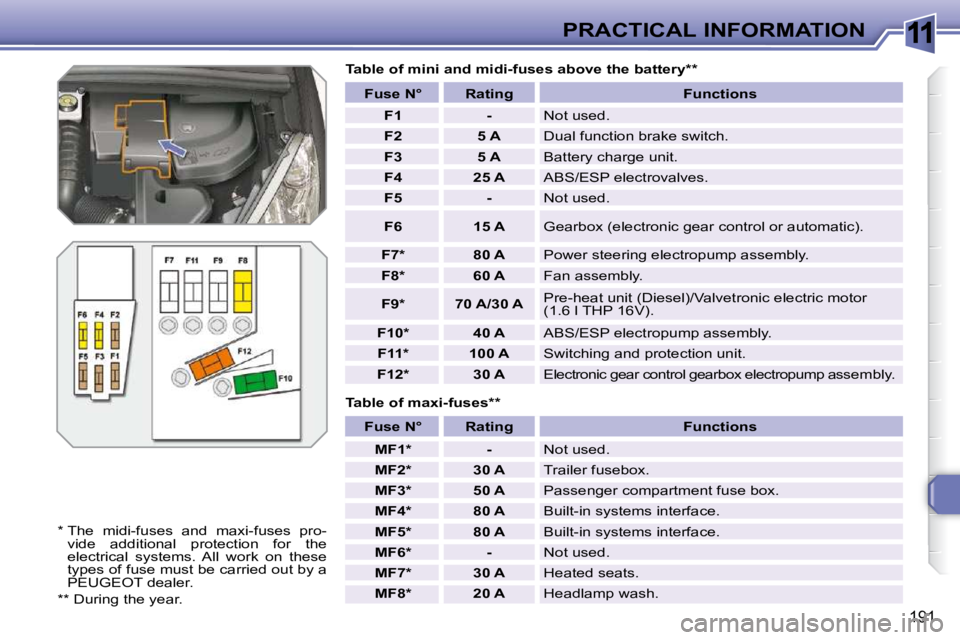

Table of maxi-fuses **
Table of mini and midi-fuses above the battery **
* T h e m i d i - f u s e s a n d m a x i - f u s e s p r o - vide additional protection for the
electrical systems. All work on these
types of fuse must be carried out by a
PEUGEOT dealer.
* * D u r i n g t h e y e a r .
Fuse N° Rating Functions
F1 - Not used.
F2 5 A Dual function brake switch.
F3 5 A B a t t e r y c h a r g e u n i t .
F4 25 A A B S / E S P e l e c t r o v a l v e s .
F5 - Not used.
F6 15 A G e a r b o x ( e l e c t r o n i c g e a r c o n t r o l o r a u t o m a t i c ) .
F7 * 80 A Power steering electropump assembly.
F8 * 60 A Fan assembly.
F9 * 70 A/30 A P r e - h e a t u n i t ( D i e s e l ) / V a l v e t r o n i c e l e c t r i c m o t o r
( 1 . 6 l T H P 1 6 V ) .
F10 * 40 A A B S / E S P e l e c t r o p u m p a s s e m b l y .
F11 * 100 A Switching and protection unit.
F12 * 30 A E l e c t r o n i c g e a r c o n t r o l g e a r b o x e l e c t r o p u m p a s s e m b l y .
Fuse N° Rating Functions
MF1 * - Not used.
MF2 * 30 A T r a i l e r f u s e b o x .
MF3 * 50 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF4 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF5 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF6 * - Not used.
MF7 * 30 A Heated seats.
MF8 * 20 A Headlamp wash.
Page 206 of 329
11
i
192
PRACTICAL INFORMATION

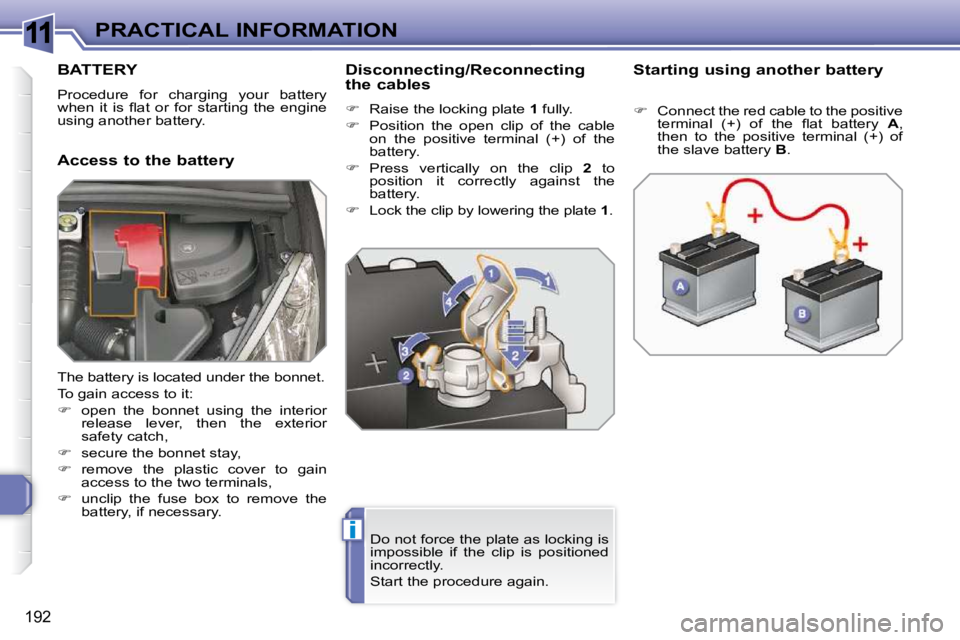

BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Disconnecting/Reconnecting
the cables
Raise the locking plate 1 fully.
Position the open clip of the cable
o n t h e p o s i t i v e t e r m i n a l ( + ) o f t h e
battery.
Press vertically on the clip 2 to
position it correctly against the
battery.
Lock the clip by lowering the plate 1 . Starting using another battery
Do not force the plate as locking is
impossible if the clip is positioned
incorrectly.
Start the procedure again.
Connect the red cable to the positive
t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
the slave battery B .
The battery is located under the bonnet.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
r e l e a s e l e v e r , t h e n t h e e x t e r i o r
safety catch,
secure the bonnet stay,
remove the plastic cover to gain
access to the two terminals,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
battery, if necessary.
Page 207 of 329
11
!
i
193
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r c o n t r o l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if problems are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.

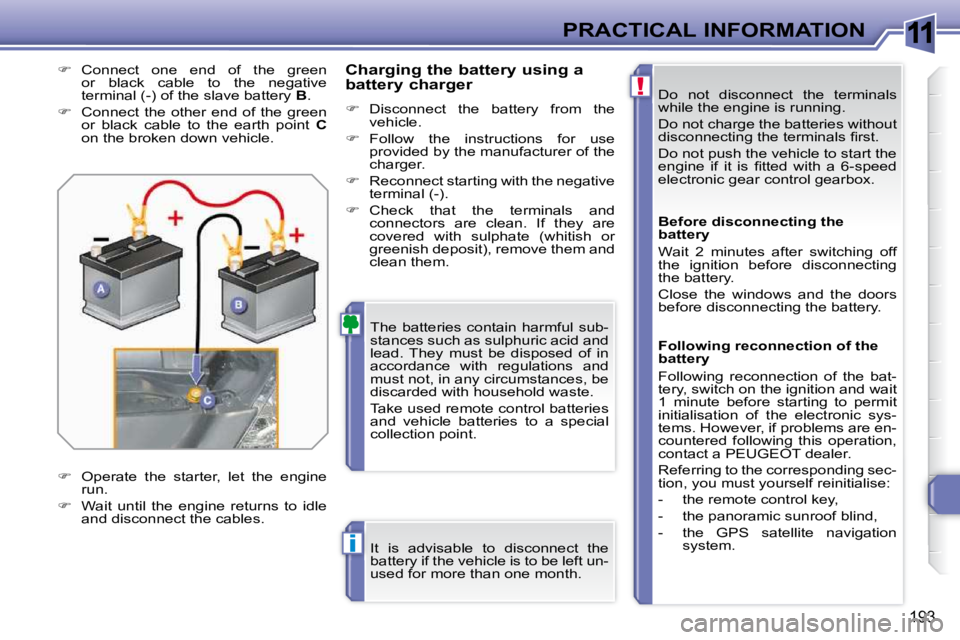

Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the negative
t e r m i n a l ( - ) .
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
g r e e n i s h d e p o s i t ) , r e m o v e t h e m a n d
clean them.
Connect one end of the green
or black cable to the negative
t e r m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 208 of 329
11
!
i

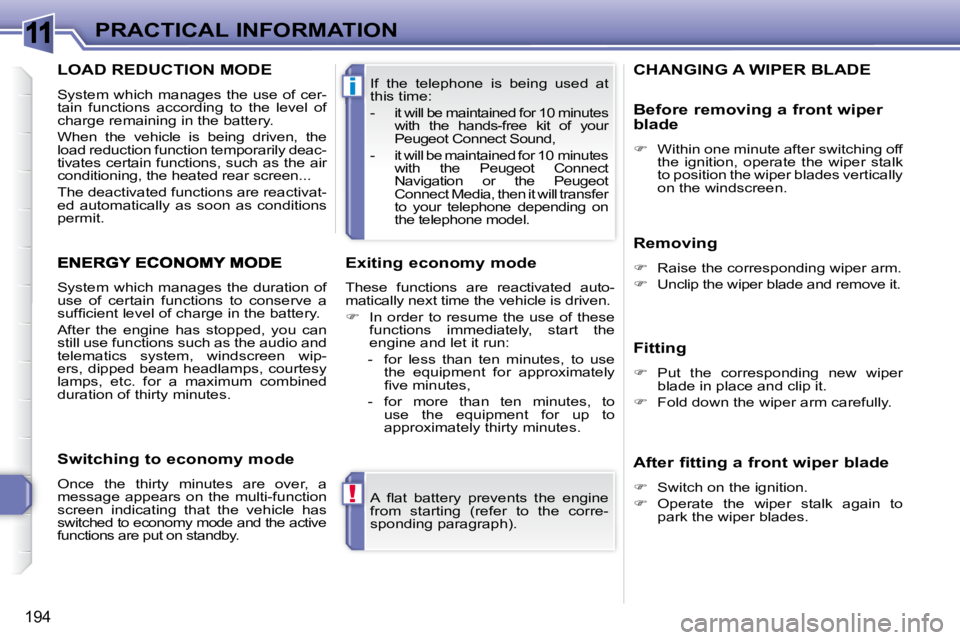

194
PRACTICAL INFORMATION A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
t h i s t i m e :
- it will be maintained for 10 minutes
with the hands-free kit of your
Peugeot Connect Sound,
- it will be maintained for 10 minutes with the Peugeot Connect
Navigation or the Peugeot
Connect Media, then it will transfer
to your telephone depending on
the telephone model.
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
l a m p s , e t c . f o r a m a x i m u m c o m b i n e d
duration of thirty minutes. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the
e n g i n e a n d l e t i t r u n :
- for less than ten minutes, to use t h e e q u i p m e n t f o r a p p r o x i m a t e l y
fi v e m i n u t e s ,
- for more than ten minutes, to use the equipment for up to
a p p r o x i m a t e l y t h i r t y m i n u t e s .
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
CHANGING A WIPER BLADE
Removing
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 209 of 329
11
!i
195

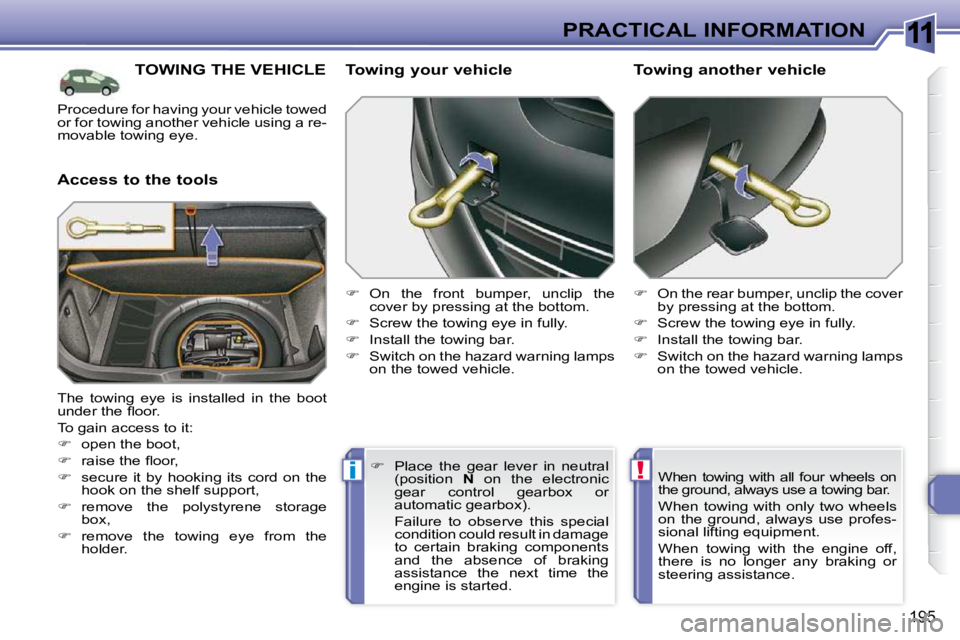

PRACTICAL INFORMATION
TOWING THE VEHICLE
Access to the tools Towing your vehicle
On the front bumper, unclip the
cover by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the boot
u n d e r t h e fl o o r .
T o g a i n a c c e s s t o i t :
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the
hook on the shelf support,
remove the polystyrene storage
b o x ,
remove the towing eye from the
holder. When towing with all four wheels on
the ground, always use a towing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the electronic
g e a r c o n t r o l g e a r b o x o r
a u t o m a t i c g e a r b o x ) .
Failure to observe this special condition could result in damage
to certain braking components
and the absence of braking
a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Page 210 of 329
11
!i
196
PRACTICAL INFORMATION
TOWING THE VEHICLE
Procedure for having your
vehicle towed or for towing
another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the
cover by pressing it on the left.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing it on the left.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the left-
hand side trim of the boot.
T o g a i n a c c e s s t o i t :
open the boot,
o p e n t h e a c c e s s fl a p i n t h e l e f t - h a n d
side trim,
remove the wheelbrace from its
support,
remove the towing eye from the
same support. When towing with all four wheels
on the ground, always use a tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the automatic
g e a r b o x ) .
Failure to observe this special condition could result in damage
to certain braking components
and the absence of braking
a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
