11
i
177
PRACTICAL INFORMATION
After changing a wheel
To store the punctured wheel in the
b o o t c o r r e c t l y , fi r s t r e m o v e t h e c e n -
tral cover.
When using the "space-saver" type
s p a r e w h e e l , d o n o t e x c e e d 5 0 m p h
( 8 0 k m / h ) .
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.

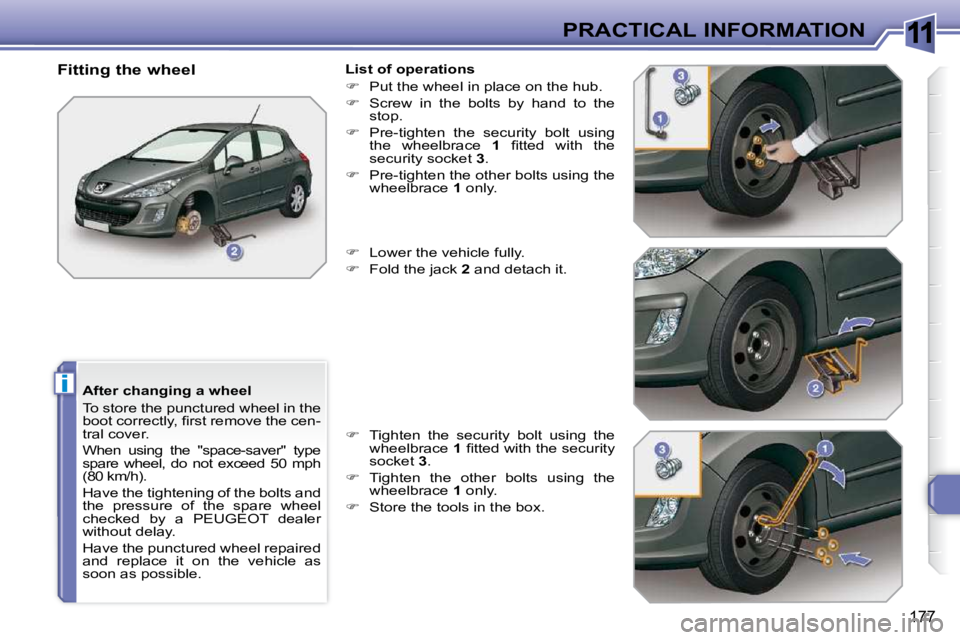

Fitting the wheel
List of operations
Put the wheel in place on the hub.
Screw in the bolts by hand to the
stop.
Pre-tighten the security bolt using
the wheelbrace 1 fi t t e d w i t h t h e
security socket 3 .
Pre-tighten the other bolts using the
wheelbrace 1 only.
Lower the vehicle fully.
Fold the jack 2 and detach it.
Tighten the security bolt using the
wheelbrace 1 fi t t e d w i t h t h e s e c u r i t y
socket 3 .
Tighten the other bolts using the
wheelbrace 1 only.
S t o r e t h e t o o l s i n t h e b o x .
Page 192 of 329
11
!
!
!
178
PRACTICAL INFORMATION Risk of electrocution
X e n o n b u l b s ( D 1 S - 3 5 W ) m u s t b e
replaced by a PEUGEOT dealer.
CHANGING A BULB

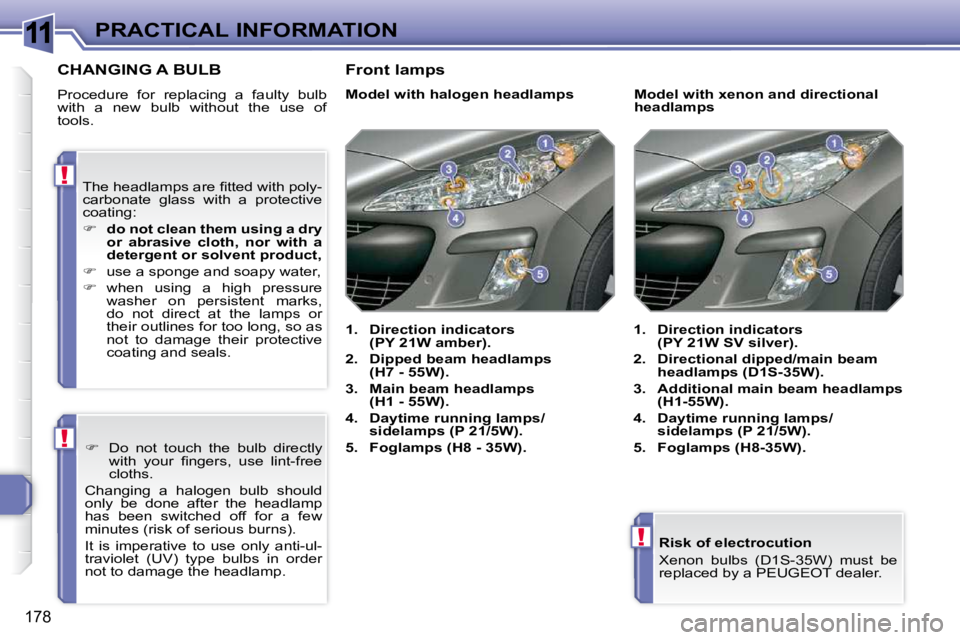

Procedure for replacing a faulty bulb
with a new bulb without the use of
tools. Model with halogen headlamps
1. Direction indicators
(PY
21W
amber).
2. Dipped
beam
headlamps
(H7
-
55W).
3. Main beam headlamps
(H1
-
55W).
4. Daytime
running lamps
/
sidelamps
(P 21/
5W
).
5. Foglamps
(H8
-
35W).
1. Direction indicators
(PY 21W SV silver).
2. Directional dipped/main beam
headlamps (D1S-35W).
3. Additional main beam headlamps
(H1-55W).
4. Daytime running lamps/
sidelamps (P 21/5W).
5. Foglamps (H8-35W).
Model with xenon and dir
ectional
headlamps
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
carbonate glass with a protective
c o a t i n g :
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
use a sponge and soapy water,
when using a high pressure
washer on persistent marks,
do not direct at the lamps or
their outlines for too long, so as
not to damage their protective
coating and seals.
Do not touch the bulb directly
w i t h y o u r fi n g e r s , u s e l i n t - f r e e
cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few
m i n u t e s ( r i s k o f s e r i o u s b u r n s ) .
It is imperative to use only anti-ul-
t r a v i o l e t ( U V ) t y p e b u l b s i n o r d e r
not to damage the headlamp. Front lamps
Page 193 of 329
11
i
!
179
PRACTICAL INFORMATION
Changing main beam headlamp
bulbs
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Compress the springs to release the
bulb.
Remove the bulb and change it
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing daytime running lamp/
sidelamp bulbs
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing dipped beam headlamp
bulbs
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Spread the springs to release the
bulb.
E x t r a c t t h e b u l b a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.

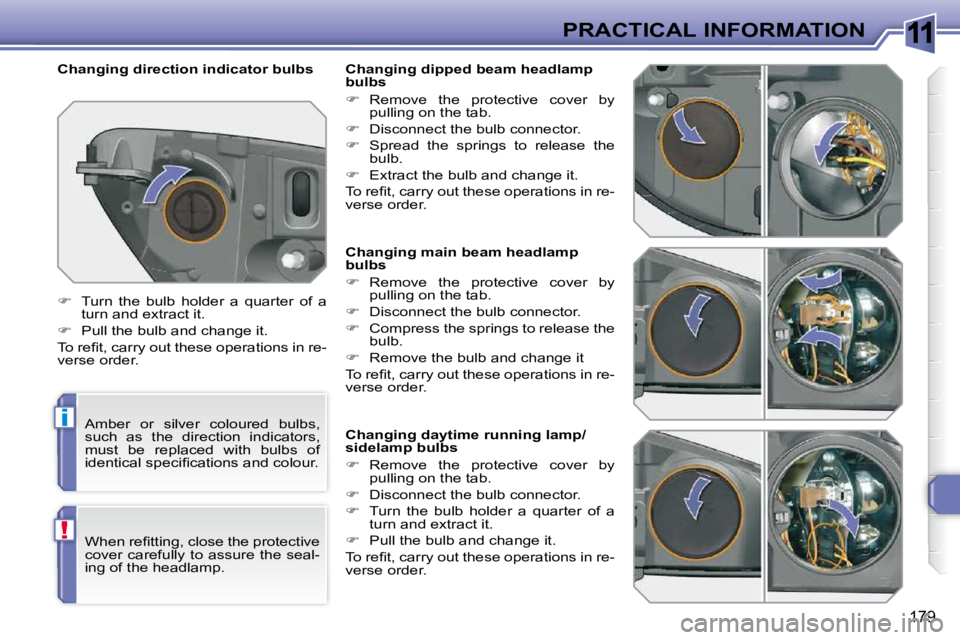

Changing direction indicator bulbs
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
i d e n t i c a l s p e c i fi c a t i o n s a n d c o l o u r .
W h e n r e fi t t i n g , c l o s e t h e p r o t e c t i v e
cover carefully to assure the seal-
ing of the headlamp.
Page 194 of 329
11
180

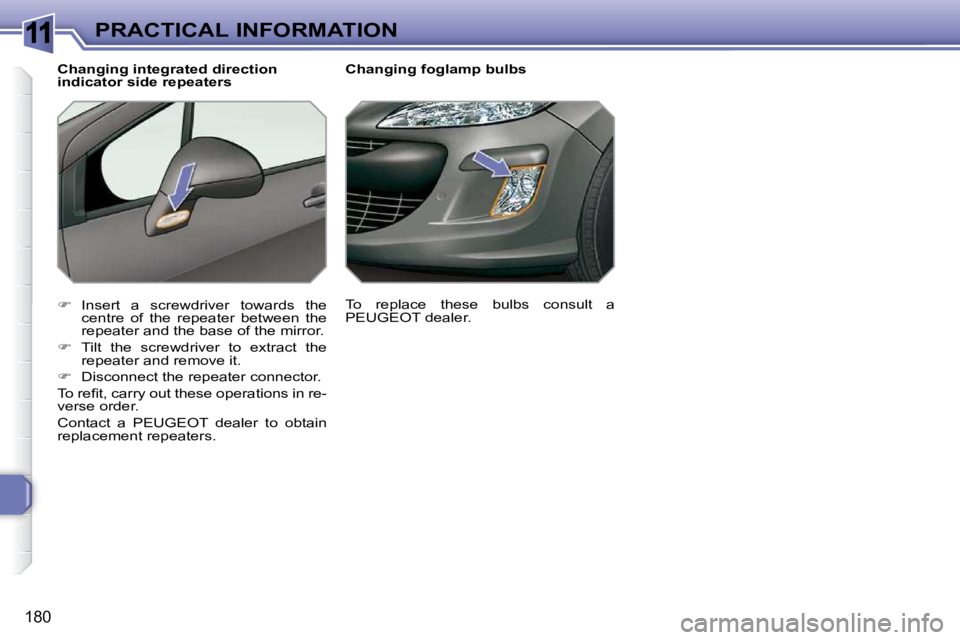

PRACTICAL INFORMATION Changing foglamp bulbs
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e
repeater and remove it.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
To replace these bulbs consult a
PEUGEOT dealer.
Page 195 of 329
11
i
181
PRACTICAL INFORMATION

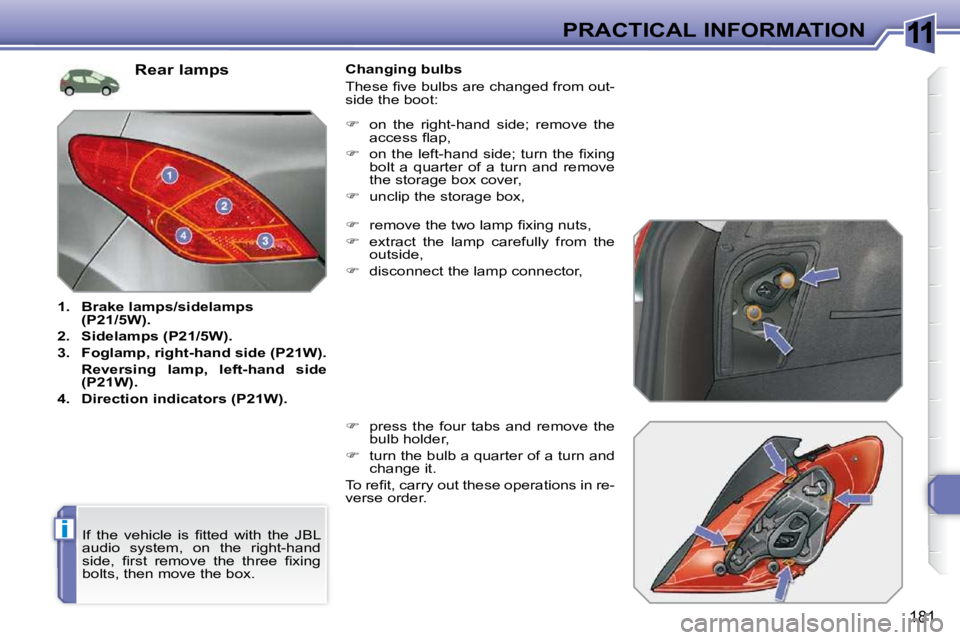

Rear lamps
1. Brake
lamps/
sidelamps
(
P21
/
5W
).
2. Sidelamps
(
P21
/
5W
).
3. Foglamp,
right-hand side (P21W).
Reversing lamp,
left-hand side
(P21W).
4. Direction indicators (
P21W
). Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
s i d e t h e b o o t :
r e m o v e t h e t w o l a m p fi x i n g n u t s ,
e x t r a c t t h e l a m p c a r e f u l l y f r o m t h e
outside,
disconnect the lamp connector,
press the four tabs and remove the
bulb holder,
turn the bulb a quarter of a turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
I f t h e v e h i c l e i s fi t t e d w i t h t h e J B L
audio system, on the right-hand
s i d e , fi r s t r e m o v e t h e t h r e e fi x i n g
b o l t s , t h e n m o v e t h e b o x .
on the right-hand side; remove the
a c c e s s fl a p ,
o n t h e l e f t - h a n d s i d e ; t u r n t h e fi x i n g
bolt a quarter of a turn and remove
t h e s t o r a g e b o x c o v e r ,
u n c l i p t h e s t o r a g e b o x ,
Page 196 of 329
11
182
PRACTICAL INFORMATION

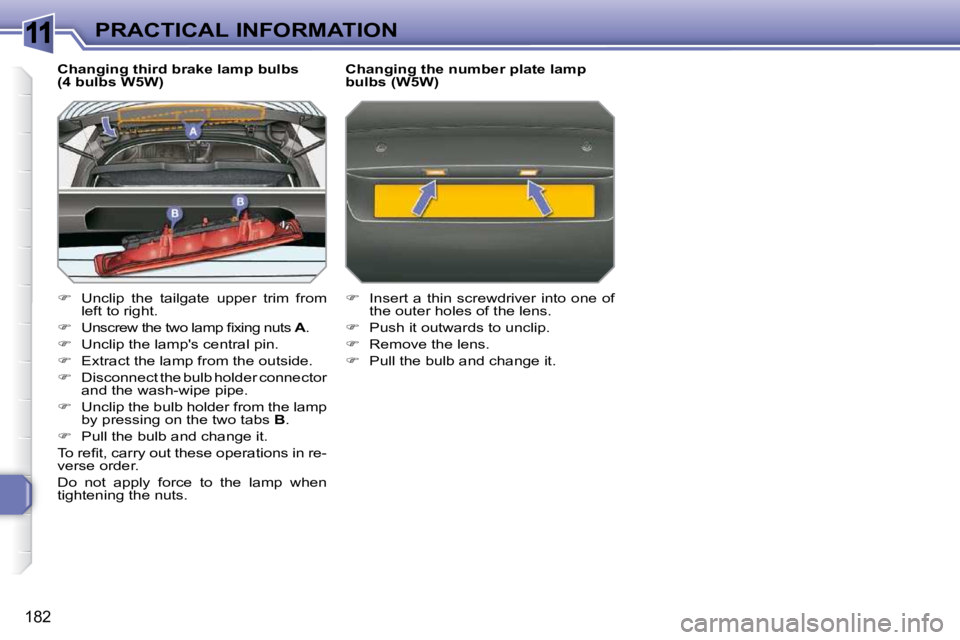

Changing third brake lamp bulbs
(4 bulbs W5W)
Unclip the tailgate upper trim from
left to right.
U n s c r e w t h e t w o l a m p fi x i n g n u t s A .
Unclip the lamp's central pin.
E x t r a c t t h e l a m p f r o m t h e o u t s i d e .
Disconnect the bulb holder connector
and the wash-wipe pipe.
Unclip the bulb holder from the lamp
by pressing on the two tabs B .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Do not apply force to the lamp when
tightening the nuts. Changing the number plate lamp
bulbs (W5W)
Insert a thin screwdriver into one of
the outer holes of the lens.
Push it outwards to unclip.
Remove the lens.
Pull the bulb and change it.
Page 197 of 329
11
183
PRACTICAL INFORMATION

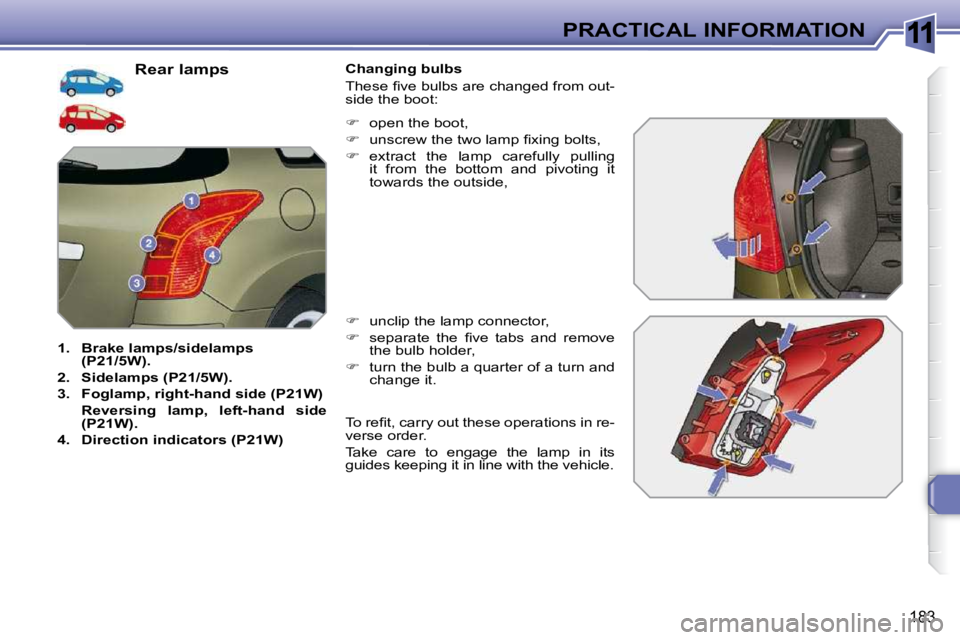

Rear lamps
1. Brake
lamps/
sidelamps
(
P21
/
5W
).
2. Sidelamps
(
P21
/
5W
).
3. Foglamp,
right-hand side (P21W)
Reversing lamp,
left-hand side
(P21W)
.
4. Direction indicators (
P21W
) Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
s i d e t h e b o o t :
unclip the lamp connector,
s e p a r a t e t h e fi v e t a b s a n d r e m o v e
the bulb holder,
turn the bulb a quarter of a turn and
change it.
open the boot,
u n s c r e w t h e t w o l a m p fi x i n g b o l t s ,
e x t r a c t t h e l a m p c a r e f u l l y p u l l i n g
it from the bottom and pivoting it
towards the outside,
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.
Page 198 of 329
11
184
PRACTICAL INFORMATION

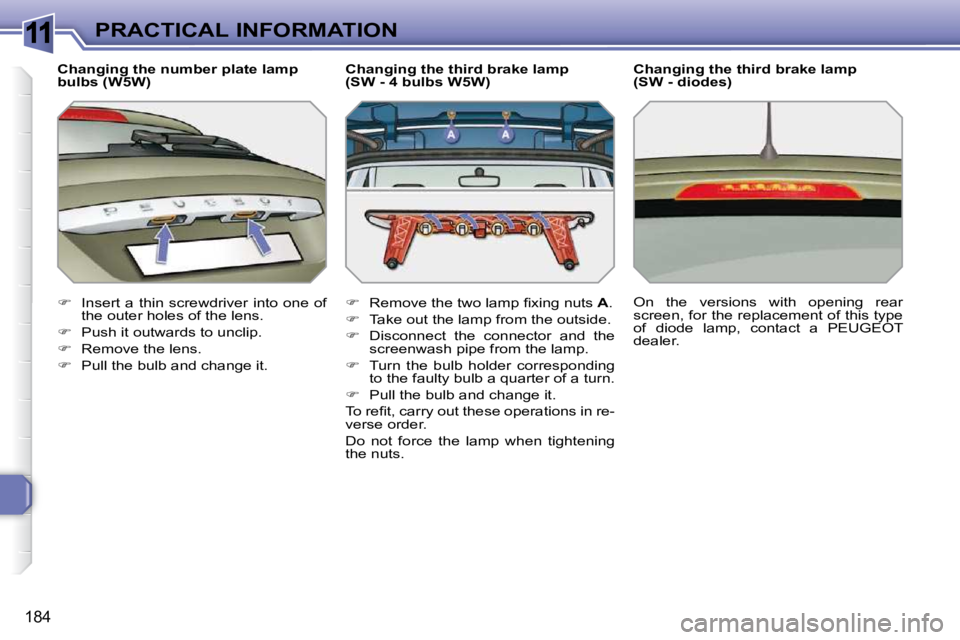

Changing the number plate lamp
bulbs (W5W)
Insert a thin screwdriver into one of
the outer holes of the lens.
Push it outwards to unclip.
Remove the lens.
Pull the bulb and change it. Changing the third brake lamp
(SW - 4 bulbs W5W)
R e m o v e t h e t w o l a m p fi x i n g n u t s A .
Take out the lamp from the outside.
Disconnect the connector and the
screenwash pipe from the lamp.
Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Do not force the lamp when tightening
the nuts. Changing the third brake lamp
(SW - diodes)
On the versions with opening rear
screen, for the replacement of this type
of diode lamp, contact a PEUGEOT
dealer.
Page 199 of 329
11
!
i
185
PRACTICAL INFORMATION PEUGEOT will not accept
responsibility for the cost incurred
in repairing your vehicle or for
rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the additional
e q u i p m e n t c o n n e c t e d e x c e e d s
10 milliamperes.
Installing electrical accessories
Your vehicle’s electrical system is
designed to operate with standard
or optional equipment.
B e f o r e i n s t a l l i n g o t h e r e l e c t r i -
cal equipment or accessories on
your vehicle, contact a PEUGEOT
dealer.

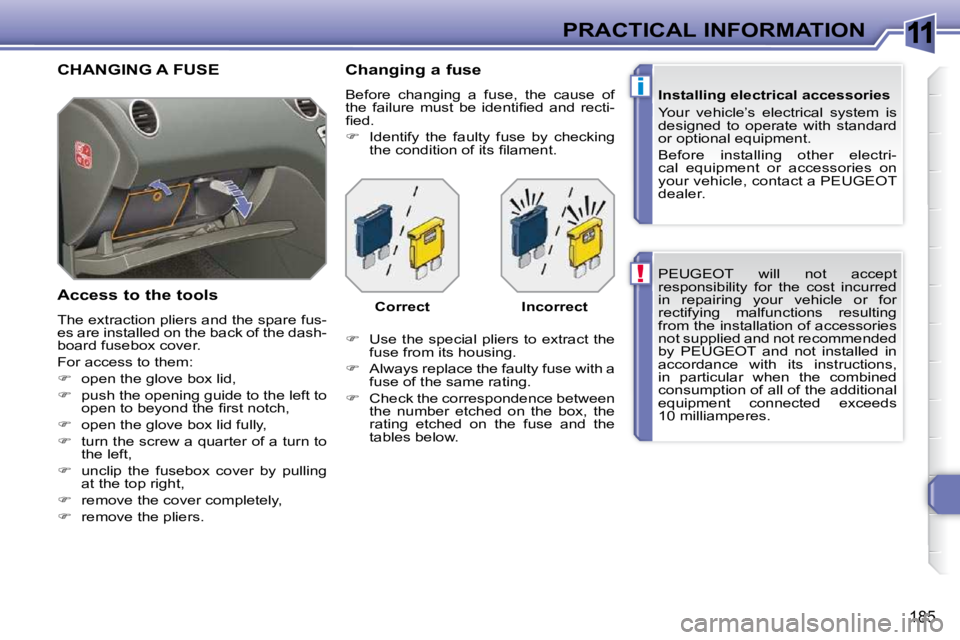

CHANGING A FUSE
Access to the tools
T h e e x t r a c t i o n p l i e r s a n d t h e s p a r e f u s -
es are installed on the back of the dash-
b o a r d f u s e b o x c o v e r .
F o r a c c e s s t o t h e m :
o p e n t h e g l o v e b o x l i d ,
push the opening guide to the left to
o p e n t o b e y o n d t h e fi r s t n o t c h ,
o p e n t h e g l o v e b o x l i d f u l l y ,
turn the screw a quarter of a turn to
the left,
u n c l i p t h e f u s e b o x c o v e r b y p u l l i n g
at the top right,
remove the cover completely,
remove the pliers. Changing a fuse
B e f o r e c h a n g i n g a f u s e , t h e c a u s e o f
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the fuse and the
tables below.
Correct Incorrect
Page 200 of 329
11PRACTICAL INFORMATION

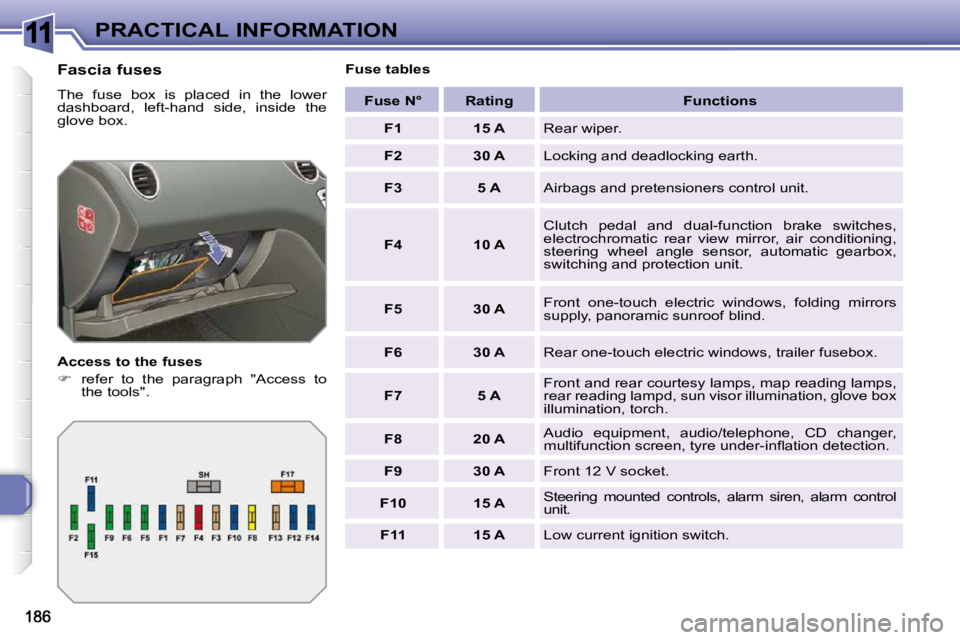

Fascia fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r
dashboard, left-hand side, inside the
g l o v e b o x .
Access to the fuses
refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 30 A Locking and deadlocking earth.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , a u t o m a t i c g e a r b o x ,
switching and protection unit.
F5 30 A Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.
F6 30 A R e a r o n e - t o u c h e l e c t r i c w i n d o w s , t r a i l e r f u s e b o x .
F7 5 A Front and rear courtesy lamps, map reading lamps,
r e a r r e a d i n g l a m p d , s u n v i s o r i l l u m i n a t i o n , g l o v e b o x
illumination, torch.
F8 20 A Audio equipment, audio/telephone, CD changer,
m u l t i f u n c t i o n s c r e e n , t y r e u n d e r - i n fl a t i o n d e t e c t i o n .
F9 30 A Front 12 V socket.
F10 15 A Steering mounted controls, alarm siren, alarm cont
rol
unit.
F11 15 A Low current ignition switch.
