62

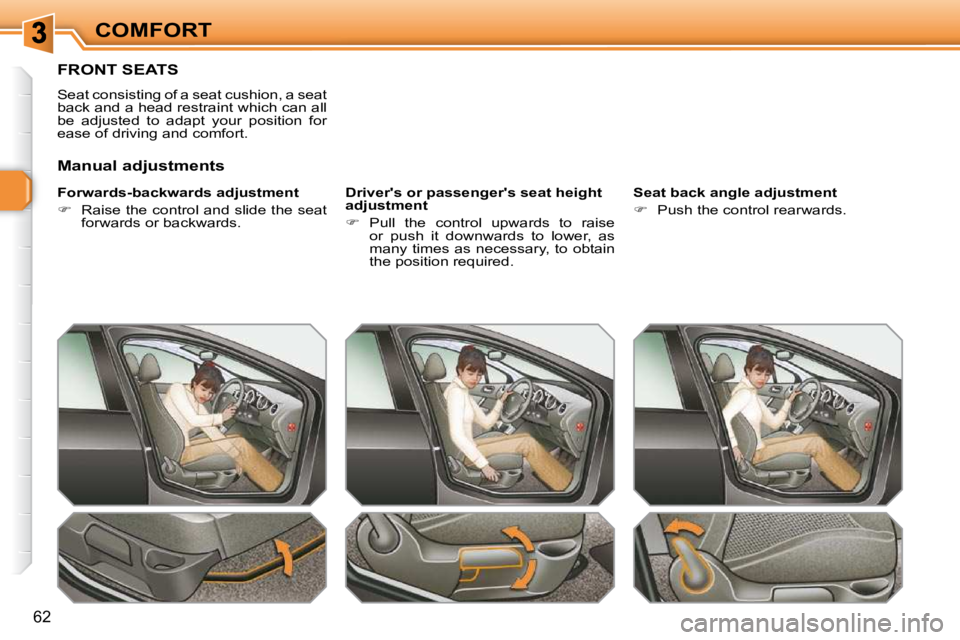

COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Raise the control and slide the seat
forwards or backwards. D r i v e r ' s o r p a s s e n g e r ' s s e a t h e i g h t
a d j u s t m e n t
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. S e a t b a c k a n g l e a d j u s t m e n t
Push the control rearwards.
M a n u a l a d j u s t m e n t s
Page 62 of 329
i
63
COMFORT

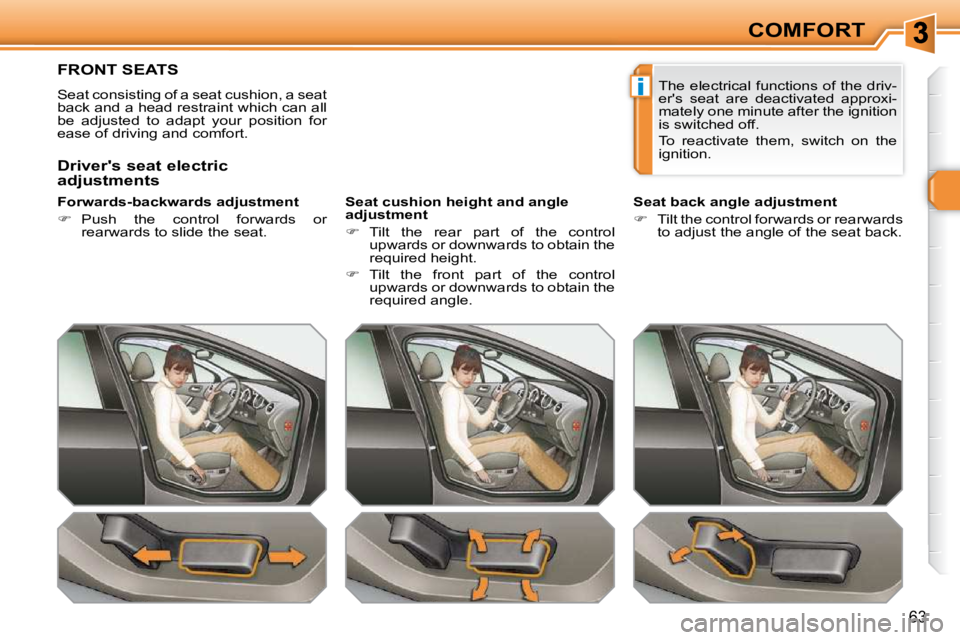

FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Push the control forwards or
rearwards to slide the seat. S e a t c u s h i o n h e i g h t a n d a n g l e
a d j u s t m e n t
Tilt the rear part of the control
upwards or downwards to obtain the
required height.
Tilt the front part of the control
upwards or downwards to obtain the
required angle. S e a t b a c k a n g l e a d j u s t m e n t
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
D r i v e r ' s s e a t e l e c t r i c
a d j u s t m e n t s The electrical functions of the driv-
er's seat are deactivated approxi-
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.
Page 63 of 329
!
i
64
COMFORT

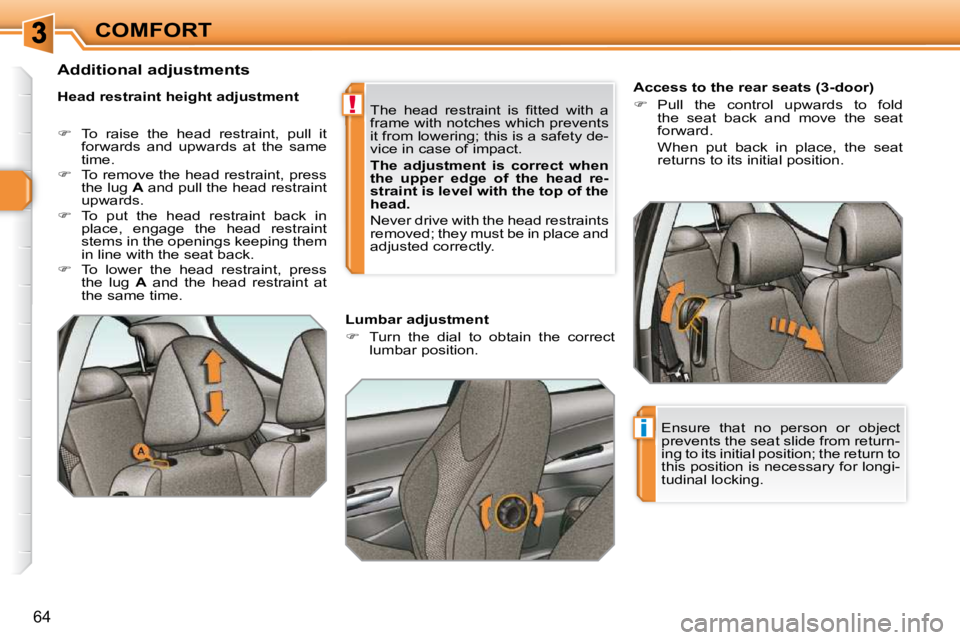

A c c e s s t o t h e r e a r s e a t s ( 3 - d o o r )
Pull the control upwards to fold
the seat back and move the seat
forward.
When put back in place, the seat returns to its initial position.
H e a d r e s t r a i n t h e i g h t a d j u s t m e n t
To raise the head restraint, pull it
forwards and upwards at the same
time.
To remove the head restraint, press
the lug A and pull the head restraint
upwards.
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
To lower the head restraint, press
the lug A and the head restraint at
the same time. T h e h e a d r e s t r a i n t i s fi t t e d w i t h a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.
T h e a d j u s t m e n t i s c o r r e c t w h e n
t h e u p p e r e d g e o f t h e h e a d r e -
s t r a i n t i s l e v e l w i t h t h e t o p o f t h e
h e a d .
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
L u m b a r a d j u s t m e n t
Turn the dial to obtain the correct
lumbar position.
A d d i t i o n a l a d j u s t m e n t s
Ensure that no person or object
prevents the seat slide from return-
ing to its initial position; the return to
this position is necessary for longi-
tudinal locking.
Page 64 of 329
i
65
COMFORT

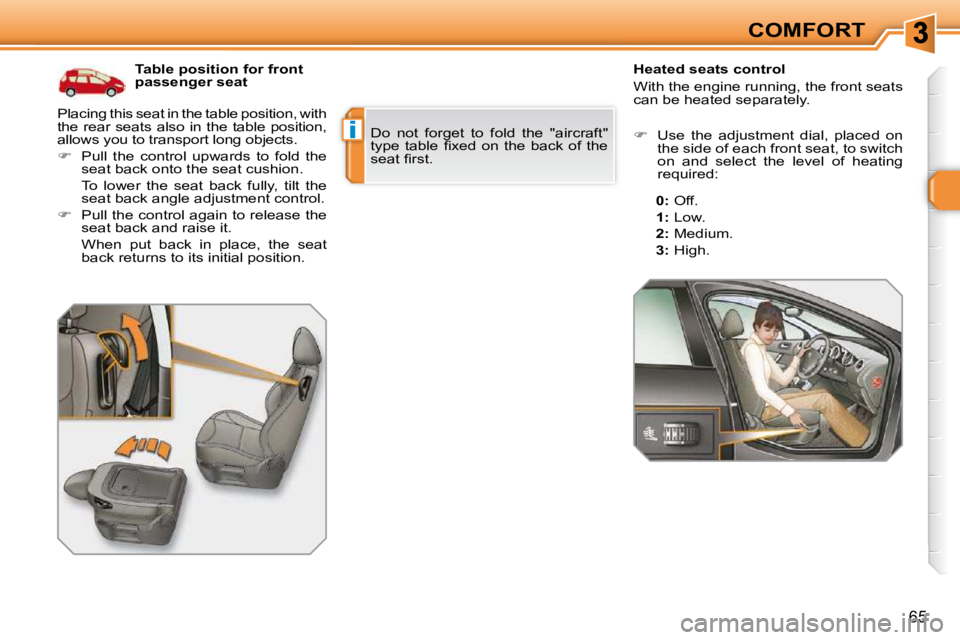

Table position for front
passenger seat Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0
: Off.
1
: Low.
2
: Medium.
3
: High.
Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.
Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the seat back angle adjustment control.
Pull the control again to release the
seat back and raise it.
When put back in place, the seat back returns to its initial position. D o n o t f o r g e t t o f o l d t h e " a i r c r a f t "
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
Page 65 of 329
i!
66
COMFORT

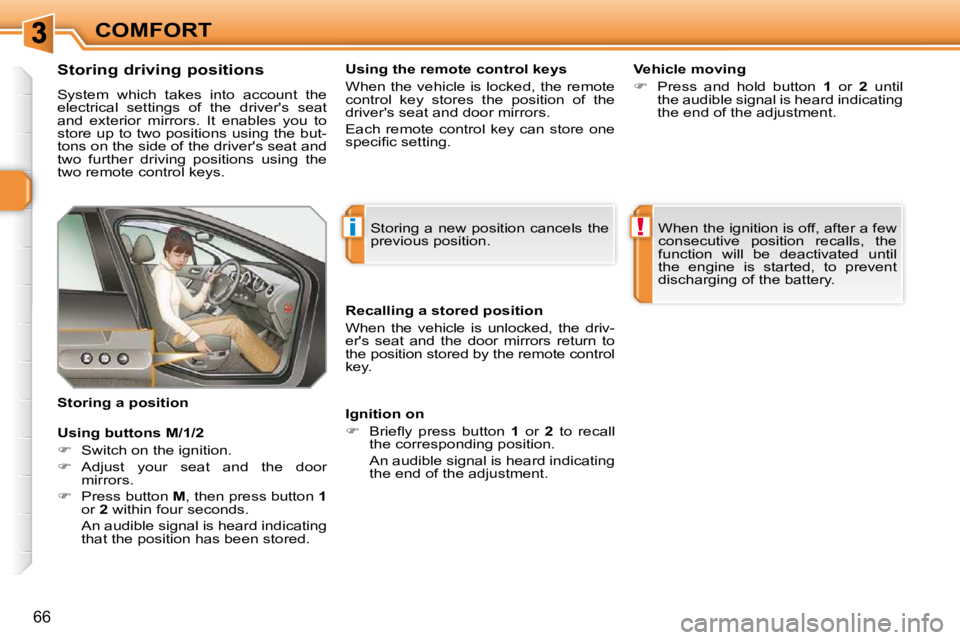

S t o r i n g d r i v i n g p o s i t i o n s
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys.
Recalling a stored position
When the vehicle is unlocked, the driv-
er's seat and the door mirrors return to
the position stored by the remote control
key.
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and door mirrors.
Each remote control key can store one
s p e c i fi c s e t t i n g .
Ignition on
B r i e fl y p r e s s b u t t o n 1 or 2 to recall
the corresponding position.
An audible signal is heard indicating the end of the adjustment. V e h i c l e m o v i n g
Press and hold button 1 or 2 until
the audible signal is heard indicating
the end of the adjustment.
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and the door
mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the position has been stored.
Page 66 of 329
i
65
COMFORT
Table position for front
passenger seat Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0
: Off.
1
: Low.
2
: Medium.
3
: High.
Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.
Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the seat back angle adjustment control.
Pull the control again to release the
seat back and raise it.
When put back in place, the seat back returns to its initial position. D o n o t f o r g e t t o f o l d t h e " a i r c r a f t "
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
Page 67 of 329
!
67
COMFORT

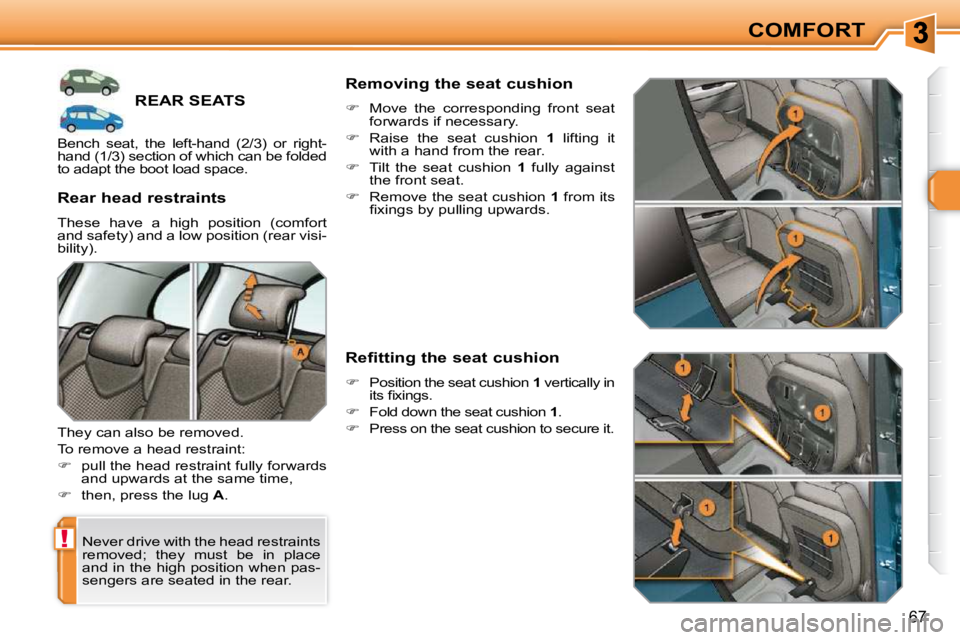

REAR SEATS
Never drive with the head restraints
removed; they must be in place
and in the high position when pas-
sengers are seated in the rear.
R e a r h e a d r e s t r a i n t s
These have a high position (comfort
and safety) and a low position (rear visi-
bility).
They can also be removed.
To remove a head restraint:
pull the head restraint fully forwards
and upwards at the same time,
then, press the lug A . R e m o v i n g t h e s e a t c u s h i o n
Move the corresponding front seat
forwards if necessary.
Raise the seat cushion 1 lifting it
with a hand from the rear.
Tilt the seat cushion 1 fully against
the front seat.
Remove the seat cushion 1 from its
fi x i n g s b y p u l l i n g u p w a r d s .
R e f i t t i n g t h e s e a t c u s h i o n
Position the seat cushion 1 vertically in
i t s fi x i n g s .
Fold down the seat cushion 1 .
Press on the seat cushion to secure it.
Bench seat, the left-hand (2/3) or right-
hand (1/3) section of which can be folded
to adapt the boot load space.
Page 68 of 329
!
i
68
COMFORT

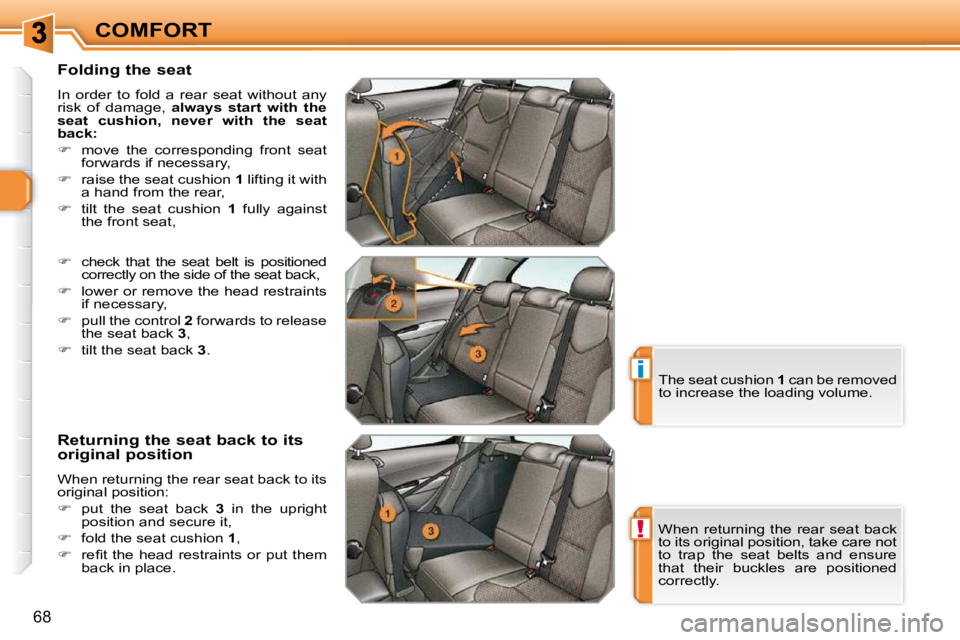

F o l d i n g t h e s e a t
In order to fold a rear seat without any
risk of damage, a l w a y s s t a r t w i t h t h e
s e a t c u s h i o n ,
n e v e r w i t h t h e s e a t
back:
move the corresponding front seat
forwards if necessary,
raise the seat cushion 1 lifting it with
a hand from the rear,
tilt the seat cushion 1 fully against
the front seat,
R e t u r n i n g t h e s e a t b a c k t o i t s
original position
When returning the rear seat back to its
original position:
put the seat back 3 in the upright
position and secure it,
fold the seat cushion 1 ,
r e fi t t h e h e a d r e s t r a i n t s o r p u t t h e m
back in place.
check that the seat belt is positioned
correctly on the side of the seat back,
lower or remove the head restraints
if necessary,
pull the control 2 forwards to release
the seat back 3 ,
tilt the seat back 3 .
When returning the rear seat back
to its original position, take care not
to trap the seat belts and ensure
that their buckles are positioned
correctly. The seat cushion
1 can be removed
to increase the loading volume.
Page 69 of 329
ii
i
69
COMFORT

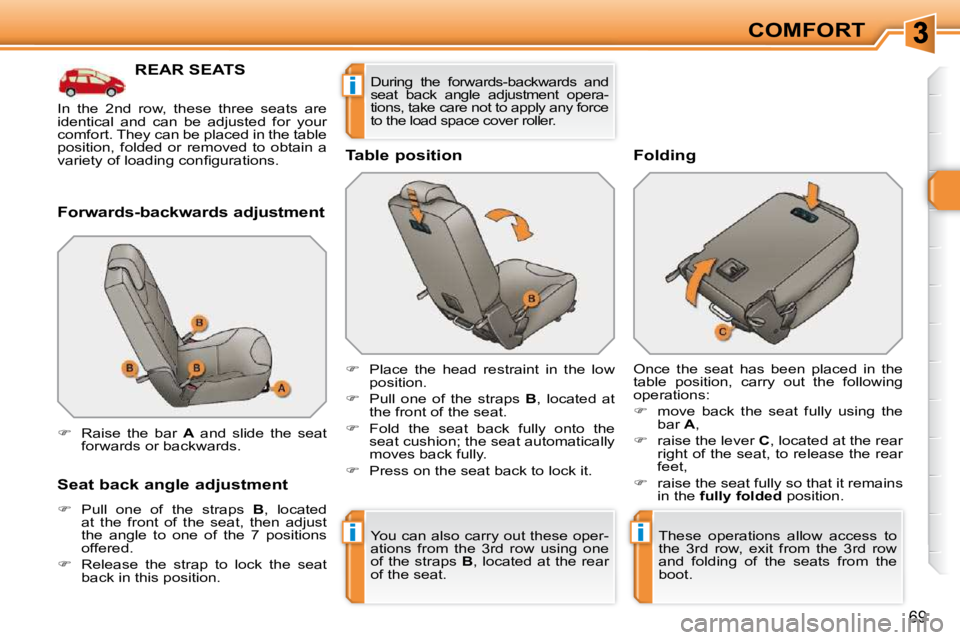

REAR SEATS
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
S e a t b a c k a n g l e a d j u s t m e n t
Pull one of the straps B , located
at the front of the seat, then adjust
the angle to one of the 7 positions
offered.
Release the strap to lock the seat
back in this position. Table position
Raise the bar A and slide the seat
forwards or backwards.
Place the head restraint in the low
position.
Pull one of the straps B , located at
the front of the seat.
Fold the seat back fully onto the
seat cushion; the seat automatically
moves back fully.
Press on the seat back to lock it. Folding
Once the seat has been placed in the
table position, carry out the following
operations:
move back the seat fully using the
bar A ,
raise the lever C , located at the rear
right of the seat, to release the rear
feet,
raise the seat fully so that it remains
in the fully folded position.
You can also carry out these oper-
ations from the 3rd row using one
of the straps B , located at the rear
of the seat. These operations allow access to
the 3
rd row, exit from the 3 rd row
and folding of the seats from the
boot.
In the 2nd row, these three seats are
identical and can be adjusted for your
comfort. They can be placed in the table
position, folded or removed to obtain a
v a r i e t y o f l o a d i n g c o n fi g u r a t i o n s .
During the forwards-backwards and
seat back angle adjustment opera-
tions, take care not to apply any force
to the load space cover roller.
Page 70 of 329
!
70
COMFORT

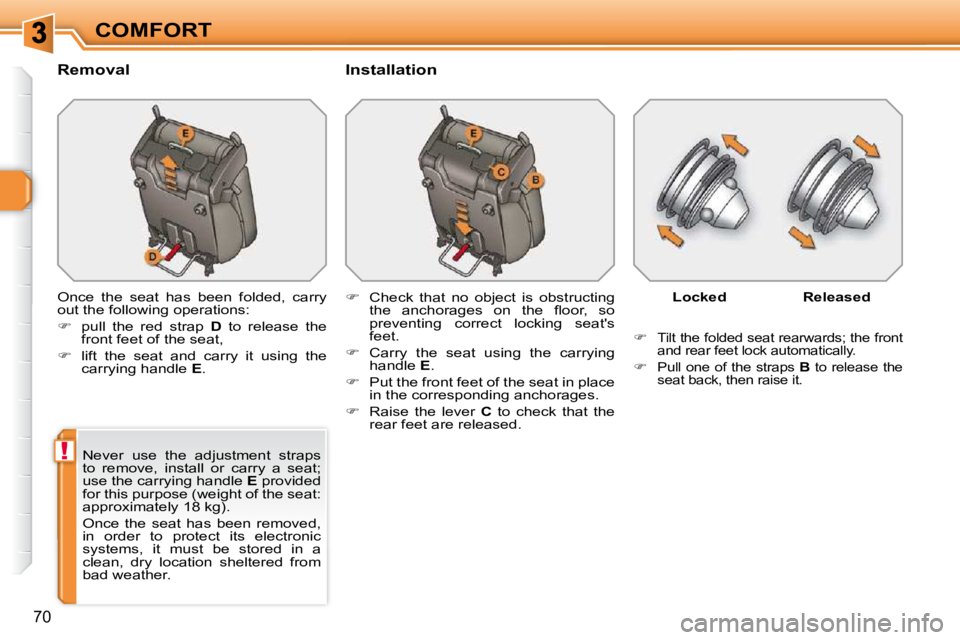

R e m o v a l Installation
Once the seat has been folded, carry
out the following operations:
pull the red strap D to release the
front feet of the seat,
lift the seat and carry it using the
carrying handle E .
Never use the adjustment straps
to remove, install or carry a seat;
use the carrying handle E provided
for this purpose (weight of the seat:
approximately 18 kg).
Once the seat has been removed,
in order to protect its electronic
systems, it must be stored in a
clean, dry location sheltered from
bad weather.
Locked Released
Tilt the folded seat rearwards; the front
and rear feet lock automatically.
Pull one of the straps B to release the
seat back, then raise it.
Check that no object is obstructing
t h e a n c h o r a g e s o n t h e fl o o r , s o
preventing correct locking seat's
feet.
Carry the seat using the carrying
handle E .
Put the front feet of the seat in place
in the corresponding anchorages.
Raise the lever C to check that the
rear feet are released.
