71
COMFORT

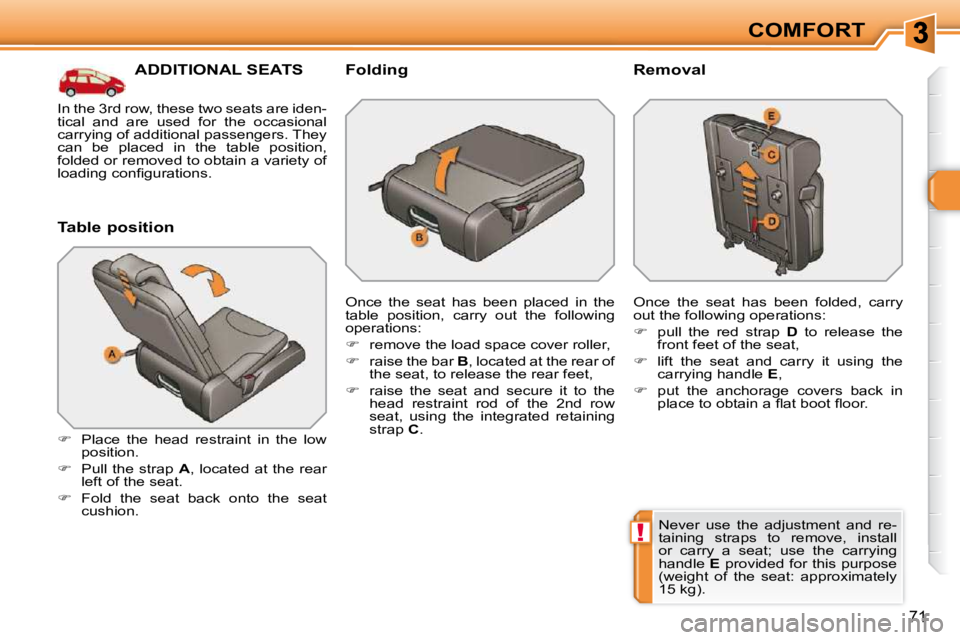

ADDITIONAL SEATS
Table position
Place the head restraint in the low
position.
Pull the strap A , located at the rear
left of the seat.
Fold the seat back onto the seat
cushion. Folding
Once the seat has been placed in the
table position, carry out the following
operations:
remove the load space cover roller,
raise the bar B , located at the rear of
the seat, to release the rear feet,
raise the seat and secure it to the
head restraint rod of the 2nd row
seat, using the integrated retaining
strap C . R e m o v a l
Once the seat has been folded, carry
out the following operations:
pull the red strap D to release the
front feet of the seat,
lift the seat and carry it using the
carrying handle E ,
put the anchorage covers back in
p l a c e t o o b t a i n a fl a t b o o t fl o o r .
Never use the adjustment and re-
taining straps to remove, install
or carry a seat; use the carrying
handle E provided for this purpose
(weight of the seat: approximately
15 kg).
In the 3rd row, these two seats are iden-
tical and are used for the occasional
carrying of additional passengers. They
can be placed in the table position,
folded or removed to obtain a variety of
l o a d i n g c o n fi g u r a t i o n s .
Page 72 of 329
72
COMFORT

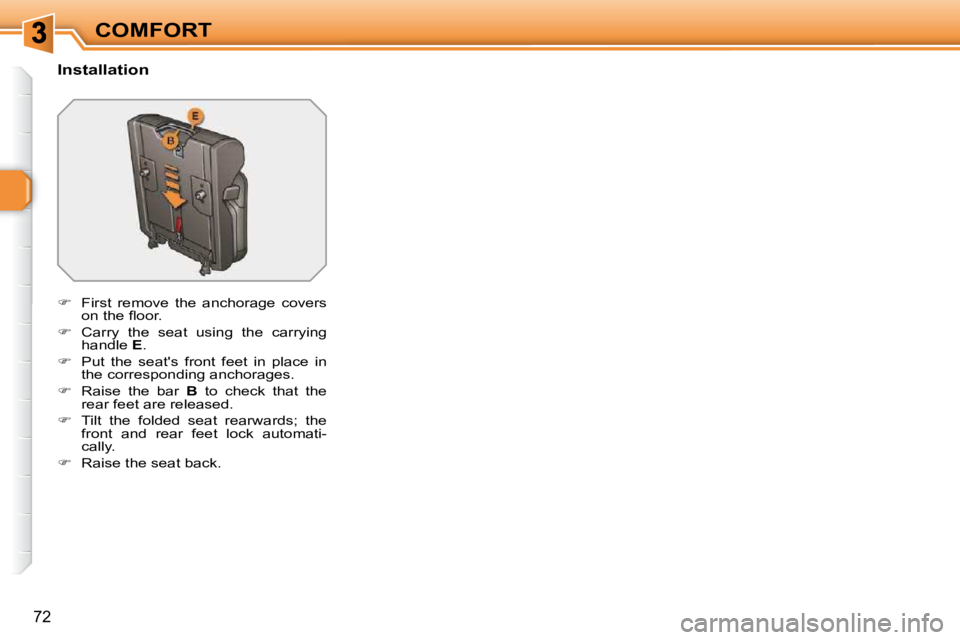

Installation
First remove the anchorage covers
o n t h e fl o o r .
Carry the seat using the carrying
handle E .
Put the seat's front feet in place in
the corresponding anchorages.
Raise the bar B to check that the
rear feet are released.
Tilt the folded seat rearwards; the
front and rear feet lock automati-
cally.
Raise the seat back.
Page 73 of 329
i
!
73
COMFORT
SEAT MODULARITY AND VARIOUS CONFIGURATIONS
Examples of configurations 7 seats
Operations to change the existing
c o n fi g u r a t i o n m u s t o n l y b e c a r r i e d
o u t w h e n s t a t i o n a r y ( s e e t h e " R e a r
s e a t s " a n d " A d d i t i o n a l s e a t s " s e c -
tions of the SW with panoramic
sunroof).
Special features
The outer seats of the 2nd row can be
moved inwards, once the central seat
has been removed.
The 2nd row seats can be installed in
the 3rd row.
Conversely, the 3rd row seats cannot
be installed in the 2nd row.
5 s e a t s w i t h a d d i t i o n a l s e a t s f o l d e d
Do not seat passengers in the 3rd
row if the 2nd row seats are in the
fully folded position.
Designed to be modular, your vehicle
offers numerous seat installation and
l o a d i n g c o n fi g u r a t i o n s .
Page 74 of 329
74

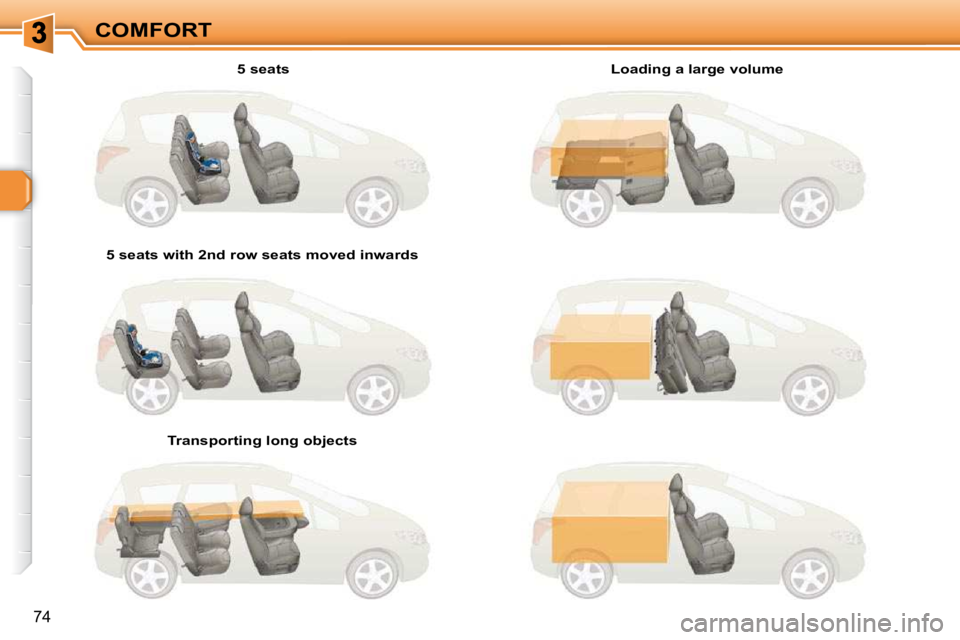

COMFORT 5 seats
5 s e a t s w i t h 2 n d r o w s e a t s m o v e d i n w a r d s
T r a n s p o r t i n g l o n g o b j e c t s L o a d i n g a l a r g e v o l u m e
Page 75 of 329
!
i
i
75
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

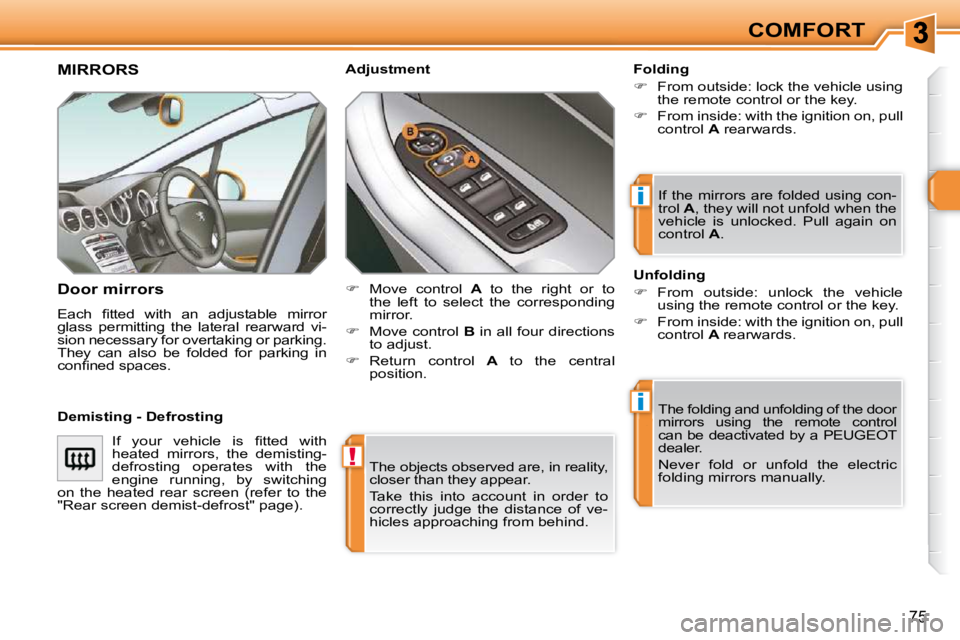

MIRRORS
Door mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
c o n fi n e d s p a c e s . Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the door
mirrors using the remote control
can be deactivated by a PEUGEOT
dealer.
Never fold or unfold the electric
folding mirrors manually.
A d j u s t m e n t
Unfolding
From outside: unlock the vehicle
using the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Move control A to the right or to
the left to select the corresponding
mirror.
Move control B in all four directions
to adjust.
Return control A to the central
position.
D e m i s t i n g - D e f r o s t i n g I f y o u r v e h i c l e i s fi t t e d w i t h
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (refer to the
" R e a r s c r e e n d e m i s t - d e f r o s t " p a g e ) .
Page 76 of 329
!
76
COMFORT A d j u s t m e n t
Adjust the mirror so that the glass
i s d i r e c t e d c o r r e c t l y i n t h e " d a y "
position.
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
M a n u a l d a y / n i g h t m o d e l
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the
n o r m a l " d a y " p o s i t i o n .

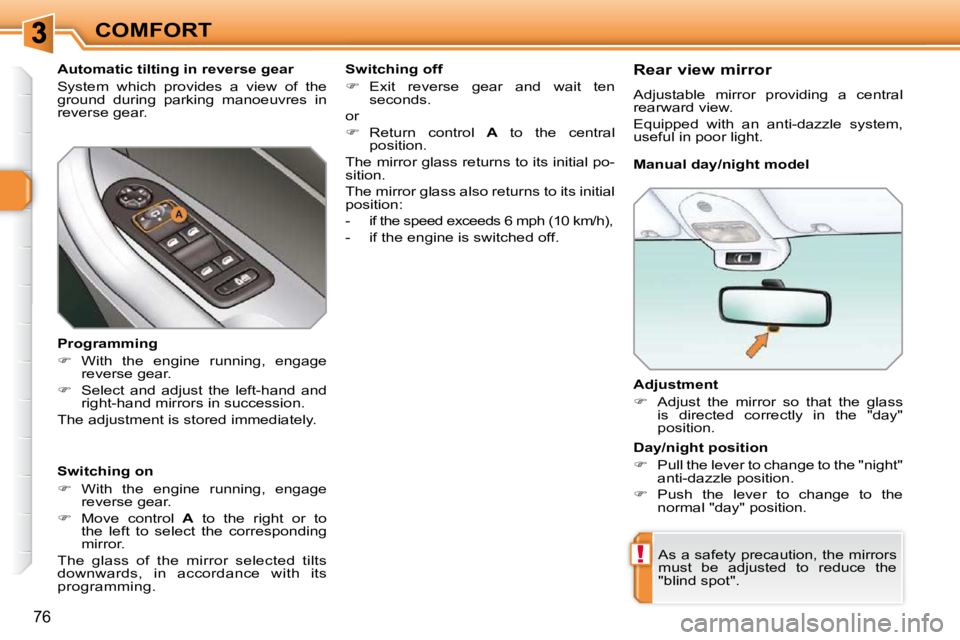

A u t o m a t i c t i l t i n g i n r e v e r s e g e a r
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
S w i t c h i n g o n
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the corresponding
mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. S w i t c h i n g o f f
Exit reverse gear and wait ten
seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Page 77 of 329
!
76
COMFORT A d j u s t m e n t
Adjust the mirror so that the glass
i s d i r e c t e d c o r r e c t l y i n t h e " d a y "
position.
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
M a n u a l d a y / n i g h t m o d e l
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the
n o r m a l " d a y " p o s i t i o n .
A u t o m a t i c t i l t i n g i n r e v e r s e g e a r
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
S w i t c h i n g o n
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the corresponding
mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. S w i t c h i n g o f f
Exit reverse gear and wait ten
seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Page 78 of 329
!i
77
COMFORT
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.

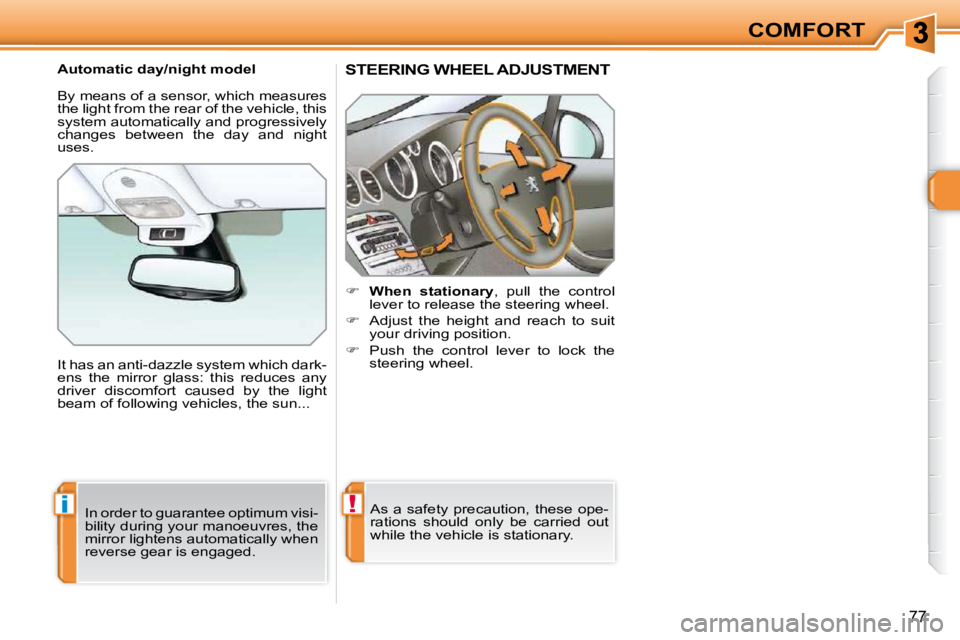

A u t o m a t i c d a y / n i g h t m o d e l
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beam of following vehicles, the sun...
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
Page 79 of 329
!i
77
COMFORT
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.
A u t o m a t i c d a y / n i g h t m o d e l
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beam of following vehicles, the sun...
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
Page 80 of 329
ii
78
ACCESS

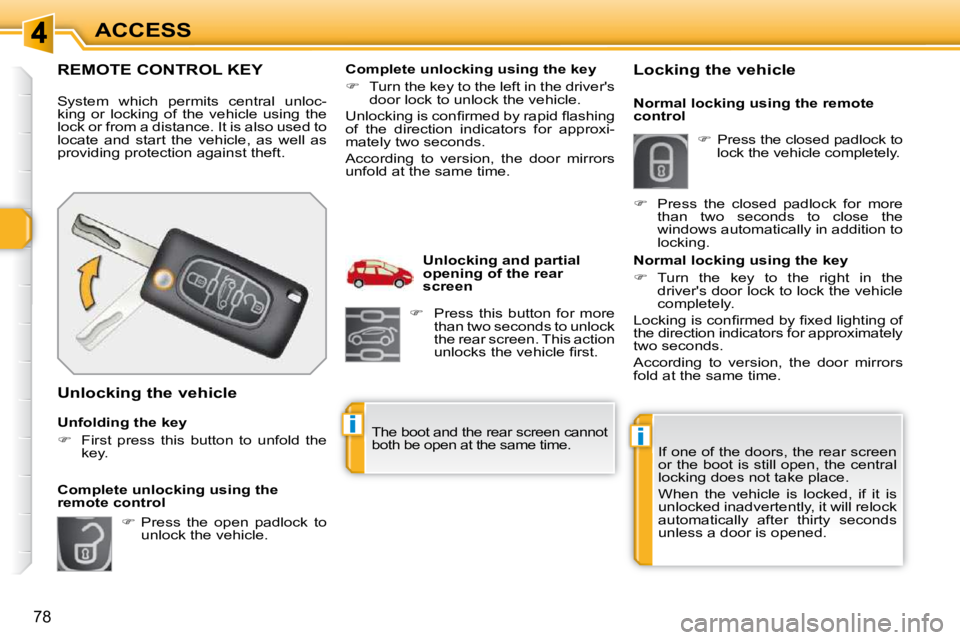

REMOTE CONTROL KEY
System which permits central unloc-
king or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
First press this button to unfold the
key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle. Complete unlocking using the key
Turn the key to the left in the driver's
door lock to unlock the vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Complete unlocking using the
remote control Unlocking and partial
opening of the rear
screen
If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
Normal locking using the key
Turn the key to the right in the
driver's door lock to lock the vehicle
completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
Locking the vehicle
Press the closed padlock to
lock the vehicle completely.
Press the closed padlock for more
than two seconds to close the
windows automatically in addition to
locking.
Normal locking using the remote
control
Press this button for more
than two seconds to unlock
the rear screen. This action
u n l o c k s t h e v e h i c l e fi r s t .
The boot and the rear screen cannot
both be open at the same time.
