1TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

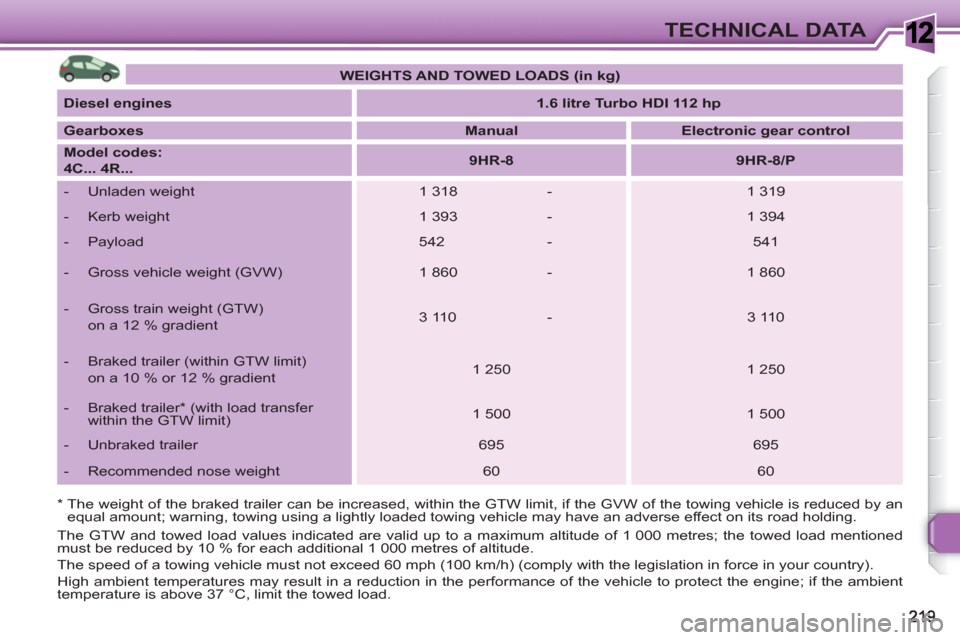

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre Turbo HDI 112 hp



Gearboxes


Manual



Electronic gear control



Model codes:
4C... 4R...


9HR-8



9HR-8/P




- Unladen weight
1 318 -
1 319


- Kerb weight
1 393 -
1 394


- Payload
542 -
541


- Gross vehicle weight (GVW)
1 860 -
1 860


- Gross train weight (GTW)
on a 12 % gradient
3 110 -
3 110


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 250
1 250


- Braked trailer * (with load transfer
within the GTW limit)
1 500
1 500


- Unbraked trailer
695
695


- Recommended nose weight
60
60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

1
220
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

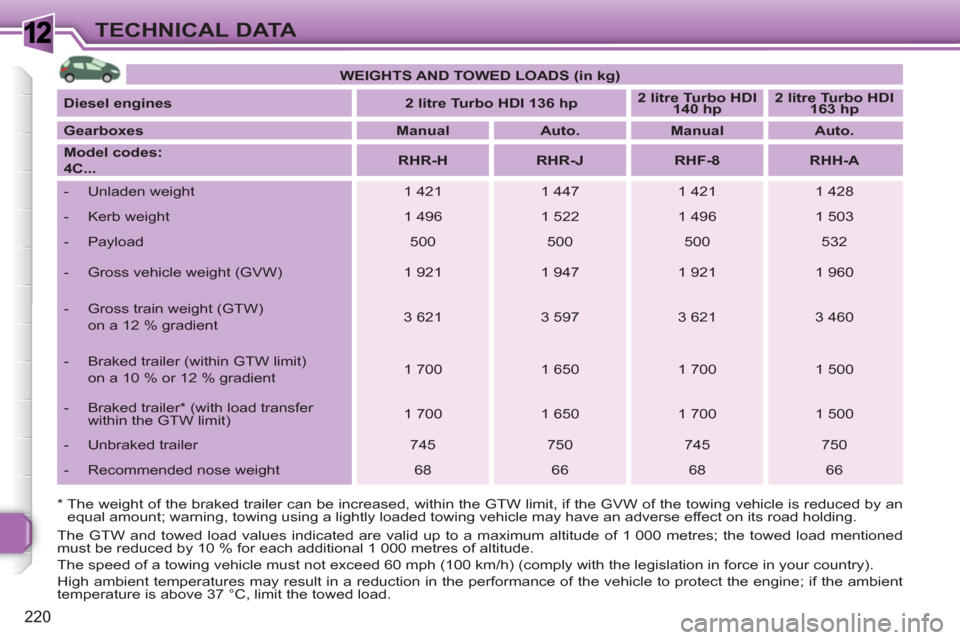

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


2 litre Turbo HDI 136 hp



2 litre Turbo HDI
140 hp



2 litre Turbo HDI
163 hp



Gearboxes


Manual



Auto.



Manual



Auto.



Model codes:



4C...


RHR-H



RHR-J



RHF-8



RHH-A




- Unladen weight
1 421
1 447
1 421
1 428


- Kerb weight
1 496
1 522
1 496
1 503


- Payload
500
500
500
532


- Gross vehicle weight (GVW)
1 921
1 947
1 921
1 960


- Gross train weight (GTW)
on a 12 % gradient
3 621
3 597
3 621
3 460


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 700
1 650
1 700
1 500


- Braked trailer * (with load transfer
within the GTW limit)
1 700
1 650
1 700
1 500


- Unbraked trailer
745
750
745
750


- Recommended nose weight
68
66
68
66
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

1
221
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

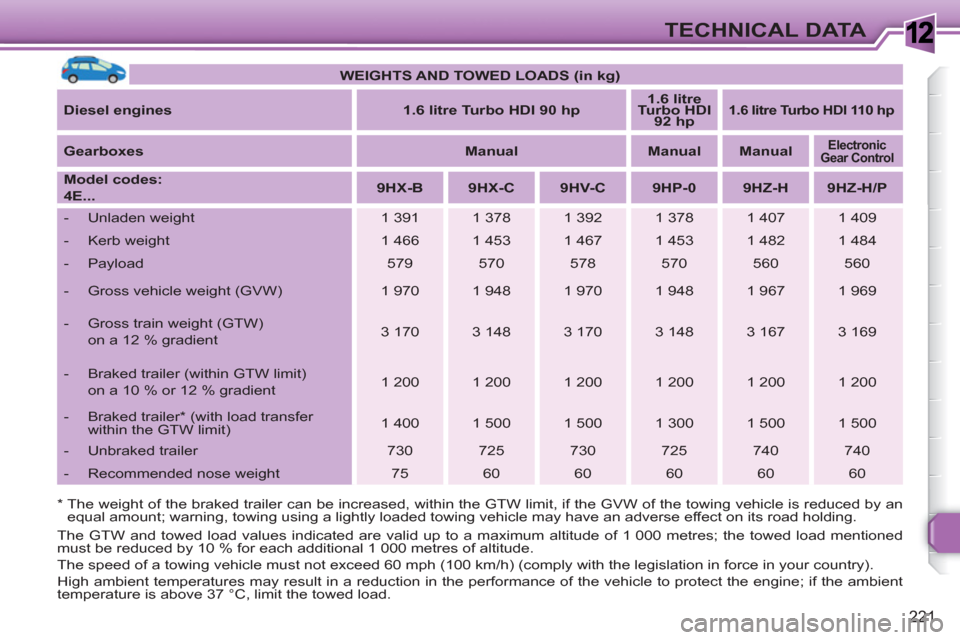

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre Turbo HDI 90 hp



1.6

litre


Turbo HDI
92 hp





1.6 litre Turbo HDI 110 hp




Gearboxes


Manual



Manual



Manual




Electronic
Gear Control




Model codes:
4E...


9HX-B



9HX-C



9HV-C



9HP-0



9HZ-H



9HZ-H/P




- Unladen weight
1 391
1 378
1 392
1 378
1 407
1 409


- Kerb weight
1 466
1 453
1 467
1 453
1 482
1 484


- Payload
579
570
578
570
560
560


- Gross vehicle weight (GVW)
1 970
1 948
1 970
1 948
1 967
1 969


- Gross train weight (GTW)
on a 12 % gradient
3 170
3 148
3 170
3 148
3 167
3 169


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 200
1 200
1 200
1 200
1 200
1 200


- Braked trailer * (with load transfer
within the GTW limit)
1 400
1 500
1 500
1 300
1 500
1 500


- Unbraked trailer
730
725
730
725
740
740


- Recommended nose weight
75
60
60
60
60
60

1
222
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

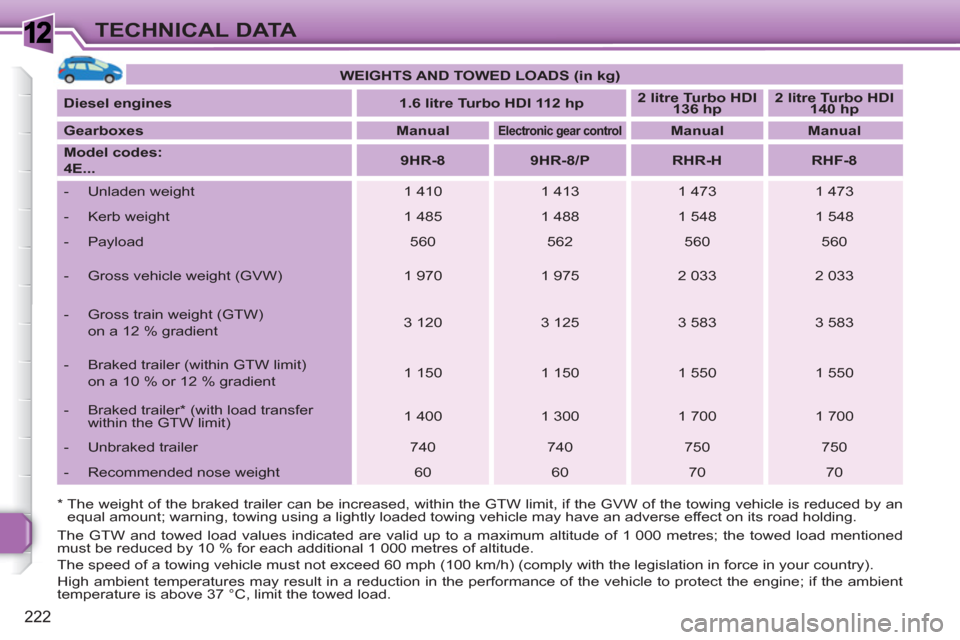

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre Turbo HDI 112 hp



2 litre Turbo HDI
136 hp



2 litre Turbo HDI
140 hp



Gearboxes


Manual





Electronic gear control




Manual



Manual



Model codes:
4E...


9HR-8



9HR-8/P



RHR-H



RHF-8




- Unladen weight
1 410
1 413
1 473
1 473


- Kerb weight
1 485
1 488
1 548
1 548


- Payload
560
562
560
560


- Gross vehicle weight (GVW)
1 970
1 975
2 033
2 033


- Gross train weight (GTW)
on a 12 % gradient
3 120
3 125
3 583
3 583


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 150
1 150
1 550
1 550


- Braked trailer * (with load transfer
within the GTW limit)
1 400
1 300
1 700
1 700


- Unbraked trailer
740
740
750
750


- Recommended nose weight
60
60
70
70

1
223
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

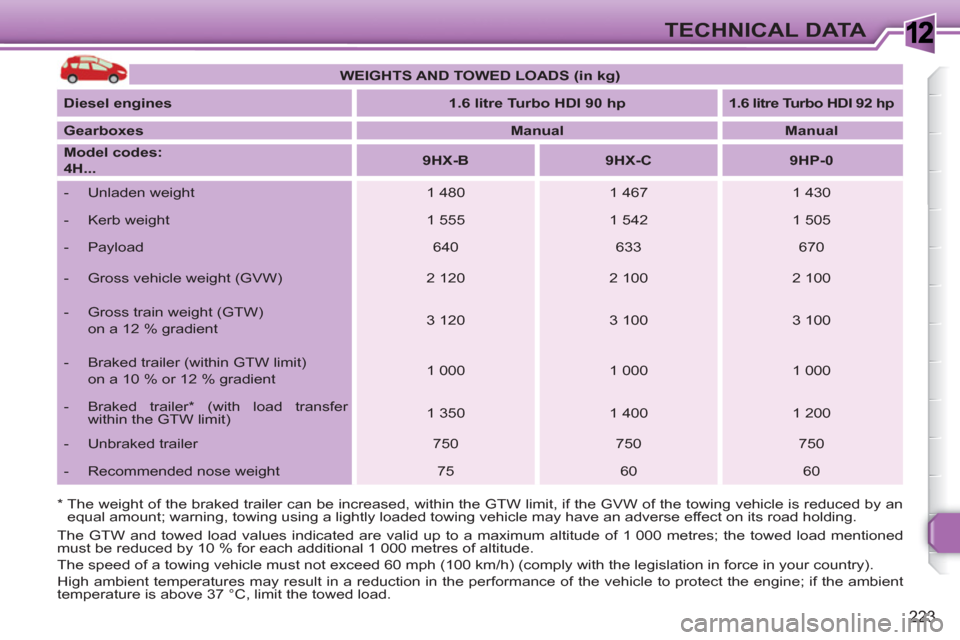

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre Turbo HDI 90 hp



1.6

litre

Turbo HDI 92 hp



Gearboxes


Manual



Manual



Model codes:
4H...


9HX-B



9HX-C



9HP-0




- Unladen weight
1 480
1 467
1 430


- Kerb weight
1 555
1 542
1 505


- Payload
640
633
670


- Gross vehicle weight (GVW)
2 120
2 100
2 100


- Gross train weight (GTW)
on a 12 % gradient
3 120
3 100
3 100


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 000
1 000
1 000


- Braked trailer * (with load transfer
within the GTW limit)
1 350
1 400
1 200


- Unbraked trailer
750
750
750


- Recommended nose weight
75
60
60

1
224
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Diesel



engines


1.6 litre Turbo HDI 110 hp



1.6

litre

Turbo HDI 112 hp



Gearboxes


Manual





Electronic Gear Control



Manual




Electronic Gear Control




Model codes:
4H...


9HZ-H



9HZ-H/P



9HR-8



9HR-8/P




- Unladen weight
1 495
1 498
1 488
1 498


- Kerb weight
1 570
1 573
1 563
1 573


- Payload
655
652
662
652


- Gross vehicle weight (GVW)
2 150
2 150
2 150
2 150


- Gross train weight (GTW)
on a 12 % gradient
3 150
3 150
3 150
3 150


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 000
1 000
1 000
1 000


- Braked trailer * (with load transfer
within the GTW limit)
1 400

1 400
1 250
1 200


- Unbraked trailer
750
750
750
750


- Recommended nose weight
60
60
60
60

1
225

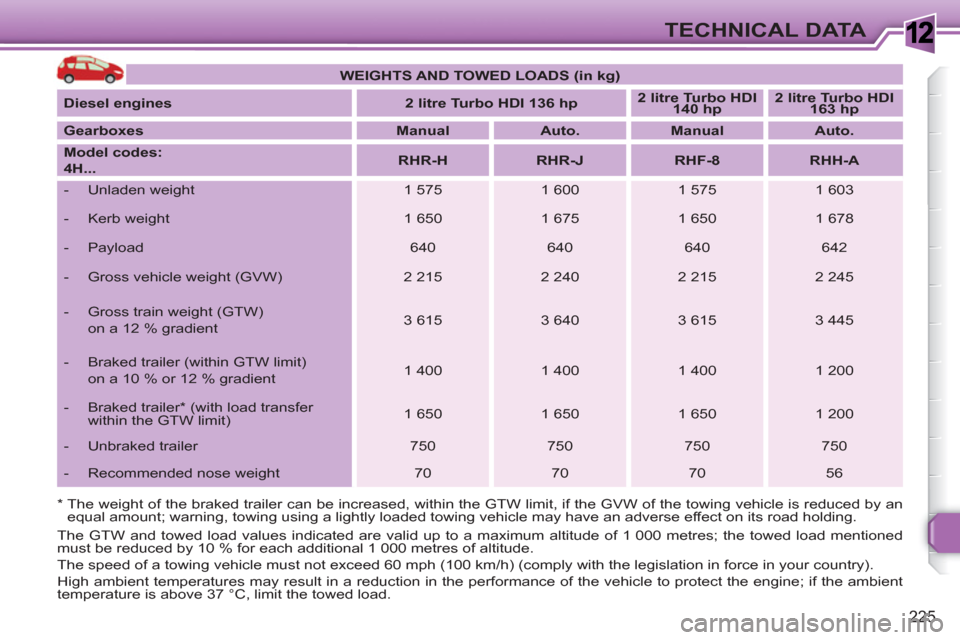

TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


2 litre Turbo HDI 136 hp



2 litre Turbo HDI
140 hp



2 litre Turbo HDI
163 hp



Gearboxes


Manual



Auto.



Manual



Auto.



Model codes:
4H...


RHR-H



RHR-J



RHF-8



RHH-A




- Unladen weight
1 575
1 600
1 575
1 603


- Kerb weight
1 650
1 675
1 650
1 678


- Payload
640
640
640
642


- Gross vehicle weight (GVW)
2 215
2 240
2 215
2 245


- Gross train weight (GTW)
on a 12 % gradient
3 615
3 640
3 615
3 445


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 400
1 400
1 400
1 200


- Braked trailer * (with load transfer
within the GTW limit)
1 650
1 650
1 650
1 200


- Unbraked trailer
750
750
750
750


- Recommended nose weight
70
70
70
56

1
226
TECHNICAL DATA

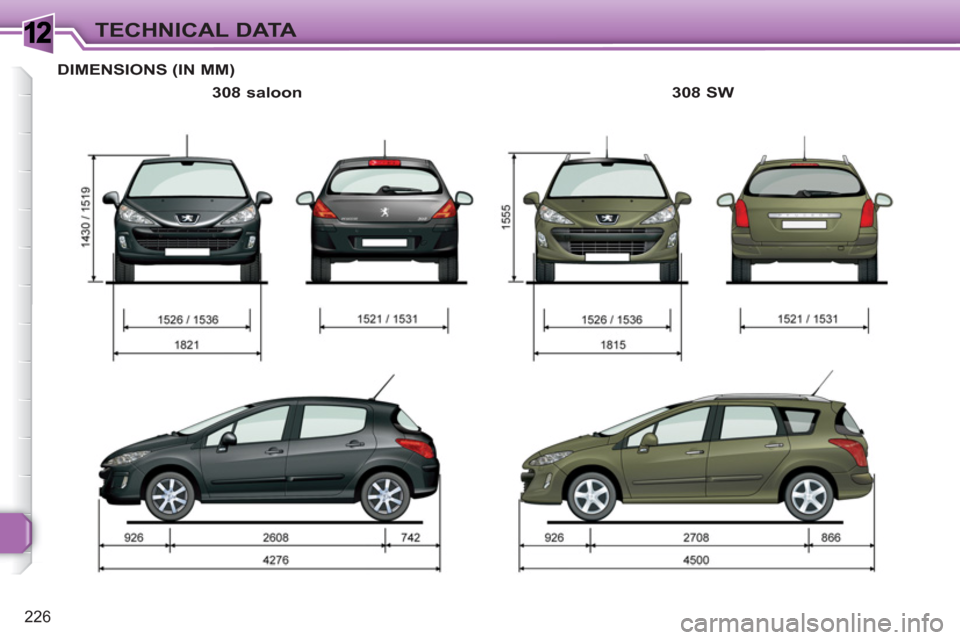

DIMENSIONS (IN MM)

308 saloon
308 SW

1
i
227
TECHNICAL DATA

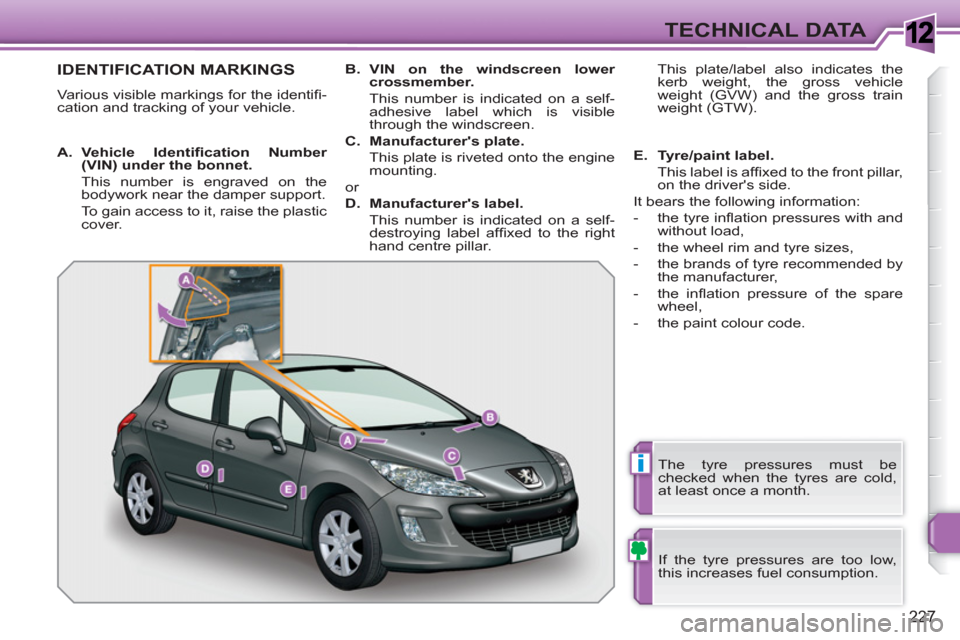

IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracking of your vehicle.
If the tyre pressures are too low,
this increases fuel consumption.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.


A.
Vehicle Identifi cation Number
(VIN)

under the bonnet.


This number is engraved on the
bodywork near the damper support.
To gain access to it, raise the plastic
cover.
B.
VIN

on the windscreen lower
crossmember.


This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's plate.


This plate is riveted onto the engine
mounting.
or

D.
Manufacturer's label.


This number is indicated on a self-
destroying label affi xed to the right
hand centre pillar. This plate/label also indicates the
kerb weight, the gross vehicle
weight (GVW) and the gross train
weight (GTW).

E.
Tyre/paint label.


This label is affi xed to the front pillar,
on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.
