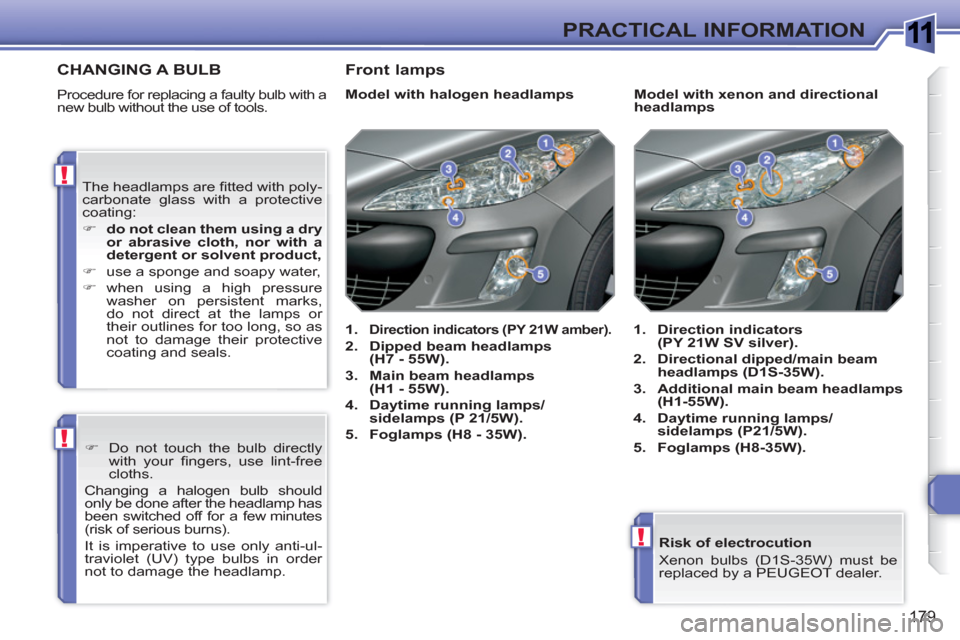

Page 181 of 336
1
!
!
!
179
PRACTICAL INFORMATION
Risk of electrocution
Xenon bulbs (D1S-35W) must be
replaced by a PEUGEOT dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb with a
new bulb without the use of tools.
Model with halogen headlamps
1.
Direction indicators (PY 21W amber).
2.
Dipped beam headlamps
(H7 - 55W).
3.
Main beam headlamps
(H1 - 55W).
4.
Daytime running lamps/
sidelamps (P 21/5W).
5.
Foglamps (H8 - 35W).
1.
Direction indicators
(PY 21W SV silver).
2.
Directional dipped/main beam
headlamps (D1S-35W).
3.
Additional main beam headlamps
(H1-55W).
4.
Daytime running lamps/
sidelamps (P21/5W).
5.
Foglamps (H8-35W).
Model with xenon and directional
headlamps
The headlamps are fi tted with poly-
carbonate glass with a protective
coating:
)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks,
do not direct at the lamps or
their outlines for too long, so as
not to damage their protective
coating and seals.
)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a halogen bulb should
only be done after the headlamp has
been switched off for a few minutes
(risk of serious burns).
It is imperative to use only anti-ul-
traviolet (UV) type bulbs in order
not to damage the headlamp.
Front lamps

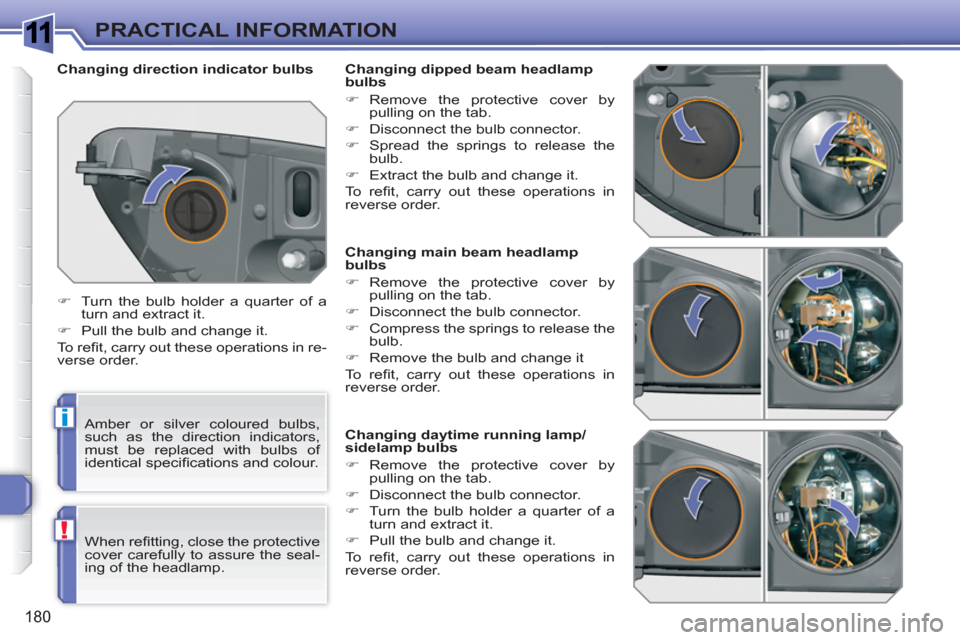

Page 182 of 336
1
i
!
180
PRACTICAL INFORMATION
Changing main beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Compress the springs to release the
bulb.
)
Remove the bulb and change it
To r efi t, carry out these operations in
reverse order.
Changing daytime running lamp/
sidelamp bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Changing dipped beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the
bulb.
)
Extract the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Changing direction indicator bulbs
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
identical specifi cations and colour.
When refi tting, close the protective
cover carefully to assure the seal-
ing of the headlamp.

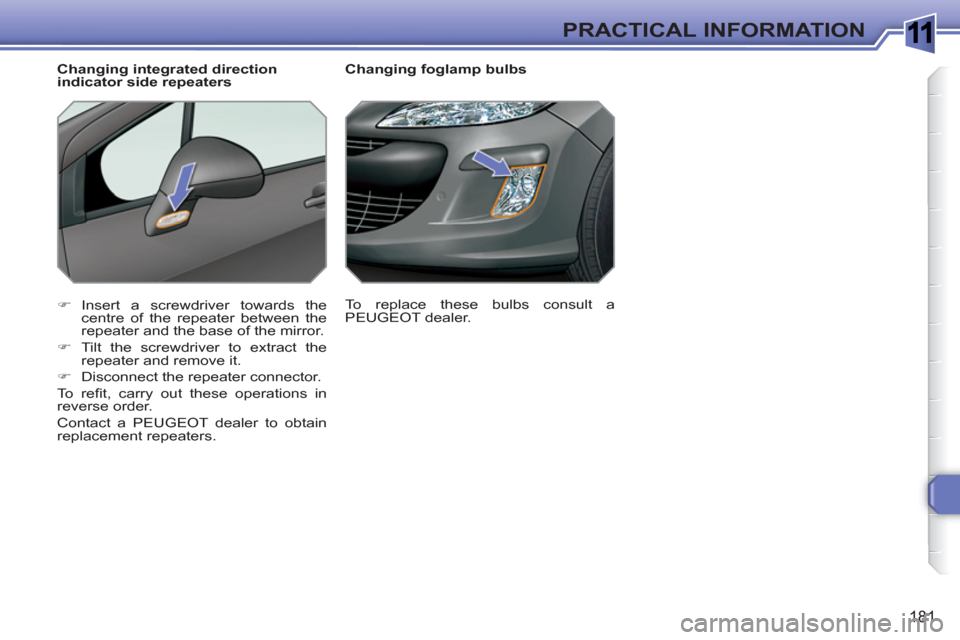

Page 183 of 336
1
181
PRACTICAL INFORMATION
Changing foglamp bulbs
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the
repeater and remove it.
)
Disconnect the repeater connector.
To r efi t, carry out these operations in
reverse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
To replace these bulbs consult a
PEUGEOT dealer.
Page 184 of 336
1
i
182
PRACTICAL INFORMATION
Rear lamps
1.
Brake lamps/sidelamps (P21/5W).
2.
Sidelamps (P21/5W).
3.
Foglamp,
offside
(P21W).
Reversing lamp,
nearside
(P21W).
4.
Direction indicators (P21W).
Changing bulbs
These fi ve bulbs are changed from out-
side the boot:
)
remove the two lamp fi xing nuts,
)
extract the lamp carefully from the
outside,
)
disconnect the lamp connector,
)
press the four tabs and remove the
bulb holder,
)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
If the vehicle is fi tted with the JBL
audio system, on the right-hand
side, fi rst remove the three fi xing
bolts, then move the box.
)
on the right-hand side; remove the
access fl ap,
)
on the left-hand side; turn the fi xing
bolt a quarter of a turn and remove
the storage box cover,
)
unclip the storage box,

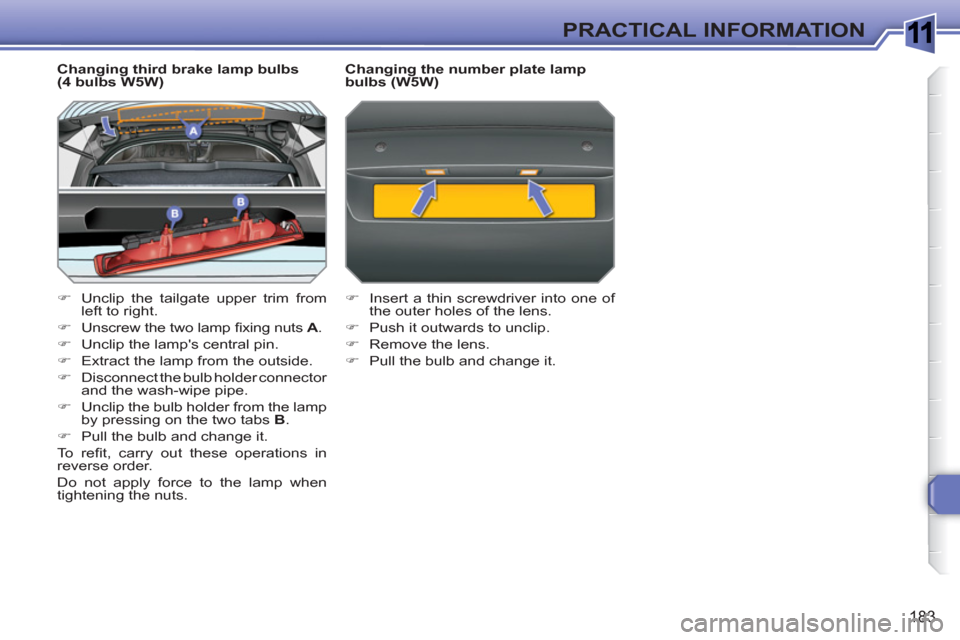

Page 185 of 336
1
183
PRACTICAL INFORMATION
Changing third brake lamp bulbs
(4 bulbs W5W)
)
Unclip the tailgate upper trim from
left to right.
)
Unscrew the two lamp fi xing nuts A
.
)
Unclip the lamp's central pin.
)
Extract the lamp from the outside.
)
Disconnect the bulb holder connector
and the wash-wipe pipe.
)
Unclip the bulb holder from the lamp
by pressing on the two tabs B
.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Do not apply force to the lamp when
tightening the nuts.
Changing the number plate lamp
bulbs (W5W)
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb and change it.

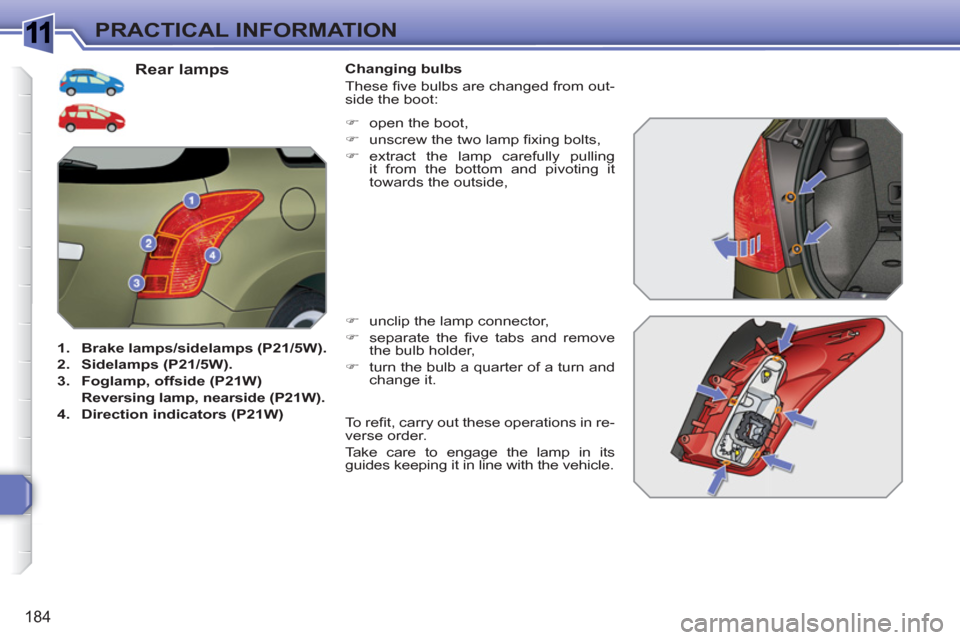

Page 186 of 336
1
184
PRACTICAL INFORMATION
Rear lamps
1.
Brake lamps/sidelamps (P21/5W).
2.
Sidelamps (P21/5W).
3.
Foglamp,
offside
(P21W)
Reversing lamp, nearside (P21W).
4.
Direction indicators (P21W)
Changing bulbs
These fi ve bulbs are changed from out-
side the boot:
)
unclip the lamp connector,
)
separate the fi ve tabs and remove
the bulb holder,
)
turn the bulb a quarter of a turn and
change it.
)
open the boot,
)
unscrew the two lamp fi xing bolts,
)
extract the lamp carefully pulling
it from the bottom and pivoting it
towards the outside,
To r efi t, carry out these operations in re-
verse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.

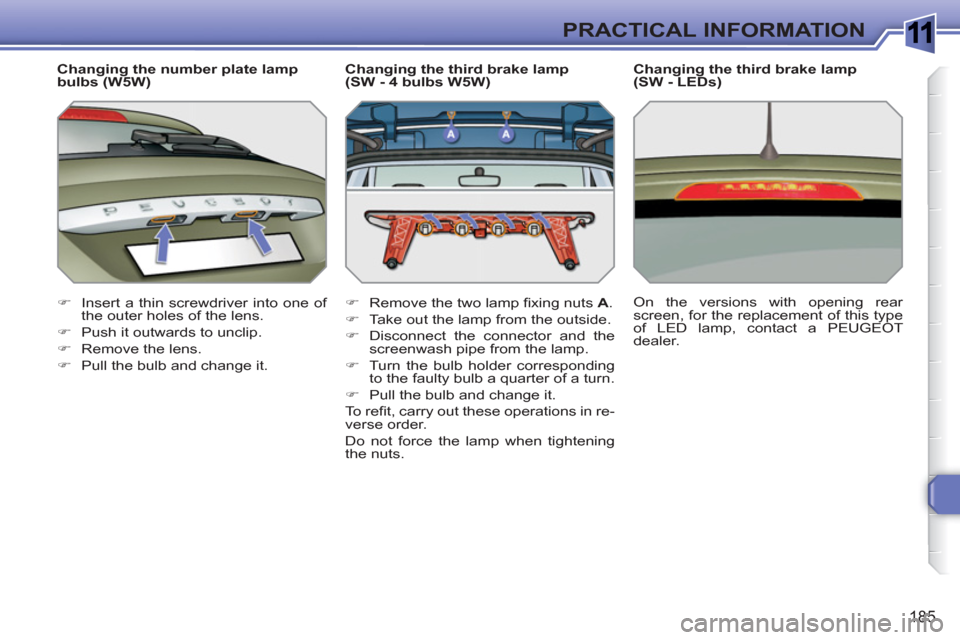

Page 187 of 336
1
185
PRACTICAL INFORMATION
Changing the number plate lamp
bulbs (W5W)
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb and change it.
Changing the third brake lamp
(SW - 4 bulbs W5W)
)
Remove the two lamp fi xing nuts A
.
)
Take out the lamp from the outside.
)
Disconnect the connector and the
screenwash pipe from the lamp.
)
Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Do not force the lamp when tightening
the nuts.
Changing the third brake lamp
(SW - LEDs)
On the versions with opening rear
screen, for the replacement of this type
of LED lamp, contact a PEUGEOT
dealer.

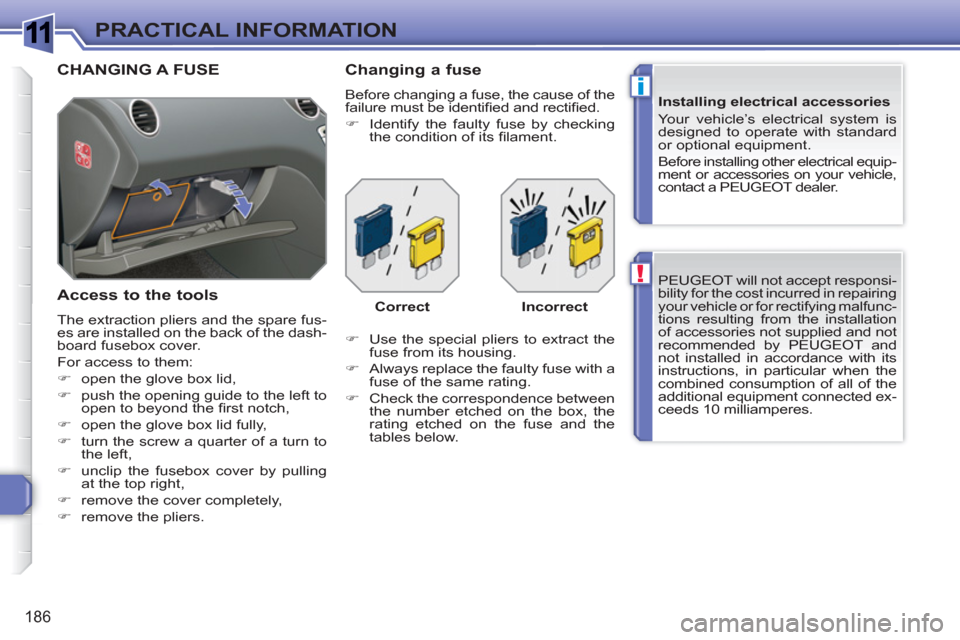

Page 188 of 336
1
!
i
186
PRACTICAL INFORMATION
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying malfunc-
tions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected ex-
ceeds 10 milliamperes.
Installing electrical accessories
Your vehicle’s electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
CHANGING A FUSE
Access to the tools
The extraction pliers and the spare fus-
es are installed on the back of the dash-
board fusebox cover.
For access to them:
)
open the glove box lid,
)
push the opening guide to the left to
open to beyond the fi rst notch,
)
open the glove box lid fully,
)
turn the screw a quarter of a turn to
the left,
)
unclip the fusebox cover by pulling
at the top right,
)
remove the cover completely,
)
remove the pliers.
Changing a fuse
Before changing a fuse, the cause of the
failure must be identifi ed and rectifi ed.
)
Identify the faulty fuse by checking
the condition of its fi lament.
)
Use the special pliers to extract the
fuse from its housing.
)
Always replace the faulty fuse with a
fuse of the same rating.
)
Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
tables below. Correct
Incorrect

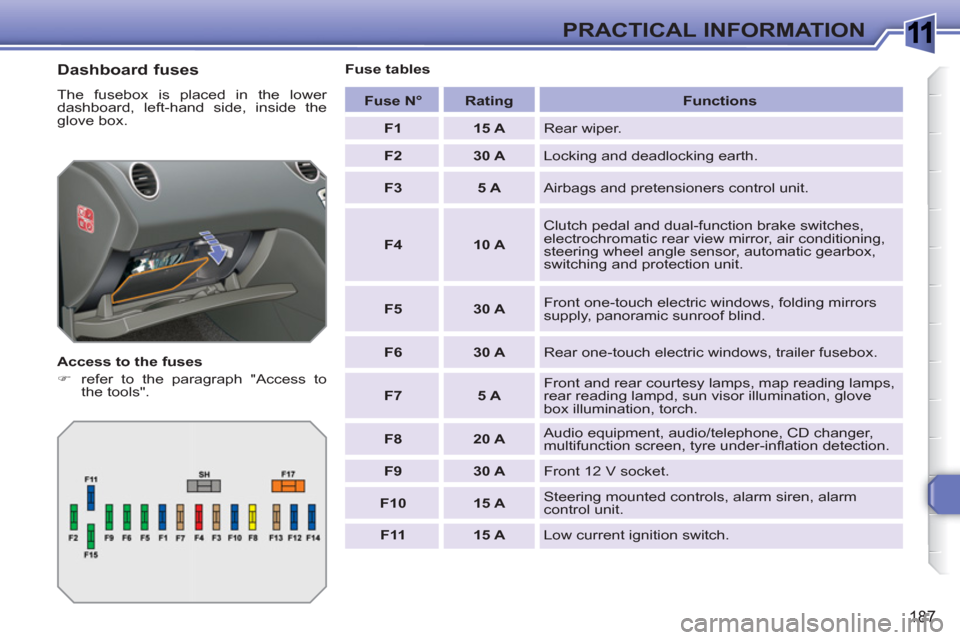

Page 189 of 336
1
187
PRACTICAL INFORMATION
Dashboard fuses
The fusebox is placed in the lower
dashboard, left-hand side, inside the
glove box.
Access to the fuses
)
refer to the paragraph "Access to
the tools".
Fuse tables
Fuse N°
Rating
Functions
F1
15 A
Rear wiper.
F2
30 A
Locking and deadlocking earth.
F3
5 A
Airbags and pretensioners control unit.
F4
10 A
Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.
F5
30 A
Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.
F6
30 A
Rear one-touch electric windows, trailer fusebox.
F7
5 A
Front and rear courtesy lamps, map reading lamps,
rear reading lampd, sun visor illumination, glove
box illumination, torch.
F8
20 A
Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection.
F9
30 A
Front 12 V socket.
F10
15 A
Steering mounted controls, alarm siren, alarm
control unit.
F11
15 A
Low current ignition switch.

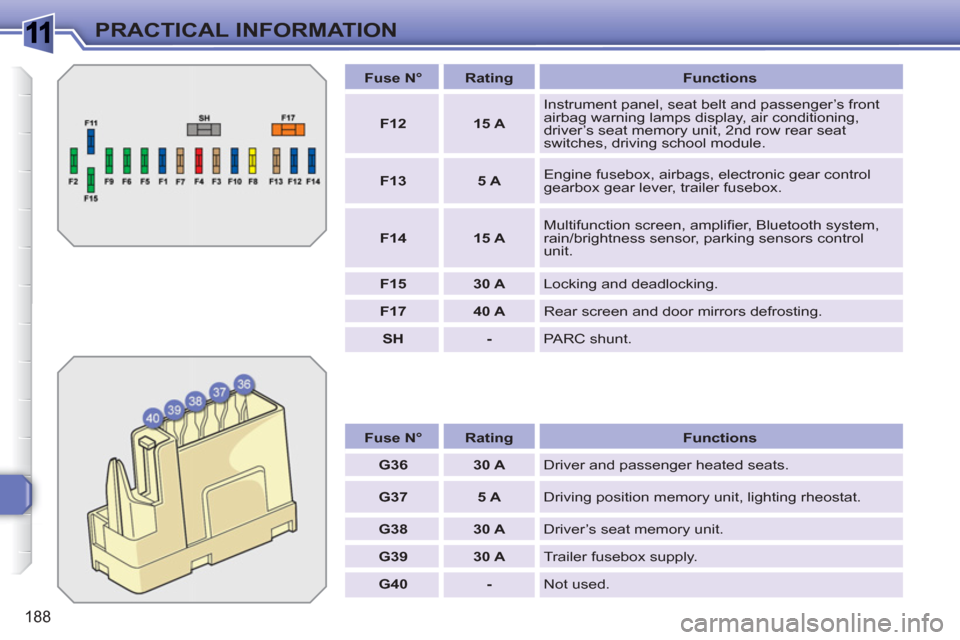

Page 190 of 336
1
188
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
G36
30 A
Driver and passenger heated seats.
G37
5 A
Driving position memory unit, lighting rheostat.
G38
30 A
Driver’s seat memory unit.
G39
30 A
Trailer fusebox supply.
G40
-
Not used.
Fuse N°
Rating
Functions
F12
15 A
Instrument panel, seat belt and passenger’s front
airbag warning lamps display, air conditioning,
driver’s seat memory unit, 2nd row rear seat
switches, driving school module.
F13
5 A
Engine fusebox, airbags, electronic gear control
gearbox gear lever, trailer fusebox.
F14
15 A
Multifunction screen, amplifi er, Bluetooth system,
rain/brightness sensor, parking sensors control
unit.
F15
30 A
Locking and deadlocking.
F17
40 A
Rear screen and door mirrors defrosting.
SH
-
PARC shunt.
