PRACTICAL INFORMATION

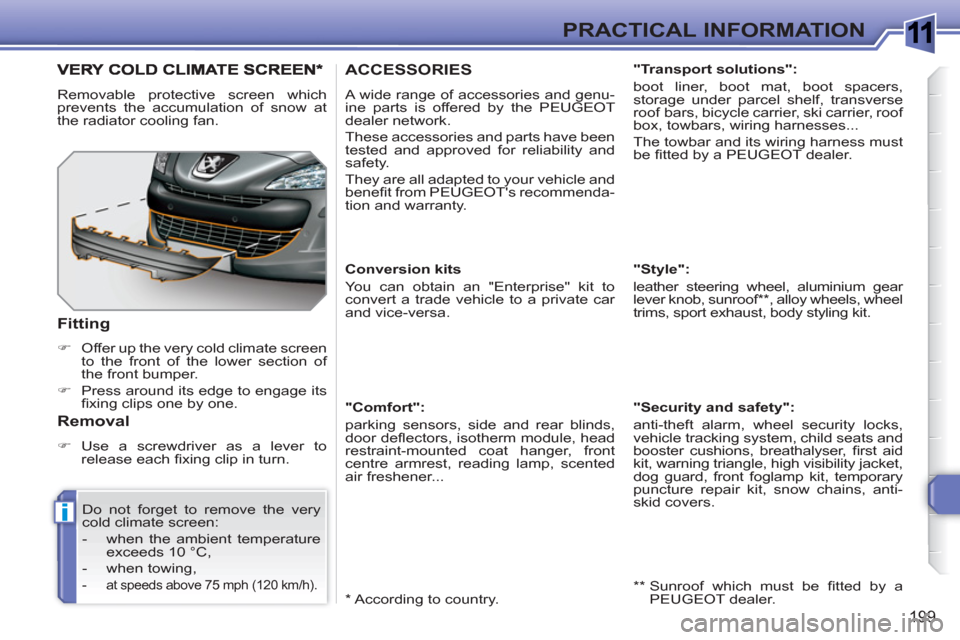

ACCESSORIES
A wide range of accessories and genu-
ine parts is offered by the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.


"Comfort":
parking sensors, side and rear blinds,
door defl ectors, isotherm module, head
restraint-mounted coat hanger, front
centre armrest, reading lamp, scented
air freshener...

**
Sunroof which must be fi tted by a
PEUGEOT dealer.
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.

Fitting



)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

)
Press around its edge to engage its
fi xing clips one by one.

Do not forget to remove the very
cold climate screen:


- when the ambient temperature
exceeds 10 °C,

- when towing,


- at speeds above 75 mph (120 km/h).



Removal



)
Use a screwdriver as a lever to
release each fi xing clip in turn.

*
According to country.

Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.

"Transport solutions":
boot liner, boot mat, boot spacers,
storage under parcel shelf, transverse
roof bars, bicycle carrier, ski carrier, roof
box, towbars, wiring harnesses...
The towbar and its wiring harness must
be fi tted by a PEUGEOT dealer.

"Style":
leather steering wheel, aluminium gear
lever knob, sunroof ** , alloy wheels, wheel
trims, sport exhaust, body styling kit.

"Security and safety":
anti-theft alarm, wheel security locks,
vehicle tracking system, child seats and
booster cushions, breathalyser, fi rst aid
kit, warning triangle, high visibility jacket,
dog guard, front foglamp kit, temporary
puncture repair kit, snow chains, anti-
skid covers.

1
!
i
i
200

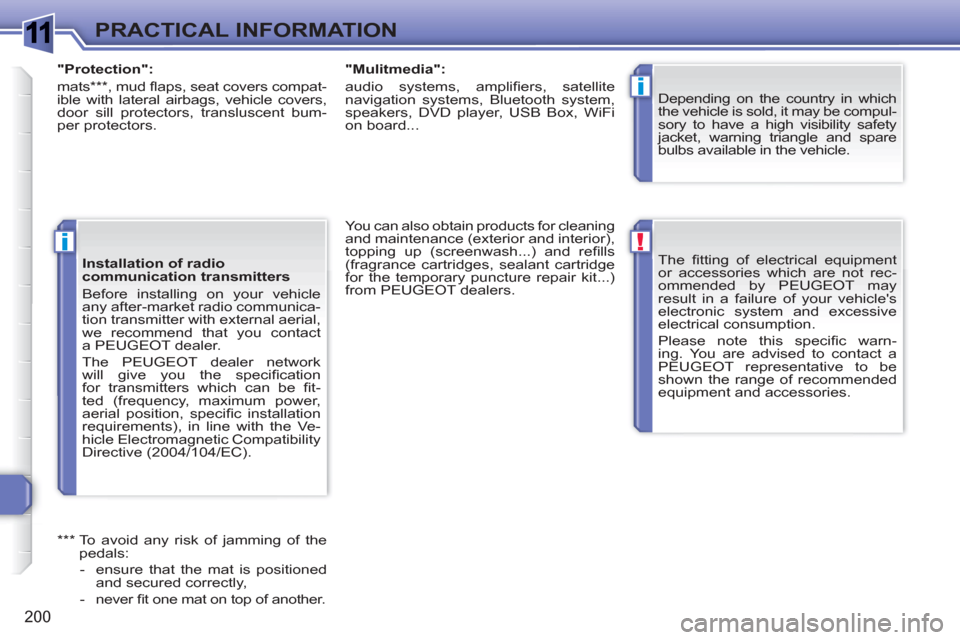

PRACTICAL INFORMATION
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this specifi c warn-
ing. You are advised to contact a
PEUGEOT representative to be
shown the range of recommended
equipment and accessories.

Depending on the country in which
the vehicle is sold, it may be compul-
sory to have a high visibility safety
jacket, warning triangle and spare
bulbs available in the vehicle.
"Protection":
mats *** , mud fl aps, seat covers compat-
ible with lateral airbags, vehicle covers,
door sill protectors, transluscent bum-
per protectors.
"Mulitmedia":
audio systems, amplifi ers, satellite
navigation systems, Bluetooth system,
speakers, DVD player, USB Box, WiFi
on board...

***
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.

Installation of radio
communication transmitters
Before installing on your vehicle
any after-market radio communica-
tion transmitter with external aerial,
we recommend that you contact
a PEUGEOT dealer.
The PEUGEOT dealer network
will give you the specifi cation
for transmitters which can be fi t-
ted (frequency, maximum power,
aerial position, specifi c installation
requirements), in line with the Ve-
hicle Electromagnetic Compatibility
Directive (2004/104/EC).


You can also obtain products for cleaning
and maintenance (exterior and interior),
topping up (screenwash...) and refi lls
(fragrance cartridges, sealant cartridge
for the temporary puncture repair kit...)
from PEUGEOT dealers.

1
201

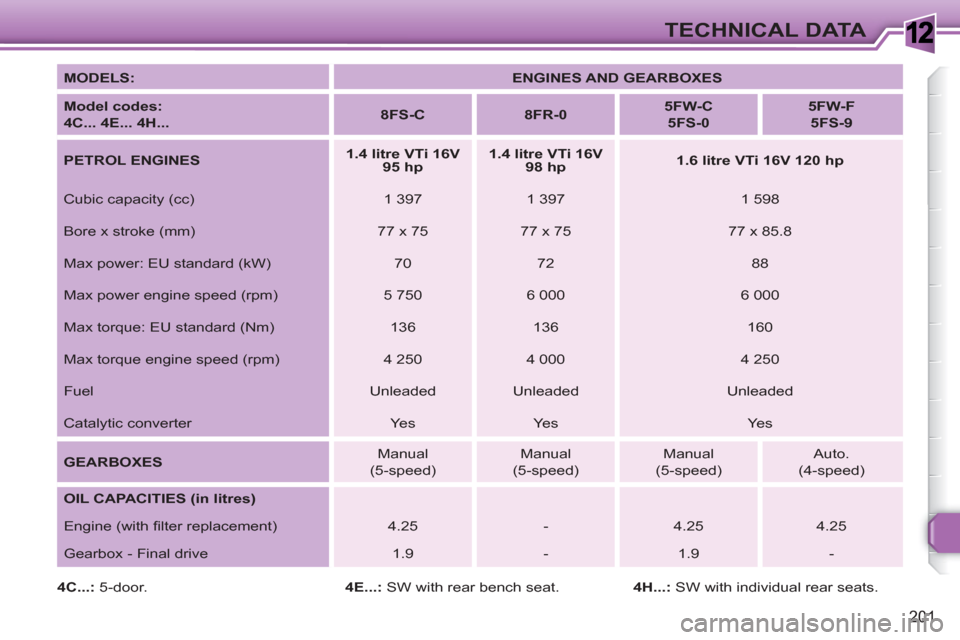

TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:



4C... 4E... 4H...


8FS-C



8FR-0



5FW-C


5FS-0



5FW-F


5FS-9



PETROL ENGINES


1.4 litre VTi 16V
95 hp



1.4 litre VTi 16V
98 hp



1.6 litre VTi 16V 120 hp


Cubic capacity (cc)
1 397
1 397
1 598
Bore x stroke (mm)
77 x 75
77 x 75
77 x 85.8
Max power: EU standard (kW)
70
72
88
Max power engine speed (rpm)
5 750
6 000
6 000
Max torque: EU standard (Nm)
136
136
160
Max torque engine speed (rpm)
4 250
4 000
4 250
Fuel
Unleaded
Unleaded
Unleaded
Catalytic converter
Yes

Yes
Yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Manual
(5-speed)
Auto.
(4-speed)

OIL CAPACITIES (in litres)


Engine (with fi lter replacement)
4.25
-
4.25
4.25
Gearbox - Final drive
1.9
-
1.9
-

4C...:
5-door.
4E...:
SW with rear bench seat.
4H...:
SW with individual rear seats.

1
202
TECHNICAL DATA

MODELS:

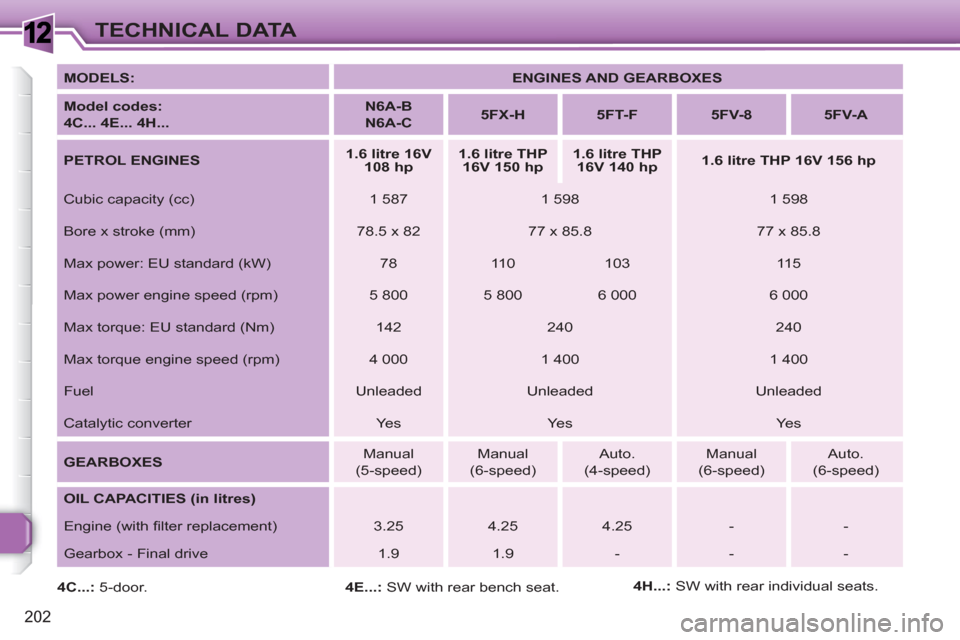

ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


N6A-B
N6A-C



5FX-H



5FT-F



5FV-8



5FV-A



PETROL ENGINES


1.6 litre 16V
108 hp



1.6 litre THP
16V 150 hp



1.6 litre THP
16V 140 hp



1.6 litre THP 16V 156 hp


Cubic capacity (cc)
1 587
1 598
1 598
Bore x stroke (mm)
78.5 x 82
77 x 85.8
77 x 85.8
Max power: EU standard (kW)
78
11 0
103
115
Max power engine speed (rpm)
5 800
5 800
6 000
6 000
Max torque: EU standard (Nm)
142
240
240
Max torque engine speed (rpm)
4 000
1 400
1 400
Fuel
Unleaded
Unleaded
Unleaded
Catalytic converter
Yes
Yes
Yes

GEARBOXES

Manual
(5-speed)
Manual
(6-speed)
Auto.
(4-speed)
Manual
(6-speed)
Auto.
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
3.25
4.25
4.25
-
-
Gearbox - Final drive
1.9
1.9
-
-
-

4C...:
5-door.
4E...:
SW with rear bench seat.
4H...:
SW with rear individual seats.

1
203

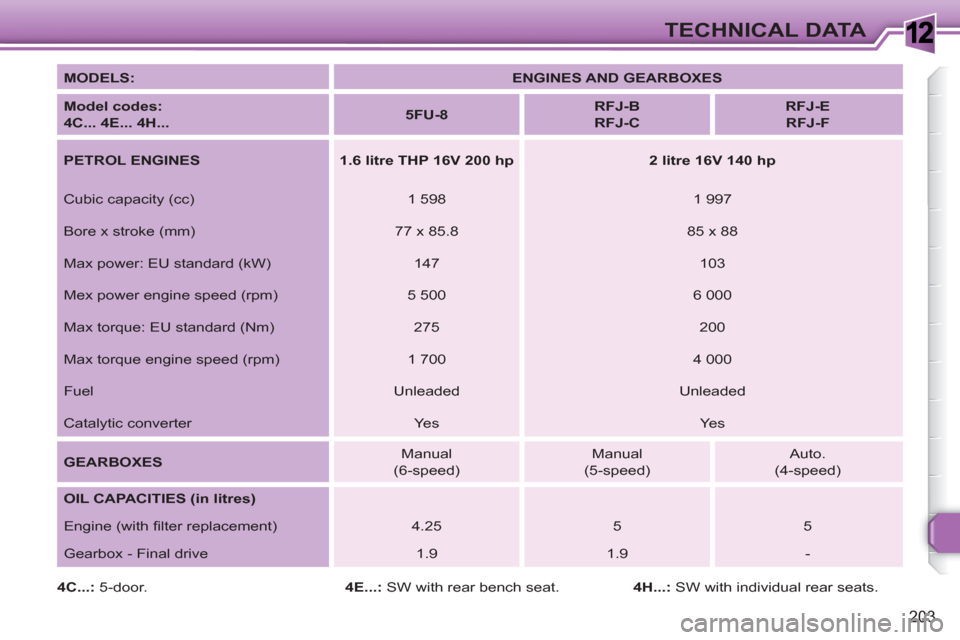

TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


5FU-8



RFJ-B
RFJ-C



RFJ-E
RFJ-F



PETROL ENGINES


1.6 litre THP 16V 200 hp



2 litre 16V 140 hp


Cubic capacity (cc)
1 598
1 997
Bore x stroke (mm)
77 x 85.8
85 x 88
Max power: EU standard (kW)
147
103
Mex power engine speed (rpm)
5 500
6 000
Max torque: EU standard (Nm)
275
200
Max torque engine speed (rpm)
1 700
4 000
Fuel
Unleaded
Unleaded
Catalytic converter
Yes
Yes

GEARBOXES

Manual
(6-speed)
Manual
(5-speed)
Auto.
(4-speed)

OIL CAPACITIES (in litres)

Engine (with
fi lter replacement)
4.25
5
5
Gearbox - Final drive
1.9
1.9
-

4C...:
5-door.
4E...:
SW with rear bench seat.
4H...:
SW with individual rear seats.

1
204
TECHNICAL DATA

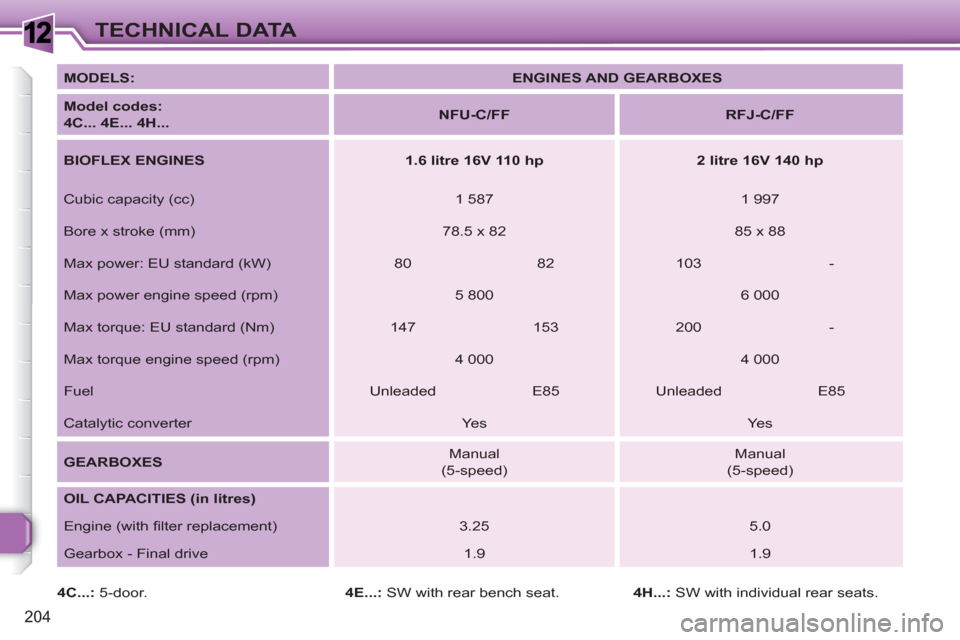

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


NFU-C/FF



RFJ-C/FF



BIOFLEX ENGINES


1.6 litre 16V 110 hp



2 litre 16V 140 hp


Cubic capacity (cc)
1 587
1 997
Bore x stroke (mm)
78.5 x 82
85 x 88
Max power: EU standard (kW)
80
82
103
-
Max power engine speed (rpm)
5 800
6 000
Max torque: EU standard (Nm)
147
153
200
-
Max torque engine speed (rpm)
4 000
4 000
Fuel
Unleaded
E85
Unleaded
E85
Catalytic converter
Yes
Yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)

OIL CAPACITIES (in litres)

Engine (with fi
lter replacement)
3.25
5.0
Gearbox - Final drive
1.9
1.9

4C...:
5-door.
4E...:
SW with rear bench seat.
4H...:
SW with individual rear seats.

1
205
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

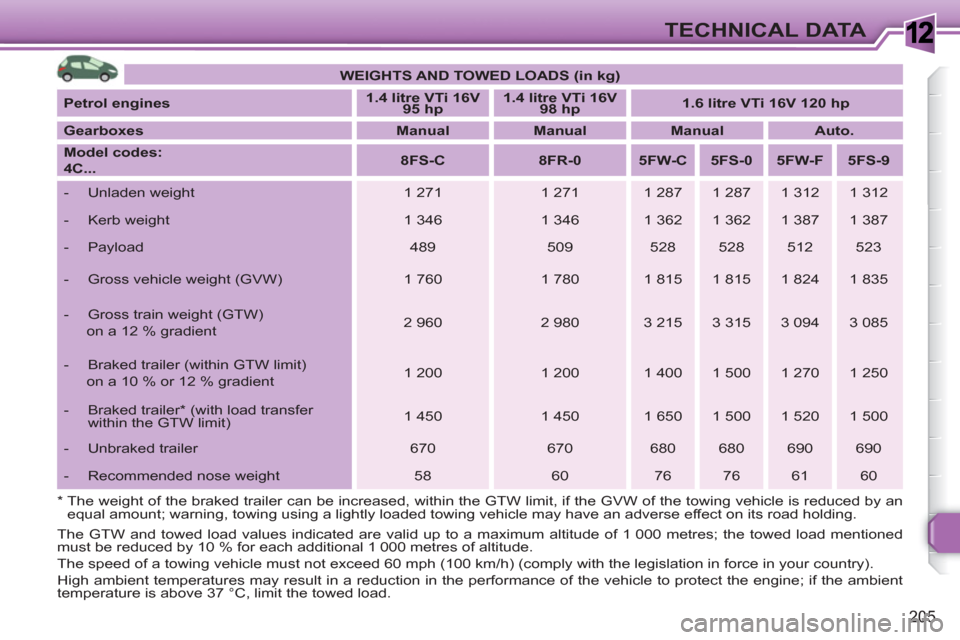

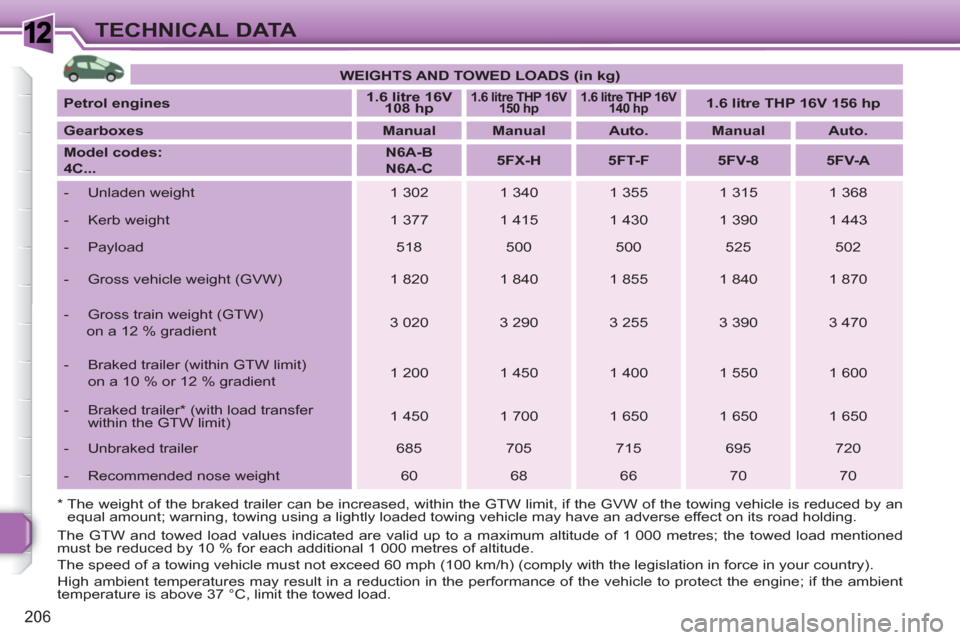

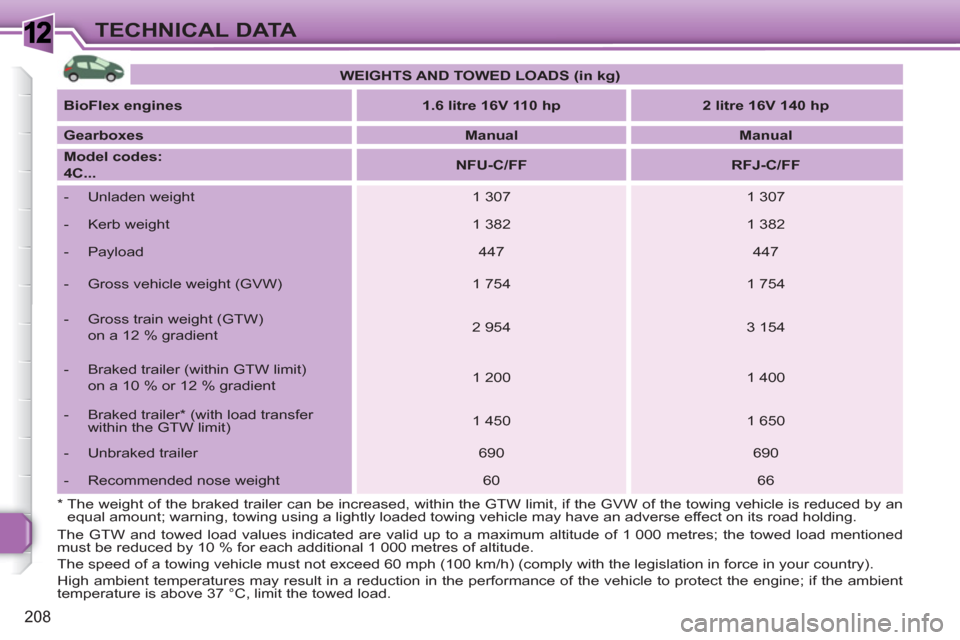

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.4 litre VTi 16V
95 hp



1.4 litre VTi 16V
98 hp



1.6 litre VTi 16V 120 hp



Gearboxes


Manual



Manual



Manual



Auto.



Model codes:
4C...


8FS-C



8FR-0



5FW-C



5FS-0



5FW-F



5FS-9




- Unladen weight
1 271
1 271
1 287
1 287
1 312
1 312


- Kerb weight
1 346
1 346
1 362
1 362
1 387
1 387


- Payload
489
509
528
528
512
523


- Gross vehicle weight (GVW)
1 760
1 780
1 815
1 815
1 824
1 835


- Gross train weight (GTW)
on a 12 % gradient
2 960
2 980
3 215
3 315
3 094
3 085


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 200
1 200
1 400
1 500
1 270
1 250


- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 450
1 650
1 500
1 520
1 500


- Unbraked trailer
670
670
680
680
690
690


- Recommended nose weight
58
60
76
76
61
60

*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

1
206
TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre 16V
108 hp



1.6 litre THP 16V
150 hp


1.6 litre THP 16V
140 hp



1.6 litre THP 16V 156 hp



Gearboxes


Manual



Manual



Auto.



Manual



Auto.



Model codes:



4C...


N6A-B
N6A-C



5FX-H



5FT-F



5FV-8



5FV-A




- Unladen weight
1 302
1 340
1 355
1 315
1 368


- Kerb weight
1 377
1 415
1 430
1 390
1 443


- Payload
518
500
500
525
502


- Gross vehicle weight (GVW)
1 820
1 840
1 855
1 840
1 870


- Gross train weight (GTW)
on a 12 % gradient
3 020
3 290

3 255
3 390
3 470


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 200
1 450
1 400
1 550
1 600


- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 700
1 650
1 650
1 650


- Unbraked trailer
685
705
715
695
720


- Recommended nose weight
60
68
66
70
70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

1TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



Petrol engines

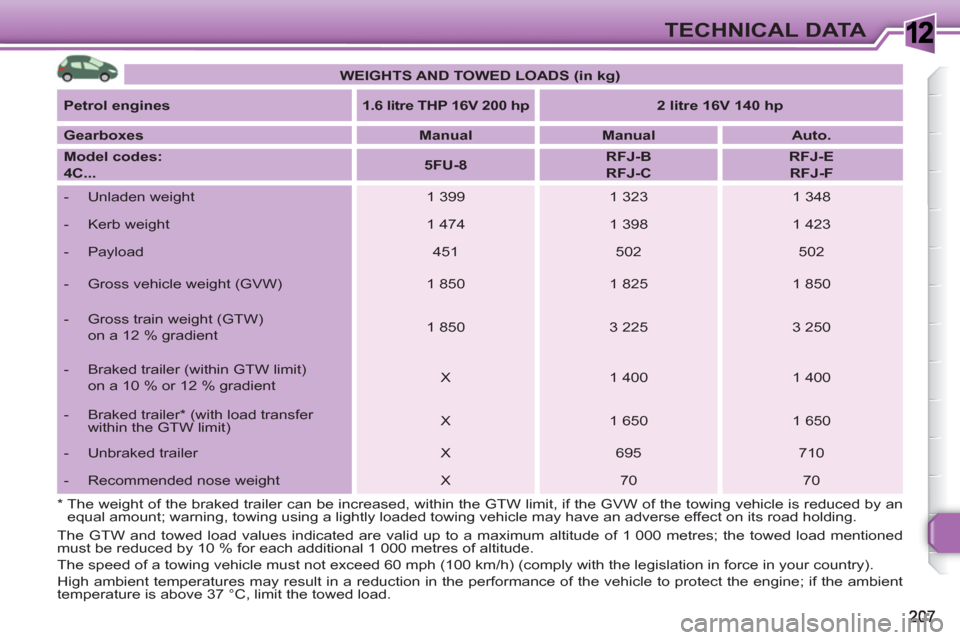

1.6 litre THP 16V 200 hp



2 litre 16V 140 hp



Gearboxes


Manual



Manual



Auto.



Model codes:
4C...


5FU-8



RFJ-B
RFJ-C



RFJ-E
RFJ-F




- Unladen weight
1 399
1 323
1 348


- Kerb weight
1 474
1 398
1 423


- Payload
451
502
502


- Gross vehicle weight (GVW)
1 850
1 825
1 850


- Gross train weight (GTW)
on a 12 % gradient
1 850
3 225
3 250


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
X
1 400

1 400


- Braked trailer * (with load transfer
within the GTW limit)
X
1 650
1 650


- Unbraked trailer
X
695
710


- Recommended nose weight
X
70
70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

1
208
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



BioFlex engines


1.6 litre 16V 110 hp



2 litre 16V 140 hp



Gearboxes


Manual



Manual



Model codes:
4C...


NFU-C/FF



RFJ-C/FF




- Unladen weight
1 307
1 307


- Kerb weight
1 382
1 382


- Payload
447
447


- Gross vehicle weight (GVW)
1 754
1 754


- Gross train weight (GTW)
on a 12 % gradient
2 954
3 154


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 200
1 400


- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 650


- Unbraked trailer
690
690


- Recommended nose weight
60
66
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
