Peugeot 308 SW BL 2011 Owner's Manual - RHD (UK, Australia)

289

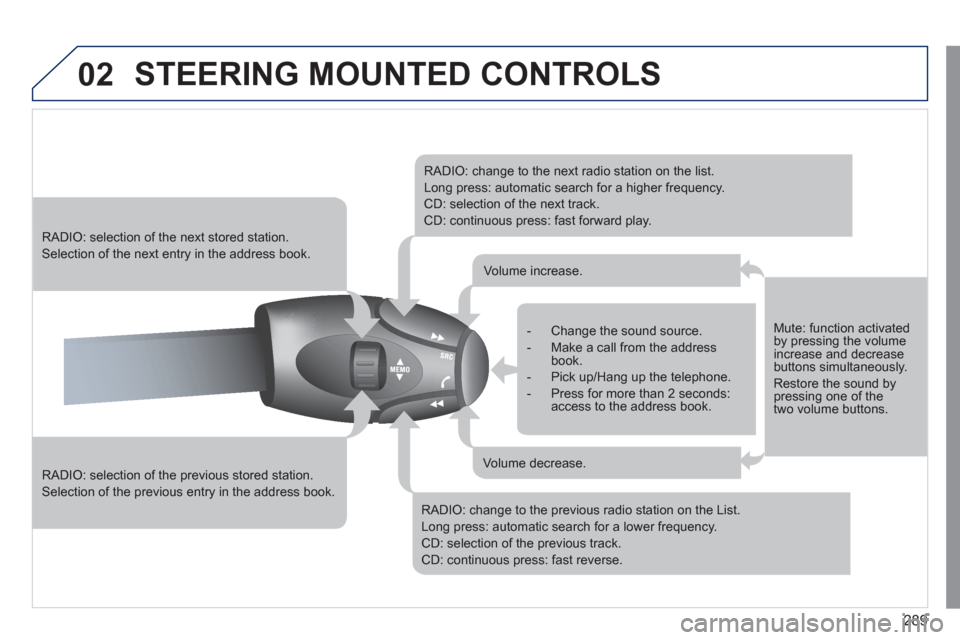

02 STEERING MOUNTED CONTROLS


RADIO: selection of the previous stored station.
Selection of the previous entry in the address book.

RADIO: selection of the next stored station.
Selection of the next entry in the address book.
RADIO: change to the next radio station on the list.
Long press: automatic search for a higher frequency.
CD: selection of the next track.
CD: continuous press: fast forward play.

RADIO: change to the previous radio station on the List.
Long press: automatic search for a lower frequency.
CD: selection of the previous track.
CD: continuous press: fast reverse.


- Change the sound source.

- Make a call from the address
book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:
access to the address book.

Volume increase.

Volume decrease.
Mute: function activated
by pressing the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the
two volume buttons.

290

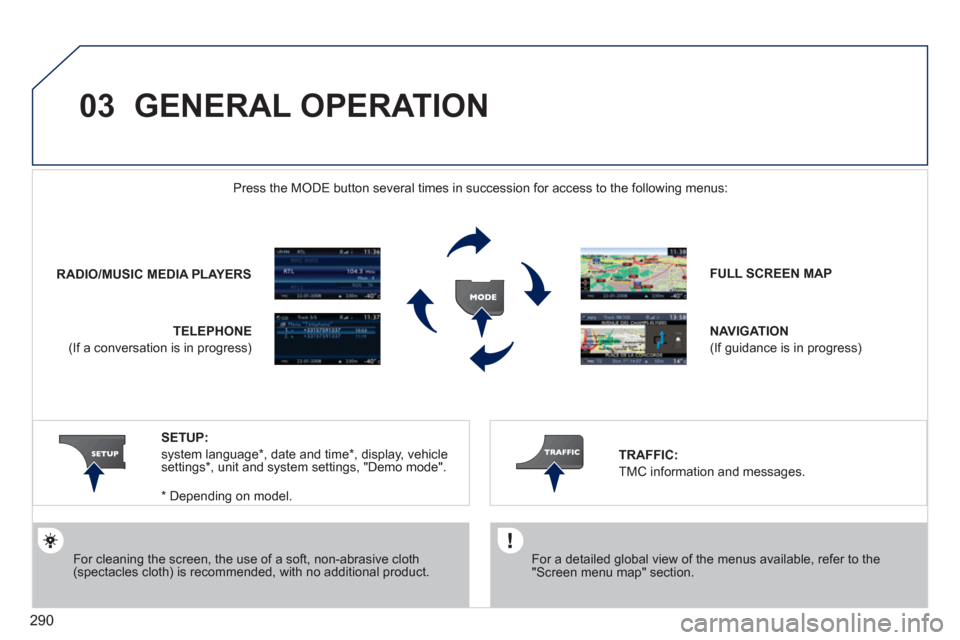

03 GENERAL OPERATION


For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.
FULL SCREEN MAP


NAVIGATION

(If guidance is in progress)


SETUP:

system language * , date and time * , display, vehicle
settings * , unit and system settings, "Demo mode".



* Depending on model.
RADIO / MUSIC MEDIA PLAYERS










Press the MODE button several times in succession for access to the following menus:

TELEPHONE



(If a conversation is in progress)


TRAFFIC:

TMC information and messages.

For a detailed global view of the menus available, refer to the
"Screen menu map" section.

291

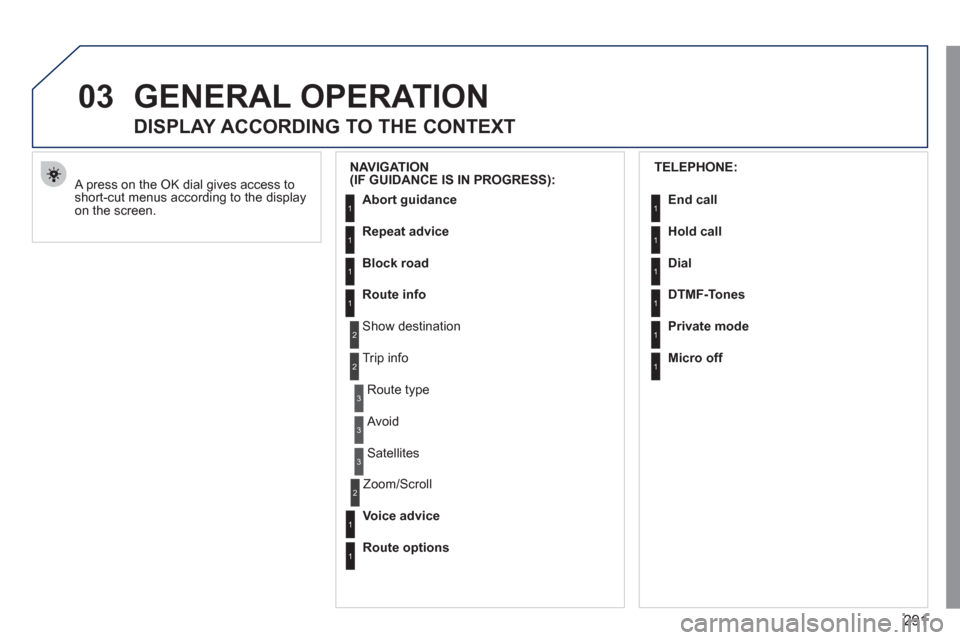

03 GENERAL OPERATION

A press on the OK dial gives access to
short-cut menus according to the display
on the screen.






DISPLAY ACCORDING TO THE CONTEXT


NAVIGATION
(IF GUIDANCE IS IN PROGRESS):

Abort guidance


Repeat advice


Block road


Route info

Show destination
Trip info
Route type
Avoid
Satellites
Zoom/Scroll

Voice advice



Route options


1
2
3
3
2
1
1
1
3
1
1
2


TELEPHONE:

End call


Hold call


Dial


DTMF-Tones


Private mode



Micro off


1
1
1
1
1
1

292
03 GENERAL OPERATION

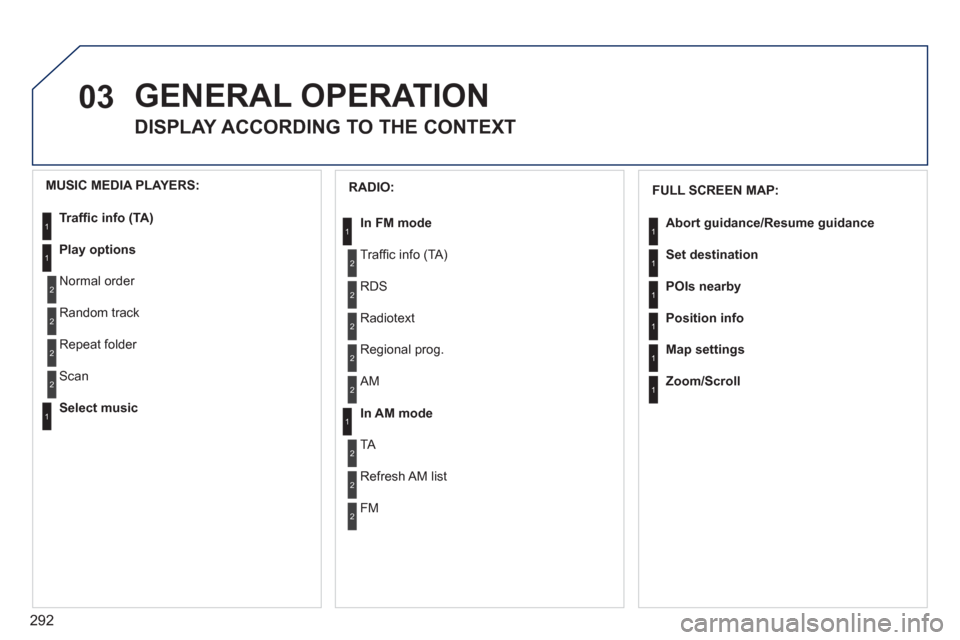

DISPLAY ACCORDING TO THE CONTEXT
1
1
1
1
1
1


RADIO:

In FM mode

Traffi c info (TA)
RDS
Radiotext
Regional prog.

In AM mode
AM
TA
Refresh AM list

FM
1
2
1
2
2
2
2
2
2
2


MUSIC MEDIA PLAYERS:

Traffi c info (TA)


Play options

Normal order
Random track
Repeat folder

Select music



Scan
1
1
2
2
2
2
1


FULL SCREEN MAP:

Abort guidance / Resume guidance


Set destination


POIs nearby


Position info


Map settings


Zoom/Scroll

293
04
1
2
3
5
6
4
NAVIGATION - GUIDANCE
















SELECTING A DESTINATION


Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "Destination input"
function and press the dial to
confi rm.
Press the NAV button.

Select the letters of the town one
by one confi rming each time by
pressing the dial.
Once the country has been selected,
turn the dial and select the town
function. Press the dial to confi rm.
Insert the SD card in the front panel reader and leave it there to use the
Navigation functions.
The navigation SD card data must not be modifi ed.
Map data updates are available from PEUGEOT dealers.

A pre-set list (by entering the fi rst few letters) of the towns in the
country selected can be accessed via the LIST button on the virtual
keypad.
Select the "Address input" function
and press the dial to confi rm.


The list of the last 20 destinations appears under the Navigation
Menu function.

Navigation Menu



Destination input


Address input

294
04
7
8
9

To clear a destination; from steps 1 to 3, select "Choose from last destinations".
A long press on one of the destinations displays a list of actions from which you can select:
Delete entry
Delete list

Repeat steps 5 to 7 for the "Street"
and "House number" functions.
Turn the dial and select OK.
Press the dial to confi rm.

Select the "Save to address book" function to record the address
entered in a directory fi le. Press the dial to confi rm the selection.
Peugeot Connect Navigation allows up to 500 contact fi les to be
recorded.
To speed up the process, the post code can be entered directly
after selecting the "Postal code" function.
Use the virtual keypad to enter the letters and digits.
Then select "Start route guidance"
and the press the dial to confi rm.

During guidance, pressing the end
of the lighting stalk repeats the last
guidance instruction.
Map settings
You can zoom in/zoom out on the map using the dial.
It is possible to move the map or select its orientation via the short-
cut menu of the FULL SCREEN MAP.
Press MODE until the map is displayed full screen. Press the dial
then select "Map settings". Select "2.5D Map" or "2D Map" and in
the latter case, select "North Up" or "Heading Up".
Select the route type:
"Fast route", "Short route" or "Optimized route" and press the dial
to confi rm.
It is also possible to select a destination via "Choose from address
book" or "Choose from last destinations".

Choose from last destinations



Choose from address book

Start route guidance



NAVIGATION - GUIDANCE

295
04
1
2
3
5
4
NAVIGATION - GUIDANCE


SETTING AND NAVIGATING TO MY
"HOME ADDRESS"

Press the NAV button twice to display
the Navigation Menu.
To be set as the "Home address", an address must fi rst be
entered in the address book, for example from "Destination
input"/"Address input" then "Save to address book".

Select "Address book" and confi rm.
Then select "Search entry (complete
address book)" and confi rm.
Select "Destination input" and confi rm.
Then select "Choose from address
book" and confi rm.
Select "Set as home address" and
confi rm to save.
Select your home address and confi rm.
Then select "Edit entry" and confi rm.


To start navigation towards "Home address", press NAV twice
to display the Navigation Menu, select "Destination input" and
confi rm.
Then select "Navigate HOME" and confi rm to start guidance.



Navigation Menu




Destination input




Address book




Edit entry



Set as "Home address"

296
04
4
3
2
1
7
6
5
NAVIGATION - GUIDANCE


ROUTE OPTIONS


Select the "Route dynamics"
function.
This function gives access to the
"Traffi c independent" or "Semi-
dynamic" options.

Select the "Avoidance criteria"
function. This function provides
access to the AVOID options
(motorways, toll roads, ferries).

Turn the dial and select the
"Recalculate" function to take into
account the route options selected.
Press the dial to confi rm.
Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "Route type" function
and press the dial to confi rm. This
function allows you to change the
route type.
Select the "Route options" function
and press the dial to confi rm.

Recalculate



Avoidance criteria


Route dynamics



Route type


Route options


Navigation Menu

The route selected by the Peugeot Connect Navigation system depends
directly on the route options.
Changing these options may change the route completely.

297
04
7
6
5
4
3
2
1

ADDING A STOPOVER


Enter a new address, for example.

Once the new address has been
entered, select OK and press the dial
to confi rm.

Select "Recalculate" and press the
dial to confi rm.
Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "Add stopover" function
(5 stopovers maximum) and press
the dial to confi rm.


Select the "Stopovers" function and
press the dial to confi rm.
OK


Address input



Add stopover


Stopovers


Navigation Menu



Recalculate



The stopover must be completed or deleted in order for the
guidance to continue to the next destination. Otherwise, the
Peugeot Connect Navigation will always return you to the previous
stopover.

Stopovers can be added to the route once the destination has been
selected.

NAVIGATION - GUIDANCE

298
04
8
6
7
4
3
5
2
1
NAVIGATION - GUIDANCE


SEARCHING FOR POINTS OF INTEREST
(POI)

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "POI nearby" function to
search for POIs around the vehicle.
Select the "POI search" function and
press the dial to confi rm.
Navigation Menu



POI search



POI nearby


Select the "POI in city" function to
search for POIs in the city required.
Select the country then enter the
name of the city using the virtual
keypad.

Select the "POI near route" function
to search for POIs near the route.
Select the "POI in country" function
to search for POIs in the country
required.

Select the "POI near destination"
function to search for POIs near the
point of arrival of the route.

POI near destination


POI near route



POI in country


POI in city



A list of cities present in the country selected can be accessed via
the LIST button on the virtual keypad. The points of interest (POI) indicate all of the service locations in the
vicinity (hotels, various businesses, airports...).
