Peugeot 308 SW BL 2011 Owner's Manual - RHD (UK, Australia)

309
08
1
3 2
2 1
Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing
the dial.

RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.


Ye s


To hang up, press the PHONE button
or press the dial and select "End call"
then confi rm by pressing the dial.

End call



Press the PHONE button.
Select "Dial number", then dial the
telephone number using the virtual
keypad.
Select the Phone Menu function and
press the dial to confi rm.


The list of the last 20 calls made and received in the vehicle
appears under Phone Menu. You can select a number and press
the dial to make the call.

No


743.1


It is also possible to select a number from the address book.
You can select "Dial from address book". The Peugeot Connect
Navigation can record up to 1 000 entries (telephone numbers).
Press the end of the steering mounted control for more than
two seconds to gain access to the address book.


Phone Menu


Dial number



It is possible to make a call directly from the telephone; park the
vehicle as a safety measure.

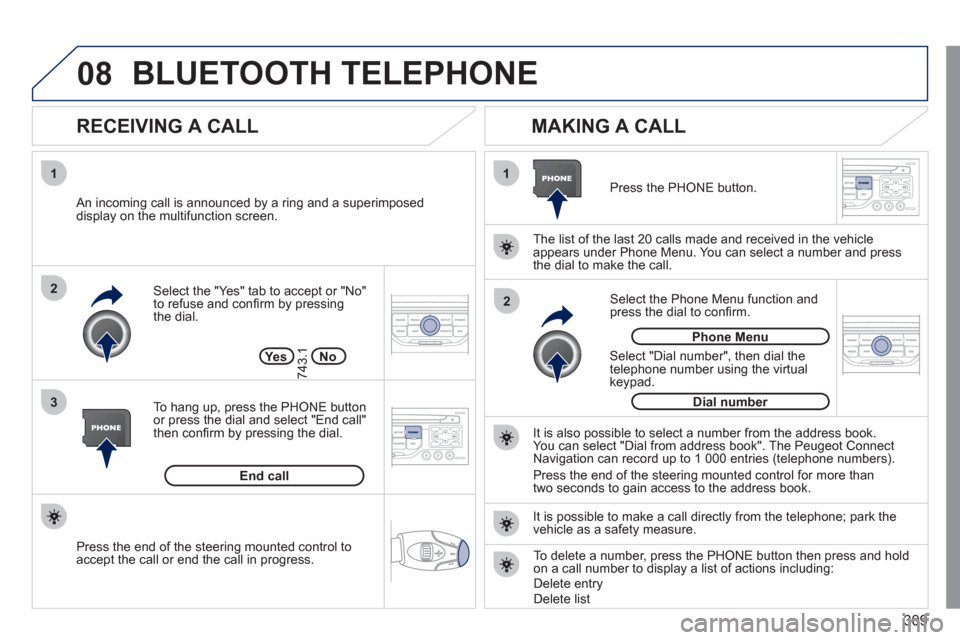

BLUETOOTH TELEPHONE



Press the end of the steering mounted control to
accept the call or end the call in progress.

To delete a number, press the PHONE button then press and hold
on a call number to display a list of actions including:
Delete entry
Delete list

310
09
4 3 2 1
65

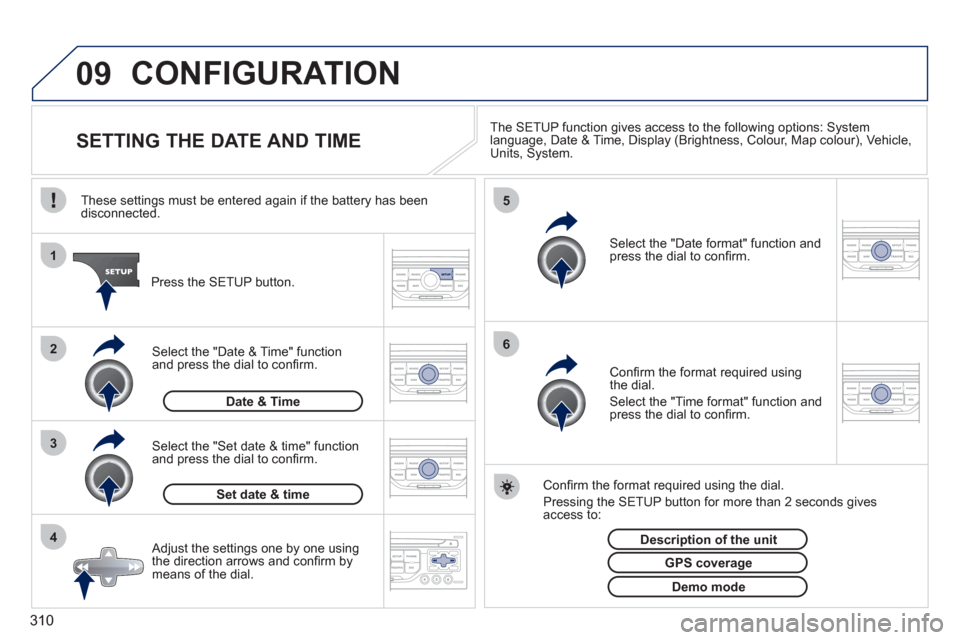

CONFIGURATION
















SETTING THE DATE AND TIME

The SETUP function gives access to the following options: System
language, Date & Time, Display (Brightness, Colour, Map colour), Vehicle,
Units, System.

Adjust the settings one by one using
the direction arrows and confi rm by
means of the dial.
Select the "Date format" function and
press the dial to confi rm.

Select the "Set date & time" function
and press the dial to confi rm.

Confi rm the format required using the dial.
Pressing the SETUP button for more than 2 seconds gives
access to:
These settings must be entered again if the battery has been
disconnected.

Press the SETUP button.

Confi rm the format required using
the dial.
Select the "Time format" function and
press the dial to confi rm.

Set date & time


Select the "Date & Time" function
and press the dial to confi rm.

Demo mode



GPS coverage

Description of the unit



Date & Time

311
10
RADIO

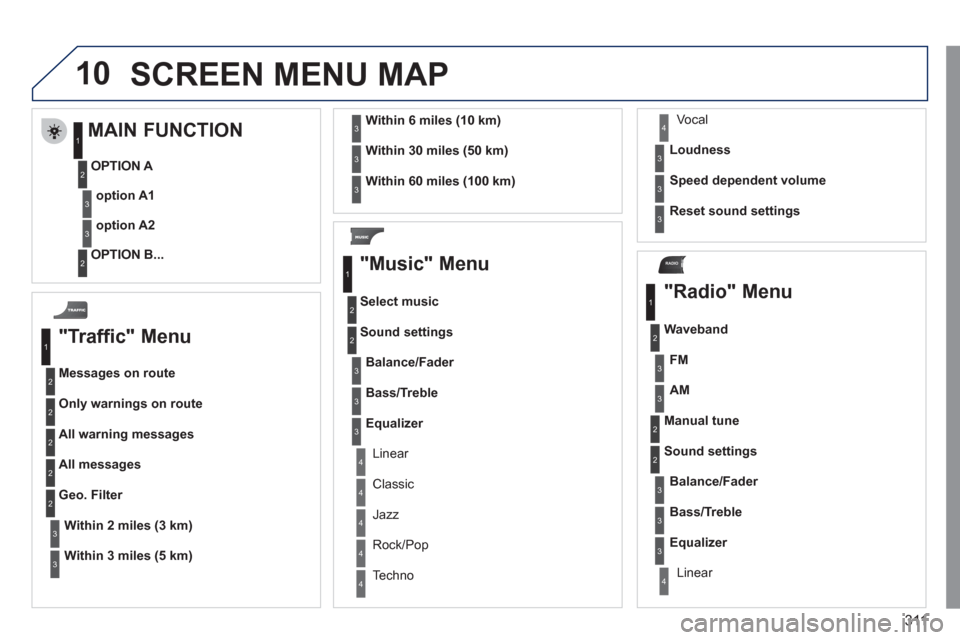

SCREEN MENU MAP


"Traffic" Menu


Messages on route
Only warnings on route
All warning messages
All messages

Within
2 miles (3 km)
Geo. Filter

Within
3 miles (5 km)

Within
6 miles (10 km)


Within
30 miles (50 km)


Within 60 miles (100 km)





"Music" Menu


Select music
Sound settings

Balance/Fader


Bass/Treble

Linear
Equalizer

Classic
Jazz
Rock/Pop
Techno Vocal

Loudness


Speed dependent volume


Reset sound settings




"Radio" Menu


Waveband

AM


Linear
FM


Manual tune
Sound settings

Balance/Fader


Bass/Treble


Equalizer














MAIN FUNCTION


OPTION A

option A1


option A2




OPTION B...

1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
3
1
2
3
2
3

312

Abort guidance/Resume guidance

Destination input Geo position
Map

Stopovers

Add stopover

Navigate HOME
Choose from address book
Rearrange route

Choose from last destinations
Replace stopover


Delete stopover


Recalculate

Fast route
Short route
Optimized route

POI search

POI nearby


Route options

Route type

Short route Fast route


"Navigation" Menu

City
Street
Enter new address

Country
Navigate HOME
City district
House number Start route guidance
Postal code
Save to address book
Intersection
Address input
POI near destination


POI in city


POI in country


POI near route


Choose from address book

3
3


Choose from last destinations


TMC station information


Loudness


Speed dependent volume


Reset sound settings



3
3
3
1
2
4
4
4
4
4
4
4
4
4
4
4
3
2
3
3
2
3
4
4
4
4
3
3
3
3
4
4
4
2
4
2
3
3
3
3
3
3
4

Classic
Jazz
Rock/Pop
Techno
Vocal 4
4
4
4
4

313
Avoid ferries

Recalculate



Settings

Navi volume


POI categories on Map


Set parameters for risk areas

Display on map
Visual alert
Sound alert

3
2
4
3
3
3
4
4
4


Dial number

Dial from address book


"Phone" Menu


Search phone

Call lists

Connect phone

Select ring tone


Phone/Ring tone volume

Phones connected


Enter mailbox number



Settings Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details


"SETUP" menu


System language *

English


Español

Deutsch


Italiano

Français


Nederlands


Polski


Portuguese



Date & Time *

Set date & time


Date format



Time format


1
2
2
2
2
3
3
4
4
4
4
4
2
3
3
3
1
2
3
3
3
3
3
3
3
3
3
3
3
2

Avoid motorways
Route dynamics

Traffi c independent
Semi-dynamic

Avoidance criteria

Avoid toll roads Optimized route
3
3
4
4
4
4
4


* Available according to model.

314
*
Available according to model. Dark blue

Map colour

Night mode for map
Units
Day mode for map

Vehicle *

Vehicle information

Alert log
Status of functions
Temperature

Celsius
Fahrenheit

Metric/Imperial

Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)

System
Auto. Day/Night for map
Factory reset


Software version


Automatic scrolling



3
4
4
2
4
3
4
4
2
3
4
4
3
4
4
4
2
4
3
3
3


Colour

Pop titanium
Toffee
Blue steel
Technogrey 3
4
4
4
4


Display

Brightness
2
3

315
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources, which
may result in audible differences when changing source (radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the Linear musical ambience and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the Audio section.

- The audio equipment's CD player does not
play DVDs.

- Because of their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

316

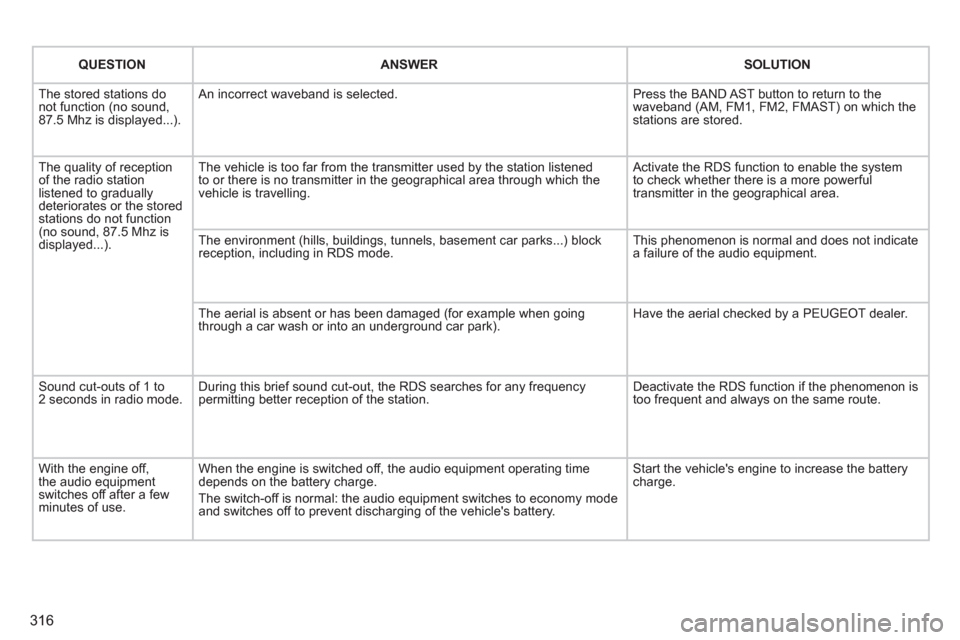

QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.

317


QUESTION



ANSWER



SOLUTION


TA is selected. However,
certain traffi c jams
along the route are not
indicated in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (displaying of the traffi c information
symbols on the map).
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
I receive a speed camera
alert for a camera which
is not on my route. The system announces all speed cameras located in a conical zone
forward of the vehicle. It may detect speed cameras on nearby or parallel
roads. Zoom the map to view the exact position of the
speed camera.
The audible speed
camera alert is not
working. Audible alerts are not active. Activate audible alerts in Navigation Menu,
Settings, Set parameters for risk areas.
The alert volume level is set to minimum. Increase the speed camera alert volume.
The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 3 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
3 satellites (long press on the SETUP button, then
select GPS coverage).
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.
The route is not
calculated successfully. The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a motorway with tolls). Check the exclusion criteria.

318


QUESTION



ANSWER



SOLUTION


There is a long waiting
time after inserting a CD. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.

- Check that your telephone's Bluetooth
function is activated.

- Check that your telephone is visible.
A telephone connected
by Bluetooth is inaudible. The volume level depends on both the system and the telephone. Increase the Peugeot Connect Navigation volume
setting, possibly to maximum, and increase the
telephone volume level if necessary.
