Peugeot 308 SW BL 2011 Owner's Manual - RHD (UK, Australia)

329
06
1
2
3
4
5
6
7
8
9
10
BLUETOOTH


For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.

Press the MENU button.

A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.

In the menu, select:


- Bluetooth telephone function - Audio

- Bluetooth confi guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which services
are available to you. A list of mobile telephones which offer the best range of
services is available from the network. Consult a PEUGEOT dealer.










BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.

The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the
screen: enter a code with at least 4 digits.
Confi rm by pressing OK.

"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A message is displayed on the screen of the telephone
chosen: to accept the pairing, enter the same code on
the telephone, then confi rm by pressing OK.
The automatic connection authorised is only active after the
telephone has been confi gured.
The directory and the call list can be accessed after the
synchronisation period.
PAIRING A TELEPHONE

The pairing can also be initiated from the telephone.
(AVAILABILITY DEPENDS ON MODEL AND VERSION)

*
If your telephone is fully compatible.

If pairing fails, the number of attempts is not limited.

330
06
1
2
1
2
1
2
3

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function menu.
The audio system connects to a newly paired telephone
automatically.
Select the YES tab on the display
using the buttons and confi rm by
pressing OK.

Press the steering mounted control OK to accept
the call.








BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio
equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).

*

In certain cases, playing of the Audio fi les must be initiated from the
keypad.

**
If the telephone supports the function.
Activate the streaming source by
pressing the SOURCE button * . The
tracks to be played can be controlled
as usual via the buttons on the
Radio control panel and the steering
mounted controls ** . The contextual
information can be displayed on the
screen.

BLUETOOTH


MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end of the steering mounted control for
more than two seconds to gain access to your
directory.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.

331
07
1
2
3
4
5
6
7
8
CONFIGURATION

Press the MENU button.

Using the arrows, select
PERSONALISATION
CONFIGURATION.

Press to confi rm the selection.

Using the arrows, select DISPLAY
CONFIGURATION.
Press to confi rm the selection.

Press to confi rm the selection.
Using the arrows, select ADJUST
DATE AND TIME.

Adjust the settings one by one
confi rming by pressing the OK
button. Next select the OK tab on the
screen then confi rm.











SETTING THE DATE AND TIME


SCREEN C

332
08 SCREEN MENU MAP


RADIO-CD
MAIN FUNCTION


*
The parameters vary according to vehicle.
CHOICE A

CHOICE B...













MONOCHROME A


Choice A1


Choice A2



REG MODE

CD REPEAT

RANDOM PLAY



VEHICLE CONFIG *


REV WIPE ACT


OPTIONS


GUIDE LAMPS

DIAGNOSTICS

RDS SEARCH
CONSULT


ABANDON





UNITS



TEMPERATURE: °CELSIUS/°FAHRENHEIT



FUEL CONSUMPTION:
KM/L - L/100 - MPG

1
2
3
31
2
2
2
2
1
2
3
2
3
1
2
2
1
2
2

333
08SCREEN MENU MAP

DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR

12 H/24 H MODE



LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH


ESPANOL

1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2

334
08SCREEN MENU MAP
Press the OK dial for access to short-cut menus according to the display on the
screen:










MONOCHROME C


activate/deactivate RDS


activate/deactivate REG mode


activate/deactivate radiotext




RADIO


activate/deactivate Intro



CD/MP3 CD


activate/deactivate track repeat
(the entire current CD for CD, the entire
current folder for MP3 CD)


activate/deactivate random play
(the entire current CD for CD, the entire
current folder for MP3 CD)


activate/deactivate track repeat (of the
current folder/artist/genre/playlist)



USB


activate/deactivate random play
(of the
current folder/artist/genre/playlist)


1
1
1
1
1
1
1
1

335
08
MONOCHROME C SCREEN MENU MAP

AUDIO FUNCTIONS


alternative frequencies (RDS)

activate/deactivate
FM BAND PREFERENCES

regional mode (REG)

activate/deactivate

radio-text information (RDTXT)


activate/deactivate
1
2
3
4
3
4
3
4


PLAY MODES

album repeat (RPT)

activate/deactivate

track random play (RDM)

activate/deactivate
2
3
4
3
4


VEHICLE DIAGNOSTICS


ALERT LOG

1
2
1
2
4
3
2
4
4
3
3
4
4
2
3
4
4

Pressing the MENU button displays:

*
The parameters vary according to vehicle.
video brightness adjustment

DISPLAY CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *



PERSONALISATION-CONFIGURATION

normal video
inverse video
brightness (- +) adjustment

date and time adjustment

day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode

choice of units

l/100 km - mpg - km/l
°Celsius/°Fahrenheit

CHOICE OF LANGUAGE

336
08SCREEN MENU MAP

BLUETOOTH TELEPHONE


Connect/Disconnect a device

Consult the paired device
BLUETOOTH CONFIGURATION

Telephone function


Audio Streaming function

Delete a paired device
Perform a Bluetooth search

Calls list

CALL
Directory

Terminate the current call

MANAGE THE TELEPHONE CALL


Activate private mode



1
2
3
3
3
4
4
4
2
3
4
2
3
3

337

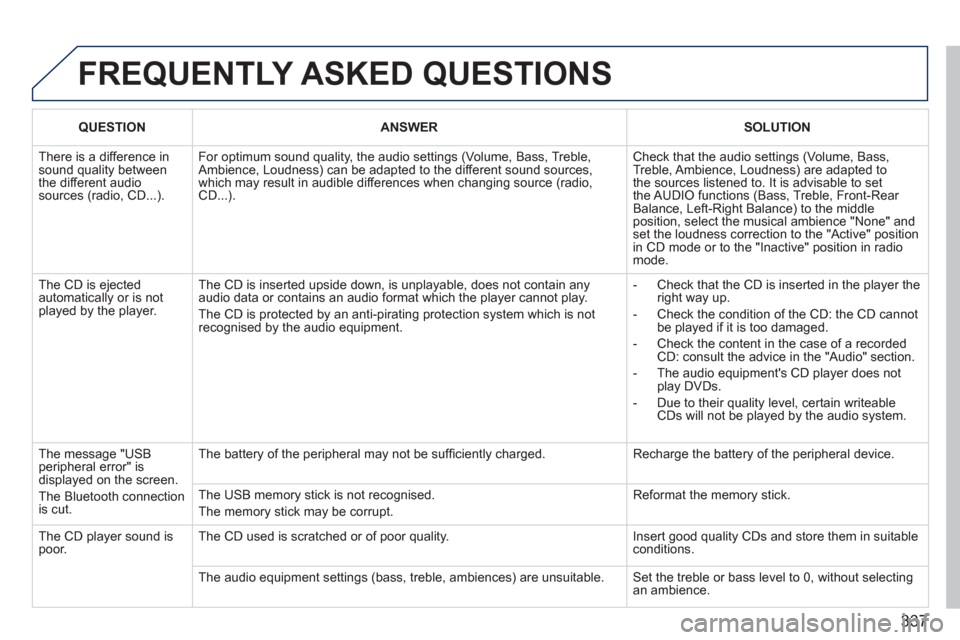

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None" and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

338

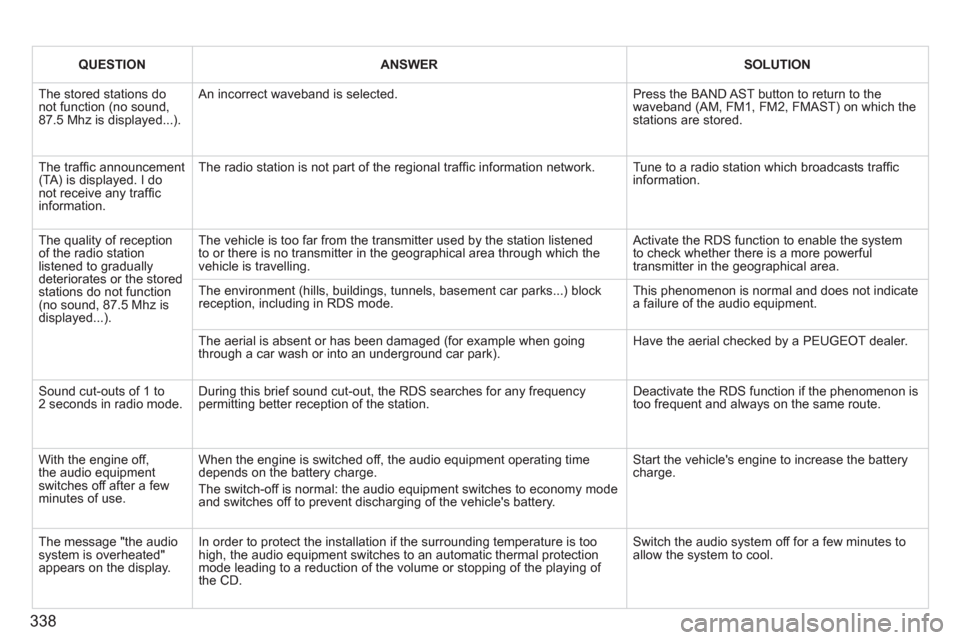

QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information. The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c
information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of
the CD. Switch the audio system off for a few minutes to
allow the system to cool.
