2MULTIFUNCTION SCREENS

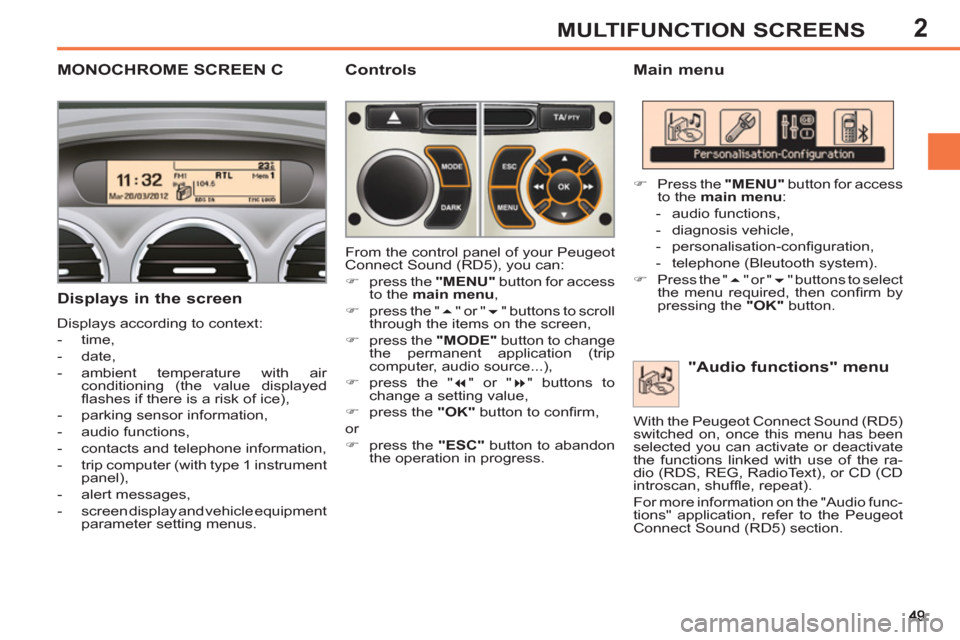

MONOCHROME SCREEN C
Main menu
Displays in the screen
Displays according to context:
- time,
- date,
- ambient temperature with air
conditioning (the value displayed
fl ashes if there is a risk of ice),
- parking sensor information,
- audio functions,
- contacts and telephone information,
- trip computer (with type 1 instrument
panel),
- alert messages,
- screen display and vehicle equipment
parameter setting menus.
"Audio functions" menu
Controls
From the control panel of your Peugeot
Connect Sound (RD5), you can:
)
press the "MENU"
button for access
to the main menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (trip
computer, audio source...),
)
press the "
" or "
" buttons to
change a setting value,
)
press the "OK"
button to confi rm,
or
)
press the "ESC"
button to abandon
the operation in progress.
)
Press the "MENU"
button for access
to the main menu
:
- audio functions,
- diagnosis vehicle,
- personalisation-confi guration,
- telephone (Bleutooth system).
)
Press the "
" or "
" buttons to select
the menu required, then confi rm by
pressing the "OK"
button.
With the Peugeot Connect Sound (RD5)
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText), or CD (CD
introscan, shuffl e, repeat).
For more information on the "Audio func-
tions" application, refer to the Peugeot
Connect Sound (RD5) section.
Page 52 of 382
2
50
MULTIFUNCTION SCREENS

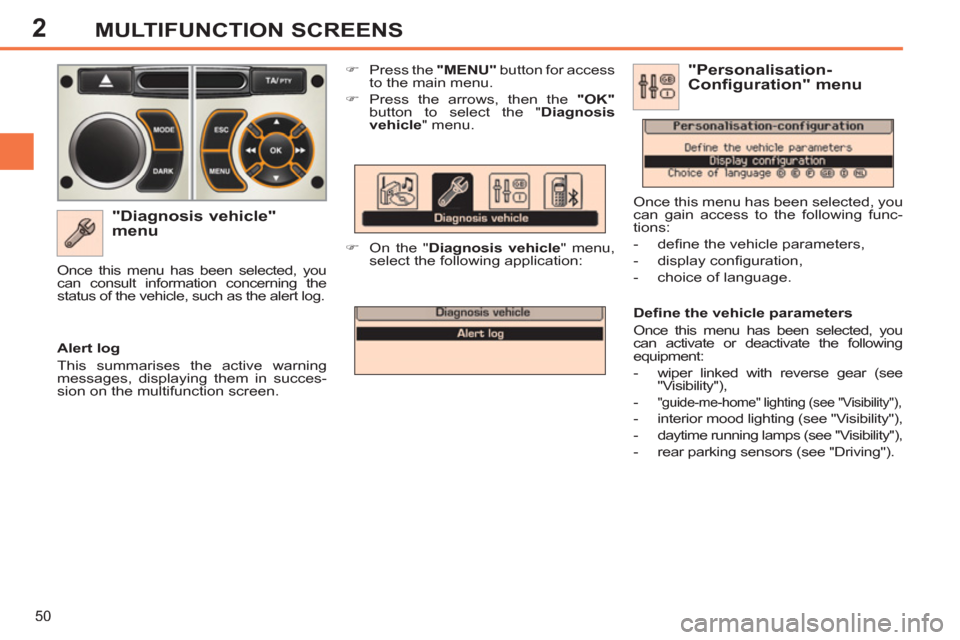

"Diagnosis vehicle"
menu
)
Press the "MENU"
button for access
to the main menu.
)
Press the arrows, then the "OK"
button to select the " Diagnosis
vehicle
" menu.
)
On the " Diagnosis vehicle
" menu,
select the following application:
Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen. Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the alert log.
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked with reverse gear (see
"Visibility"),
-
"guide-me-home" lighting (see "Visibility"),
- interior mood lighting (see "Visibility"),
- daytime running lamps (see "Visibility"),
- rear parking sensors (see "Driving").
"Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
Page 53 of 382
2
51
MULTIFUNCTION SCREENS
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
"Telephone" menu
Display confi guration
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- choice of units.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Russe, Türkçe * ).

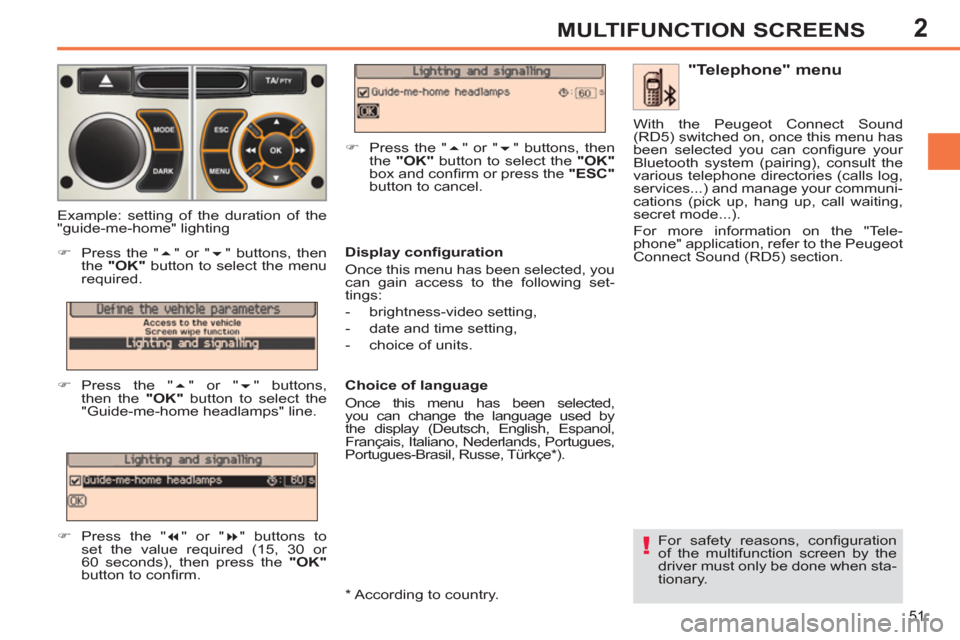

Example: setting of the duration of the
"guide-me-home" lighting
)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.
)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.
)
Press the "
" or "
" buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
button to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"
box and confi rm or press the "ESC"
button to cancel.
With the Peugeot Connect Sound
(RD5) switched on, once this menu has
been selected you can confi gure your
Bluetooth system (pairing), consult the
various telephone directories (calls log,
services...) and manage your communi-
cations (pick up, hang up, call waiting,
secret mode...).
For more information on the "Tele-
phone" application, refer to the Peugeot
Connect Sound (RD5) section.
*
According to country.
Page 54 of 382
2MULTIFUNCTION SCREENS
For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer
to the "Access to the retractable
screen" section.
Displays in the screen
Displays according to context:
- time,
- date,
- altitude,
- ambient temperature (the value
displayed fl ashes if there is a risk of
ice),
- parking sensor information,
- audio functions,
- telephone and contacts information,
- satellite navigation system
information,
- alert messages,
- menus for settings of the screen,
navigation system and vehicle
equipment.
From the navigation system control
panel, to select one of the applications:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"PHONE"
or "SETUP"
button for
access to the corresponding menu,
)
turn dial A
to select a function, an
item in a list,
)
press button B
to confi rm the
selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display.

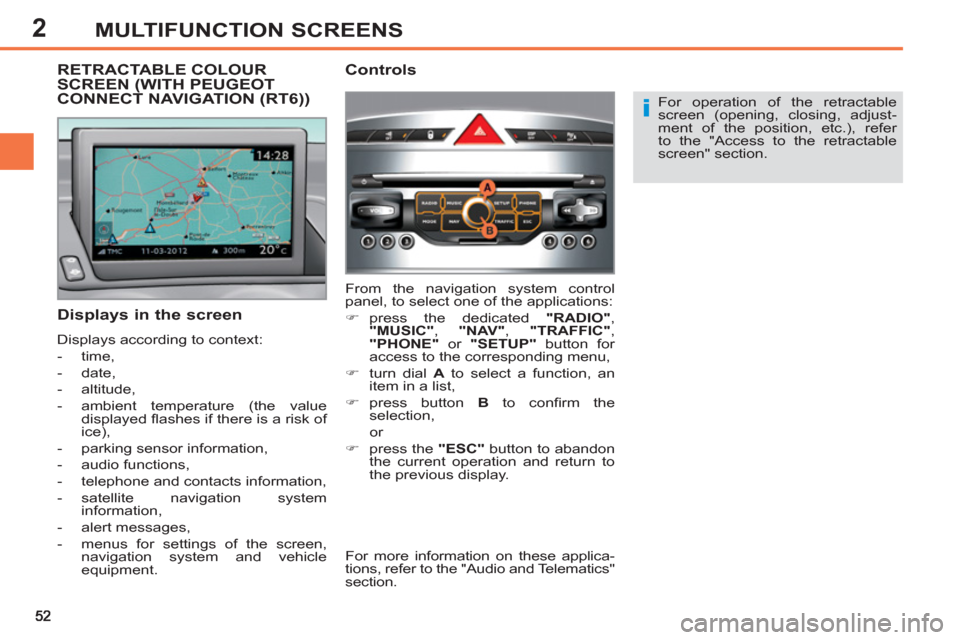

RETRACTABLE COLOUR
SCREEN (WITH PEUGEOT
CONNECT NAVIGATION (RT6))
Controls
For more information on these applica-
tions, refer to the "Audio and Telematics"
section.
Page 55 of 382
2
53
MULTIFUNCTION SCREENS
)
Press the "SETUP"
button to gain
access to the confi guration menu:
- "Display confi guration",
- "Voice synthesis",
- "Choice of language",
- "Vehicle parameters",
- "Alert log".
Display confi guration
This menu allows you to choose a col-
our scheme for the screen, to adjust the
brightness, set the date and time and
choose the units for distance (km or
miles), fuel consumption (l/100 km, mpg
or km/l) and temperature (°Centigrade
or °Fahrenheit).
When setting the time, you can
select " Synchronise minutes
with GPS
", so that the minutes
are set automatically by satellite
reception.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Alert log
It lists the active alerts by displaying
their associated messages in turn.
Choice of language
This menu allows you to choose the
language used by the screen (French,
English, Italian, Portuguese, Spanish,
German, Dutch, Turkish, Polish, Russian).
Voice synthesis
This men allows you to adjust the vol-
ume for navigation instructions and to
choose the type of voice (male or fe-
male).
Vehicle parameters *
This menu allows you to activate or
deactivate certain driving and comfort
equipment, arranged by category:
- Parking assistance
- Operation of wipers
●
Enagages rear wiper linked to
reverse (Rear wiper operates in
reverse gear; refer to "Visibility"),
-
Lighting confi guration (see "Visibility"):
●
Duration of the guide-me-home
lighting,
●
Directional headlamps (main/
additional directional lighting),
●
Mood lighting (Interior mood
lighting),
●
Daytime running lamps function ** .

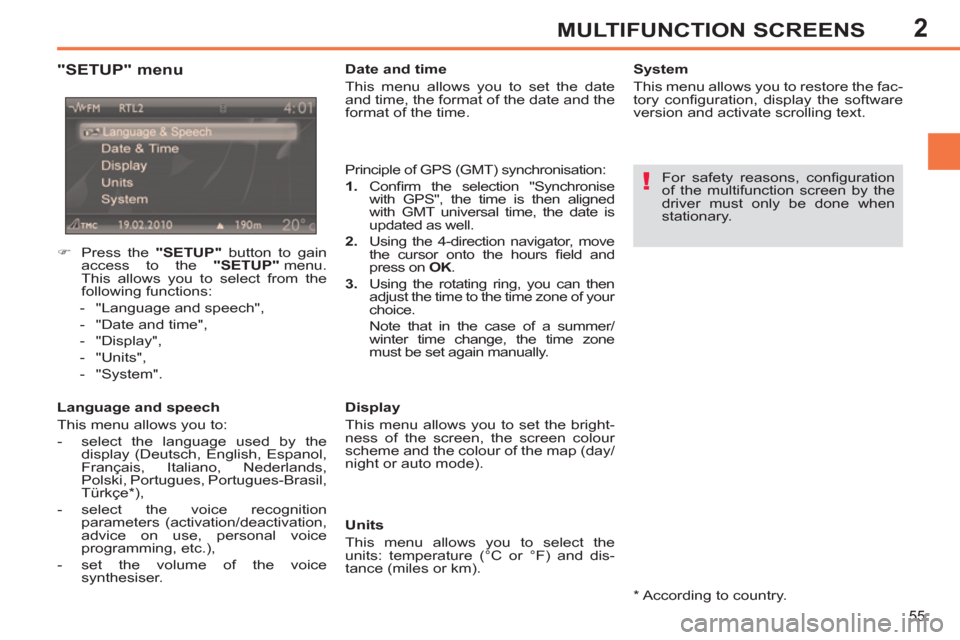

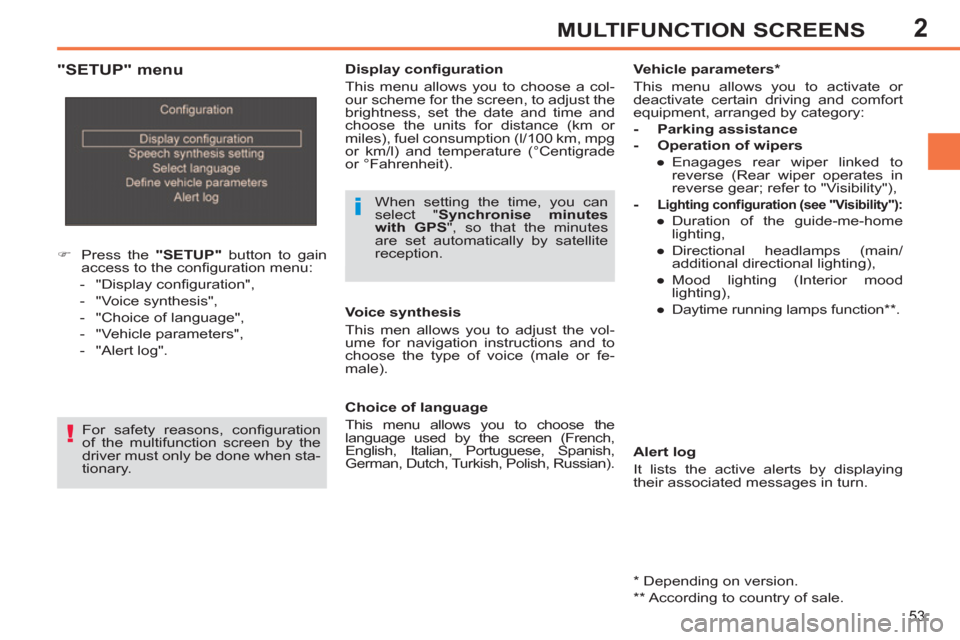

"SETUP" menu
*
Depending on version.
**
According to country of sale.
Page 56 of 382
2
54
MULTIFUNCTION SCREENS
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

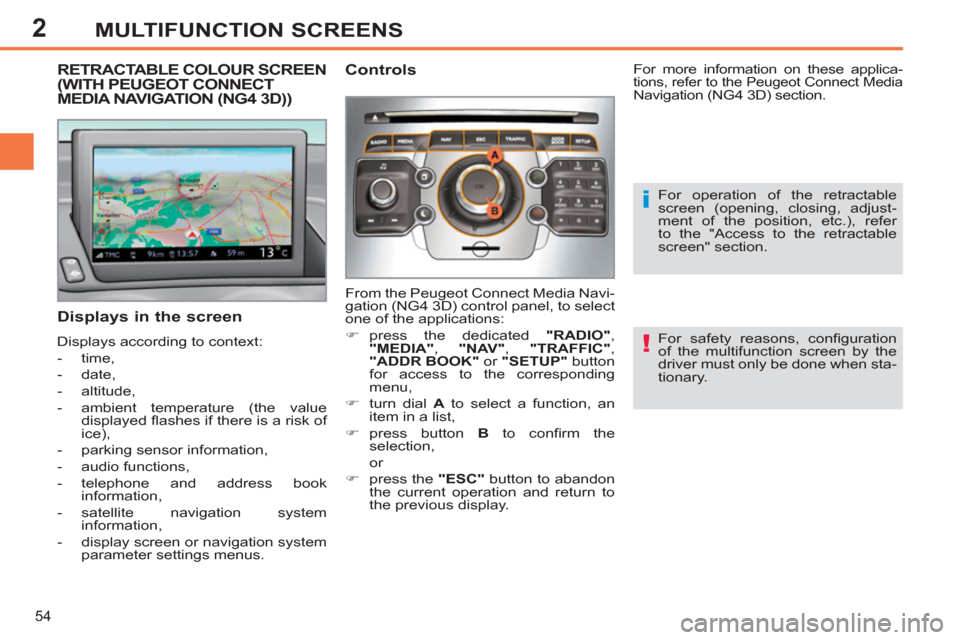

RETRACTABLE COLOUR SCREEN (WITH PEUGEOT CONNECT
MEDIA NAVIGATION (NG4 3D))
Displays in the screen
Displays according to context:
- time,
- date,
- altitude,
- ambient temperature (the value
displayed fl ashes if there is a risk of
ice),
- parking sensor information,
- audio functions,
- telephone and address book
information,
- satellite navigation system
information,
- display screen or navigation system
parameter settings menus.
From the Peugeot Connect Media Navi-
gation (NG4 3D) control panel, to select
one of the applications:
)
press the dedicated "RADIO"
,
"MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
button
for access to the corresponding
menu,
)
turn dial A
to select a function, an
item in a list,
)
press button B
to confi rm the
selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display.
For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer
to the "Access to the retractable
screen" section.
For more information on these applica-
tions, refer to the Peugeot Connect Media Navigation (NG4 3D) section.
Controls
Page 57 of 382
2
55
MULTIFUNCTION SCREENS
"SETUP" menu
Language and speech
This menu allows you to:
- select the language used by the
display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Portugues-Brasil,
Türkçe * ),
- select the voice recognition
parameters (activation/deactivation,
advice on use, personal voice
programming, etc.),
- set the volume of the voice
synthesiser.
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time.
Principle of GPS (GMT) synchronisation:
1.
Confi rm the selection "Synchronise
with GPS", the time is then aligned
with GMT universal time, the date is
updated as well.
2.
Using the 4-direction navigator, move
the cursor onto the hours fi eld and
press on OK
.
3.
Using the rotating ring, you can then
adjust the time to the time zone of your
choice.
Note that in the case of a summer/
winter time change, the time zone
must be set again manually.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).
)
Press the "SETUP"
button to gain
access to the "SETUP"
menu.
This allows you to select from the
following functions:
- "Language and speech",
- "Date and time",
- "Display",
- "Units",
- "System".
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.
*
According to country.
Page 58 of 382
2
56
MULTIFUNCTION SCREENS
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of
control A
,
- angle adjustments by means of
control B
.
It is also fi tted with safety auto-reverse
protection.
Opening the screen
)
With the screen stored, press
control A
to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked with
the STOP warning lamp is received.
Closing the screen
)
With the screen open, press
control A
to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open or
close automatically when the audio
and telematics system is switched
on or off, the screen must not be
closed when the audio and tele-
matics system is operating. When the screen is open, you can ad-
just it precisely in different ways:
)
press the corresponding part of
control B
to move the screen towards
you or towards the windscreen,
or
)
push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.
Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during op-
eration of the audio and telematics
system, it will re-open automatically
when an outgoing telephone call is
made, when a voice command is
given or when a warning message
linked with the STOP warning lamp
is received.
Access to the retractable screen
Page 59 of 382
2
57
MULTIFUNCTION SCREENS

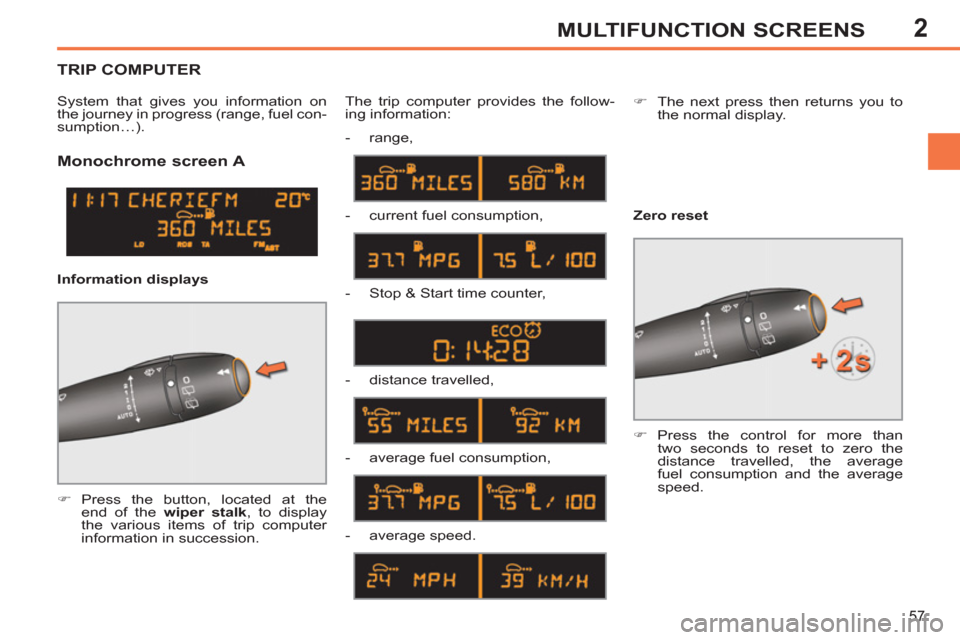

Monochrome screen A
)
Press the button, located at the
end of the wiper stalk
, to display
the various items of trip computer
information in succession. The trip computer provides the follow-
ing information:
Information displays
- range,
- current fuel consumption,
- Stop & Start time counter,
- distance travelled,
- average fuel consumption,
)
The next press then returns you to
the normal display.
- average speed.
Zero reset
)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
TRIP COMPUTER
System that gives you information on
the journey in progress (range, fuel con-
sumption…).
Page 60 of 382
2
58
MULTIFUNCTION SCREENS
Display of information
)
Press the up and down arrows on
the instrument panel navigator
,
associated with Peugeot Connect
Media Navigation (NG4 3D), to cycle
through the information.

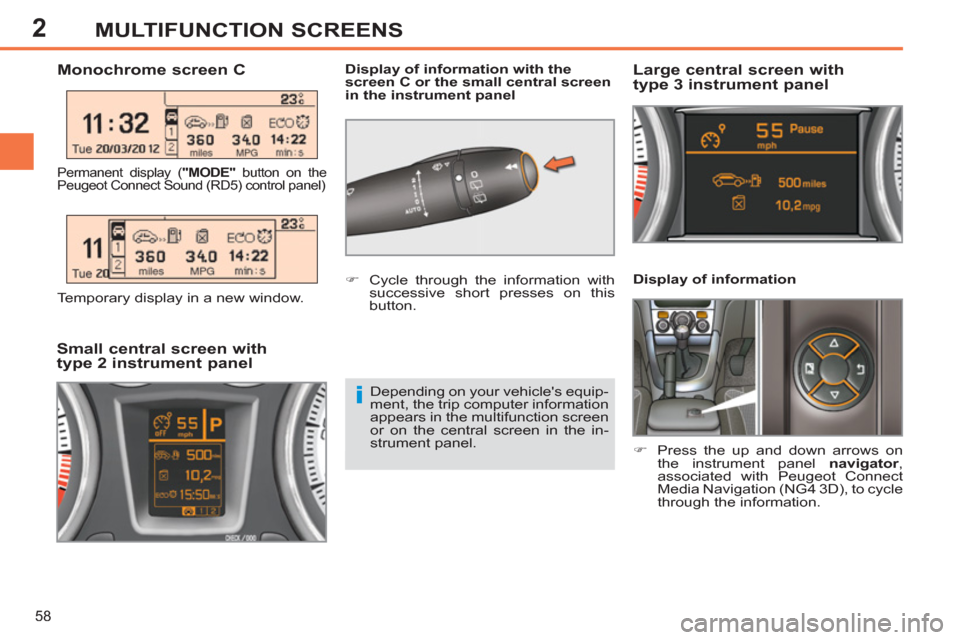

Monochrome screen C
Display of information with the
screen C or the small central screen
in the instrument panel
Large central screen with
type 3 instrument panel
Small central screen with
type 2 instrument panel
Depending on your vehicle's equip-
ment, the trip computer information
appears in the multifunction screen
or on the central screen in the in-
strument panel.
)
Cycle through the information with
successive short presses on this
button.
Permanent display ( "MODE"
button on the
Peugeot Connect Sound (RD5) control panel)
Temporary display in a new window.
