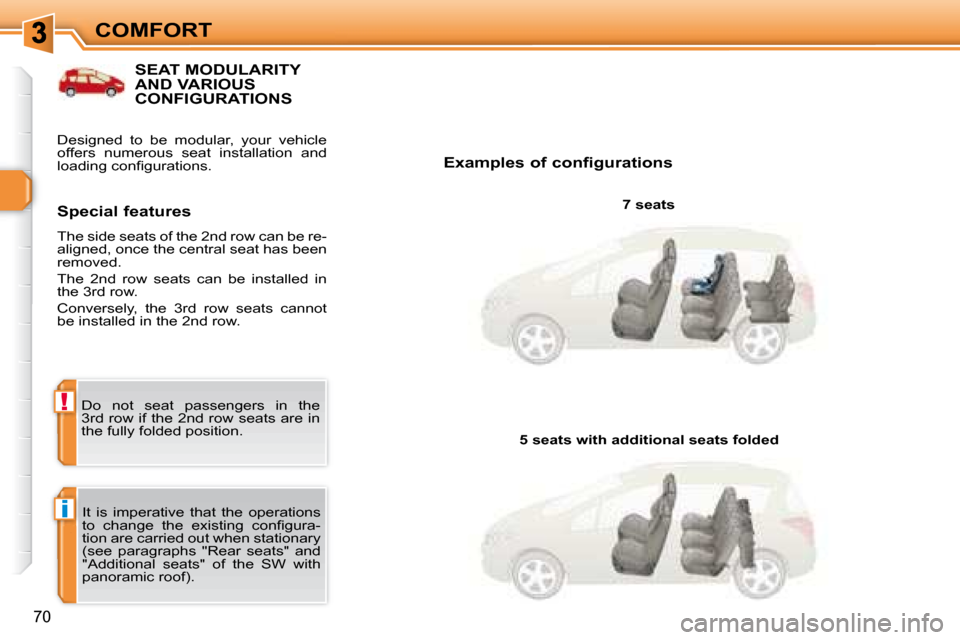

i
!
70
COMFORT
SEAT MODULARITY AND VARIOUS CONFIGURATIONS
Examples of configurations 7 seats
It is imperative that the operations
t o c h a n g e t h e e x i s t i n g c o n fi g u r a -
tion are carried out when stationary
(see paragraphs "Rear seats" and
"Additional seats" of the SW with
panoramic roof).
Special features
The side seats of the 2nd row can be re-
aligned, once the central seat has been
removed.
The 2nd row seats can be installed in
the 3rd row.
Conversely, the 3rd row seats cannot
be installed in the 2nd row.
5 seats with additional seats folded
Do not seat passengers in the
3rd row if the 2nd row seats are in
the fully folded position.
Designed to be modular, your vehicle
offers numerous seat installation and
l o a d i n g c o n fi g u r a t i o n s .
Page 52 of 260

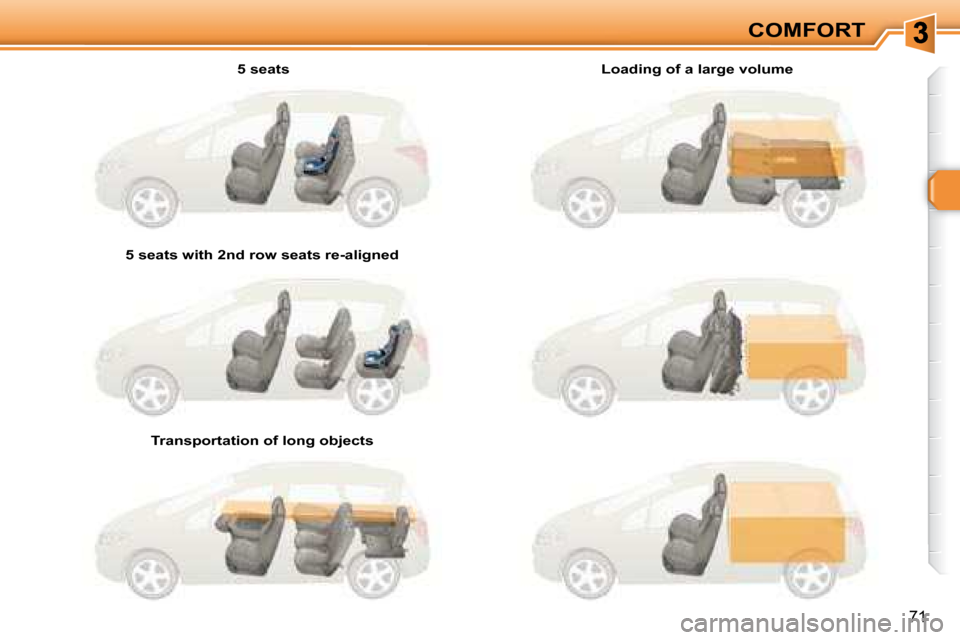

71
COMFORT
5 seats
5 seats with 2nd row seats re-aligned
Transportation of long objects Loading of a large volume
Page 53 of 260
!
i
i

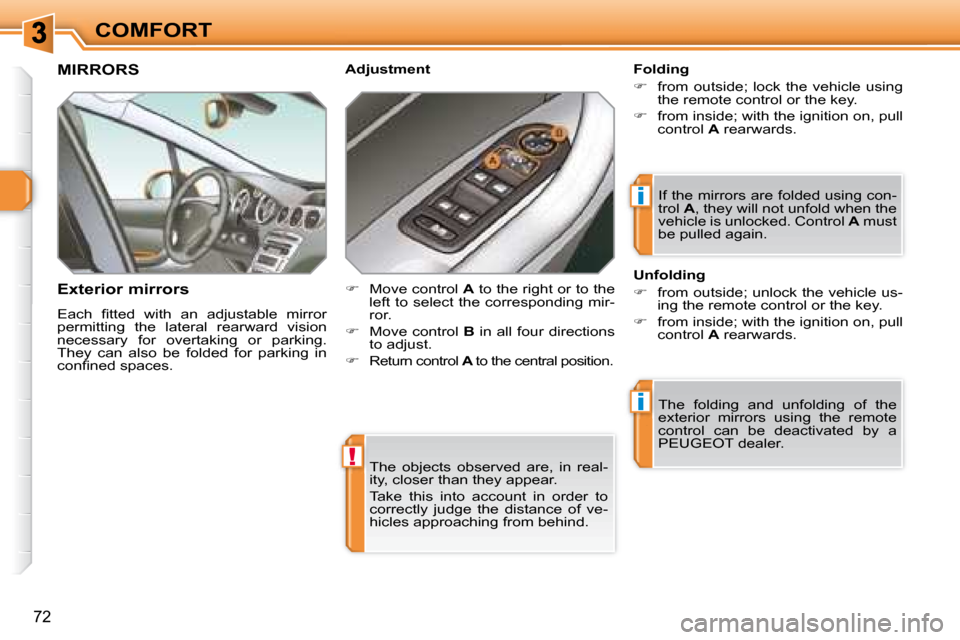

72
COMFORT The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
MIRRORS
Exterior mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
permitting the lateral rearward vision
necessary for overtaking or parking.
They can also be folded for parking in
c o n fi n e d s p a c e s . Folding
from outside; lock the vehicle using
the remote control or the key.
from inside; with the ignition on, pull
control A rearwards.
The folding and unfolding of the
e x t e r i o r m i r r o r s u s i n g t h e r e m o t e
control can be deactivated by a
PEUGEOT dealer.
Adjustment
Unfolding
from outside; unlock the vehicle us-
ing the remote control or the key.
from inside; with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Control A must
be pulled again.
Move control A to the right or to the
left to select the corresponding mir-
ror.
Move control B in all four directions
to adjust.
Return control A to the central position.
Page 54 of 260
!

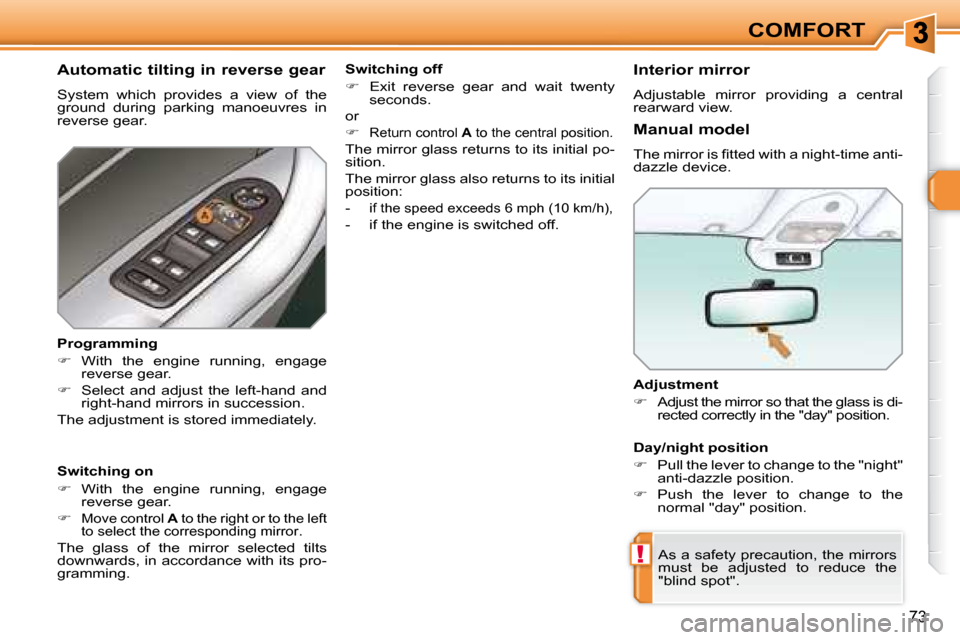

73
COMFORT
Adjustment
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
Manual model
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e a n t i -
dazzle device.
Day/night position
Pull the lever to change to the "night"
anti-dazzle position.
Push the lever to change to the
normal "day" position.
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on
With the engine running, engage
reverse gear.
Move control A to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. Switching off
E x i t r e v e r s e g e a r a n d w a i t t w e n t y
seconds.
or
Return control A to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
-
i f t h e s p e e d e x c e e d s 6 m p h ( 1 0 k m / h ) ,
- if the engine is switched off. Interior mirror
Adjustable mirror providing a central
rearward view.
Page 55 of 260
!
73
COMFORT
Adjustment
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
Manual model
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e a n t i -
dazzle device.
Day/night position
Pull the lever to change to the "night"
anti-dazzle position.
Push the lever to change to the
normal "day" position.
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on
With the engine running, engage
reverse gear.
Move control A to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. Switching off
E x i t r e v e r s e g e a r a n d w a i t t w e n t y
seconds.
or
Return control A to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
-
i f t h e s p e e d e x c e e d s 6 m p h ( 1 0 k m / h ) ,
- if the engine is switched off. Interior mirror
Adjustable mirror providing a central
rearward view.
Page 56 of 260
!
i

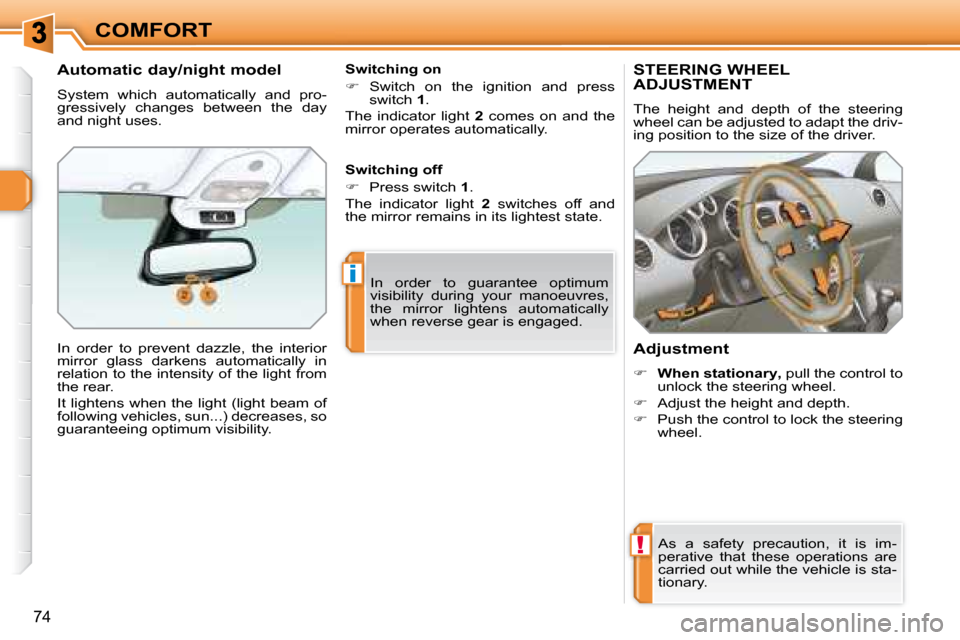

74
COMFORT
STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
Adjustment
When stationary
, pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is im-
perative that these operations are
carried out while the vehicle is sta-
tionary.
In order to guarantee optimum
visibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.
Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility. Switching on
Switch on the ignition and press
switch 1 .
The indicator light 2 comes on and the
mirror operates automatically.
Switching off
Press switch 1 .
The indicator light 2 switches off and
the mirror remains in its lightest state.
Page 57 of 260
!
i
74
COMFORT
STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
Adjustment
When stationary
, pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is im-
perative that these operations are
carried out while the vehicle is sta-
tionary.
In order to guarantee optimum
visibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.
Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility. Switching on
Switch on the ignition and press
switch 1 .
The indicator light 2 comes on and the
mirror operates automatically.
Switching off
Press switch 1 .
The indicator light 2 switches off and
the mirror remains in its lightest state.
Page 58 of 260
i

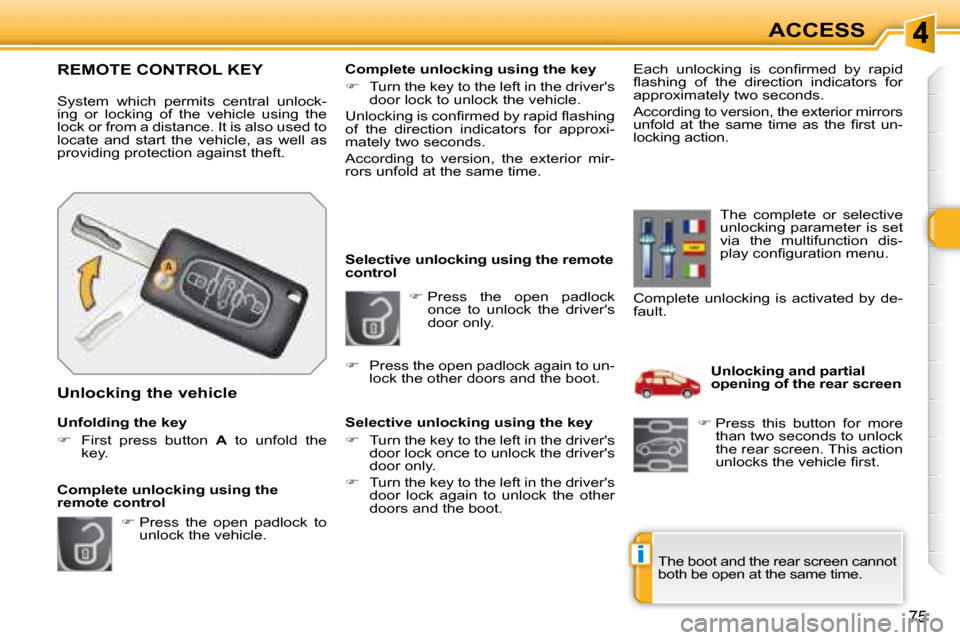

75
ACCESS
Press the open padlock
once to unlock the driver's
door only.
Selective unlocking using the remote
control
Selective unlocking using the key
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot. The complete or selective
unlocking parameter is set
via the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u .
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
First press button A to unfold the
key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle. Complete unlocking using the key
Turn the key to the left in the driver's
door lock to unlock the vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
o f t h e d i r e c t i o n i n d i c a t o r s f o r a p p r o x i -
mately two seconds.
A c c o r d i n g t o v e r s i o n , t h e e x t e r i o r m i r -
rors unfold at the same time.
Complete unlocking using the
remote control Complete unlocking is activated by de-
fault.
Press the open padlock again to un-
lock the other doors and the boot. Unlocking and partial
opening of the rear screen
Press this button for more
than two seconds to unlock
the rear screen. This action
u n l o c k s t h e v e h i c l e fi r s t .
E a c h u n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
a p p r o x i m a t e l y t w o s e c o n d s .
A c c o r d i n g t o v e r s i o n , t h e e x t e r i o r m i r r o r s
u n f o l d a t t h e s a m e t i m e a s t h e fi r s t u n -
locking action.
The boot and the rear screen cannot
both be open at the same time.
Page 59 of 260
!
i
i

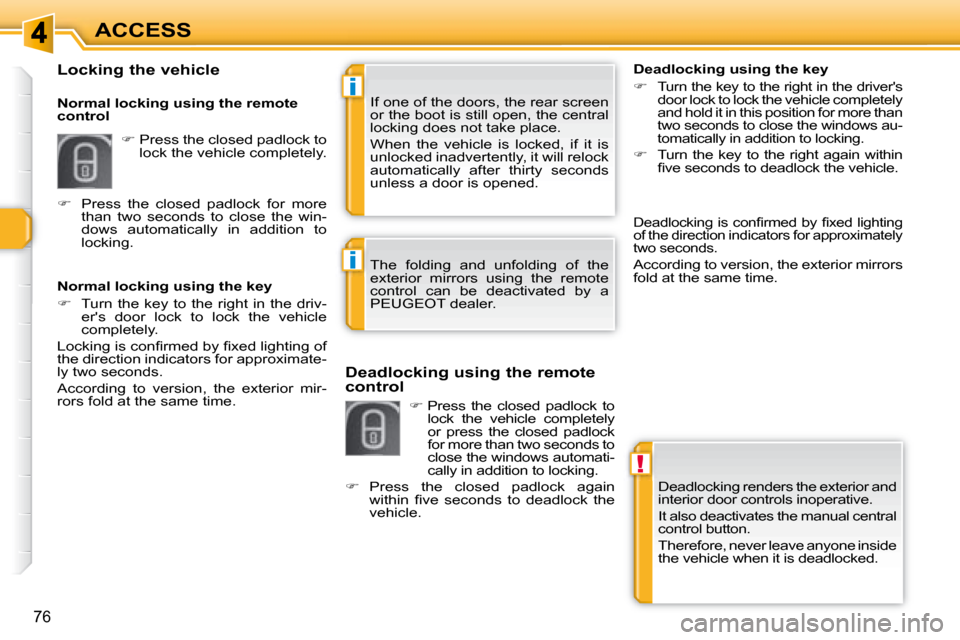

76
ACCESS D e a d l o c k i n g r e n d e r s t h e e x t e r i o r a n d
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
Deadlocking using the remote
control
Normal locking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
t h e d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e -
ly two seconds.
A c c o r d i n g t o v e r s i o n , t h e e x t e r i o r m i r -
rors fold at the same time. Deadlocking using the key
Turn the key to the right in the driver's
door lock to lock the vehicle completely
and hold it in this position for more than
two seconds to close the windows au-
tomatically in addition to locking.
Turn the key to the right again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
The folding and unfolding of the
e x t e r i o r m i r r o r s u s i n g t h e r e m o t e
control can be deactivated by a
PEUGEOT dealer.
Press the closed padlock to
lock the vehicle completely
or press the closed padlock
for more than two seconds to
close the windows automati-
cally in addition to locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k t h e
vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g
o f t h e d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e l y
two seconds.
A c c o r d i n g t o v e r s i o n , t h e e x t e r i o r m i r r o r s
fold at the same time.
Locking the vehicle
Press the closed padlock to
lock the vehicle completely.
Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking.
Normal locking using the remote
control
Page 60 of 260
77
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
tesy lights and dipped headlamps and
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r a
few seconds. Lost keys
Visit a PEUGEOT dealer with the vehi-
c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d y o u r
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
Your PEUGEOT dealer will be able to re-
trieve the key code and the transponder
code to order a replacement key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

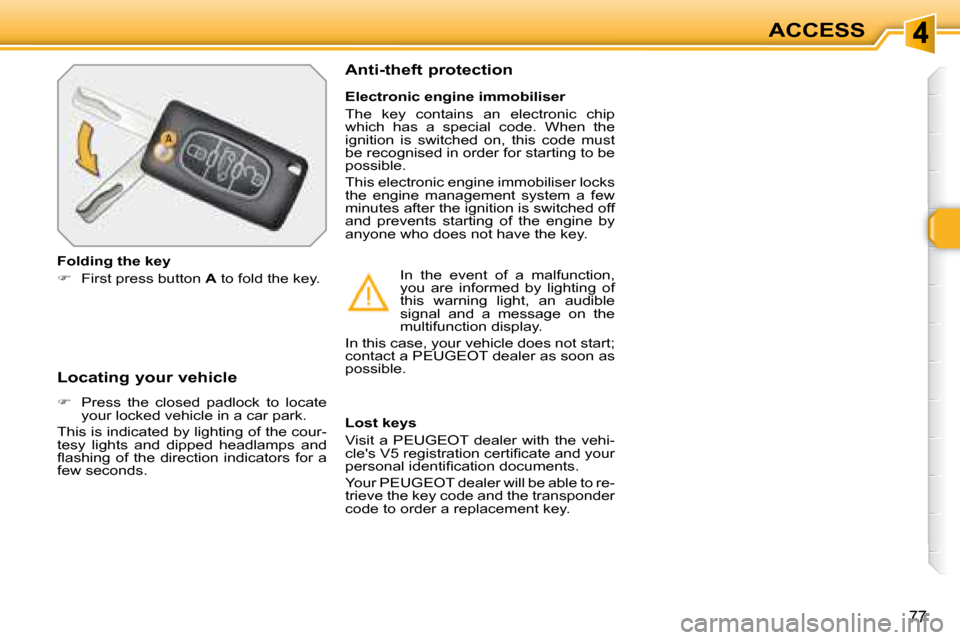

Folding the key
First press button A to fold the key.
