i
ACCESS
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver's door is opened.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Igni-
tion) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n f o r m e d b y
lighting of this warning light, an audible
signal and a message on the multifunc-
tion display.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a -
tion.
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control. This replacement battery is avail-
able from PEUGEOT dealers.
Page 62 of 260
!
79
ACCESS

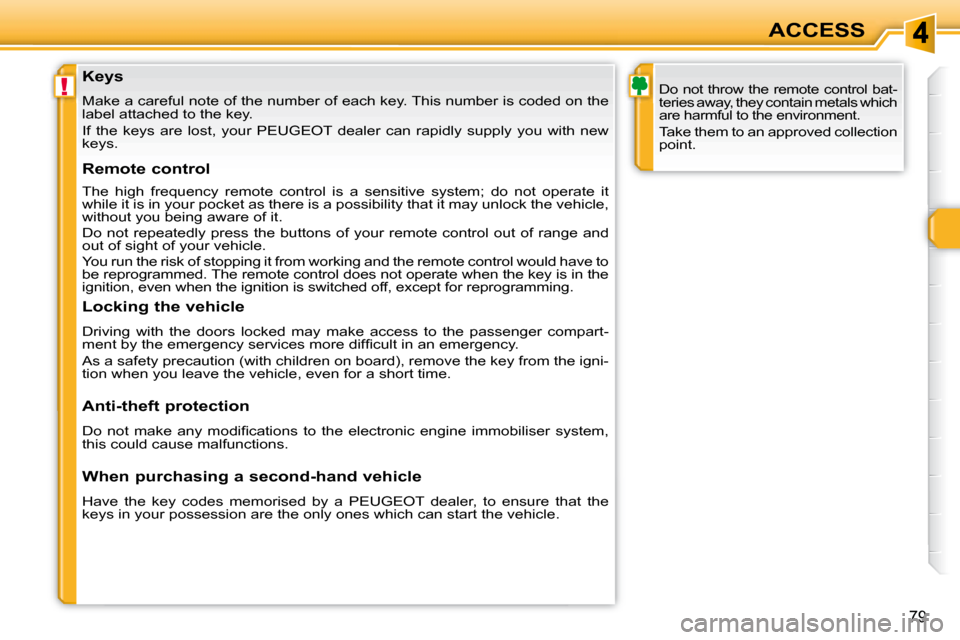

Keys
Make a careful note of the number of each key. This number i s coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new
keys.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have to
be reprogrammed. The remote control does not operat e when the key is in the
i g n i t i o n , e v e n w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e p r o g r a m m i n g .
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure t hat the
keys in your possession are the only ones which can start the vehicle .
Page 63 of 260
77
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
tesy lights and dipped headlamps and
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r a
few seconds. Lost keys
Visit a PEUGEOT dealer with the vehi-
c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d y o u r
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
Your PEUGEOT dealer will be able to re-
trieve the key code and the transponder
code to order a replacement key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Folding the key
First press button A to fold the key.
Page 64 of 260
!
79
ACCESS
Keys
Make a careful note of the number of each key. This number i s coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new
keys.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have to
be reprogrammed. The remote control does not operat e when the key is in the
i g n i t i o n , e v e n w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e p r o g r a m m i n g .
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure t hat the
keys in your possession are the only ones which can start the vehicle .
Page 65 of 260
i
ACCESS
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver's door is opened.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Igni-
tion) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n f o r m e d b y
lighting of this warning light, an audible
signal and a message on the multifunc-
tion display.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a -
tion.
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control. This replacement battery is avail-
able from PEUGEOT dealers.
Page 66 of 260
!
i
80
ACCESS

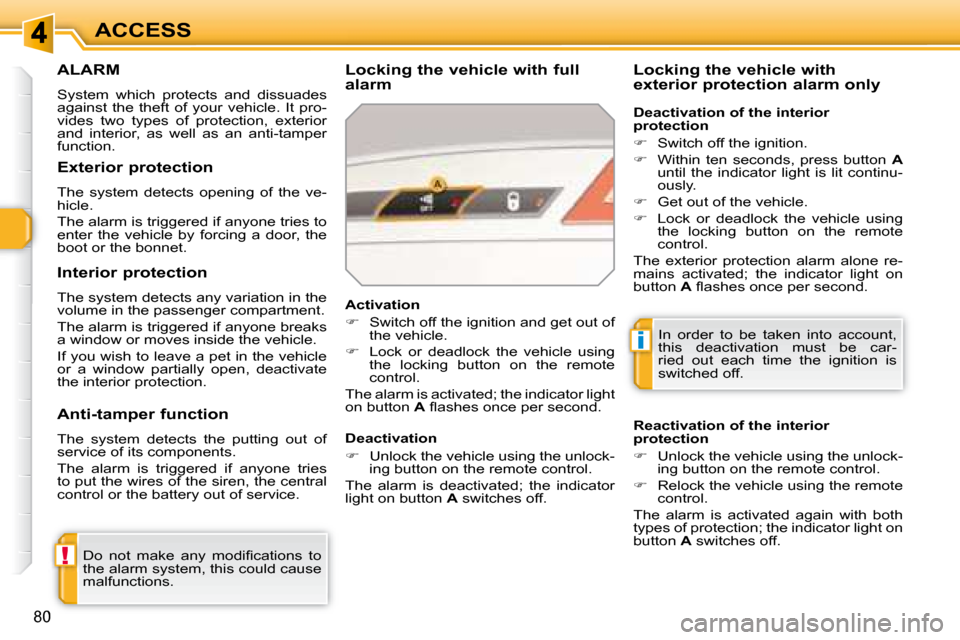

ALARM
System which protects and dissuades
against the theft of your vehicle. It pro-
v i d e s t w o t y p e s o f p r o t e c t i o n , e x t e r i o r
and interior, as well as an anti-tamper
function. Locking the vehicle with full
alarm
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. In order to be taken into account,
this deactivation must be car-
ried out each time the ignition is
switched off.
Reactivation of the interior
protection
Unlock the vehicle using the unlock-
ing button on the remote control.
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator light on
button A switches off.
Locking the vehicle with
exterior protection alarm only
Activation
Switch off the ignition and get out of
the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator light
on button A fl a s h e s o n c e p e r s e c o n d .
Exterior protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
light on button A switches off. Deactivation of the interior
protection
Switch off the ignition.
Within ten seconds, press button A
until the indicator light is lit continu-
ously.
Get out of the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
T h e e x t e r i o r p r o t e c t i o n a l a r m a l o n e r e -
mains activated; the indicator light on
button A fl a s h e s o n c e p e r s e c o n d .
Page 67 of 260
!
81
ACCESS

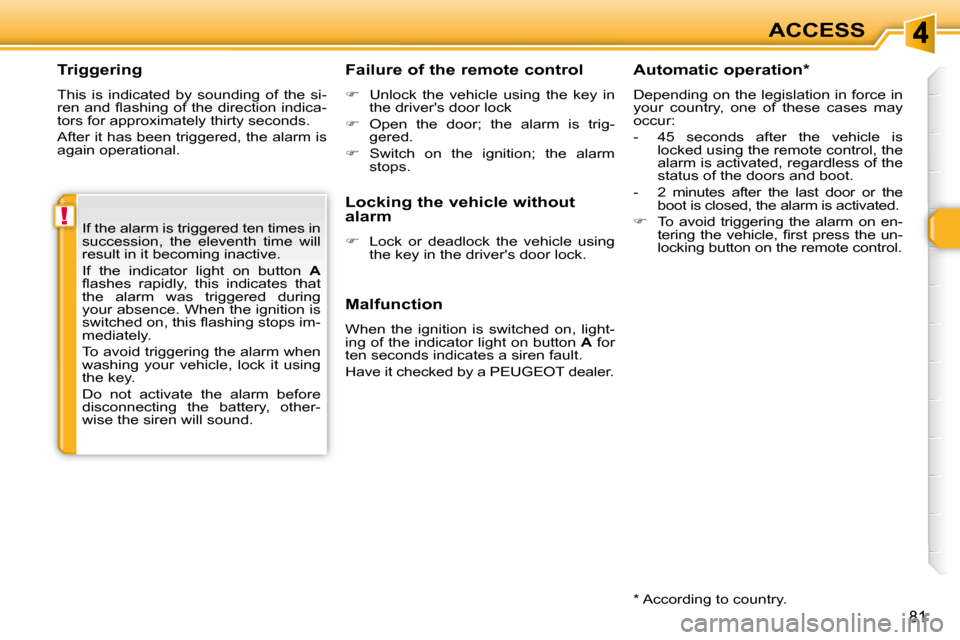

Triggering
This is indicated by sounding of the si-
r e n a n d fl a s h i n g o f t h e d i r e c t i o n i n d i c a -
t o r s f o r a p p r o x i m a t e l y t h i r t y s e c o n d s .
After it has been triggered, the alarm is
again operational.
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator light on button A
fl a s h e s r a p i d l y , t h i s i n d i c a t e s t h a t
the alarm was triggered during
your absence. When the ignition is
s w i t c h e d o n , t h i s fl a s h i n g s t o p s i m -
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound. Failure of the remote control
Unlock the vehicle using the key in
the driver's door lock
Open the door; the alarm is trig-
gered.
Switch on the ignition; the alarm
stops.
Malfunction
When the ignition is switched on, light-
ing of the indicator light on button A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without
alarm
Lock or deadlock the vehicle using
the key in the driver's door lock. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is activated.
To avoid triggering the alarm on en-
t e r i n g t h e v e h i c l e , fi r s t p r e s s t h e u n -
locking button on the remote control.
* According to country.
Page 68 of 260
i
i
!
82
ACCESS The electric window controls re-
m a i n o p e r a t i o n a l f o r a p p r o x i m a t e -
ly 45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the driv-
er's door control pad, carry out the
operation from the control pad of
the passenger door concerned,
and vice versa.

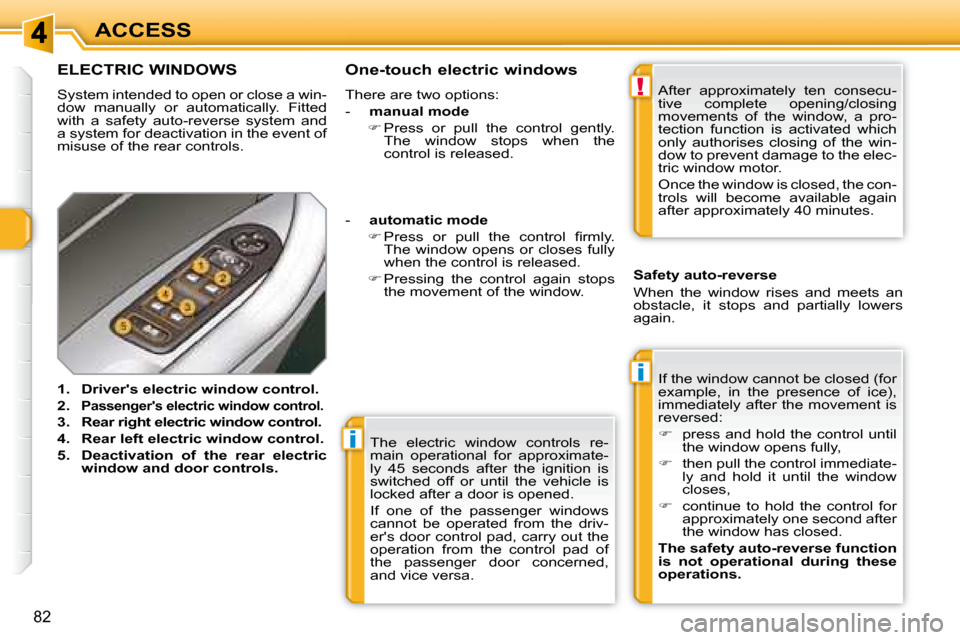

ELECTRIC WINDOWS
System intended to open or close a win-
dow manually or automatically. Fitted
with a safety auto-reverse system and
a system for deactivation in the event of
misuse of the rear controls.
1. Driver's electric window control.
2.
Passenger's electric window control.
3. Rear right electric window control.
4. Rear left electric window control.
5. Deactivation of the rear electric
window and door controls. If the window cannot be closed (for
e x a m p l e , i n t h e p r e s e n c e o f i c e ) ,
immediately after the movement is
reversed:
press and hold the control until
the window opens fully,
then pull the control immediate-
ly and hold it until the window
closes,
continue to hold the control for
a p p r o x i m a t e l y o n e s e c o n d a f t e r
the window has closed.
The safety auto-reverse function
is not operational during these
operations.
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers
again.
-
automatic mode
P r e s s o r p u l l t h e c o n t r o l fi r m l y .
The window opens or closes fully
when the control is released.
Pressing the control again stops
the movement of the window.
One-touch electric windows
There are two options:
-
manual mode
Press or pull the control gently.
The window stops when the
control is released. A f t e r a p p r o x i m a t e l y t e n c o n s e c u -
tive complete opening/closing
movements of the window, a pro-
tection function is activated which
only authorises closing of the win-
dow to prevent damage to the elec-
tric window motor.
Once the window is closed, the con-
trols will become available again
a f t e r a p p r o x i m a t e l y 4 0 m i n u t e s .
Page 69 of 260
!
i
!
83
ACCESS
This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
§ Electric child lock").
Any other status of the indicator
light indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.

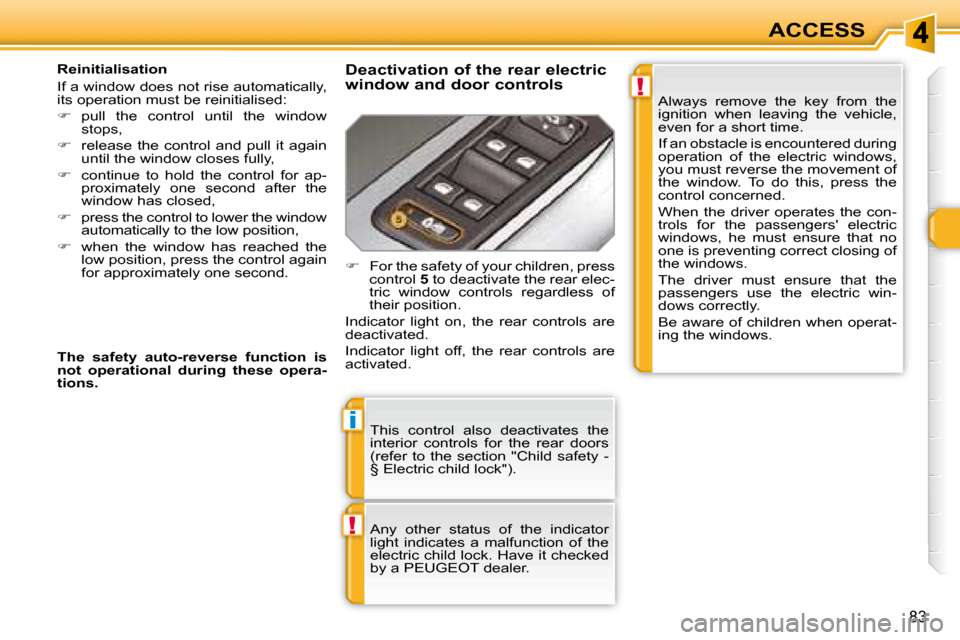

Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:
pull the control until the window
stops,
release the control and pull it again
until the window closes fully,
continue to hold the control for ap-
p r o x i m a t e l y o n e s e c o n d a f t e r t h e
window has closed,
press the control to lower the window
automatically to the low position,
when the window has reached the
low position, press the control again
f o r a p p r o x i m a t e l y o n e s e c o n d . Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, he must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Deactivation of the rear electric
window and door controls
For the safety of your children, press
control 5 to deactivate the rear elec-
tric window controls regardless of
their position.
Indicator light on, the rear controls are
deactivated.
Indicator light off, the rear controls are
activated.
The safety auto-reverse function is
not operational during these opera-
tions.
Page 70 of 260
!
ii
84
ACCESS

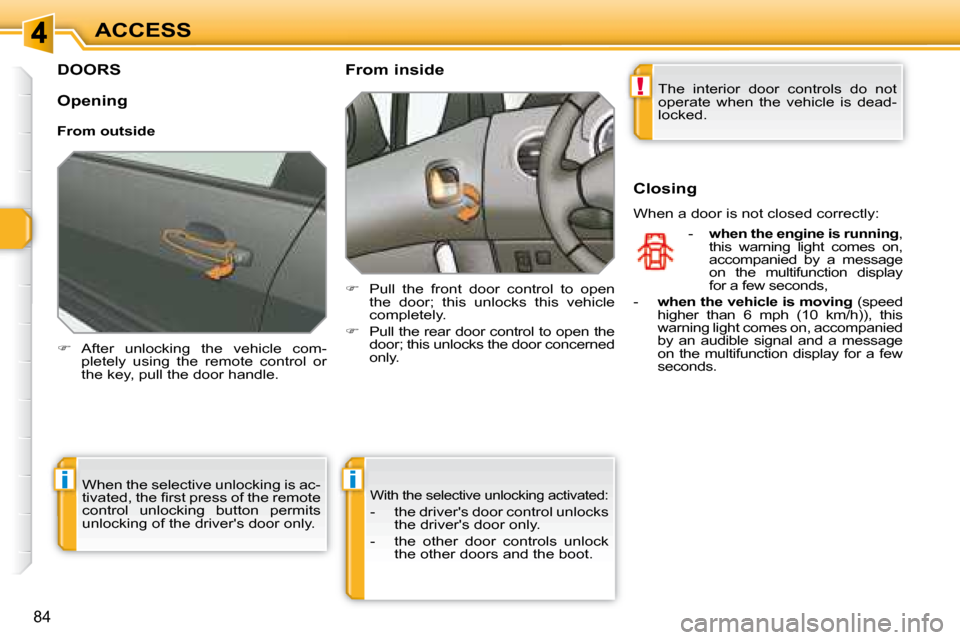

DOORS
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the door handle. From inside
Pull the front door control to open
the door; this unlocks this vehicle
completely.
Pull the rear door control to open the
door; this unlocks the door concerned
only. The interior door controls do not
operate when the vehicle is dead-
locked.
Closing
When a door is not closed correctly: - when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning light comes on, accompanied
by an audible signal and a message
on the multifunction display for a few
seconds.
When the selective unlocking is ac-
t i v a t e d , t h e fi r s t p r e s s o f t h e r e m o t e
control unlocking button permits
unlocking of the driver's door only.
With the selective unlocking activated:
- the driver's door control unlocks the driver's door only.
- the other door controls unlock the other doors and the boot.
Opening
From outside
