PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Display.

6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or
service indicator).

7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and
controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter
or
Cruise control.
(km/h or mph)

B. Trip distance recorder.
(km or miles)
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display. The following three functions are dis-
played in succession when the ignition
is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
distance recorder.
(km or miles)
INSTRUMENTS and CONTROLS

i
23
PETROL - DIESEL MANUAL OR 6-SPEED PILOTED MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.

6. Large display.

7. CHECK/display zero reset
button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or
service indicator).

8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and
controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)

B. Distance recorder.
(km or miles)
Displays
The following two functions are dis-
played in succession when the ignition
is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
- Tyre under-infl ation detection.
- Speed limiter/Cruise control.
- 6-speed piloted manual or
automatic gearbox.
- Navigation - Guidance/Trip
computer information.
INSTRUMENTS and CONTROLS

! The warning lights may come on
continuously or fl ash.
Certain warning lights may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situa-
tion is normal or whether a fault
has occurred.
Indicator and warning lights
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lights) or of the
occurrence of a fault (warning light).
Associated warnings
The switching on of certain warning lights
may be accompanied by an audible signal
and a message on the multifunction display.
Operation indicator lights
If one of the following indicator lights
comes on, this confi rms that the corres-
ponding system has come into opera-
tion.
Left-hand direction indicator.
Handbrake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating.
Wait until this is switched off
before operating the starter.
Front fog lamps.
Rear fog lamp.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the warning light concerned.
Common operation indicator lights
INSTRUMENTS and CONTROLS

33

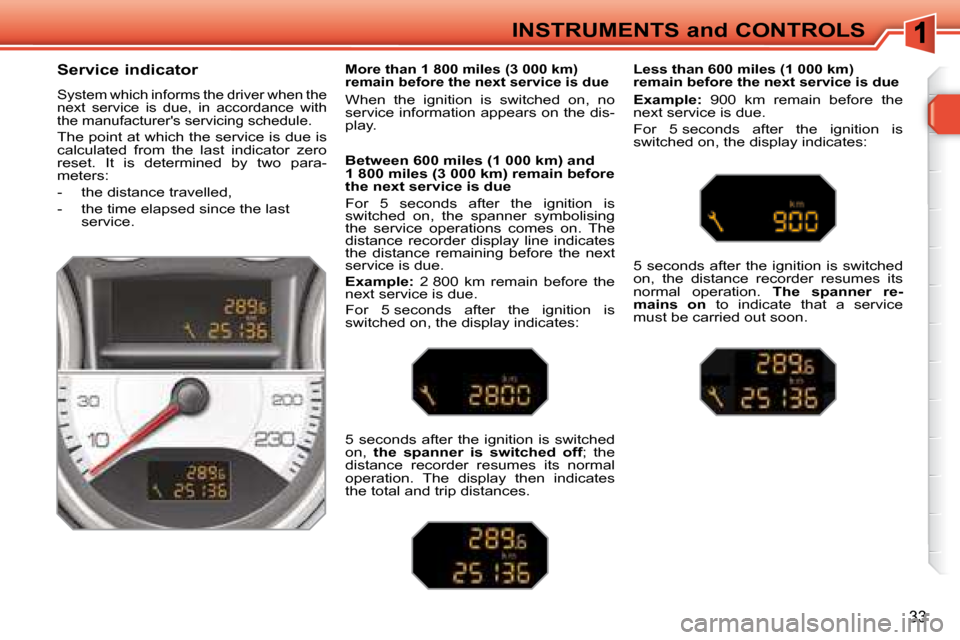

Service indicator

System which informs the driver when the
next service is due, in accordance with
the manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two para-
meters:
- the distance travelled,
- the time elapsed since the last service. Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.

Example: 2 800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due

Example: 900 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.

More than 1 800 miles (3 000 km)
remain before the next service is due

When the ignition is switched on, no
service information appears on the dis-
play.
INSTRUMENTS and CONTROLS

i
i
34
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve min-
utes for the zero reset to be taken
into account.

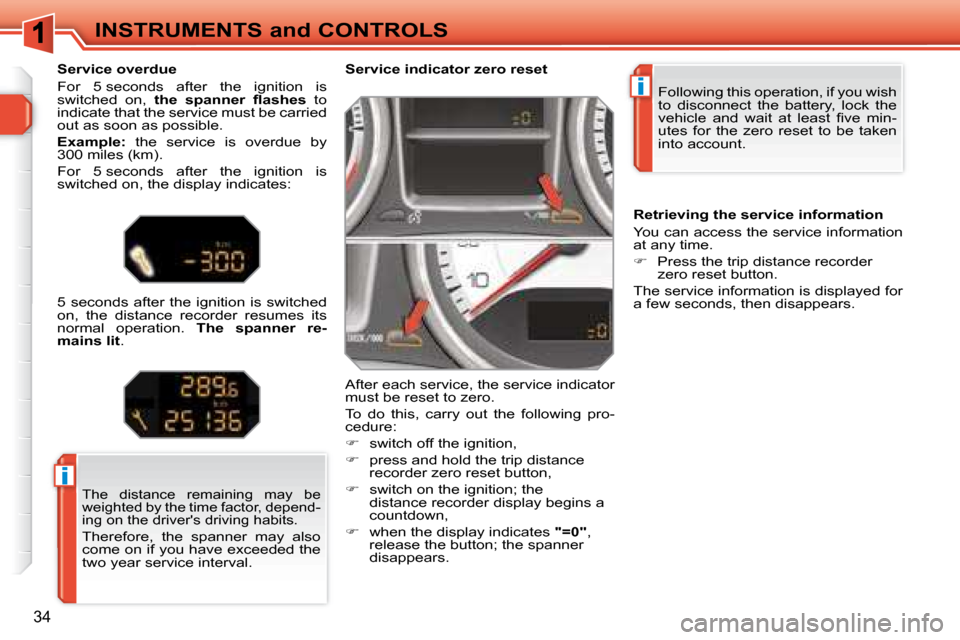

Service indicator zero reset
After each service, the service indicator
must be reset to zero.
To do this, carry out the following pro-
cedure:

 switch off the ignition,

 press and hold the trip distance
recorder zero reset button,

 switch on the ignition; the
distance recorder display begins a
countdown,

 when the display indicates "=0" ,
release the button; the spanner
disappears.

The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
the spanner fl ashes to
indicate that the service must be carried
out as soon as possible.

Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit .


Retrieving the service information
You can access the service information
at any time.

 Press the trip distance recorder
zero reset button.
The service information is displayed for
a few seconds, then disappears.
INSTRUMENTS and CONTROLS

i
35
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil
Oil level gauge fault
Dipstick
This is indicated by the fl ashing of "OIL" ,
linked with the service warning light, ac-
companied by an audible signal and a
message on the multifunction display.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the fl ashing of

"OIL --" . Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the
level via the oil fi ller
cap, using the type of oil
suited to your engine.
INSTRUMENTS and CONTROLS

36

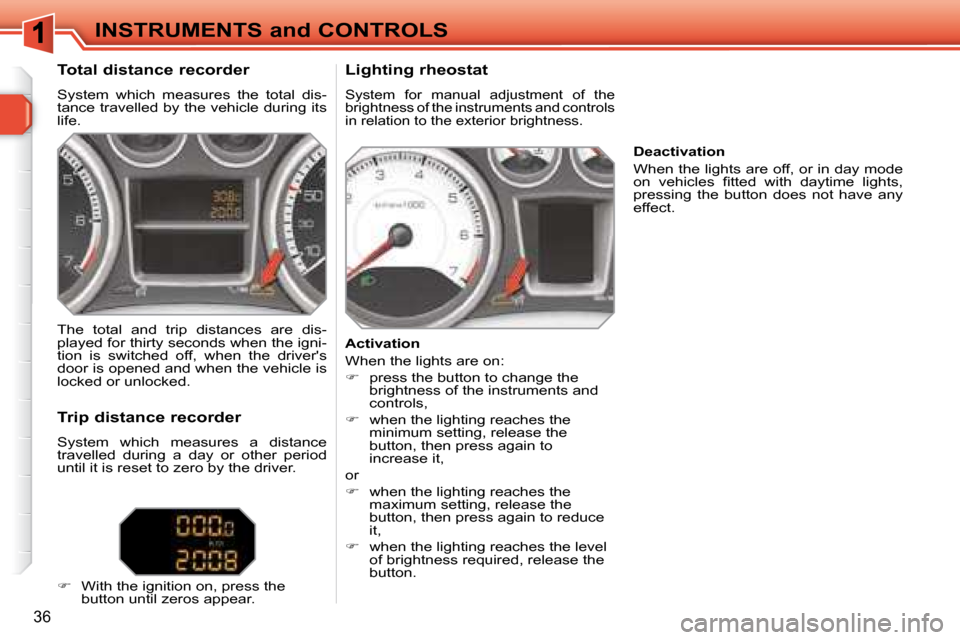

Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life. Lighting rheostat
System for manual adjustment of the
brightness of the instruments and controls
in relation to the exterior brightness.
The total and trip distances are dis-
played for thirty seconds when the igni-
tion is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.

 With the ignition on, press the
button until zeros appear. Activation
When the lights are on:

 press the button to change the
brightness of the instruments and
controls,

 when the lighting reaches the
minimum setting, release the
button, then press again to
increase it,
or

 when the lighting reaches the
maximum setting, release the
button, then press again to reduce
it,

 when the lighting reaches the level
of brightness required, release the
button. Deactivation
When the lights are off, or in day mode
on vehicles fi tted with daytime lights,
pressing the button does not have any
effect.
INSTRUMENTS and CONTROLS

i
i
45
MULTIFUNCTION DISPLAYS
Access to the screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of con- trol A ,
- angle adjustments by means of con- trol B .
It is also fi tted with safety auto-reverse
protection.
Opening the screen

 With the screen stored, press con-
trol A to open it.
The screen opens automatically when the
ignition is switched on, when the audio/tel-
ephone is switched on, when an outgoing
telephone call is made, when a voice com-
mand is given and when a warning mes-
sage linked with the STOP warning light is
received. Closing the screen

 With the screen open, press control

A to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio/telephone is off.
If you wish the screen to continue to
open or close automatically when
the audio/telephone is switched
on or off, the screen must not be
closed when the audio/telephone is
operating. When the screen is open, you can ad-
just it precisely in different ways:

 press the corresponding part of con-
trol B to move the screen towards
you or towards the windscreen,
or

 push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during op-
eration of the audio/telephone,
it will only re-open automatically
when an outgoing telephone call is
made, when a voice command is
given or when a warning message
linked with the STOP warning light
is received.

i
60
COMFORT

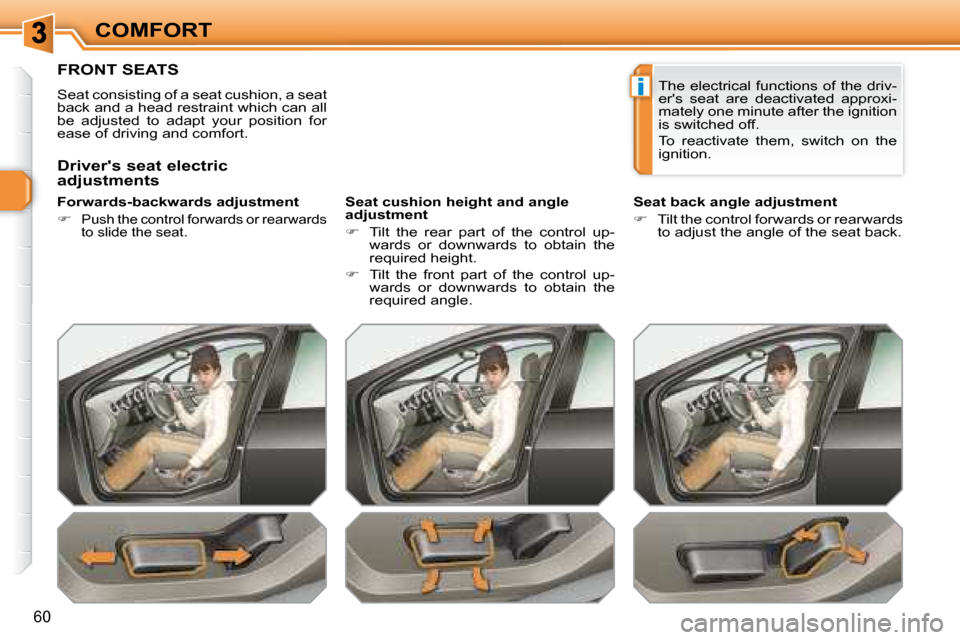

FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment


Push the control forwards or rearwards
to slide the seat. Seat cushion height and angle
adjustment

 Tilt the rear part of the control up-
wards or downwards to obtain the
required height.

 Tilt the front part of the control up-
wards or downwards to obtain the
required angle. Seat back angle adjustment

 Tilt the control forwards or rearwards
to adjust the angle of the seat back.
Driver's seat electric
adjustments The electrical functions of the driv-
er's seat are deactivated approxi-
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.

i!
63
COMFORT

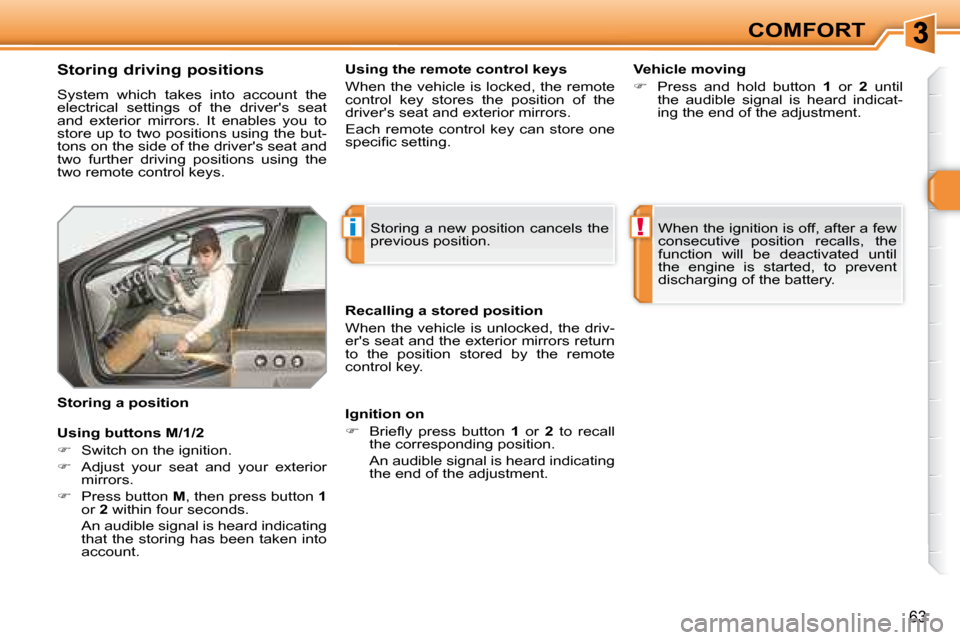

Storing driving positions
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys.
Recalling a stored position
When the vehicle is unlocked, the driv-
er's seat and the exterior mirrors return
to the position stored by the remote
control key.
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using the remote control keys
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and exterior mirrors.
Each remote control key can store one
specifi c setting.
Ignition on

 Briefl y press button 1 or 2 to recall
the corresponding position.
An audible signal is heard indicating the end of the adjustment. Vehicle moving

 Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
Using buttons M/1/2

 Switch on the ignition.

 Adjust your seat and your exterior
mirrors.

 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
