Peugeot 308 SW BL Dag 2009.5 User Guide

!
32

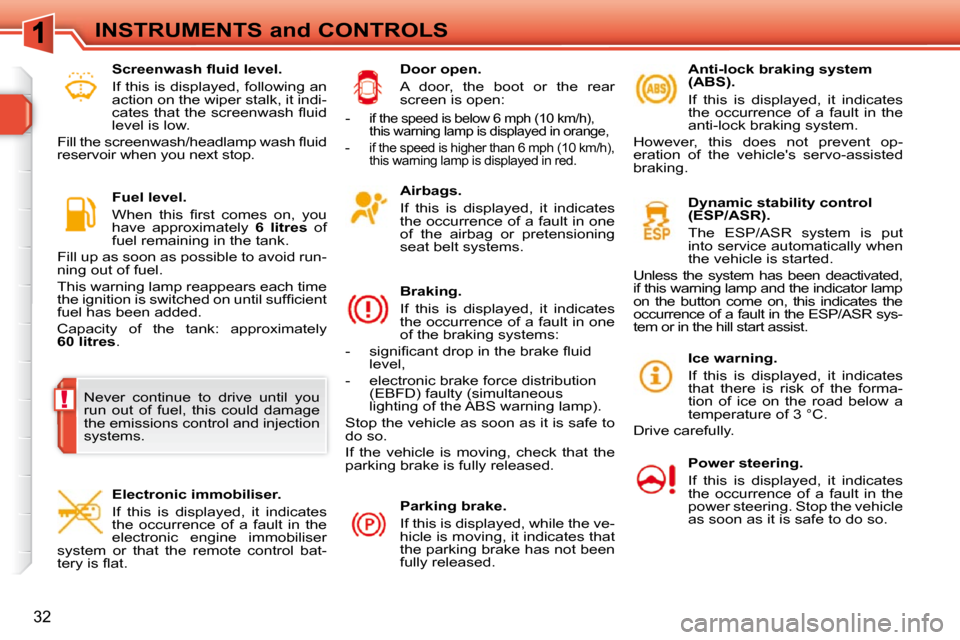

INSTRUMENTS and CONTROLS Airbags.
If this is displayed, it indicates
the occurrence of a fault in one
of the airbag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the brake fl uid level,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning lamp).
Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's servo-assisted
braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning lamp and the indicator lamp
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR sys-
tem or in the hill start assist.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
as soon as it is safe to do so.
Door open.
A door, the boot or the rear
screen is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully.
Parking brake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at. Fuel level.
When this fi rst comes on, you
have approximately
6 litres of
fuel remaining in the tank.
Fill up as soon as possible to avoid run-
ning out of fuel.
This warning lamp reappears each time
the ignition is switched on until suffi cient
fuel has been added.
Capacity of the tank: approximately

60 litres .
Screenwash fl uid level.
If this is displayed, following an
action on the wiper stalk, it indi-
cates that the screenwash fl uid
level is low.
Fill the screenwash/headlamp wash fl uid
reservoir when you next stop. -
if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,
- if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.
Never continue to drive until you
run out of fuel, this could damage
the emissions control and injection
systems.

INSTRUMENTS and CONTROLS Water in diesel * .
If this is displayed, it indicates
the presence of water in the
diesel fi lter.
There is a risk of damage to the injec-
tion system on Diesel engines.
Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.
Particle emission fi lter
(Diesel).
If this is displayed, linked with
the service warning lamp, it indi-
cates the start of saturation of the parti-
cle emission fi lter or a low diesel additive
reservoir level.
As soon as traffi c conditions permit, re-
generate the fi lter by driving at a speed
of at least 40 mph (60 km/h) until the
service warning lamp is switched off.
If the service warning lamp is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer without
delay.
Defl ated tyre.
If this is displayed, it indicates
low pressure in one or more
wheels.
Check the tyre pressures as soon as
possible. Punctured tyre.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle as
soon as it is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
Tyre under-infl ation
detection.
If this is displayed, it indicates
the occurrence of a fault on one
of the sensors or in the tyre under-infl a-
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
does not have a sensor, is fi tted in place
of a punctured wheel.
Automatic lighting.
If this comes on, it indicates the
occurrence of a fault in the auto-
matic lighting.
Use the other positions of the lighting
stalk to control the lighting manually.
Visual and/or audible
parking sensors.
If this comes on, in forward and/
or reverse gear, it indicates a

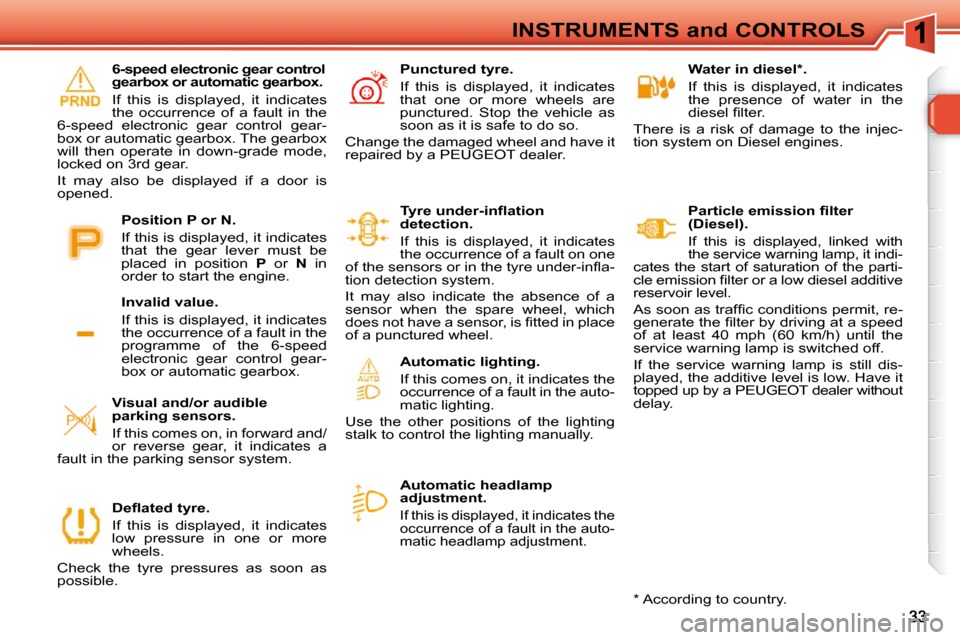

fault in the parking sensor system. 6-speed electronic gear control
gearbox or automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
6-speed electronic gear control gear-
box or automatic gearbox. The gearbox
will then operate in down-grade mode,
locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the 6-speed
electronic gear control gear-
box or automatic gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in
order to start the engine.
* According to country.

34
INSTRUMENTS and CONTROLS

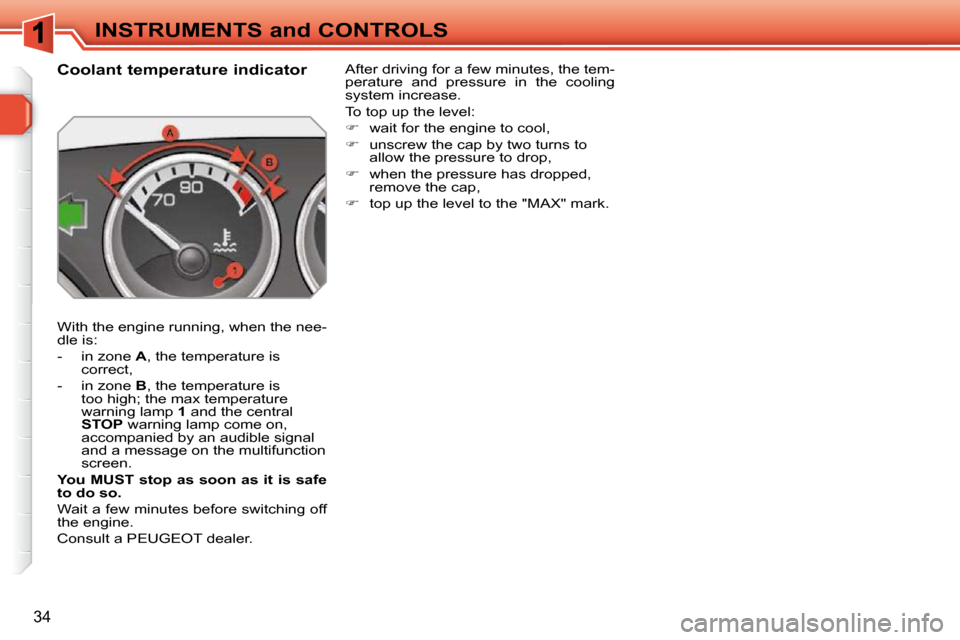

Coolant temperature indicator
With the engine running, when the nee-
dle is:
- in zone A , the temperature is
correct,
- in zone B , the temperature is
too high; the max temperature
warning lamp 1 and the central

STOP warning lamp come on,
accompanied by an audible signal
and a message on the multifunction
screen.

You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:

 wait for the engine to cool,

 unscrew the cap by two turns to
allow the pressure to drop,

 when the pressure has dropped,
remove the cap,

 top up the level to the "MAX" mark.

i
35
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

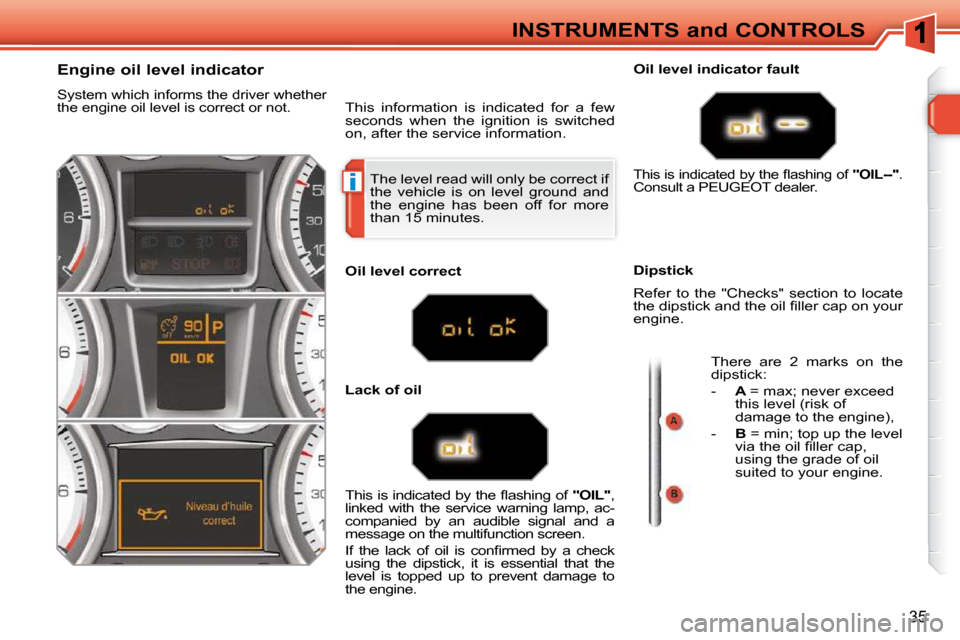

Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not. This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level indicator fault
Dipstick
This is indicated by the fl ashing of "OIL" ,
linked with the service warning lamp, ac-
companied by an audible signal and a
message on the multifunction screen.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine.
This is indicated by the fl ashing of "OIL--" . Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of
damage to the engine),
- B = min; top up the level
via the oil fi ller cap,
using the grade of oil
suited to your engine.

36
INSTRUMENTS and CONTROLS
Service indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two parame-
ters:
- the distance travelled,
- the time elapsed since the last service. Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on. The distance re-
corder display line indicates the distance
remaining before the next service is due.

Example: 2 800 km remain before the
next service is due.
For 5 seconds after the ignition is switched
on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 600 miles (1 000 km)
remain before the next service is due

Example: 900 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the dis-
play.

i
i
37
INSTRUMENTS and CONTROLS
Service indicator zero reset
After each service, the service indicator must be reset to zero.
The procedure for resetting to zero is as follows :
 switch off the ignition,
 press and hold the trip distance recorder zero reset button,
 switch on the ignition; the distance recorder display begins a countdown,
 when the display indicates "=0" , release the button; the spanner disappears.
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
the spanner fl ashes to
indicate that the service must be carried
out as soon as possible.

Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit .
Retrieving the service information
You can access the service information at any time.
 Press the trip distance recorder zero reset button.
The service information is displayed for a few seconds, then disappears.

38

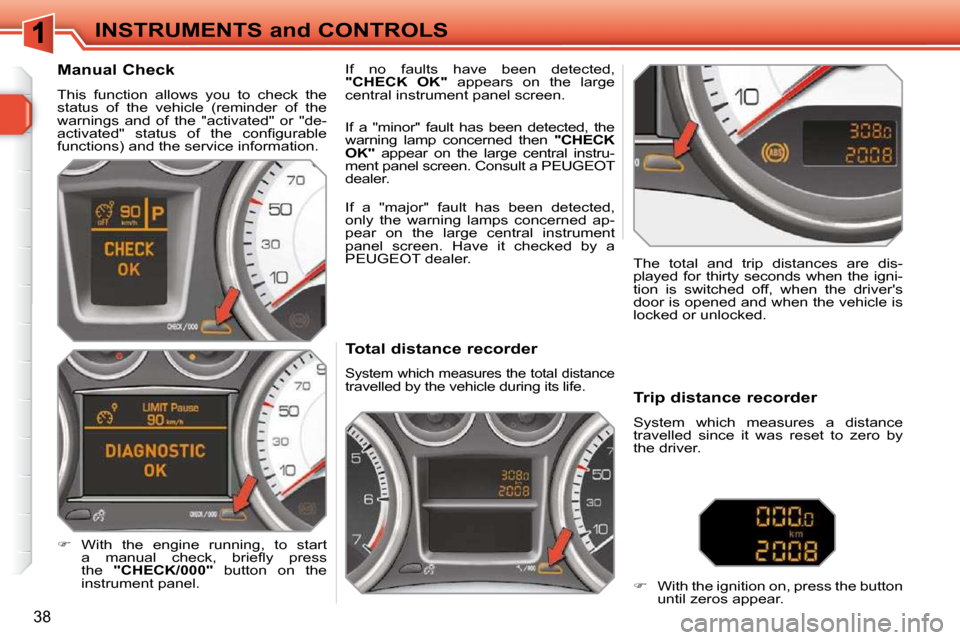

INSTRUMENTS and CONTROLS Total distance recorder
System which measures the total distance travelled by the vehicle during its life. The total and trip distances are dis-
played for thirty seconds when the igni-
tion is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled since it was reset to zero by
the driver.

 With the ignition on, press the button
until zeros appear.
Manual Check
This function allows you to check the
status of the vehicle (reminder of the
warnings and of the "activated" or "de-
activated" status of the confi gurable
functions) and the service information.

 With the engine running, to start
a manual check, briefl y press
the "CHECK/000" button on the
instrument panel. If no faults have been detected,

"CHECK OK" appears on the large
central instrument panel screen.
If a "major" fault has been detected,
only the warning lamps concerned ap-
pear on the large central instrument
panel screen. Have it checked by a
PEUGEOT dealer.
If a "minor" fault has been detected, the
warning lamp concerned then
"CHECK
OK" appear on the large central instru-
ment panel screen. Consult a PEUGEOT
dealer.

39

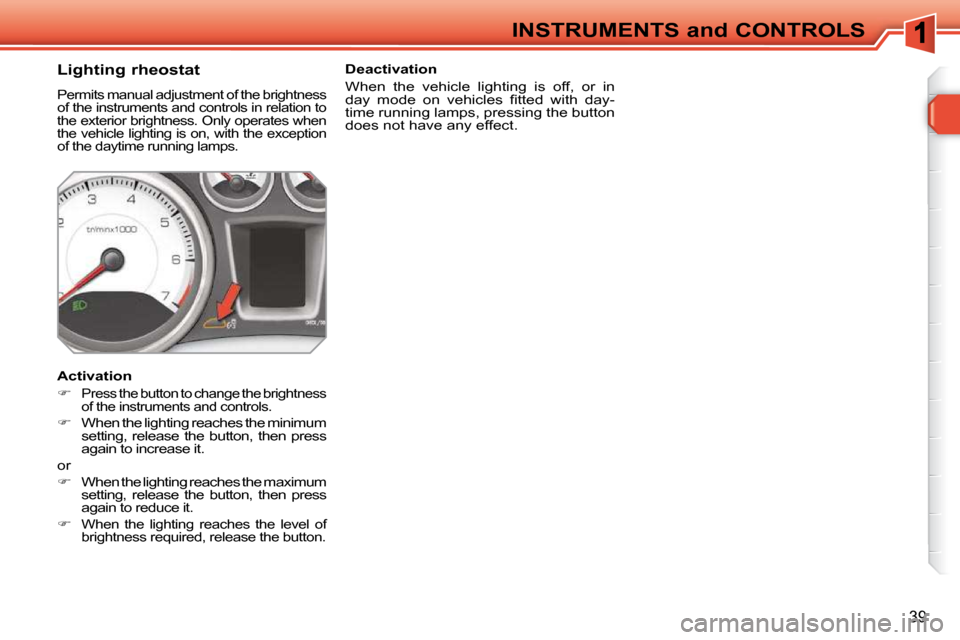

INSTRUMENTS and CONTROLS
Lighting rheostat
Permits manual adjustment of the brightness
of the instruments and controls in relation to
the exterior brightness. Only operates when
the vehicle lighting is on, with the exception
of the daytime running lamps.
Activation


Press the button to change the brightness
of the instruments and controls.

 When the lighting reaches the minimum
setting, release the button, then press
again to increase it.
or


When the lighting reaches the maximum
setting, release the button, then press
again to reduce it.

 When the lighting reaches the level of
brightness required, release the button.
Deactivation
When the vehicle lighting is off, or in
day mode on vehicles fi tted with day-
time running lamps, pressing the button
does not have any effect.

40

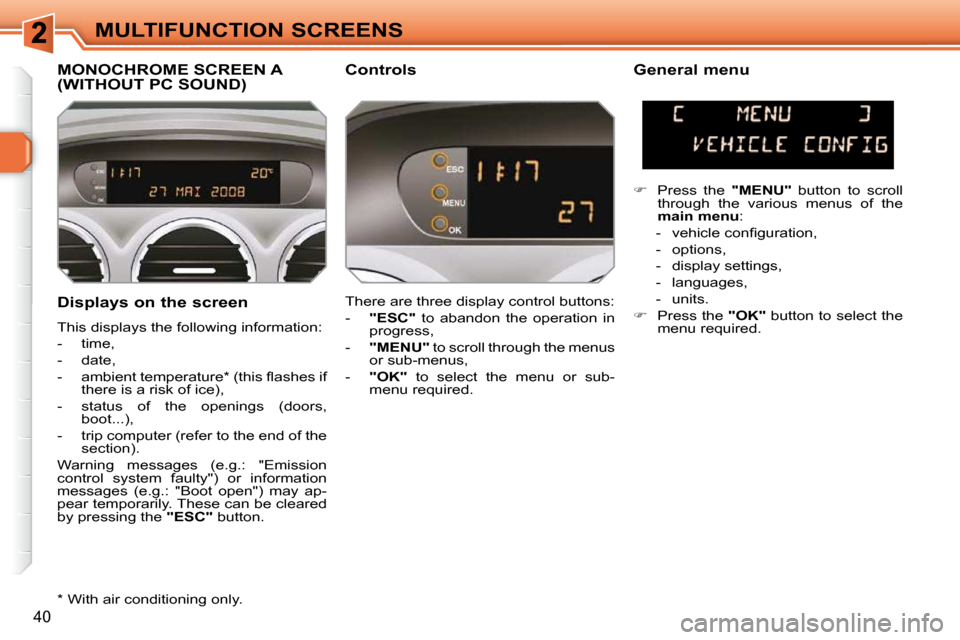

MULTIFUNCTION SCREENS
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button.
MONOCHROME SCREEN A (WITHOUT PC SOUND) Controls General menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
 Press the "MENU" button to scroll
through the various menus of the

main
menu :
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.

 Press the "OK" button to select the
menu required.
* With air conditioning only.

!
41

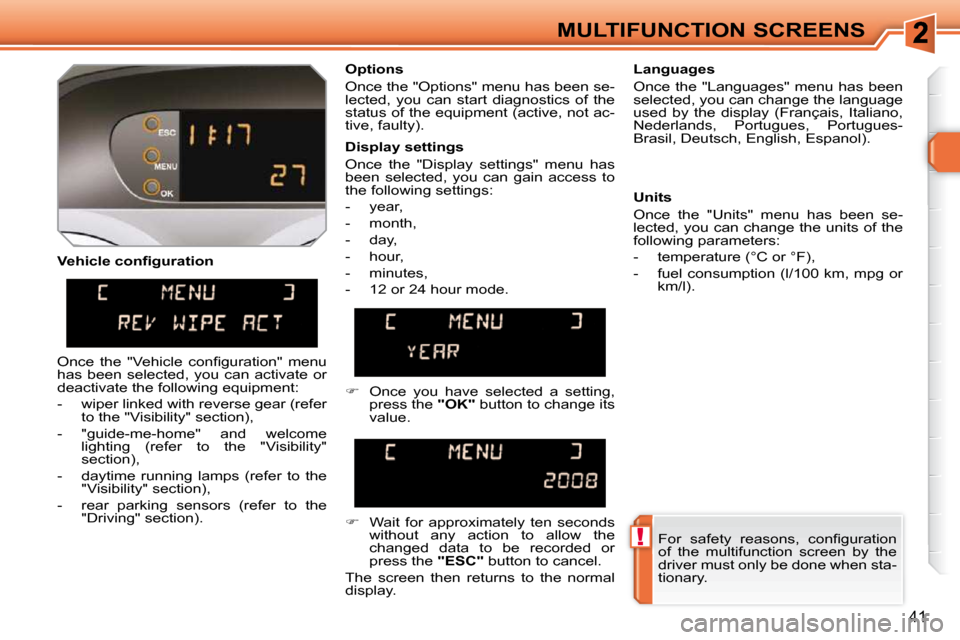

MULTIFUNCTION SCREENS
Vehicle confi guration Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode. Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,
press the "OK" button to change its
value.

 Wait for approximately ten seconds
without any action to allow the
changed data to be recorded or
press the "ESC" button to cancel.
The screen then returns to the normal
display.
Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" and welcome lighting (refer to the "Visibility"
section),
- daytime running lamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
