ii
i
69
COMFORT

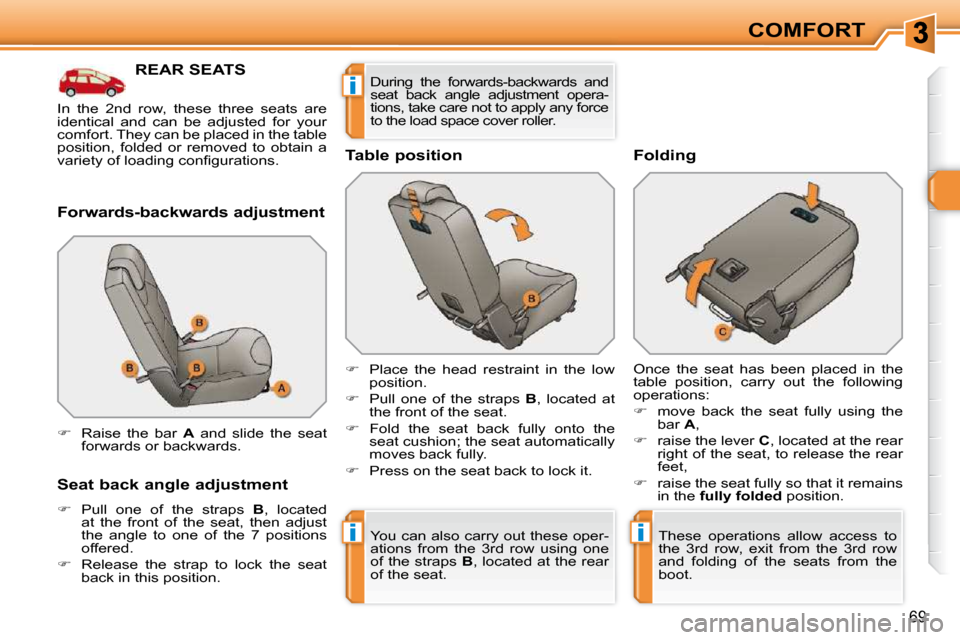

REAR SEATS
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
S e a t b a c k a n g l e a d j u s t m e n t
Pull one of the straps B , located
at the front of the seat, then adjust
the angle to one of the 7 positions
offered.
Release the strap to lock the seat
back in this position. Table position
Raise the bar A and slide the seat
forwards or backwards.
Place the head restraint in the low
position.
Pull one of the straps B , located at
the front of the seat.
Fold the seat back fully onto the
seat cushion; the seat automatically
moves back fully.
Press on the seat back to lock it. Folding
Once the seat has been placed in the
table position, carry out the following
operations:
move back the seat fully using the
bar A ,
raise the lever C , located at the rear
right of the seat, to release the rear
feet,
raise the seat fully so that it remains
in the fully folded position.
You can also carry out these oper-
ations from the 3rd row using one
of the straps B , located at the rear
of the seat. These operations allow access to
the 3
rd row, exit from the 3 rd row
and folding of the seats from the
boot.
In the 2nd row, these three seats are
identical and can be adjusted for your
comfort. They can be placed in the table
position, folded or removed to obtain a
v a r i e t y o f l o a d i n g c o n fi g u r a t i o n s .
During the forwards-backwards and
seat back angle adjustment opera-
tions, take care not to apply any force
to the load space cover roller.
Page 52 of 313
!
70
COMFORT

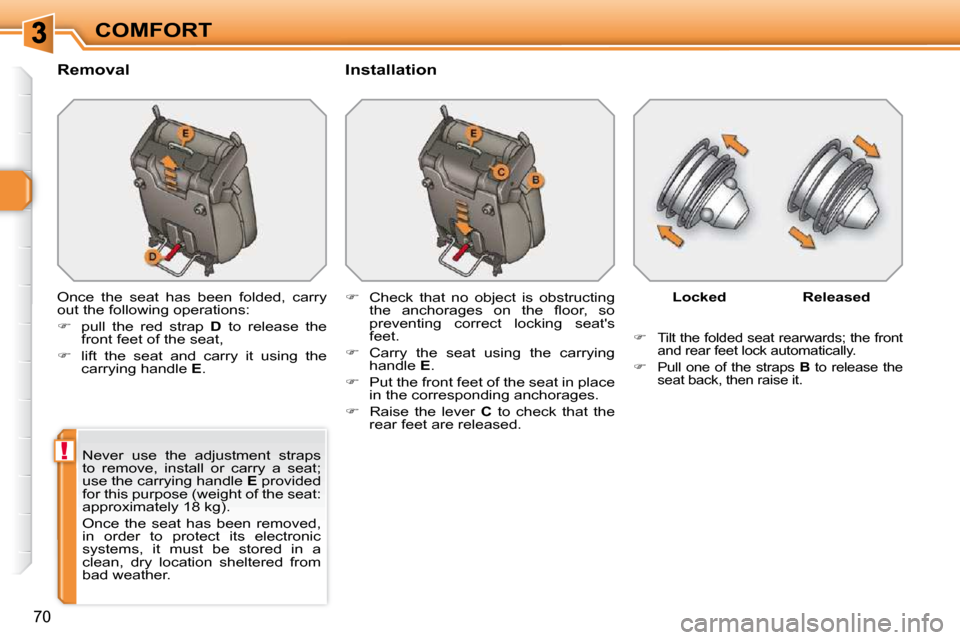

R e m o v a l Installation
Once the seat has been folded, carry
out the following operations:
pull the red strap D to release the
front feet of the seat,
lift the seat and carry it using the
carrying handle E .
Never use the adjustment straps
to remove, install or carry a seat;
use the carrying handle E provided
for this purpose (weight of the seat:
approximately 18 kg).
Once the seat has been removed,
in order to protect its electronic
systems, it must be stored in a
clean, dry location sheltered from
bad weather.
Locked Released
Tilt the folded seat rearwards; the front
and rear feet lock automatically.
Pull one of the straps B to release the
seat back, then raise it.
Check that no object is obstructing
t h e a n c h o r a g e s o n t h e fl o o r , s o
preventing correct locking seat's
feet.
Carry the seat using the carrying
handle E .
Put the front feet of the seat in place
in the corresponding anchorages.
Raise the lever C to check that the
rear feet are released.
Page 53 of 313
!
71
COMFORT

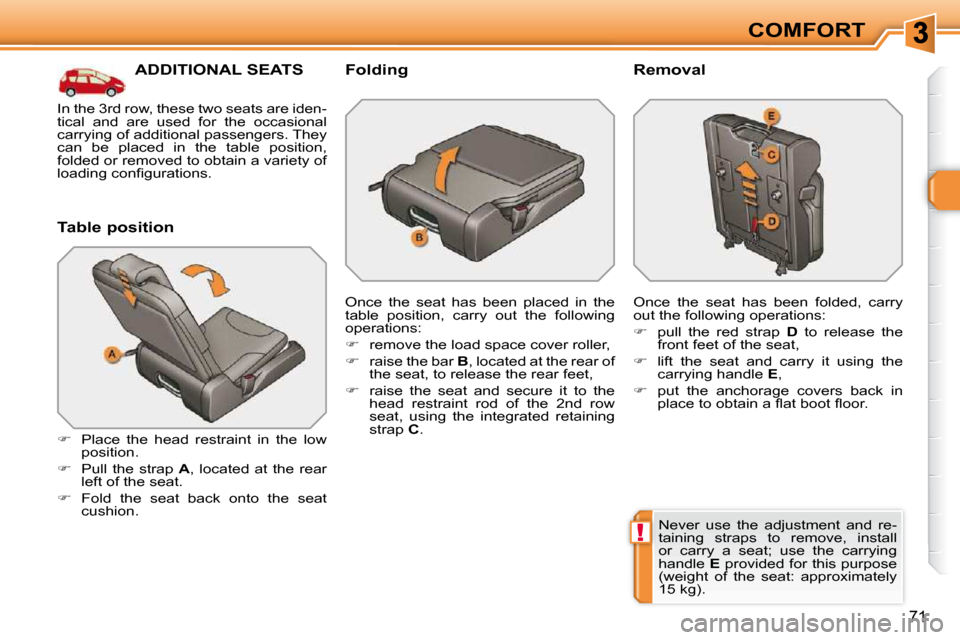

ADDITIONAL SEATS
Table position
Place the head restraint in the low
position.
Pull the strap A , located at the rear
left of the seat.
Fold the seat back onto the seat
cushion. Folding
Once the seat has been placed in the
table position, carry out the following
operations:
remove the load space cover roller,
raise the bar B , located at the rear of
the seat, to release the rear feet,
raise the seat and secure it to the
head restraint rod of the 2nd row
seat, using the integrated retaining
strap C . R e m o v a l
Once the seat has been folded, carry
out the following operations:
pull the red strap D to release the
front feet of the seat,
lift the seat and carry it using the
carrying handle E ,
put the anchorage covers back in
p l a c e t o o b t a i n a fl a t b o o t fl o o r .
Never use the adjustment and re-
taining straps to remove, install
or carry a seat; use the carrying
handle E provided for this purpose
(weight of the seat: approximately
15 kg).
In the 3rd row, these two seats are iden-
tical and are used for the occasional
carrying of additional passengers. They
can be placed in the table position,
folded or removed to obtain a variety of
l o a d i n g c o n fi g u r a t i o n s .
Page 54 of 313
72
COMFORT

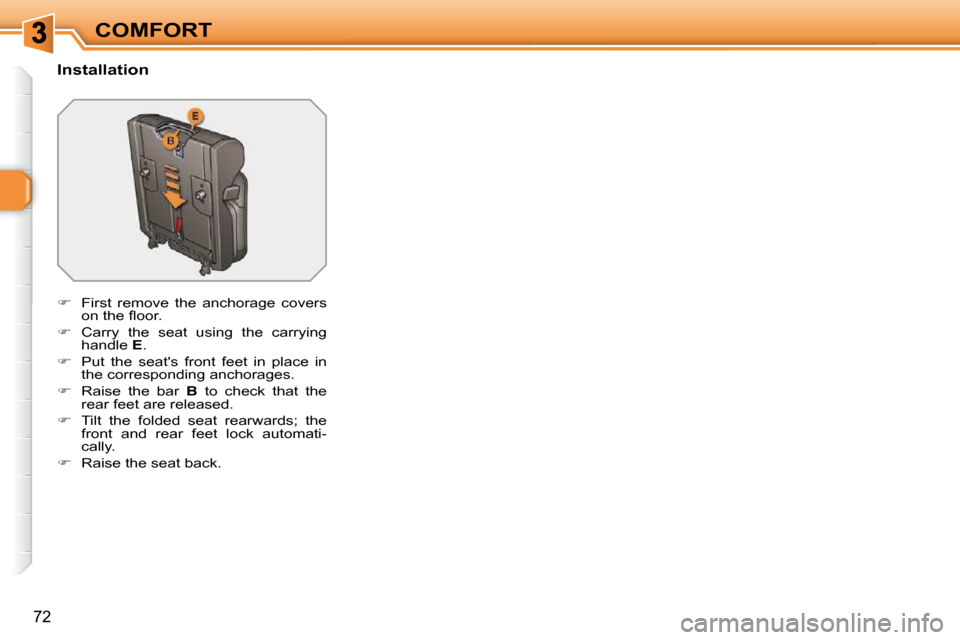

Installation
First remove the anchorage covers
o n t h e fl o o r .
Carry the seat using the carrying
handle E .
Put the seat's front feet in place in
the corresponding anchorages.
Raise the bar B to check that the
rear feet are released.
Tilt the folded seat rearwards; the
front and rear feet lock automati-
cally.
Raise the seat back.
Page 55 of 313
i
!
73
COMFORT

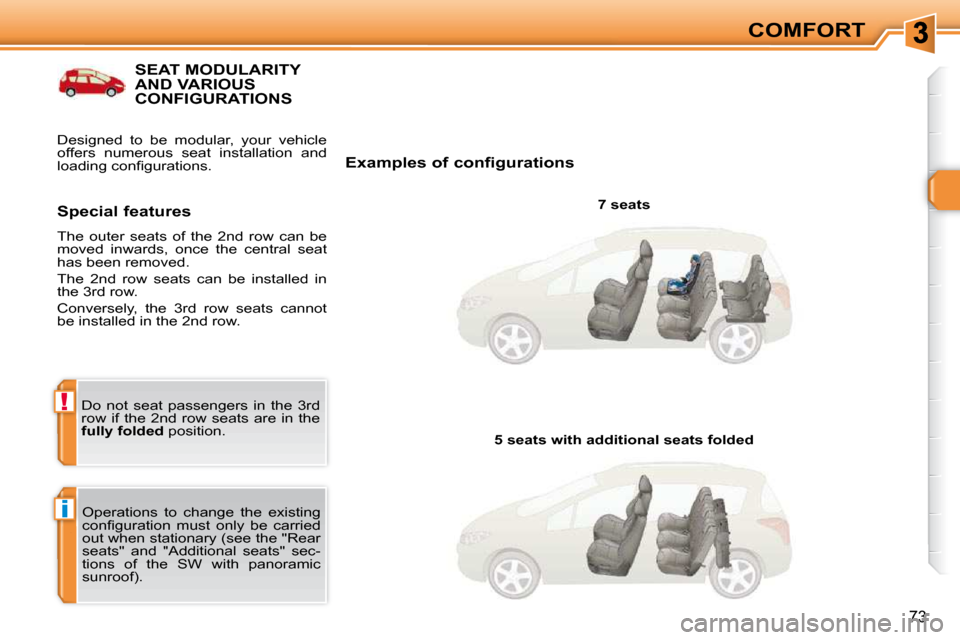

SEAT MODULARITY AND VARIOUS CONFIGURATIONS
Examples of configurations 7 seats
Operations to change the existing
c o n fi g u r a t i o n m u s t o n l y b e c a r r i e d
o u t w h e n s t a t i o n a r y ( s e e t h e " R e a r
s e a t s " a n d " A d d i t i o n a l s e a t s " s e c -
tions of the SW with panoramic
sunroof).
Special features
The outer seats of the 2nd row can be
moved inwards, once the central seat
has been removed.
The 2nd row seats can be installed in
the 3rd row.
Conversely, the 3rd row seats cannot
be installed in the 2nd row.
5 s e a t s w i t h a d d i t i o n a l s e a t s f o l d e d
Do not seat passengers in the 3rd
row if the 2nd row seats are in the
fully folded position.
Designed to be modular, your vehicle
offers numerous seat installation and
l o a d i n g c o n fi g u r a t i o n s .
Page 56 of 313
74
COMFORT 5 seats
5 s e a t s w i t h 2 n d r o w s e a t s m o v e d i n w a r d s

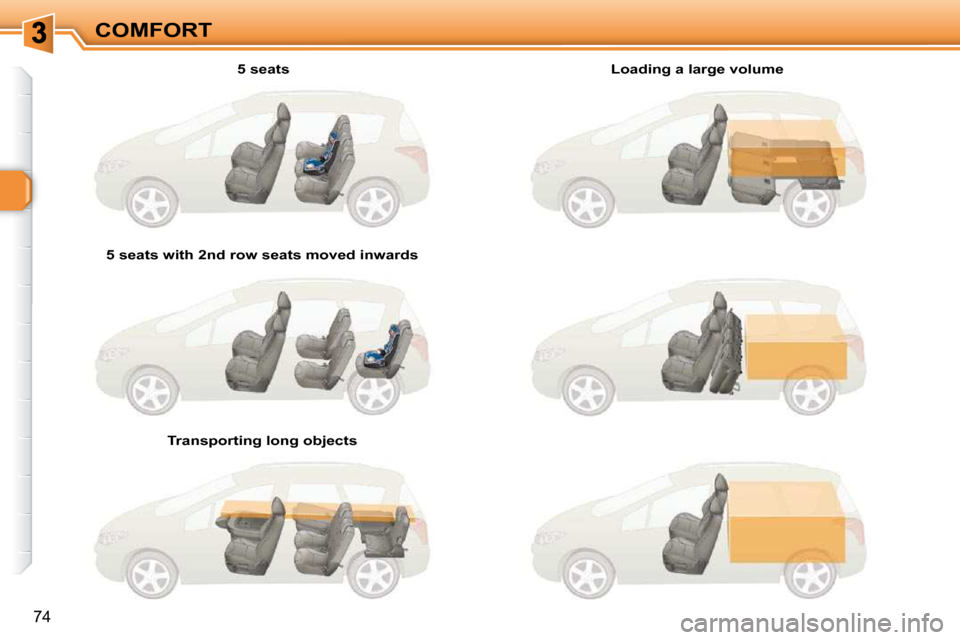

T r a n s p o r t i n g l o n g o b j e c t s L o a d i n g a l a r g e v o l u m e
Page 57 of 313
!
i
i
75
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

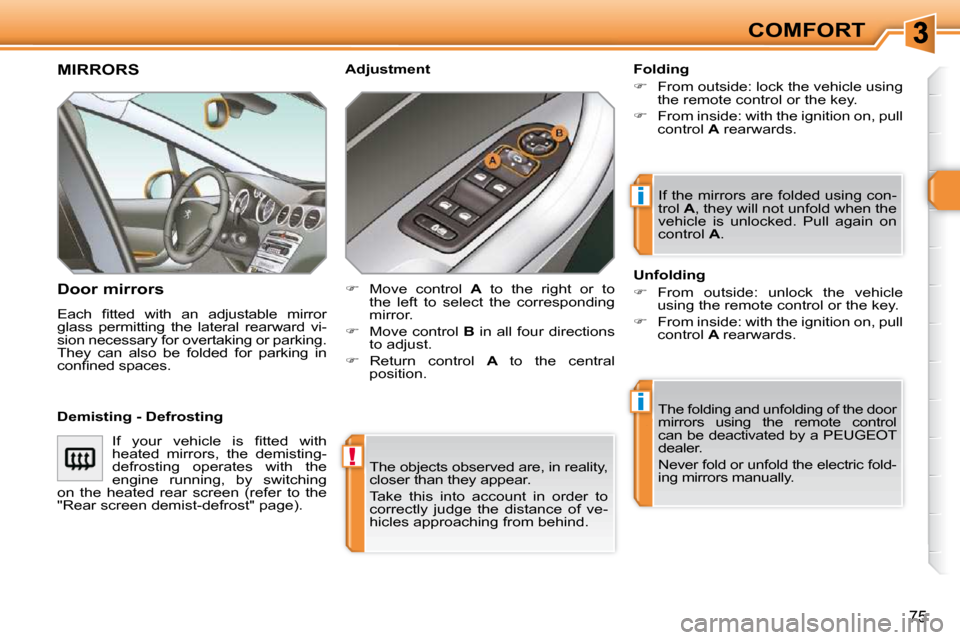

MIRRORS
Door mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
c o n fi n e d s p a c e s . Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the door
mirrors using the remote control
can be deactivated by a PEUGEOT
dealer.
Never fold or unfold the electric fold-
ing mirrors manually.
A d j u s t m e n t
Unfolding
From outside: unlock the vehicle
using the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Move control A to the right or to
the left to select the corresponding
mirror.
Move control B in all four directions
to adjust.
Return control A to the central
position.
D e m i s t i n g - D e f r o s t i n g I f y o u r v e h i c l e i s fi t t e d w i t h
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (refer to the
" R e a r s c r e e n d e m i s t - d e f r o s t " p a g e ) .
Page 58 of 313
!
76
COMFORT A d j u s t m e n t
Adjust the mirror so that the glass
i s d i r e c t e d c o r r e c t l y i n t h e " d a y "
position.
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
M a n u a l d a y / n i g h t m o d e l
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the
n o r m a l " d a y " p o s i t i o n .
A u t o m a t i c t i l t i n g i n r e v e r s e g e a r
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
S w i t c h i n g o n
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the corresponding
mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. S w i t c h i n g o f f
Exit reverse gear and wait ten
seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.

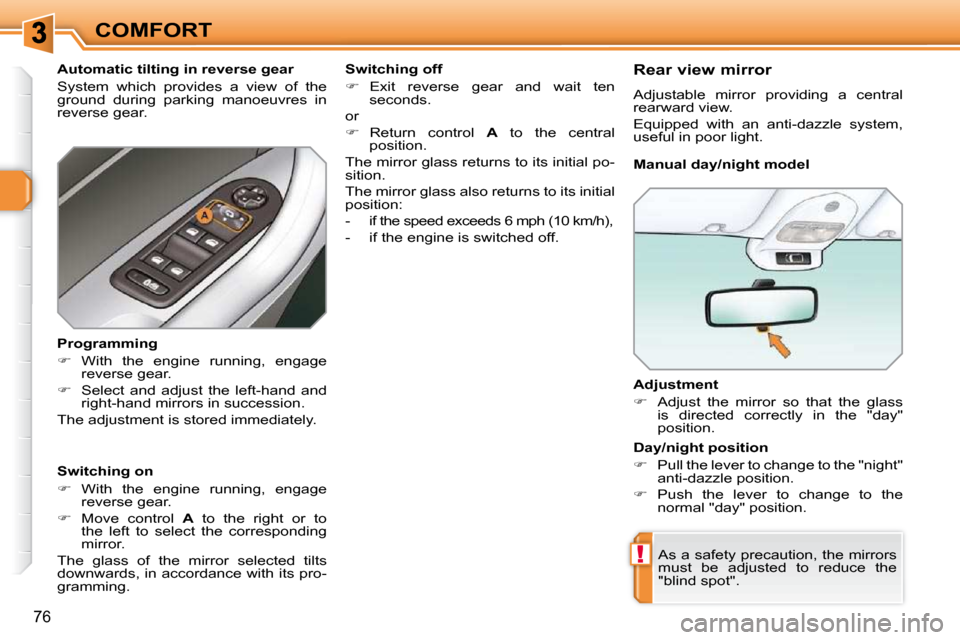

Page 59 of 313
!
76
COMFORT A d j u s t m e n t
Adjust the mirror so that the glass
i s d i r e c t e d c o r r e c t l y i n t h e " d a y "
position.
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
M a n u a l d a y / n i g h t m o d e l
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the
n o r m a l " d a y " p o s i t i o n .
A u t o m a t i c t i l t i n g i n r e v e r s e g e a r
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
S w i t c h i n g o n
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the corresponding
mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. S w i t c h i n g o f f
Exit reverse gear and wait ten
seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Page 60 of 313
!i
77
COMFORT

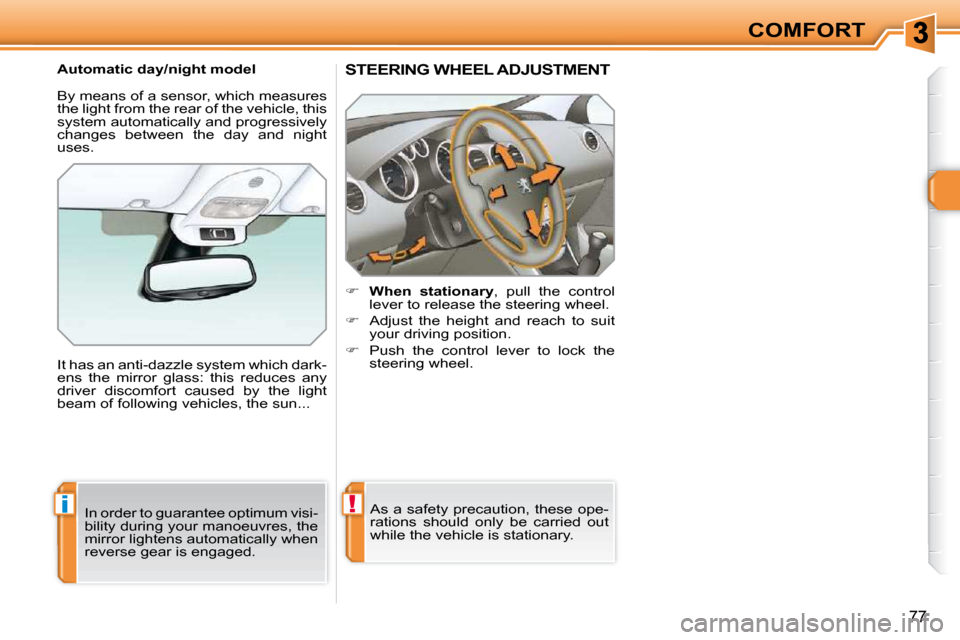

STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.
A u t o m a t i c d a y / n i g h t m o d e l
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beam of following vehicles, the sun...
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
