ACCESS The electric window controls re-
main operational for approximately
45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the driv-
er's door control panel, carry out
the operation from the control panel
of the passenger door concerned,
and vice versa.

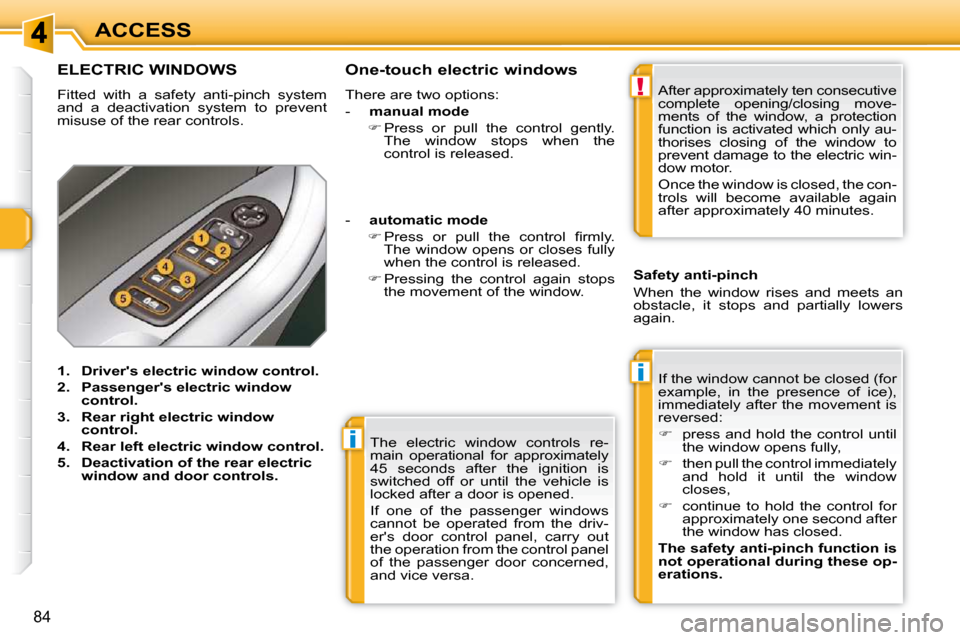

ELECTRIC WINDOWS
Fitted with a safety anti-pinch system
and a deactivation system to prevent
misuse of the rear controls.

1. Driver's electric window control.

2. Passenger's electric window
control.

3. Rear right electric window
control.

4. Rear left electric window control.

5. Deactivation of the rear electric
window and door controls. If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:

 press and hold the control until
the window opens fully,

 then pull the control immediately
and hold it until the window
closes,

 continue to hold the control for
approximately one second after
the window has closed.

The safety
anti
-
pinch
function is
not operational during these op-
erations.
Safety anti-pinch
When the window rises and meets an
obstacle, it stops and partially lowers
again.
-
automatic mode

 Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.

 Pressing the control again stops
the movement of the window.
One-touch electric windows
There are two options:
-
manual mode

 Press or pull the control gently.
The window stops when the
control is released. After approximately ten consecutive
complete opening/closing move-
ments of the window, a protection
function is activated which only au-
thorises closing of the window to
prevent damage to the electric win-
dow motor.
Once the window is closed, the con-
trols will become available again
after approximately 40 minutes.

!
i
!
85
ACCESS
This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
§ Electric child lock").
Any other status of the indicator
light indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.

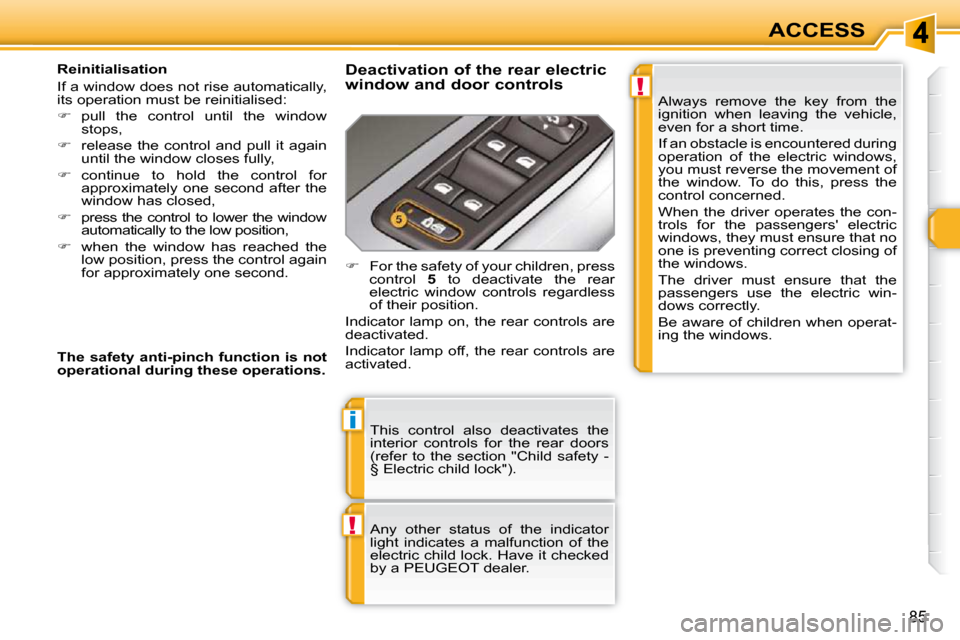

Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:

 pull the control until the window
stops,

 release the control and pull it again
until the window closes fully,

 continue to hold the control for
approximately one second after the
window has closed,

 press the control to lower the window
automatically to the low position,

 when the window has reached the
low position, press the control again
for approximately one second. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Deactivation of the rear electric
window and door controls

 For the safety of your children, press
control 5 to deactivate the rear
electric window controls regardless
of their position.
Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.

The safety
anti
-
pinch
function is not
operational during these operations.

!
86
ACCESS

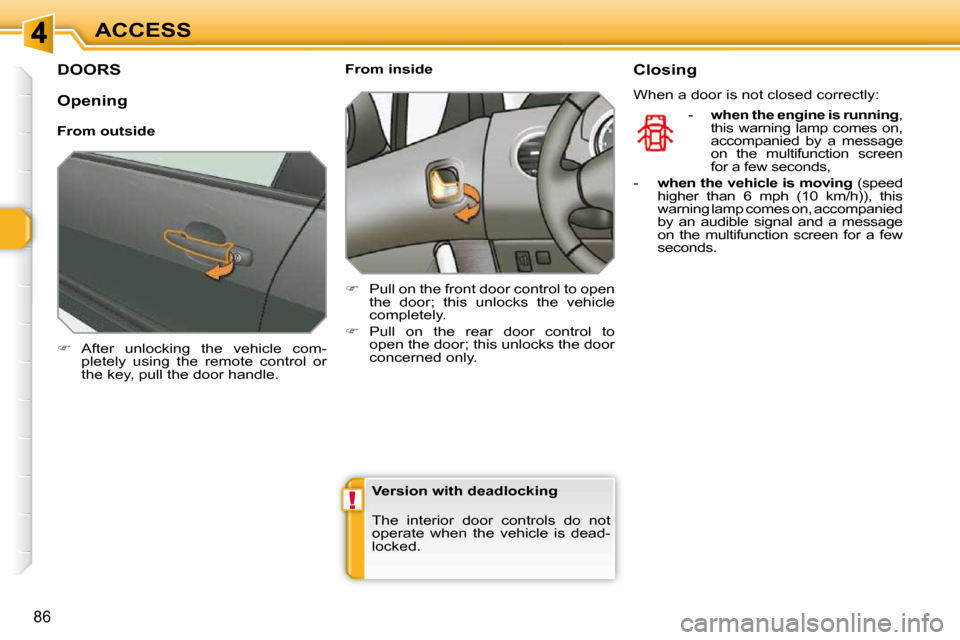

DOORS

 After unlocking the vehicle com-
pletely using the remote control or
the key, pull the door handle. From inside

 Pull on the front door control to open
the door; this unlocks the vehicle
completely.

 Pull on the rear door control to
open the door; this unlocks the door
concerned only. Closing
When a door is not closed correctly:
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Opening
From outside
Version with deadlocking
The interior door controls do not
operate when the vehicle is dead-
locked.

i
!
i
87
ACCESS
If the vehicle is locked or dead-
locked from the outside, the red in-
dicator lamp fl ashes and button A
is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot or the rear screen is
open, the automatic central locking
of the doors is active.

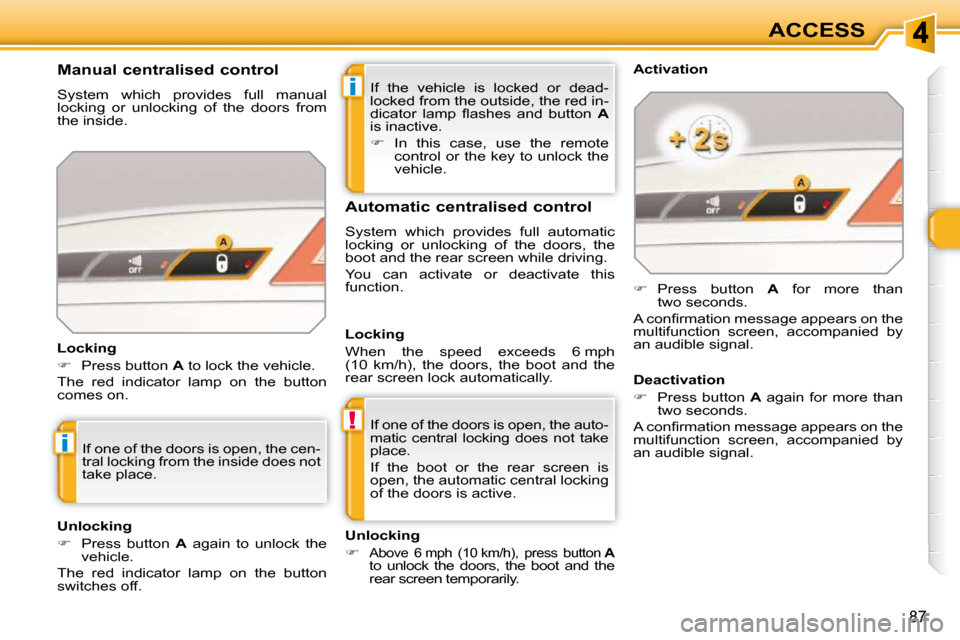

Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking

 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on. Automatic centralised control
System which provides full automatic
locking or unlocking of the doors, the
boot and the rear screen while driving.
You can activate or deactivate this
function. Activation

 Press button A for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.
Unlocking


Above 6 mph (10 km/h), press button A to unlock the doors, the boot and the
rear screen temporarily.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
Unlocking

 Press button A again to unlock the
vehicle.
The red indicator lamp on the button
switches off. Locking
When the speed exceeds 6 mph
(10 km/h), the doors, the boot and the
rear screen lock automatically.
Deactivation

 Press button A again for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.

88
ACCESS

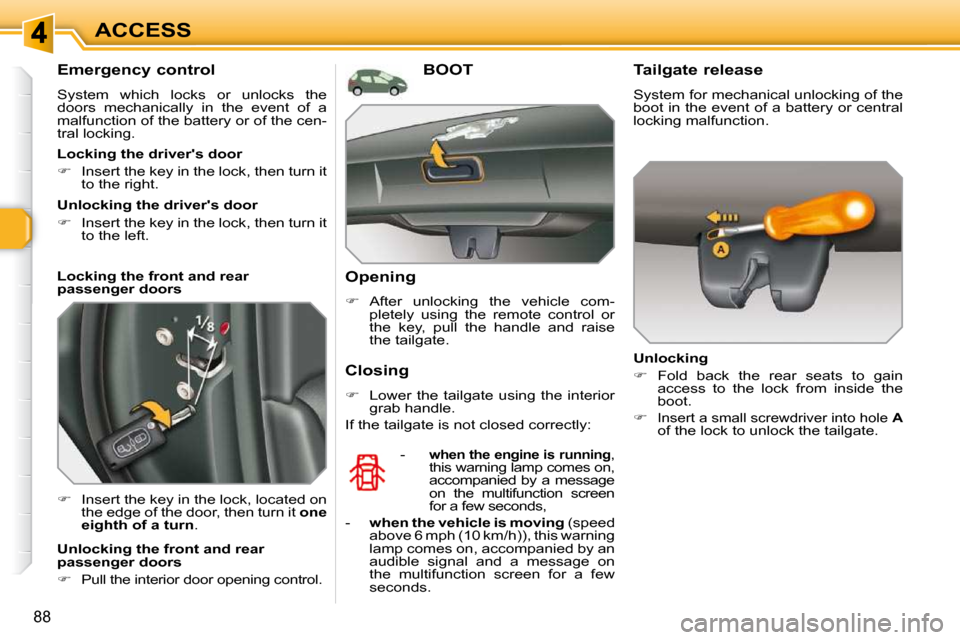

Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.

 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening

 After unlocking the vehicle com-
pletely using the remote control or
the key, pull the handle and raise
the tailgate.
BOOT
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on
the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking

 Fold back the rear seats to gain
access to the lock from inside the
boot.


Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver's door

 Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors

 Pull the interior door opening control. Closing

 Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:

88
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.

 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening

 After unlocking the vehicle com-
pletely using the remote control or
the key, pull the handle and raise
the tailgate.
BOOT
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on
the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking

 Fold back the rear seats to gain
access to the lock from inside the
boot.


Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver's door

 Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors

 Pull the interior door opening control. Closing

 Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:

ii
89
ACCESS
BOOT

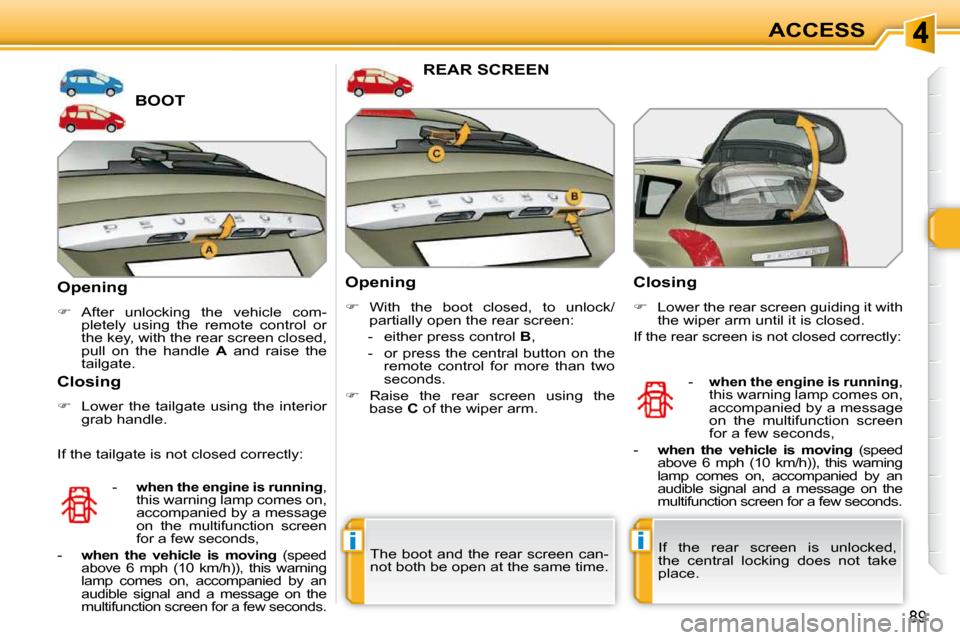

Opening

 After unlocking the vehicle com-
pletely using the remote control or
the key, with the rear screen closed,
pull on the handle A and raise the
tailgate.
Closing

 Lower the tailgate using the interior
grab handle.
REAR SCREEN
Opening

 With the boot closed, to unlock/
partially open the rear screen:
- either press control B ,
- or press the central button on the remote control for more than two
seconds.

 Raise the rear screen using the
base C of the wiper arm. Closing

 Lower the rear screen guiding it with
the wiper arm until it is closed.
If the rear screen is not closed correctly:
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-

when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-

when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds. If the tailgate is not closed correctly:
The boot and the rear screen can-
not both be open at the same time.
If the rear screen is unlocked,
the central locking does not take
place.

!
i
90
ACCESS

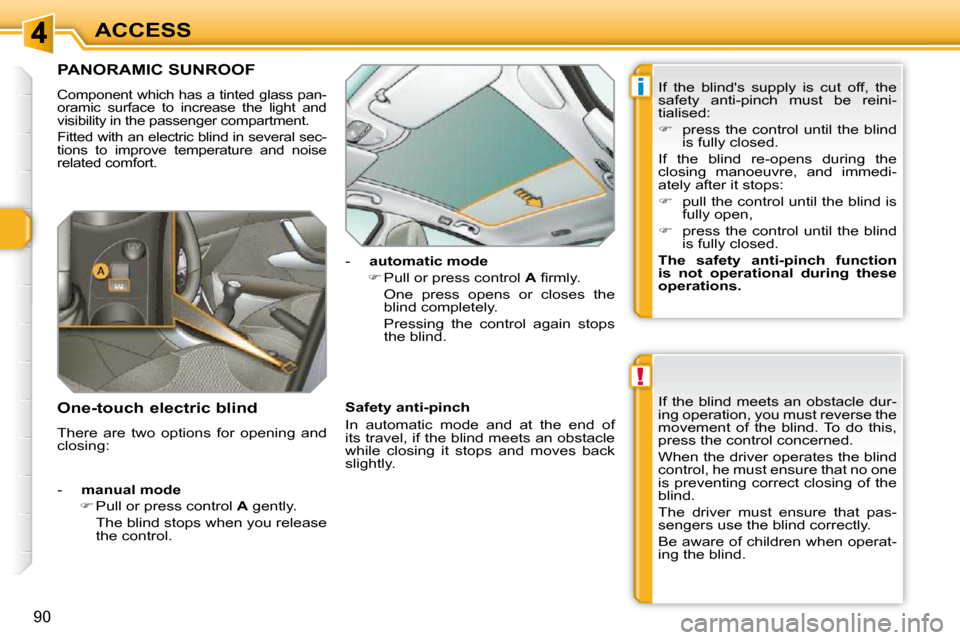

PANORAMIC SUNROOF
Component which has a tinted glass pan-
oramic surface to increase the light and
visibility in the passenger compartment.
Fitted with an electric blind in several sec-
tions to improve temperature and noise
related comfort.
If the blind meets an obstacle dur-
ing operation, you must reverse the
movement of the blind. To do this,
press the control concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that pas-
sengers use the blind correctly.
Be aware of children when operat-
ing the blind.
-
manual mode

 Pull or press control A gently.
The blind stops when you release the control. -
automatic mode

 Pull or press control A fi rmly.
One press opens or closes the blind completely.
Pressing the control again stops the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing: If the blind's supply is cut off, the
safety anti-pinch must be reini-
tialised:

 press the control until the blind
is fully closed.
If the blind re-opens during the
closing manoeuvre, and immedi-
ately after it stops:

 pull the control until the blind is
fully open,

 press the control until the blind
is fully closed.

The safety anti-pinch function
is not operational during these
operations.

i
91
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
Opening the cap may trigger an air
intake noise. This vacuum, which is
perfectly normal, is caused by the
sealing of the fuel system.

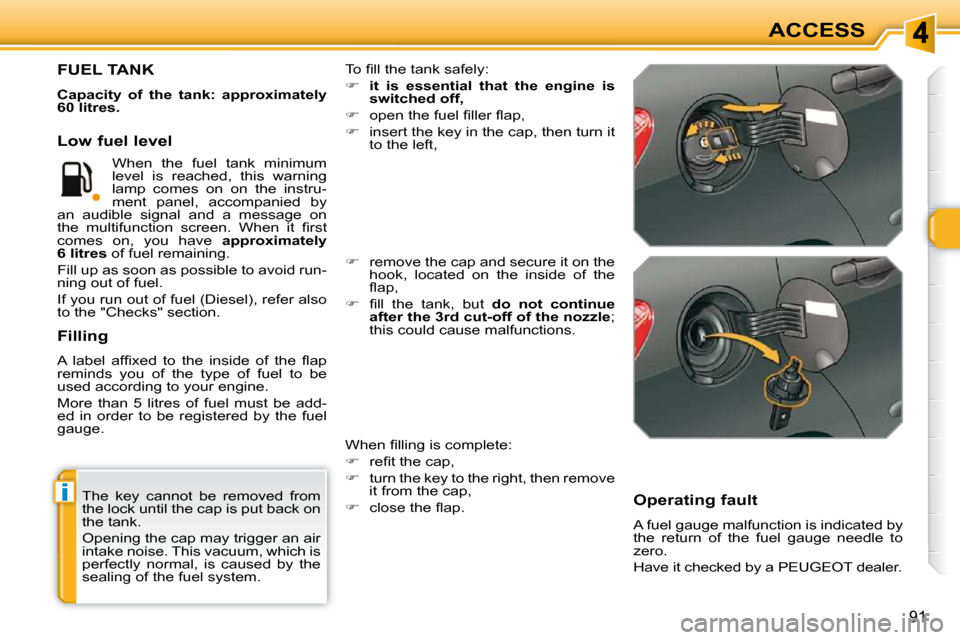

FUEL TANK

Capacity of the tank: approximately
60 litres. To fi ll the tank safely:

 it is essential that the engine is
switched off,

 open the fuel fi ller fl ap,

 insert the key in the cap, then turn it
to the left,
When fi lling is complete:

 refi t the cap,

 turn the key to the right, then remove
it from the cap,

 close the fl ap.

 remove the cap and secure it on the
hook, located on the inside of the
fl ap,

 fi ll the tank, but do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge.
Operating fault
A fuel gauge malfunction is indicated by
the return of the fuel gauge needle to
zero.
Have it checked by a PEUGEOT dealer.
When the fuel tank minimum
level is reached, this warning
lamp comes on on the instru-
ment panel, accompanied by
an audible signal and a message on
the multifunction screen. When it fi rst
comes on, you have approximately
6 litres of fuel remaining.
Fill up as soon as possible to avoid run-
ning out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.

i
92
ACCESS

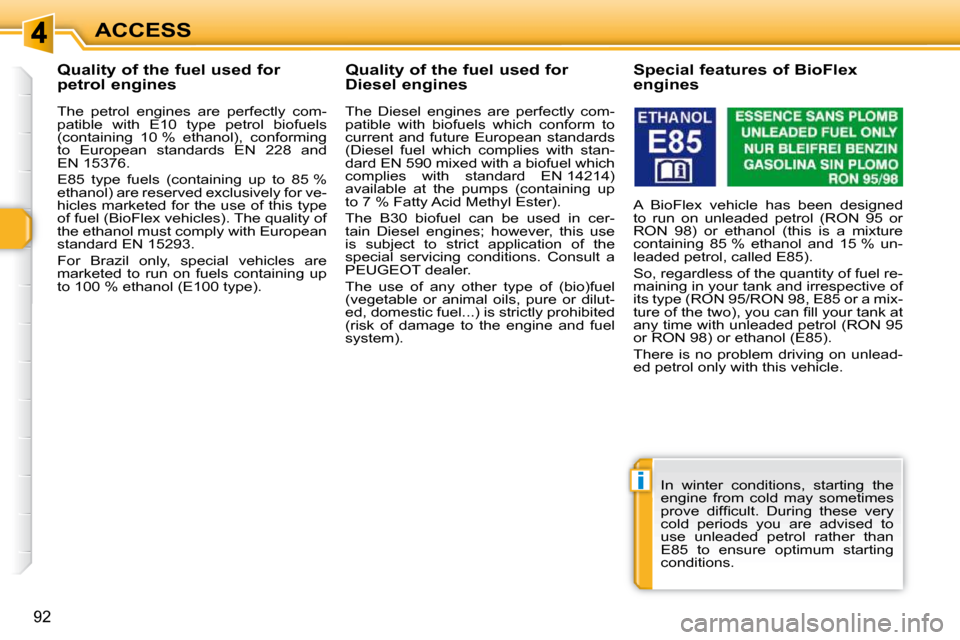

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system). Special features of BioFlex
engines
A BioFlex vehicle has been designed
to run on unleaded petrol (RON 95 or
RON 98) or ethanol (this is a mixture
containing 85 % ethanol and 15 % un-
leaded petrol, called E85).
So, regardless of the quantity of fuel re-
maining in your tank and irrespective of
its type (RON 95/RON 98, E85 or a mix-
ture of the two), you can fi ll your tank at
any time with unleaded petrol (RON 95
or RON 98) or ethanol (E85).
There is no problem driving on unlead-
ed petrol only with this vehicle.
In winter conditions, starting the
engine from cold may sometimes
prove diffi cult. During these very
cold periods you are advised to
use unleaded petrol rather than
E85 to ensure optimum starting
conditions.
