Page 91 of 221
3
i
ACCESS

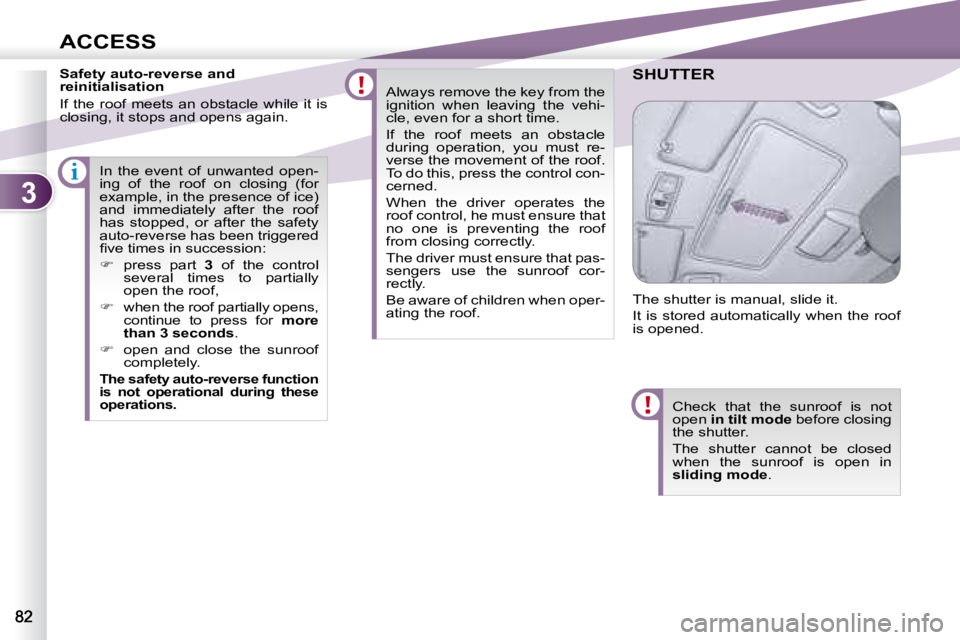

Safety auto-reverse and
reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again. Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must re-
verse the movement of the roof.
To do this, press the control con-
cerned.
When the driver operates the
roof control, he must ensure that
no one is preventing the roof
from closing correctly.
The driver must ensure that pas-
sengers use the sunroof cor-
rectly.
Be aware of children when oper-
ating the roof.
In the event of unwanted open-
ing of the roof on closing (for
example, in the presence of ice)
and immediately after the roof
has stopped, or after the safety
auto-reverse has been triggered
fi v e t i m e s i n s u c c e s s i o n :
press part 3 of the control
several times to partially
open the roof,
when the roof partially opens,
continue to press for more
than 3 seconds .
open and close the sunroof
completely.
The
safety
auto-reverse
function
is not
operational during
t
hese
operations.
SHUTTER
The shutter is manual, slide it.
It is stored automatically when the roof
is opened.
Check that the sunroof is not
open in tilt mode before closing
the shutter.
The shutter cannot be closed
when the sunroof is open in
sliding mode .
Page 92 of 221
3
ACCESS
FUEL TANK ANK
T o fi l l t h e t a n k s a f e l y :
it is imperative that the engine is
switched off,
pull the control A located at the
bottom right of the driver's seat to
r e l e a s e t h e f u e l fi l l e r fl a p ,
o p e n t h e f u e l fi l l e r fl a p B ,
turn the cap C to the left,
W h e n y o u h a v e fi l l e d t h e t a n k :
r e fi t t h e c a p , i n s e r t i n g t h e u p p e r p a r t
fi r s t ,
screw in the cap to the right,
c l o s e t h e fl a p .
E n s u r e t h a t t h e f u e l fi l l e r fl a p i s c l o s e d
correctly.
remove the cap C ,
fi l l t h e t a n k , b u t do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l , a f fi x e d o n t h e i n s i d e o f t h e fl a p ,
reminds you of the type of fuel to be
used in relation to your engine. When the tank minimum
level is reached (approximate-
ly 10 litres), this indication ap-
pears on the instrument panel display.
The symbol fl a s h e s s l o w l y
(approximately once per second).
You have enough fuel remaining to
drive approximately 30 miles (50 km)
.
When the symbol begins to
fl a s h r a p i d l y (approximately
twice per second), there is not
much fuel remaining in your tank
(approximately 5 litres).
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap
1. Opening.
2. Closing.
S y s t e m f o r fi l l i n g w i t h f u e l , a f t e r t a k i n g i n t o
account the detection of the associated
low level.
Capacity of the tank: approximately
60 litres.
Page 93 of 221
4
VISIBILITY

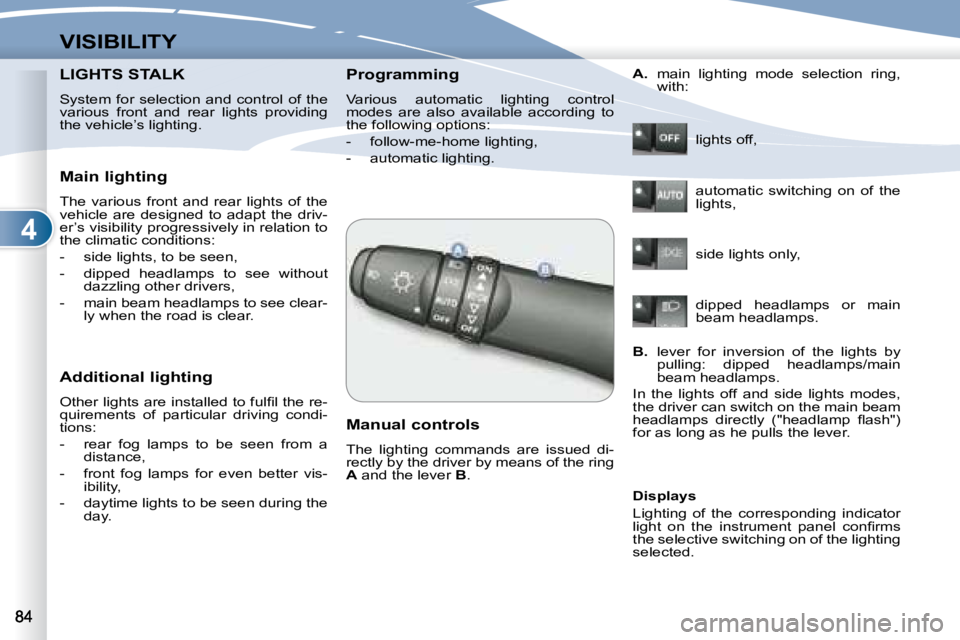

LIGHTS STALK LIGHTS STALK
System for selection and control of the
various front and rear lights providing
the vehicle’s lighting.
Main lighting
The various front and rear lights of the
vehicle are designed to adapt the driv-
er’s visibility progressively in relation to
the climatic conditions:
- side lights, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps to see clear- ly when the road is clear.
Additional lighting
O t h e r l i g h t s a r e i n s t a l l e d t o f u l fi l t h e r e -
quirements of particular driving condi-
tions:
- rear fog lamps to be seen from a distance,
- front fog lamps for even better vis- ibility,
- daytime lights to be seen during the day. Programming
Various automatic lighting control
modes are also available according to
the following options:
- follow-me-home lighting,
- automatic lighting.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the ring
A and the lever B . lights off,
automatic switching on of the
lights,
side lights only,
B. lever for inversion of the lights by
pulling: dipped headlamps/main
beam headlamps.
In the lights off and side lights modes,
the driver can switch on the main beam
h e a d l a m p s d i r e c t l y ( " h e a d l a m p fl a s h " )
for as long as he pulls the lever.
Displays
Lighting of the corresponding indicator
l i g h t o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the selective switching on of the lighting
selected.
A. main lighting mode selection ring,
with:
dipped headlamps or main
beam headlamps.
Page 94 of 221
4
i
VISIBILITY

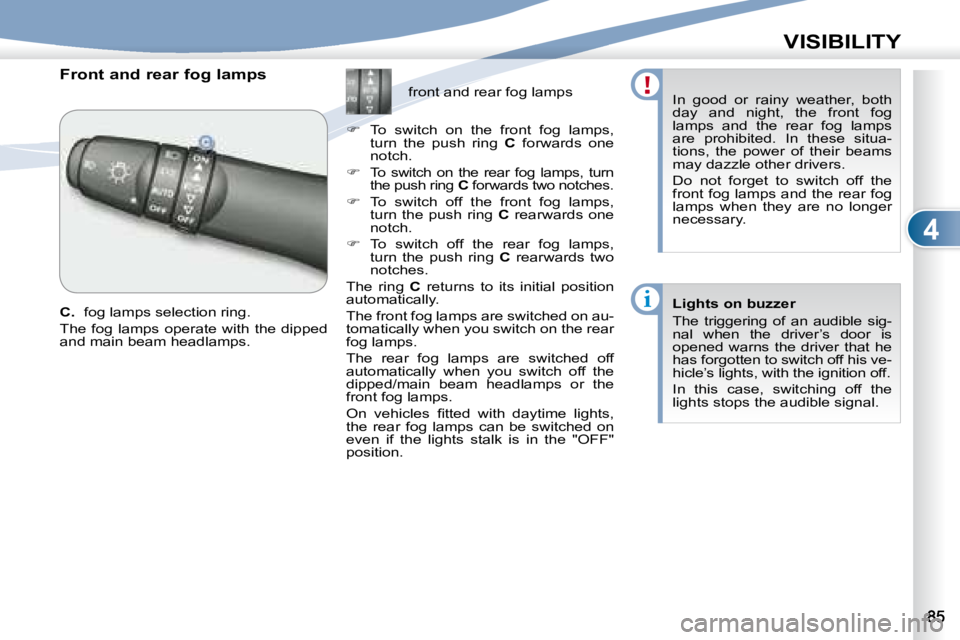

Front and rear fog lamps
C. fog lamps selection ring.
The fog lamps operate with the dipped
and main beam headlamps. front and rear fog lamps
To switch on the front fog lamps,
turn the push ring C forwards one
notch.
To switch on the rear fog lamps, turn
the push ring C forwards two notches.
To switch off the front fog lamps,
turn the push ring C rearwards one
notch.
To switch off the rear fog lamps,
turn the push ring C rearwards two
notches.
The ring C returns to its initial position
automatically.
The front fog lamps are switched on au-
tomatically when you switch on the rear
fog lamps.
The rear fog lamps are switched off
automatically when you switch off the
dipped/main beam headlamps or the
front fog lamps.
O n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
the rear fog lamps can be switched on
even if the lights stalk is in the "OFF"
position. In good or rainy weather, both
day and night, the front fog
lamps and the rear fog lamps
are prohibited. In these situa-
tions, the power of their beams
may dazzle other drivers.
Do not forget to switch off the
front fog lamps and the rear fog
lamps when they are no longer
necessary.
Lights on buzzer
The triggering of an audible sig-
nal when the driver’s door is
opened warns the driver that he
has forgotten to switch off his ve-
hicle’s lights, with the ignition off.
In this case, switching off the
lights stops the audible signal.
Page 95 of 221
4
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
s u f fi c i e n t l i g h t . T h e l i g h t s w i l l n o t
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e l i t . Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .
Page 96 of 221
4
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
s u f fi c i e n t l i g h t . T h e l i g h t s w i l l n o t
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e l i t . Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .
Page 97 of 221
4
VISIBILITY

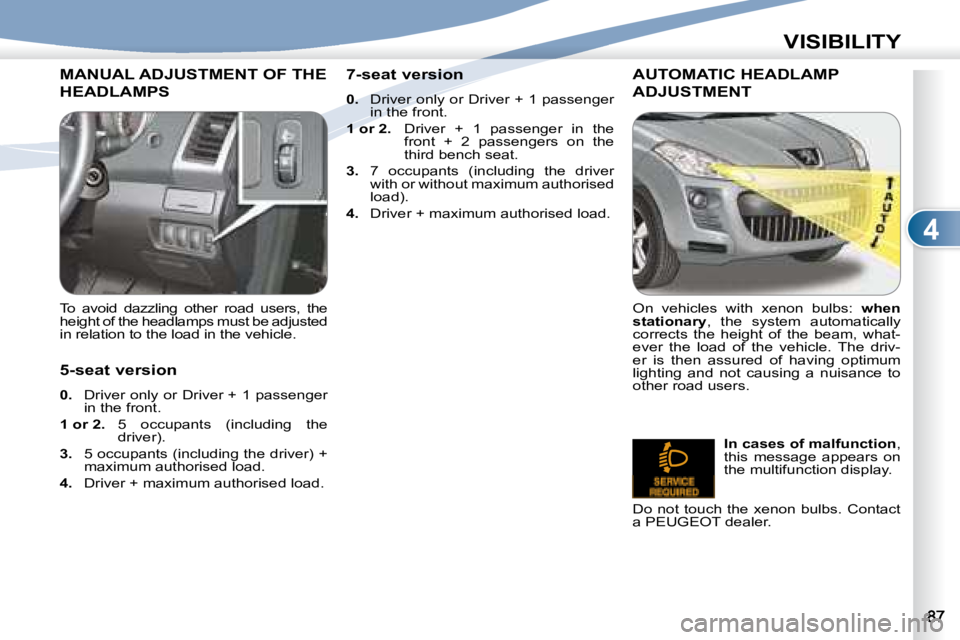

MANUAL ADJUSTMENT OF THE
HEADLAMPS
To avoid dazzling other road users, the
height of the headlamps must be adjusted
in relation to the load in the vehicle.
5-seat version
0. Driver only or Driver + 1 passenger
in the front.
1 or 2. 5 occupants (including the
d r i v e r ) .
3. 5 o c c u p a n t s ( i n c l u d i n g t h e d r i v e r ) +
maximum authorised load.
4. Driver + maximum authorised load.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with xenon bulbs: when
stationary , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driv-
er is then assured of having optimum
lighting and not causing a nuisance to
other road users.
In cases of malfunction ,
this message appears on
the multifunction display.
Do not touch the xenon bulbs. Contact
a PEUGEOT dealer.
7-seat version
0. Driver only or Driver + 1 passenger
in the front.
1 or 2. Driver + 1 passenger in the
front + 2 passengers on the
third bench seat.
3. 7 occupants (including the driver
with or without maximum authorised
l o a d ) .
4. Driver + maximum authorised load.
Page 98 of 221
4
VISIBILITY

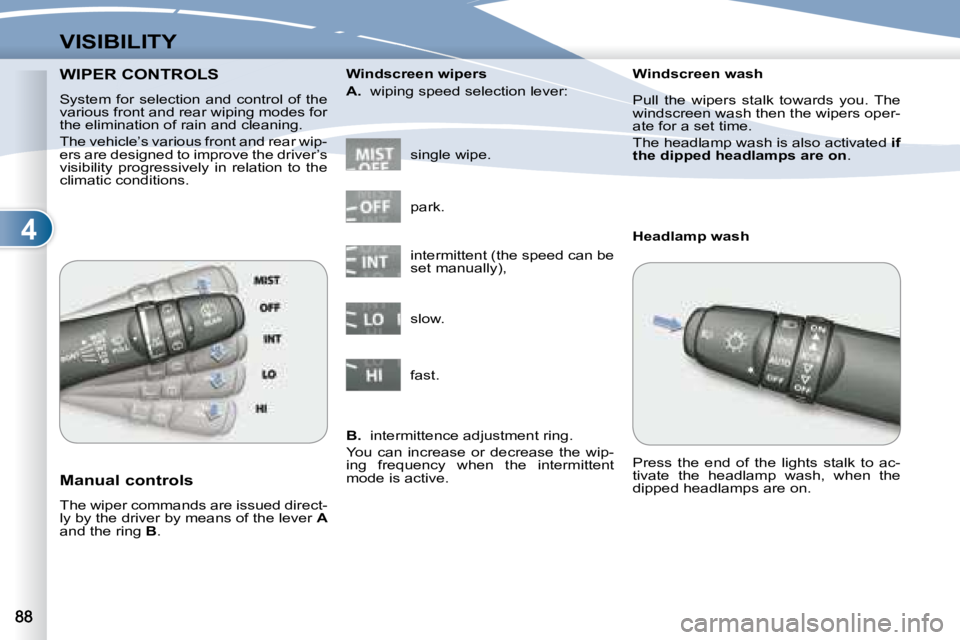

WIPER CONTROLS WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle’s various front and rear wip-
ers are designed to improve the driver’s
visibility progressively in relation to the
climatic conditions. Manual controls
The wiper commands are issued direct-
ly by the driver by means of the lever A
and the ring B . single wipe.
Windscreen wipers
A. wiping speed selection lever:
park.
intermittent (the speed can be
s e t m a n u a l l y ) ,
slow.
fast.
B. intermittence adjustment ring.
You can increase or decrease the wip-
ing frequency when the intermittent
mode is active. Windscreen wash
Pull the wipers stalk towards you. The
windscreen wash then the wipers oper-
ate for a set time.
The headlamp wash is also activated
if
the dipped headlamps are on .
Headlamp wash
Press the end of the lights stalk to ac-
tivate the headlamp wash, when the
dipped headlamps are on.
Page 99 of 221
4
VISIBILITY

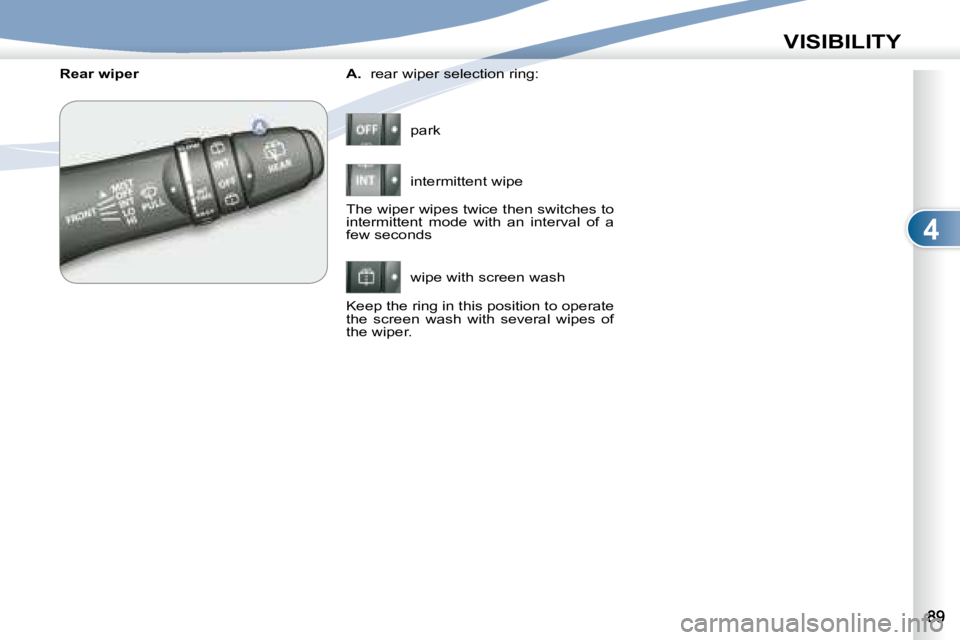

A. rear wiper selection ring:
park
intermittent wipe
wipe with screen wash
Rear wiper
The wiper wipes twice then switches to
intermittent mode with an interval of a
few seconds
Keep the ring in this position to operate
the screen wash with several wipes of
the wiper.
Page 100 of 221
4
VISIBILITY

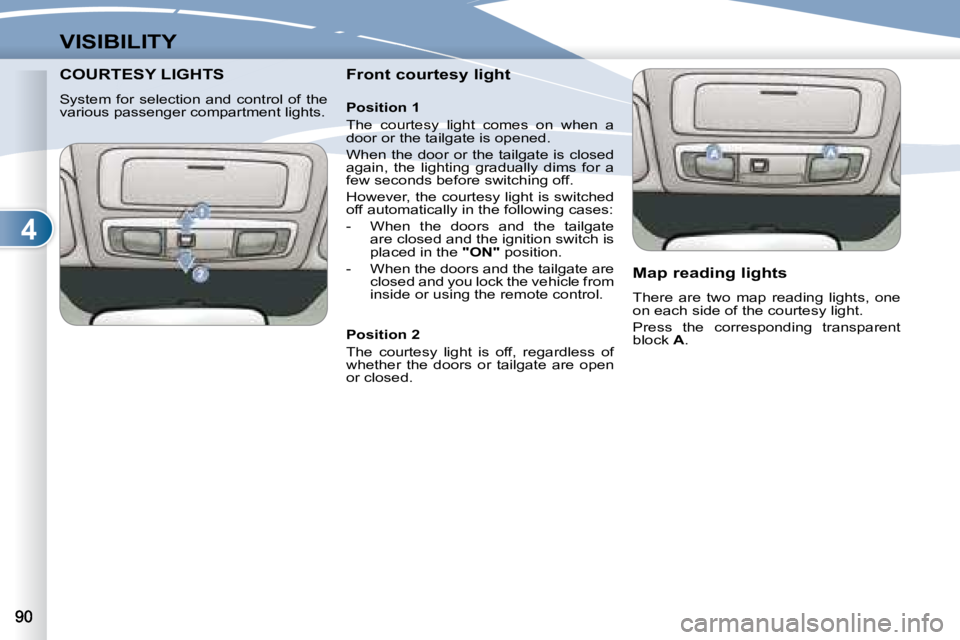

COURTESY LIGHTS COURTESY LIGHTS
System for selection and control of the
various passenger compartment lights. Front courtesy light
Map reading lights
There are two map reading lights, one
on each side of the courtesy light.
Press the corresponding transparent
block A .
Position 1
The courtesy light comes on when a
door or the tailgate is opened.
When the door or the tailgate is closed
again, the lighting gradually dims for a
few seconds before switching off.
However, the courtesy light is switched
off automatically in the following cases:
- When the doors and the tailgate
are closed and the ignition switch is
placed in the "ON" position.
- When the doors and the tailgate are closed and you lock the vehicle from
inside or using the remote control.
Position 2
The courtesy light is off, regardless of
whether the doors or tailgate are open
or closed.
