PEUGEOT 4007 2007 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2007, Model line: 4007, Model: PEUGEOT 4007 2007Pages: 221, PDF Size: 13.99 MB
Page 101 of 221
4
VISIBILITY
Rear courtesy light
Position 1 "ON"
The courtesy light is permanently on.
P o s i t i o n 2 "
Page 102 of 221
5
i

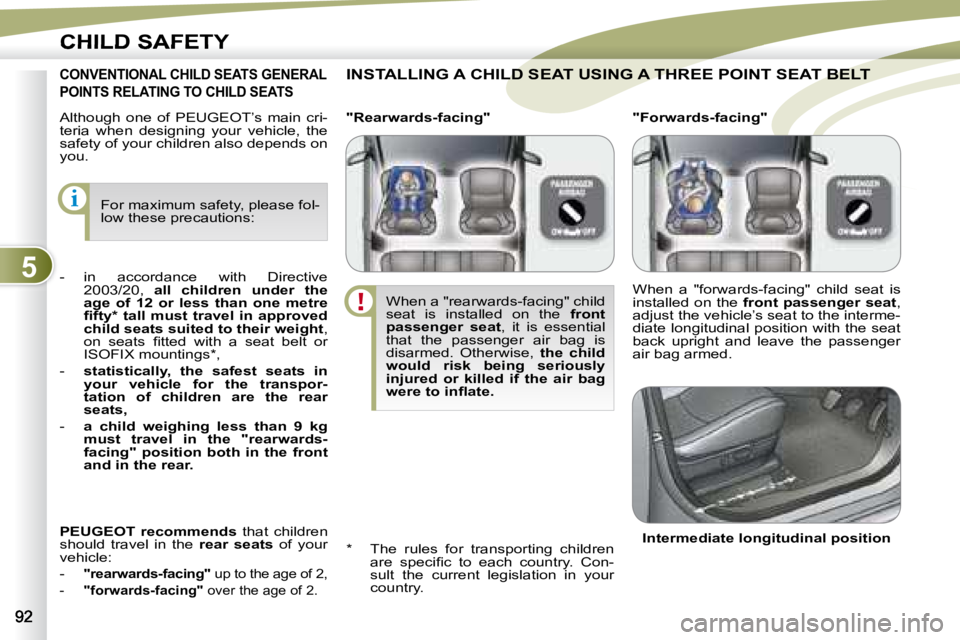

CHILD SAFETY
Although one of PEUGEOT’s main cri-
teria when designing your vehicle, the
safety of your children also depends on
you. INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
Intermediate longitudinal position
* The rules for transporting children
a r e s p e c i fi c t o e a c h c o u n t r y . C o n -
sult the current legislation in your
country.
CONVENTIONAL CHILD SEATS GENERAL
POINTS RELATING TO CHILD SEATS
"Forwards-facing"
"Rearwards-facing"
For maximum safety, please fol-
low these precautions: When a "rearwards-facing" child
seat is installed on the front
passenger seat , it is essential
that the passenger air bag is
disarmed. Otherwise, the child
would risk being seriously
injured or killed if the air bag
w e r e t o i n fl a t e .
- in accordance with Directive
2003/20, all children under the
age of 12 or less than one metre
fi f t y * t a l l m u s t t r a v e l i n a p p r o v e d
child seats suited to their weight ,
o n s e a t s fi t t e d w i t h a s e a t b e l t o r
ISOFIX mountings * ,
- statistically, the safest seats in
y o u r v e h i c l e f o r t h e t r a n s p o r -
tation of children are the rear
seats,
- a child weighing less than 9 kg
m u s t t r a v e l i n t h e " r e a r w a r d s -
facing" position both in the front
a n d i n t h e r e a r .
PEUGEOT recommends that children
should travel in the rear seats of your
vehicle:
-
"rearwards-facing" up to the age of 2,
- "forwards-facing" over the age of 2.
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle’s seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
air bag armed.
Page 103 of 221
5
CHILD SAFETY

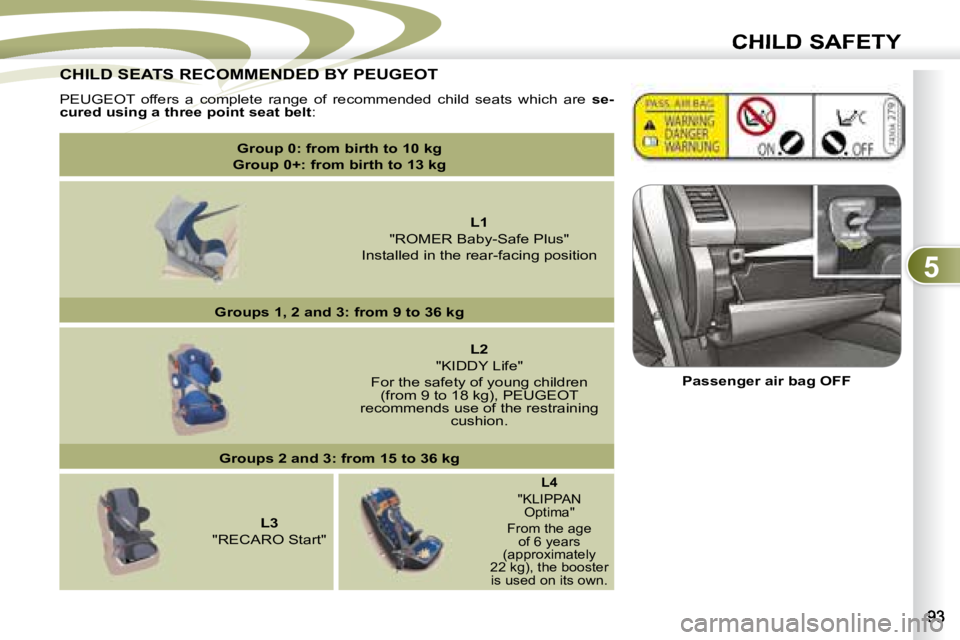

CHILD SEATS RECOMMENDED BY PEUGEOT CHILD SEATS RECOMMENDED BY
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Passenger air bag OFF
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t "
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.
Page 104 of 221
5

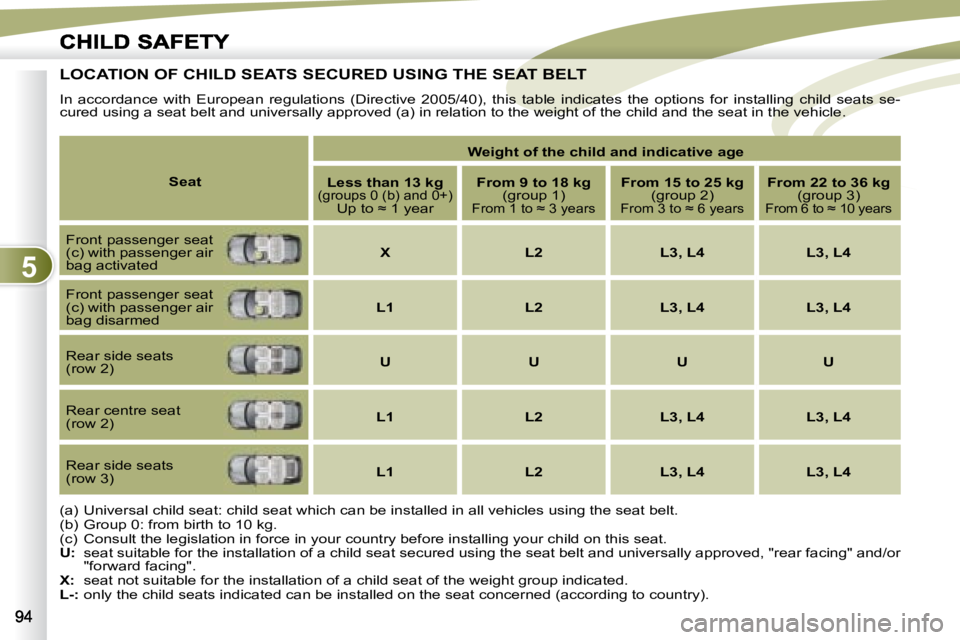

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELTS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child seats se-
cured using a seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed i n all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
( c ) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U: seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and /or
"forward facing".
X: seat not suitable for the installation of a child seat of the weight group indicated.
L-: only the child seats indicated can be installed on the se at concerned (according to country).
Seat
W e i g h t o f t h e c h i l d a n d i n d i c a t i v e a g e
Less than 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year
From 9 to 18 kg
(group 1)From 1 to ≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years
From 22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat
(c) with passenger air
bag activated
X L2 L3, L4 L3, L4
Front passenger seat
(c) with passenger air
bag disarmed
L1 L2 L3, L4 L3, L4
Rear side seats
(row 2)
U U U U
Rear centre seat
(row 2)
L1 L2 L3, L4 L3, L4
Rear side seats
(row 3)
L1 L2 L3, L4 L3, L4
Page 105 of 221
5
i
CHILD SAFETY
The incorrect installation of a
child seat in a vehicle compro-
mises the child’s protection in
the event of an accident. For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the loca-
tion of the ISOFIX child seats.

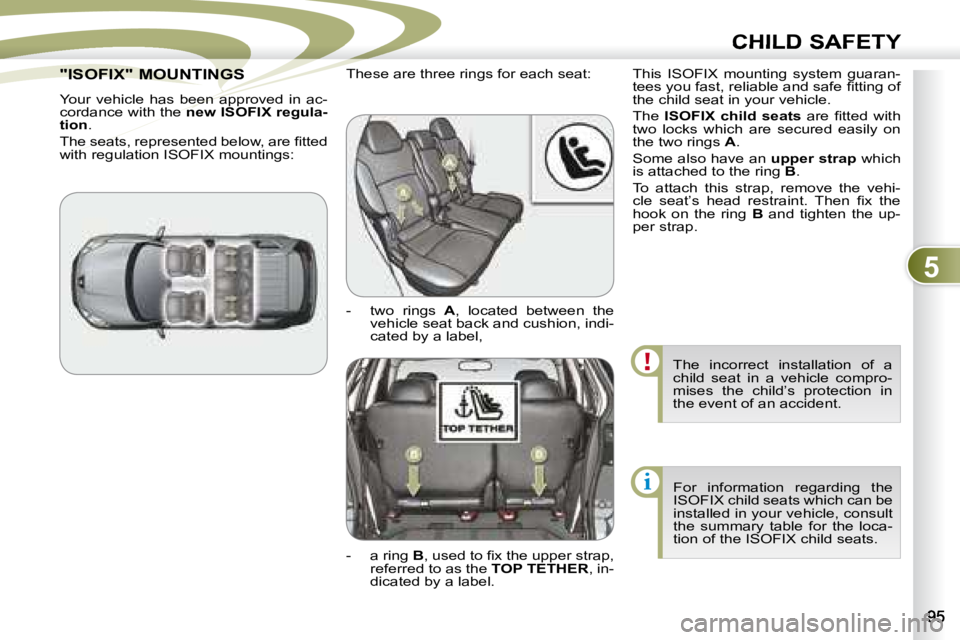

"ISOFIX" MOUNTINGS
Your vehicle has been approved in ac-
cordance with the
new ISOFIX regula-
tion .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings: These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , u s e d t o fi x t h e u p p e r s t r a p ,
referred to as the TOP TETHER , in-
dicated by a label. This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to the ring B .
To attach this strap, remove the vehi-
c l e s e a t ’ s h e a d r e s t r a i n t . T h e n fi x t h e
hook on the ring B and tighten the up-
per strap.
Page 106 of 221
5
i
CHILD SAFETY

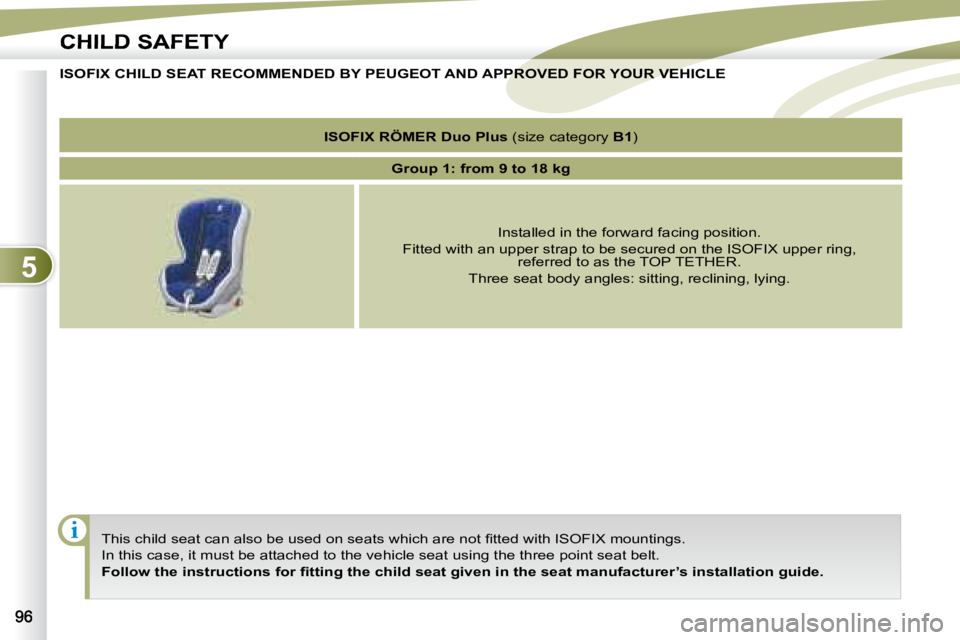

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s .
In this case, it must be attached to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ’ s i n s t a l l a t i o n g u i d e .
ISOFIX RÖMER Duo Plus (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX uppe r ring,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Page 107 of 221
5
CHILD SAFETY

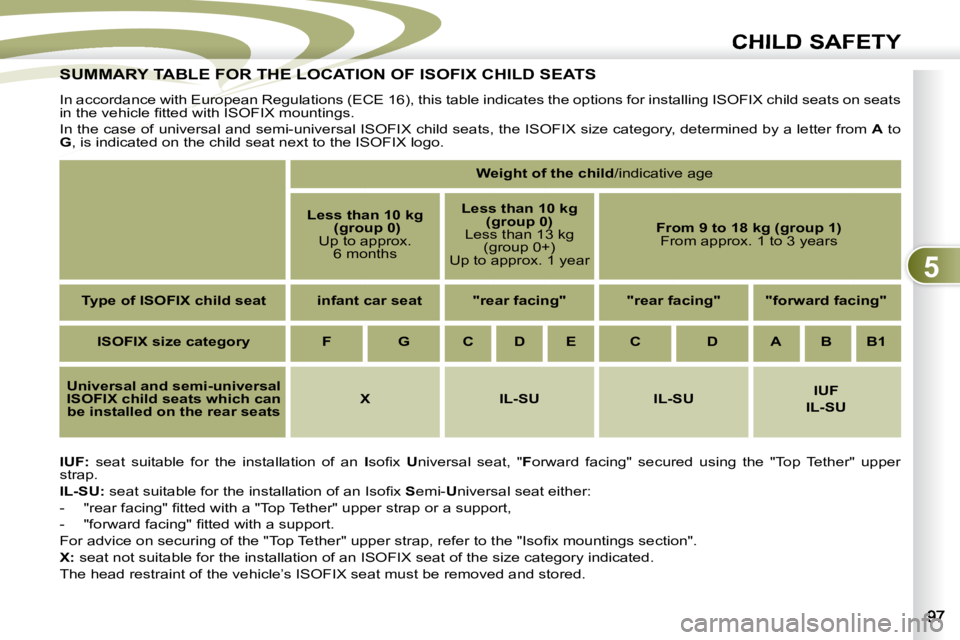

SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS SUMMARY TABLE FOR THE LOCA
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the "Top Tether" upper
strap.
IL-SU: s e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a n I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s u p p o r t ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s u p p o r t .
F o r a d v i c e o n s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x m o u n t i n g s s e c t i o n " .
X: seat not suitable for the installation of an ISOFIX seat of the size category indicated.
The head restraint of the vehicle’s ISOFIX seat must be removed and stored.
I n a c c o r d a n c e w i t h E u r o p e a n R e g u l a t i o n s ( E C E 1 6 ) , t h i s t a b l e i
n d i c a t e s t h e o p t i o n s f o r i n s t a l l i n g I S O F I X c h i l d s e a t s o n s e a t s
i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter from A to
G , is indicated on the child seat next to the ISOFIX logo.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat infant car seat "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
U n i v e r s a l a n d s e m i - u n i v e r s a l ISOFIX child seats which can be installed on the rear seats X IL-SU IL-SU
IUF
IL-SU
Page 108 of 221
5
CHILD SAFETY

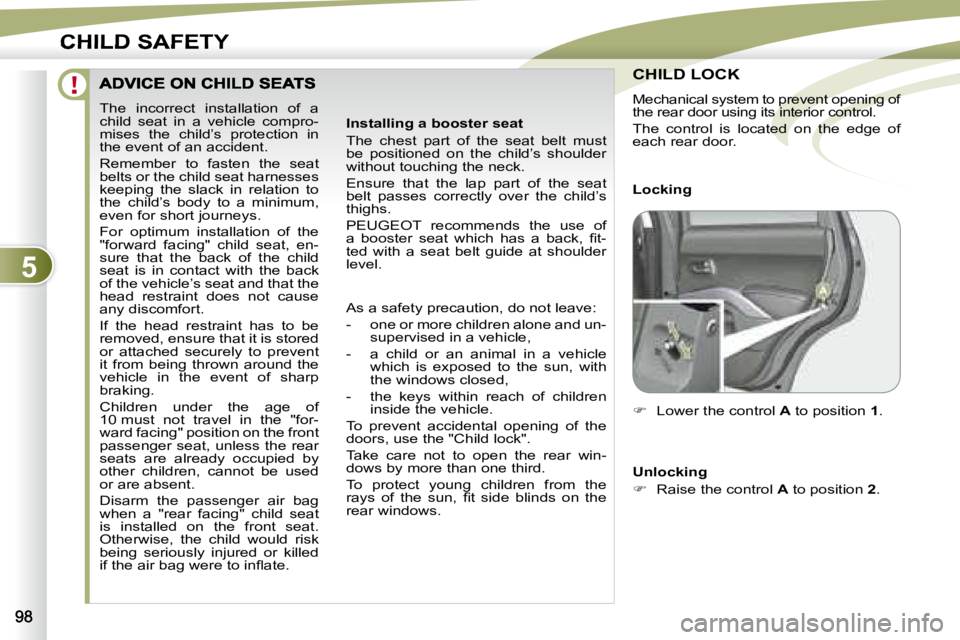

The incorrect installation of a
child seat in a vehicle compro-
mises the child’s protection in
the event of an accident.
Remember to fasten the seat
belts or the child seat harnesses
keeping the slack in relation to
the child’s body to a minimum,
even for short journeys.
For optimum installation of the
"forward facing" child seat, en-
sure that the back of the child
seat is in contact with the back
of the vehicle’s seat and that the
head restraint does not cause
any discomfort.
If the head restraint has to be
removed, ensure that it is stored
or attached securely to prevent
it from being thrown around the
vehicle in the event of sharp
braking.
C h i l d r e n u n d e r t h e a g e o f
10 must not travel in the "for-
ward facing" position on the front
passenger seat, unless the rear
seats are already occupied by
other children, cannot be used
or are absent.
Disarm the passenger air bag
when a "rear facing" child seat
is installed on the front seat.
Otherwise, the child would risk
being seriously injured or killed
i f t h e a i r b a g w e r e t o i n fl a t e . Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- one or more children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
d o o r s , u s e t h e " C h i l d l o c k " .
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
CHILD LOCK CHILD LOCK
Mechanical system to prevent opening of
the rear door using its interior control.
The control is located on the edge of
each rear door.
Lower the control A to position 1 .
Locking
Unlocking
Raise the control A to position 2 .
Page 109 of 221
6
99

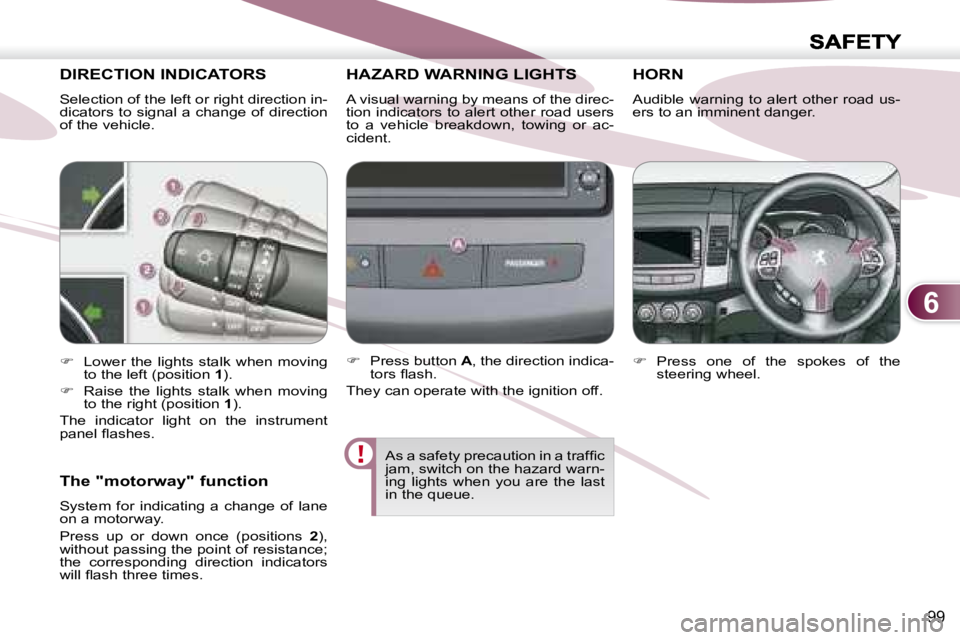

DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle.
HAZARD WARNING LIGHTS HAZARD WARNING LIGHTS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.
HORN
Audible warning to alert other road us-
ers to an imminent danger.
Lower the lights stalk when moving
to the left (position 1 ).
Raise the lights stalk when moving
to the right (position 1 ).
The indicator light on the instrument
p a n e l fl a s h e s .
A s a s a f e t y p r e c a u t i o n i n a t r a f fi c
jam, switch on the hazard warn-
ing lights when you are the last
in the queue.
Press button A , the direction indica-
t o r s fl a s h .
They can operate with the ignition off.
Press one of the spokes of the
steering wheel.
The "motorway" function
System for indicating a change of lane
on a motorway.
Press up or down once (positions 2 ),
without passing the point of resistance;
the corresponding direction indicators
w i l l fl a s h t h r e e t i m e s .
Page 110 of 221
6ii
SAFETY

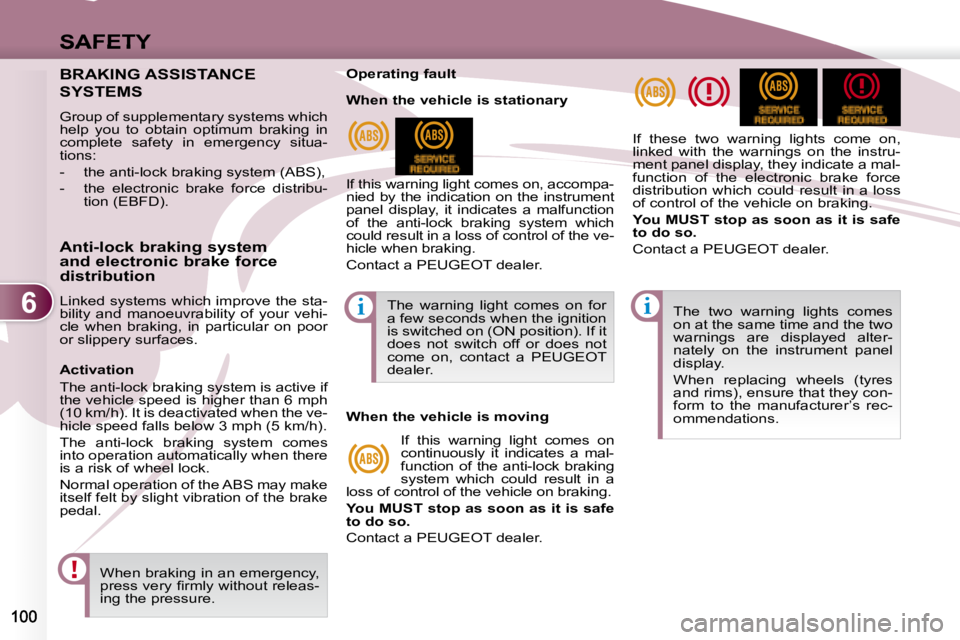

BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situa-
tions:
- the anti-lock braking system (ABS),
- the electronic brake force distribu-tion (EBFD).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces.
When braking in an emergency,
p r e s s v e r y fi r m l y w i t h o u t r e l e a s -
ing the pressure. The two warning lights comes
on at the same time and the two
warnings are displayed alter-
nately on the instrument panel
display.
When replacing wheels (tyres
and rims), ensure that they con-
form to the manufacturer’s rec-
ommendations.
Operating fault
If this warning light comes on, accompa-
nied by the indication on the instrument
panel display, it indicates a malfunction
of the anti-lock braking system which
could result in a loss of control of the ve-
hicle when braking.
Contact a PEUGEOT dealer.
If these two warning lights come on,
linked with the warnings on the instru-
ment panel display, they indicate a mal-
function of the electronic brake force
distribution which could result in a loss
of control of the vehicle on braking.
You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer.
Activation
The anti-lock braking system is active if
the vehicle speed is higher than 6 mph
(10 km/h). It is deactivated when the ve-
hicle speed falls below 3 mph (5 km/h).
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal. The warning light comes on for
a few seconds when the ignition
is switched on (ON position). If it
does not switch off or does not
come on, contact a PEUGEOT
dealer.
When the vehicle is stationary
When the vehicle is moving
If this warning light comes on
continuously it indicates a mal-
function of the anti-lock braking
system which could result in a
loss of control of the vehicle on braking.
You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer.
