FAMILIARISATION
14

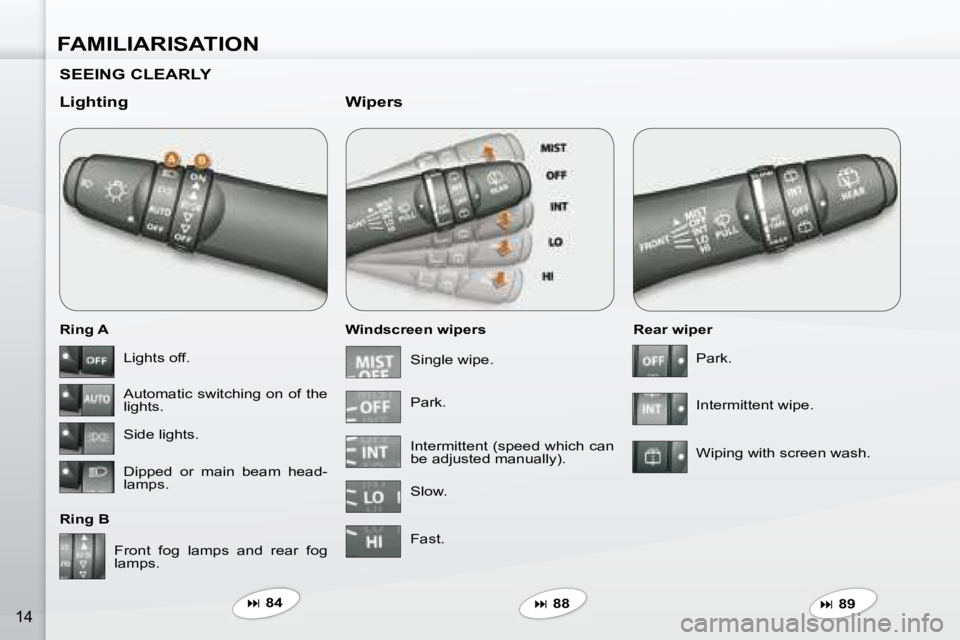

SEEING CLEARLY
Lighting
Ring A
Ring B Windscreen wipers
Wipers
Rear wiper
F r o n t f o g l a m p s a n d r e a r f o g
l a m p s .
84
88
89
Lights off.
A u t o m a t i c s w i t c h i n g o n o f t h e
lights.
Side lights.
D i p p e d o r m a i n b e a m h e a d -
l a m p s .
S i n g l e w i p e .
Park.
I n t e r m i t t e n t ( s p e e d w h i c h c a n
b e a d j u s t e d m a n u a l l y ) .
S l o w .
Fast. Park.
I n t e r m i t t e n t w i p e .
W i p i n g w i t h s c r e e n w a s h .
Page 12 of 221
FAMILIARISATION
15
VENTILATING

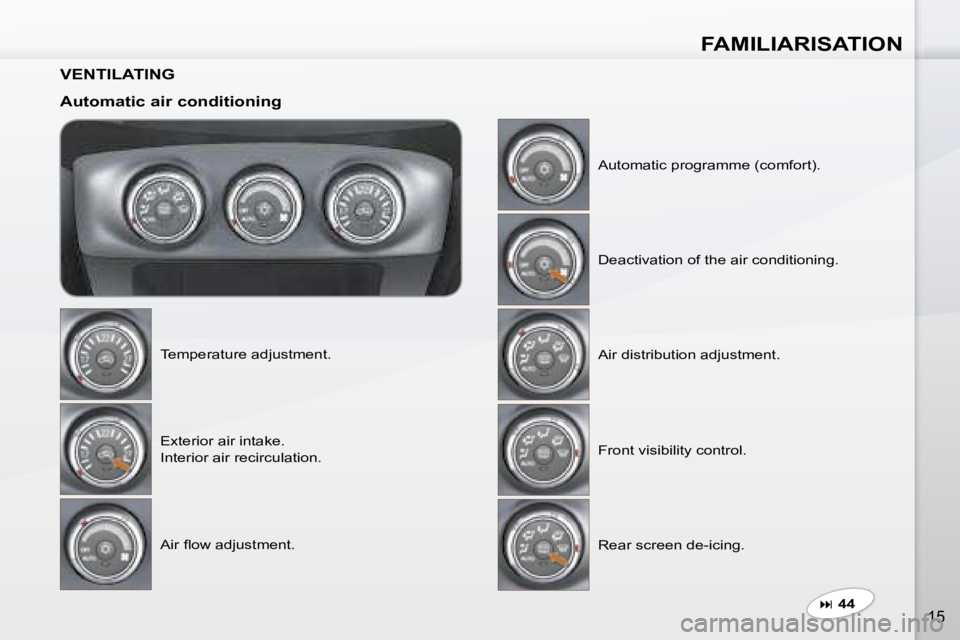

Automatic air conditioning T e m p e r a t u r e a d j u s t m e n t . E x t e r i o r a i r i n t a k e .
Interior air recirculation.
A i r fl o w a d j u s t m e n t . A u t o m a t i c p r o g r a m m e ( c o m f o r t ) .
Deactivation of the air conditioning.
A i r d i s t r i b u t i o n a d j u s t m e n t .
Front visibility control.
R e a r s c r e e n d e - i c i n g .
44
Page 13 of 221
FAMILIARISATION
16
MONITORING

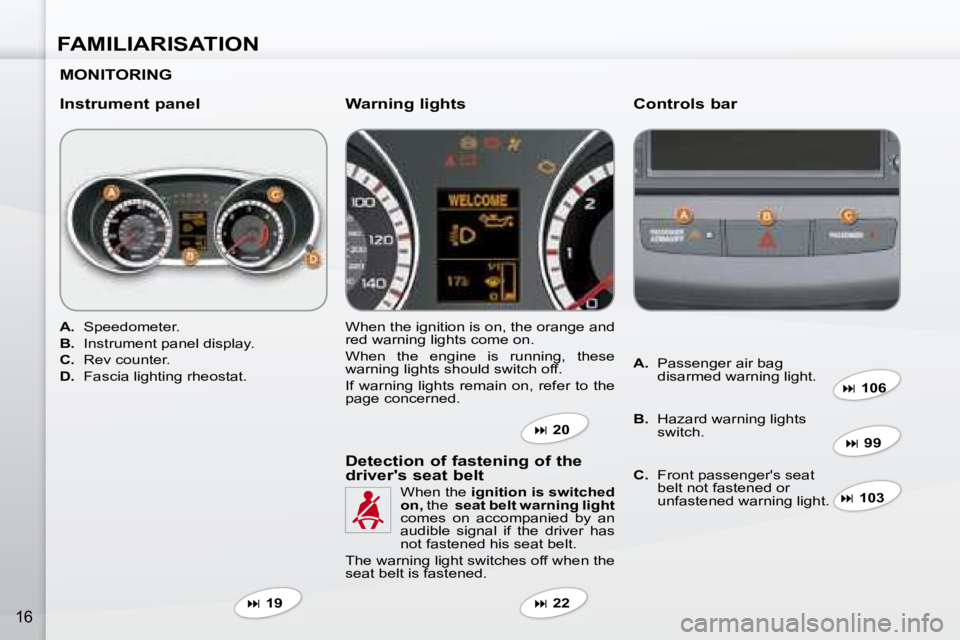

Instrument panel Controls bar
A. S p e e d o m e t e r .
B. I n s t r u m e n t p a n e l d i s p l a y .
C. Rev counter.
D. Fascia lighting rheostat. When the ignition is on, the orange and
r e d w a r n i n g l i g h t s c o m e o n .
When the engine is running, these
w a r n i n g l i g h t s s h o u l d s w i t c h o f f .
I f w a r n i n g l i g h t s r e m a i n o n , r e f e r t o t h e
p a g e c o n c e r n e d .
Warning lights
19
A. Passenger air bag
d i s a r m e d w a r n i n g l i g h t .
106
B. H a z a r d w a r n i n g l i g h t s
s w i t c h .
99
C. F r o n t p a s s e n g e r ' s s e a t
belt not fastened or
u n f a s t e n e d w a r n i n g l i g h t .
103
20
Detection of fastening of the
driver's seat belt When the ignition is switched
on, the seat belt warning light
c o m e s o n a c c o m p a n i e d b y a n
audible signal if the driver has
not fastened his seat belt.
T h e w a r n i n g l i g h t s w i t c h e s o f f w h e n t h e
seat belt is fastened.
22
Page 14 of 221
FAMILIARISATION
17
KEEPING YOUR PASSENGERS SAFE

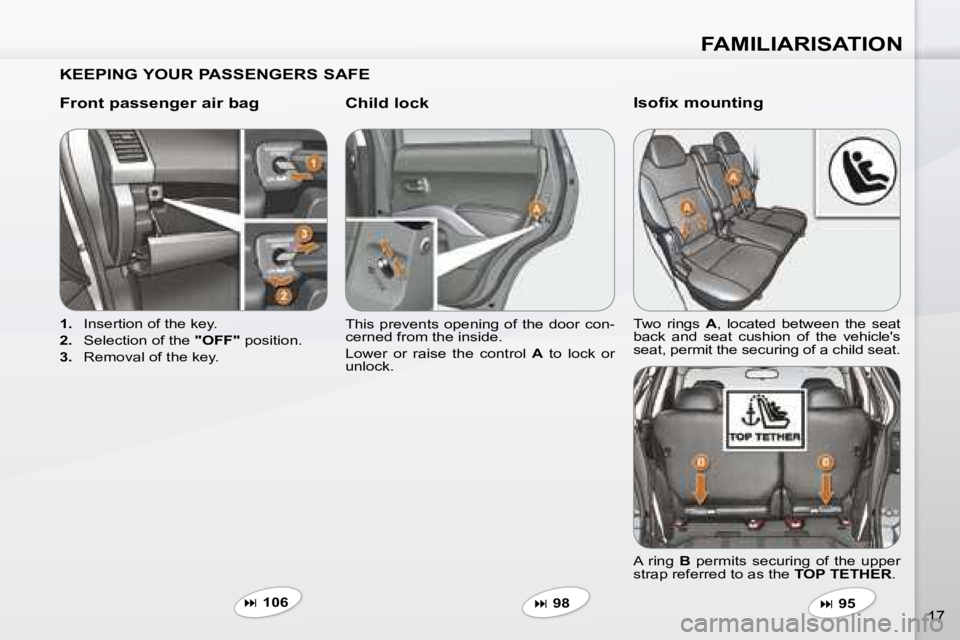

Front passenger air bag Child lock
1. Insertion of the key.
2. Selection of the "OFF" p o s i t i o n .
3. Removal of the key. T h i s p r e v e n t s o p e n i n g o f t h e d o o r c o n -
cerned from the inside.
L o w e r o r r a i s e t h e c o n t r o l
A to lock or
unlock.
106
98 Isofix mounting
T w o r i n g s
A , l o c a t e d b e t w e e n t h e s e a t
back and seat cushion of the vehicle's
s e a t , p e r m i t t h e s e c u r i n g o f a c h i l d s e a t .
A ring B p e r m i t s s e c u r i n g o f t h e u p p e r
s t r a p r e f e r r e d t o a s t h e TOP TETHER .
95
Page 15 of 221
i
FAMILIARISATION
18
Cruise control
T h i s m a i n t a i n s a c o n s t a n t v e h i c l e s p e e d
p r o g r a m m e d b y t h e d r i v e r .
1. "ON/OFF" b u t t o n : a c t i v a t i o n /
deactivation of the cruise control
mode.
2. "COAST SET" b u t t o n : s t o r i n g o f a
d r i v i n g s p e e d t h e n d e c r e a s i n g o f
t h e c r u i s i n g s p e e d .
3. "ACC RES" b u t t o n : i n c r e a s i n g o f
t h e c r u i s i n g s p e e d a n d r e c a l l i n g o f
t h e s t o r e d s p e e d .
4. "CANCEL" b u t t o n : s w i t c h i n g o f f o f
the cruise control.
I n o r d e r t o b e p r o g r a m m e d o r a c t i v a t e d ,
t h e v e h i c l e s p e e d m u s t b e h i g h e r t h a n
2 5 m p h ( 4 0 k m / h ) w i t h a t l e a s t s e c o n d
gear engaged. T h i s d e t e c t s a n y o b s t a c l e ( p e r s o n , v e -
h i c l e , t r e e , g a t e , . . . ) l o c a t e d b e h i n d t h e
vehicle.
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
D. t w o s i d e s e n s o r s .
E. t w o c e n t r a l s e n s o r s .
Audible rear parking assistance
112 114
DRIVING SAFELY

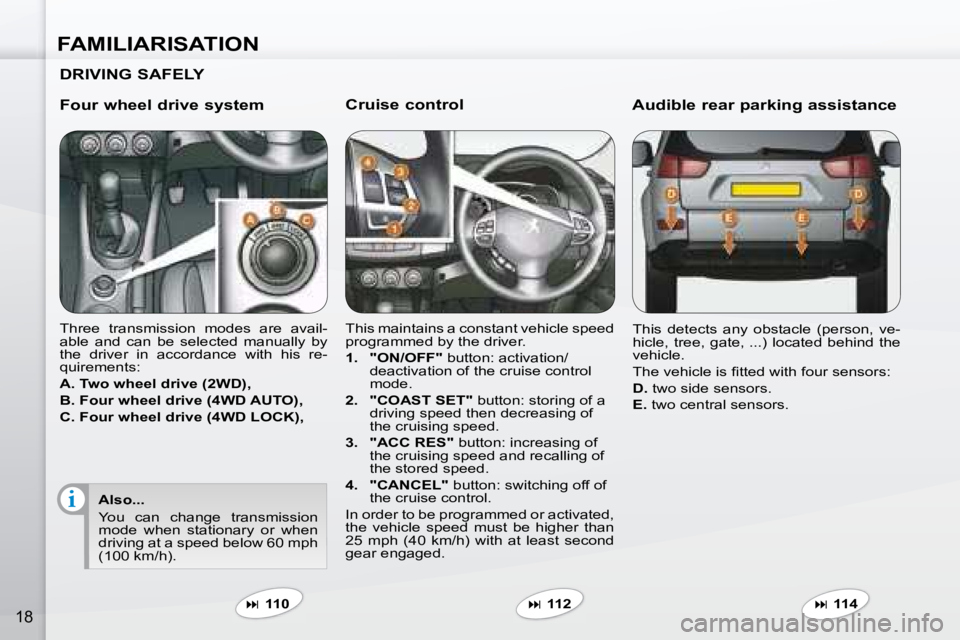

Four wheel drive system
T h r e e t r a n s m i s s i o n m o d e s a r e a v a i l -
able and can be selected manually by
t h e d r i v e r i n a c c o r d a n c e w i t h h i s r e -
q u i r e m e n t s :
A. Two wheel drive (2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK),
110
Also...
You can change transmission
m o d e w h e n s t a t i o n a r y o r w h e n
d r i v i n g a t a s p e e d b e l o w 6 0 m p h
( 1 0 0 k m / h ) .
Page 16 of 221
1
INSTRUMENTS and CONTROLS
1. Speedometer.
2. Left-hand direction indicator and
hazard warning lights indicator
light.
3. Main beam headlamps indicator
light.
4. Diesel pre-heating indicator light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Seat belt not fastened/unfastened
warning light.

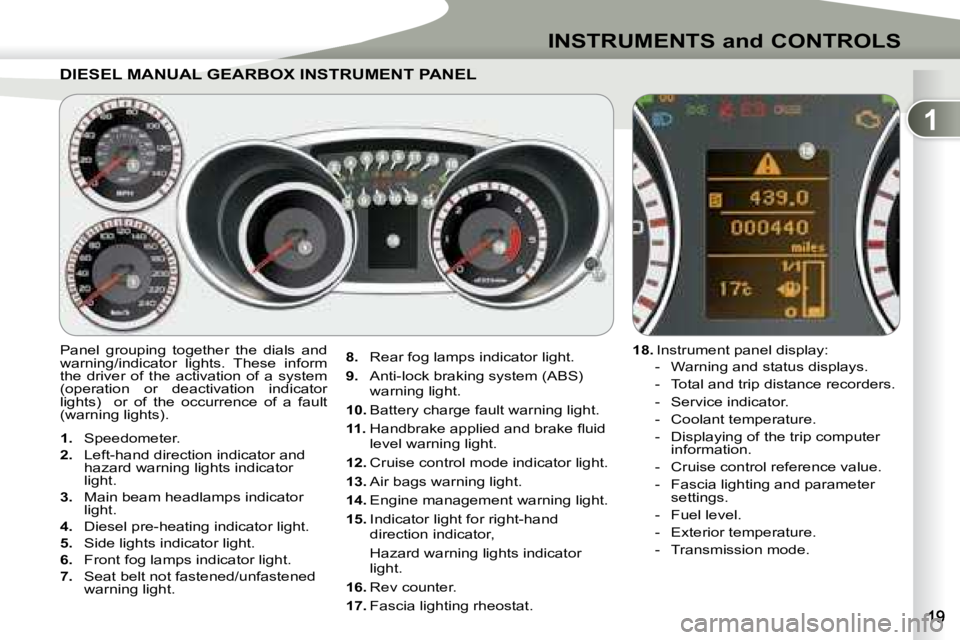

DIESEL MANUAL GEARBOX INSTRUMENT PDIESEL MANUAL GEARBOX INSTRUMENT PANEL
18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.
8. Rear fog lamps indicator light.
9. Anti-lock braking system (ABS)
warning light.
10. Battery charge fault warning light.
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Cruise control mode indicator light.
13. Air bags warning light.
14. Engine management warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.
16. Rev counter.
17. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
Page 17 of 221
1
CRUISE
INSTRUMENTS and CONTROLS

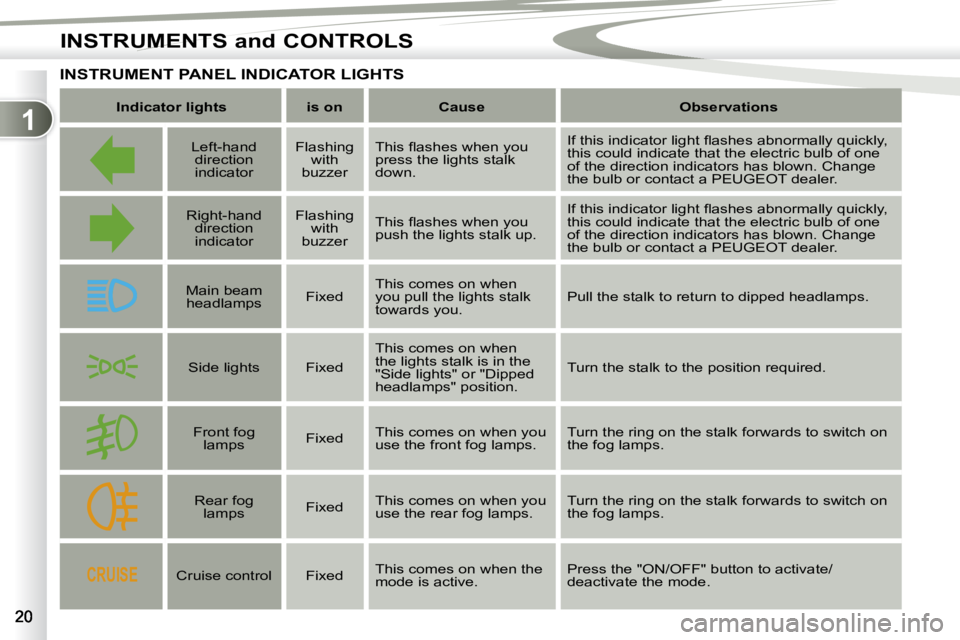

INSTRUMENT PANEL INDICATOR LIGHTS
Indicator lights is on Cause Observations
Left-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
press the lights stalk
down. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Right-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
push the lights stalk up. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Main beam
headlamps Fixed This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights Fixed This comes on when
the lights stalk is in the
"Side lights" or "Dipped
headlamps" position. T u r n t h e s t a l k t o t h e p o s i t i o n r e q u i r e d .
Front fog
lamps Fixed This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog
lamps Fixed This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.
Page 18 of 221
1
INSTRUMENTS and CONTROLS

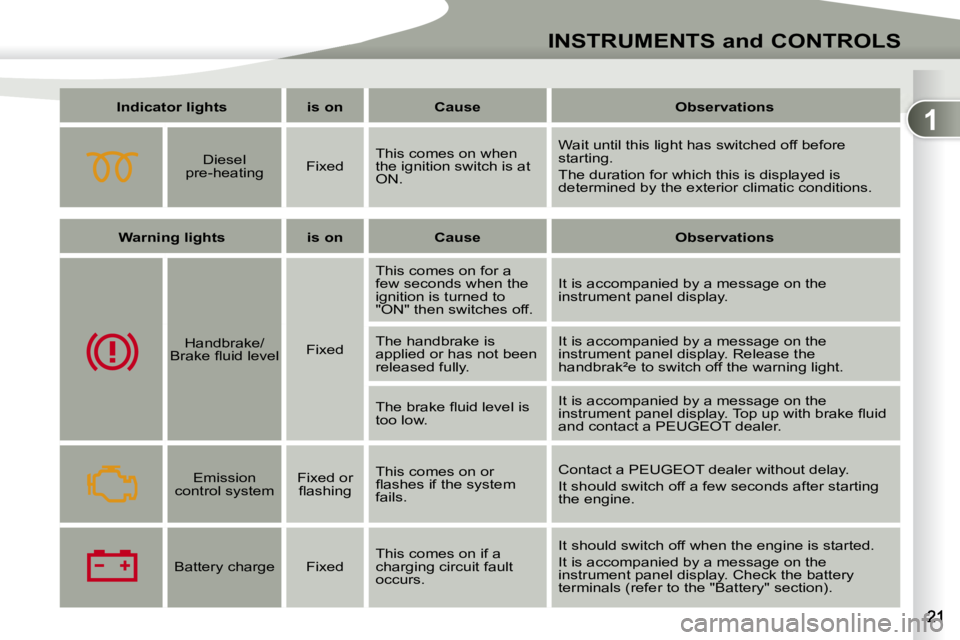

Indicator lights is on Cause Observations
Diesel
pre-heating Fixed This comes on when
the ignition switch is at
ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
determined by the exterior climatic conditions.
Warning lights is on Cause Observations
Handbrake/
B r a k e fl u i d l e v e l Fixed This comes on for a
few seconds when the
ignition is turned to
"ON" then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the
handbrak²e to switch off the warning light.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l d i s p l a y . T o p u p w i t h b r a k e fl u i d
and contact a PEUGEOT dealer.
Emission
control system Fixed or
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Contact a PEUGEOT dealer without delay.
It should switch off a few seconds after starting
the engine.
Battery charge Fixed This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the "Battery" section).
Page 19 of 221
1
INSTRUMENTS and CONTROLS

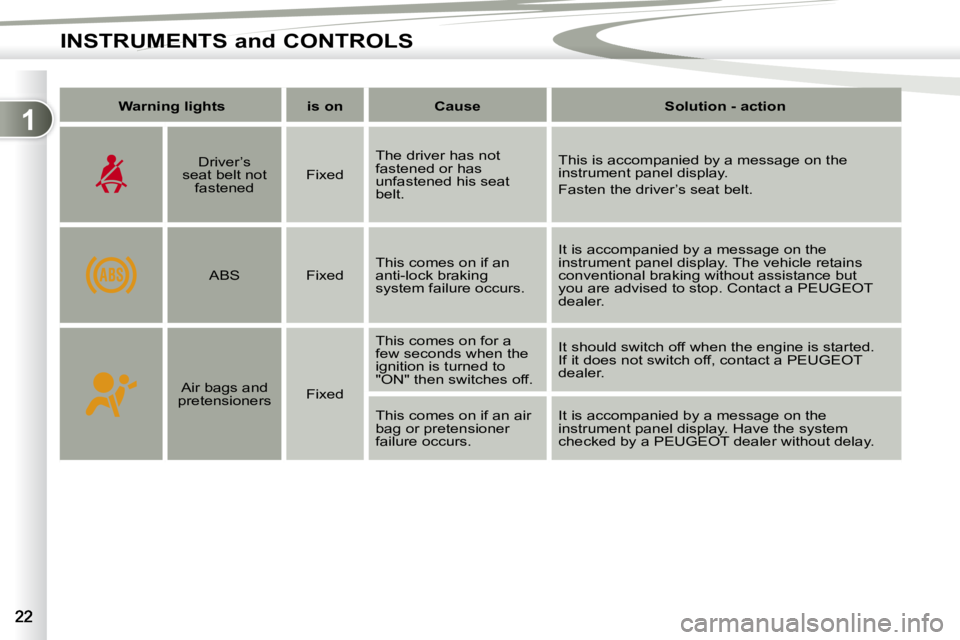

Warning lights is on Cause Solution - action
Driver’s
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat
belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver’s seat belt.
ABS Fixed This comes on if an
anti-lock braking
system failure occurs. It is accompanied by a message on the
instrument panel display. The vehicle retains
conventional braking without assistance but
you are advised to stop. Contact a PEUGEOT
dealer.
Air bags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to
"ON" then switches off.
It should switch off when the engine is started.
If it does not switch off, contact a PEUGEOT
dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the
instrument panel display. Have the system
checked by a PEUGEOT dealer without delay.
Page 20 of 221
1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on continu -
o u s l y o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e d i s p l a y . D o n o t i g n o r e
these warnings.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l i g h t o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s f r o m
t h e d i s p l a y a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e b y
pressing the INFO button on the fascia.
The symbol "!" is displayed.
To return to the previous screen (with the "!" symbol), you must press the INFO button several times.

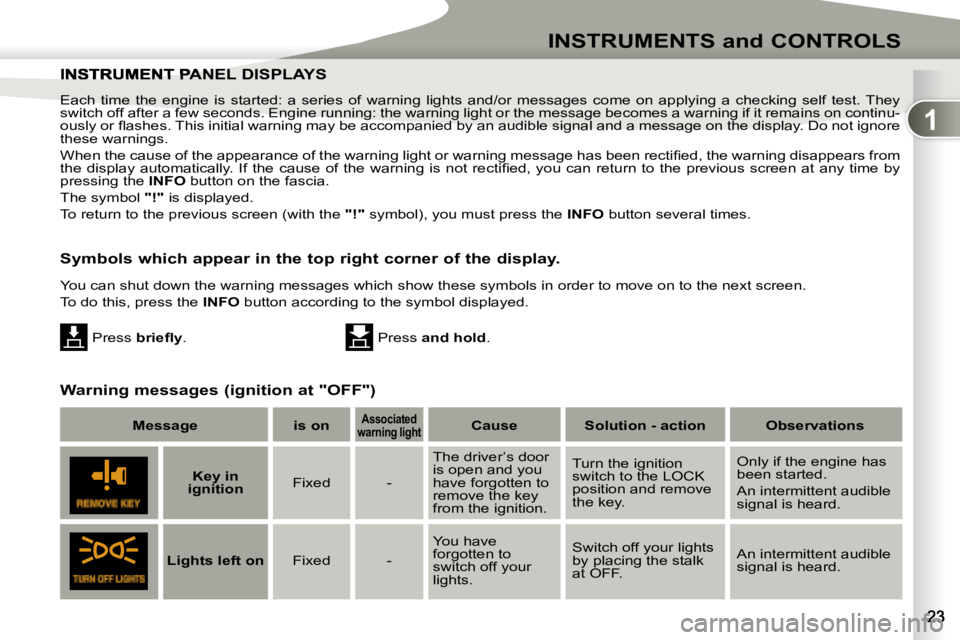

INSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can shut down the warning messages which show these symbol
s in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e d i
s p l a y .
Message is on
Associated
w a r n i n g l i g h t
Cause Solution - action Observations
K e y i n
ignition Fixed - The driver’s door
is open and you
have forgotten to
remove the key
from the ignition. Turn the ignition
switch to the LOCK
position and remove
the key.
Only if the engine has
been started.
An intermittent audible
signal is heard.
L i g h t s l e f t o n Fixed - You have
forgotten to
switch off your
lights. Switch off your lights
by placing the stalk
at OFF.
An intermittent audible
signal is heard.
