1
INSTRUMENTS and CONTROLS

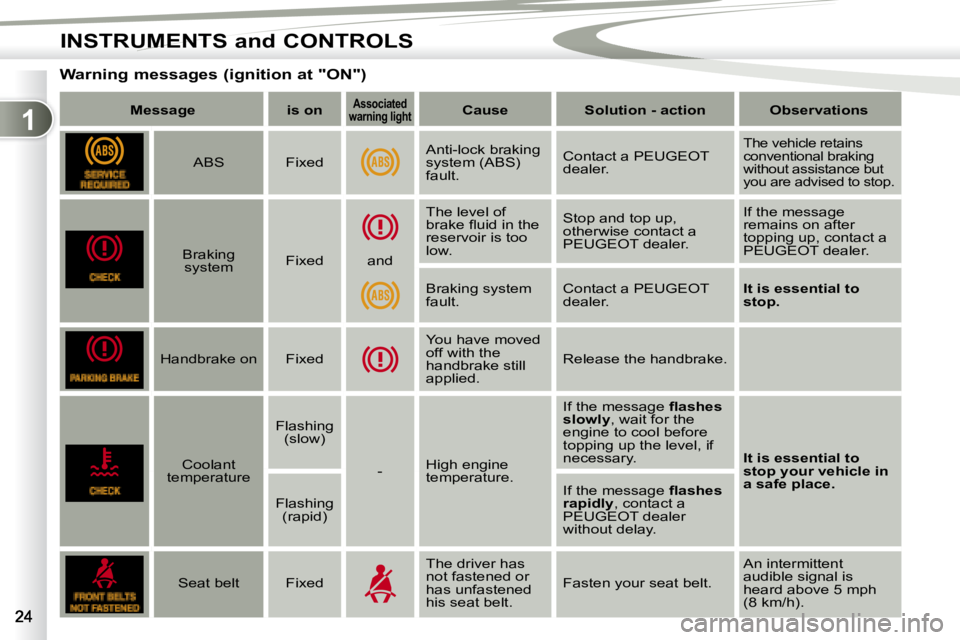

Warning messages (ignition at "ON")
Message is on
Associated
w a r n i n g l i g h t
Cause Solution - action Observations
ABS Fixed Anti-lock braking
system (ABS)
fault. Contact a PEUGEOT
dealer.
The vehicle retains
conventional braking
without assistance but
you are advised to stop.
Braking
system Fixed and The level of
b r a k e fl u i d i n t h e
reservoir is too
low.
Stop and top up,
otherwise contact a
PEUGEOT dealer. If the message
remains on after
topping up, contact a
PEUGEOT dealer.
Braking system
fault. Contact a PEUGEOT
dealer.
It is essential to
s t o p .
Handbrake on Fixed You have moved
off with the
handbrake still
applied. Release the handbrake.
Coolant
temperature Flashing
(slow)
- High engine
temperature. If the message
fl a s h e s
s l o w l y , wait for the
engine to cool before
topping up the level, if
necessary.
It is essential to
s t o p y o u r v e h i c l e i n
a s a f e p l a c e .
Flashing (rapid) If the message
fl a s h e s
r a p i d l y , contact a
PEUGEOT dealer
without delay.
Seat belt Fixed The driver has
not fastened or
has unfastened
his seat belt. Fasten your seat belt. An intermittent
audible signal is
heard above 5 mph
(8 km/h).
Page 22 of 221

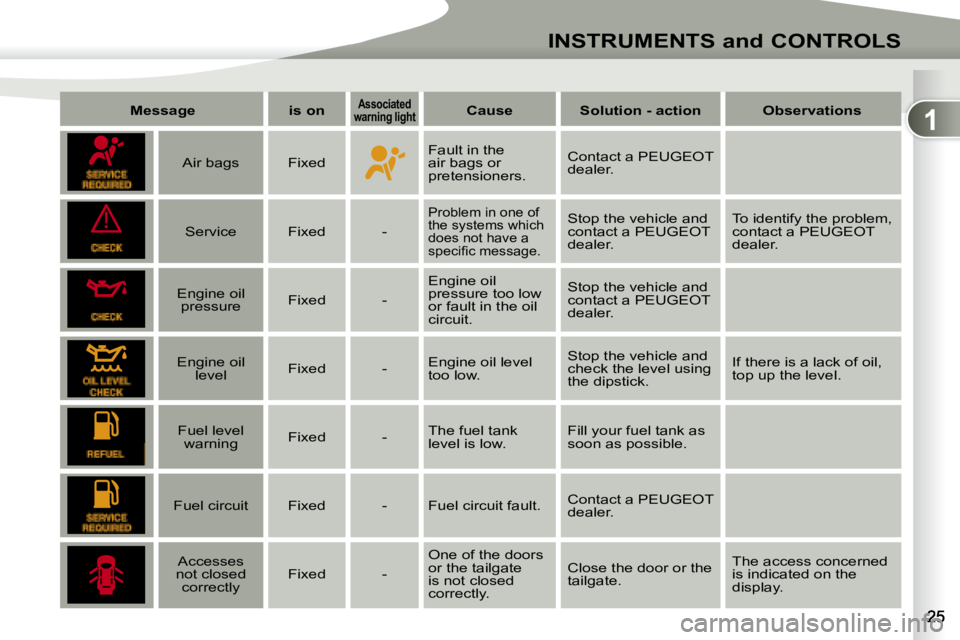

1
!
INSTRUMENTS and CONTROLS
Message is on Associated
w a r n i n g l i g h t
Cause Solution - action Observations
Air bags Fixed
Fault in the
air bags or
pretensioners. Contact a PEUGEOT
dealer.
Service Fixed -
Problem in one of
the systems which
does not have a
s p e c i fi c m e s s a g e . Stop the vehicle and
contact a PEUGEOT
dealer. To identify the problem,
contact a PEUGEOT
dealer.
Engine oil
pressure Fixed - Engine oil
pressure too low
or fault in the oil
circuit. Stop the vehicle and
contact a PEUGEOT
dealer.
Engine oil
level Fixed - Engine oil level
too low. Stop the vehicle and
check the level using
the dipstick. If there is a lack of oil,
top up the level.
Fuel level
warning Fixed - The fuel tank
level is low. Fill your fuel tank as
soon as possible.
Fuel circuit Fixed - Fuel circuit fault. Contact a PEUGEOT
dealer.
Accesses
not closed correctly Fixed - One of the doors
or the tailgate
is not closed
correctly. Close the door or the
tailgate.
The access concerned
is indicated on the
display.
Page 23 of 221
1

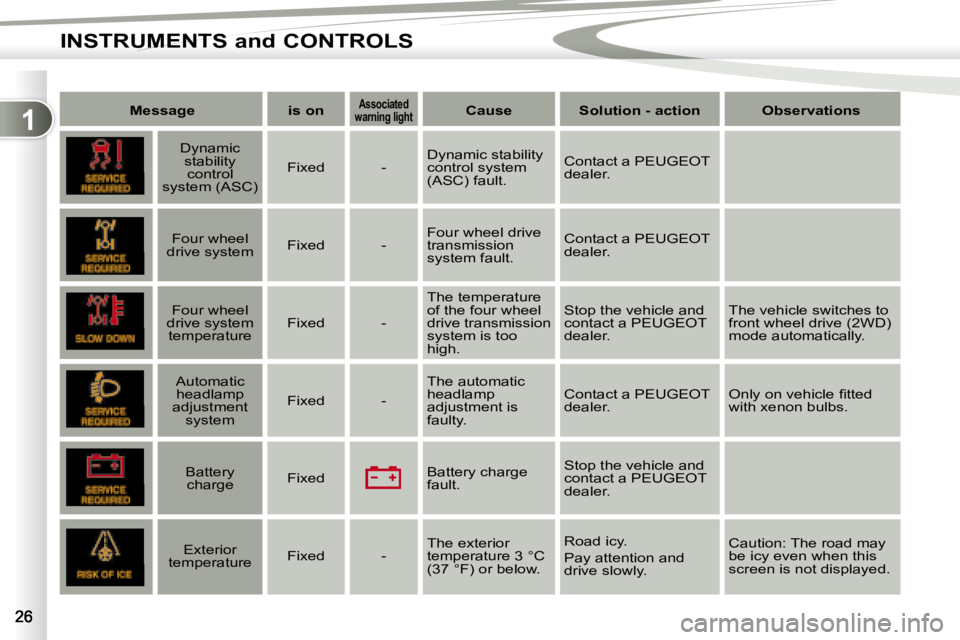

INSTRUMENTS and CONTROLS
Message is on
Associated
w a r n i n g l i g h t
Cause Solution - action Observations
Dynamic
stability control
system (ASC) Fixed -
Dynamic stability
control system
(ASC) fault. Contact a PEUGEOT
dealer.
Four wheel
drive system Fixed - Four wheel drive
transmission
system fault. Contact a PEUGEOT
dealer.
Four wheel
drive system temperature Fixed - The temperature
of the four wheel
drive transmission
system is too
high. Stop the vehicle and
contact a PEUGEOT
dealer.
The vehicle switches to
front wheel drive (2WD)
mode automatically.
Automatic
headlamp
adjustment system Fixed - The automatic
headlamp
adjustment is
faulty. Contact a PEUGEOT
dealer.
O n l y o n v e h i c l e fi t t e d
with xenon bulbs.
Battery
charge Fixed
Battery charge
fault. Stop the vehicle and
contact a PEUGEOT
dealer.
Exterior
temperature Fixed - The exterior
temperature 3 °C
(37 °F) or below. Road icy.
Pay attention and
drive slowly. Caution: The road may
be icy even when this
screen is not displayed.
Page 24 of 221

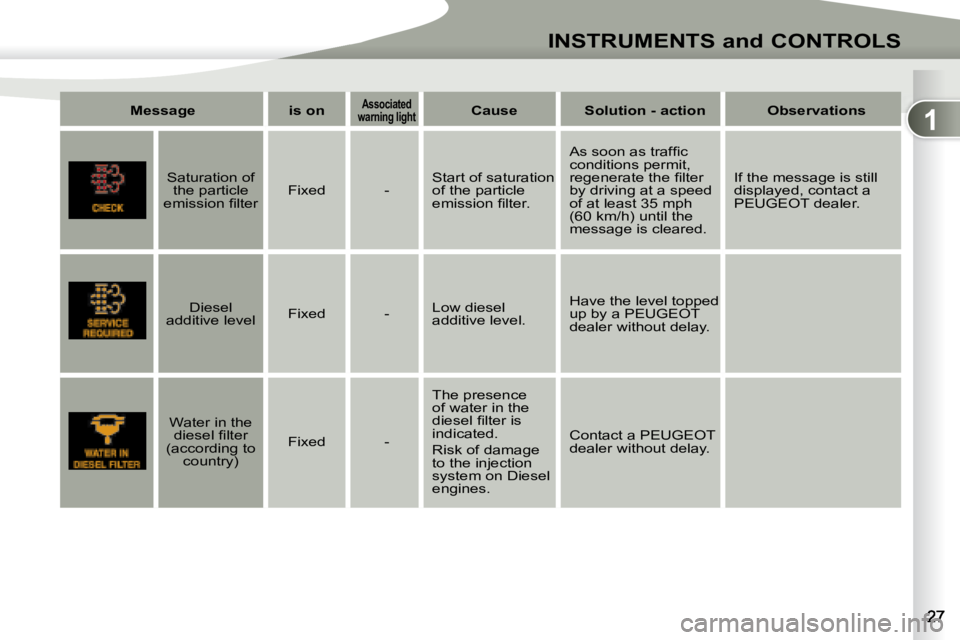

1
INSTRUMENTS and CONTROLS
Messageis onAssociated w a r n i n g l i g h t w a r n i n g l i g h t w a r n i n g l i g h tCauseSolution - actionObservations
Saturation of
the particle
e m i s s i o n fi l t e r Fixed - Start of saturation
of the particle
e m i s s i o n fi l t e r . A s s o o n a s t r a f fi c
conditions permit,
r e g e n e r a t e t h e fi l t e r
by driving at a speed
of at least 35 mph
(60 km/h) until the
message is cleared. If the message is still
displayed, contact a
PEUGEOT dealer.
Diesel
additive level Fixed - Low diesel
additive level. Have the level topped
up by a PEUGEOT
dealer without delay.
Water in the
d i e s e l fi l t e r
(according to country) Fixed - The presence
of water in the
d i e s e l fi l t e r i s
indicated.
Risk of damage
to the injection
system on Diesel
engines. Contact a PEUGEOT
dealer without delay.
Page 25 of 221
1
INSTRUMENTS and CONTROLS

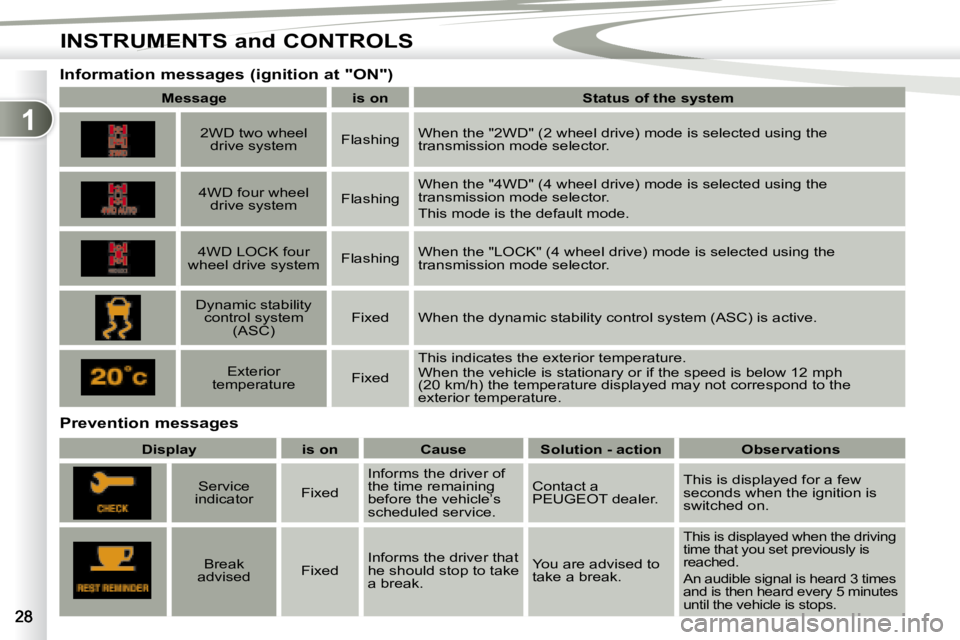

Prevention messages
I n f o r m a t i o n m e s s a g e s ( i g n i t i o n a t " O N " )
Message is on S t a t u s o f t h e s y s t e m
2WD two wheel
drive system Flashing When the "2WD" (2 wheel drive) mode is selected using the
transmission mode selector.
4WD four wheel
drive system Flashing When the "4WD" (4 wheel drive) mode is selected using the
transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system Flashing When the "LOCK" (4 wheel drive) mode is selected using the
transmission mode selector.
Dynamic stability
control system (ASC) Fixed When the dynamic stability control system (ASC) is active.
Exterior
temperature Fixed This indicates the exterior temperature.
When the vehicle is stationary or if the speed is below 12 mp
h
(20 km/h) the temperature displayed may not correspond to the
exterior temperature.
D i s p l a y is on Cause Solution - action Observations
Service
indicator Fixed Informs the driver of
the time remaining
before the vehicle’s
scheduled service. Contact a
PEUGEOT dealer.
This is displayed for a few
seconds when the ignition is
switched on.
Break
advised Fixed Informs the driver that
he should stop to take
a break. You are advised to
take a break.
This is displayed when the driving
time that you set previously is
reached.
An audible signal is heard 3 times
and is then heard every 5 minutes
until the vehicle is stops.
Page 26 of 221
1
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 (refer to
the "Distance recorders"
section).

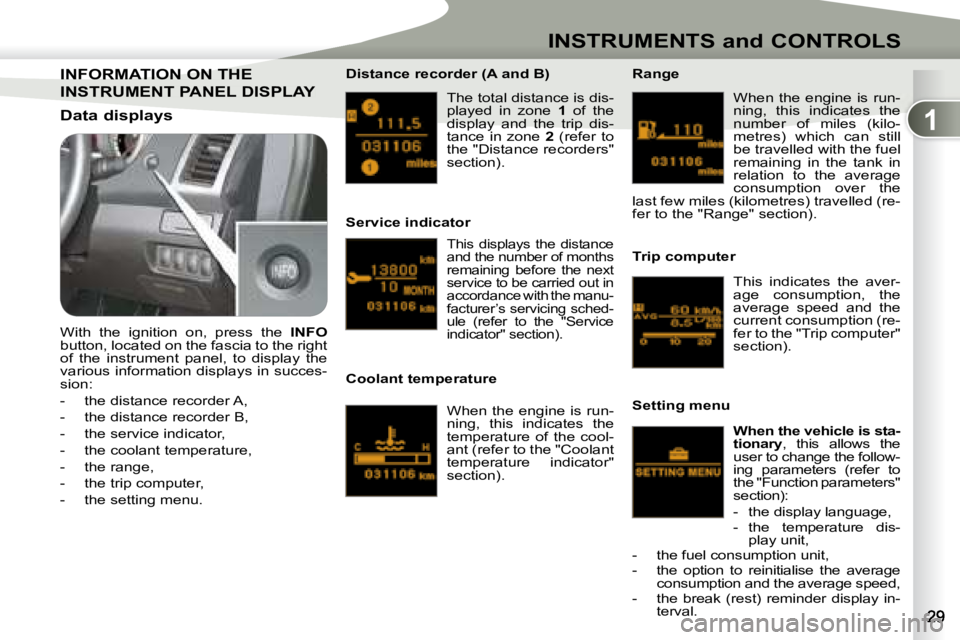

Distance recorder (A and B)
INFORMATION ON THE INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
D a t a d i s p l a y s
With the ignition on, press the
INFO
button, located on the fascia to the right
of the instrument panel, to display the
various information displays in succes-
sion:
- the distance recorder A,
- the distance recorder B,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu.
This displays the distance
and the number of months
remaining before the next
service to be carried out in
accordance with the manu-
facturer’s servicing sched-
ule (refer to the "Service
indicator" section).
Service indicator
When the engine is run-
ning, this indicates the
temperature of the cool-
ant (refer to the "Coolant
temperature indicator"
section).
C o o l a n t t e m p e r a t u r e When the engine is run-
ning, this indicates the
number of miles (kilo-
metres) which can still
be travelled with the fuel
remaining in the tank in
relation to the average
consumption over the
last few miles (kilometres) travelled (re-
fer to the "Range" section).
Range
This indicates the aver-
age consumption, the
average speed and the
current consumption (re-
fer to the "Trip computer"
section).
T r i p c o m p u t e r
When the vehicle is sta-
t i o n a r y , this allows the
user to change the follow-
ing parameters (refer to
the "Function parameters"
section):
- the display language,
- the temperature dis- play unit,
- the fuel consumption unit,
- the option to reinitialise the average consumption and the average speed,
- the break (rest) reminder display in- terval.
Setting menu
Page 27 of 221
1
i
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .

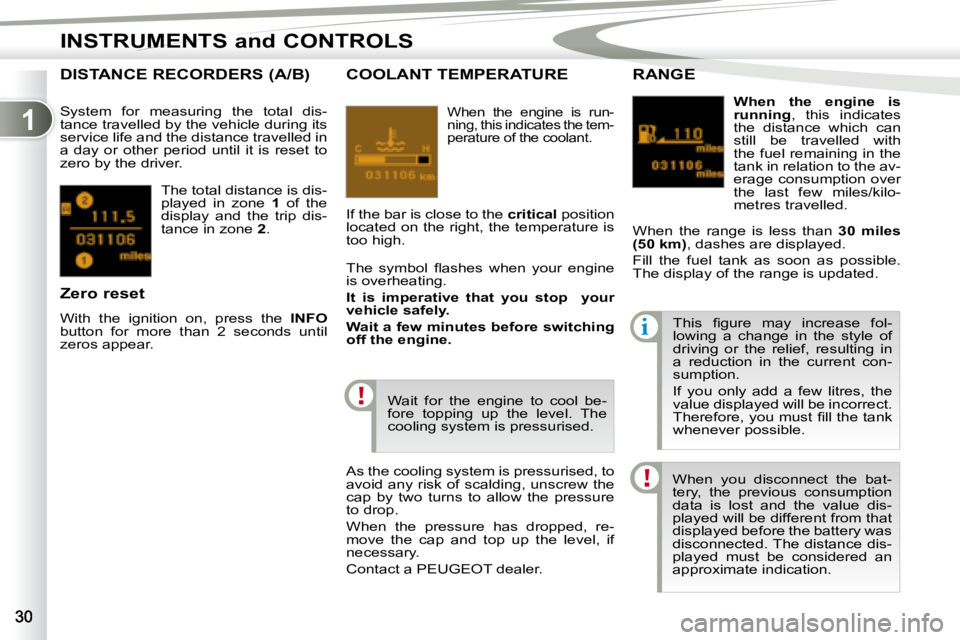

DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool be-
fore topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 28 of 221
1
i
i
INSTRUMENTS and CONTROLS

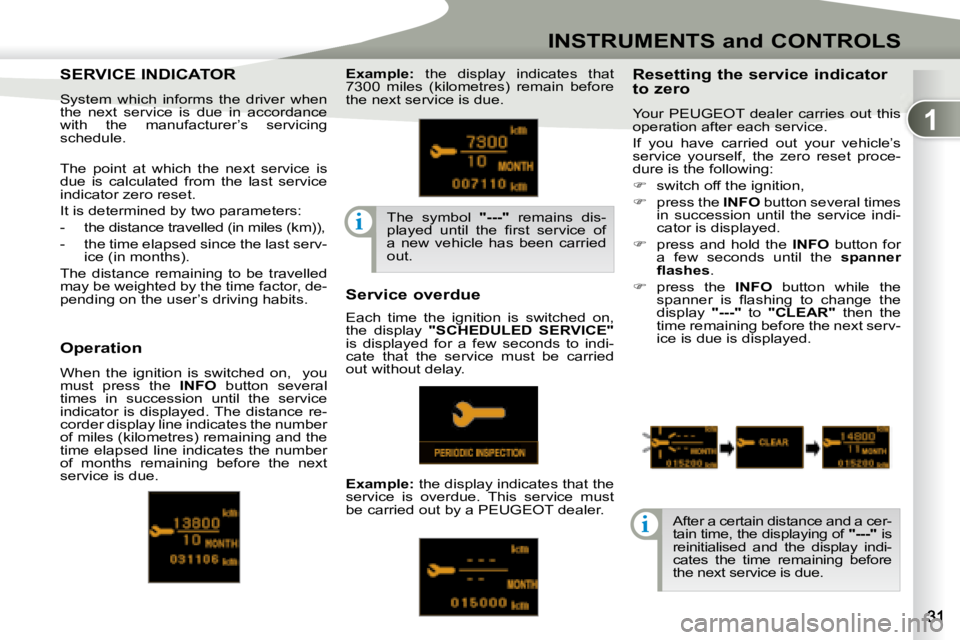

SERVICE INDICATOR SERVICE INDICATOR
System which informs the driver when
the next service is due in accordance
with the manufacturer’s servicing
schedule. Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle’s
service yourself, the zero reset proce-
dure is the following:
switch off the ignition,
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the s p a n n e r
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next serv-
ice is due is displayed.
Service overdue
O p e r a t i o n
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance re-
corder display line indicates the number
of miles (kilometres) remaining and the
time elapsed line indicates the number
of months remaining before the next
service is due.
After a certain distance and a cer-
tain time, the displaying of "---" is
reinitialised and the display indi-
cates the time remaining before
the next service is due.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last serv-
ice (in months).
The distance remaining to be travelled
may be weighted by the time factor, de-
pending on the user’s driving habits.
E x a m p l e : the display indicates that
7300 miles (kilometres) remain before
the next service is due.
The symbol "---" remains dis-
p l a y e d u n t i l t h e fi r s t s e r v i c e o f
a new vehicle has been carried
out.
E x a m p l e : the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to indi-
cate that the service must be carried
out without delay.
Page 29 of 221
1
i
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool be-
fore topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 30 of 221
1
i
i
INSTRUMENTS and CONTROLS
SERVICE INDICATOR SERVICE INDICATOR
System which informs the driver when
the next service is due in accordance
with the manufacturer’s servicing
schedule. Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle’s
service yourself, the zero reset proce-
dure is the following:
switch off the ignition,
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the s p a n n e r
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next serv-
ice is due is displayed.
Service overdue
O p e r a t i o n
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance re-
corder display line indicates the number
of miles (kilometres) remaining and the
time elapsed line indicates the number
of months remaining before the next
service is due.
After a certain distance and a cer-
tain time, the displaying of "---" is
reinitialised and the display indi-
cates the time remaining before
the next service is due.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last serv-
ice (in months).
The distance remaining to be travelled
may be weighted by the time factor, de-
pending on the user’s driving habits.
E x a m p l e : the display indicates that
7300 miles (kilometres) remain before
the next service is due.
The symbol "---" remains dis-
p l a y e d u n t i l t h e fi r s t s e r v i c e o f
a new vehicle has been carried
out.
E x a m p l e : the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to indi-
cate that the service must be carried
out without delay.
