PEUGEOT 4007 2007 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2007, Model line: 4007, Model: PEUGEOT 4007 2007Pages: 221, PDF Size: 13.99 MB
Page 31 of 221
1
i
i
INSTRUMENTS and CONTROLS
System which provides current infor-
mation about the route travelled.

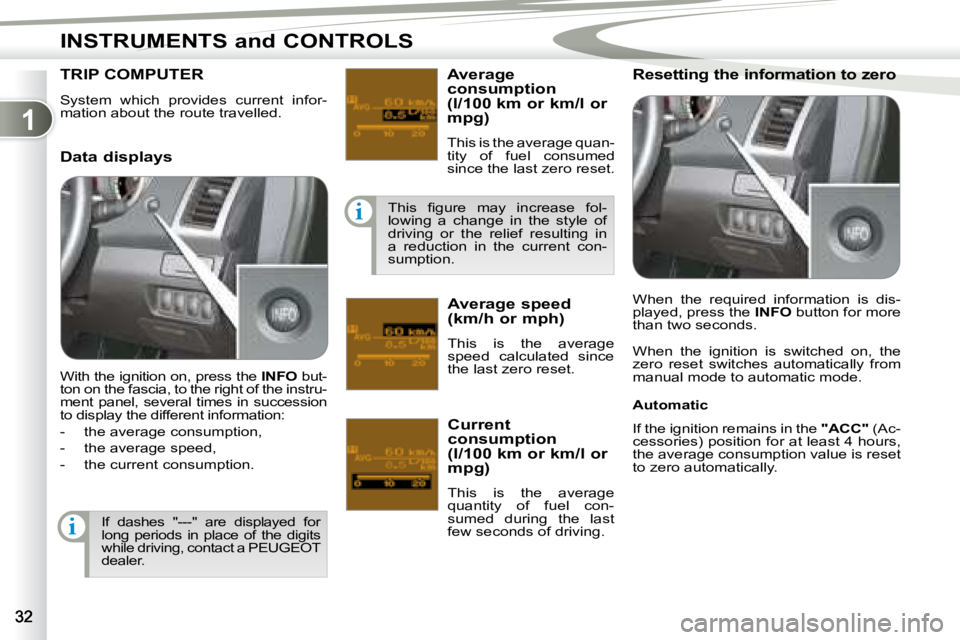

TRIP COMPUTER Average
c o n s u m p t i o n
(l/100 km or km/l or
m p g )
T h i s i s t h e a v e r a g e q u a n -
tity of fuel consumed
since the last zero reset.
T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief resulting in
a reduction in the current con-
sumption.
A v e r a g e s p e e d
( k m / h o r m p h )
This is the average
speed calculated since
the last zero reset. R e s e t t i n g t h e i n f o r m a t i o n t o z e r o
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
Automatic
If the ignition remains in the
"ACC" (Ac-
cessories) position for at least 4 hours,
the average consumption value is reset
to zero automatically.
If dashes "---" are displayed for
long periods in place of the digits
while driving, contact a PEUGEOT
dealer.
Current
c o n s u m p t i o n
(l/100 km or km/l or
m p g )
This is the average
q u a n t i t y o f f u e l c o n -
sumed during the last
few seconds of driving.
D a t a d i s p l a y s
With the ignition on, press the
INFO but-
ton on the fascia, to the right of the instru-
ment panel, several times in succession
to display the different information:
- the average consumption,
- the average speed,
- the current consumption. W h e n t h e r e q u i r e d i n f o r m a t i o n i s d i s -
played, press the
INFO button for more
than two seconds.
Page 32 of 221
1
i
i
INSTRUMENTS and CONTROLS
When the vehicle is
s t a t i o n a r y , it allows the
user to change the fol-
lowing parameters:
- the choice of the reini- tialisation of the aver-
age consumption and
average speed,
- the fuel consumption unit,
- the temperature display unit,
- the display language,
- activation/deactivation of the INFO
button sound,
- the break (rest) reminder display in- terval,
-
restore the manufacturer’s parameters.

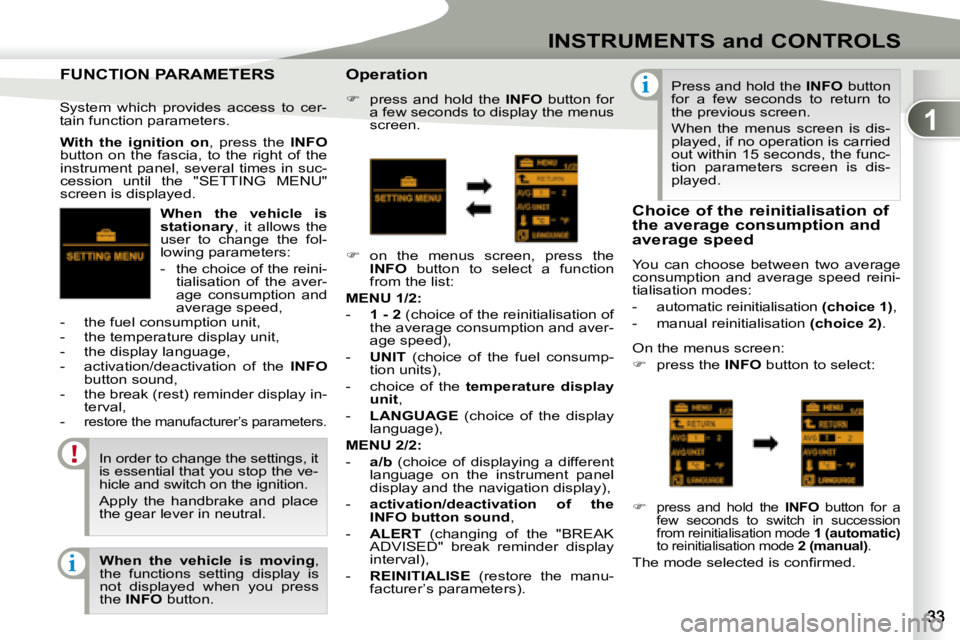

FUNCTION PARAMETERS FUNCTION PARAMETERS
System which provides access to cer-
tain function parameters.
In order to change the settings, it
is essential that you stop the ve-
hicle and switch on the ignition.
Apply the handbrake and place
the gear lever in neutral.
When the vehicle is moving ,
the functions setting display is
not displayed when you press
the INFO button.
With the ignition on , press the INFO
button on the fascia, to the right of the
instrument panel, several times in suc-
cession until the "SETTING MENU"
screen is displayed. O p e r a t i o n
press and hold the INFO button for
a few seconds to display the menus
screen. Press and hold the
INFO button
for a few seconds to return to
the previous screen.
When the menus screen is dis-
played, if no operation is carried
out within 15 seconds, the func-
tion parameters screen is dis-
played.
on the menus screen, press the
INFO button to select a function
from the list:
MENU
1/2
:
- 1 - 2 (choice of the reinitialisation of
the average consumption and aver-
age speed),
- UNIT (choice of the fuel consump-
tion units),
- choice of the t e m p e r a t u r e d i s p l a y
unit ,
- LANGUAGE (choice of the display
language),
MENU
2 / 2 :
- a/b (choice of displaying a different
language on the instrument panel
display and the navigation display),
- a c t i v a t i o n / d e a c t i v a t i o n o f t h e
INFO button sound ,
- ALERT (changing of the "BREAK
ADVISED" break reminder display
interval),
- REINITIALISE (restore the manu-
facturer’s parameters). C h o i c e o f t h e r e i n i t i a l i s a t i o n o f
t h e a v e r a g e c o n s u m p t i o n a n d
a v e r a g e s p e e d
You can choose between two average
consumption and average speed reini-
tialisation modes:
- automatic reinitialisation
(choice 1) ,
- manual reinitialisation (choice 2) .
On the menus screen:
press the INFO button to select:
press and hold the INFO button for a
few seconds to switch in succession
from reinitialisation mode 1
(automatic)
to reinitialisation mode 2 (manual) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
Page 33 of 221
1
i
i
INSTRUMENTS and CONTROLS

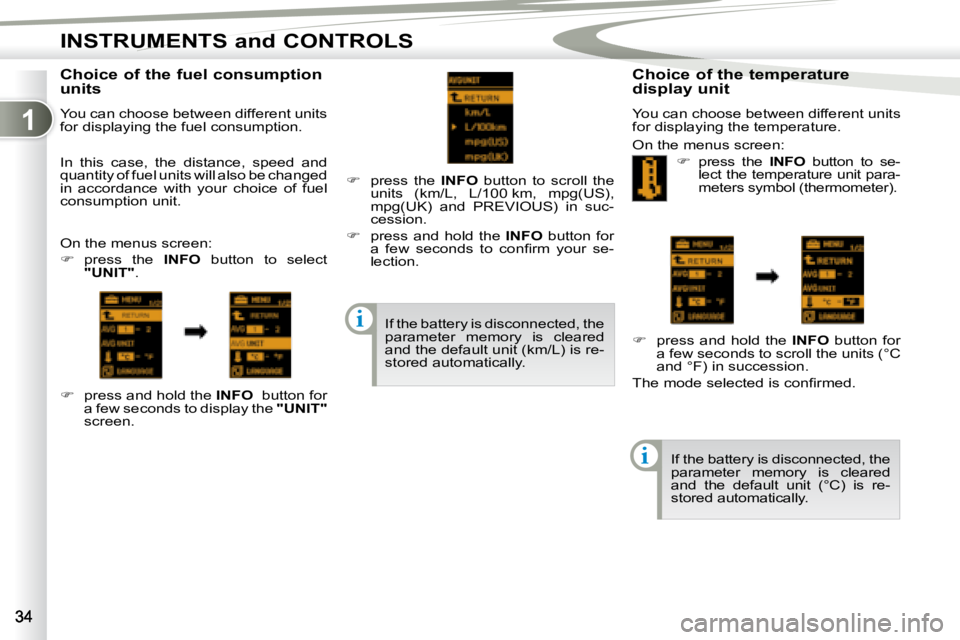

C h o i c e o f t h e f u e l c o n s u m p t i o n
units
You can choose between different units
for displaying the fuel consumption.
On the menus screen:
press the INFO button to select
"UNIT" .
press and hold the INFO button for
a few seconds to display the "UNIT"
screen.
press the INFO button to scroll the
units (km/L, L/100 km, mpg(US),
mpg(UK) and PREVIOUS) in suc-
cession.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m y o u r s e -
lection.
In this case, the distance, speed and
q u a n t i t y o f f u e l u n i t s w i l l a l s o b e c h a n g e d
in accordance with your choice of fuel
consumption unit.
If the battery is disconnected, the
parameter memory is cleared
and the default unit (km/L) is re-
stored automatically. C h o i c e o f t h e t e m p e r a t u r e
d i s p l a y u n i t
You can choose between different units
for displaying the temperature.
On the menus screen:
press the INFO button to se-
lect the temperature unit para-
meters symbol (thermometer).
press and hold the INFO button for
a few seconds to scroll the units (°C
and °F) in succession.
T h e m o d e s e l e c t e d i s c o n fi r m e d .
If the battery is disconnected, the
parameter memory is cleared
and the default unit (°C) is re-
stored automatically.
Page 34 of 221
1
i
i
ii
INSTRUMENTS and CONTROLS

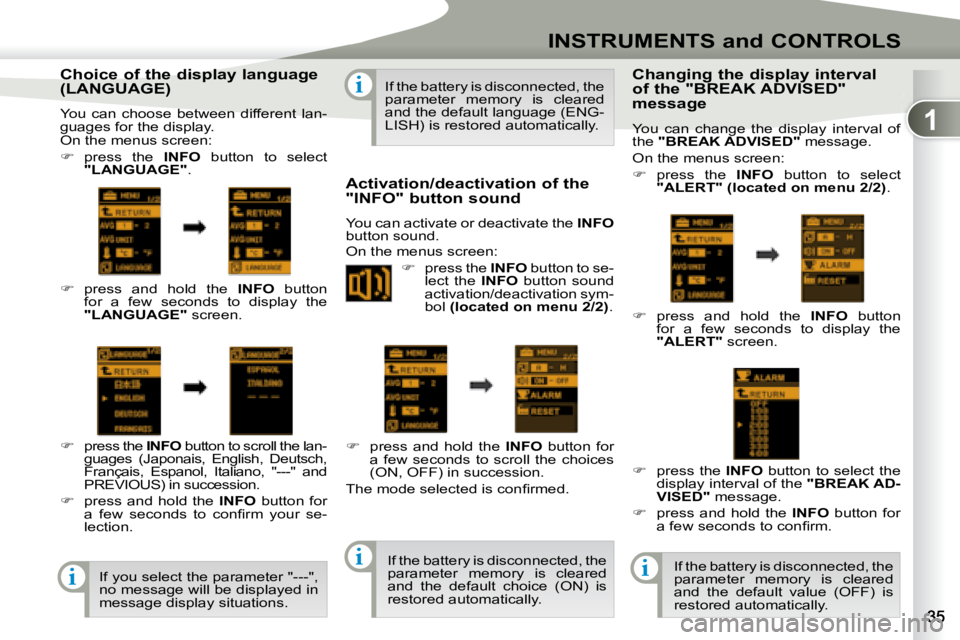

C h o i c e o f t h e d i s p l a y l a n g u a g e
(LANGUAGE)
You can choose between different lan-
guages for the display.
On the menus screen:
press the INFO button to select
"LANGUAGE" .
press and hold the INFO button
for a few seconds to display the
"LANGUAGE" screen.
press the INFO button to scroll the lan-
guages (Japonais, English, Deutsch,
Français, Espanol, Italiano, "---" and
PREVIOUS) in succession.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m y o u r s e -
lection.
If you select the parameter "---",
no message will be displayed in
message display situations. If the battery is disconnected, the
parameter memory is cleared
and the default language (ENG-
LISH) is restored automatically.
A c t i v a t i o n / d e a c t i v a t i o n o f t h e
"INFO" button sound
You can activate or deactivate the INFO
button sound.
On the menus screen:
press the INFO button to se-
lect the INFO button sound
activation/deactivation sym-
bol (located on menu 2/2) .
press and hold the INFO button for
a few seconds to scroll the choices
(ON, OFF) in succession.
T h e m o d e s e l e c t e d i s c o n fi r m e d .
If the battery is disconnected, the
parameter memory is cleared
and the default choice (ON) is
restored automatically. C h a n g i n g t h e d i s p l a y i n t e r v a l
o f t h e " B R E A K A D V I S E D "
message
You can change the display interval of
the
"BREAK ADVISED" message.
On the menus screen:
press the INFO button to select
"ALERT" (located on menu 2/2) .
press and hold the INFO button
for a few seconds to display the
"ALERT" screen.
press the INFO button to select the
display interval of the "BREAK AD-
VISED" message.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m .
If the battery is disconnected, the
parameter memory is cleared
and the default value (OFF) is
restored automatically.
Page 35 of 221
1
i
INSTRUMENTS and CONTROLS

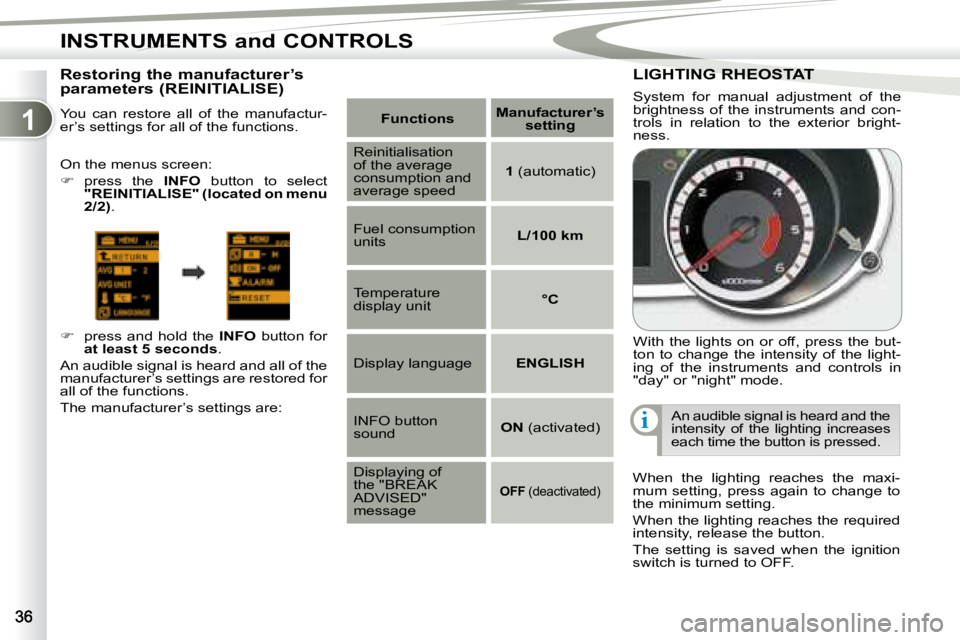

R e s t o r i n g t h e m a n u f a c t u r e r ’ s
p a r a m e t e r s ( R E I N I T I A L I S E )
You can restore all of the manufactur-
er’s settings for all of the functions.
On the menus screen:
press the INFO button to select
"REINITIALISE" (located on menu
2/2) .
press and hold the INFO button for
at least 5 seconds .
An audible signal is heard and all of the
manufacturer’s settings are restored for
all of the functions.
The manufacturer’s settings are: LIGHTING RHEOSTAT LIGHTING RHEOSTAT
With the lights on or off, press the but-
ton to change the intensity of the light-
ing of the instruments and controls in
"day" or "night" mode.
When the lighting reaches the maxi-
mum setting, press again to change to
the minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and the
intensity of the lighting increases
each time the button is pressed.
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior bright-
ness.
Functions
M a n u f a c t u r e r ’ s
setting
Reinitialisation
of the average
consumption and
average speed
1 (automatic)
Fuel consumption
units
L/100 km
Temperature
display unit
°C
Display language ENGLISH
INFO button
sound
ON (activated)
Displaying of
the "BREAK
ADVISED"
message
OFF (deactivated)
Page 36 of 221
1
i
INSTRUMENTS and CONTROLS
R e s t o r i n g t h e m a n u f a c t u r e r ’ s
p a r a m e t e r s ( R E I N I T I A L I S E )
You can restore all of the manufactur-
er’s settings for all of the functions.
On the menus screen:
press the INFO button to select
"REINITIALISE" (located on menu
2/2) .
press and hold the INFO button for
at least 5 seconds .
An audible signal is heard and all of the
manufacturer’s settings are restored for
all of the functions.
The manufacturer’s settings are: LIGHTING RHEOSTAT LIGHTING RHEOSTAT
With the lights on or off, press the but-
ton to change the intensity of the light-
ing of the instruments and controls in
"day" or "night" mode.
When the lighting reaches the maxi-
mum setting, press again to change to
the minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and the
intensity of the lighting increases
each time the button is pressed.
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior bright-
ness.
Functions
M a n u f a c t u r e r ’ s
setting
Reinitialisation
of the average
consumption and
average speed
1 (automatic)
Fuel consumption
units
L/100 km
Temperature
display unit
°C
Display language ENGLISH
INFO button
sound
ON (activated)
Displaying of
the "BREAK
ADVISED"
message
OFF (deactivated)
Page 37 of 221
1
i
INSTRUMENTS and CONTROLS

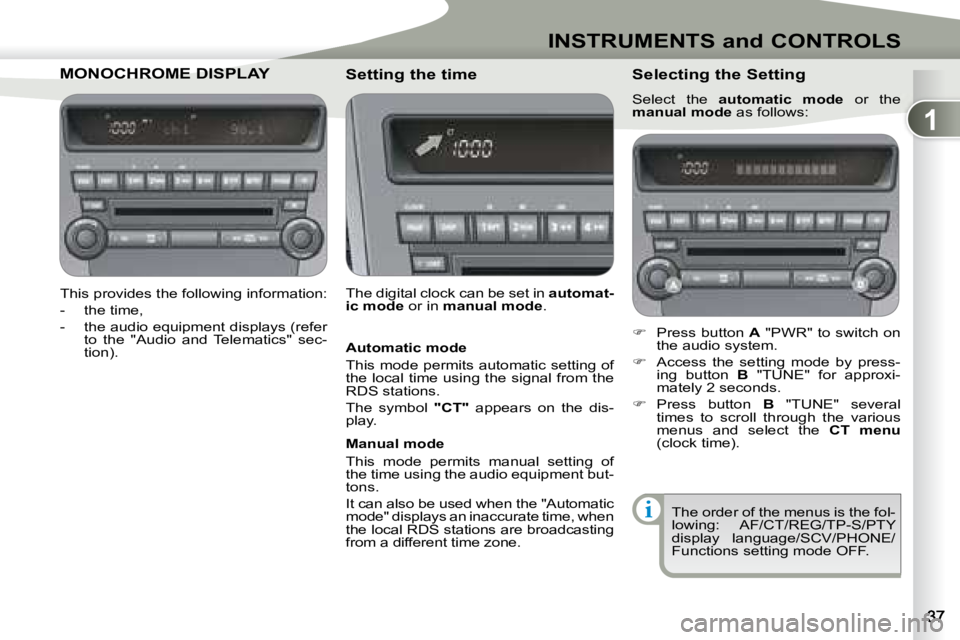

MONOCHROME DISPLAMONOCHROME DISPLAY
This provides the following information:
- the time,
- t h e a u d i o e q u i p m e n t d i s p l a y s ( r e f e r to the "Audio and Telematics" sec-
tion). Setting the time
The digital clock can be set in
automat-
ic mode or in manual mode . Selecting the Setting
Select the
automatic mode or the
manual mode as follows:
Press button A "PWR" to switch on
the audio system.
Access the setting mode by press-
ing button B "TUNE" for approxi-
mately 2 seconds.
Press button B "TUNE" several
times to scroll through the various
menus and select the CT menu
(clock time).
The order of the menus is the fol-
lowing: AF/CT/REG/TP-S/PTY
display language/SCV/PHONE/
Functions setting mode OFF.
Automatic mode
This mode permits automatic setting of
the local time using the signal from the
RDS stations.
The symbol
"CT" appears on the dis-
play.
Manual mode
This mode permits manual setting of
t h e t i m e u s i n g t h e a u d i o e q u i p m e n t b u t -
tons.
It can also be used when the "Automatic
mode" displays an inaccurate time, when
the local RDS stations are broadcasting
from a different time zone.
Page 38 of 221
1
i
i
INSTRUMENTS and CONTROLS

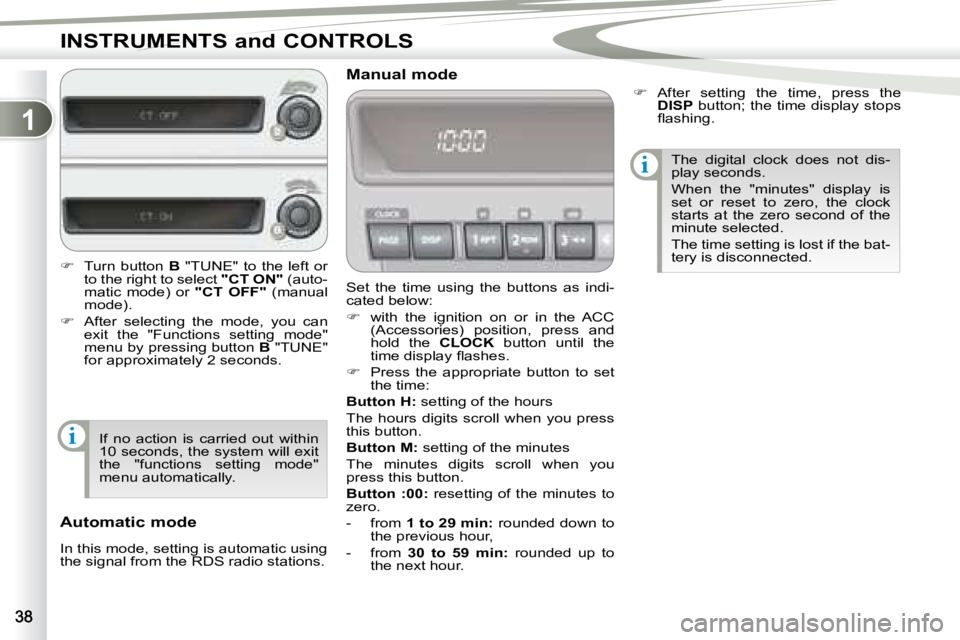

Set the time using the buttons as indi-
cated below:
with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK button until the
t i m e d i s p l a y fl a s h e s .
Press the appropriate button to set
the time:
Button
H : setting of the hours
The hours digits scroll when you press
this button.
B u t t o n M : setting of the minutes
The minutes digits scroll when you
press this button.
B u t t o n : 0 0 : resetting of the minutes to
zero.
- from 1 to 29 min
: rounded down to
the previous hour,
- from 3 0 t o 5 9 m i n : rounded up to
the next hour.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations.
After setting the time, press the
DISP button; the time display stops
fl a s h i n g .
The digital clock does not dis-
play seconds.
When the "minutes" display is
set or reset to zero, the clock
starts at the zero second of the
minute selected.
The time setting is lost if the bat-
tery is disconnected.
Turn button B "TUNE" to the left or
to the right to select "CT ON" (auto-
matic mode) or "CT OFF" (manual
mode).
After selecting the mode, you can
exit the "Functions setting mode"
menu by pressing button B "TUNE"
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the "functions setting mode"
menu automatically.
Page 39 of 221
1
i
INSTRUMENTS and CONTROLS

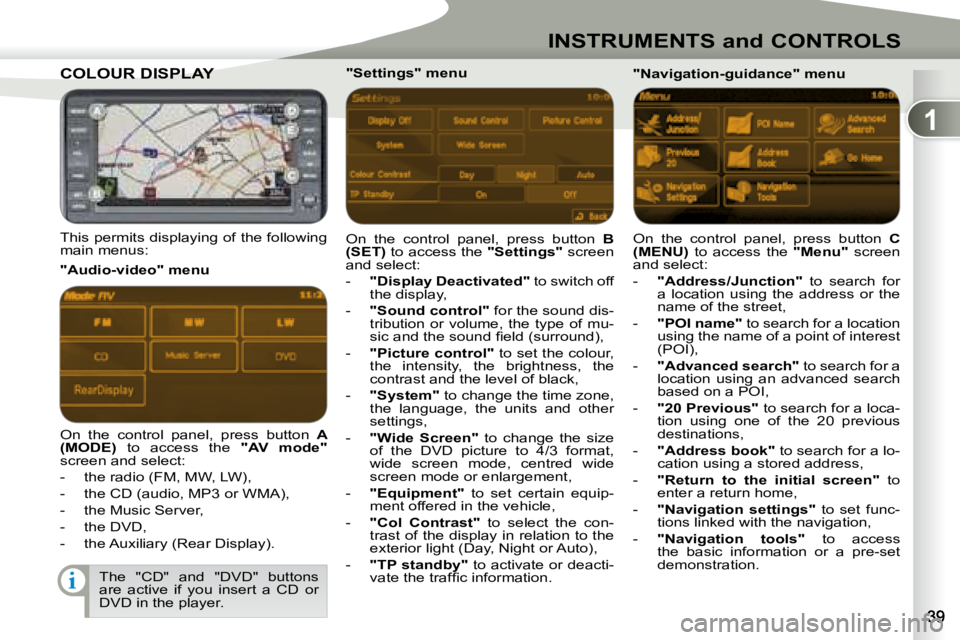

COLOUR DISPLAY COLOUR DISPLAY
This permits displaying of the following
main menus: On the control panel, press button
B
(SET) to access the "Settings" screen
and select:
- " D i s p l a y D e a c t i v a t e d " to switch off
the display,
- "Sound control" for the sound dis-
tribution or volume, the type of mu-
s i c a n d t h e s o u n d fi e l d ( s u r r o u n d ) ,
- "Picture control" to set the colour,
the intensity, the brightness, the
contrast and the level of black,
- " S y s t e m " to change the time zone,
the language, the units and other
settings,
- "Wide Screen" to change the size
of the DVD picture to 4/3 format,
wide screen mode, centred wide
screen mode or enlargement,
- " E q u i p m e n t " t o s e t c e r t a i n e q u i p -
ment offered in the vehicle,
- "Col Contrast" to select the con-
trast of the display in relation to the
exterior light (Day, Night or Auto),
- " T P s t a n d b y " to activate or deacti-
v a t e t h e t r a f fi c i n f o r m a t i o n .
"Audio-video" menu
"Navigation-guidance" menu
On the control panel, press button A
(MODE) to access the "AV mode"
screen and select:
- the radio (FM, MW, LW),
- the CD (audio, MP3 or WMA),
- the Music Server,
- the DVD,
- the Auxiliary (Rear Display). "Settings" menu
On the control panel, press button C
(MENU) to access the "Menu" screen
and select:
- "Address/Junction" to search for
a location using the address or the
name of the street,
- "POI name" to search for a location
using the name of a point of interest
(POI),
- "Advanced search" to search for a
location using an advanced search
based on a POI,
- "20 Previous" to search for a loca-
tion using one of the 20 previous
destinations,
- "Address book" to search for a lo-
cation using a stored address,
- "Return to the initial screen" to
enter a return home,
- "Navigation settings" to set func-
tions linked with the navigation,
- "Navigation tools" to access
the basic information or a pre-set
demonstration.
The "CD" and "DVD" buttons
are active if you insert a CD or
DVD in the player.
Page 40 of 221
1
INSTRUMENTS and CONTROLS

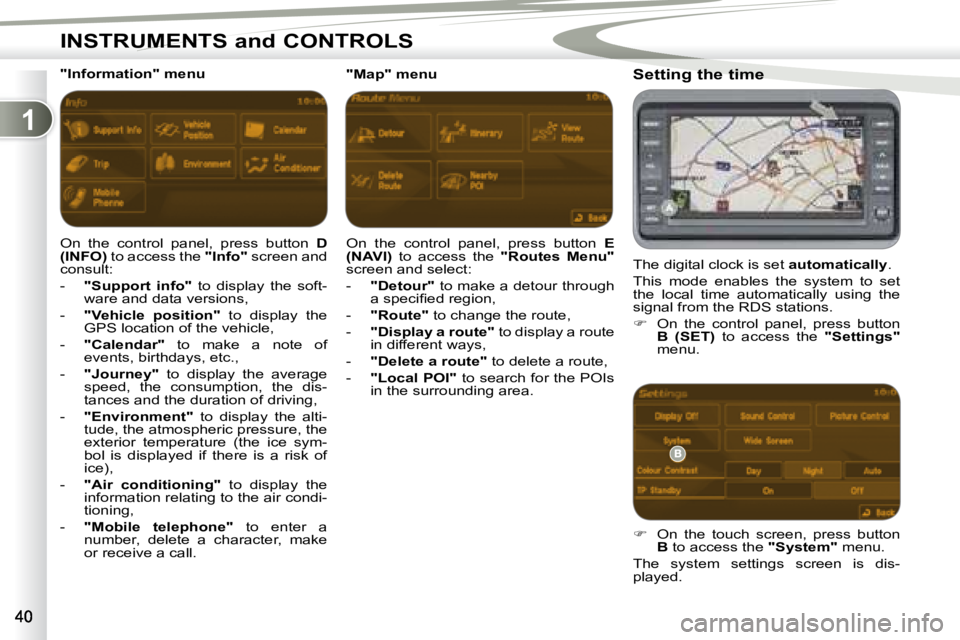

Setting the time
The digital clock is set a u t o m a t i c a l l y .
This mode enables the system to set
the local time automatically using the
signal from the RDS stations.
On the control panel, press button
B
(SET) to access the "Settings"
menu.
On the touch screen, press button
B to access the " S y s t e m " menu.
The system settings screen is dis-
played.
" I n f o r m a t i o n " m e n u
On the control panel, press button
D
(INFO) to access the " I n f o " screen and
consult:
- " S u p p o r t i n f o " to display the soft-
ware and data versions,
- " V e h i c l e p o s i t i o n " to display the
GPS location of the vehicle,
- "Calendar" to make a note of
events, birthdays, etc.,
- " J o u r n e y " to display the average
speed, the consumption, the dis-
tances and the duration of driving,
- "Environment" to display the alti-
tude, the atmospheric pressure, the
exterior temperature (the ice sym-
bol is displayed if there is a risk of
ice),
- "Air conditioning" to display the
information relating to the air condi-
tioning,
- " M o b i l e t e l e p h o n e " to enter a
number, delete a character, make
or receive a call. " M a p " m e n u
On the control panel, press button
E
(NAVI) to access the "Routes Menu"
screen and select:
- "Detour" to make a detour through
a s p e c i fi e d r e g i o n ,
- "Route" to change the route,
- " D i s p l a y a r o u t e " to display a route
in different ways,
- "Delete a route" to delete a route,
- "Local POI" to search for the POIs
in the surrounding area.
